USER MANUAL Profile PT960SMSS GE

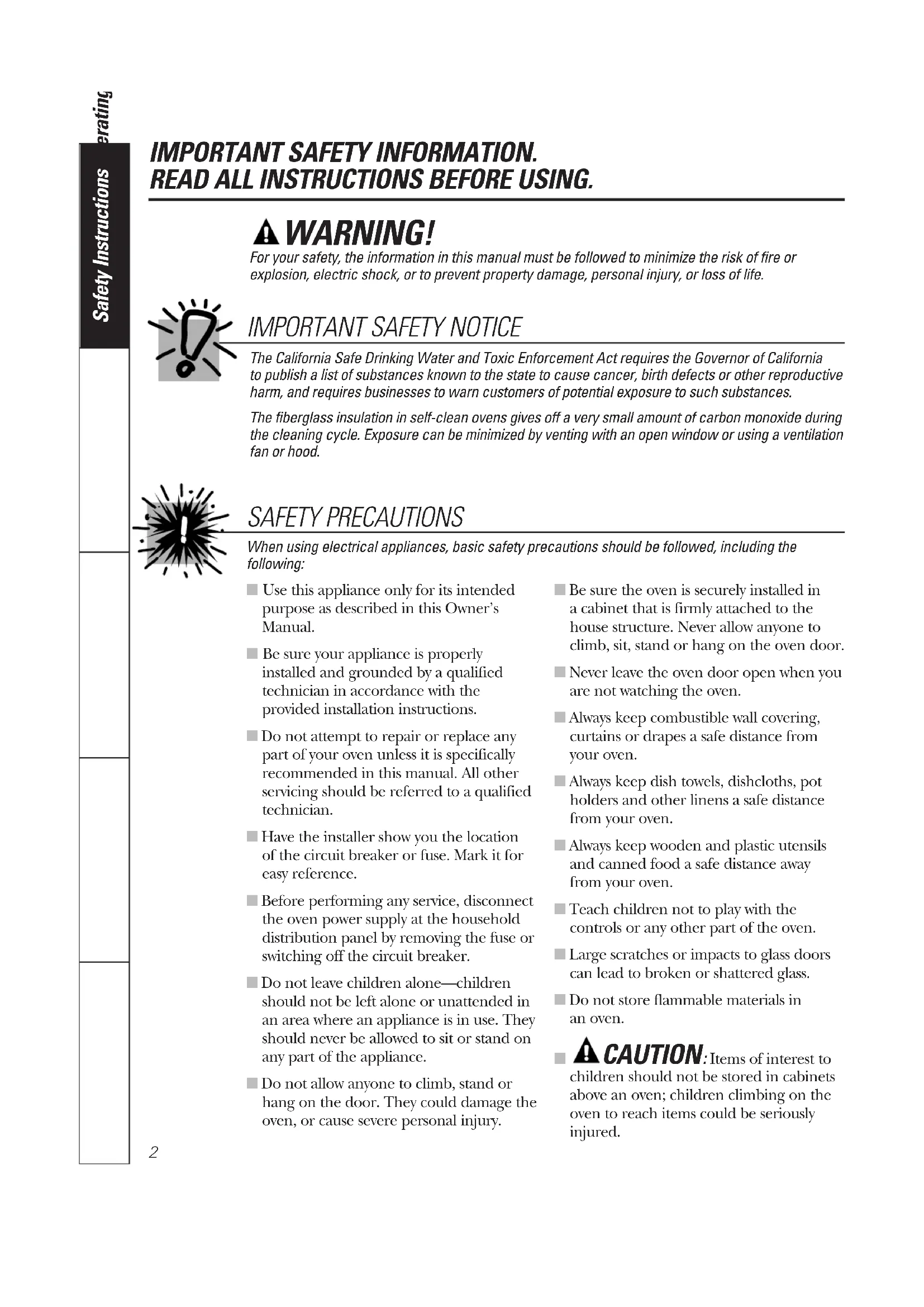

WARNING! For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, personal injury, or loss of life.

IMPORTANT SAFETY NOTICE

The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to publish a list of substances known to the state to cause cancer, birth defects or other reproductive harm, and requires businesses to warn customers of potential exposure to such substances. The fiberglass insulation in self-clean ovens gives off a very small amount of carbon monoxide during the cleaning cycle. Exposure can be minimized by venting with an open window or using a ventilation fan or hood.■ Never wear loose-fitting or hanging garments while using the appliance. Be careful when reaching for items stored in cabinets over the oven. Flammable material could be ignited if brought in contact with hot surfaces or heating elements and may cause severe burns. ■ Use only dry pot holders—moist or damp pot holders on hot surfaces may result in burns from steam. Do not let pot holders touch hot heating elements. Do not use a towel or other bulky cloth. ■ For your safety, never use your appliance for warming or heating the room. ■ Do not let cooking grease or other flammable materials accumulate in or near the oven. ■ Do not use water on grease fires. Never pick up a flaming pan. Turn the controls off. ■ Flame in the oven can be smothered completely by closing the oven door and turning the oven off or by using a multi-purpose dry chemical or foam-type fire extinguisher. ■ Do not touch the heating elements or the interior surface of the oven. These surfaces may be hot enough to burn even though they are dark in color. During and after use, do not touch, or let clothing or other flammable materials contact any interior area of the oven; allow sufficient time for cooling first. ■ Potentially hot surfaces include oven vent openings, surfaces near the openings, crevices around the oven door, the edges of the window and metal trim parts above the door. ■ REMEMBER: The inside surface of the oven may be hot when the door is opened. ■ Never place cooking utensils or any other items on the oven floor. There is a heating element beneath the oven floor. Placing items on the oven floor may cause the oven to overheat, resulting in damage to the oven and risk of damage or fire to cabinets. ■ Never leave jars or cans of fat drippings in or near your oven. ■ Do not store or use combustible materials, gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. ■ Stand away from the oven when opening the oven door. Hot air or steam which escapes can cause burns to hands, face and/or eyes. ■ Do not heat unopened food containers. Pressure could build up and the container could burst, causing an injury. ■ Keep the oven vent unobstructed. ■ Keep the oven free from grease buildup. ■ Place the oven rack in the desired position while the oven is cool. If racks must be handled when hot, do not let pot holder contact the heating elements. ■ When using cooking or roasting bags in the oven, follow the manufacturer’s directions. ■ Pulling out the standard racks to their stop-locks or the extension rack to its fully open position is a convenience in lifting heavy foods. It is also a precaution against burns from touching hot surfaces of the door or oven walls. ■ Do not use the oven to dry newspapers. If overheated, they can catch on fire. ■ Do not use the oven for a storage area. Items stored in an oven can ignite. ■ Do not leave paper products, cooking utensils or food in the oven when not in use. ■ After broiling, always take any broiler pan out of the oven and clean it. Leftover grease in a broiler pan can catch fire next time you use the pan. ■ Clean only parts listed in this Owner’s Manual. ■ Do not use aluminum foil to line oven bottoms. Improper installation of aluminum foil may result in a risk of electric shock or fire. WARNING! SAFETY PRECAUTIONS GEAppliances.com

Safety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Consumer SupportCook meat and poultry thoroughly—meat to at least an INTERNAL temperature of 160°F and poultry to at least an INTERNAL temperature of 180°F. Cooking to these temperatures usually protects against foodborne illness.

COOK MEAT AND POULTRY THOROUGHLY…

■ Do not clean the door gasket. The door gasket is essential for a good seal. Care should be taken not to rub, damage or move the gasket. ■ Do not use oven cleaners. No commercial oven cleaner or oven liner protective coating of any kind should be used in or around any part of the oven. Residue from oven cleaners will damage the inside of the oven when the self-clean cycle is used. ■ Before self-cleaning the oven, remove the probe and any broiler pan, grid and other cookware. ■ Be sure to wipe up excess spillage before starting the self-cleaning operation. ■ If the self-cleaning mode malfunctions, turn the oven off and disconnect the power supply. Have it serviced by a qualified technician. SELF-CLEANING OVEN READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.

SAVE THESE INSTRUCTIONS

Safety InstructionsOperating InstructionsCare and CleaningTroubleshooting TipsConsumer Support IMPORTANT SAFETY INFORMATION. READ ALL INSTRUCTIONS BEFORE USING.SELECT COOK MODE FAVORITE RECIPE BROIL PROBE BAKE KITCHEN TIMER CONVECTION ROAST SELF CLEAN CONVECTION BAKE BACK CLEAROFF HELP HOME OPTIONS OVENLIGHTOVENLIGHT3 SEC NOTE: If the oven is inactive for 10 minutes, the Touch Screen will go into standby mode, and the screen will be dark. Touch the Touch Screen or any pad to “wake up” the display. The Display may also “wake up” when it senses you (your hand) approaching the Touch Screen. The display is sensitive and may “wake up” when lights are turned on or due to the movement of nearby people or objects. The Display should return to its standby mode after 10 minutes if no further interaction occurs. Touch Screen BAKE Touch to select the bake function. BROIL Touch to select the broil function (HIGH BROIL or LOW BROIL) or the BROIL GUIDE. FAVORITE RECIPE Touch to use, create, rename, modify or delete a favorite recipe. PROBE Touch when using the probe to cook food. CONVECTION BAKE Touch to select baking with the convection function. CONVECTION ROAST Touch to select roasting with the convection function. KITCHEN TIMER Touch to select the timer feature. SELF CLEAN Touch to select the self-cleaning function. See the Using the self-cleaning oven section. Touch Pads HOME Pad Touch to return to the “SELECT COOK MODE” (Home) Screen. This does not cancel any cooking or self-clean settings. HELP Pad Touch this pad to find out more about your oven’s features. BACK Pad Touch to return to the previous screen. CLEAR/OFF Pad Touch to cancel ALL oven operations except the clock and timer. OVEN LIGHT On/Off Pad(s) Touch to turn the oven light(s) on or off. OPTIONS Pad Touch to select TWO TEMPS, DELAY START, PROOF, DEHYDRATE, WARM, COOK & HOLD, SABBATH or SETTINGS. Display Display Shows the time of day. Error Codes If “F–” and a number or letter flash in the display and the oven control signals, this indicates a function error code. Touch the CLEAR/OFF pad. Allow the oven to cool for one hour. Put the oven back into operation. If the function error code repeats, disconnect the power to the oven and call for service. If there has been a power outage: If your oven was set for a timed oven operation and a power outage occurred, the clock and all programmed functions must be reset. The time of day will flash in the display when there has been a power outage.

Introduction to the oven controls. (Throughout this manual, features and appearance may vary from your model.) GEAppliances.com Safety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Consumer Support Touch Screen, Touch Pads and Time of Day Display Double oven control shown. Touch Screen Touch the graphics on the interactive display to use the oven features.6 Safety InstructionsOperating InstructionsCare and CleaningTroubleshooting TipsConsumer Support Using the oven. Before you begin… CAUTION:To avoid possible burns, place the racks in the desired position before you turn the oven on. The racks are designed so that when placed correctly in the oven on the supports, they will stop before coming completely out, and will not tilt. NOTE: The oven has 7 rack positions. CAUTION:Never place cooking utensils or any other items on the oven floor. There is a heating element beneath the oven floor. Placing items on the oven floor may cause the oven to overheat, resulting in damage to the oven and risk of damage or fire to cabinets. Standard Racks When placing and removing cookware, pull the rack out to the bump (stop position) on the rack support. To remove a rack, pull it toward you, tilt the front end up and pull it out. To replace, place the curved end of the rack (stop-locks) onto the oven supports, tilt up the front of the rack and push the rack in.GEAppliances.com Safety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Consumer Support Extension Rack When placing and removing cookware, always pull the rack out by its upper front rail to its fully open position. NOTE: Do not extend the rack quickly. Food may slide off the front of the rack. To remove the rack: Make sure the rack is pushed all the way into the oven. Pull both release levers toward the front of the rack, hold them and slide the rack toward you to the bump (stop position) on the rack support. Firmly grasp both sides of the rack frame and the sliding rack, tilt the front end up and pull it out. NOTE: When handling the extension rack, do not allow the sliding portion to fall open. This can damage the slides. To replace the rack: Firmly grasp both sides of the rack frame and the sliding rack. Place the curved end of the rack (stop-locks) onto the oven supports, tilt up the front of the rack and push it in as far as it will go. CAUTION:Never use the rack when its frame is not fully inserted in the oven and locked into position. ■ When the rack is properly installed and locked into position, the locking side paddles on the rack frame will click-lock into place on the oven supports. If the side paddles did not click-lock into position, repeat the steps above and make sure the side paddles have been correctly cleaned and lubricated. See Extension Rack in the Care and cleaning section. ■ Do not place the extension rack in the highest position in the oven. Upper Front Rail Release Levers Fully Open Position

Aluminum Foil Pan Placement Baking Pan/Sheets Preheating Oven Airflow Do not use aluminum foil on the bottom of the oven. Never entirely cover a rack with aluminum foil. This will disturb the heat circulation and result in poor baking. A smaller sheet of foil may be used to catch a spillover by placing it on a lower rack several inches below the food. For even cooking and proper browning, there must be enough room for air circulation in the oven. Baking results will be better if baking pans are centered as much as possible rather than being placed to the front or to the back of the oven. Pans should not touch each other or the walls of the oven. Allow 1″ to 1

⁄2″ space between pans as well as between pans and oven walls. NOTE: For convection baking of cookies, see the Multi-Rack Convection Baking section. Use the proper baking pan. The type of finish on the pan determines the amount of browning that will occur.

• Shiny, bright and smooth pans reflect heat, resulting in a lighter, more delicate browning. Cakes and cookies require this type of pan or sheet.

• Dark, rough or dull pans absorb heat resulting in a browner, crisper crust. Use this type for pies.

• Glass baking dishes also absorb heat. When baking in glass baking dishes, the temperature may need to be reduced by 25°F. Allow the oven to preheat before placing food in the oven. Preheating is necessary for good results when baking cakes, cookies, pastry and breads. To preheat, set the oven at the correct temperature. The convection fan will turn on during preheating. The control will signal when the oven is preheated—this will take approximately 10 minutes. The screen will show the set temperature. When the control signals, foods should be placed in the oven. An internal cooling fan operates during all oven modes. The warm air from inside the oven will be exhausted out through vents located at the bottom of the oven door. Intake air will be pulled into the oven through vents located between the door and the control panel. Do not allow this airflow to be obstructed by blocking the vents at the bottom of the door, or at the top of the door by draping kitchen towels over the front of the oven in undercounter applications.9 Safety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Consumer Support How to Set the Oven for Baking or Roasting Touch BAKE. For double oven models only, touch UPPER OVEN or LOWER OVEN to select the desired oven. Touch the numbers to set the desired temperature. Touch ENTER. Touch START. The convection fan will turn on during preheating. The control will signal when the oven is preheated—this will take approximately 10 minutes. The screen will show the set temperature. When the control signals, foods should be placed in the oven. For double oven models only, to set the second oven, select PRESS TO MAKE LOWER OVEN SELECTIONS or PRESS TO MAKE UPPER OVEN SELECTIONS as needed and follow the above steps. The set temperature may be changed by touching CHANGE TIME-TEMP. The settings may be cancelled by touching CANCEL. The timer can be set by touching SET KITCHEN TIMER. See the Kitchen timer section. Check food for doneness at minimum time on recipe. Cook longer if necessary. Touch CANCEL when cooking is complete. If baking four cake layers at the same time, place two layers on rack B and two layers on rack E. Stagger pans on the rack so one is not directly above the other

Type of Food Rack Position Frozen pies C or D(on cookie sheet)Angel food cake ABundt or pound cakes B or CBiscuits, muffins, C or Dbrownies, cookies, cupcakes, layer cakes, piesCasseroles C or DNOTE: A cooling fan mayautomatically turn on and off tocool internal parts. This is normal,and the fan may continue to runeven after the oven is turned off. Baking and roasting. GEAppliances.com The Type of Margarine Will Affect Baking Performance! Most recipes for baking have been developed using high-fat products such as butter or margarine (80% fat). If you decrease the fat, the recipe may not give the same results as with a higher-fat product. Recipe failure can result if cakes, pies, pastries, cookies or candies are made with low-fat spreads. The lower the fat content of a spread product, the more noticeable these differences become. Federal standards require products labeled “margarine” to contain at least 80% fat by weight. Low-fat spreads, on the other hand, contain less fat and more water. The high- moisture content of these spreads affect the texture and flavor of baked goods. For best results with your old favorite recipes, use margarine, butter or stick spreads containing at least 70% vegetable oil. STARTENTERBAKE0987654321

UPPER OVEN LOWER OVEN On double oven models only.Safety InstructionsOperating InstructionsCare and CleaningTroubleshooting TipsConsumer Support Timed baking and roasting. On double oven models, you can use timed baking in one oven while using self-clean in the other; you can also use timed baking in both ovens at the same time. NOTE: Foods that spoil easily—such as milk, eggs, fish, stuffings, poultry and pork—should not be allowed to sit for more than 1 hour before or after cooking. Room temperature promotes the growth of harmful bacteria. How to Set an Immediate Start and Automatic Stop The oven will turn on immediately and cook for a selected length of time. At the end of the cooking time, the oven will turn off automatically. Make sure the clock shows the correct time of day. Touch BAKE. For double oven models only, touch UPPER OVEN or LOWER OVEN to select the desired oven. Touch the numbers to set the desired temperature. Touch ENTER. Touch the numbers to set the desired length of cooking time. Touch ENTER. Two immediate start and automatic stop cooking options are available: ■ PRE-HEATED START – Touch to preheat the oven. The convection fan will turn on during preheating. The control will signal when the oven is preheated—this will take approximately 10 minutes. The screen will show the set temperature. When the control signals, place food in the oven. The timed cook will not start until the oven is preheated and START is touched. ■ COLD START – Touch to start the oven immediately and cook food without preheating. The convection fan will turn on. The cook time will start immediately. The oven will start and continue to cook for the programmed amount of time, then shut off automatically, unless the Cook and Hold feature was set. See the Cook and hold option section. For double oven models only, to set the second oven select PRESS TO MAKE LOWER OVEN SELECTIONS or PRESS TO MAKE UPPER OVEN SELECTIONS as needed and follow the above steps. The set temperature may be changed by touching CHANGE TIME-TEMP for the appropriate oven. The settings may be cancelled by touching CANCEL for the appropriate oven. The timer can be set by touching SET KITCHEN TIMER. See the Kitchen timer section. After cooking is complete the oven will signal and “MORE TIME” will display for five minutes. Check food for doneness. If more cooking time is needed, touch MORE TIME and enter additional cooking time. If not selected, the screen will automatically clear in five minutes.

ORYou can set the oven control to delay-start the oven, cook for a specific length of time and then turn off automatically. See also the Delay start option section. Make sure the clock shows the correct time of day. Touch BAKE. For double oven models only, touch UPPER OVEN or LOWER OVEN to select the desired oven. Touch the numbers to set the desired temperature. Touch ENTER. Touch the numbers to set the desired length of cooking time. Touch ENTER. Touch ADD BAKE OPTION. Touch DELAY START. Two delay start time setting options are available: ■ START COOK TIME – Touch and then use the numbers to set the amount of time before you want cooking to start. Touch ENTER. For example, if you want cooking to begin in 2 hours, enter 2, 0 and 0. ■ FINISH COOK TIME – Touch and then use the numbers to set the amount of time above the cooking time that you want cooking to finish. Touch ENTER. For example, if your cooking time is 2 hours and you want to serve dinner in 5 hours, then enter 5, 0 and 0 and the oven will start in 3 hours. Two start options are available when the delayed start time is reached: ■ PRE-HEATED START – Touch to select preheat. When the delayed start time is reached, the oven will turn on and preheat will begin. The convection fan will turn on during preheating. The control will signal when the oven is preheated—this will take approximately 10 to 15 minutes. The screen will show the set temperature. ■ COLD START – Touch to select for the oven to start immediately (without preheating) when the delayed start time is reached. The convection fan will turn on. For double oven models only, to set the second oven, select PRESS TO MAKE LOWER OVEN SELECTIONS or PRESS TO MAKE UPPER OVEN SELECTIONS as needed and follow the above steps. The set temperature may be changed by touching CHANGE TIME-TEMP for the appropriate oven. The settings may be cancelled by touching CANCEL for the appropriate oven. The timer can be set by touching SET KITCHEN TIMER. See the Kitchen Timer section. When the delayed start time is reached, the oven will start and continue to cook for the programmed amount of time, then shut off automatically, unless the Cook and Hold feature was set. See the Cook and hold option section. After cooking is complete, the oven will signal and “MORE TIME” will display for five minutes. Check food for doneness. If more cooking time is needed, touch MORE TIME and enter additional cooking time. If not selected, the screen will automatically clear in five minutes. Safety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Consumer Support GEAppliances.com

How to Set a Delayed Start and Automatic Stop

DELAY START On double oven models only.12 Safety InstructionsOperating InstructionsCare and CleaningTroubleshooting TipsConsumer Support Using the probe. For many foods, especially roasts and poultry, internal food temperature is the best test for doneness. The temperature probe takes the guesswork out of roasting by cooking foods to the exact doneness you want. Use of probes other than the one provided with this product may result in damage to the probe. Use the handles of the probe and plug when inserting and removing them from the meat and outlet. ■ To avoid damaging your probe, do not use tongs to pull on the cable when removing it. ■ To avoid breaking the probe, make sure food is completely defrosted before inserting. ■ To prevent possible burns, do not unplug the probe from the outlet until the oven has cooled. ■ Never leave your probe inside the oven during a self-cleaning cycle. ■ Do not store the probe in the oven. The temperature probe has askewer-like probe at one end and aplug at the other end that goes intothe outlet in the oven. After preparing the food, follow these directions for proper probe placement: ■ The tip of the probe should rest in the center of the food and should not touch bone, fat or gristle. ■ For roasts with no bone – insert the probe into the meatiest part of the roast. ■ For bone-in ham or lamb – insert the probe into the center of the lowest, largest muscle or joint. ■ For meat loaf or casseroles – insert the probe into the center of the food so that as much as possible of the metal shaft is covered. ■ For fish – insert the probe from just above the gill into the meatiest area parallel to the backbone. ■ For a whole turkey – insert the probe into the meatiest part of the inner thigh from below and parallel to the leg. ■ For a turkey breast – insert the probe into the meatiest part of the breast meat. CableHandlesProbe PlugSafety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Consumer Support

How to Set the Oven For Roasting When Using the Probe Insert the probe into the food. See the Using the probe section. Plug the probe into the outlet in the oven. Make sure it’s pushed all the way in. Close the oven door. Touch PROBE. For double oven models only, touch UPPER OVEN or LOWER OVEN to select the desired oven. Touch the numbers to set the desired internal food or meat temperature. (The maximum internal temperature for the food that you can set is 200°F.) Touch ENTER. Touch BAKE. Touch the numbers to set the desired oven temperature. Touch ENTER. The screen will prompt if the probe is inserted into the outlet and you have not set a probe temperature and touched ENTER. Touch START. The oven will turn on immediately and stay on until the oven is turned off. The convection fan will turn on (after a short delay) and 100°F will appear in the screen. (The temperature display will start to change once the internal temperature of the meat reaches 100°F.) After the internal temperature of the meat reaches 100°F, the changing internal temperature will be shown in the display. When the internal temperature of the meat reaches the number you have set, the probe and the oven turn off and the oven control signals. To stop the signal, touch the CLEAR/OFF pad. Use hot pads to remove the probe from the food. Do not use tongs to pull on it— they might damage it. For double oven models only, to set the second oven, select PRESS TO MAKE LOWER OVEN SELECTIONS or PRESS TO MAKE UPPER OVEN SELECTIONS as needed and follow the above steps. The set temperature may be changed by touching CHANGE TIME-TEMP for the appropriate oven. The settings may be cancelled by touching CANCEL for the appropriate oven. The timer can be set by touching SET KITCHEN TIMER. See the Kitchen timer section. CAUTION:To prevent possible burns, do not unplug the probe from the oven outlet until the oven has cooled. Do not store the probe in the oven. ■ If the probe is removed from the food before the final temperature is reached, a tone will sound and the screen will prompt until the probe is removed from the oven. ■ You can use the timer even though you cannot use timed oven operations.

UPPEROVENLOWEROVEN START ENTER PROBE BAKE ENTER GEAppliances.com On double oven models only.Safety InstructionsOperating InstructionsCare and CleaningTroubleshooting TipsConsumer Support Broiling. How to Set the Oven for Broiling Close the door. Always broil with the door closed. Touch BROIL. Place the food on a broiler grid in a broiler pan. For double oven models only, touch UPPER OVEN or LOWER OVEN to select the desired oven. Follow suggested rack positions in the Broiling Guide. The size, weight, thickness, starting temperature and your preference for doneness will affect broiling times. This guide is based on meats at refrigerator temperature. Touch HIGH BROIL or LOW BROIL. Touch START. NOTE: A cooling fan may automatically turn on and off to cool internal parts. This is normal, and the fan may continue to run even after the oven is turned off. The broiler does not need to be preheated for most broiling. However, foods that cook quickly, such as thin strips of meat or fish may require a short preheating period of 2 to 3 minutes to allow the food surface to brown in the same time the food takes to be cooked throughout. Turn the food only once during broiling. NOTE: Broil will not work if the temperature probe is plugged in. Never leave your probe inside the oven during a broil cycle. To set the second oven, select PRESS TO MAKE LOWER OVEN SELECTIONS or

PRESS TO MAKE UPPER OVEN SELECTIONS

as needed and follow the above steps. The set temperature may be changed by touching CHANGE TIME-TEMP. The settings may be cancelled by touching CANCEL. The timer can be set by touching SET KITCHEN TIMER. See the Kitchen timer section. When broiling is finished, touch CANCEL. Close the door. Always broil with the door closed.

START HIGHBROILLOWBROIL

If your oven is connected to 208 volts, rare steaks may be broiled bypreheating the broiler and positioningthe oven rack one position higher.Safety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Consumer Support

GEAppliances.com Broiling Guide Quantity and/ Rack First Side Second Side Food or Thickness Position Time (min.) Time (min.) Comments Ground Beef Well Done 1/2″ to 3/4″ thick E 10–12 7–9 Space evenly. Beef Steaks Rare † 3/4″ to 1″ thick E 8–10 5–8 Slash fat at edges. Medium E 10–14 8–12 Well Done E 12–15 7–10 Rare † 1

⁄2″ thick E 12–15 6–9 Medium E 15–18 8–11 Well Done E 18–22 10–14 Chicken Breast (bone in) C 25–35 15–20 Broil skin-side-down Breasts (boneless) C 20–25 15–20 first. Lo Broil Pieces D 25–35 15–20 Lo Broil Boneless D 15–20 10–15 Lobster Tails Do not Cut through back of 4 to 6 oz. each D 12–15 turn over. shell. Spread open. Lo Broil 6 to 8 oz. each D 18–25 N/A Fish Fillets 1/4″ to 1/2″ thick Hi Broil D 5–7 4–6 Handle and turn very Lo Broil F 5 5 carefully. Preheat broiler to increase browning. Ham Slices 1/4″ to 1/2″ thick D 5–7 4–6 (precooked) Pork Chops 2 (1/2″ thick) E 12–15 8–12 Slash fat at edges. Well Done 2 (1″ thick) about 1 lb. D 18–22 8–12 Garlic Bread E 3–4 N/A Lo Broil † The U.S. Department of Agriculture says “Rare beef is popular, but you should know that cooking it to only 140°F means some food poisoning organisms may survive.” (Source: Safe Food Book. Your Kitchen Guide. USDA Rev. June 1985.) The size, weight, thickness, starting temperature and your preference for doneness will affect broiling times. This guide is based on meats at refrigerator temperature.16 Safety InstructionsOperating InstructionsCare and CleaningTroubleshooting TipsConsumer Support Using the convection oven. Adapting Recipes… You can use your favorite recipes in the convection oven. When convection baking, reduce baking temperature by 25°F or activate the Auto Recipe

Conversion feature. See Auto Recipe

Conversion in the Options–Settings section. NOTE: The convection fan will cycle on and off while cooking to best distribute hot air in the oven. The convection oven fan shuts off when the oven door is opened. DO NOT leave the door open for long periods of time while using convection cooking or you may shorten the life of the convection heating element. In a convection oven, a fan circulates hot air over, under and around the food. This circulating hot air is evenly distributed throughout the oven cavity. As a result, foods are more evenly cooked and browned—often in less time with convection heat. ■ Ideal for evenly browned baked foods cooked on multiple racks. ■ Good for large quantities of baked foods. ■ Good results with cookies, biscuits, muffins, brownies, cupcakes, cream puffs, sweet rolls and bread. When convection baking with only 1 rack, follow the rack positions recommended in the Using the oven section. Because heated air is circulated throughout the oven, foods can be successfully baked using multiple racks. Multi-rack baking may increase cook times slightly for some foods but the overall result is time saved. Cookies, muffins, biscuits and other quickbreads give very good results with multi-rack baking. For two-rack baking, place one rack in the second (B) rack position. Place the other rack in the fourth (D) rack position. When baking on 3 racks, place one rack in the second (B) position, one in the fourth (D) position and one in the sixth (F) position. For best results when baking multiple racks of cookies in Multi-Rack Convection Bake mode, line up the front of the cookie sheets with the front edge of the racks. Multi-Rack Convection Baking Multi-rack position Convection Bake Cookie sheets lined up at the front edge of the oven racksSafety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Consumer Support

GEAppliances.com Cookware for Convection Cooking Before using your convection oven, check to see if your cookware leaves room for air circulation in the oven. If you are baking with several pans, leave space between them, and be sure the pans do not touch the walls of the oven. Paper and Plastic Heat-resistant paper and plastic containers that are recommended for use in regular ovens can be used in convection ovens. Plastic cookware that is heat-resistant to temperatures of 400°F can also be used. Metal and Glass Any type of cookware will work in your convection oven. However, metal pans heat the fastest and are recommended for convection baking. ■ Darkened or matte-finished pans will bake faster than shiny pans. ■ Glass or ceramic pans cook more slowly. For recipes like oven-baked chicken, use a pan with low sides. Hot air cannot circulate well around food in a pan with high sides. ■ Good for large tender cuts of meat, uncovered. The convection fan circulates the heated air evenly over and around the food. Meat and poultry are browned on all sides as if they were cooked on a rotisserie. The heated air seals in juices quickly for a moist and tender product while, at the same time, creating a rich golden brown exterior. When you are convection roasting, it is important that you use a broiler pan and grid for best convection roasting results. The pan is used to catch grease spills and the grid is used to prevent grease spatters. When baking cookies, you will get the best results if you use a flat cookie sheet instead of a pan with low sides. Convection Roast18 Safety InstructionsOperating InstructionsCare and CleaningTroubleshooting TipsConsumer Support Touch CONVECTION BAKE or CONVECTION ROAST. For double oven models only, touch UPPER OVEN or LOWER OVEN to select the desired oven. Two rack options are available: ■ SINGLE RACK – Touch for cooking food items on only one rack in convection bake. ■ MULTI-RACK – Touch for cooking food items on more than one rack (i.e. 2 or 3 racks) at the same time in Convection Bake. See the Multi-Rack Convection Baking section for more information. Touch the numbers to set the desired temperature. Touch ENTER. Touch START. The convection fan will turn on during preheating. The control will signal when the oven is preheated—this will take approximately 10 minutes. The screen will show the set temperature. When the control signals, foods should be placed in the oven. For double oven models only, to set the second oven, select PRESS TO MAKE LOWER OVEN SELECTIONS or PRESS

TO MAKE UPPER OVEN SELECTIONS

as needed and follow the above steps. The set temperature may be changed by touching CHANGE TIME-TEMP for the appropriate oven. The settings may be cancelled by touching CANCEL for the appropriate oven. The timer can be set by touching SET KITCHEN TIMER. See the Kitchen timer section. After cooking is complete, the oven will signal and “MORE TIME” will display for five minutes. Check food for doneness. If more cooking time is needed, touch MORE TIME and enter additional cooking time. If not selected, the screen will automatically clear. How to Set the Oven for Convection Baking or Roasting

Convection baking and roasting. On double oven models only. START ENTER MULTI-RACK SINGLE RACK

54321Safety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Consumer Support How to Set the Oven for Convection Roasting when Using the Probe Place the rack in the lowest position (A). Insert the probe into the meat. See the Using the probe section. Plug the probe into the outlet in the oven. Make sure it is pushed all the way in. Close the oven door. Touch PROBE. For double oven models only, touch UPPER OVEN or LOWER OVEN to select the desired oven. Touch OK. Touch the numbers to set the desired internal meat temperature. (The maximum internal temperature for the food that you can set is 200°F.) Touch ENTER. Touch CONVECTION ROAST. Touch the numbers to set the desired oven temperature. Touch ENTER. Touch START. The oven will turn on immediately and stay on until the oven is turned off. The convection fan will turn on (after a short delay) and 100°F will appear in the screen. (The temperature display will start to change once the internal temperature of the meat reaches 100°F.) After the internal temperature of the meat reaches 100°F, the changing internal temperature will be shown in the display. When the internal temperature of the meat reaches the number you have set, the probe and the oven turn off and the oven control signals. To stop the signal, touch the CLEAR/OFF pad. Use hot pads to remove the probe from the food. Do not use tongs to pull on it—they might damage it. CAUTION: To prevent possible burns, do not unplug the probe from the oven outlet until the oven has cooled. Do not store the probe in the oven. NOTE: ■ If the probe is removed from the food before the final temperature is reached, a tone will sound and the screen will prompt until the probe is removed from the oven. ■ You will hear a fan while cooking with this feature. The fan will stop when the door is opened, but the heat will not turn off. ■ You can use the timer even though you cannot use timed oven operations. ■ On double oven models, you will not be able to use the probe in the upper oven during timed oven operations. This is because, with the probe, you are cooking by temperature rather than time.

• Stuffed birds generally require 30–45 minutes additional roasting time. Shield legs and breast with foil to prevent overbrowning and drying of skin. † The U.S. Department of Agriculture says “Rare beef is popular, but you should know that cooking it to only 140°F means some food poisoning organisms may survive.” (Source: Safe Food Book. Your Kitchen Guide. USDA Rev. June 1985.) GEAppliances.com

On double oven models only.Safety InstructionsOperating InstructionsCare and CleaningTroubleshooting TipsConsumer Support

Timed convection baking and roasting. On double oven models, you can use timed baking in one oven while using self-clean in the other; you can also use timed baking in both ovens at the same time. NOTE: Foods that spoil easily—such as milk, eggs, fish, stuffings, poultry and pork—should not be allowed to sit for more than 1 hour before or after cooking. Room temperature promotes the growth of harmful bacteria. How to Set an Immediate Start and Automatic Stop The oven will turn on immediately and cook for a selected length of time. At the end of the cooking time, the oven will turn off automatically. Make sure the clock shows the correct time of day. Touch CONVECTION BAKE or CONVECTION ROAST. For double oven models only, touch UPPER OVEN or LOWER OVEN to select the desired oven. Two rack options are available: ■ SINGLE RACK – Touch for cooking food items on only one rack in convection bake. ■ MULTI-RACK – Touch for cooking food items on more than one rack (i.e. 2 or 3 racks) at the same time in Convection Bake. See the Multi-Rack Convection Baking section for more information. Touch the numbers to set the desired temperature. Touch ENTER. Touch the numbers to set the desired length of cooking time. Touch ENTER. Two immediate start and automatic stop cooking options are available: ■ PRE-HEATED START – Touch to preheat the oven. The convection fan will turn on during preheating. The control will signal when the oven is preheated—this will take approximately 10 minutes. The screen will show the set temperature. The timed cook will not start until the oven is preheated and START is touched. When the control signals, foods should be placed in the oven. ■ COLD START – Touch to start the oven immediately and cook food without preheating. The convection fan will turn on. The cook time will start immediately. The oven will start and continue to cook for the programmed amount of time, then shut off automatically, unless the Cook and Hold feature was set. See the Cook and hold option section. For double oven models only, to set the second oven select PRESS TO MAKE LOWER OVEN SELECTIONS or PRESS TO MAKE UPPER OVEN SELECTIONS as needed and follow the above steps. The set temperature may be changed by touching CHANGE TIME-TEMP for the appropriate oven. The settings may be cancelled by touching CANCEL for the appropriate oven. The timer can be set by touching SET KITCHEN TIMER. See the Kitchen timer section. After cooking is complete, the oven will signal and “MORE TIME” will display for five minutes. Check food for doneness. If more cooking time is needed, touch MORE TIME and enter additional cooking time. If not selected, the screen will automatically clear in five minutes.

On double oven models only.You can set the oven control to delay-start the oven, cook for a specific length of time and then turn off automatically. See also the Delay start option section. Make sure the clock shows the correct time of day. Touch CONVECTION BAKE or CONVECTION ROAST. For double oven models only, touch UPPER OVEN or LOWER OVEN to select the desired oven. Two rack options are available: ■ SINGLE RACK – Touch for cooking food items on only one rack in convection bake. ■ MULTI-RACK – Touch for cooking food items on more than one rack (i.e. 2 or 3 racks) at the same time in Convection Bake. See the Multi-Rack Convection Baking section for more information. Touch the numbers to set the desired temperature. Touch ENTER. Touch the numbers to set the desired length of cooking time. Touch ENTER. Touch ADD BAKE OPTION. Touch DELAY START. Two delay start time setting options are available: ■ START COOK TIME – Touch and then use the numbers to set the amount of time before you want cooking to start. Touch ENTER. For example, if you want cooking to begin in 2 hours, enter 2, 0 and 0. ■ FINISH COOK TIME – Touch and then use the numbers to set the amount of time above the cooking time that you want cooking to finish. Touch ENTER. For example, if your cooking time is 2 hours and you want to serve dinner in 5 hours, then enter 5, 0 and 0 and the oven will start in 3 hours. Two start options are available when the delayed start time is reached: ■ PRE-HEATED START – Touch to select preheat. When the delayed start time is reached, the oven will turn on and preheat will begin. The convection fan will turn on during preheating. The control will signal when the oven is preheated—this will take approximately 10 minutes. The screen will show the set temperature. ■ COLD START – Touch to select for the oven to start immediately (without preheating) when the delayed start time is reached. The convection fan will turn on. For double oven models only, to set the second oven, select PRESS TO MAKE LOWER OVEN SELECTIONS or PRESS TO MAKE UPPER OVEN SELECTIONS as needed and follow the above steps. The set temperature may be changed by touching CHANGE TIME-TEMP for the appropriate oven. The settings may be cancelled by touching CANCEL for the appropriate oven. The timer can be set by touching SET KITCHEN TIMER. See the Kitchen timer section. When the delayed start time is reached, the oven will start and continue to cook for the programmed amount of time, then shut off automatically, unless the Cook and Hold feature was set. See the Cook and hold option section. After cooking is complete, the oven will signal and “MORE TIME” will display for five minutes. Check food for doneness. If more cooking time is needed, touch MORE TIME and enter additional cooking time. If not selected, the screen will automatically clear in five minutes. Safety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Consumer Support

GEAppliances.com How to Set a Delayed Start and Automatic Stop

On double oven models only.22 Safety InstructionsOperating InstructionsCare and CleaningTroubleshooting TipsConsumer Support Favorite recipes. Your control will allow you to create (save), edit, use or delete a favorite recipe. Create a Recipe Touch FAVORITE RECIPE. Touch CREATE RECIPE. Touch the letters to create a name for the recipe. Touch NUM to add a number. Touch SPACE to add a space between letters or numbers. Touch BACK to erase a number or letter as needed. Touch DONE to save the name. Touch BAKE, BROIL, CONVECTION BAKE or CONVECTION ROAST to select the cooking mode. Touch the numbers to set the temperature. Touch ENTER. Touch the numbers to set the desired length of cooking time. Touch ENTER. Touch ADD PRE-HEAT OPTION to set preheating or CONTINUE to review the set recipe. Touch SAVE AND CREATE NEW to save the recipe in memory but not use it at this time. Touch SAVE AND COOK NOW to save the recipe in memory and also proceed to cook now. Touch CANCEL to delete the recipe. FAVORITERECIPECREATERECIPE Edit a Saved Recipe Touch FAVORITE RECIPE. Touch EDIT RECIPE. Touch or to highlight the recipe you want to edit. Touch ENTER. Touch or to select the setting you want to edit. Touch EDIT and change the setting. Touch DONE. Touch SAVE or SAVE AND COOK NOW. FAVORITERECIPEEDITRECIPE Use a Saved Recipe Touch FAVORITE RECIPE. Touch USE RECIPE. Touch or to select the recipe you want to use. Touch ENTER. Touch START. For double oven models only, touch UPPER OVEN or LOWER OVEN to select the desired oven. FAVORITERECIPEUSERECIPE Delete a Saved Recipe Touch FAVORITE RECIPE. Touch DELETE RECIPE. Touch or to select the recipe you want to delete. Touch ENTER. Touch DELETE. Touch YES. FAVORITERECIPEDELETERECIPE23 Safety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Consumer Support Your control will allow you to lock out the touch pads so they cannot be activated when touched. NOTE: On double oven models, this activates the feature for both ovens. To lock/unlock the controls: Touch the CLEAR/OFF pad for 3 seconds, until the screen shows CONTROL LOCKED OUT. To unlock the control, touch the CLEAR/OFF pad for 3 seconds, until the home screen appears. When this feature is on and the touch pads are touched, the control will beep and the display will show CONTROL LOCKED OUT. NOTES: ■ The control lockout mode affects all controls except for the CLEAR/OFF pad. No other touch pad will work when this feature is activated. ■ The adjustment will be retained in memory after a power failure. Kitchen timer and control lockout. GEAppliances.com To Set the Kitchen Timer Touch KITCHEN TIMER. For double wall oven models only, touch UPPER OVEN or LOWER OVEN to select the timer for the desired oven. Touch the numbers until the amount of time you want shows in the display. For example, to set 2 hours and 45 minutes, touch 2, 4 and 5 in that order. Touch START. If the set time or the remaining time is greater than or equal to one hour, the screen will show hours and minutes [HH: MM]. The letters “H” and “M” will appear to indicate that the time is in hours and minutes. (If one or more hours was set, the screen will not start to show the time counting down until one minute has passed.) If the set time or the remaining time is less than one hour, the screen will show minutes and seconds [MM : SS]. The letters “M” and “S” will appear to indicate that the time is in minutes and seconds. When the timer reaches :00, the control will beep 3 times followed by one beep every 6 seconds until KITCHEN TIMER is touched. The tone can be canceled by following the steps in the Options–Settings section under Sound/Volume. To cancel the KITCHEN TIMER(s), touch PUSH TO CANCEL TIMER. To reset the KITCHEN TIMER(s), touch PUSH TO CANCEL TIMER and set a new time. START KITCHEN TIMER The KITCHEN TIMER can be setfrom 1 minute to 24 hours.This timer does not control ovenoperations. Control Lockout CLEAROFF24 Safety InstructionsOperating InstructionsCare and CleaningTroubleshooting TipsConsumer Support Using the self-cleaning oven. The oven door must be closed and all controls must be set correctly for the cycle to work properly. Before a Clean Cycle We recommend venting your kitchen with an open window or using a ventilation fan or hood during the first self-clean cycle. Remove any broiler pan, broiler grid, probe, all cookware and any aluminum foil from the oven. The oven racks may remain in the oven during the self-cleaning cycle without being damaged. Do not use abrasives or oven cleaners. Clean the top, sides and outside of the oven door with soap and water. Make sure the oven light bulb cover is in place and the oven light is off. IMPORTANT: The health of some birds is extremely sensitive to the fumes given off during the self-cleaning cycle of any oven. Move birds to another well-ventilated room. NOTE: Self-Clean will not work if the temperature probe is plugged in or if the Sabbath feature is set. ■ On double oven models, you can set a clean cycle in both ovens at the same time. The last oven set will automatically delay its start until the end of the first oven’s clean cycle. ■ On double oven models, you can use timed baking in one oven and self-clean in the other at the same time. CAUTION:Never place cooking utensils or any other items on the oven floor. There is a heating element beneath the oven floor. Placing items on the oven floor may cause the oven to overheat, resulting in damage to the oven and risk of damage or fire to cabinets. Wipe up heavy soil on the ovenbottom. (appearance may vary)25 Safety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Consumer Support GEAppliances.com How to Set the Oven for Cleaning Touch SELF CLEAN. For double oven models only, touch UPPER OVEN or LOWER OVEN to select the desired oven. Three self clean time options are available: ■ LIGHT CLEAN – Touch for an automatic 3-hour clean time. Recommended for use when cleaning small, contained spills. ■ REGULAR CLEAN – Touch for an automatic 5-hour clean time. Recommended for a dirtier oven. ■ CUSTOM – Touch and, using the numbers, set a clean time between 3 hours and 7 hours and 30 minutes, depending on how dirty your oven is. Touch NOW. The door locks automatically. The screen will show the clean time remaining. It will not be possible to open the oven door until the temperature drops below the lock temperature and OVEN LOCKED goes off. When OVEN LOCKED goes off, you will be able to open the door. ■ The words LOCK DOOR will appear and the oven control will signal if you set the clean cycle and forget to close the oven door. ■ To stop a clean cycle, touch the CANCEL or CLEAR/OFF pad. When OVEN LOCKED goes off, indicating the oven has cooled below the locking temperature, you will be able to open the door. On double oven models, you can set a clean in both ovens at the same time. The second oven set will automatically delay the start of cleaning until the end of the first oven’s clean cycle. To set the second oven, there are two options available: ■ Immediately after setting the first oven: Select PRESS TO MAKE LOWER OVEN SELECTIONS or PRESS TO MAKE UPPER OVEN SELECTIONS as needed and follow steps 3 and 4. ■ From the home screen: Touch SELF CLEAN. Touch LIGHT CLEAN, REGULAR CLEAN or CUSTOM. See above for reference. Touch START AFTER 1ST SELF CLEAN for the second oven to automatically start cleaning after the first oven has finished.

On double oven models only. NOW (Numbers will only be used when setting a CUSTOM clean time.)26 Safety InstructionsOperating InstructionsCare and CleaningTroubleshooting TipsConsumer Support Using the self-cleaning oven. The oven door must be closed and all controls must be set correctly for the cycle to work properly. How to Delay the Start of Cleaning Touch SELF CLEAN. For double oven models only, touch UPPER OVEN or LOWER OVEN to select the desired oven. Three self clean time options are available: ■ LIGHT CLEAN – Touch for an automatic 3-hour clean time. Recommended for use when cleaning small, contained spills. ■ REGULAR CLEAN – Touch for an automatic 5-hour clean time. Recommended for a dirtier oven. ■ CUSTOM – Touch and, using the numbers, set a clean time between 3 hours and 7 hours and 30 minutes, depending on how dirty your oven is. Touch LATER. Three delay start time setting options are available: ■ DELAYED TIME – Touch and then use the numbers to set the amount of time before you want cleaning to start. Touch ENTER. ■ START CLEAN TIME – Touch and then use the numbers to set the time of day you want cleaning to begin. Touch ENTER. ■ FINISH CLEAN TIME – Touch and then use the numbers to set the time of day that you want cleaning to finish. Touch ENTER. The door locks automatically. The screen will show the start time. It will not be possible to open the oven door until the temperature drops below the lock temperature and OVEN LOCKED goes off. When OVEN LOCKED goes off, you will be able to open the door. On double oven models, you can set a clean in both ovens at the same time. The second oven set will automatically delay the start of cleaning until the end of the first oven’s clean cycle or until the delay time that you set. To set the second oven, there are two options available: ■ Immediately after setting the first oven: Select PRESS TO MAKE LOWER OVEN SELECTIONS or PRESS TO MAKE UPPER OVEN SELECTIONS as needed and follow steps 3–6 above for the second oven. ■ From the home screen: Touch SELF CLEAN. Touch LIGHT CLEAN, REGULAR CLEAN or CUSTOM. See above for reference. Touch START AFTER 1ST SELF CLEAN for the second oven to automatically start cleaning after the first oven has finished cleaning or DELAYED TIME and follow step 6 above to set the time you want the second oven to start. To recall the remaining time or the start time set, touch SELF CLEAN. ■ To stop a clean cycle, touch CANCEL or the CLEAR/OFF pad. When OVEN LOCKED goes off, indicating the oven has cooled below the locking temperature, you will be able to open the door.

IME On double oven models only. (Numbers will only be used when setting a CUSTOM clean time.) After a Clean Cycle You may notice some white ash in the oven. Wipe it up with a damp cloth after the oven cools. If white spots remain, remove them with a soap-filled steel-wool pad and rinse thoroughly with a vinegar and water mixture. These deposits are usually a salt residue that cannot be removed by the clean cycle. If the oven is not clean after one clean cycle, repeat the cycle. ■ You cannot set the oven for cooking until the oven is cool enough for the door to unlock. ■ While the oven is self-cleaning, you can touch CLOCK to display the time of day. To return to the clean countdown, touch SELF CLEAN. Standard Racks If they become hard to slide, wipe their side edges and the oven rack supports with cooking oil. Extension Rack If it becomes difficult to slide or if the release levers become difficult to use, see Extension Rack in the Care and cleaning section. Do not spray extension rack with cooking spray or other lubricant sprays. If it becomes hard to remove or replace, wipe the oven rack supports with cooking oil. Do not wipe cooking oil on the slides. NOTE: After the first self-clean cycle, the gray stainless steel surfaces will change color. This is normal.27 Option–Proof. GEAppliances.com Proofing The proofing feature maintains a warm environment useful for rising yeast-leavened products. Place in the oven on rack B or C and, for best results, cover the dough with a cloth. Touch OPTIONS. Touch PROOF. The oven interior light turns on and then will cycle during proofing. The proofing feature automatically provides the optimum temperature for the proofing process, and therefore does not have a temperature adjustment. For double oven models only, touch UPPER OVEN or LOWER OVEN to select the desired oven. Touch START. Set the KITCHEN TIMER for the minimum proof time. When proofing is finished, touch CANCEL. ■ Proofing will not operate when oven is above 125°F. “OVEN IS TOO HOT” will show in the display. ■ It is not necessary to preheat the oven for proofing. ■ To avoid lowering the oven temperature and lengthening proofing time, do not open the oven door unnecessarily. ■ Check bread products early to avoid over-proofing. NOTE: Do not use the proofing mode to reheat cold food or to keep hot, cooked food warm. The proofing oven temperature is not hot enough to hold foods at safe temperatures. Use the WARM feature to keep hot food warm.

OPTIONS PROOF KITCHEN TIMER UPPEROVENLOWEROVEN START CANCEL Safety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Consumer Support28 Safety InstructionsOperating InstructionsCare and CleaningTroubleshooting TipsConsumer Support Option–Warm. Warm can be activated to keep hot, cooked foods warm. This feature is not designed to reheat cold food. Touch OPTIONS. Touch WARM. For double oven models only, touch UPPER OVEN or LOWER OVEN to select the desired oven. Touch to select HIGH, MEDIUM or LOW automatic set temperature. Touch to select CRISP or MOIST, depending on whether you want the foods you are warming to be crispy or moist. Touch START. Allow time for the oven to be preheated: LOW 8 minutes MED 15 minutes HIGH 20 minutes NOTE: The convection fan will turn on during CRISP. For double oven models only, to set the second oven, select PRESS TO MAKE LOWER OVEN SELECTIONS or PRESS TO MAKE UPPER OVEN SELECTIONS as needed and follow the above steps. The set temperature may be changed by touching CHANGE TIME-TEMP for the appropriate oven. The settings may be cancelled by touching CANCEL for the appropriate oven. The timer can be set by touching SET KITCHEN TIMER. See the Kitchen timer section. To Crisp Stale Items ■ Place food in low-sided dishes or pans. ■ For best results, place the food items in a single layer. Do not stack. ■ Leave them uncovered. ■ Preheat on LOW setting. ■ Check crispness after 45 minutes. Add time as needed. CAUTION:Do not keep food in the warming mode for more than 2 hours. IMPORTANT NOTES: ■ Food should be kept hot in its cooking container or transferred to a heat-safe serving dish. ■ Food in heat-safe glass and glass ceramic pans may need a higher thermostat setting as compared to food in metal pans. ■ For moist foods, cover them with an oven-safe lid or aluminum foil. ■ Fried or crisp foods do not need to be covered, but can become too dry if warmed for too long. ■ Repeated opening of the door allows the hot air to escape and the food to cool. ■ Allow extra time for the temperature inside the oven to stabilize after adding items. ■ With large loads it may be necessary to use a higher thermostat setting and cover some of the cooked food items. ■ Remove serving spoons, etc., before placing containers in the oven. ■ Do not use plastic containers, lids or plastic wrap. CAUTION:Plastic containers, lids or plastic wrap will melt if placed in the oven. Melted plastic may not be removable and is not covered under your warranty. To Warm Serving Bowl and Plates To warm serving bowls and plates, set the control on LOW. ■ Use only heat-safe dishes. ■ Place the empty dishes on the rack. If you want hotter dishes or want to heat fine china, please check with the manufacturer of the dishes for their maximum heat tolerance. ■ The empty serving dish will heat while the oven is preheating. ■ When holding hot, cooked foods and warming empty serving dishes at the same time, place the serving dishes on a higher rack position and the food on a lower rack position. CAUTION:Dishes may be hot. Use pot holders or mitts when removing hot dishes. Warming

STARTFood Type Control Setting Bacon HIGH Bread, hard rolls MED Fried foods HIGH Pies (two crusts) MED Pizza MED Potatoes, baked HIGH Tortilla Chips LOW Tips: ■ Leave food uncovered. ■ Do not use plastic containers or plastic wrap. ■ Preheat prior to use.

Safety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Consumer Support GEAppliances.com Temperature Selection Chart for Moist Foods To keep several different foods hot, set the temperature to the food needing the highest setting. Place the items needing the highest setting on a lower rack and items needing less heat on an upper rack. Food Type Control Setting Beef, medium and well done* MED Bread, soft rolls MED Casseroles MED Chili HIGH Cooked cereal MED Eggs MED Fish, seafood MED Fruit MED Gravy, cream sauces MED Ham MED Lamb MED Pancakes, waffles LOW Pies (one crust) MED Pork MED Potatoes, mashed MED Poultry HIGH Vegetables MED

• USDA/FSIS recommends an internal temperature of 145°F. as the minimum doneness for beef. Use a portable meat thermometer to check internal temperatures. Tips: ■ Cover food with lid or aluminum foil. ■ Do not put water in the oven. ■ Do not use plastic containers or plastic wrap. ■ Preheat prior to use. Temperature Selection Chart for Crisp Foods To keep several different foods hot, set the temperature to the food needing the highest setting. Place the items needing the highest setting on a lower rack and items needing less heat on an upper rack.30 Option–Two temps. Two Temps Use to set a first temperature with a cooking time and also a second temperature with a second cooking time. Touch OPTIONS. Touch TWO TEMPS. For double oven models only, touch UPPER OVEN or LOWER OVEN to select the desired oven. Touch the numbers to set the desired first temperature. Touch ENTER. Touch the numbers to set the desired length of the first cooking time. Touch ENTER. Touch BAKE, CONVECTION BAKE or CONVECTION ROAST as desired. If CONVECTION BAKE was selected, touch SINGLE RACK for one rack or MULTI-RACK for two or three rack cooking. Touch the numbers to set the desired second temperature. Touch ENTER. Touch the numbers to set the desired length of the second cooking time. Touch ENTER. Touch PRE-HEATED START or COLD START.

Safety InstructionsOperating InstructionsCare and CleaningTroubleshooting TipsConsumer Support On double oven models only.Safety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Consumer Support Cook and Hold Your control has a cook and hold feature that keeps cooked foods warm for up to 3 hours after Timed Baking or Timed Roasting is finished. NOTE: This feature can only be programmed to work with Timed Baking or Timed Roasting. (See the Using the timed baking or timed roasting features section.) After Timed Baking or Timed Roasting has automatically stopped and the MORE TIME option ends, the programmed cook and hold will automatically start. There are two ways to activate this feature for use after Timed Baking or Timed Roasting: ■ After setting a Timed Bake or Timed Roast: Touch ADD BAKE OPTION, ADD CONV BAKE OPTION or ADD ROAST OPTION depending on the cooking mode you are setting. Touch COOK & HOLD. Touch OK. Touch PRE-HEATED START or COLD START. ■ Set using OPTIONS: Touch OPTIONS. Touch COOK & HOLD. For double oven models only, touch UPPER OVEN or LOWER OVEN to select the desired oven. Touch OK. Touch BAKE, CONVECTION BAKE, CONVECTION ROAST or TWO TEMPS. Touch the numbers to enter the temperature(s) and the time(s). Touch ENTER. Touch PRE-HEATED START or COLD START. COOK & HOLD Options–Cook & hold and dehydrate. GEAppliances.com Dehydration (Drying) is a method of preserving fruits, vegetables, herbs and meats by removing moisture so bacteria, yeast and mold cannot grow and spoil the food. The oven uses an automatic set temperature and the convection fan to remove moisture from the foods to dry and preserve them. Note that over 12 hours may be required to dry some foods. Accurate and complete information on basic food drying is available from your local cooperative extension service office. To locate this office in your area, look in your telephone directory for the county government listings under your county name. During dehydration, your oven door must remain partially open to allow for air circulation and moisture removal. Use the dehydration doorstop, which is included with your oven, to hold the door open for dehydration. Open the oven door. Place the magnetic end of the doorstop onto the upper inside surface of the oven door. Close the oven door, allowing the door to rest against the doorstop. Touch OPTIONS. Touch DEHYDRATE. For double oven models only, touch UPPER OVEN or LOWER OVEN to select the desired oven. Enter the temperature (max. 200°F)

NOTES: ■ Store the doorstop in a safe place when not in use. ■ Use only the doorstop provided with your oven and only use the doorstop while dehydrating. ■ Do not store the doorstop in the oven. ■ Remember that the proper preparation, treatment and storage of food are essential for the quality and safety of dried food. Dehydrating Helpful Tips: ■ Multiple racks of food can be dried at one time. ■ Drying time will vary depending on several factors:

• number of racks of food

• amount of food on each rack

• size, shape and thickness of food

• type of drying trays used ■ Use food preservation resources, such as your local cooperative extension service, as a guide for selecting food-safe drying trays. To order a replacement doorstop, call our National Parts Center at 800.626.2002 and reference WB08T10024. Dehydrate DEHYDRATE OPTIONS

Place the magnetic end onto theupper inside surface of the oven door.Close the door against the doorstop.32 Safety InstructionsOperating InstructionsCare and CleaningTroubleshooting TipsConsumer Support Option–Delay start. NOTE: Foods that spoil easily—such as milk, eggs, fish, stuffings, poultry and pork—should not be allowed to sit for more than 1 hour before or after cooking. Room temperature promotes the growth of harmful bacteria. Delayed Start and Automatic Stop You can set the oven control to delay-start the oven in Bake, Convection Bake or Convection Roast for a specific length of time and then turn off automatically. Also see the Timed baking and timed roasting and the Timed convection baking and timed roasting sections. Make sure the clock shows the correct time of day. Touch OPTIONS. Touch DELAY START. For double oven models only, touch UPPER OVEN or LOWER OVEN to select the desired oven. Two delay start time setting options are available:

START COOK TIME – Touch and then use the numbers to set the amount of time before you want cooking to start. Touch ENTER. For example, if you want cooking to begin in 2 hours, enter 2, 0 and 0.

FINISH COOK TIME – Touch and then use the numbers to set the amount of time beyond the time of day that you want cooking to end. Touch ENTER. For example if it is 12:00, your cooking time is 2 hours and you want to serve dinner at 5:00, then enter 3, 0 and 0. Touch BAKE, CONVECTION BAKE or CONVECTION ROAST as desired. Touch the numbers to set the desired temperature. Touch ENTER. Touch the numbers to set the desired length of cooking time. Touch ENTER. Two start options are available when the delayed start time is reached:

PRE-HEATED START – Touch to select preheat. When the delayed start time is reached, the oven will turn on and preheat will begin. The convection fan will turn on during preheating. The control will signal when the oven is preheated—this will take approximately 10 minutes. The screen will show the set temperature. ■ COLD START – Touch to select for the oven to start immediately (without preheating) when the delayed start time is reached. The convection fan will also turn on. For double oven models only, to set the second oven, select PRESS TO MAKE LOWER OVEN SELECTIONS or PRESS TO MAKE UPPER OVEN SELECTIONS as needed and follow the above steps. The set temperature may be changed by touching CHANGE TIME-TEMP for the appropriate oven. The settings may be cancelled by touching CANCEL for the appropriate oven. The timer can be set by touching SET KITCHEN TIMER. See the Kitchen Timer section. When the delayed start time is reached, the oven will start and continue to cook for the programmed amount of time, then shut off automatically, unless the Cook and Hold feature was set. See the Cook and hold option section. After cooking is complete the oven will signal and “MORE TIME” will display for five minutes. Check food for doneness. If more cooking time is needed, touch MORE TIME and enter additional cooking time. If not selected, the screen will automatically clear in five minutes.

On double oven models only.Safety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Consumer Support Option–Sabbath. (Designed for use on the Jewish Sabbath and Holidays.) (on some models) GEAppliances.com The Sabbath feature can be used for baking/roasting only. It cannot be used for convection, broiling, self-cleaning or Delay Start cooking. How to Set for Regular Baking/Roasting Touch OPTIONS. Touch SABBATH. After entering the SABBATH screen, the touch screen pads will not sound. They will change color to indicate they are set. For double oven models only, touch UPPER OVEN BAKE and/or LOWER OVEN BAKE to select the desired oven(s). Touch the numbers to set the desired temperature between 170°F and 550°F. No signal or temperature will be given. Touch START. After a random delay period of approximately 30 seconds to 1 minute, the oven will begin baking/roasting. The touch screen will not change and the oven light will be disabled. To adjust the oven temperature, repeat steps 3, 4, 5 and 6. To cancel the Sabbath option, touch and hold CANCEL HOLD 3 SEC for three seconds.

NOTES: CANCEL HOLD 3 SEC, CLEAR/OFF

and CANCEL are the only pads which are immediately active during Sabbath baking. These pads will cancel the current bake operation immediately after being pressed and should only be pressed after Sabbath ends. All other keys have a delayed effect. If a power outage occurred while the oven was in Sabbath, the oven will automatically turn off and stay off even when the power returns. Sabbath mode will resume, but any bake operation will be canceled. NOTE: If a bake mode or a timed-bake mode is active prior to entering the Sabbath mode, those baking modes will still be active after entering the Sabbath mode. All other cooking modes will be canceled after Sabbath mode begins. SABBATHOPTIONSAND/ORUPPEROVENBAKELOWEROVENBAKESTART0987654321 Help Touch this pad to find out more about your oven’s features. Touch the HELP pad. Touch the (up) or (down) arrow to select the desired feature. Touch ENTER. Touch the (down) arrow, if present, to see all of the HELP text. Touch EXIT HELP to exit the HELP screen. HELP Help feature. ENTER EXIT HELP HELP SELECT CATEGORY BAKE BROIL CONVECTION BAKE CONVECTION ROAST KITCHEN TIMER

Safety InstructionsOperating InstructionsCare and CleaningTroubleshooting TipsConsumer Support Options–Settings. Adjust the Oven Thermostat—Do It Yourself! You may find that your new oven cooks differently than the one it replaced. Use your new oven for a few weeks to become more familiar with it. If you still think your new oven is too hot or too cold, you can adjust the thermostat yourself. Do not use thermometers, such as those found in grocery stores, to check the temperature setting of your oven. These thermometers may vary 20–40 degrees. NOTE: This adjustment will only affect baking and roasting temperatures; it does not affect broiling or self-cleaning temperatures. The adjustment will be retained in memory after a power failure. Touch OPTIONS. Touch SETTINGS. Touch TEMP SELECTIONS. Touch TEMPERATURE OFFSET. The oven temperature can be adjusted up to (+) 35°F hotter or (-) 35°F cooler. Touch + 1° or - 1° to increase or decrease the offset temperature in 1° increments. When you have made the adjustment, touch OK and DONE. Use your oven as you would normally. SETTINGSTEMPSELECTIONOPTIONSOKDONEAND/ORTEMPERATUREOFFSET

To Set the Clock The clock must be set to the correct time of day for the automatic oven timing functions to work properly. The time of day cannot be changed during a timed baking or self-cleaning cycle. Touch OPTIONS. Touch SETTINGS. Touch CLOCK. Touch TIME SETTINGS. Three options are available: ■ To set a 12 hour day time: Touch 12 HOURS , touch SET TIME, enter the time in hours and minutes from 1:00 to 12:59, touch AM or PM, touch START and touch OK. ■ To set a 24 hour (military) time: Touch 24 HOURS, touch SET TIME, enter the time in hours and minutes from 00:01 to 23:59, touch START and touch OK. ■ To set for daylight savings time: Touch DAYLIGHT SAVINGS, touch BACK 1 HOUR to fall back one hour or touch FORWARD 1 HOUR to spring forward one hour. Touch SET TIME. Touch the numbers to enter the current time in hours and minutes. Touch AM or PM. Touch ENTER. SETTINGSCLOCKOPTIONSTIMESETTINGS

AYLIGHT AVINGS Make sure the clock is set to thecorrect time of day.

SET TIME AM PM ENTERFahrenheit or Celsius Temperature Selection Your oven control is set to use the Fahrenheit temperature selections, but you may change this to use the Celsius selections. Touch OPTIONS. Touch SETTINGS. Touch TEMP SELECTIONS. Touch TEMPERATURE SCALE (°C–°F). Touch °F for Fahrenheit or touch °C for Celsius. Touch OK. Touch OK again. Touch DONE. NOTE: On double oven models, the new setting will apply for both ovens. SETTINGS OPTIONS TEMPERATURE SCALE (˚C - ˚F) TEMP SELECTION

Safety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Consumer Support GEAppliances.com 12-Hour Shut-Off With this option, should you forget and leave the oven on, the control will automatically turn off the oven after 12 hours during baking functions or after 3 hours during a broil function. Follow the steps below: Touch OPTIONS. Touch SETTINGS. Touch 12 HR SHUT-OFF. NOTE: On double oven models, this activates this special feature for both ovens. Touch DEACTIVATED or ACTIVATED. Touch OK. SETTINGS 12 HR SHUT-OFF OPTIONS

Clock Blackout If you would prefer to black out the clock display, follow the steps below. Touch OPTIONS. Touch SETTINGS. Touch CLOCK. Touch DISPLAY. Touch ALWAYS OFF. Touch OK. Touch OK again. NOTE: If the clock is in the black-out mode, you will not be able to use the Delay Start function. SETTINGS OPTIONS DISPLAY ALWAYS OFF CLOCK

OK36 Safety InstructionsOperating InstructionsCare and CleaningTroubleshooting TipsConsumer Support Options–Settings. Auto Recipe

Conversion (on some models) When using convection bake, the Auto Recipe

Conversion option will automatically convert entered regular baking temperatures to convection baking temperatures. Once the feature is activated, the screen will show the actual converted (reduced) temperature. For example, if you enter a regular recipe temperature of 350°F and touch START, the screen will show CON and the converted temperature of 325°F. NOTE: This option does not convert convection bake cooking times, only regular baking temperatures. To activate/deactivate the feature: Touch OPTIONS. Touch SETTINGS. Touch AUTO RECIPE CONVERSION. Touch ON to turn the auto conversion option on or OFF to turn the option off. Touch OK. Touch DONE. SETTINGSOPTIONSONOFFAUTO RECIPECONVERSIONDONEOK

Language This option allows you to choose English, Spanish or French for the touch screen. Touch OPTIONS. Touch SETTINGS. Touch LANGUAGE. Touch ENGLISH, FRANÇAIS or ESPAÑOL. Touch OK. SETTINGSLANGUAGEOPTIONSOK

SPANOL Display Color This option allows you to change the colors of the touch screen. Touch OPTIONS. Touch SETTINGS. Touch DISPLAY COLOR. Touch the desired colors. Touch OK. SETTINGSOPTIONSDISPLAYCOLOROK37 Safety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Consumer Support GEAppliances.com Sound On/Off This option allows you to turn on or off the beep sound when a pad is touched. Touch OPTIONS. Touch SETTINGS. Touch SOUND/VOLUME. Touch SOUND ON/OFF. Touch SOUND ON for the pads to beep when touched or touch SOUND OFF to eliminate the beep when pads are touched. Touch OK. Touch OK again. Touch DONE. SETTINGS OPTIONS SOUND ON/OFF SOUND

Sound Volume This feature allows you to adjust the sound volumes to a more acceptable volume. There are three possible volume levels. Touch OPTIONS. Touch SETTINGS. Touch SOUND/VOLUME. Touch VOLUME. Touch HIGH, MEDIUM or LOW to select the pad sound level when touched. Touch OK. Touch OK again. Touch DONE. SETTINGS VOLUME OPTIONS SOUND/ VOLUME

OWSETTINGS OPTIONS SOUND/ VOLUME DEFAULT DONE

Safety InstructionsOperating InstructionsCare and CleaningTroubleshooting TipsConsumer Support Options–Settings. Timer Signal This option allows you to set the type of signal used at the end of a timed cycle. Touch OPTIONS. Touch SETTINGS. Touch SOUND/VOLUME. Touch TIMER SIGNAL. Touch CONTINUE, 1 BEEP, 2 BEEP or 3 BEEP. Touch OK. Touch OK again. Touch DONE. SETTINGSOPTIONSTIMERSIGNALSOUND/VOLUMEOKDONEOKCONTINUE 1 BEEP2 BEEP 3 BEEP

Kitchen Timer Signal This option allows you to set the type of signal used for the kitchen timer. Touch OPTIONS. Touch SETTINGS. Touch SOUND/VOLUME. Touch KITCHEN TIMER SIGNAL. Touch CONTINUE, 1 BEEP, 2 BEEP or 3 BEEP. Touch OK. Touch OK again. Touch DONE.

Sound/Volume Default This option allows you to automatically set all signals to the default settings. Touch OPTIONS. Touch SETTINGS. Touch SOUND/VOLUME. Touch DEFAULT. Touch OK. Touch DONE.Safety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Consumer Support Care and cleaning. GEAppliances.com Be sure electrical power is off and all surfaces are cool before cleaning any part of the oven. How to Remove Protective Shipping Film and Packaging Tape Carefully grasp a corner of the protectiveshipping film with your fingers and slowlypeel it from the appliance surface. Donot use any sharp items to remove thefilm. Remove all of the film before usingthe appliance for the first time.To assure no damage is done to the finish of the product, the safest way toremove the adhesive from packagingtape on new appliances is an applicationof a household liquid dishwashingdetergent. Apply with a soft cloth andallow to soak.NOTE: The adhesive must be removed from allparts. It cannot be removed if it is baked on. Oven Light Bulb NOTE: The glass cover (on some models) shouldbe removed only when cold. Wearing latex glovesmay offer a better grip.Before replacing the bulb, disconnectelectrical power to the oven at the mainfuse or circuit breaker panel. Let thebulb cool completely before removing it.For your safety, do not touch a hot bulbwith a damp cloth. If you do, the bulbwill break.To remove: Turn the glass cover counterclockwise1/4 turn until the tabs of the glass coverclear the grooves of the socket. Removethe bulb.To replace: Put in a new 40-watt appliance bulb.Place the tabs of the glass cover into thegrooves of the socket. Turn the glasscover clockwise 1/4 turn.NOTE: ■ A 40-watt appliance bulb is smaller than astandard 40-watt household bulb.■ Install and tighten the cover clockwise.■ Reconnect electrical power to the oven.■ For improved lighting inside the oven, clean the glass cover frequently using a wet cloth.This should be done when the oven iscompletely cool. Bulb Socket Tab Maximumlength

⁄2” Glass cover Control Panel It’s a good idea to wipe the control panel after each use. Clean with mildsoap and water or vinegar and water,rinse with clean water and polish dry with a soft cloth. When cleaning, thecontrol panel should be at roomtemperature and not in direct sunlight.Use of other liquid cleaners is notrecommended—the residue they leave behind may affect the control.Do not use abrasive cleansers, strongliquid cleansers, plastic scouring pads oroven cleaners on the control panel—theywill damage the finish. A 50/50 solutionof vinegar and hot water works best. Stainless Steel Surfaces (on some models) Do not use a steel wool pad; it will scratch the surface.To clean the stainless steel surface, use warm sudsy water or a stainless steelcleaner or polish. Always wipe the surfacein the direction of the grain. Follow thecleaner instructions for cleaning thestainless steel surface.To inquire about purchasing stainlesssteel appliance cleaner or polish, or tofind the location of a dealer nearest you,please call our toll-free number:National Parts Center1.800.626.2002GEAppliances.com

Safety InstructionsOperating InstructionsCare and CleaningTroubleshooting TipsConsumer Support Probe The temperature probe may be cleaned with soap and water or a soap-filled scouring pad. Cool the temperature probe before cleaning. Scour stubborn spots with a soap-filled scouring pad, rinse and dry. ■ Do not immerse the temperature probe in water. ■ Do not store the temperature probe in the oven. The door is very heavy. Be careful when removing and lifting the door. Do not lift the door by the handle. To remove the door: Fully open the door. Pull the hinge locks down toward the door frame, to the unlocked position. A tool, such as a small flat- blade screwdriver, may be required. Firmly grasp both sides of the door at the top. Close door to the door removal position (see illustration). Lift door up and out until the hinge arm is clear of the slot. To replace the door: Firmly grasp both sides of the door at the top. With the door at the same angle as the removal position, seat the indentation of the hinge arm into the bottom edge of the hinge slot. The notch in the hinge arm must be fully seated into the bottom of the slot. Fully open the door. If the door will not fully open, the indentation is not seated correctly in the bottom edge of the slot. Push the hinge locks up against the front frame of the oven cavity, to the locked position. Close the oven door. Care and cleaning. Do not rub or clean the door gasket— it has an extremely low resistance to abrasion. If you notice the gasket becoming worn, frayed or damaged in any way or if it has become displaced on the door, you should have it replaced. To clean the inside of the door: ■ Because the area inside the gasket is cleaned during the self-clean cycle, you do not need to clean this area by hand. ■ The area outside the gasket and the door liner can be cleaned with a soap-filled or plastic scouring pad, hot water and detergent. Rinse well with a vinegar and water solution. To clean the outside of the door: ■ Use soap and water to thoroughly clean the top, sides and front of the oven door. Rinse well. You may also use a glass cleaner to clean the glass on the outside of the door. Do not let water drip into the vent openings. ■ If any stain on the door vent trim is persistent, use a soft abrasive cleaner and a sponge-scrubber for best results. ■ Spillage of marinades, fruit juices, tomato sauces and basting materials containing acids may cause discoloration and should be wiped up immediately. When surface is cool, clean and rinse. ■ Do not use oven cleaners, cleaning powders or harsh abrasives on the outside of the door. Hinge lock Lift-Off Oven Door Hinge arm Removal position Bottom edge of slot Cleaning the Oven Door Hinge lock Slot Push hinge locks up to lock Pull hinge locks down to unlock Hinge arm IndentationSafety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Consumer Support GEAppliances.com Standard Racks The standard racks may be cleaned by hand with an abrasive cleaner or steel wool. After cleaning, rinse the racks with clean water and dry with a clean cloth. They may also remain in the oven during the self-cleaning cycle without being damaged. If they become hard to slide, wipe their side edges and the oven rack supports with cooking oil after cleaning them by hand or in the oven. This will help maintain the ease of sliding the racks in and out of the oven. Extension Rack Porcelain enamel surfaces of the extension rack may be cleaned by hand with an abrasive cleaner or steel wool. Do not use a steel wool pad to clean stainless steel surfaces of the extension rack; it will scratch the surface. See Stainless Steel Surfaces in this Care and cleaning section. NOTE: Do not clean in a dishwasher. The rack may also remain in the oven during the self-cleaning cycle without being damaged. If the rack becomes hard to remove or replace, wipe the oven rack supports with cooking oil. Do not wipe cooking oil on the slides. If the rack becomes difficult to slide or if the release levers become difficult to use, the rack may need to be lubricated using the Graphite Lubrication shipped with your oven. To order additional Graphite Lubrication, call our National Parts Center at 800.626.2002 and reference WB02T10303. To lubricate the slides: NOTE: Do not spray extension rack with cooking spray or other lubricant sprays. Remove the rack from the oven. See Extension Rack in the Using the oven section. Fully extend the rack on a table or countertop. Newspaper may be placed underneath the rack for easy cleanup. If there is debris in the slide tracks, wipe it away using a paper towel. NOTE: Any graphite lubricant wiped away must be replaced. Shake the graphite lubricant before opening it. Starting with the left slide mechanism of the rack, place four (4) small drops of lubricant on the two (2) bottom tracks of the slide close to the bearing carriers. Repeat for the right slide mechanism of the rack. Open and close the rack several times to distribute the lubricant. Replace the cap on the lubricant and shake it again. Turn the rack over and repeat steps 3, 4, 5 and 6. Close the rack, turn rack right-side- up and place in the oven. See Extension Rack in the Using the oven section. To lubricate the release levers: Shake lubricant and apply to the moving parts of the release levers and paddle mechanisms.

Rack right-side-up Right side Rack right-side-up Left sideSafety InstructionsOperating InstructionsCare and CleaningTroubleshooting TipsConsumer Support Before you call for service… Troubleshooting Tips Save time and money! Review the charts on the following pages first and you may not need to call for service. Problem Possible Causes What To Do Control signals after You forgot to enter a bake • Touch BAKE and desired temperature or entering cooking time temperature or cleaning SELF CLEAN and desired clean time. or delay start time. Food does not bake Oven controls improperly set. • See the Using the oven section. or roast properly Rack position is incorrect • See the Using the oven section. or the rack is not level. Oven floor not in place. • Replace the oven floor. Oven thermostat needs • See the Adjust the Oven Thermostat—Do It Yourself! adjustment. section. Food does not Oven door is open. • Close the door. This model is designed for closed door broil properly broiling only. Always broil with the door closed. Oven controls improperly set. • Make sure you touch BROIL. Improper rack position • See the Broiling Guide. being used. Food being cooked • For best results, use a pan designed for broiling. in a hot pan. Make sure it is cool. Cookware not suited • For best results, use a pan designed for broiling. for broiling. The probe is plugged into the • Unplug and remove the probe from the oven. outlet in the oven. In some areas the power • Preheat the broil element for 10 minutes. (voltage) may be low.

• Broil for the longest period of time recommended in the Broiling Guide. Clock and timer A fuse in your home may be • Replace the fuse or reset the circuit breaker. do not work blown or the circuit breaker tripped. Oven controls improperly set. • See the To Set the Clock and Kitchen timer and control lockout sections. Oven light does Light bulb is loose or defective. • Tighten or replace the bulb. not work The oven is self-cleaning or • The oven lights do not come on during self-cleaning the Sabbath option is set. or if the Sabbath option is set. Pad operating light is broken. • Call for service. Extension rack is noisy The rack was cleaned in the • See Extension Rack in the Care and cleaning section. and/or difficult to slide self-clean cycle and now

• Do not spray with cooking spray or other lubricant needs to be lubricated. sprays. Bearings have become • Install the rack in the oven (see Extension Rack in misaligned due to handling. the Using the oven section) and pull firmly on the sliding portion until it reaches full extension. This will reset the bearings to their proper position. Release levers on The rack was cleaned in the • Shake and apply the graphite lubrication, shipped extension rack become self-clean cycle, or the original with your oven, onto the moving parts of the release difficult to use lubrication was removed by levers and paddle mechanisms. Do not spray with cleaning. cooking spray or other lubricant sprays. Oven temperature too Oven thermostat • See the Adjust the Oven Thermostat—Do It Yourself! hot or too cold needs adjustment. section.

Safety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Consumer Support GEAppliances.com Problem Possible Causes What To Do Oven will not work A fuse in your home may • Replace the fuse or reset the circuit breaker. be blown or the circuit breaker tripped. Oven controls improperly set. • See the Using the oven section. Oven will not self-clean The oven temperature • Allow the oven to cool and reset the controls. is too high to set a self-clean operation. Oven controls improperly set. • See the Using the self-cleaning oven section. The probe is plugged into • Remove the probe from the oven. the outlet in the oven. “Crackling” or This is the sound of the • This is normal. “popping” sound metal heating and cooling during both the cooking and cleaning functions. Excessive smoking Excessive soil. • Touch the CLEAR/OFF pad. Open the windows to during clean cycle rid the room of smoke. Wait until OVEN LOCKED goes off. Wipe up the excess soil and reset the clean cycle. Oven door will Oven too hot. • Allow the oven to cool below locking temperature. not open after a clean cycle Oven not clean after a Oven controls not properly set. • See the Using the self-cleaning oven section. clean cycle Oven was heavily soiled. • Clean up heavy spillovers before starting the clean cycle. Heavily soiled ovens may need to self-clean again or for a longer period of time. “LOCK DOOR” The self-clean cycle has • Close the oven door. flashes in the display been selected but the door is not closed. “OVEN LOCKED” is on The oven door is locked • Touch the CLEAR/OFF pad. Allow the oven to cool. when you want to cook because the temperature inside the oven has not dropped below the locking temperature. Control keys activate The control panel is dirty • Clean the control panel with a vinegar and or LCD changes or there is residue from water solution, and polish dry with a soft cloth. screens when I liquid cleaners. See the Care and cleaning section. open the oven doorSafety InstructionsOperating InstructionsCare and CleaningTroubleshooting TipsConsumer Support Before you call for service… Troubleshooting Tips Problem Possible Causes What To Do Display “wakes up” The Display is equipped with • The Display should return to its standby mode after without touching it a sensing technology that will 10 minutes if no further interaction occurs. “wake up” when you (your hand) approaches the Touch Screen. The display is sensitive and may “wake up” when lights are turned on or due to the movement of nearby people or objects. “F— and a number You have a function • Touch the CLEAR/OFF pad. Allow the oven to cool for or letter” flash error code. one hour. Put the oven back into operation. in the display If the function code repeats. • Disconnect all power to the oven for at least 30 seconds and then reconnect power. If the function error code repeats, call for service. Display goes blank A fuse in your home may • Replace the fuse or reset the circuit breaker. be blown or the circuit breaker tripped. The clock is in the • See the Options–Settings section. black-out mode. Display flashes Power failure. • Reset the clock. “PROBE” appears in This is reminding you to • Enter a probe temperature. the display enter a probe temperature after plugging in the probe. Power outage, Power outage or surge. • Reset the clock. If the oven was in use, you must reset clock flashes it by touching the CLEAR/OFF pad, setting the clock and resetting any cooking function. Steam from the vent When using the convection • This is normal. feature, it is normal to see steam coming out of the oven vent. As the number of racks or amount of food being cooked increases, the amount of visible steam will increase. “Burning” or “oily” This is normal in a new oven • To speed the process, set a self-clean cycle for a odor emitting from and will disappear in time. minimum of 3 hours. See the Using the self-cleaning the vent oven section. Strong odor An odor from the insulation • This is temporary. around the inside of the oven is normal for the first few times the oven is used. Fan noise A cooling fan or a convection • This is normal. The cooling fan will turn on fan (depending on the to cool internal parts. It may run for up to 1-1/2 function you are using) hours after the oven is turned off. The convection may automatically turn on. fan will cycle on and off until the function is over or the door is opened. 44Safety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Consumer Support Accessories. GEAppliances.com Looking For Something More? You can find these accessories and many more at GEAppliances.com (U.S.) or www.GEAppliances.ca (Canada), or call 800.626.2002 (U.S.) or 800.661.1616 (Canada) (during normal business hours). Have your model number ready. Experience these other great products to keep your kitchen looking great! Get the most out of your Broiler Pan! (Not for use with Broiler Drawer models.) Use your pan and grid cover to broil hamburgers, seafood, steaks, vegetables, bacon, chops and so much more! The pan below catches the excess fats and oils.• Genuine GE Part• Easy To Clean• One-Year Warranty Limited Time Offer! Free Shipping! When you order your broiler pan within 30 daysof purchasing your GE cooking product.Small Large* XL**U.S. Part # WB48X10055 WB48X10056 WB48X10057Canada Part # 222D2097G001 222D2097G002 N/A Dimensions 8-3/4" W x 1-1/4" H x 13-1/2" D 12-3/4" W x 1-1/4" H x 16-1/2" D 17" W x 1-1/4" H x 19-1/4" D Price US$10.50 US$14.50 US$16.75 † Plus applicable state sales tax (PST/HST and GST)* The large (standard) broil pan does not fit in 20"/24" ranges.** The XL pan does not fit in 24" wall ovens, 27" drop-ins or 20"/24" ranges. To place your order, call 800.626.2002 (U.S.), 800.661.1616 (Canada) or mail this form to: In the U.S.: GE Parts, P.O. Box 221027, Memphis, TN 38122-1027. In Canada: GE Parts, 1 Factory Lane, Moncton, N.B. E1C 9M3 Broiler Pan Order Form Quantity ____________________ Part Number ______________________________________________________________ Model Number ______________ Serial Number____________________ Brand ________________ Date of Purchase____________ First Name ____________________________________________ Last Name ______________________________________________ Address __________________________________________________________________________________________________________ City __________________________________________________ State____________ Zip Code ______________________________ Phone ________________________________________________ E-Mail __________________________________________________ Credit Card ____ Check ____ Money Order ____ Visa ____ MasterCard ____ Discover ____ AmEx ____ Credit Card # ____________________________________________ Exp. Date: Month ________________ Year __________________ Signature: ________________________________________ Surface Elements and Drip PansGrates Surface Burner Heads and CapsOven Elements Light BulbsKnobsOven RacksWX10X117GCSWX10X305WX10X10001PM10X311Ceramic CooktopCleaning Kit:Includes cleaner,scraper and padCeramic CooktopCleaning WipesStainless SteelAppliance PolishWipesStainless SteelApplianceCleaner _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

GE Built-In Electric Oven Warranty. For The Period Of: GE Will Replace: One Year Any part of the oven which fails due to a defect in materials or workmanship. From the date of the During this limited one-year warranty, GE will also provide, free of charge, all labor original purchase and in-home service to replace the defective part. ■ Service trips to your home to teach you how to use the product. ■ Improper installation, delivery or maintenance. ■ Failure of the product if it is abused, misused, or used for other than the intended purpose or used commercially. ■ Replacement of house fuses or resetting of circuit breakers. ■ Damage to the product caused by accident, fire, floods or acts of God. ■ Incidental or consequential damage caused by possible defects with this appliance. ■ Damage caused after delivery. ■ Product not accessible to provide required service. What GE Will Not Cover: This warranty is extended to the original purchaser and any succeeding owner for products purchased for home use within the USA. If the product is located in an area where service by a GE Authorized Servicer is not available, you may be responsible for a trip charge or you may be required to bring the product to an Authorized GE Service location for service. In Alaska, the warranty excludes the cost of shipping or service calls to your home. Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights are, consult your local or state consumer affairs office or your state’s Attorney General. Warrantor: General Electric Company. Louisville, KY 40225 All warranty service provided by our Factory Service Centers, or an authorized Customer Care
