USER MANUAL ZRC00MI Zephyr

• EN Use, Care, and Installation Guide FR Guide d’utilisation, d’entretien et d’installation2 Milano Use, Care, and Installation Guide MILANO WALL CORE3 Milano Use, Care, and Installation Guide ZEPHYRONLINE.COM Contents Page Safety Information p. 4
• -6 Types of Safety Warnings p. 4
• General Safety p. 4
• -5 Operation p. 6
• Electrical Requirements p. 6
• Federal Communication Commission Interface Statement p. 6
• List of Materials p. 7
• Installation Instructions p. 8
• -17 Ducting Calculation Sheet p. 8
• Mounting Height, Clearance, & Ducting p. 9
• -10 Ducting Options p. 11
• Hood Specifications p. 12
• Electrical Supply p. 13
• Cable Lock p. 13
• Mounting the Hood p. 14
• -15 Ductless Recirculation p. 16
• -17 Features & Controls p. 18
• -24 Proximity Controls p. 18
• -20 Zephyr Connect p. 21
• -22 Optional RF Remote Control p. 23
• -24 Maintenance p. 25
• -27 Hood & Filter Cleaning p. 25
• -26 LumiLight LED p. 27
• ACT™ Conversion p. 28
• -30 Airflow Control Technology (ACT™) p. 28
• Enabling ACT™ p. 29
• -30 Wiring Diagram p. 31
• Troubleshooting p. 32
• -34 List of Parts & Accessories p. 35
• Notes p. 36
• Limited Warranty p. 37

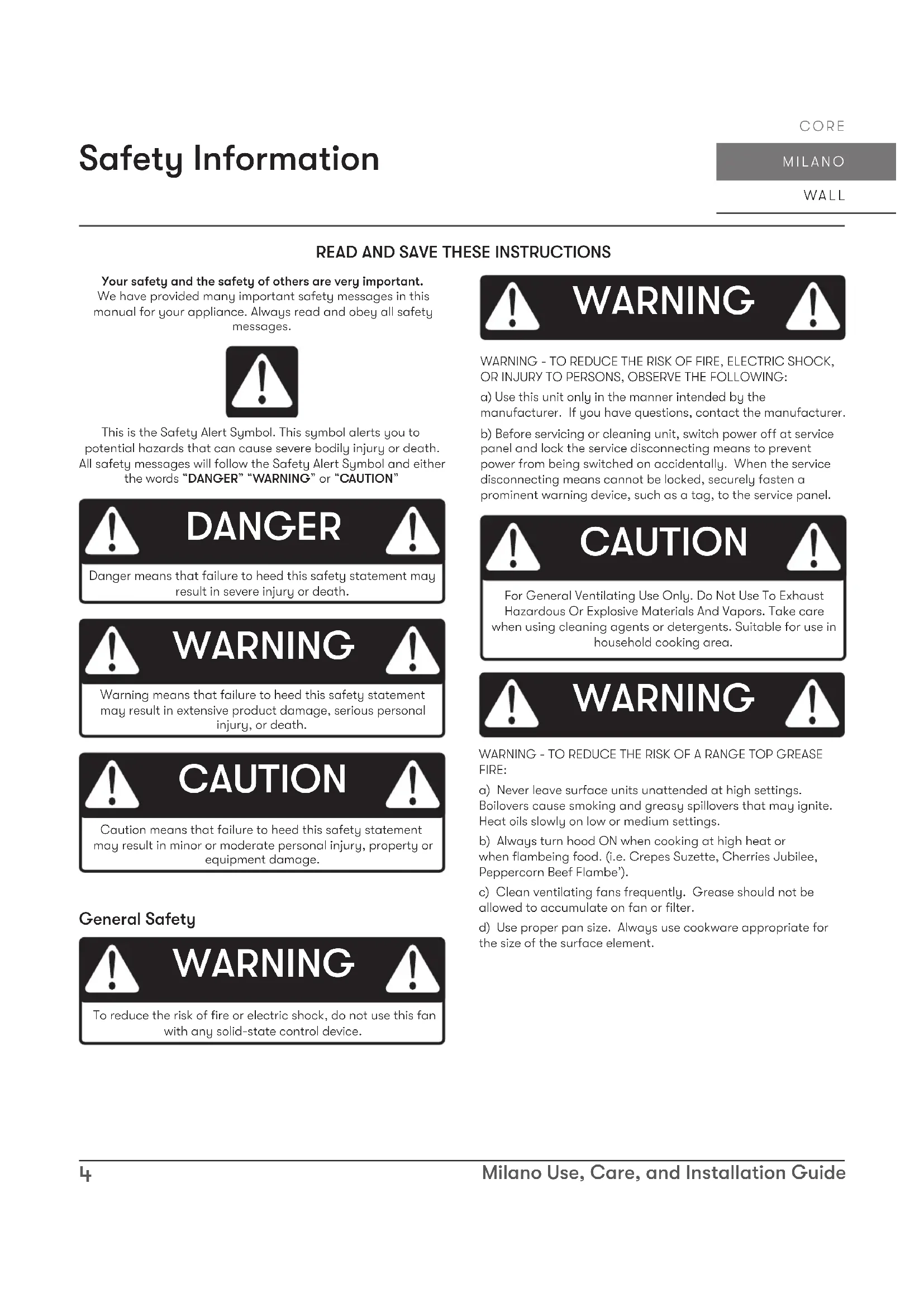

• Product Registration Milano Use, Care, and Installation Guide MILANO WALL CORE Safety Information Your safety and the safety of others are very important.We have provided many important safety messages in this manual for your appliance. Always read and obey all safety messages.This is the Safety Alert Symbol. This symbol alerts you to potential hazards that can cause severe bodily injury or death. All safety messages will follow the Safety Alert Symbol and either the words “DANGER” “WARNING” or “CAUTION” DANGER Danger means that failure to heed this safety statement may result in severe injury or death. p. 384

READ AND SAVE THESE INSTRUCTIONS

WARNING - TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:a) Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer.b) Before servicing or cleaning unit, switch power o at service panel and lock the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel. General Safety WARNING Warning means that failure to heed this safety statement may result in extensive product damage, serious personal injury, or death. CAUTION Caution means that failure to heed this safety statement may result in minor or moderate personal injury, property or equipment damage. WARNING To reduce the risk of fire or electric shock, do not use this fan with any solid-state control device. WARNING CAUTION For General Ventilating Use Only. Do Not Use To Exhaust Hazardous Or Explosive Materials And Vapors. Take care when using cleaning agents or detergents. Suitable for use in household cooking area. WARNING WARNING - TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:a) Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings.b) Always turn hood ON when cooking at high heat or when flambeing food. (i.e. Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambe’).c) Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter.d) Use proper pan size. Always use cookware appropriate for the size of the surface element.5 Milano Use, Care, and Installation Guide ZEPHYRONLINE.COM Safety Information WARNING

READ AND SAVE THESE INSTRUCTIONS

WARNING - TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING:a) SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn o the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT.b) NEVER PICK UP A FLAMING PAN – You may be burned.c) DO NOT USE WATER, including wet dishcloths or towels – a violent steam explosion will result.d) Use an extinguisher ONLY if:1) You know you have a Class ABC extinguisher, and you already know how to operate it.2) The fire is small and contained in the area where it started.3) The fire department is being called.4) You can fight the fire with your back to an exitBased on “Kitchen Firesafety Tips” published by NFPA. WARNING WARNINGTO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK. CAUTION To reduce risk of fire and to properly exhaust air outside, do not vent exhaust air into spaces within walls, ceilings, attics, crawl spaces, or garages. WARNING WARNING - TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:a) Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction.b) Sucient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent back drafting. Follow the heating equipment manufacturer’s guideline and safety standards such as those published by the National Fire Protection Association (NFPA), and the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.c) When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.d) Ducted fans must always be vented to the outdoors.e) If this unit is to be installed over a tub or shower, it must be marked as appropriate for the application and be connected to a GFCI (Ground Fault Circuit Interrupter) - protected branch circuit. WARNING Prop. 65 Warning for California Residents: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.6 Milano Use, Care, and Installation Guide MILANO WALL CORE Safety Information Operation Ź Always leave safety grilles and filters in place. Without these components, operating blowers could catch onto hair, fingers and loose clothing. Ź The manufacturer declines all responsibility in the event of failure to observe the instructions given here for installation, maintenance and suitable use of the product. The manufacturer further declines all responsibility for injury due to negligence and the warranty of the unit automatically expires due to improper maintenance.NOTE: Please check www.zephyronline.com for revisions before doing any custom work. Electrical Requirements Important: Ź Observe all governing codes and ordinances. Ź It is the customer’s responsibility to be aware of these below: Ź To contact a qualified electrical installer. Ź To assure that the electrical installation is adequate and in conformance with National Electrical Code, ANSI/NFPA 70 latest edition* or CSA standards C22.1-94, Canadian Electrical Code, Part 1 and C22.2 No.0-M91 - latest edition** and all local codes and ordinances. Ź If codes permit and a separate ground wire is used, it is recommended that a qualified electrician determine that the ground path is adequate. Ź Do not ground to a gas pipe. Ź Check with a qualified electrician if you are not sure the range hood is properly grounded. Ź Do not have a fuse in the neutral or ground circuit. Ź This appliance requires a 120V 60Hz electrical supply and connected to an individual properly grounded branch circuit protected by a 15 or 20 ampere circuit breaker or time delay fuse. Wiring must be 2 wire with ground. Please also refer to Electrical Diagram on product. Ź A cable locking connector (not supplied) might also be required by local codes. Check with local requirements, purchase and install appropriate connector if necessary.* National Fire Protection Association Batterymarch Park, Quincy, Massachusetts 02269 ** CSA International 8501 East Pleasant Valley Road, Cleveland, Ohio 44131-5575 Federal Communication Commission Interface Statement Ź This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. Ź This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one of the following measures: Ź Reorient or relocate the receiving antenna. Ź Increase the separation between the equipment and receiver. Ź Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected. Ź Consult the dealer or an experienced radio/TV technician for help.

READ AND SAVE THESE INSTRUCTIONS7

Milano Use, Care, and Installation Guide ZEPHYRONLINE.COM List of Materials (3) Wire Nuts (3) #6 x 1-1/2” (3) #6 x 1” (2) M3.5 x 8

1 - Hood body with internal blower

1 - Aluminum mesh filter

1 - Duct cover assembly, top and bottom

1 - Duct cover wall bracket

2 - LumiLight LED, 6W

1 - 8” round damper, pre-installed

1 - Hardware package

1 - Canopy , glass or stainless steel

(1) ø12 OD / ø5 ID Washers (4) 3/16 x 1/4 pan-head machine screws Parts Not Supplied Ducting, conduit and all installation tools Cable locking connector (if required by local codes) Duct cover extension accessory Recirculating kit RF remote control Parts Supplied8 Milano Use, Care, and Installation Guide MILANO WALL CORE Installation Instructions Duct pieces To t a lEquivalent numberlength x used =3- 1/ 4” x 10”Rect.,straight 1 Ft. x ( ) = Ft.

9 Ft. x ( ) =Ft. Ft. 6”, 7”, 8”, 10” Round,straight 1 Ft. x ( ) = Ft. Subtotal column 1 =Duct pieces To t alEquivalent numberlength x used =6”, 7”, 8”, 10”Round, wall cap with damper 30 Ft. x ( ) = Ft.

Subtotal column 2 =Subtotal column 1 =Total ductwork =Maximum Duct Length: For satisfactory air movement,the total duct length should not exceed 150 equivalent feet.6” round to3- 1/ 4” x 10”rect. transition1 Ft. x ( ) =Ft. 6” round to3- 1/ 4” x 10”rect. transition

elbow23 Ft. x ( ) =Ft. elbowelbow7” to 6” or8” to 7” Round tapered reducer25 Ft. x ( ) = Ft.

3- 1/ 4” x 10”Rect. 90

elbow 15 Ft. x ( ) = Ft. 3- 1/ 4” x 10”Rect. 45 elbow 9 Ft. x ( ) = Ft.

3- 1/ 4” x 10”Rect. 90

flat elbow24 Ft. x ( ) = Ft.

6”, 7“, 8”Round in-line damper Ducting Calculation Sheet9 Milano Use, Care, and Installation Guide ZEPHYRONLINE.COM Installation Instructions Mounting Height, Clearance, & Ducting 24” min. 34” max. min. Amin. Bmax. Cmin. Dmin. Emax. F Standard ExtensionHood Heights Duct Cover Duct Cover minimum ducted (A) 26-1/2” 42“ minimum recirculating (B) 31” 46“ maximum (C) 50” 80”Ceiling Heights minimum ducted (D) 86-1/2” (7’ 2-1/2) 102“ (8‘ 6”) minimum recirculating (E) 91” (7’ 7”) 106“ (8‘ 10”) maximum (F) 120” (10’ ) 150” (12’ 6”) 36”10 Milano Use, Care, and Installation Guide MILANO WALL CORE Installation Instructions Mounting Height, Clearance, & Ducting A minimum of 8” round duct is recommended to maintain maximum air flow eciency. Always use rigid type metal ducts only. Flexible ducts could restrict air flow by up to 50%. Also use the ducting calculation sheet (on page 11) to compute total available duct run when using elbows, transitions and caps. ALWAYS, when possible, reduce the number or transitions and turns. If long duct run is required, increase duct size from 8” to 10”. If turns or transitions are required; install as far away from hood duct output and as far apart, between the two as possible. Minimum mount height between range top to hood bottom should be no less than 24”. Maximum mount height should be no higher than 34”. It is important to install the hood at the proper mounting height. Hoods mounted too low could result in heat damage and fire hazard; while hoods mounted too high will be hard to reach and will lose its performance and eciency. If available, also refer range manufacturer’s height clearance requirements and recommended hood mounting height above range. Always check your local codes for any dierences. Duct cover extension kit available for ceiling heights up to 12 feet. Turn to the list of parts and accessories section for part number and ordering information. For shipment and installation damages: Ź Please fully inspect unit for damage before installation. Ź If the unit is damaged in shipment, return the unit to the store in which it was bought for repair or replacement. Ź If the unit is damaged by the customer, repair or replacement is the responsibility of the customer. Ź If the unit is damaged by the installer (if other than the customer), repair of replacement must be made by arrangement between customer and installer.11 Milano Use, Care, and Installation Guide ZEPHYRONLINE.COM Installation Instructions Ducting Options Ź Use single wall rigid metal ductwork only. Ź Fasten all connections with sheet metal screws and tape all joints w/ certified Silver Tape or Duct Tape.Fire Hazard: NEVER exhaust air or terminate ductwork into spaces between walls, crawl spaces, ceilings, attics, or garages. All exhaust must be ducted to the outside, unless using the recirculating option. WARNING Sot or crawl spaceroof pitch w/ flashing & capside wall capw/ gravity damper(blower housing)(blower housing)(blower housing)(blower housing)side wall capw/ gravitydamperductlessrecirculating12 Milano Use, Care, and Installation Guide MILANO WALL CORE Installation Instructions

Side of Hood Front of Hood Top of Hood STANDARD min. ducted - 26-1/2”min. recirc. - 31”max. - 50”Z1C-01MImin. ducted - 42”min. recirc. - 46”max. - 80”13-5/8”20-1/2”12-13/16”23-15/16”6-5/16”18-5/8”8-3/8”35-5/16”4-1/8”6-5/8”AC In7-3/4”13 Milano Use, Care, and Installation Guide ZEPHYRONLINE.COM Installation Instructions Electrical Supply Electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards. Turn o electrical power at service entrance before wiring. WARNING For personal safety, remove house fuse or open circuit breaker before beginning installation. Do not use extension cord or adapter plug with this appliance.Follow national electrical codes or prevailing local codes and ordinances.This appliance requires a 120V 60Hz electrical supply, and connected to an individual, properly grounded branch circuit, protected by a 15 or 20 ampere circuit breaker or time delay fuse. Wiring must be 2 wire w/ ground. Please also refer to the Electrical Diagram labeled on product. Cable Lock A cable locking connector (not supplied) might be required by local codes. Check with local requirements and codes, purchase and install appropriate connector if necessary. (FIG. A)Cable Lock

MotorHousingFIG. A14 Milano Use, Care, and Installation Guide MILANO WALL CORE Installation Instructions Mounting the Hood At least two installers are required due to the weight and size of the hood. CAUTION 1. Measure from range top to hood bottom and mark line A. (24” minimum from range top).2. Plum and mark center line.3. Mark mounting height line B. (18-5/8” from line A). 4. Mark mounting spread from C/L. (11-1/4”).5. Fasten (2) #6 x 1-1/2” screws into studs on line B but do not tighten all the way. Wood blocking may need to be added behind the drywall if no studs are present. Wall anchors may also be used but check local codes for compliance. Failure to use suitable wall anchors and screws to hold the weight of the hood could result in personal injury or damage to cooking surface or counter. WARNING FIG. BBrackets are pre-installed 24” min. 11-1/4” C/L C/L

18-5/8”Duct Cover Bracket6. Remove tape and (2) screws securing electronics mounting bracket to hood. Reposition electronics mounting bracket as shown in (FIG. A3) and secure to motor housing using the (2) previously removed screws.7. Remove (2) screws securing electrical junction box to electronics mounting plate. Remove junction box. (FIG. A1).8. Remove the (1) aluminum mesh filter.15 Milano Use, Care, and Installation Guide ZEPHYRONLINE.COM Installation Instructions

9. Hang hood onto the mounting screws and hand tighten each screw. (FIG. B1) Secure the third #6 x

1-1/2” screw through inside of hood into wall for extra support. (FIG. B2).

10. Center and attach duct cover mounting bracket to wall just below the ceiling or sot using (2) #6

11. Install electrical and duct work. Seal duct work with aluminum duct tape. Re-install electrical

junction box with cable lock and install the electrical. (FIG. A2).

12. Unwrap the blue antenna wire and position it behind the duct cover from step 14. There is no need

13. Power up hood and check for leaks around duct tape.

14. Place telescopic duct covers onto hood and extend inner (top) duct cover upwards and secure to

duct cover bracket using (2) M3.5 x 8 screws.

15. Place canopy over hood body and secure it to hood body using (4) 3/16 x 1/4 screws through filter

opening. Hand tighten screws only.

16. Reinstall aluminum mesh filter.

NOTE: If using hood in recirculating mode you must secure the air diverter plate onto wall before installing duct work and duct covers. Turn to page 19 for more details. Mounting the Hood16 Milano Use, Care, and Installation Guide MILANO WALL CORE Installation Instructions Ductless Recirculation Ductless recirculation is intended for applications where an exhaust duct work is not possible to be installed. When converted, the hood functions as a recirculating hood rather than an exhaust hood. Fumes and exhaust from cooking are drawn and filtered by a set of optional charcoal filters. The air is then purified and re-circulated back within the home. We recommend to ALWAYS exhaust air outside of the home by employing existing or installing new duct work, if possible. The hood is most eective and ecient as an exhaust hood. Only when the exhaust option is not possible should you recourse to converting the hood into a recirculating hood. When converted to be a recirculating hood, a set of charcoal filters are required on top of its standard Metal Filter set. Order according to its part number below. The standard mesh filters are intended to capture residue from cooking, and the optional charcoal filters help to purify fumes exhausted from cooking for recirculation. Recirculating Kit Installation (required if no ducting is used) Kit includes the charcoal filters and the air diverter plate. Hood Model Part Number Filters in Package

2. Secure air diverter plate to wall below duct cover bracket. (FIG. C) Run 8” ducting from top of

hood and secure to air diverter plate. See manual included with recirculating kit for more detailed instructions.

3. Remove aluminum mesh filter from hood. Install charcoal filter bracket inside filter opening. Note:

screws to secure charcoal filter bracket are already pre-installed in the hood and must first be removed. Clip charcoal filters onto charcoal filter bracket. (FIG. C)

5. Enable recirculating mode on the proximity

controls. (Refer details to pg. 20)

6. Charcoal filters must be replaced after every

200 hours of use (or approximately every 3 to 6 months based on the average of 1 - 2 hours of daily cooking time). After 200 hours of use, the notification bell icon will display. When the bell is tapped, the LCD display will cycle between showing “REPLACE CHARCOAL FILTER” and “HOLD UP TO RESET” every 2 seconds. Charcoal Filter Replacements Hood Model Part Number Quantity to Order

DO NOT WASH CHARCOAL FILTERS. Charcoal filters may need to be changed more often depending on cooking habits. FIG. C18 Milano Use, Care, and Installation Guide MILANO WALL CORE Features & Controls Proximity Controls Power LightsAdjust 6 Speed LevelsDisplay & Icons PROXIMITY SENSOR Ź When approaching the hood while it is powered o, the Power, Fan Decrease, Fan Increase, and Light icons will illuminate, and “HELLO” will appear on the LCD display for 2 seconds. Ź If neither the fan nor lights are turned on within 60 seconds, the icons will turn o, and “GOODBYE” will appear on the LCD display for 2 seconds. Ź The icons will not disappear until the fan and lights are turned o. CONTROL ICONS Power Ź Press the power icon to power on or o the fan and lights. Ź The hood has a memory function to remember the last used settings for the fan and lights. Ź After pressing the power icon to power o the hood, “GOODBYE” will appear on the LCD display for 2 seconds. Ź The 3s icon under the power icon only illuminates when the fan is powered on. It is an indicator to enable Automatic Delay O by pressing and holding the power button for 3 seconds. Decrease Fan Speed Ź Press the icon to decrease fan speed from 6, 5, 4, 3, 2, 1, o. Increase Fan Speed Ź Press the icon to increase fan speed from o, 1, 2, 3, 4, 5, 6. Lights Ź Press the lights icon to change lighting level from 1, 2, 3, o.19 Milano Use, Care, and Installation Guide ZEPHYRONLINE.COM Features & Controls Proximity Controls

Ź The notification bell icon will illuminate when an action needs to be taken. Tapping the icon will cycle through the notifications. The notification bell will remain illuminated until all notifications are resolved. The notification bell will not illuminate when the hood and controls are powered o. Bluetooth® Ź The Bluetooth® icon will illuminate the device when connected with the hood via Bluetooth®. The words “BLUETOOTH CONNECTED” or “BLUETOOTH DISCONNECT” will appear on the LCD display whenever the connection changes. Wi-Fi Ź The Wi-Fi icon will illuminate when the hood is connected to the Wi-Fi. The words “WIFI CONNECTED” or “WIFI DISCONNECTED” will appear on the LCD display whenever the connection changes which will be managed via the Zephyr Connect app.

Ź While the fan is on, press and hold for 3 seconds to enable the delay o timer. The fan will change to speed 1, the timer display will illuminate, the LCD display will show “AUTOMATIC DELAY OFF”, and the timer will begin counting down from 10 minutes. After the timer reaches 0, the fan and lights will power o. Ź The automatic delay o function timer begins at 10 minutes by default. The Zephyr Connect app provides the options for either 5 or 10 minutes. CleanAir Ź When the fan is o, press and hold and simultaneously for 3 seconds to enable or disable the CleanAir function. The LCD display will show “CLEAN AIR ENABLED” or “CLEAN AIR DISABLED”. Ź When enabled, the fan will turn on speed 1 every 4 hours for 10 minutes. While the fan is running, the LCD display will show “CLEAN AIR ACTIVE” and the CleanAir icon will illuminate.20 Milano Use, Care, and Installation Guide MILANO WALL CORE Features & Controls Proximity Controls

Ź Airflow Control Technology (ACT™) allows the installer to set the maximum fan CFM to align with local codes and regulations. When the fan is o, press and hold for 3 seconds to display ACT™ status. Ź ACT 290 = 3 speeds, ACT 390 = 4 speeds, ACT 590 = 5 speeds. Grease Filter Clean Reminder Ź After 60 hours of fan use, the notification bell icon will illuminate. When the bell is tapped, the LCD display will cycle between showing “CLEAN GREASE FILTERS” and then “HOLD DOWN TO RESET” every 2 seconds. If no action is taken for 30 seconds, the display turns o and the notification bell icon will remain illuminated. Ź To hold down and reset, press and hold the fan decrease button for 3 seconds to reset. The Zephyr Connect app provides the option to reset the reminder. Recirculating Mode - Charcoal Filter Replacement Reminder Ź Hold and for 3 seconds to enable or disable recirculating mode which will remind you to replace the charcoal filter. The LCD display will show “RECIRCULATING ENABLED” to enable and “RECIRCULATING DISABLE” to disable for 2 seconds. Ź After 200 hours of fan use, the notification bell icon will illuminate. When the bell is tapped, the LCD display will cycle between showing “REPLACE CHARCOAL FLTR” and “HOLD UP TO RESET” every 2 seconds. If no action is taken for 30 seconds, the display turns o and the notification bell will remain illuminated. Ź To hold up and reset, press and hold the fan increase button for 3 seconds to reset. The Zephyr Connect app provides the option to reset the reminder. Remote Control Pairing Mode Ź Hold for 3 seconds to enable remote control pairing mode. Once pairing mode is enabled, the LCD display will illuminate “REMOTE PAIRING”. Press a button on the remote control to synchronize it with the hood.21 Milano Use, Care, and Installation Guide ZEPHYRONLINE.COM Features & Controls Zephyr Connect Your range hood is compatible with our Zephyr Connect app. All you need is a WiFi connection with access to the Internet that can reach the location of your range hood. Zephyr Connect allows you to control your range hood from anywhere using a mobile device or your Amazon Alexa or Google Home smart speaker. Zephyr Connect also includes real time diagnostics and provides you with important product information. The Zephyr Connect app is available on iOS devices using iOS 11.0 or later or Android devices using Android version 8 or later. Visit the Apple App Store or Google Play Store for more information. If your range hood is not connected to WiFi, the functionality will operate similarly to a typical range hood without WiFi connectivity. Please review the included Zephyr Connect Quick Start Guide for more information. If you have connected your hood with either Amazon Alexa or Google Home smart speakers, you now have voice control capabilities. The list of commands for Amazon Alexa and Google Home are on the next page. NOTE: Amazon Alexa and Google Home cannot support the voice commands in French.22 Milano Use, Care, and Installation Guide MILANO WALL CORE Features & Controls Zephyr Connect Control Type Amazon Alexa Voice Commands DescriptionPowerAlexa, turn on [Hood Name] Turn on range hood powerAlexa, turn o [Hood Name] Turn o range hood power Fan Alexa, increase [Hood Name] Fan Speed Increase fan speed on range hoodAlexa, decrease [Hood Name] Fan Speed Decrease fan speed on range hoodAlexa, set [Hood Name] Fan Speed to [1-6] Set range hood to specific fan speedAlexa, set [Hood Name] Fan Speed to Maximum Set fan speed to 6 on range hoodAlexa, set [Hood Name] Fan Speed to Minimum Set fan speed to 1 on range hoodLightAlexa, turn on [Hood Name] Light Turn on the light on range hoodAlexa, turn o [Hood Name] Light Turn o the light on range hoodAlexa, increase [Hood Name] Light(s) Increase light level on range hoodAlexa, decrease [Hood Name] Light(s) Decrease light level on range hoodAlexa, set [Hood Name] Light(s) to High Alexa, set [Hood Name] Light(s) to BrightSet light level to High on range hoodAlexa, set [Hood Name] Light(s) to Low Alexa, set [Hood Name] Light(s) to DimSet light level to Low on range hoodAlexa, set [Hood Name] Light(s) to [1-3] Set range hood to specific light levelDelay-OAlexa, set delay time to 1 minute on [Hood Name] Alexa, set delay time to 2-10 minutes on [Hood Name]Enable delay timer for 1-10 minutes. After 1-10 minutes, the hood will be power o. Alexa, [Start/Enable] [Hood Name] Delay O Timer Enable delay o timer for 10 minutes. After 10 minutes, the hood will power o.Alexa, [Stop/Disable] [Hood Name] Delay O Timer Disable delay o timerControl Type Google Home Voice Command DescriptionPowerHey Google, turn on [Hood Name] Turn on range hood powerHey Google, turn o [Hood Name] Turn o range hood power Fan Hey Google, increase [Hood Name] speed Increase fan speed on range hood Hey Google, decrease [Hood Name] speed Decrease fan speed on range hood Hey Google, set [Hood Name] to speed [1-6] Set range hood to specific fan speedHey Google, set [Hood Name] to maximum speed Set fan speed to the maximum on range hoodHey Google, set [Hood Name] to minimum speed Set fan speed to the minimum on range hoodLightHey Google, turn on [Hood Name] light(s) Turn on the light on range hoodHey Google, turn o [Hood Name] light(s) Turn o the light on range hoodHey Google, set [Hood Name] light(s) to High Hey Google, set [Hood Name] light(s) to BrightSet light level to High on range hoodHey Google, set [Hood Name] light(s) to Low Hey Google, set [Hood Name] light(s) to DimSet light level to Low on range hoodHey Google, set [Hood Name] light(s) to 1-3 Set range hood to specific light levelHey Google, Run [Hood Name] for 1-10 minutes Enable delay timer for 1-10 minutes. After 1-10 minutes, the hood will be power o. Hey Google, Start 1-10 minute timer on [Hood Name] Enable delay timer for 1-10 minutes. After 1-10 minutes, the hood will be power o.Delay-OHey Google, Stop [Hood Name] timer Disable delay timerHey Google, Cancel [Hood Name] timer Disable delay timer23 Milano Use, Care, and Installation Guide ZEPHYRONLINE.COM Features & Controls Optional RF Remote Control To order the RF remote control, the part number is 14000005. The blue antenna wire needs to be extended for optimal signal. Unwrap the antenna wire and position it behind the duct cover. It does not need to be secured. FCC Caution To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. (Example - use only shielded interface cables when connecting to computer or peripheral device. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions. (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Synchronization To create a unique link between your hood and remote control please follow these steps.

1. With hood o, press and hold

on the hood until the controls display “REMOTE PAIRING”.

2. Press a button on the remote, and the remote control will be synchronized with the hood.

RF Remote Control Functions Blower On / Speed SelectionPress to power on blower and cycle through all six blower speeds. Blower On / Power OBy pressing , the blowers will power on at the last speed setting. Press again and the entire hood will power o, including lights.Delay OLights 1/2/3/OSwitch between light levels by pressing . Turn o the lights by cycling throughthe dierent light levels.Blower On/Speed Selection

By pressing , the blower and lights will enter Automatic Delay O mode. The clock icon will illuminate and the controls will display “AUTOMATIC DELAY OFF”. The blower will change to speed 1 and a 10 minute timer will begin counting down.24 Milano Use, Care, and Installation Guide MILANO WALL CORE Features & Controls Optional RF Remote Control RF Remote Features The RF remote control is equipped with a magnet on the back for easy storage. The remote may be placed on any magnetic surface such as a refrigerator or the Zephyr remote holder, FIG. D. The remote holder can be inserted into a standard electrical outlet for easy storage. Note: The remote holder does not charge the RF remote. Maximum remote control communication distance is 15 feet from the liner. RF Remote Maintenance Clean the remote control using non abrasive detergents. Follow instructions below for replacing battery. Using a small flat head screwdriver, raise the cover of the battery door (A) in order to access the battery compartment. FIG. E. Remove the battery and replace with battery type A23 12V. Negative end of battery should face the spring inside the remote. Re-install battery door and recycle old battery. FIG. D

FIG. E25 Milano Use, Care, and Installation Guide ZEPHYRONLINE.COM Hood & Filter Cleaning Surface Maintenance Ź Do not use corrosive detergents, abrasive detergents or oven cleaners. Ź Do not use any product containing chlorine bleach or any product containing chloride. Ź Do not use steel wool or abrasive scrubbing pads which will scratch and damage surface. Cleaning Stainless Steel Clean periodically with warm soapy water and clean cotton cloth or micro fiber cloth. Always rub in the direction of the stainless steel grain. To remove heavier grease build up use a liquid degreaser detergent. After cleaning use a non-abrasive stainless steel polish/cleaners, to polish and bu out the stainless luster and grain. Always scrub lightly, with clean cotton cloth or micro fiber cloth and bu in the direction of the stainless steel grain. Aluminum Mesh Filters The aluminum mesh filters installed by the factory are intended to filter out residue and grease from cooking. They need not be replaced on a regular basis but are required to be kept clean. Remove and clean by hand or in dishwasher using a non-phosphate detergent. Discoloration of the filter may occur if using phosphate detergents, or as a result of local water conditions - but this will not aect filter performance. This discoloration is not covered by the warranty. Spray degreasing detergent and leave to soak if heavily soiled. Dry filters and re-install before using hood. Maintenance26 Milano Use, Care, and Installation Guide MILANO WALL CORE Maintenance Removing Aluminum Mesh Filters (FIG. F):

1. Pull on latch to disengage filter.

2. Pull down on filter handle to remove filter.

Replacing Aluminum Mesh Filters Hood Model Part Number Qty. to Order ZMI-M90CS 50200044 1 ZMI-M90CG 50200044 1 To order parts, visit us online at http://store.zephyronline.com. FIG. F27 Milano Use, Care, and Installation Guide ZEPHYRONLINE.COM Maintenance LumiLight LED In the unlikely event that your LumiLight LED fails, please contact Zephyr to order replacement parts. See the list of parts and accessories page for part numbers and contact information.LED Removal (FIG. G):1. Remove aluminum mesh filter.2. Remove light panel by two screws.3. Disconnect LED light quick connector.4. Push in the two side clips on the ends of the LED light.5. Push LED light through the light panel opening. Push the clip FIG. G28 Milano Use, Care, and Installation Guide MILANO WALL CORE ACT™ Conversion ůĬĻĭ Some local codes limit the maximum amount of CFM a range hood can move. ACT™ allows you to control the maximum blower CFM of select Zephyr Ventilation range hoods without the need for expensive make up air kits. ACT™ enables the installer to easily set the maximum blower speed to one of three most commonly specified CFM levels; 590, 390, or 290 CFM. The usage of ACT™ may not be necessary for your installation. Please check your local codes for CFM restrictions. Hood must be disconnected from the main power prior to performing the conversion instructions listed below. Failure to do so could result in personal injury or damage to the product. CAUTION After re-positioning the jumper and powering on the hood, the CFM cannot be changed again. CAUTION29 Milano Use, Care, and Installation Guide ZEPHYRONLINE.COM ACT™ Conversion Enabling ACT™ To enable ACT™:

1. Before hood installation, gain access to PC board by following the steps shown on FIG. H.

2. Change plastic jumper positioning as shown in FIG. I to set the desired maximum blower CFM.

3. Re-install PC board and continue with hood installation.

4. Remove the appropriate foil CFM sticker included with the hood literature and place inside the

hood body below the wiring diagram or in another clearly visible location. To verify if your installer enabled ACT™:

1. With hood o, hold the On/O button for three seconds. The Display will show if ACT™ is disabled

and set to the maximum CFM or if ACT™ is enabled and set to one of the restricted maximum CFM levels of 590, 390 or 290.

2. There should also be a foil label located inside the hood body near the wiring diagram that

indicates the blower CFM.30 Milano Use, Care, and Installation Guide MILANO WALL CORE Enabling ACT™ ACT™ Conversion

1. PC board is located on top of motor housing.2. Unscrew 4 screws and remove PC board from component box.

PC Board Jumper Pins Plastic Jumper FIG. I31 Milano Use, Care, and Installation Guide ZEPHYRONLINE.COM Wiring Diagram WIRING DIAGRAM GREEN BLACK WHITE WHITE LED LED BLACK WHITE BLACK BLACK GREEN WIFI CONTROL MOTOR RED ANT BODY BODY32 Milano Use, Care, and Installation Guide MILANO WALL CORE Troubleshooting Possible Problem Possible Cause Solutions After installation, the unit doesn’t work. The power source is not turned ON. Make sure the circuit breaker and the unit’s power is ON. The power line and the cable locking connector is not connecting properly. Check the power connection with the unit is connected properly. The switch board or control board wirings are disconnected. Make sure the wirings at the switch board and control board are connected properly. The switch board or control board is defective. Change the switch board or control board. The wires on control board are loose. Make sure the wires on the control board are connected properly. Light works, but blower is not turning. The blower wire is not connected. Check all wirings from the blower to be sure all cables are properly connected. The thermally protected system detects if the blower is too hot to operate and shuts the blower down. The blower will function properly after the thermally protected system cool down. The switch board or control board is defective. Change defective part. The blower is defective, possibly seized. Change the blower. The unit is vibrating. The blower is not secured in place. Tighten the blower in place. Damaged blower wheel. Replace the blower. The hood is not secured in place. Check the installation of the hood. The unit is whistling. A filter is not in the correct position. Adjust the filters until the whistling stops. The duct pipe connections are not sealed or connected properly. Check the duct pipe connections to be sure all connections are sealed properly. The blower is working, but the LumiLight LEDs are not. The LumiLight LED connector is disconnected. Connect the LumiLight LED connector. Defective LumiLight LED. Change the LumiLight LED. The switch board or control board is defective. Change the switch board or control board.33 Milano Use, Care, and Installation Guide ZEPHYRONLINE.COM Troubleshooting The hood is not venting out properly. Using the wrong size of ducting. Change the ducting to the correct size. The hood might be hanging to high from the cook top. Adjust the distance between the cook top and the bottom of the hood within 24” and 34” range. The wind from the opened windows or opened doors in the surrounding area are aecting the ventilation of the hood. Close all the windows and doors to eliminate the outside wind flow. Blockage in the duct opening or ductwork. Remove all the blocking from the duct work or duct opening. The unit turns on by itself. Remote control may be paired incorrectly. Resynchronize the remote control to connect to a dierent channel Someone is controlling the hood via the Zephyr Connect app. Determine who is controlling the hood with the app. Mesh filter is vibrating. Filter is loose. Make sure the metal clips in the handle are not stuck or replace the mesh filter. Spring clip is broken on the filter. Uninstall and re-install filter. Push up on filter latch. Replace filter if needed. RF Remote control does not work. Battery is dead. Replace battery with type A23 12v. Poor communication with the hood. Remote control must be within 15 ft of hood. RF Remote lost communication with the hood. Reset hood and remote by switching power o at the circuit breaker for 5 minutes. Place remote on counter top near the hood and switch the circuit breaker back on. Blue antenna wire is not extended. Extend the blue antenna wire behind the light panel. The range hood and user’s device won’t pair via Bluetooth®. The user’s phone does not have Bluetooth® enabled. Enable Bluetooth® on the user’s phone. The user’s phone may be out of range. Move closer towards the range hood. User hasn’t inputted the Bluetooth® code to successfully pair. Enter the pairing code, 123456. Range hood is not in Bluetooth® pairing mode. Hold and simultaneously for 5 seconds to put the hood into pairing mode. There are multiple errors preventing the user’s phone from pairing with the range hood. Restart the user’s phone and try again. Possible Problem Possible Cause Solutions34 Milano Use, Care, and Installation Guide MILANO WALL CORE Troubleshooting The range hood won’t connect to Wi-Fi. The user’s router or modem is turned

Turn on the router or modem. The user’s router is connected to a 5 GHz wireless frequency. Connect to the 2.4 GHz band and attempt to reconnect. The user’s coaxial cables are loose. Tighten the coaxial cables connecting to the router or modem. The Wi-Fi on the user’s phone is disabled. Enable Wi-Fi on the phone. User is connecting to the wrong Wi-Fi network. Verify that the correct Wi-Fi network is being connected to. The default Wi-Fi network name/SSID can be found on the router. The range hood is not in range of the Wi-Fi connection. Move the router and modem closer to the range hood to increase connection strength. There are obstacles obstructing the Wi-Fi signal strength. Move the router and modem closer to the range hood or move objects that are directly blocking the pathway to the range hood. Walls may reduce signal strength. User cannot change Wi-Fi connections. The range hood and user’s phone have already connected. Enter Bluetooth® settings and forget the device to reset the process on the phone. Cannot bind the hood to my Zephyr Connect account. Only one Zephyr Connect account can be bound to the hood. Log in using the Zephyr Connect account that is already bound to the hood. Multiple devices can login using the same account. Zephyr Connect app won’t register user inputs. Wi-Fi is unstable and the range hood may have disconnected. Ensure the router and modem are both turned on. Allow the range hood to reconnect. Range hood is experiencing diculties connecting to the user’s phone. Check on the Wi-Fi connection and restart the application. Zephyr Connect app stuck on “Loading”. Wi-Fi is unstable and the range hood may have disconnected. Ensure the router and modem are both turned on. Allow the range hood to reconnect. Range hood is experiencing diculties connecting to the user’s phone. Check on the Wi-Fi connection and restart the application. Possible Problem Possible Cause Solutions35 Milano Use, Care, and Installation Guide ZEPHYRONLINE.COM List of Parts & Accessories Description Part Number Replacement Parts LumiLight LED, 6W Z0B0047 Bae Filter 50200044 Optional Accessories Make-up Air Kit (600 CFM) MUA006A Recirculating Kit ZRC-00MI Replacement Charcoal Filter Z0F-C002 RF Remote Control 14000005 To order parts, visit us online at http://store.zephyronline.com.36 Milano Use, Care, and Installation Guide MILANO WALL CORE Notes37 Milano Use, Care, and Installation Guide ZEPHYRONLINE.COM Limited Warranty MAY20.0401 Zephyr Ventilation, LLC (referred to herein as “we” or “us”) warrants to the original consumer purchaser (referred to herein as “you” or “your”) of Zephyr products (the “Products”) that such Products will be free from defects in materials or workmanship as follows: Three Year Limited Warranty for Parts: For three years from the date of your original purchase of the Products, we will provide, free of charge, Products or parts (including LED light bulbs, if applicable) to replace those that failed due to manufacturing defects subject to the exclusions and limitations below. We may choose, in our sole discretion, to repair or replace parts before we elect to replace the Products. One Year Limited Warranty for Labor: For one year from the date of your original purchase of the Products, we will provide, free of charge, the labor cost associated with repairing the Products or parts to replace those that failed due to manufacturing defects subject to the exclusions and limitations below. After the first year from the date of your original purchase, you are responsible for all labor costs associated with this warranty. Warranty Exclusions: This warranty covers only repair or replacement, at our option, of defective Products or parts and does not cover any other costs related to the Products including but not limited to: (a) normal maintenance and service required for the Products and consumable parts such as fluorescent, incandescent or halogen light bulbs, mesh and char- coal filters and fuses; (b) any Products or parts which have been subject to freight damage, misuse, negligence, accident, faulty installation or installation contrary to recommended installation instructions, improper maintenance or repair (other than by us); (c) commercial or government use of the Products or use otherwise inconsistent with its intended purpose; (d) natural wear of the finish of the Products or wear caused by improper maintenance, use of corrosive and abrasive cleaning products, pads, and oven cleaner products; (e) chips, dents or cracks caused by abuse or misuse of the Products; (f) service trips to your home to teach you how to use the Products; (g) damage to the Products caused by accident, fire, floods, acts of God; or (h) Custom installations or alterations that impact serviceability of the Products. If you are outside our service area, additional charges may apply for shipping costs for warranty repair at our designated service locations and for the travel cost to have a service technician come to your home to repair, remove or reinstall the Products. After the first year from the date of your original purchase, you are also responsible for all labor costs associated with this warranty. All Products must be installed by a qualified professional installer to be eligible for warranty repairs or service. Limitations of Warranty. OUR OBLIGATION TO REPAIR OR REPLACE, AT OUR OPTION, SHALL BE YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS WARRANTY. WE SHALL NOT BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH THE USE OR PERFORMANCE OF THE PRODUCTS. THE EXPRESS WARRANTIES IN THE PRECEDING SECTION ARE EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRE SS WARRANTIES. WE HEREBY DISCLAIM AND EXCLUDE ALL OTHER EXPRESS WARRANTIES FOR THE PRODUCTS, AND DISCLAIM AND EXCLUDE ALL WARRANTIES IMPLIED BY LAW, INCLUDING THOSE OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Some states or provinces do not allow limitations on the duration of an implied warranty or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. To the extent that applicable law prohibits the exclusion of implied warranties, the duration of any applicable implied warranty is limited to the same three-year and one-year periods described above if permitted by applicable law. Any oral or written description of the Products is for the sole purpose of identifying the Products and shall not be construed as an express warr anty. Prior to using, implementing or permitting use of the Products, you shall determine the suitability of the Products for the intended use, and you shall assume all risk and liability whatsoever in connection with such determination. We reserve the right to use functionally equivalent refurbished or reconditioned parts or Products as warranty replacements or as part of warranty service. This warranty is not transferable from the original purchaser and only applies to the consumer residence where the Product was originally installed located in the United States and Canada. This warranty is not extended to resellers. To Obtain Service Under Limited Warranty: To qualify for warranty service, you must: (a) notify us at the address or telephone number stated below within 60 days of the discovery of the defect; (b) give the model number and serial number; and (c) describe the nature of any defect in the Product or part. At the time of the request for warranty service, you must present evidence of your proof of purchase and proof of the original purchase date. If we determine that the warranty exclusions listed above apply or if you fail to provide the necessary documentation to obtain service, you will be responsible for all shipping, travel, labor and other costs related to the services. This warranty is not extended or restarted upon warranty repair or replacements. Please check our website for any additional Product information, www.zephyronline.com. Zephyr Ventilation Service Department, 2277 Harbor Bay Parkway, Alameda, CA 94502 1-888-880-836838 Milano Use, Care, and Installation Guide MILANO WALL CORE Product Registration Congratulations on the purchase of your Zephyr product! Please take a moment to register your new Zephyr product at www.zephyronline.com/registration Zephyr Ventilation | 2277 Harbor Bay Pkwy. | Alameda, CA 94502 | 1.888.880.8368 Prompt registration helps in more ways than one.

Ensures warranty coverage should you need service.Ownership verification for insurance purposes.Notification of product changes or recalls.WWW.ZEPHYRONLINE.COM NOV20.0101 Airflow Control Technology
