• FEB22.0101 Cypress AK7836CS, AK7842CS, AK7848CS, AK7854CS EN Use, Care, and Installation Guide FR Guide d’utilisation, d’entretien et d’installation INTENDED FOR OUTDOOR COVERED PATIO OR LANAI AREA2 Cypress Use, Care, and Installation Guide CYPRESS WALL PRO3 Cypress Use, Care, and Installation Guide ZEPHYRONLINE.COM Contents Page Safety Information p. 4
• -6 Types of Safety Warnings p. 4
• General Safety p. 4
• -5 Operation p. 6
• Electrical Requirements p. 6
• List of Materials p. 7
• Installation Instructions p. 8
• -15 Ducting Calculation Sheet p. 8
• Mounting Height, Clearance, & Ducting p. 9
• Ducting Options p. 10
• Hood Specifications p. 11
• Electrical Supply p. 12
• Cable Lock p. 12
• Mounting the Hood p. 13
• Horizontal Ducting Conversion p. 14
• -15 Features & Controls p. 16
• Rotary Controls p. 16
• Maintenance p. 17
• -18 Hood & Filter Cleaning p. 17
• LumiLight LED p. 18
• Wiring Diagram p. 19
• Troubleshooting p. 20
• -21 List of Parts & Accessories p. 22
• Limited Warranty p. 23

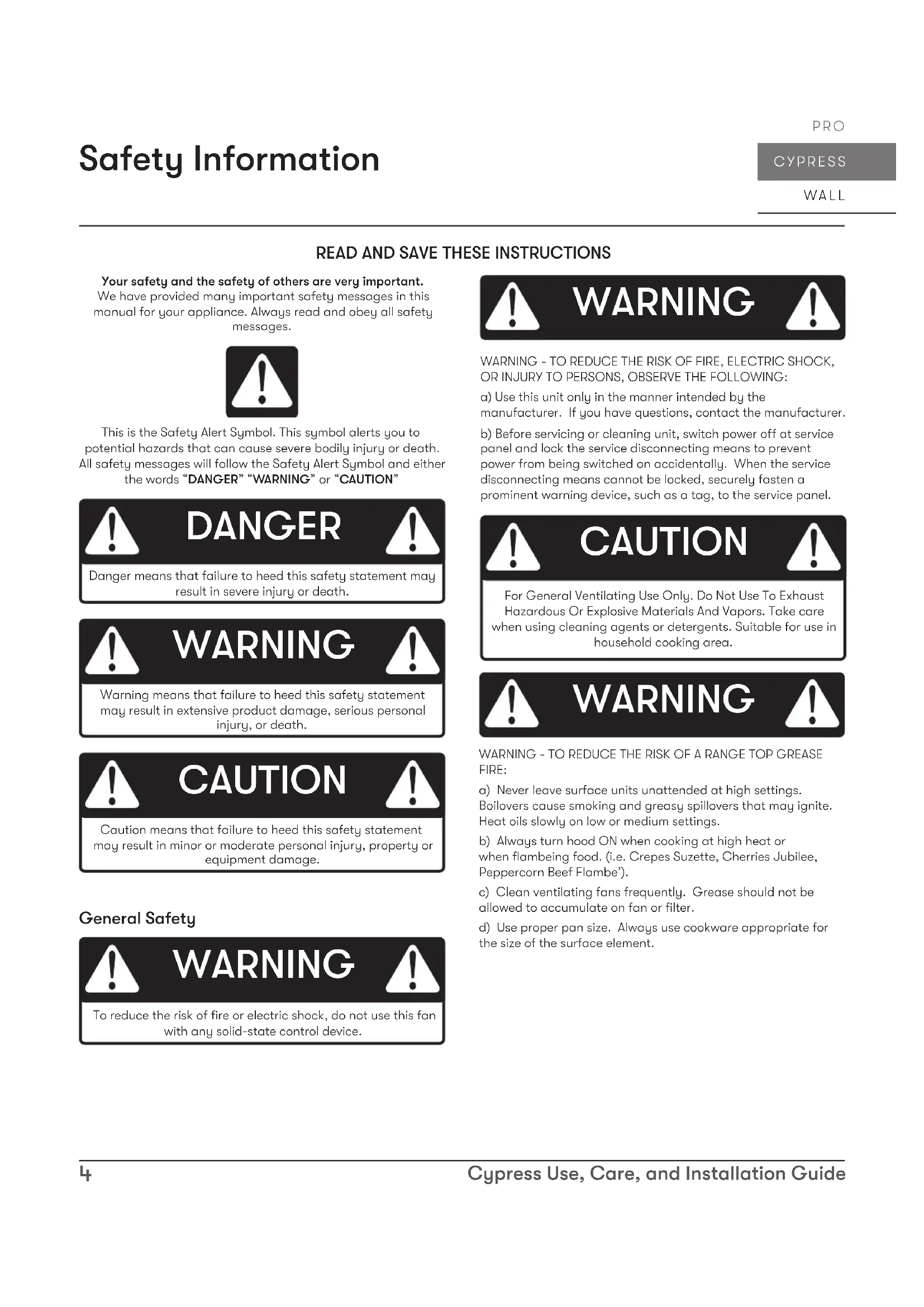

• Product Registration Cypress Use, Care, and Installation Guide CYPRESS WALL PRO Safety Information Your safety and the safety of others are very important.We have provided many important safety messages in this manual for your appliance. Always read and obey all safety messages.This is the Safety Alert Symbol. This symbol alerts you to potential hazards that can cause severe bodily injury or death. All safety messages will follow the Safety Alert Symbol and either the words “DANGER” “WARNING” or “CAUTION” DANGER Danger means that failure to heed this safety statement may result in severe injury or death. p. 244

READ AND SAVE THESE INSTRUCTIONS

WARNING - TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:a) Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer.b) Before servicing or cleaning unit, switch power o at service panel and lock the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel. General Safety WARNING Warning means that failure to heed this safety statement may result in extensive product damage, serious personal injury, or death. CAUTION Caution means that failure to heed this safety statement may result in minor or moderate personal injury, property or equipment damage. WARNING To reduce the risk of fire or electric shock, do not use this fan with any solid-state control device. WARNING CAUTION For General Ventilating Use Only. Do Not Use To Exhaust Hazardous Or Explosive Materials And Vapors. Take care when using cleaning agents or detergents. Suitable for use in household cooking area. WARNING WARNING - TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:a) Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings.b) Always turn hood ON when cooking at high heat or when flambeing food. (i.e. Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambe’).c) Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter.d) Use proper pan size. Always use cookware appropriate for the size of the surface element.5 Cypress Use, Care, and Installation Guide ZEPHYRONLINE.COM Safety Information WARNING

READ AND SAVE THESE INSTRUCTIONS

WARNING - TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING:a) SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn o the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT.b) NEVER PICK UP A FLAMING PAN – You may be burned.c) DO NOT USE WATER, including wet dishcloths or towels – a violent steam explosion will result.d) Use an extinguisher ONLY if:1) You know you have a Class ABC extinguisher, and you already know how to operate it.2) The fire is small and contained in the area where it started.3) The fire department is being called.4) You can fight the fire with your back to an exitBased on “Kitchen Firesafety Tips” published by NFPA. WARNING WARNINGTO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK. CAUTION To reduce risk of fire and to properly exhaust air outside, do not vent exhaust air into spaces within walls, ceilings, attics, crawl spaces, or garages. WARNING WARNING - TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:a) Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction.b) Sucient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent back drafting. Follow the heating equipment manufacturer’s guideline and safety standards such as those published by the National Fire Protection Association (NFPA), and the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.c) When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.d) Ducted fans must always be vented to the outdoors.e) If this unit is to be installed over a tub or shower, it must be marked as appropriate for the application and be connected to a GFCI (Ground Fault Circuit Interrupter) - protected branch circuit. WARNING Prop. 65 Warning for California Residents: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.6 Cypress Use, Care, and Installation Guide CYPRESS WALL PRO Safety Information Operation ► Always leave safety grilles and filters in place. Without these components, operating blowers could catch onto hair, fingers and loose clothing. ► The manufacturer declines all responsibility in the event of failure to observe the instructions given here for installation, maintenance and suitable use of the product. The manufacturer further declines all responsibility for injury due to negligence and the warranty of the unit automatically expires due to improper maintenance.NOTE: Please check www.zephyronline.com for revisions before doing any custom work. Electrical Requirements Important: ► Observe all governing codes and ordinances. ► It is the customer’s responsibility to be aware of these below: ► To contact a qualified electrical installer. ► To assure that the electrical installation is adequate and in conformance with National Electrical Code, ANSI/NFPA 70 latest edition* or CSA standards C22.1-94, Canadian Electrical Code, Part 1 and C22.2 No.0-M91 - latest edition** and all local codes and ordinances. ► If codes permit and a separate ground wire is used, it is recommended that a qualified electrician determine that the ground path is adequate. ► Do not ground to a gas pipe. ► Check with a qualified electrician if you are not sure the range hood is properly grounded. ► Do not have a fuse in the neutral or ground circuit. ► This appliance requires a 120V 60Hz electrical supply and connected to an individual properly grounded branch circuit protected by a 15 or 20 ampere circuit breaker or time delay fuse. Wiring must be 2 wire with ground. Please also refer to Electrical Diagram on product. ► A cable locking connector (not supplied) might also be required by local codes. Check with local requirements, purchase and install appropriate connector if necessary.* National Fire Protection Association Batterymarch Park, Quincy, Massachusetts 02269 ** CSA International 8501 East Pleasant Valley Road, Cleveland, Ohio 44131-5575 ► Intended for outdoor covered patio or lanai area. ► Suitable for use in damp locations when installed in a GFCI protected branch circuit.

READ AND SAVE THESE INSTRUCTIONS7

Cypress Use, Care, and Installation Guide ZEPHYRONLINE.COM List of Materials Parts Not SuppliedDucting, conduit and all installation toolsCable locking connector (if required by local codes)12" duct cover accessory (36" models) (AK0736BS)12" duct cover accessory (42" models) (AK0742BS)12" duct cover accessory (48" models) (AK0748BS)12" duct cover accessory (52" models) (AK0754BS)Duct cover extension (Z1C-0178)Wood board to hang hood (W x D x H)Parts SuppliedQuantity Part1 Hood2 Pro bae filters (36" & 42" models)3 Pro bae filters (48" & 54" models)2 LumiLight LED (36" & 42" models)4 LumiLight LED (48" & 54" models)3 10" round starting collar2 Top cover plate (for horizontal ducting)1 Hardware package M6 x 1” (4) M6 x 1-1/2” (4) M6 x 2” (4) M4 x 8 (4) Wire Caps (3) 3/16 x 3/8 (4)8 Cypress Use, Care, and Installation Guide CYPRESS WALL PRO Installation Instructions Duct pieces To talEquivalent numberlength x used =3- 1/ 4” x 10”Rect.,straight 1 Ft. x ( ) = Ft.

elbow 20 Ft. x ( ) = Ft. 6”, 7”, 8”, 10” Round,

9 Ft. x ( ) = Ft. Ft. 6”, 7”, 8”, 10” Round,straight 1 Ft. x ( ) = Ft. Subtotal column 1 =Duct pieces To talEquivalent numberlength x used =6”, 7”, 8”, 10”Round, wall cap with damper 30 Ft. x ( ) = Ft.

Ft. Ft. Ft. 6”, 7”, 8”, 10”Roundroof cap 30 Ft. x ( ) = Ft.

Subtotal column 2 =Subtotal column 1 =Total ductwork =Maximum Duct Length: For satisfactory air movement,the total duct length should not exceed 150 equivalent feet.6” round to3- 1/ 4” x 10”rect. transition 1 Ft. x ( ) = Ft. 6” round to3- 1/ 4” x 10”rect. transition

elbow 23 Ft. x ( ) = Ft. elbowelbow7” to 6” or8” to 7” Round tapered reducer25 Ft. x ( ) = Ft.

3- 1/ 4” x 10”Rect. 90

elbow 15 Ft. x ( ) = Ft. 3- 1/ 4” x 10”Rect. 45 elbow 9 Ft. x ( ) = Ft.

3- 1/ 4” x 10”Rect. 90

flat elbow 24 Ft. x ( ) = Ft.

3- 1/ 4” x 10”Rect.wall capwith damper

30 Ft. x ( ) = Ft. Ft. x ( ) = Ft.

6”, 7“, 8”Round in-line damper Ducting Calculation Sheet9 Cypress Use, Care, and Installation Guide ZEPHYRONLINE.COM Installation Instructions Mounting Height, Clearance, & Ducting 36” 30” min. 36” max. A minimum of 10” round duct is recommended to maintain maximum air flow eciency.Always use rigid type metal ducts only. Flexible ducts could restrict air flow by up to 50%.Also use the ducting calculation sheet (on page 8) to compute total available duct run when using elbows, transitions and caps.ALWAYS, when possible, reduce the number or transitions and turns. If long duct run is required, increase duct size.If turns or transitions are required; install as far away from hood duct output and as far apart, between the two as possible.Minimum mount height between range top to hood bottom should be no less than 30”.Maximum mount height should be no higher than 36”. It is important to install the hood at the proper mounting height. Hoods mounted too low could result in heat damage and fire hazard; while hoods mounted too high will be hard to reach and will lose its performance and eciency.If available, also refer range manufacturer’s height clearance requirements and recommended hood mounting height above range. Always check your local codes for any dierences.For shipment and installation damages: ► Please fully inspect unit for damage before installation. ► If the unit is damaged in shipment, return the unit to the store in which it was bought for repair or replacement. ► If the unit is damaged by the customer, repair or replacement is the responsibility of the customer. ► If the unit is damaged by the installer (if other than the customer), repair of replacement must be made by arrangement between customer and installer.10 Cypress Use, Care, and Installation Guide CYPRESS WALL PRO Installation Instructions Ducting Options ► Use single wall rigid metal ductwork only. ► Fasten all connections with sheet metal screws and tape all joints w/ certified Silver Tape or Duct Tape.Fire Hazard: NEVER exhaust air or terminate ductwork into spaces between walls, crawl spaces, ceilings, attics, or garages. All exhaust must be ducted to the outside, unless using the recirculating option. WARNING Roof pitch w/flashing & capSot or crawl spaceSide wall capw/ gravity damperRear ducting11 Cypress Use, Care, and Installation Guide ZEPHYRONLINE.COM Installation Instructions Hood Specications Top View Side View Back View Ducting & Electrical Dimensions 15” 32”

18” 11-9/16”1-3/4”1-1/16”11-9/16”6-1/16”10-3/8”14-3/16”2-5/8”Ø 9-15/16”10-3/8”4-5/16”11-9/16”10-3/4”10-3/8”14-3/16”Ø 9-15/16”1-11/16”35 7/8” (36”)41 7/8“ (42”)47 7/8” (48”)53 7/8” (54”) C/L C/L Back View Mounting Dimensions 16-7/8”16-1/8”13-5/8”1-11/16”3-5/16”21-1/4”35-1/4” (42”, 48”, 54”)5-5/16”50.5˚Optional TelescopicDuct CoverZ1C-0178Min. - 48”Max. - 75” 29” 15” 21-3/4” 29”12 Cypress Use, Care, and Installation Guide CYPRESS WALL PRO Installation Instructions Electrical Supply Electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards. Turn o electrical power at service entrance before wiring. WARNING For personal safety, remove house fuse or open circuit breaker before beginning installation. Do not use extension cord or adapter plug with this appliance.Follow national electrical codes or prevailing local codes and ordinances.This appliance requires a 120V 60Hz electrical supply, and connected to an individual, properly grounded branch circuit, protected by a 15 or 20 ampere circuit breaker or time delay fuse. Wiring must be 2 wire w/ ground. Please also refer to the Electrical Diagram labeled on product. Cable Lock A cable locking connector (not supplied) might be required by local codes. Check with local requirements and codes, purchase and install appropriate connector if necessary. (FIG. A) Cable Lock FIG. A13 Cypress Use, Care, and Installation Guide ZEPHYRONLINE.COM Installation Instructions Mounting the Hood

1. Select preferred ducting application (vertical or

horizontal) and prepare hood. Refer to page 14 for horizontal ducting conversion.

2. Plum and mark center line on wall.

3. Choose desired height above cooking surface

(30” min). Level and mark hood bottom, line A (FIG. B).

4. Level and mark top of wood board, line B (FIG.

B) 16 7/8” from line A.

5. Mark center line of wood board. Center and

align top of board with line B. Secure wood board to studs using (4) M6 wood screws. Wood Board Dimensions: (W x D x H) AK7836CS - 33” x 1/2” x 4” AK7842CS - 39” x 1/2” x 4” AK7848CS - 45” x 1/2” x 4” AK7854CS - 51” x 1/2” x 4”

6. Prepare duct pipe and duct cut outs in upper

cabinet if needed or wall if horizontally ducting hood. Prepare electrical wiring and electrical cut outs in upper cabinet if needed or wall if horizontal electrical hook up is required. Refer to hood specifications on page 11 for dimensions.

7. Mount hood onto wood board and secure using

8. Further secure hood onto wall through lower

wood board 16-7/8” 16-1/8” 13-5/8” 1-11/16” 3-5/16” 21-1/4” 35-1/4” (42”, 48”, 54”) 5-5/16” body screw holes by (2) M6 wood screws. See dimensions in FIG. C.

9. Install electrical. Install duct work and seal with certified aluminum duct tape.

10. Power up hood and check for leaks around duct tape.

16-7/8” min30”4” wood board 16-7/8” 16-1/8” 13-5/8” 1-11/16” 3-5/16” 21-1/4” 35-1/4” (42”, 48”, 54”) 5-5/16”14 Cypress Use, Care, and Installation Guide CYPRESS WALL PRO Installation Instructions Horizontal Ducting Conversion This range hood is equipped with a 10" round vertical duct option by default. To convert from 10" round vertical to 10" round horizontal ducting, please follow the instructions below.1. Disconnect blower plug.2. Remove (4) screws from interior of hood body attaching blower plate to top of hood body. Remove blower and blower plate.3. Knock out plate A for dual blower horizontal ducting. A15 Cypress Use, Care, and Installation Guide ZEPHYRONLINE.COM Installation Instructions Horizontal Ducting Conversion

4. From inside hood body, position

top cover plate to top of hood body. From outside hood body, attach top cover plate to top of hood body using (4) 3/16 x 3/8 screws.

5. Position dual blower plate onto

interior back wall mounting brackets inside hood body. Attach by (4) screws previously removed from step 2. Re-connect blower plug.

6. Attach 10 inch round blower collar

to back of hood using (4) M4 x 8 screws.16 Cypress Use, Care, and Installation Guide CYPRESS WALL PRO Features & Controls Rotary Controls OFF OFF OFF

1 Blower On/O/Speed Selection 2 Lights Dim/Bright/O 1 Blower On/O/Speed Selection 2 Lights Dim/Bright/O Rotate dial to change speed levels, (1) for low speed, (2) for medium speed and (3) for high speed. Rotate dial to change light settings, (1) for dim light and (2) for bright light.17 Cypress Use, Care, and Installation Guide ZEPHYRONLINE.COM Maintenance Hood & Filter Cleaning Surface Maintenance ► Do not use corrosive detergents, abrasive detergents or oven cleaners. ► Do not use any product containing chlorine bleach or any product containing chloride. ► Do not use steel wool or abrasive scrubbing pads which will scratch and damage surface. Cleaning Stainless SteelClean periodically with warm soapy water and clean cotton cloth or micro fiber cloth. Always rub in the direction of the stainless steel grain. To remove heavier grease build up use a liquid degreaser detergent.After cleaning use a non-abrasive stainless steel polish/cleaners, to polish and bu out the stainless luster and grain. Always scrub lightly, with clean cotton cloth or micro fiber cloth and bu in the direction of the stainless steel grain.Cleaning the Pro Bae FiltersThe stainless steel pro baffle filters are intended to trap residue and grease from cooking. Although the filters should never need replacing, they are required to be cleaned every 30 days or more often depending on cooking habits. Filters may be placed in dishwasher at low heat or soaked in hot soapy water Dry filters and re-install before using hood.If this hood is installed in a salt water area (e.g. coast), rinse all surfaces once a week with clear water even if the hood is not used. Wipe and dry completely after rinsing. CAUTION18 Cypress Use, Care, and Installation Guide CYPRESS WALL PRO Maintenance Removing Pro Bae Filters, FIG. D1. Push filter away from front of range hood using handles.2. Pivot front of filter downward.3. Remove filter by pulling away from hood.Replacing Pro Bae FiltersHood Model Part Number Qty. to OrderAK7836CS 50210031 2AK7842CS 50210031 2AK7848CS 50210031 3AK7854CS 50210031 3

FIG. D LumiLight LED In the unlikely event that your LumiLight LED fails, please contact Zephyr to order replacement parts. See the list of parts and accessories page for part numbers and contact information.LED Removal, FIG. E1. Remove grease filters.2. (If applicable) remove both side spacer panels for each spacer panel.3. Remove screws on light panel.4. Disconnect LED light quick connector.5. Push in the two side clips on the ends of the LED light.6. Push LED light through the light panel opening. Push the clip FIG. E19 Cypress Use, Care, and Installation Guide ZEPHYRONLINE.COM Wiring Diagram AK7836CS, AK7842CS, AK7848CS, AK7854CS Wiring Diagram Volts Hz Max Amps 120 60 Dual Motor 9 REMARKS: CONDENSER 22uF / 250VAC 2PCS FIT AC120V 60Hz MotorMotorGreen Body Green Body Red Yellow Blue Brown Grey White Blue Brown Grey White Red Yellow Blue Brown Grey Red BlackWhite B/W B/W B/W Body GreenBlackWhiteFor 48” and 54”models only20 Cypress Use, Care, and Installation Guide CYPRESS WALL PRO Troubleshooting Possible Problem Possible Cause Solutions After installation, the unit doesn’t work. The power source is not turned ON. Make sure the circuit breaker and the unit’s power is ON. The power line and the cable locking connector is not connecting properly. Check the power connection with the unit is connected properly. The switch board wirings are disconnected. Make sure the wirings at the switch board are connected properly. The switch board is defective. Change the switch board. Light works, but blower is not turning. The blower wire is not connected. Make sure the blower wire is plugged into the molex connector. The thermally protected system detects if the blower is too hot to operate and shuts the blower down. The blower will function properly after the thermally protected system cool down. Damaged capacitor. Change the capacitor. The blower is defective, possibly seized. Change the blower. The unit is vibrating. The blower is not secured in place. Tighten the blower in place. Damaged blower wheel. Replace the blower. The hood is not secured in place. Check the installation of the hood. The unit is whistling. A filter is not in the correct position. Adjust the filters until the whistling stops. The duct pipe connections are not sealed or connected properly. Check the duct pipe connections to be sure all connections are sealed properly. The blower is working, but the LumiLight LEDs are not. The LumiLight LED connector is disconnected. Connect the LumiLight LED connector. Defective LumiLight LED. Change the LumiLight LED. The switch board is defective. Change the switch board.21 Cypress Use, Care, and Installation Guide ZEPHYRONLINE.COM Troubleshooting The hood is not venting out properly. Using the wrong size of ducting. Change the ducting to the correct size. The hood might be hanging to high from the cook top. Adjust the distance between the cook top and the bottom of the hood within 30” and 36” range. The wind from the opened windows or opened doors in the surrounding area are aecting the ventilation of the hood. Close all the windows and doors to eliminate the outside wind flow. Blockage in the duct opening or ductwork. Remove all the blocking from the duct work or duct opening. Filter is vibrating. Filter is loose. Adjust or change the filter. Spring clip is broken on the filter. Change the spring clip. Possible Problem Possible Cause Solutions22 Cypress Use, Care, and Installation Guide CYPRESS WALL PRO List of Parts & Accessories Description Part Number Replacement Parts LumiLight LED, 6W Z0B0050 Pro Bae Filter (each) 50210031 Optional Accessories 12" Duct Cover (36") AK0736BS 12" Duct Cover (42") AK0742BS 12" Duct Cover (48") AK0748BS 12" Duct Cover (54") AK0754BS Duct Cover Extension (10' - 12' ceilings) Z1C-0178 To order parts, visit us online at http://store.zephyronline.com.23 Cypress Use, Care, and Installation Guide ZEPHYRONLINE.COM Limited Warranty JAN21.0501 Zephyr Ventilation, LLC (referred to herein as “we” or “us”) warrants to the original consumer purchaser (referred to herein as “you” or “your”) of Zephyr products (the “Products”) that such Products will be free from defects in materials or workmanship as follows: Three Year Limited Warranty for Parts: For three years from the date of your original purchase of the Products, we will provide, free of charge, Products or parts (including LED light bulbs, if applicable) to replace those that failed due to manufacturing defects subject to the exclusions and limitations below. We may choose, in our sole discretion, to repair or replace parts before we elect to replace the Products. One Year Limited Warranty for Labor: For one

ear from the date of your original purchase of the Products, we will provide, free of charge, the labor cost associated with repairing the Products or parts to replace those that failed due to manufacturing defects subject to the exclusions and limitations below. After the first year from the date of your original purchase, you are responsible for all labor costs associated with this warranty. Warranty Exclusions: This warranty covers only repair or replacement, at our option, of defective Products or parts and does not cover any other costs related to the Products including but not limited to: (a) normal maintenance and service required for the Products and consumable parts such as fluorescent, incandescent or halogen light bulbs, mesh and char- coal filters and fuses; (b) any Products or parts which have been subject to freight damage, misuse, negligence, accident, faulty installation or installation contrary to recommended installation instructions, improper maintenance or repair (other than by us); (c) commercial or government use of the Products or use otherwise inconsistent with its intended purpose; (d) natural wear of the finish of the Products or wear caused by improper maintenance, use of corrosive and abrasive cleaning products, pads, and oven cleaner products; (e) chips, dents or cracks caused by abuse or misuse of the Products; (f) service trips to your home to teach you how to use the Products; (g) damage to the Products caused by accident, fire, floods, acts of God; or (h) Custom installations or alterations that impact serviceability of the Products. If you are outside our service area, additional charges may apply for shipping costs for warranty repair at our designated service locations and for the travel cost to have a service technician come to your home to repair, remove or reinstall the Products. After the first year from the date of your original purchase, you are also responsible for all labor costs associated with this warranty. All Products must be installed by a qualified professional installer to be eligible for warranty repairs or service. Limitations of Warranty. OUR OBLIGATION TO REPAIR OR REPLACE, AT OUR OPTION, SHALL BE YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS WARRANTY. WE SHALL NOT BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH THE USE OR PERFORMANCE OF THE PRODUCTS. THE EXPRESS WARRANTIES IN THE PRECEDING SECTION ARE EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRE

WARRANTIES. WE HEREBY DISCLAIM AND EXCLUDE ALL OTHER EXPRESS WARRANTIES FOR THE PRODUCTS, AND DISCLAIM AND EXCLUDE ALL WARRANTIES IMPLIED BY LAW, INCLUDING THOSE OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Some states or provinces do not allow limitations on the duration of an implied warranty or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. To the extent that applicable law prohibits the exclusion of implied warranties, the duration of any applicable implied warranty is limited to the same three-year and one-year periods described above if permitted by applicable law. Any oral or written description of the Products is for the sole purpose of identifying the Products and shall not be construed as an express warr

nty. Prior to using, implementing or permitting use of the Products, you shall determine the suitability of the Products for the intended use, and you shall assume all risk and liability whatsoever in connection with such determination. We reserve the right to use functionally equivalent refurbished or reconditioned parts or Products as warranty replacements or as part of warranty service. This warranty is not transferable from the original purchaser and only applies to the consumer residence where the Product was originally installed located in the United States and Canada. This warranty is not extended to resellers. To Obtain Service Under Limited Warranty: To qualify for warranty service, you must: (a) notify us at the address or telephone number stated below within 60 days of the discovery of the defect; (b) give the model number and serial number; and (c) describe the nature of any defect in the Product or part. At the time of the request for warranty service, you must present evidence of your proof of purchase and proof of the original purchase date. If we determine that the warranty exclusions listed above apply or if you fail to provide the necessary documentation to obtain service, you will be responsible for all shipping, travel, labor and other costs related to the services. This warranty is not extended or restarted upon warranty repair or replacements. Please check our website for any additional Product information, www.zephyronline.com Zephyr, 2277 Harbor Bay Parkway, Alameda, CA 94502

TO OBTAIN SERVICE UNDER WARRANTY OR FOR ANY SERVICE RELATED QUESTIONS United States Customers please call: 1-888-880-8368 or contact us at: zephyronline.com/contactCanada Customers please call: 1-800-361-0799 or Email: service@distinctive-online.com Limited Warranty24 Cypress Use, Care, and Installation Guide CYPRESS WALL PRO Product Registration Congratulations on the purchase of your Zephyr product! Please take a moment to register your new Zephyr product at www.zephyronline.com/registration Zephyr Ventilation | 2277 Harbor Bay Pkwy. | Alameda, CA 94502 | 1.888.880.8368 Prompt registration helps in more ways than one.
