USER MANUAL Tornado III AK8340ASX Zephyr

TORNADO II & TORNADO IIIINSERT

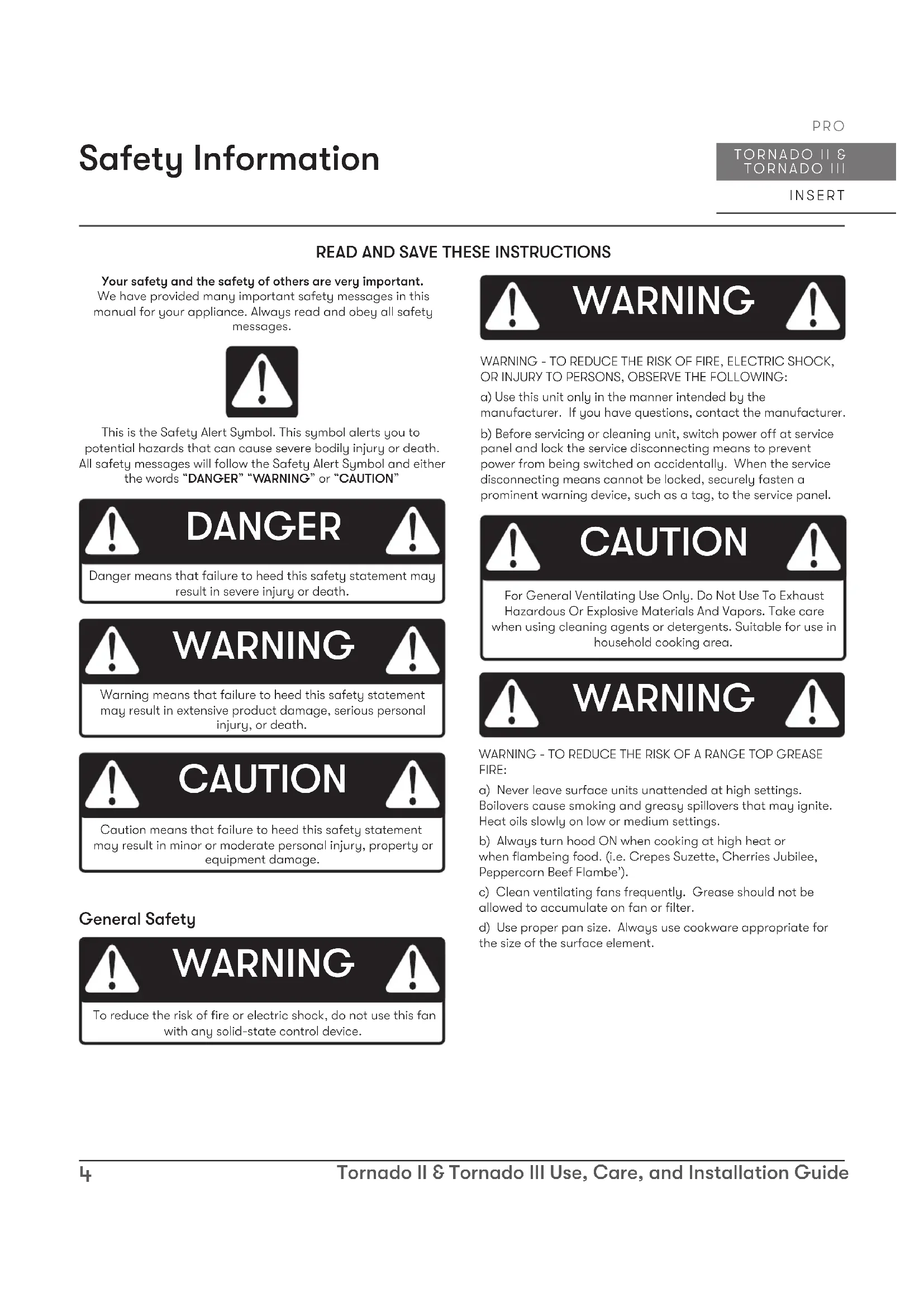

PRO Safety Information Your safety and the safety of others are very important.We have provided many important safety messages in this manual for your appliance. Always read and obey all safety messages.This is the Safety Alert Symbol. This symbol alerts you to potential hazards that can cause severe bodily injury or death. All safety messages will follow the Safety Alert Symbol and either the words “DANGER” “WARNING” or “CAUTION” DANGER Danger means that failure to heed this safety statement may result in severe injury or death.

READ AND SAVE THESE INSTRUCTIONS

WARNING - TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:a) Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer.b) Before servicing or cleaning unit, switch power o at service panel and lock the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel. General Safety WARNING Warning means that failure to heed this safety statement may result in extensive product damage, serious personal injury, or death. CAUTION Caution means that failure to heed this safety statement may result in minor or moderate personal injury, property or equipment damage. WARNING To reduce the risk of fire or electric shock, do not use this fan with any solid-state control device. WARNING CAUTION For General Ventilating Use Only. Do Not Use To Exhaust Hazardous Or Explosive Materials And Vapors. Take care when using cleaning agents or detergents. Suitable for use in household cooking area. WARNING WARNING - TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:a) Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings.b) Always turn hood ON when cooking at high heat or when flambeing food. (i.e. Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambe’).c) Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter.d) Use proper pan size. Always use cookware appropriate for the size of the surface element.5 Tornado II & Tornado III Use, Care, and Installation Guide ZEPHYRONLINE.COM Safety Information WARNING

READ AND SAVE THESE INSTRUCTIONS

WARNING - TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING:a) SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn o the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT.b) NEVER PICK UP A FLAMING PAN – You may be burned.c) DO NOT USE WATER, including wet dishcloths or towels – a violent steam explosion will result.d) Use an extinguisher ONLY if:1) You know you have a Class ABC extinguisher, and you already know how to operate it.2) The fire is small and contained in the area where it started.3) The fire department is being called.4) You can fight the fire with your back to an exitBased on “Kitchen Firesafety Tips” published by NFPA. WARNING WARNINGTO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK. CAUTION To reduce risk of fire and to properly exhaust air outside, do not vent exhaust air into spaces within walls, ceilings, attics, crawl spaces, or garages. WARNING WARNING - TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:a) Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction.b) Sucient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent back drafting. Follow the heating equipment manufacturer’s guideline and safety standards such as those published by the National Fire Protection Association (NFPA), and the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.c) When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.d) Ducted fans must always be vented to the outdoors.e) If this unit is to be installed over a tub or shower, it must be marked as appropriate for the application and be connected to a GFCI (Ground Fault Circuit Interrupter) - protected branch circuit. f) Do not use replacement parts that have not been recommended by the manufacturer (e.g. parts made at home using a 3D printer).g) This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. WARNING Prop. 65 Warning for California Residents: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.6 Tornado II & Tornado III Use, Care, and Installation Guide TORNADO II & TORNADO III INSERT PRO Safety Information Operation ► Always leave safety grilles and filters in place. Without these components, operating blowers could catch onto hair, fingers and loose clothing. ► The manufacturer declines all responsibility in the event of failure to observe the instructions given here for installation, maintenance and suitable use of the product. The manufacturer further declines all responsibility for injury due to negligence and the warranty of the unit automatically expires due to improper maintenance.NOTE: Please check www.zephyronline.com for revisions before doing any custom work. Electrical Requirements Important: ► Observe all governing codes and ordinances. ► It is the customer’s responsibility to be aware of these below: ► To contact a qualified electrical installer. ► To assure that the electrical installation is adequate and in conformance with National Electrical Code, ANSI/NFPA 70 latest edition* or CSA standards C22.1-94, Canadian Electrical Code, Part 1 and C22.2 No.0-M91 - latest edition** and all local codes and ordinances. ► If codes permit and a separate ground wire is used, it is recommended that a qualified electrician determine that the ground path is adequate. ► Do not ground to a gas pipe. ► Check with a qualified electrician if you are not sure the range hood is properly grounded. ► Do not have a fuse in the neutral or ground circuit. ► This appliance requires a 120V 60Hz electrical supply and connected to an individual properly grounded branch circuit protected by a 15 or 20 ampere circuit breaker or time delay fuse. Wiring must be 2 wire with ground. Please also refer to Electrical Diagram on product. ► A cable locking connector (not supplied) might also be required by local codes. Check with local requirements, purchase and install appropriate connector if necessary.* National Fire Protection Association Batterymarch Park, Quincy, Massachusetts 02269 ** CSA International 8501 East Pleasant Valley Road, Cleveland, Ohio 44131-5575 Federal Communication Commission Interface Statement ► This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. ► This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one of the following measures: ► Reorient or relocate the receiving antenna. ► Increase the separation between the equipment and receiver. ► Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected. ► Consult the dealer or an experienced radio/TV technician for help.

READ AND SAVE THESE INSTRUCTIONS7

Parts Not Supplied Ducting, conduit and all installation tools Cable locking connector (if required by local codes) Dual internal blower (PBD-1000A) - AK82 only Single internal blower (CBI-290C, CBI-390A, CBI-600A) - AK83 only Dual internal blower (PBI-1100B) - AK83 only External blower (CBE-1000) - AK83 only In-line blower (PBN-1000A) - AK83 only 48” stainless steel hood liner, 17” x 20” depth (AK083480AS) - AK83 only 48” stainless steel hood liner, 20” x 23” depth (AK083481AS) - AK83 only 36” stainless steel hood liner, 17” x 20” depth (AK082360AS) - AK8227AS only Optional RF remote control (14000005) Parts Supplied (AK82) Quantity Part 1 Insert hood 2 Pro bae filters 2 LumiLight LED with TruHue, 6W (pre- installed) 1 Single internal blower (pre-installed) 1 Hardware package Parts Supplied (AK83) Quantity Part 1 Insert hood 3 Pro bae filters 2 LumiLight LED with Truhue, 6W (pre- installed) 1 Single blower mounting plate (pre- installed) 1 Remote blower wiring harness 1 10” round adapter w/ damper 1 Hardware package8 Tornado II & Tornado III Use, Care, and Installation Guide TORNADO II & TORNADO III INSERT PRO Installation Instructions Duct pieces To talEquivalent numberlength x used =3- 1/ 4” x 10”Rect.,straight 1 Ft. x ( ) = Ft.

elbow 20 Ft. x ( ) = Ft. 6”, 7”, 8”, 10” Round,

9 Ft. x ( ) = Ft. Ft. 6”, 7”, 8”, 10” Round,straight 1 Ft. x ( ) = Ft. Subtotal column 1 =Duct pieces To talEquivalent numberlength x used =6”, 7”, 8”, 10”Round, wall cap with damper 30 Ft. x ( ) = Ft.

Ft. Ft. Ft. 6”, 7”, 8”, 10”Roundroof cap 30 Ft. x ( ) = Ft.

Subtotal column 2 =Subtotal column 1 =Total ductwork =Maximum Duct Length: For satisfactory air movement,the total duct length should not exceed 150 equivalent feet.6” round to3- 1/ 4” x 10”rect. transition 1 Ft. x ( ) = Ft. 6” round to3- 1/ 4” x 10”rect. transition

elbow 23 Ft. x ( ) = Ft. elbowelbow7” to 6” or8” to 7” Round tapered reducer25 Ft. x ( ) = Ft.

3- 1/ 4” x 10”Rect. 90

elbow 15 Ft. x ( ) = Ft. 3- 1/ 4” x 10”Rect. 45 elbow 9 Ft. x ( ) = Ft.

3- 1/ 4” x 10”Rect. 90

flat elbow 24 Ft. x ( ) = Ft.

3- 1/ 4” x 10”Rect.wall capwith damper

30 Ft. x ( ) = Ft. Ft. x ( ) = Ft.

6”, 7“, 8”Round in-line damper Ducting Calculation Sheet9 Tornado II & Tornado III Use, Care, and Installation Guide ZEPHYRONLINE.COM Installation Instructions Mounting Height, Clearance, & Ducting A minimum of 6” round duct must be used for AK82 and AK83 for single blower and 10” round duct for dual internal blower to maintain maximum air flow eciency. In-line and external blowers require 10” round duct (AK83 only). Always use rigid type metal ducts only. Flexible ducts could restrict air flow by up to 50%. Also use calculation (on page 8) to compute total available duct run when using elbows, transitions and caps. ALWAYS, when possible, reduce the number or transitions and turns. If long duct run is required, increase duct size. If turns or transitions are required; install as far away from hood duct output and as far apart, between the two as possible. Minimum mount height between range top to hood bottom should be no less than 24”. Maximum mount height should be no higher than 36”. Min 24” - Max 36” 36” It is important to install the hood at the proper mounting height. Hoods mounted too low could result in heat damage and fire hazard; while hoods mounted too high will be hard to reach and will lose its performance and eciency. If available, also refer range manufacturer’s height clearance requirements and recommended hood mounting height above range. For shipment and installation damages: ► Please fully inspect unit for damage before installation. ► If the unit is damaged in shipment, return the unit to the store in which it was bought for repair or replacement. ► If the unit is damaged by the customer, repair or replacement is the responsibility of the customer. ► If the unit is damaged by the installer (if other than the customer), repair of replacement must be made by arrangement between customer and installer.10 Tornado II & Tornado III Use, Care, and Installation Guide

TORNADO II & TORNADO IIIINSERT

PRO Installation Instructions Ducting Options ► Use single wall rigid metal ductwork only. ► Fasten all connections with sheet metal screws and tape all joints w/ certified Silver Tape or Duct Tape.Fire Hazard: NEVER exhaust air or terminate ductwork into spaces between walls, crawl spaces, ceilings, attics, or garages. All exhaust must be ducted to the outside, unless using the recirculating option. WARNING Sot or crawl spaceRoof pitch w/flashing & cap Side wall capw/ gravity damperSide wall capw/ gravity damperSot or crawl spaceExternalblowerExternal blowerAK83 onlyAK83 onlyAK83 onlyIn-lineblowerRoof pitch w/flashing & cap11 Tornado II & Tornado III Use, Care, and Installation Guide ZEPHYRONLINE.COM Installation Instructions Hood Specications (27”) 26-3/16”, (34”) 32-5/8” 1/4”(27”) 27-5/16”, (34”) 33-3/4”9-1/16” 15/16”14-3/4”(27”) 11-5/16” ***(34”) 14-3/4” ***1-3/8”(27”) 11-5/16” ***(34”) 14-3/4” *** *** Mounting holes measurements from rear(27”) 26-13/16”(34”) 33-1/4” 15/16” **13-3/16” 5/16” ** 1/2” 12” 7-7/8” 13/16” 15/16”6-3/8” ** 3/16”9-15/16” ** 13/16”14-3/4”9-1/16” 15/16”1-3/8”17-3/4” *** 17-3/4” *** 1/4” 1/8” 13/16” AK82 Top View AK82 Front View AK83 Front View AK83 Top View AK82 & AK83 Side View 5-7/8” *5-7/8” *6-1/8” * * 6” Round Ducting ** 10” Round Ducting1-1/16” *6-3/8” **6-1/8” * NOTE: AK82 includes a single blower with 6” ducting preinstalled. A 10” transition is available, but is only available with the PBD-1000A dual internal blower kit.12 Tornado II & Tornado III Use, Care, and Installation Guide

TORNADO II & TORNADO IIIINSERT

PRO Installation Instructions Electrical Supply Electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards. Turn o electrical power at service entrance before wiring. WARNING For personal safety, remove house fuse or open circuit breaker before beginning installation. Do not use extension cord or adapter plug with this appliance.Follow national electrical codes or prevailing local codes and ordinances.This appliance requires a 120V 60Hz electrical supply, and connected to an individual, properly grounded branch circuit, protected by a 15 or 20 ampere circuit breaker or time delay fuse. Wiring must be 2 wire w/ ground. Please also refer to the Electrical Diagram labeled on product. Cable Lock A cable locking connector (not supplied) might be required by local codes. Check with local requirements and codes, purchase and install appropriate connector if necessary. (FIG. A)Cable LockFIG. A13 Tornado II & Tornado III Use, Care, and Installation Guide ZEPHYRONLINE.COM Installation Instructions Preparation & Installation At least two installers are required due to the weight and size of the insert. CAUTION 1. Install blower into insert: AK82 - Blower is pre-installed. Refer to page 18 for dual blower conversion instructions. AK83 - Refer to page 14 for instructions.NOTE: Remove blower mounting support screw located on top of the motor housing before installing the hood into cabinet.2. AK82 - Install 10” round adapter to the top of insert if converting to dual internal blowers. AK83 - Install 10” round adapter to the top of insert if using dual internal or remote blower.3. Install optional stainless steel liner accessory. Review manual included with liner for more details.4. If no liner is used, cut an opening in the bottom of the cabinet by following the dimensions in FIG. B.5. Remove bae filters and spacer panels from insert.6. Lift insert into opening and secure to bottom of cabinet using (7) M4 x 25 stainless steel screws Front View metal or other non combustible material (7) M4 x 25 ss wood screws total, 2 options cabinet bottom cut-out size 26-7/16” 32-7/8” 39-3/8”

AK8227AS AK8234AS AK8340ASX

14-1/16” DuctworkElec.minimum 2x4side and rear wood base

14-1/16” Ductwork Elec. minimum 2x4 side and rear wood base

FIG. BFIG. Cwith options A or B: A: Normal finish; secure (4) screws on the bottom and (3) screws in the rear. B: Screwless finish; secure (3) screws in the rear and (2) screws per side.NOTE: Wood blocking may need to be added to cabinet base if additional support is needed.7. Install ductwork and seal with duct tape.8. Install electrical.

9. Remove all packaging materials before using insert. Switch power on and check for leaks around

duct tape.10. Re-install spacer panels and bae filters.14 Tornado II & Tornado III Use, Care, and Installation Guide

TORNADO II & TORNADO IIIINSERT

PRO Installation Instructions Repositioning the Electrical Box The electrical box in the front can be repositioned to the top of the blower housing if additional clearance is required during installation.

1. Remove the light panel by unscrewing (2)

2. Remove the single blower plate by

unscrewing (2) screws and removing the plate o the holding bracket.

1. Remove the (2) screws from the

electrical box on top of the blower housing.

2. Position the electrical box to the

side of the blower housing and secure with (2) screws. Reroute the wiring inside the hood for the new electrical box placement. AK83 Single & Dual Internal Blower Installation Multiple blowers are compatible with AK83 only. CBI-290C, CBI-390A, and CBI-600A are single internal blowers and PBI-1100B is a dual internal blower. For remote blower preparation instructions, turn to page 16.15 Tornado II & Tornado III Use, Care, and Installation Guide ZEPHYRONLINE.COM Installation Instructions AK83 Single & Dual Internal Blower Installation

4. Mount the blower plate with the blower(s)

onto the holding bracket inside the insert. Secure the blower plate with (2) screws.

5. Access the side electrical panel by

removing (2) screws.

3. For single internal blowers only: Secure

blower onto single blower plate with (4) screws.

6. For single blower, connect 9 pin to 6 pin

adapter cable. The 9 pin end connects to the blower, and the 6 pin end connects to the insert. For dual blowers, connect 6 pin male connector from blower wiring to 6 pin female connector in the insert.16 Tornado II & Tornado III Use, Care, and Installation Guide

TORNADO II & TORNADO IIIINSERT

PRO Installation Instructions AK83 Single & Dual Internal Blower Installation

7. For single internal blowers only: Tuck the

capacitor box (preattached to motor cable) behind the light panel and secure with (2) screws. Secure green ground wire with (1) lock washer and (1) 3/16 x 3/8 screw.

8. Single internal blower - Connect 6” round

ductwork to blower collar. Dual internal blower - Place 10” round adapter on top of insert and secure it with (4) M4x8 screws. Connect 10” round ductwork to 10” round adapter. AK83 Remote Blower Preparation

1. Remove the light panel by unscrewing (2)

2. Remove the single blower plate by

unscrewing (2) screws and removing the plate o the holding bracket.17 Tornado II & Tornado III Use, Care, and Installation Guide ZEPHYRONLINE.COM Installation Instructions AK83 Remote Blower Preparation

4. Install threaded end of remote blower

wiring through external blower wiring knock out locked in junction box on top of insert.

5. Place cap over threaded end of remote

blower wiring and secure by turning clockwise.

6. Access 6 pin connector by removing

(2) screws from the side electrical box. Connect 6 pin male connector from blower wiring to 6 pin female connector in the insert.

7. Secure green ground wire from

remote blower wiring to ground screw located inside the insert.

CBE-1000 / PBN-1000A: WIRING DIAGRAMWhite (common)Black (high)Blue (med)Red (low)Green (ground)Remote BlowerWiring Box(hood)Junction Box(Remote Blower) NOTE: For instructions on installing remote blowers, please refer to the CBE-1000 or PBN-1000A manuals included in the blower packaging and on our website: www.zephyronline.com

3. Place 10” round adapter on top of insert

and secure it with (4) M4x8 screws. Connect 10” round ductwork to 10” round adapter.18 Tornado II & Tornado III Use, Care, and Installation Guide

TORNADO II & TORNADO IIIINSERT

PRO Installation Instructions PBD-1000A Dual Internal Blower Installation The following instructions are only applicable for the model, AK82. AK82 is equipped standard with a single internal blower. To convert from single internal blower to dual internal blower, please follow the instructions below.

1. Remove the light panel by

unscrewing (2) screws.

2. Remove (2) screws from the internal

side electrical panel. Disconnect the blower plug.

3. Remove the single blower plate with

the blower attached by unscrewing (2) screws. Lift and remove the blower plate with the blower out from the holding bracket.

4. Separate the single blower plate

from blower by removing (4) screws.19 Tornado II & Tornado III Use, Care, and Installation Guide ZEPHYRONLINE.COM Installation Instructions PBD-1000A Dual Internal Blower Installation

5. From the PBD-1000A dual blower

kit, use the dual blower plate and secure the blowers, (4) on the top and (2) screws per side per blower.

6. Mount the dual blower plate with

both blowers attached onto the holding bracket inside the insert. Secure the dual blower plate with (2) screws.

7. Connect the blower plugs and

reinstall the side electrical panel with (2) screws.

8. Reinstall the light panel with (2)

included with the PBD- 1000A dual internal blower onto the top of the insert with (4) screws.20 Tornado II & Tornado III Use, Care, and Installation Guide

► The ON/OFF button will turn the power on and o for the entire hood (fan and lights). The hood has a memory function and will remember the last speed and light level it was turned o at. NOTE: "HELLO" appears on the LCD (display) for 3 seconds when the hood turns o. "GOODBYE" appears for 3 seconds when the hood turns o. DELAY OFF FUNCTION: With the fan and/or lights on, press and hold the ON/OFF button for 2 seconds. The fan will change to speed 1, the delay o graphic will illuminate, and the 5 minute delay o timer will begin and be displayed on the LCD. After 5 minutes, the hood will power o. ACT™ VERIFICATION (AK82 ONLY): Airflow Control Technology (ACT™) allows the installer to set the maximum fan CFM to align with local codes and regulations. ► To verify the maximum fan CFM, press and hold the ON/OFF button for 3 seconds while the entire hood is powered o. The LCD will display up to three options depending on the settings, "ACT 390", "ACT 290", and "ACT OFF".

► AK82: Press the FAN- button to decrease the fan speeds from 5, 4, 3, 2, 1, o. ► AK83: Press the FAN- button to decrease the fan speeds from 3, 2, 1, o. GREASE FILTER REMINDER (always enabled): After 60 hours of fan usage, the grease filter graphic will light up on the LCD. When any buttons are pressed, the LCD will initially show the hood status (e.g. Speed 1) before displaying the text “CLEAN GREASE FILTERS HOLD FAN- TO RESET”. ► Press and hold the FAN- button while the entire hood is powered o to reset the grease filter reminder.21 Tornado II & Tornado III Use, Care, and Installation Guide ZEPHYRONLINE.COM Features & Controls LCD Touch Controls

► Press the LIGHTS button to cycle through the light levels from o, low, and high. TRUHUE FEATURE: TruHue allows you to adjust the color temperature of the lighting from warmer to cooler. The available options are 2700K, 3000K, 3500K, 4000K, and 5000K. ► To adjust the color temperature of the lights, when the hood is powered o, press and hold the LIGHTS button for 3 seconds. The LCD will display 3000K. Press FAN+ or FAN- to adjust the color temperature. While adjusting, the lights will also turn on to match the color temperature referenced on the LCD. Press the LIGHTS button to confirm the temperature and the lights will turn o, or wait 10 seconds for automatic confirmation.22 Tornado II & Tornado III Use, Care, and Installation Guide

TORNADO II & TORNADO IIIINSERT

PRO Features & Controls Optional RF Remote Control AK82 and AK83 support an optional RF remote control that allows you to operate your range hood wirelessly from a distance. The RF remote control is sold separately, and the part number is

FCC Caution To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. (Example - use only shielded interface cables when connecting to computer or peripheral device. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions. (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Synchronization To create a unique link between your hood and remote control please follow these steps.

1. With hood o, press and hold the ON/OFF and LIGHTS button for 3 seconds. The text “PAIRING”

will appear on the LCD. Pairing mode will remain active for 60 seconds or until a remote control has been paired. Pressing the ON/OFF button will cancel pairing mode.

2. Press a button on the remote, and the remote control will be synchronized with the hood.

RF Remote Control Functions Blower On / Speed SelectionPress to power on blower and cycle through all speeds. Blower On / Power OBy pressing , the blowers will power on at the last speed setting. Press again and the entire hood will power o, including lights.Delay OLights O/Low/HighSwitch between light levels by pressing . Turn o the lights by cycling throughthe dierent light levels. To adjust the color temperature, press and holdfor 3 seconds. Press to cycle through the temperatures and pressagain to save the setting. Blower On/Speed Selection

Blower On/Power O 5 Min Delay O Lights O/Low/High

By pressing , the blower and lights will enter Delay O mode. The blower will change to speed 1 and a 5 minute timer will begin counting down.23 Tornado II & Tornado III Use, Care, and Installation Guide ZEPHYRONLINE.COM Features & Controls Optional RF Remote Control RF Remote Features The RF remote control is equipped with a magnet on the back for easy storage. The remote may be placed on any magnetic surface such as a refrigerator or the Zephyr remote holder, FIG. D. The remote holder can be inserted into a standard electrical outlet for easy storage. Note: The remote holder does not charge the RF remote. Maximum remote control communication distance is 15 feet from the liner. RF Remote Maintenance Clean the remote control using non abrasive detergents. Follow instructions below for replacing battery. Using a small flat head screwdriver, raise the cover of the battery door (A) in order to access the battery compartment. FIG. E. Remove the battery and replace with battery type A23 12V. Negative end of battery should face the spring inside the remote. Re-install battery door and recycle old battery. FIG. D

PRO Hood & Filter Cleaning Surface Maintenance ► Do not use corrosive detergents, abrasive detergents or oven cleaners. ► Do not use any product containing chlorine bleach or any product containing chloride. ► Do not use steel wool or abrasive scrubbing pads which will scratch and damage surface. Cleaning Stainless Steel Clean periodically with warm soapy water and clean cotton cloth or micro fiber cloth. Always rub in the direction of the stainless steel grain. To remove heavier grease build up use a liquid degreaser detergent. After cleaning use a non-abrasive stainless steel polish/cleaners, to polish and bu out the stainless luster and grain. Always scrub lightly, with clean cotton cloth or micro fiber cloth and bu in the direction of the stainless steel grain. Cleaning the Pro Bae Filters The filters are intended to trap residue and grease from cooking. Although the filters should never need replacing, they are required to be cleaned every 30 days or more often depending on cooking habits. Filters may be placed in dishwasher at low heat or soaked in hot soapy water Dry filters and re-install before using hood. Maintenance25 Tornado II & Tornado III Use, Care, and Installation Guide ZEPHYRONLINE.COM Installing the Pro Bae Filters, FIG. F:

1. Place filter into top groove of the insert as shown and

pull towards front of insert using handles.

2. Pivot back of filter upwards so it is angled in the insert.

3. Push filter into channel on back of insert to lock into

FIG. F LumiLight LED In the unlikely event that your LumiLight LED fails, please contact Zephyr to order replacement parts. See the list of parts and accessories page for part numbers and contact information. LED Removal (FIG. G):

1. Remove bae filters.

2. Remove the side panels, if applicable.

3. Remove the light panel by (2) screws.

4. Disconnect LED light quick connector.

5. Push in the two side clips on the ends of the LED light.

6. Push LED light through the light panel opening.

Push the clip FIG. G26 Tornado II & Tornado III Use, Care, and Installation Guide

TORNADO II & TORNADO IIIINSERT

PRO ACT™ Conversion Airow Control Technology (ACT™) (AK82 ONLY) Some local codes limit the maximum amount of CFM a range hood can move. ACT™ allows you to control the maximum blower CFM of select Zephyr Ventilation range hoods without the need for expensive make up air kits. ACT™ enables the installer to easily set the maximum blower speed to one of two most commonly specified CFM levels; 390 or 290 CFM. The usage of ACT™ may not be necessary for your installation. Please check your local codes for CFM restrictions. NOTE: ACT™ is only available for AK82.Hood must be disconnected from the main power prior to performing the conversion instructions listed below. Failure to do so could result in personal injury or damage to the product. CAUTION After re-positioning the jumper and powering on the hood, the CFM cannot be changed again. CAUTION27 Tornado II & Tornado III Use, Care, and Installation Guide ZEPHYRONLINE.COM ACT™ Conversion Enabling ACT™ (AK82 ONLY) To enable ACT™:

1. Before hood installation, gain access to PC board removing the bae filters, removing the side

panels (if applicable), and removing (2) screws from the right side of the insert (FIG. H).

2. Change plastic jumper positioning as shown in FIG. I to set the desired maximum blower CFM.

3. Re-install PC board and continue with hood installation.

4. Remove the appropriate foil CFM sticker included with the hood literature and place inside the

hood body below the wiring diagram or in another clearly visible location. To verify if your installer enabled ACT™:

1. With hood o, hold the ON/OFF button for 3 seconds. If ACT™ is enabled, the LCD will either

display "ACT 390" or "ACT 290". If ACT™ is disabled, the LCD will display "ACT OFF".

2. When ACT™ is enabled, the number of blower speeds will be reduced.

3. There should also be a foil label located inside the hood body near the wiring diagram that

REMARKS: 250VAC FIT DC120V 60Hz Body GreenBlackWhiteWhite B/W Blue BrownBlackWhiteYellow Red Blue Control PCMotorMotor Body WhiteYellow Red Blue WhiteYellow Red Blue Grey Grey BlackBlackGreenGreen30 Tornado II & Tornado III Use, Care, and Installation Guide TORNADO II & TORNADO III INSERT PRO Troubleshooting Possible Problem Possible Cause Solutions After installation, the unit doesn’t work. The power source is not turned ON. Make sure the circuit breaker and the unit’s power is ON. The power line and the cable locking connector is not connecting properly. Check the power connection with the unit is connected properly. The switch board or control board wirings are disconnected. Make sure the wirings at the switch board and control board are connected properly. The switch board or control board is defective. Change the switch board or control board. The wires on control board are loose. Make sure the wires on the control board are connected properly. Light works, but blower is not turning. The blower is defective, possibly seized. Change the blower. The thermally protected system detects if the blower is too hot to operate and shuts the blower down. The blower will function properly after the thermally protected system cool down. Damaged capacitor. Change the capacitor. The motor wire is not connected. Make sure the motor wire is plugged into the molex connector. The unit is vibrating. The blower is not secured in place. Tighten the blower in place. Damaged blower wheel. Replace the blower. The hood is not secured in place. Check the installation of the hood. The unit is whistling. A filter is not in the correct position. Adjust the filters until the whistling stops. The duct pipe connections are not sealed or connected properly. Check the duct pipe connections to be sure all connections are sealed properly. The blower is working, but the lights are not. The LED light connector is disconnected. Connect the LED light connector. Defective LED light. Change the LED light. The switch board or control board is defective. Change the switch board or control board.31 Tornado II & Tornado III Use, Care, and Installation Guide ZEPHYRONLINE.COM Troubleshooting The hood is not venting out properly. Using the wrong size of ducting. Change the ducting to the correct size The hood might be hanging to high from the cook top. Adjust the distance between the cook top and the bottom of the hood within 24” and 36” range. The wind from the opened windows or opened doors in the surrounding area are aecting the ventilation of the hood. Close all the windows and doors to eliminate the outside wind flow. Blockage in the duct opening or ductwork. Remove all the blocking from the duct work or duct opening. The unit turns on by itself. A spot light is shining directly onto the switch controls. The switch controls are light sensitive. A direct light source onto the switch controls may disrupt switch functions. Filter is vibrating Filter is loose. Adjust or change the filter. Spring clip is broken on the filter. Change the spring clip. RF remote control does not work. Battery is dead. Replace battery with type A23 12v. Poor communication with the liner. Remote control must be within 15 ft of liner. RF Remote lost communication with the liner. Reset liner and remote by switching power o at the circuit breaker for 5 minutes. Place remote on counter top near the liner and switch the circuit breaker back on. Possible Problem Possible Cause Solutions32 Tornado II & Tornado III Use, Care, and Installation Guide TORNADO II & TORNADO III INSERT PRO List of Parts & Accessories Description Part Number Replacement Parts LumiLight LED with TruHue, 6W Z0B0067 Pro bae filter (each) 50210054 Optional Accessories RF remote control 14000005 Dual internal blower (AK82) PBD-1000A Single internal blower (AK83) CBI-290C Single internal blower (AK83) CBI-390A Single internal blower (AK83) CBI-600A Dual internal blower (AK83) PBI-1100B External blower (AK83) CBE-1000 In-line blower (AK83) PBN-1000A 36” Liner, 17”-20” depth (AK8227AS) AK082360AS 48” Liner, 17”-20” depth (AK83) AK083480AS 48” Liner, 20”-23” depth (AK83) AK083481AS Make-up Air Kit (Single Blower) MUA006A Make-up Air Kit (Dual Internal Blower and Remote Blower) MUA010A To order parts, visit us online at http://store.zephyronline.com.33 Tornado II & Tornado III Use, Care, and Installation Guide ZEPHYRONLINE.COM Limited Warranty Zephyr Ventilation, LLC (referred to herein as “we” or “us”) warrants to the original consumer purchaser (referred to herein as “you” or “your”) of Zephyr products (the “Products”) that such Products will be free from defects in materials or workmanship as follows: Ten Year Limited Warranty for Parts: For ten years from the date of your original purchase of the Products, we will provide, free of charge, Products or parts (including LED light bulbs, if applicable) to replace those that failed due to manufacturing defects. We may choose, in our sole discretion, to repair or replace parts before we elect to replace the Products. One Year Limited Warranty for Labor: For one year from the date of your original purchase of the Products, we will provide, free of charge, the labor cost associated with repairing the Products or parts to replace those that failed due to manufacturing defects. After the first year from the date of your original purchase, you are responsible for all labor costs associated with this warranty. Warranty Exclusions: This warranty covers only repair or replacement, at our option, of defective Products or parts and does not cover any other costs related to the Products including but not limited to: (a) normal maintenance and service required for the Products and consumable parts such as fluorescent, incandescent or halogen light bulbs, mesh and char- coal filters and fuses; (b) any Products or parts which have been subject to freight damage, misuse, negligence, accident, faulty installation or installation contrary to recommended installation instructions, improper maintenance or repair (other than by us); (c) commercial use of the Products or use otherwise inconsistent with its intended purpose; (d) natural wear of the finish of the Products or wear caused by improper maintenance, use of corrosive and abrasive cleaning products, pads, and oven cleaner products; (e) chips, dents or cracks caused by abuse or misuse of the Products; (f) service trips to your home to teach you how to use the Products; (g) damage to the Products caused by accident, fire, floods, acts of God; or (h) Custom installations or alterations that impact serviceability of the Products. If you are outside our service area, additional charges may apply for shipping costs for warranty repair at our designated service locations and for the travel cost to have a service technician come to your home to repair, remove or reinstall the Products. After the first year from the date of your original purchase, you are also responsible for all labor costs associated with this warranty. Limitations of Warranty. OUR OBLIGATION TO REPAIR OR REPLACE, AT OUR OPTION, SHALL BE YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS WARRANTY. WE SHALL NOT BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH THE USE OR PERFORMANCE OF THE PRODUCTS. THE EXPRESS WARRANTIES IN THE PRECEDING SECTION ARE EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS WARRANTIES. WE HEREBY DISCLAIM AND EXCLUDE ALL OTHER EXPRESS WARRANTIES FOR THE PRODUCTS, AND DISCLAIM AND EXCLUDE ALL WARRANTIES IMPLIED BY LAW, INCLUDING THOSE OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Some states or provinces do not allow limitations on the duration of an implied warranty or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. To the extent that applicable law prohibits the exclusion of implied warranties, the duration of any applicable implied warranty is limited to the same ten-year period described above. Any oral or written description of the Products is for the sole purpose of identifying the Products and shall not be construed as an express warranty. Prior to using, implementing or permitting use of the Products, you shall determine the suitability of the Products for the intended use, and you shall assume all risk and liability whatsoever in connection with such determination. We reserve the right to use functionally equivalent refurbished or reconditioned parts or Products as warranty replacements or as part of warranty service. This warranty is not transferable from the original purchaser and applies in the United States and Canada. To Obtain Service Under Limited Warranty: To qualify for warranty service, you must: (a) notify us at the address or telephone number stated below within 60 days of the discovery of the defect; (b) give the model number and part identifi- cation number and serial number; and (c) describe the nature of any defect in the Product or part. At the time of the request for warranty service, you must present evidence of your proof of purchase and proof of the original purchase date. If we determine that the warranty exclusions listed above apply or if you fail to provide the necessary documenta- tion to obtain service, you will be responsible for all shipping, travel, labor and other costs related to the services.Please check our website for any revisions, www.zephyronline.com.Zephyr, 2277 Harbor Bay Parkway, Alameda, CA 94502 AUG25.0601 TO OBTAIN SERVICE UNDER WARRANTY OR FOR ANY SERVICE RELATED QUESTIONS United States Customers please call: 1-888-880-8368 or contact us at: zephyronline.com/contact Canada Customers please call: 1-888-812-8311 or Email: ven-tech@broan.com Limited Warranty34 Tornado II & Tornado III Use, Care, and Installation Guide

TORNADO II & TORNADO IIIINSERT

PRO Product Registration Congratulations on the purchase of your Zephyr product! Please take a moment to register your new Zephyr product at www.zephyronline.com/registration Zephyr Ventilation | 2277 Harbor Bay Pkwy. | Alameda, CA 94502 | 1.888.880.8368 Prompt registration helps in more ways than one.
