USER MANUAL Typhoon AK2148CS Zephyr

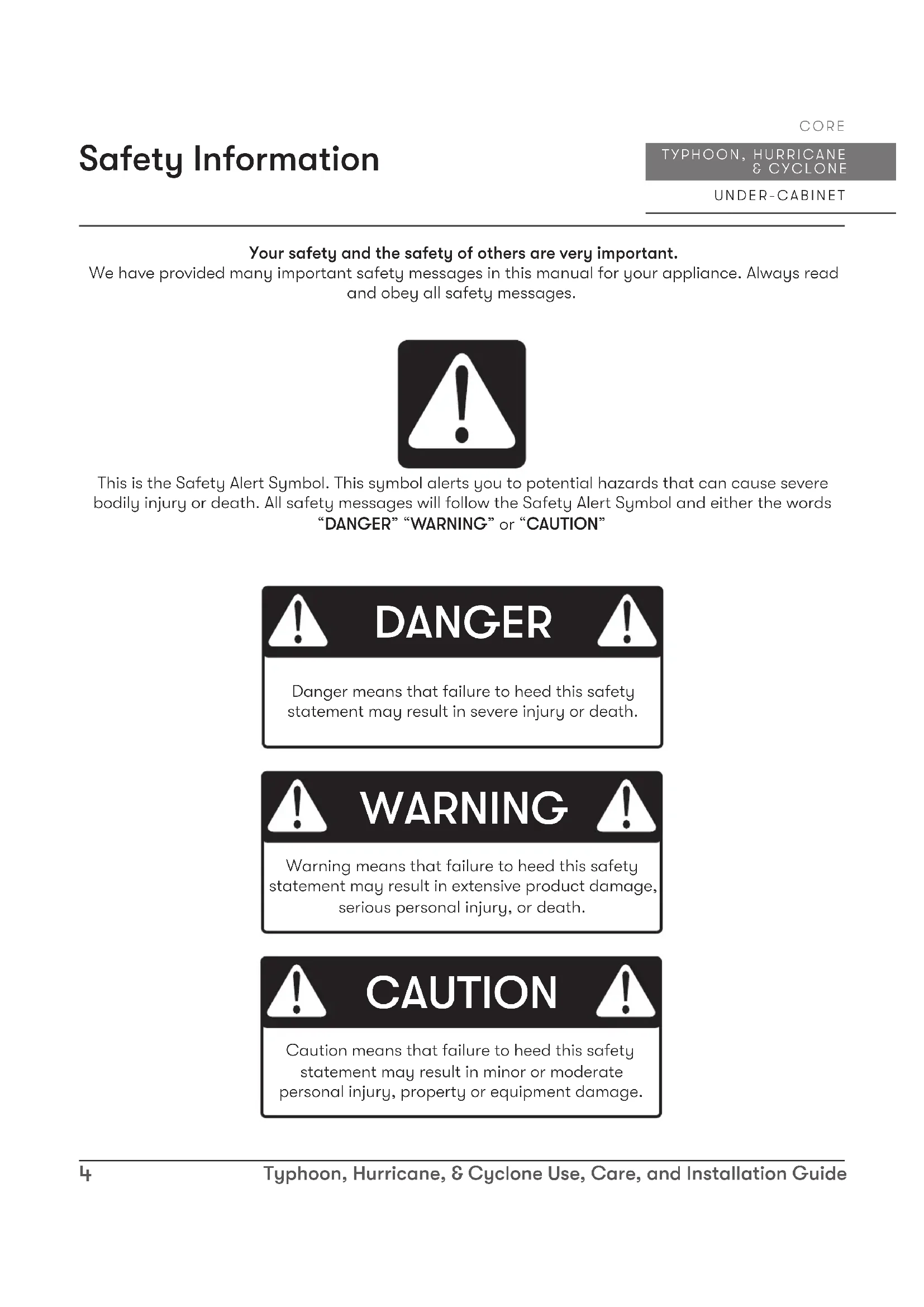

CORE Safety Information Your safety and the safety of others are very important. We have provided many important safety messages in this manual for your appliance. Always read and obey all safety messages. This is the Safety Alert Symbol. This symbol alerts you to potential hazards that can cause severe bodily injury or death. All safety messages will follow the Safety Alert Symbol and either the words “DANGER” “WARNING” or “CAUTION” DANGER WARNING CAUTION Danger means that failure to heed this safety statement may result in severe injury or death. Warning means that failure to heed this safety statement may result in extensive product damage, serious personal injury, or death. Caution means that failure to heed this safety statement may result in minor or moderate personal injury, property or equipment damage.5 Typhoon, Hurricane, & Cyclone Use, Care, and Installation Guide ZEPHYRONLINE.COM Safety Information To reduce the risk of fire or electric shock, do not use this fan with any solid-state control device. WARNING

READ AND SAVE THESE INSTRUCTIONS

WARNING - TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:a) Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer.b) Before servicing or cleaning unit, switch power o at service panel and lock the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel. WARNING General Safety For General Ventilating Use Only. Do Not Use To Exhaust Hazardous Or Explosive Materials And Vapors. Take care when using cleaning agents or detergents. Suitable for use in household cooking area. CAUTION6 Typhoon, Hurricane, & Cyclone Use, Care, and Installation Guide

TYPHOON, HURRICANE & CYCLONEUNDERCABINET

CORE Safety Information

READ AND SAVE THESE INSTRUCTIONS

WARNING - TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE: a) Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings. b) Always turn hood ON when cooking at high heat or when flambeing food. (i.e. Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambe’). c) Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter. d) Use proper pan size. Always use cookware appropriate for the size of the surface element. WARNING WARNING - TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING: a) SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn o the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT. b) NEVER PICK UP A FLAMING PAN – You may be burned. c) DO NOT USE WATER, including wet dishcloths or towels – a violent steam explosion will result. d) Use an extinguisher ONLY if:

1) You know you have a Class ABC extinguisher, and you already know how to operate it.

2) The fire is small and contained in the area where it started.

3) The fire department is being called.

4) You can fight the fire with your back to an exit

Based on “Kitchen Firesafety Tips” published by NFPA. WARNING7 Typhoon, Hurricane, & Cyclone Use, Care, and Installation Guide ZEPHYRONLINE.COM Safety Information

READ AND SAVE THESE INSTRUCTIONS

WARNING WARNING - TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING: a) Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction. b) Sucient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent back drafting. Follow the heating equipment manufacturer’s guideline and safety standards such as those published by the National Fire Protection Association (NFPA), and the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities. c) When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities. d) Ducted fans must always be vented to the outdoors. e) If this unit is to be installed over a tub or shower, it must be marked as appropriate for the application and be connected to a GFCI (Ground Fault Circuit Interrupter) - protected branch circuit. WARNING TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK. WARNING8 Typhoon, Hurricane, & Cyclone Use, Care, and Installation Guide

TYPHOON, HURRICANE & CYCLONEUNDERCABINET

CORE Safety Information

READ AND SAVE THESE INSTRUCTIONS

Ź To reduce risk of fire and to properly exhaust air outside, do not vent exhaust air into spaces within walls, ceilings, attics, crawl spaces, or garages. Ź Not for use over an outdoor grill. Ź For indoor use only. Ź This hood is not intended to be used as a shelf. CAUTION Operation Ź Always leave safety grilles and filters in place. Without these components, operating blowers could catch onto hair, fingers and loose clothing. Ź The manufacturer declines all responsibility in the event of failure to observe the instructions given here for installation, maintenance and suitable use of the product. The manufacturer further declines all responsibility for injury due to negligence and the warranty of the unit automatically expires due to improper maintenance.NOTE: Please check www.zephyronline.com for revisions before doing any custom work. Electrical Requirements Important:Observe all governing codes and ordinances.It is the customer’s responsibility to be aware of these below: Ź To contact a qualified electrical installer. Ź To assure that the electrical installation is adequate and in conformance with National Electrical Code, ANSI/NFPA 70 latest edition* or CSA standards C22.1-94, Canadian Electrical Code, Part 1 and C22.2 No.0-M91 - latest edition** and all local codes and ordinances.9 Typhoon, Hurricane, & Cyclone Use, Care, and Installation Guide ZEPHYRONLINE.COM Safety Information

READ AND SAVE THESE INSTRUCTIONS

Prop. 65 Warning for California Residents: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. WARNING Ź If codes permit and a separate ground wire is used, it is recommended that a qualified electrician determine that the ground path is adequate. Ź Do not ground to a gas pipe. Ź Check with a qualified electrician if you are not sure the range hood is properly grounded. Ź Do not have a fuse in the neutral or ground circuit. Ź This appliance requires a 120V 60Hz electrical supply and connected to an individual properly grounded branch circuit protected by a 15 or 20 ampere circuit breaker or time delay fuse. Wiring must be 2 wire with ground. Please also refer to Electrical Diagram on product. Ź A cable locking connector (not supplied) might also be required by local codes. Check with local requirements, purchase and install appropriate connector if necessary.

• National Fire Protection Association Batterymarch Park, Quincy, Massachusetts 02269 ** CSA International 8501 East Pleasant Valley Road, Cleveland, Ohio 44131-557510 Typhoon, Hurricane, & Cyclone Use, Care, and Installation Guide TYPHOON, HURRICANE & CYCLONE UNDER-CABINET CORE List of Materials Parts Supplied Quantity Part 1Hood 2 Safety grilles 2 LumiLight LED (AK21 only) 2 Halogen light bulbs, 35W (AK25 & AK65 only) 1 Hardware package #6 x 1” (4)Safety Grille Screws (2)#6 x 1-1/2” (4)Wire Caps (3)7” Round transition adapter (AK21, AK25) 6” Round transition adapter (AK65)(pre-installed on top of hood)3-1/4”x10” rectangular cover plate (pre-installed on back of hood)3-1/4”x10” rectangular vertical transition adapter 3-1/4”x10” rectangular starting collar Washer (4)Suction Cup (1)(AK25 & AK65) Parts Not Supplied Ducting, conduit and all installation tools Backdraft damper Philips head screwdriver with minimum 8” long shaft (required to install AK2100) Cable locking connector (if required by local codes)11 Typhoon, Hurricane, & Cyclone Use, Care, and Installation Guide ZEPHYRONLINE.COM Installation Instructions Duct pieces To t a lEquivalent numberlength x used =3- 1/ 4” x 10”Rect.,straight 1 Ft. x ( ) = Ft.

9 Ft. x ( ) =Ft. Ft. 6”, 7”, 8”, 10” Round,straight 1 Ft. x ( ) = Ft. Subtotal column 1 = Duct pieces To t a lEquivalent numberlength x used =6”, 7”, 8”, 10”Round, wall cap with damper 30 Ft. x ( ) = Ft.

Subtotal column 2 = Subtotal column 1 = Total ductwork = Maximum Duct Length: For satisfactory air movement,the total duct length should not exceed 150 equivalent feet.6” round to3- 1/ 4” x 10”rect. transition1 Ft. x ( ) =Ft. 6” round to3- 1/ 4” x 10”rect. transition

elbow23 Ft. x ( ) =Ft. elbowelbow7” to 6” or8” to 7” Round tapered reducer25 Ft. x ( ) = Ft.

3- 1/ 4” x 10”Rect. 90

elbow 15 Ft. x ( ) = Ft. 3- 1/ 4” x 10”Rect. 45 elbow 9 Ft. x ( ) = Ft.

3- 1/ 4” x 10”Rect. 90

flat elbow24 Ft. x ( ) = Ft.

6”, 7“, 8”Round in-line damper Ducting Calculation Sheet12 Typhoon, Hurricane, & Cyclone Use, Care, and Installation Guide

TYPHOON, HURRICANE & CYCLONEUNDER-CABINET

CORE Installation Instructions Mounting Height, Clearance, & Ducting

24” min. 32” max.13 Typhoon, Hurricane, & Cyclone Use, Care, and Installation Guide ZEPHYRONLINE.COM Installation Instructions Mounting Height, Clearance, & Ducting A minimum of 6” round for AK65 and 7” round for AK21 and AK25 or 3-1/4” x 10” rectangular duct must be used to maintain maximum air flow eciency for vertical ducting. For horizontal ducting, 3-1/4” x 10” rectangular duct is the minimum size. Always use rigid type metal ducts only. Flexible ducts could restrict air flow by up to 50%. Use calculation worksheet to compute total available duct run when using elbows, transitions, and caps. ALWAYS, when possible, reduce the number or transitions and turns. If long duct run is required, increase duct size from 6” to 7” or 7” to 8”. If turns or transitions are required: Install as far away from duct opening and as far apart between the two transitions as possible. Minimum mount height between range top to hood bottom should be no less than 24”. Maximum mount height should be no higher than 32”. It is important to install the hood at the proper mounting height. Hoods mounted too low could result in heat damage and fire hazard; while hoods mounted too high will be hard to reach and will loose performance and eciency. If available, also refer to range manufacturer’s height clearance requirements and recommended hood mounting height above range. Always check your local codes for any dierences. For shipment and installation damages: Ź Please fully inspect unit for damage before installation. Ź If the unit is damaged in shipment, return the unit to the store in which it was bought for repair or replacement. Ź If the unit is damaged by the customer, repair or replacement is the responsibility of the customer. Ź If the unit is damaged by the installer (if other than the customer), repair of replacement must be made by arrangement between customer and installer.14 Typhoon, Hurricane, & Cyclone Use, Care, and Installation Guide

TYPHOON, HURRICANE & CYCLONEUNDER-CABINET

CORE Installation Instructions Ducting Options Ź Use single wall rigid metal ductwork only. Ź Fasten all connections with sheet metal screws and tape all joints w/ certified Silver Tape or Duct Tape.Fire Hazard: NEVER exhaust air or terminate ductwork into spaces between walls, crawl spaces, ceilings, attics, or garages. All exhaust must be ducted to the outside, unless using the recirculating option. WARNING side wall capw/gravity dampercabinetcabinetsot or crawl spaceside wall capw/gravity damper3-1/4”x10” rear ducting w/side wall gravity damperroof pitch w/flashing & cap15 Typhoon, Hurricane, & Cyclone Use, Care, and Installation Guide ZEPHYRONLINE.COM Installation Instructions śŚŮ 3 1/16” 7/16”9 15/16”(30”) 28 1/16”, (36”) 34” (42”) 39 3/4”, (48“) 45 3/4”5 1/16” 3/4” 5/8”(30”) 11 5/16”, (36”) 12 1/2”(42”) 12 1/2”, (48“) 12 1/2”1 15/16” elec k/o (30”) 29 3/4”, (36”) 35 3/4” (42”) 41 3/4”, (48“) 47 11/16”(30”) 14”, (36”) 17”(42”) 19 7/8”, (48“) 22 7/8” C/L

CORE Installation Instructions Electrical Supply Electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards. Turn o electrical power at service entrance before wiring. WARNING For personal safety, remove house fuse or open circuit breaker before beginning installation. Do not use extension cord or adapter plug with this appliance.Follow national electrical codes or prevailing local codes and ordinances.This appliance requires a 120V 60Hz electrical supply, and connected to an individual, properly grounded branch circuit, protected by a 15 or 20 ampere circuit breaker or time delay fuse. Wiring must be 2 wire w/ ground. Please also refer Electrical Diagram labeled on product. Cable Lock A cable locking connector (not supplied) might be required by local codes. Check with local requirements and codes, purchase and install appropriate connector if necessary. (FIG. A)Cable LockFIG. A19 Typhoon, Hurricane, & Cyclone Use, Care, and Installation Guide ZEPHYRONLINE.COM Installation Instructions Rectangular Vertical Ducting Preparation Ź By default the Typhoon and Hurricane are pre-configured for 7” round vertical ducting. Ź By default the Cyclone is pre-configured for 6” round vertical ducting.

1. Using a Philips-head screwdriver

remove the screws and round vertical transition adapter from top of hood body.

2. Replace round vertical transition

adapter with rectangular transition adapter. Do not secure to hood body yet.

3. Place 3-1/4"x10" rectangular collar

on top of rectangular transition adapter. Secure rectangular adapter and rectangular collar to hood body using the previously removed screws from step 1.20 Typhoon, Hurricane, & Cyclone Use, Care, and Installation Guide

TYPHOON, HURRICANE & CYCLONEUNDERCABINET

CORE Installation Instructions Rectangular Horizontal Ducting Preparation Ź By default the Typhoon and Hurricane are pre-configured for 7” round vertical ducting. Ź By default the Cyclone is pre-configured for 6” round vertical ducting.

1. Using a Philips-head screwdriver

remove the screws and round vertical transition adapter from the top of the hood.

3. Typhoon ONLY. Remove the two

plastic air diverter blocks. The blocks are located in the hood and can be accessed from the top when the round transition adapter is removed.

2. Using a Philips-head screwdriver,

remove the screws and 3-1/4"x10" rectangular cover plate from back of hood.21 Typhoon, Hurricane, & Cyclone Use, Care, and Installation Guide ZEPHYRONLINE.COM Installation Instructions

4. Replace round vertical transition

adapter with rectangular transition adapter. Do not secure to hood body yet.

6. Place 3-1/4"x10" rectangular collar

on back of hood and secure using the screws that previously secured the rectangular cover plate.

5. Place 3-1/4"x10" rectangular cover

plate over the rectangular opening on top of hood from step 4. Secure rectangular transition adapter and cover plate to hood body using the previously removed screws from step 1.22 Typhoon, Hurricane, & Cyclone Use, Care, and Installation Guide

TYPHOON, HURRICANE & CYCLONEUNDER-CABINET

CORE Installation Instructions Mounting the Hood bottom panel & lighting harnesswood blockinginstallation screwsand key-holesduct workresidue cups &safety grilleselectricalduct tapeLumiLight LED FIG. B23 Typhoon, Hurricane, & Cyclone Use, Care, and Installation Guide ZEPHYRONLINE.COM Hood is designed for installation under a kitchen cabinet (FIG. B)

1. Prepare duct location on hood (vertical or horizontal) Refer to Pages 14 for ducting options.

2. Measure and cut out duct and electrical openings in cabinet or wall to match up with the hood.

Ducting and electrical dimensions can be found on Pages 15-17. Note: Make sure duct opening is large enough to apply aluminum duct tape.

3. Reinforce cabinet bottom with wood strips if additional strengthening is required or if cabinets are

4. Remove bottom panel from hood using a Philips head screwdriver to remove each of the screws.

Also disconnect lighting harness by pressing in on the clip to release the lights from the internal wiring. Use caution when removing bottom panel. Take care not to scratch side panels during removal.

5. Install (4) wood screws to cabinet bottom by following the installation screw hole dimensions on

Page 15-17. These screws will be used to secure the hood to the cabinet.

6. Lift hood onto screws located on cabinet bottom and lock into place. Make sure all (4) key-holes

cover the screws. Tighten each screw to secure hood to cabinet. Note: For 30” Typhoon models you will need an 8” - 10” long shaft for your screwdriver/drill to reach the front screws.

7. Install electrical.

8. Install duct work and seal with aluminum duct tape.

9. Power up hood and check for leaks around duct tape and test all functions.

10. Reinstall bottom panel and re-connect lighting harness. Use caution when installing bottom panel.

Take care not to scratch side panels during installation.

11. Slide residue cups into their openings on the bottom of the hood. Install safety grilles over each

blower opening and secure with the two safety grille screws. Installation Instructions Mounting the Hood24 Typhoon, Hurricane, & Cyclone Use, Care, and Installation Guide

TYPHOON, HURRICANE & CYCLONEUNDER-CABINET

AK21 Capacitive Touch25 Typhoon, Hurricane, & Cyclone Use, Care, and Installation GuideZEPHYRONLINE.COM Features & Controls

AK25 Electronic Touch26 Typhoon, Hurricane, & Cyclone Use, Care, and Installation Guide

TYPHOON, HURRICANE & CYCLONEUNDER-CABINET

CORE Features & Controls Blower On/O Speed Selection

0 is o, 1 is low speed, 2 is medium speed and 3 is high speed.

LIGHTS OFF/DIM/BRIGHT

0 is o, 1 is dim, and 2 is bright.

• ACT (Airflow Control Technology) is not available on AK65 AK65 Mechanical Slide27 Typhoon, Hurricane, & Cyclone Use, Care, and Installation Guide ZEPHYRONLINE.COM Maintenance Hood & Filter Cleaning Use extreme caution while cleaning the hood. Beware of blowers catching on to hair, loose clothing and fingers. NEVER leave children unattended. WARNING Self-cleaning FeatureZephyr Typhoon, Hurricane and Cyclone hoods are filter-less with a self cleaning feature. The centrifugal blower system automatically liquefies cooking residue in its internal housing. All hoods are equipped with dishwasher safe residue cups to collect cooking residue during the self cleaning function.Cooking residues are often automatically liquefied and can accumulate in the residue cups from everyday use. Nevertheless, grease from cooking could also dry and adhere to the internal housing. Running the self clean function periodically will flush out accumulated residue in the range hood’s internal housing.Cleaning FrequencyCleaning should be performed approximately once a month under normal usage of 1 hour per day. The hood may need to be cleaned more often if you cook heavily.DetergentUse a grease cutting detergent such as Simple Green or 409.28 Typhoon, Hurricane, & Cyclone Use, Care, and Installation Guide

Hood & Filter Cleaning Cleaning Instructions

1. Power on blowers at Speed 1.

2. With nozzle on “spray”, squirt grease

cutting detergent onto blower wheel blades 30 - 35 times. Repeat for each blower. Leave blower on for 10 minutes. Detergent will collect in the residue cups.

3. Remove residue cups. Clean residue

cups and in dishwasher or clean by hand. Install residue cups after cleaning.29 Typhoon, Hurricane, & Cyclone Use, Care, and Installation Guide ZEPHYRONLINE.COM Maintenance Hood & Filter Cleaning Surface Maintenance Ź Do not use corrosive detergents, abrasive detergents or oven cleaners. Ź Do not use any product containing chlorine bleach or any product containing chloride. Ź Do not use steel wool or abrasive scrubbing pads which will scratch and damage surface. Cleaning Stainless Steel Clean periodically with warm soapy water and clean cotton cloth or micro fiber cloth. Always rub in the direction of the stainless steel grain. To remove heavier grease build up use a liquid degreaser detergent. After cleaning use a non-abrasive stainless steel polish/cleaners, to polish and bu out the stainless luster and grain. Always scrub lightly, with clean cotton cloth or micro fiber cloth and bu in the direction of the stainless steel grain. Cleaning Black Stainless Steel Clean periodically with warm soapy water and clean cotton cloth or micro fiber cloth. To remove heavier grease build up use a liquid degreaser detergent. Due to a built-in layer of protective anti-smudge coating, do not use stainless steel polish/cleaners to bu out black stainless steel.30 Typhoon, Hurricane, & Cyclone Use, Care, and Installation Guide

TYPHOON, HURRICANE & CYCLONEUNDER-CABINET

CORE Maintenance LumiLight LED & LED Light Strip In the unlikely event that your LumiLight LED or LED light strip fails, please contact Zephyr to order replacement parts. See the list of parts and accessories page for part numbers and contact information.LED Removal (FIG. C & D):1. Remove the screws from the bottom panel.2. Disconnect LED light quick connector.3. Push in the two side clips on the ends of the LED light.4. Push LED light through the light panel opening. Push the clip FIG. CPush the clipFIG. D31 Typhoon, Hurricane, & Cyclone Use, Care, and Installation Guide ZEPHYRONLINE.COM ACT™ Conversion ůĬĻĭ Some local codes limit the maximum amount of CFM a range hood can move. ACT™ allows you to control the maximum blower CFM of select Zephyr Ventilation range hoods without the need for expensive make up air kits. ACT™ enables the installer to easily set the maximum blower speed to one of two most commonly specified CFM levels; 390 or 290 CFM. The usage of ACT™ may not be necessary for your installation. Please check your local codes for CFM restrictions. Hood must be disconnected from the main power prior to performing the conversion instructions listed below. Failure to do so could result in personal injury or damage to the product. CAUTION After re-positioning the jumper and powering on the hood, the CFM cannot be changed again. CAUTION32 Typhoon, Hurricane, & Cyclone Use, Care, and Installation Guide

CORE Enabling ACT™ To enable ACT™:

1. Before hood installation, gain access to PC board by following the steps shown on FIG. D.

2. Change plastic jumper positioning as shown in FIG. E to set the desired maximum blower CFM.

3. Re-install PC board and continue with hood installation.

4. Remove the appropriate foil CFM sticker included with the hood literature and place inside the

hood body below the wiring diagram or in another clearly visible location. To verify if your installer enabled ACT™:

1. Model Typhoon AK21: With hood o, hold down the power button for 5 seconds. If all speed level

indicators illuminate = default max. CFM, if speed Q, 2 & 3 level indicators illuminate = 390 max. CFM, if speed Q & 2 level indicators illuminate = 290 max. CFM. Model Hurricane AK25: With hood o, hold down the power button for 5 seconds. If all speed level indicators illuminate = default max. CFM, if speed 1 & 2 level indicators illuminate = 390 max. CFM, if speed 1 level indicator illuminate = 290 max. CFM

2. When ACT™ is enabled, the number of blower speeds will be reduced as follows:

Model Typhoon AK21: 390 CFM = max. 3 speeds, 290 CFM = max. 2 speeds Model Hurricane AK25: 390 CFM = max. 2 speeds, 290 CFM = max. 1 speed

3. There should also be a foil label located inside the hood body near the wiring diagram that

indicates the blower CFM. PC Board

1. Remove bottom panel by 6 screws (FIG. D1) and disconnect LED light quick connectors.

2. Remove 3 screws securing PC board plate to access PC board (FIG. D2).

Model: Hurricane AK25

2. Remove PC board plate by 2 screws (FIG. D4).

3. Remove 2 screws securing PC board assembly to access PC board (FIG. D5).

1. Remove bottom panel by 3 screws (FIG. D3) and disconnect light socket connectors.

NOTE: Take care when removing PC board as there are many wires connected to the board. FIG. D1

FIG. D3 FIG. D4 FIG. D5 Accessing PC Board Instructions34 Typhoon, Hurricane, & Cyclone Use, Care, and Installation Guide

TYPHOON, HURRICANE & CYCLONEUNDERCABINET

CORE Wiring Diagram Model: AK2500/36B Voltage 120V 60HZ 2.4A Power consumption Total: 230W Lamp: Max.35Wx2 Fan: 160W THERMALLY PROTECTED Model Voltage 120V 60HZ 2.4A Power consumption Total: 230W Lamp: Max.35Wx2 Fan: 160W THERMALLY PROTECTED AK6500/36/42BBROWNBLACKBLACK RED Power consumption shown above for default 850 CFM blower configurationACT 390 CFM - Fan Max. 160W @ 2.4A, ACT 290 CFM - Fan Max. 140W @ 2.2APower consumption shown above for default 695 CFM blower configurationACT 390 CFM - Fan Max. 140W @ 2.2A, ACT 290 CFM - Fan Max. 120W @ 2.1A35 Typhoon, Hurricane, & Cyclone Use, Care, and Installation Guide ZEPHYRONLINE.COM Troubleshooting Possible Problem Possible Cause Solutions After installation, the unit doesn’t work. The power source is not turned ON. Make sure the circuit breaker and the unit’s power is ON. The power line and the cable locking connector is not connecting properly. Check the power connection with the unit is connected properly. The switch board or control board wirings are disconnected. Make sure the wirings at the switch board and control board are connected properly. The switch board or control board is defective. Change the switch board or control board. Light works, but blower is not turning. The blower cable is disconnected. Connect the blower cable. Debris or obstruction in motor. Remove the debris or obstruction. Motor defective or possibly seized. Change the blower. Damaged capacitor. Change the capacitor. The switch board or control board is defective. Change defective part. The unit is vibrating. The blower is not secured in place. Tighten the blower in place. Damaged blower wheel. Replace the blower. The hood is not secured in place. Check the installation of the hood. The blower is working, but the lights are not. The LED light connector is disconnected. Connect the LED light connector. Defective LED light. Change the LED light. The switch board or control board is defective. Change the switch board or control board. The hood is not venting out properly. Using the wrong type of ducting. Flexible ducting can reduce air flow by up to 50%. Change the ducting to solid rigid metal ducting. The hood might be hanging to high from the cook top. Adjust the distance between the cook top and the bottom of the hood within 24” and 32” range. The wind from the opened windows or opened doors in the surrounding area are aecting the ventilation of the hood. Close all the windows and doors to eliminate the outside wind flow. Blockage in the duct opening or ductwork. Remove all the blocking from the duct work or duct opening. The unit turns on by itself. A spot light or kitchen lamp is shining directly onto the switch controls. The switch controls are light sensitive. A direct light source onto the switch controls may disrupt switch functions. Safety grille is vibrating. Safety grille is loose. Tighten safety grille screw.36 Typhoon, Hurricane, & Cyclone Use, Care, and Installation Guide TYPHOON, HURRICANE & CYCLONE UNDERCABINET CORE List of Parts & Accessories Description Part Number Replacement Parts LumiLight LED, 6W Z0B0047 Light Bulb MR16 (GU10) 35W (each) Z0B0023 Light Bulb Removal Suction Cup 15000004 Residue Cup (AK21) 56160003 Residue Cup (AK25 & AK65) 56160007 Safety Grille Stainless (AK21) 50220024 Safety Grille Black (AK21) 50220025 Safety Grille White (AK21) 50220026 Safety Grille Stainless (AK25 & AK65)

Typhoon, Hurricane, & Cyclone Use, Care, and Installation Guide ZEPHYRONLINE.COM Notes38 Typhoon, Hurricane, & Cyclone Use, Care, and Installation Guide TYPHOON, HURRICANE & CYCLONE UNDER-CABINET CORE Notes39 Typhoon, Hurricane, & Cyclone Use, Care, and Installation Guide ZEPHYRONLINE.COM Limited Warranty MAY20.0401 Zephyr Ventilation, LLC (referred to herein as “we” or “us”) warrants to the original consumer purchaser (referred to herein as “you” or “your”) of Zephyr products (the “Products”) that such Products will be free from defects in materials or workmanship as follows: Three Year Limited Warranty for Parts: For three years from the date of your original purchase of the Products, we will provide, free of charge, Products or parts (including LED light bulbs, if applicable) to replace those that failed due to manufacturing defects subject to the exclusions and limitations below. We may choose, in our sole discretion, to repair or replace parts before we elect to replace the Products. One Year Limited Warranty for Labor: For one year from the date of your original purchase of the Products, we will provide, free of charge, the labor cost associated with repairing the Products or parts to replace those that failed due to manufacturing defects subject to the exclusions and limitations below. After the first year from the date of your original purchase, you are responsible for all labor costs associated with this warranty. Warranty Exclusions: This warranty covers only repair or replacement, at our option, of defective Products or parts and does not cover any other costs related to the Products including but not limited to: (a) normal maintenance and service required for the Products and consumable parts such as fluorescent, incandescent or halogen light bulbs, mesh and char- coal filters and fuses; (b) any Products or parts which have been subject to freight damage, misuse, negligence, accident, faulty installation or installation contrary to recommended installation instructions, improper maintenance or repair (other than by us); (c) commercial or government use of the Products or use otherwise inconsistent with its intended purpose; (d) natural wear of the finish of the Products or wear caused by improper maintenance, use of corrosive and abrasive cleaning products, pads, and oven cleaner products; (e) chips, dents or cracks caused by abuse or misuse of the Products; (f) service trips to your home to teach you how to use the Products; (g) damage to the Products caused by accident, fire, floods, acts of God; or (h) Custom installations or alterations that impact serviceability of the Products. If you are outside our service area, additional charges may apply for shipping costs for warranty repair at our designated service locations and for the travel cost to have a service technician come to your home to repair, remove or reinstall the Products. After the first year from the date of your original purchase, you are also responsible for all labor costs associated with this warranty. All Products must be installed by a qualified professional installer to be eligible for warranty repairs or service. Limitations of Warranty. OUR OBLIGATION TO REPAIR OR REPLACE, AT OUR OPTION, SHALL BE YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS WARRANTY. WE SHALL NOT BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH THE USE OR PERFORMANCE OF THE PRODUCTS. THE EXPRESS WARRANTIES IN THE PRECEDING SECTION ARE EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRE SS WARRANTIES. WE HEREBY DISCLAIM AND EXCLUDE ALL OTHER EXPRESS WARRANTIES FOR THE PRODUCTS, AND DISCLAIM AND EXCLUDE ALL WARRANTIES IMPLIED BY LAW, INCLUDING THOSE OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Some states or provinces do not allow limitations on the duration of an implied warranty or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. To the extent that applicable law prohibits the exclusion of implied warranties, the duration of any applicable implied warranty is limited to the same three-year and one-year periods described above if permitted by applicable law. Any oral or written description of the Products is for the sole purpose of identifying the Products and shall not be construed as an express warr anty. Prior to using, implementing or permitting use of the Products, you shall determine the suitability of the Products for the intended use, and you shall assume all risk and liability whatsoever in connection with such determination. We reserve the right to use functionally equivalent refurbished or reconditioned parts or Products as warranty replacements or as part of warranty service. This warranty is not transferable from the original purchaser and only applies to the consumer residence where the Product was originally installed located in the United States and Canada. This warranty is not extended to resellers. To Obtain Service Under Limited Warranty: To qualify for warranty service, you must: (a) notify us at the address or telephone number stated below within 60 days of the discovery of the defect; (b) give the model number and serial number; and (c) describe the nature of any defect in the Product or part. At the time of the request for warranty service, you must present evidence of your proof of purchase and proof of the original purchase date. If we determine that the warranty exclusions listed above apply or if you fail to provide the necessary documentation to obtain service, you will be responsible for all shipping, travel, labor and other costs related to the services. This warranty is not extended or restarted upon warranty repair or replacements. Please check our website for any additional Product information, www.zephyronline.com. Zephyr Ventilation Service Department, 2277 Harbor Bay Parkway, Alameda, CA 94502 1-888-880-836840 Typhoon, Hurricane, & Cyclone Use, Care, and Installation Guide

TYPHOON, HURRICANE & CYCLONEUNDER-CABINET

CORE Product Registration Congratulations on the purchase of your Zephyr product! Please take a moment to register your new Zephyr product at www.zephyronline.com/registration Zephyr Ventilation | 2277 Harbor Bay Pkwy. | Alameda, CA 94502 | 1.888.880.8368 Prompt registration helps in more ways than one.
