USER MANUAL Tamburo ZTAE36AS Zephyr

MAINTENANCE Cleaning and Filter Removal

LIST OF PARTS AND ACCESSORIES

READ AND SAVE THESE INSTRUCTIONS

www.zephyronline.com WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT USE THIS FAN WITH ANY SOLID-STATE CONTROL DEVICE. WARNING TO REDUCE THE RISK OF FIRE ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING: a. Use this unit only in the manner intended by the manufacturer, if you have questions, contact the manufacturer.

E %HIRUHVHUYLFLQJRUFOHDQLQJXQLWVZLWFKSRZHURႇDWVHUYLFHSDQHODQGORFNSDQHOWRSUHYHQWSRZHUIURPEHLQJVZLWFKHGRQ

accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel. CAUTION For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors. Take care when using cleaning agents or detergents. Suitable for use in household cooking area. WARNING TO REDUCE THE RISK OF RANGE TOP GREASE FIRE: a. Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings.

f. Use high setting on hood only when necessary. g. Don’t leave hood unattended when cooking. h. Always use cookware and utensils appropriate for the type of and amount of food being prepared. WARNING TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP FIRE, OBSERVE THE FOLLOWING:

b. NEVER PICK UP A FLAMING PAN – You may be burned. c. DO NOT USE WATER, including wet dishcloths or towels – a violent steam explosion will result. d. Use an extinguisher ONLY if:

1. You know you have a Class ABC extinguisher, and you already know how to operate it.

back-drafting. Follow the heating equipment manufacturer’s guideline and safety standards such as those published by the National )LUH3URWHFWLRQ$VVRFLDWLRQ1)3$DQGWKH$PHULFDQ6RFLHW\IRU+HDWLQJ5HIULJHUDWLRQDQG$LU&RQGLWLRQLQJ(QJLQHHUV$6+5$(DQG the local code authorities. c. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities. d. Ducted fans must always vent to the outdoors. e. NEVER place a switch where it can be reached from a tub or shower. I 0DNHVXUHWKHSRZHULVRႇEHIRUHLQVWDOOLQJZLULQJRUPDLQWHQDQFLQJImportant Safety Notice

attics, crawl spaces or garages.Maximum weight of shelf space is 5 lbs. Do not exeed weight limit of shelf. Do not place or store any combustible materials on shelf. For indoor use only.Do not use over cooking equipment greater than 60,000 BTU/hr. OPERATION

$OZD\VOHDYHVDIHW\JULOOHVDQG¿OWHUVLQSODFH:LWKRXWWKHVHFRPSRQHQWVRSHUDWLQJEORZHUVFRXOGFDWFKRQWRKDLU¿QJHUVDQGORRVHFORWKLQJ

The manufacturer declines all responsibility in the event of failure to observe the instructions given here for installation, maintenance and suitable use of the product. The manufacturer further declines all responsibility for injury due to negligence and the warranty of the unit automatically expires due to improper maintenance.*NOTE: Please check www.zephyronline.com for revisions before doing any custom work. ELECTRICAL REQUIREMENTS Important:Observe all governing codes and ordinances.It is the customer’s responsibility: 7RFRQWDFWDTXDOL¿HGHOHFWULFDOLQVWDOOHU - To assure that the electrical installation is adequate and in conformance with National Electrical Code, ANSI/NFPA 70 latest edition* or CSA standards C22.1-94, Canadian Electrical Code, Part 1 and C22.2 No.0-M91 - latest edition** and all local codes and ordinances.,IFRGHVSHUPLWDQGDVHSDUDWHJURXQGZLUHLVXVHGLWLVUHFRPPHQGHGWKDWDTXDOL¿HGHOHFWULFLDQGHWHUPLQHWKDWWKHground path is adequate.Do not ground to a gas pipe.&KHFNZLWKDTXDOL¿HGHOHFWULFLDQLI\RXDUHQRWVXUHWKHUDQJHKRRGLVSURSHUO\JURXQGHGDo not have a fuse in the neutral or ground circuit.*National Fire Protection Association Batterymarch Park, Quincy, Massachusetts 02269 ** CSA International 8501 East Pleasant Valley Road, Cleveland, Ohio 44131-5575This appliance requires a 120V 60Hz electrical supply and connected to an individual properly grounded branch circuit protected by a 15 or 20 ampere circuit breaker or time delay fuse. Wiring must be 2 wire with ground. Please also refer to Electrical Diagram on product.

$FDEOHORFNLQJFRQQHFWRUQRWVXSSOLHGPLJKWDOVREHUHTXLUHGE\ORFDOFRGHV&KHFNZLWKORFDOUHTXLUHPHQWVSXUFKDVH

and install appropriate connector if necessary.Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Prop. 65 Warning for California ResidentsList of Materials

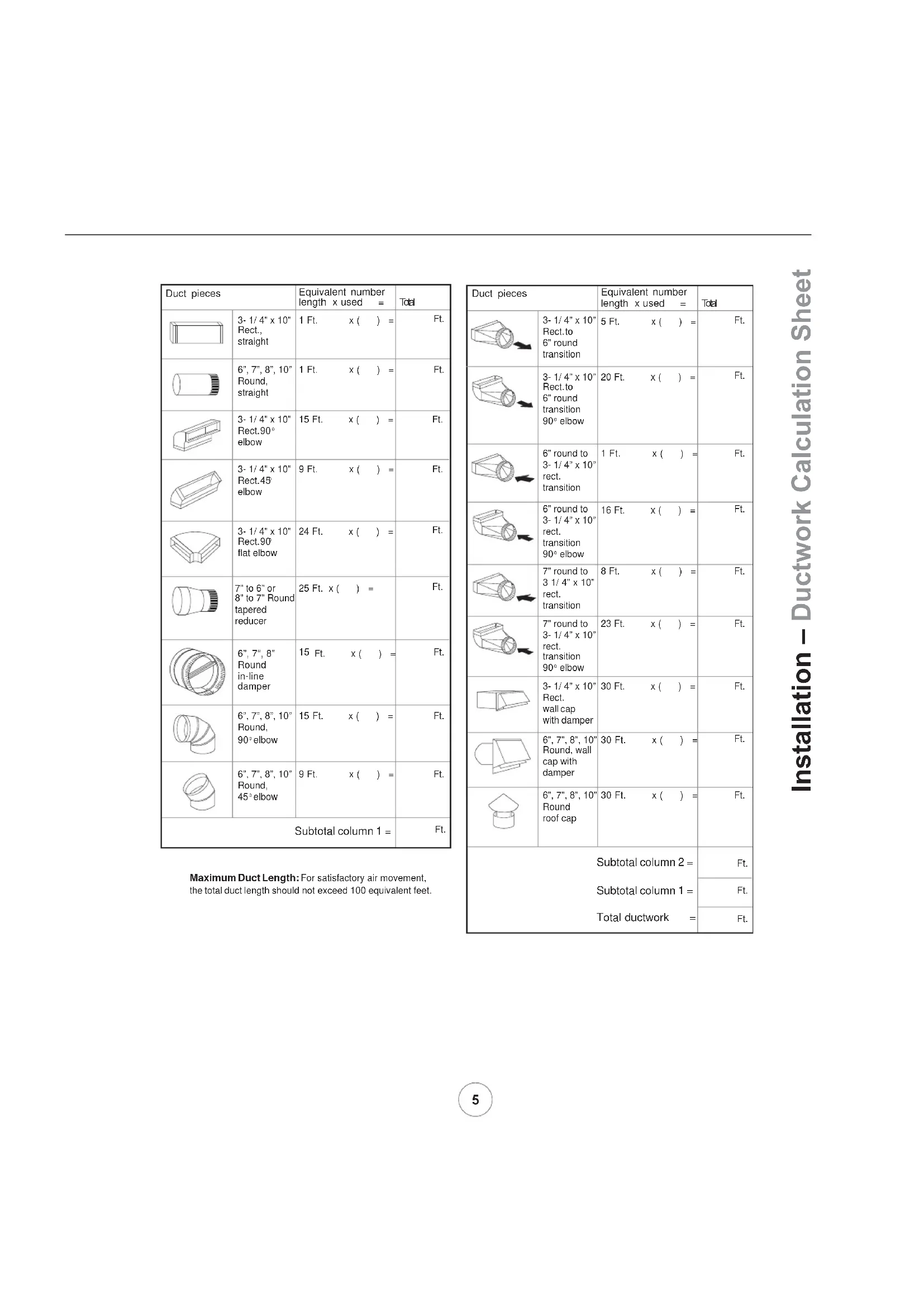

Duct pieces To t a l Equivalent number length x used =

Rect., straight 1 Ft. x ( ) = Ft.

Rect. to 6” round transition 5 Ft. x ( ) = Ft.

Rect. to 6” round transition

elbow 20 Ft. x ( ) = Ft. 6”, 7”, 8”, 10” Round,

15 Ft. x ( ) = Ft. 6”, 7”, 8”, 10” Round,

9 Ft. x ( ) = Ft. Ft. 6”, 7”, 8”, 10” Round, straight 1 Ft. x ( ) = Ft. Subtotal column 1 = Duct pieces To t a l Equivalent number length x used = 6”, 7”, 8”, 10” Round, wall cap with damper 30 Ft. x ( ) = Ft.

Ft. Ft. Ft. 6”, 7”, 8”, 10” Round roof cap 30 Ft. x ( ) = Ft.

Subtotal column 2 = Subtotal column 1 = Total ductwork = Maximum Duct Length: For satisfactory air movement, the total duct length should not exceed 100 equivalent feet. 6” round to

rect. transition 1 Ft. x ( ) = Ft. 6” round to

elbow 16 Ft. x ( ) = Ft. 7” round to 3 1/ 4” x 10” rect. transition 8 Ft. x ( ) = Ft. 7” round to

elbow 23 Ft. x ( ) = Ft. elbow elbow 7” to 6” or 8” to 7” Round tapered reducer 25 Ft. x ( ) = Ft.

elbow 15 Ft. x ( ) = Ft.

elbow 9 Ft. x ( ) = Ft.

flat elbow 24 Ft. x ( ) = Ft.

Rect. wall cap with damper 30 Ft. x ( ) = Ft. Ft. x ( ) = Ft.

6”, 7“, 8” Round in-line damperInstallation – Mounting Height & Clearance

www.zephyronline.com DUCTING A minimum of 7” round or 3-1/4” x 10” rectangular GXFWPXVWEHXVHGWRPDLQWDLQPD[LPXPDLUÀRZHႈFLHQF\Always use rigid type metal ducts only. Flexible GXFWVFRXOGUHVWULFWDLUÀRZE\XSWR$OVRXVHFDOFXODWLRQRQSDJHWRFRPSXWHWRWDOavailable duct run when using elbows, transitions and caps.ALWAYS, when possible, reduce the number or transitions and turns. If long duct run is required, increase duct size from 7” to 8”. If turns or transitions are required; install as far away from hood duct output and as far apart, between the two as possible.Minimum mounting height between range top to hood bottom should be no less than 24”. Maximum mounting height should be no higher than 32”.It is important to install the hood at the proper mounting height. Hoods mounted too low could UHVXOWLQKHDWGDPDJHDQG¿UHKD]DUGZKLOHKRRGVmounted too high will be hard to reach and will ORVHLWVSHUIRUPDQFHDQGHႈFLHQF\If available, also refer range manufacturer’s height clearance requirements and recommended hood mounting height above range. Vertical Ducting: 7” round minimum or 3-1/4” x 10” rectangular minimum Horizontal Ducting: 3-1/4”x10” rectangular minimumDAMAGE-SHIPMENT / INSTALLATION:• Please fully inspect unit for damage before installation.• If the unit is damaged in shipment, return the unit to the store in which it was bought for repair or replacement.• If the unit is damaged by the customer, repair or replacement is the responsibility of the customer. ,IWKHXQLWLVGDPDJHGE\WKHLQVWDOOHULIRWKHUWKDQWKHFXVWRPHUUHSDLURIUHSODFHPHQWPXVWbe made by arrangement between customer and installer. 36” 24” min. 32” max.Installation – Ducting Options

NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces, ceiling, attics or garages. All exhaust must be ducted to the outside. Use metal ductwork only.

)DVWHQDOOFRQQHFWLRQVZLWKVKHHWPHWDOVFUHZVDQGWDSHDOOMRLQWVZLWKFHUWL¿HG6LOYHU7DSHRU'XFW7DSH

Some Ducting Options Soffit or crawl spaceRoof Pitch w/ Flashing & CapRear DuctingSide wall capw/ gravity dampe

Tamburo Note: Installation dimensions are the same for Pyramid, TamburoInstallation – Preparing Electrical

ELECTRICAL WARNING All Electrical work must by performed by ualied electrician or person with similar technical knowledge and background. For personal safety, remove house fuse or open circuit breaker before beginning installation. Do not use extension cord or adapter plug with this appliance. Follow national electrical codes or prevailing local codes and ordinances. Electrical Supply: This appliance requires a 120V 60Hz electrical supply, and connected to an individual, properly grounded branch circuit, protected by a 15 or 20 ampere circuit breaker or time delay fuse. Wiring must be 2 wire w/ ground. Please refer to Electrical Diagram labeled on product. Cable Lock:

$FDEOHORFNLQJFRQQHFWRUQRWVXSSOLHGPLJKWDOVREHUHTXLUHGE\ORFDOFRGHV&KHFNZLWKORFDO

requirements and codes, purchase and install appropriate connector if necessary. ZPY-ExxAx, ZTA-ExxAS - 207 Watts, 2 Amps. ZPY-ExxAx290, ZTA-ExxAS290 - 186 Watts, 2 Amps. Cable LockInstallation – Preparing Duct Location

www.zephyronline.com Note: If using hood in recirculating mode skip these steps and turn to page 11. Vertical Ducting 5RXQG Vertical Ducting [5HFWDQJXODU 8VLQJDÀDWKHDGVFUHZGULYHUUHPRYHERWKWKH rectangular and round knock-out plates located on top of hood

8VLQJDÀDWKHDGVFUHZGULYHUUHPRYHRQO\WKH

rectangular section of the knock-out plate located on top of hood. 8VLQJDÀDWKHDGVFUHZGULYHUUHPRYHWKH rectangular knock-out plate located on back of hood. 6HFXUH[UHFWDQJXODUFROODUWRWRSRI KRRGXVLQJ0[VFUHZV 6HFXUH[UHFWDQJXODUFROODUWREDFNRI KRRGXVLQJ0[VFUHZV 6HFXUHURXQGFROODUWRWRSRIKRRGXVLQJ 0[VFUHZV Horizontal Ducting [5HFWDQJXODU

air diverter plate from front slot and re-position to back slot. Re-install air diverter plate covers. back slot front slot metal air diverter plateInstallation – Optional Utensil Bar

are 3 height options for installing the utensil bar. Install utensil bar and adjust the height before mounting the hood. Utensil bar should press against the wall when hood is installed. S-Hooks 6HFXUHXWHQVLOEDUWREDFNRIKRRGXVLQJ M4 x 8 utensil bar screws

2. Install optional s hooks used to hang utensils.

Fig 1 Fig 2Installation – Mounting the Range Hood

page 10 for details.

2. Install utensil bar to hood. Refer to page 12 for

4. Reinforce cabinet with 1”x2” wood strips

if additional strengthening is required or if cabinets are framed.

5. Temporarily position the range hood in the

desired mounting location. Measure and mark the mounting holes, duct and electrical locations with a pencil.

6. Drill/cut out the required openings for duct and

electrical access; make sure the duct opening is large enough to apply duct tape. )DVWHQKRRGRQWRFDELQHWZLWK0ZRRG screws provided.

8. Install electrical.

9. Install duct work and seal with duct tape.

5HLQVWDOOPHVK¿OWHUVDQGOLJKWSDQHOV

11. Power up hood and check for leaks around

12. If recirculating the hood refer to page 11 for

more details. Hood is designed for installation under a kitchen cabinet

Fig 3 Push in on panel latch then pull panel down Fig 4Controls – Slide Controls

Blower On/Off Speed Selection

Lights Off/Dim/Bright

0 is off, I is low speed, II is medium speed and III is high speed.

LIGHTS OFF/BRIGHT/DIM

0 is off, I is dim, and II is bright.

2Maintenance – Cleaning and Filter Removal

SURFACE MAINTENANCE: Do not use corrosive detergents, abrasive detergents or oven cleaners. Do not use any product containing chlorine bleach or any product containing chloride. Do not use steel wool or abrasive scrubbing pads which will scratch and damage surface. Cleaning Stainless Steel

They need not be replaced on a regular basis but are required to be kept clean.

performance. This discoloration is not covered by the warranty. Spray degreasing detergent and leave to soak if heavily soiled. 'U\¿OWHUVDQGUHLQVWDOOEHIRUHXVLQJKRRG Removing Aluminum Mesh Filters (Fig 5) 3XVKLQRQ¿OWHUKDQGOHV 3LYRWIURQWRI¿OWHUGRZQZDUG

5HPRYH¿OWHUE\SXOOLQJDZD\IURPKRRG

Replacing Aluminum Mesh Filters Hood Model: Part No. Qty. to Order. All models and sizes 50200030 2 Fig 5Maintenance – Lights

REPLACING LIGHT BULBS

CAUTION: Light bulb becomes extremely hot when turned on. DO NOT touch bulb until switched o󰀨 and cooled. Touching hot bulbs could cause serious burns. 0DNHVXUHDOOSRZHULVWXUQHGRႇDQGEXOEVDUHQRWKRW Remove by turning bulb counter clockwise. Note: Bulb does not unscrew; it turns 60 degrees, stops and falls out.

,IEXOEVDUHGLႈFXOWWRWXUQGXHWRSURORQJHGXVH¿UPO\DWWDFKVXFWLRQFXSLQFOXGHGLQKDUGZDUHSDFNDJHRUXVHD

rubber/latex glove and turn counter clockwise.

5HSODFHPHQWEXOEVDUHDYDLODEOHDWVSHFLDOW\OLJKWLQJVWRUHV3XUFKDVHW\SH05*8:KDORJHQ

For Zephyr part numbers please turn to page 19 of the manual.Troubleshooting

Issue Cause What to do After installation, the unit doesn’t work.

1. The power source is not turned ON. 1. Make sure the circuit breaker and the unit’s

2. The power line and the cable locking connector is

not connecting properly.

2. Check the power connection with the unit is

3. The switch or control board wirings are

3. Make sure the wirings at the switch or control

board are connected properly.

4. The wires on control board or switch are loose. 4. Make sure the wires on the control board or

switch are connected properly.

5. The switch or control board is defective. 5. Change the switch or control board.

Light works, but blower is not turning.

1. The blower is defective, possible seized. 1. Change the blower.

2. The thermally protected system detects if the

blower is too hot to operate and shuts the blower down.

2. The blower will function properly after the

thermally protected system cool down.

3. Damaged capacitor. 3. Change the capacitor.

4. The control board or blower switch is defective. 4. Change the control board or blower switch.

The unit is vibrating.

1. The blower is not secure in place. 1. Tighten the blower in place.

2. Damaged blower wheel. 2. Change the blower wheel.

3. The hood is not secured in place. 3. Check the installation of the hood.

The unit is whistling.

7KH¿OWHULVQRWLQWKHFRUUHFWSRVLWLRQ $GMXVWWKH¿OWHUVXQWLOWKHZKLVWOLQJVWRSV

2. The duct pipe connections are not sealed or

2. Check the duct pipe connections to be sure all

connections are sealed properly. The blower is working, but the lights are not.

1. Defective bulb. 1. Change the bulb.

2. The light bulb is loose. 2. Tighten the light bulb.

3. The light bulb plug is disconnected. 3. Connect the light bulb plug.

The hood is not venting out properly.

1. The hood might be hanging to high from the cook

1. Adjust the distance between the cook top and

the bottom of the hood within 24” and 32” range.

2. The wind from the opened windows or opened

GRRUVLQWKHVXUURXQGLQJDUHDDUHDႇHFWLQJWKH ventilation of the hood.

2. Close all the windows and doors to eliminate

3. Blockage in the duct opening or duct work. 3. Remove all the blocking from the duct work or

4. The direction of duct opening is against the wind. 4. Adjust the duct opening direction.

5. Using the wrong size of ducting. 5. Change the ducting to correct size.

Mesh Filter is vibrating. 0HVK¿OWHULVORRVH 1. Make sure the metal clips in the handle are not

0HVK)LOWHU$OO0RGHOVHDFK

To order parts, visit us online at http://store.zephyronline.com or call us at 1.888.880.8368=HSK\U9HQWLODWLRQ//&UHIHUUHGWRKHUHLQDV³ZH´RU³XV´ZDUUDQWVWRWKHRULJLQDOFRQVXPHUSXUFKDVHUUHIHUUHGWRKHUHLQ DV ³\RX´ RU ³\RXU´ RI =HSK\U SURGXFWV WKH ³3URGXFWV´ WKDW VXFK 3URGXFWV ZLOO EH IUHH from defects in materials or workmanship as follows: Three Year Limited Warranty for Parts: For three years from the date of your original purchase of the Products, we will provide, free of charge, Products or parWV LQFOXGLQJ /(' OLJKW EXOEV LI DSSOLFDEOH WR UHSODFH WKRVH WKDW IDLOHG GXH WR manufacturing defects subject to the exclusions and limitations below. We may choose, in our sole discretion, to repair or replace parts before we elect to replace the Products. One Year Limited Warranty for Labor: For one year from the date of your original purchase of the Products, we will provide, free of charge, the labor cost associated with repairing the Products or parts to replace those that failed due to manufacturing defects subject to the exclusions and limitations below. After the first year from the date of your original purchase, you are responsible for all labor costs associated with this warranty. Warranty Exclusions: This warranty covers only repair or replacement, at our option, of defective Products or parts and does not cover any other costs related toWKH3URGXFWVLQFOXGLQJEXWQRWOLPLWHGWRDQRUPDOPDLQWHQDQFHDQGVHUYLFH required for the Products and consumable parts such as fluorescent, incandescent or halogen light bulbs, mesh and char- FRDOILOWHUVDQGIXVHVEDQ\3URGXFWVRUSDUWVZKLFKKDYe been subject to freight damage, misuse, negligence, accident, faulty installation or installation contrary to recommended instDOODWLRQLQVWUXFWLRQVLPSURSHUPDLQWHQDQFHRUUHSDLURWKHU

WKDQE\XVFFRPPHUFLDORUJRYHUQPHQWXVHRIWKH3URGXFWVRUXVHRWKHUZLVHLQFRQVLVWHQWZLWKLWVLQWHQGHGSXUSRVHG

natural wear of the finish of the Products or wear caused by improper maintenance, use of corrosive and abrasive cleaning products, pads, and oven clHDQHUSURGXFWVHFKLSV dents or cracks caused by abuse or miVXVHRIWKH3URGXFWVIVHUYLFH trips to your home to teach you how to XVHWKH3URGXFWVJGDPDJHWRWKH3URGXFWVFDXVHGE\DFFLGHQWILUHIORRGVDFWV RI*RGRUK&XVWRPLQVWDOODtions or alterations that impact serviceability of the Products. If you are outside our service area, additional charges may apply for shipping costs for warranty repair at our designated service locations and for the travel cost to have a service technician come to your home to repair, remove or reinstall the Products. After the first year from the date of your original purchase, you are also responsible for all labor costs associated with this warranty. All Products must be installed by a qualified professional installer to be eligible for warranty repairs or service. Limitations of Warranty. OUR OBLIGATION TO REPAIR OR REPLACE, AT OUR OPTION, SHALL BE YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS WARRANTY. WE SHALL NOT BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH THE USE OR PERFORMANCE OF THE PRODUCTS. THE EXPRESS WARRANTIES IN THE PRECEDING SECTION ARE EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS WARRANTIES. WE HEREBY DISCLAIM AND EXCLUDE ALL OTHER EXPRESS WARRANTIES FOR THE PRODUCTS, AND DISCLAIM AND EXCLUDE ALL WARRANTIES IMPLIED BY LAW, INCLUDING THOSE OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Some states or provinces do not allow limitations on the duration of an implied warranty or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. To the extent that applicable law prohibits the exclusion of implied warranties, the duration of any applicable implied warranty is limited to the same three-year and one-year periods described above if permitted by applicable law. Any oral or written description of the Products is for the sole purpose of identifying the Products and shall not be construed as an express warranty. Prior to using, implementing or permitting use of the Products, you shall determine the suitability of the Products for the intended use, and you shall assume all risk and liability whatsoever in connection with such determination. We reserve the right to use functionally equivalent refurbished or reconditioned parts or Products as warranty replacements or as part of warranty service. This warranty is not transferable from the original purchaser and only applies to the consumer residence where the Product was originally installed located in the United States and Canada. This warranty is not extended to resellers. To Obtain Service Under Limited Warranty: 7RTXDOLI\IRUZDUUDQW\VHUYLFH\RXPXVWDQRWLI\XVDWWKHDGGUHVVRU telephone number stated below within 60 days of the discovery RIWKHGHIHFWEJLYHWKHPRGHOQXPEHUDQGVHULDOQXPEHU DQGFGHVFULEHWKHQDWXUHRIDQ\GHIHFWLQWKH3URGXFWRUSDUWAt the time of the request for warranty service, you must present evidence of your proof of purchase and proof of the original purchase date. If we determine that the warranty exclusions listed above apply or if you fail to provide the necessary documentation to obtain service, you will be responsible for all shipping, travel, labor and other costs related to the services. This warranty is not extended or restarted upon warranty repair or replacements. Please check our website for any additional Product information, www.zephyronline.com. Zephyr Ventilation Service Department, 2277 Harbor Bay Parkway, Alameda, CA 94502 1-888-880-8368PRODUCT REGISTRATION Congratulations on your Zephyr range hood purchase! Please take a moment to register your new range hood at www.zephyronline.com/registration Zephyr Ventilation | 2277 Harbor Bay Pkwy. | Alameda, CA 94502 | 1.888.880.8368 Prompt registration helps in more ways than one.
