USER MANUAL Monsoon II AK9334BS Zephyr

READ AND SAVE THESE INSTRUCTIONS

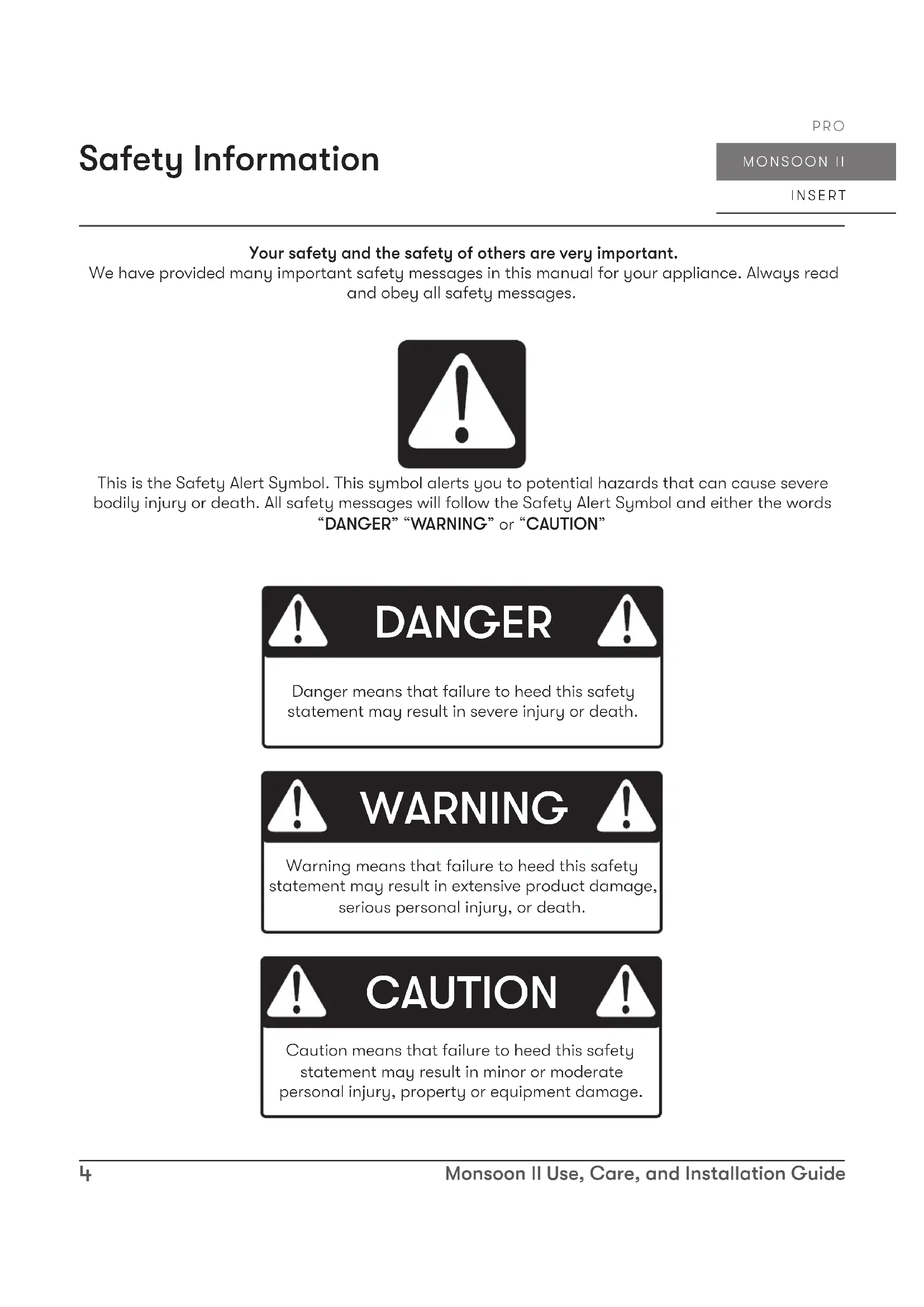

WARNING - TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:a) Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer.b) Before servicing or cleaning unit, switch power o at service panel and lock the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel. WARNING General Safety For General Ventilating Use Only. Do Not Use To Exhaust Hazardous Or Explosive Materials And Vapors. Take care when using cleaning agents or detergents. Suitable for use in household cooking area. CAUTION6 Monsoon II Use, Care, and Installation Guide MONSOON IIINSERT PRO Safety Information

READ AND SAVE THESE INSTRUCTIONS

WARNING - TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE: a) Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings. b) Always turn hood ON when cooking at high heat or when flambeing food. (i.e. Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambe’). c) Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter. d) Use proper pan size. Always use cookware appropriate for the size of the surface element. WARNING WARNING - TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING: a) SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn o the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT. b) NEVER PICK UP A FLAMING PAN – You may be burned. c) DO NOT USE WATER, including wet dishcloths or towels – a violent steam explosion will result. d) Use an extinguisher ONLY if:

1) You know you have a Class ABC extinguisher, and you already know how to operate it.

2) The fire is small and contained in the area where it started.

3) The fire department is being called.

4) You can fight the fire with your back to an exit

Based on “Kitchen Firesafety Tips” published by NFPA. WARNING7 Monsoon II Use, Care, and Installation Guide ZEPHYRONLINE.COM Safety Information

READ AND SAVE THESE INSTRUCTIONS

WARNING WARNING - TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING: a) Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction. b) Sucient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent back drafting. Follow the heating equipment manufacturer’s guideline and safety standards such as those published by the National Fire Protection Association (NFPA), and the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities. c) When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities. d) Ducted fans must always be vented to the outdoors. e) If this unit is to be installed over a tub or shower, it must be marked as appropriate for the application and be connected to a GFCI (Ground Fault Circuit Interrupter) - protected branch circuit. WARNING TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK. WARNING8 Monsoon II Use, Care, and Installation Guide MONSOON IIINSERT PRO Safety Information

READ AND SAVE THESE INSTRUCTIONS

Ź To reduce risk of fire and to properly exhaust air outside, do not vent exhaust air into spaces within walls, ceilings, attics, crawl spaces, or garages. CAUTION Operation Ź Always leave safety grilles and filters in place. Without these components, operating blowers could catch onto hair, fingers and loose clothing. Ź The manufacturer declines all responsibility in the event of failure to observe the instructions given here for installation, maintenance and suitable use of the product. The manufacturer further declines all responsibility for injury due to negligence and the warranty of the unit automatically expires due to improper maintenance.NOTE: Please check www.zephyronline.com for revisions before doing any custom work. Electrical Requirements Important:Observe all governing codes and ordinances.It is the customer’s responsibility to be aware of these below: Ź To contact a qualified electrical installer. Ź To assure that the electrical installation is adequate and in conformance with National Electrical Code, ANSI/NFPA 70 latest edition* or CSA standards C22.1-94, Canadian Electrical Code, Part 1 and C22.2 No.0-M91 - latest edition** and all local codes and ordinances. Ź If codes permit and a separate ground wire is used, it is recommended that a qualified electrician determine that the ground path is adequate. Ź Do not ground to a gas pipe. Ź Check with a qualified electrician if you are not sure the range hood is properly grounded. Ź Do not have a fuse in the neutral or ground circuit.9 Monsoon II Use, Care, and Installation Guide ZEPHYRONLINE.COM Safety Information

READ AND SAVE THESE INSTRUCTIONS

Prop. 65 Warning for California Residents: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. WARNING Ź This appliance requires a 120V 60Hz electrical supply and connected to an individual properly grounded branch circuit protected by a 15 or 20 ampere circuit breaker or time delay fuse. Wiring must be 2 wire with ground. Please also refer to Electrical Diagram on product. Ź A cable locking connector (not supplied) might also be required by local codes. Check with local requirements, purchase and install appropriate connector if necessary.* National Fire Protection Association Batterymarch Park, Quincy, Massachusetts 02269 ** CSA International 8501 East Pleasant Valley Road, Cleveland, Ohio 44131-5575 Federal Communication Commission Interface Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one of the following measures: Ź Reorient or relocate the receiving antenna. Ź Increase the separation between the equipment and receiver. Ź Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected. Ź Consult the dealer or an experienced radio/TV technician for help.10 Monsoon II Use, Care, and Installation Guide MONSOON II INSERT PRO List of Materials Parts Supplied Quantity Part 1 Insert hood body 2 Bae filters (AK9334BS & AK9340BS) 3 Bae filters (AK9346BS & AK9352BS) 2 LumiLight LED, 6W (pre-installed) (AK9334BS & AK340BS) 4 LumiLight LED, 6W (pre-installed) (AK9346BS & AK9352BS) 1 Dual internal blower (pre-installed) 1 10” round duct collar 1 RF remote control (w/ battery & holder) 1 Hardware package M4 x 6mm (4)Wire Caps (3)#8 x 1/2” (12)RF Remote Control (1) Remote Holder (1) Parts Not Supplied Ducting, conduit and all installation tools Cable locking connector (if required by local codes)11 Monsoon II Use, Care, and Installation Guide ZEPHYRONLINE.COM Installation Instructions Duct pieces To t a lEquivalent numberlength x used =3- 1/ 4” x 10”Rect.,straight 1 Ft. x ( ) = Ft.

9 Ft. x ( ) =Ft. Ft. 6”, 7”, 8”, 10” Round,straight 1 Ft. x ( ) = Ft. Subtotal column 1 = Duct pieces To t alEquivalent numberlength x used =6”, 7”, 8”, 10”Round, wall cap with damper 30 Ft. x ( ) = Ft.

Subtotal column 2 = Subtotal column 1 = Total ductwork = Maximum Duct Length: For satisfactory air movement,the total duct length should not exceed 150 equivalent feet.6” round to3- 1/ 4” x 10”rect. transition1 Ft. x ( ) =Ft. 6” round to3- 1/ 4” x 10”rect. transition

elbow23 Ft. x ( ) =Ft. elbowelbow7” to 6” or8” to 7” Round tapered reducer25 Ft. x ( ) = Ft.

3- 1/ 4” x 10”Rect. 90

elbow 15 Ft. x ( ) = Ft. 3- 1/ 4” x 10”Rect. 45 elbow 9 Ft. x ( ) = Ft.

3- 1/ 4” x 10”Rect. 90

flat elbow24 Ft. x ( ) = Ft.

6”, 7“, 8”Round in-line damper Ducting Calculation Sheet12 Monsoon II Use, Care, and Installation Guide MONSOON IIINSERT PRO Installation Instructions Mounting Height, Clearance, & Ducting 24” min. 36” max. 36”13 Monsoon II Use, Care, and Installation Guide ZEPHYRONLINE.COM Installation Instructions Mounting Height, Clearance, & Ducting A minimum of 10” round duct must be used to maintain maximum air flow eciency. Always use rigid type metal ducts only. Flexible ducts could restrict air flow by up to 50%. Also use calculation (on page 11) to compute total available duct run when using elbows, transitions and caps. ALWAYS, when possible, reduce the number or transitions and turns. If long duct run is required, increase duct size. If turns or transitions are required; install as far away from hood duct output and as far apart, between the two as possible. Minimum mount height between range top to hood bottom should be no less than 24”. Maximum mount height should be no higher than 36”. It is important to install the hood at the proper mounting height. Hoods mounted too low could result in heat damage and fire hazard; while hoods mounted too high will be hard to reach and will lose its performance and eciency. If available, also refer range manufacturer’s height clearance requirements and recommended hood mounting height above range. For shipment and installation damages: Ź Please fully inspect unit for damage before installation. Ź If the unit is damaged in shipment, return the unit to the store in which it was bought for repair or replacement. Ź If the unit is damaged by the customer, repair or replacement is the responsibility of the customer. Ź If the unit is damaged by the installer (if other than the customer), repair of replacement must be made by arrangement between customer and installer.14 Monsoon II Use, Care, and Installation Guide MONSOON IIINSERT PRO Installation Instructions Ducting Options Ź Use single wall rigid metal ductwork only. Ź Fasten all connections with sheet metal screws and tape all joints w/ certified Silver Tape or Duct Tape.Fire Hazard: NEVER exhaust air or terminate ductwork into spaces between walls, crawl spaces, ceilings, attics, or garages. All exhaust must be ducted to the outside, unless using the recirculating option. WARNING Sot or crawl spaceRoof Pitch w/ Flashing & Capside wall capw/ gravity damperside wall capw/ gravity damper15 Monsoon II Use, Care, and Installation Guide ZEPHYRONLINE.COM Installation Instructions

C/L16 Monsoon II Use, Care, and Installation Guide MONSOON IIINSERT PRO Installation Instructions Electrical Supply Electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards. Turn o electrical power at service entrance before wiring. WARNING For personal safety, remove house fuse or open circuit breaker before beginning installation. Do not use extension cord or adapter plug with this appliance.Follow national electrical codes or prevailing local codes and ordinances.This appliance requires a 120V 60Hz electrical supply, and connected to an individual, properly grounded branch circuit, protected by a 15 or 20 ampere circuit breaker or time delay fuse. Wiring must be 2 wire w/ ground. Please also refer to the Electrical Diagram labeled on product. Cable Lock A cable locking connector (not supplied) might be required by local codes. Check with local requirements and codes, purchase and install appropriate connector if necessary. (FIG. A)Cable LockFIG. A17 Monsoon II Use, Care, and Installation Guide ZEPHYRONLINE.COM Installation Instructions Preparation & Installation At least two installers are required due to the weight and size of the liner. CAUTION 1. Remove all packing materials and protective film prior to installation. Use caution during installation to prevent scratches or damage to the stainless steel. 2. Cut out an opening in the bottom of the cabinet by following the dimensions in FIG. B. 3. Prepare liner for installation into cabinet by following the steps on page 18.4. Lift liner into bottom opening of cabinet and secure to interior of cabinet using (8) #8 x 1/2” stainless steel screws; (4) screws in the front and (4) screws in the sides. FIG. C. 34-1/2” or 40-1/2” or 46-1/2” or 52-1/2”

(AK9 346) 1/4” 1-1/8” Make sure the surface you are securing the liner to is capable of holding the weight of AK93. Failure to do so may cause personal injury or damage to cooking surface or counter. WARNING FIG. BFIG. C5. Finalize installation of electrical and duct work. Seal duct work with certified aluminum duct tape. Power on liner, check for leaks around duct tape and verify proper operation. NOTE: If access to top of liner is not available after installation, electrical and duct work connection may need to be made prior to installing the liner. 6. Re-install the previously removed bottom panel, side spacer panels (if applicable), grease tray, and bae filters.18 Monsoon II Use, Care, and Installation Guide MONSOON IIINSERT PRO Installation Instructions Preparation & Installation

1. Remove bae filters by: 1) Pulling

filter toward front of liner. 2) Pivoting rear of filter down.

2. Remove grease tray by: 1) Pulling

up on tray to release from bottom panel. 2) Lifting tray out of liner body.

3. Remove left and right side-spacer

panels by removing (2) screws from behind each panel.

4. Remove bottom panel by: 1)

Removing (2) screws from left and right sides of bottom panel. 2) Pulling bottom panel toward front of liner to release from locking tabs.

6. Vertical ducting preparation is

complete. Refer to page 18, step 4 to complete installation.

5. Secure 10” round ducting collar

to top of insert by (4) M4 x 6mm screws.20 Monsoon II Use, Care, and Installation Guide MONSOON IIINSERT PRO Features & Controls

By pressing the blower is switched on and o. When switched on, the blower starts up on speed level 1. ACT Verification - Airflow Control Technology (ACT) allows the installer to set the maximum blower CFM to align with local codes and regulations. - To verify the maximum blower CFM: - With hood o, hold the button for 3-4 seconds. If number 6 displays = default max. CFM, if number 3 displays = max. 590 CFM, and if number 2 displays = max. 390 CFM.

- Press to decrease fan speed. 6, 5, 4, 3, 2, 1. - If fan is on Speed 1 and is pressed, the fan will power o. - Press to increase fan speed. Fan On, 1, 2, 3, 4, 5, 6. - If hood is o and is pressed, the fan will turn on speed 1. ACT Enabled Speed Selections - When ACT is enabled, the number of blower speeds will be reduced as follows: - 590 CFM = Maximum 3 speeds - 390 CFM = Maximum 2 speeds

This feature is used for programmed shut down of blower 5 minutes after the function is activated. Press once, a dot flashes in the lower right side of display indicating the function is on. The blower will completely shut down after 5 minutes.

4. Lights Low/High/O

Switch lights on to low by pressing once, press a second time for high and again to shut o lights.

The display window indicates speed levels and features such as bae filter clean reminder, delay o and clean air indicator. Lights Low/High/O 5 Min Delay O Display (speed level, delay o, filter clean) Adjust 6 Speed Levels Blower On/O

Touch Controls21 Monsoon II Use, Care, and Installation Guide ZEPHYRONLINE.COM Features & Controls Touch Controls Bae Filter Clean Reminder A set of bae filters are fitted by the factory, these bae filters are intended to filter out residue from cooking. The filters need not be replaced on a regular basis but are required to be kept clean. The BaeFilter Clean reminder function in the microproces-sor will automatically indicate by a flashing when the bae filters need to be cleaned after every 60 hours of use. Filters can be cleaned by hand with non-abrasive soap or in a dishwasher. Heavily soiled filters should also be soaked in grease cutting detergent prior to cleaning.Bae Filter Clean IndicatorWhen flashes on the display, the bae filters needo be cleaned. This will occur after every 60 hours of use.Reset the filter clean reminder timer after filters are cleaned and re-installed. With hood o, press and hold for approxi-mately 5 seconds until on display disappears . The filter clean reminder function is now reset and a new 60 hours elapse cycle is initiated.Clean Filtersdisplay < F > flasheshold 5 sec. display from < F > to < >To Resethold 3 sec. display from < A > to < >To Disablehold 3 sec.To Enabledisplay < A > flashesClean Air IndicatorWhile Clean Air is active, the display will alternate between , , , . After 10 minutes of Clean Air operation, the blower will power o and the 4 hour timer will reset.If the blower speed is changed while the Clean Air Function is in use, the cycle will be interrupted and the timer will reset after.Clean Air FunctionClean Air is a feature that turns on the blower on low speed every 4 hours for 10 minutes to remove stagnant air in the kitchen. The Clean Air function is disabled by default and must be enabled by the user. and and

F22 Monsoon II Use, Care, and Installation Guide MONSOON IIINSERT PRO Features & Controls RF Remote Control FCC Caution To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. (Example - use only shielded interface cables when connecting to computer or peripheral device. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions. (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Synchronization To create a unique link between your liner and remote control please follow these steps.

1. With liner o, press and hold the “lights” button on the liner until the letter “F” shows on the display

2. Press the “lights” button on the remote, the lights on the liner will turn on and synchronization is

complete. RF Remote Control Functions Blower On / Speed SelectionPress to power on blower and cycle through all six blower speeds. Blower On / Power OBy pressing , the blowers will power on at the last speed setting. Press again and the entire hood will power o, including lights.Delay OLights Low/High/OSwitch lights to Low by pressing once, again to High and again to switch O.Blower On/Speed Selection

Blower On/Power O 5 Min Delay O Lights Low/High/O

By pressing , the blower and lights will enter Delay O mode. A dot will appear in the lower right corner of the hood display indicating the function is on. The blower will change to speed 1 and shut down after 5 minutes.23 Monsoon II Use, Care, and Installation Guide ZEPHYRONLINE.COM Features & Controls RF Remote Control RF Remote Features The RF remote control is equipped with a magnet on the back for easy storage. The remote may be placed on any magnetic surface such as a refrigerator or the Zephyr remote holder, FIG. D. The remote holder can be inserted into a standard electrical outlet for easy storage. Note: The remote holder does not charge the RF remote. Maximum remote control communication distance is 15 feet from the liner. RF Remote Maintenance Clean the remote control using non abrasive detergents. Follow instructions below for replacing battery. Using a small flat head screwdriver, raise the cover of the battery door (A) in order to access the battery compartment. FIG. E. Remove the battery and replace with battery type A23 12V. Negative end of battery should face the spring inside the remote. Re-install battery door and recycle old battery. FIG. D

FIG. E24 Monsoon II Use, Care, and Installation Guide MONSOON IIINSERT PRO Hood & Filter Cleaning Surface Maintenance Ź Do not use corrosive detergents, abrasive detergents or oven cleaners. Ź Do not use any product containing chlorine bleach or any product containing chloride. Ź Do not use steel wool or abrasive scrubbing pads which will scratch and damage surface. Cleaning Stainless Steel Clean periodically with warm soapy water and clean cotton cloth or micro fiber cloth. Always rub in the direction of the stainless steel grain. To remove heavier grease build up use a liquid degreaser detergent. After cleaning use a non-abrasive stainless steel polish/cleaners, to polish and bu out the stainless luster and grain. Always scrub lightly, with clean cotton cloth or micro fiber cloth and bu in the direction of the stainless steel grain.

The filters are intended to trap residue and grease from cooking. Although the filters should never need replacing, they are required to be cleaned every 30 days or more often depending on cooking habits. Filters may be placed in dishwasher at low heat or soaked in hot soapy water Dry filters and re-install before using hood. Cleaning the Grease Tray The grease tray is intended to catch residue and grease that may drip from the bae filters. The grease tray should be cleaned when bae filters are cleaned. Clean the grease tray by soaking in hot soapy water and gently scrubbing any residue o with a soft terry cloth. Dry grease tray and re- install before using hood. Maintenance25 Monsoon II Use, Care, and Installation Guide ZEPHYRONLINE.COM ŲĕĘė

1. Place filter into top groove of the liner as shown and pull towards front of liner using handles.

2. Pivot back of filter upwards so it is angled in the liner.

3. Push filter into channel on back of liner to lock into place.

Removing the Grease Tray Grease tray has a hooked lip that attaches to bottom panel top edge. Remove grease tray by:

1. Pull up on tray to release from bottom panel. FIG. G1

2. Pull tray out of liner body. FIG. G2

FIG. G26 Monsoon II Use, Care, and Installation Guide MONSOON IIINSERT PRO Maintenance LumiLight LED In the unlikely event that your LumiLight LED fails, please contact Zephyr to order replacement parts. See the list of parts and accessories page for part numbers and contact information. LED Removal (FIG. H):

1. Remove bae filters.

2. Remove light panel by five screws.

3. Disconnect LED light quick connector.

4. Push in the two side clips on the ends of the LED light.

5. Push LED light through the light panel opening.

Push the clip FIG. H27 Monsoon II Use, Care, and Installation Guide ZEPHYRONLINE.COM ůĬĻĭ Some local codes limit the maximum amount of CFM a range hood can move. ACT™ allows you to control the maximum blower CFM of select Zephyr Ventilation range hoods without the need for expensive make up air kits. ACT™ enables the installer to easily set the maximum blower speed to one of two most commonly specified CFM levels, 590 or 390 CFM. The usage of ACT™ may not be necessary for your installation. Please check your local codes for CFM restrictions. By default, the maximum blower CFM is set to 1200.Hood must be disconnected from the main power prior to performing the conversion instructions listed below. Failure to do so could result in personal injury or damage to the product. CAUTION After re-positioning the jumper and powering on the hood, the CFM cannot be changed again. CAUTION ACT™ Conversion28 Monsoon II Use, Care, and Installation Guide MONSOON IIINSERT PRO ACT™ Conversion Enabling ACT™ To enable ACT™:

1. Before hood installation, gain access to PC board by following the steps shown on FIG. I.

2. Change plastic jumper positioning as shown in FIG. J to set the desired maximum blower CFM.

3. Re-install PC board and continue with hood installation.

4. Remove the appropriate foil CFM sticker included with the hood literature and place inside the

hood body below the wiring diagram or in another clearly visible location. To verify if your installer enabled ACT™:

1. With hood o, press and hold the power button for three seconds. If the number 6 displays =

defualt max. CFM, if the number 3 displays = max. 590 CFM, and if the number 2 displays = max. 390 CFM.

2. When ACT™ is enabled, the number of blower speeds will be reduced.

590 CFM = max. 3 speeds and 390 CFM = max. 2 speeds.

3. There should also be a foil label located inside the hood body near the wiring diagram that

indicates the blower CFM.29 Monsoon II Use, Care, and Installation Guide ZEPHYRONLINE.COM Enabling ACT™ ACT™ Conversion 1. PC board located behind the light panel.2. (If applicable) Remove both spacer panels by 2 screws for each spacer panel.3. Remove 5 screws attaching light panel. FIG. I PC Board

BODY GREENBLACKWHITETRANSFORMER GREY BROWN BLUE WHITE B/W ACT 590 CFM - Fan Max. 556W @ 4.6AACT 390 CFM - Fan Max. 381W @ 3.4A31 Monsoon II Use, Care, and Installation Guide ZEPHYRONLINE.COM Troubleshooting Possible Problem Possible Cause Solutions After installation, the unit doesn’t work. The power source is not turned ON. Make sure the circuit breaker and the unit’s power is ON. The power line and the cable locking connector is not connecting properly. Check the power connection with the unit is connected properly. The switch board or control board wirings are disconnected. Make sure the wirings at the switch board and control board are connected properly. The switch board or control board is defective. Change the switch board or control board. The wires on control board are loose. Make sure the wires on the control board are connected properly. Light works, but blower is not turning. The blower wire is not connected. Make sure the blower wire is plugged into the molex connector. The thermally protected system detects if the blower is too hot to operate and shuts the blower down. The blower will function properly after the thermally protected system cool down. Damaged capacitor. Change the capacitor. Blower molex plug pin is not making contact. Disconnect the blower molex plug, check pins inside plug to see if pin is pushed inside the plug too far. Reset pin if needed. The blower is defective, possibly seized. Change the blower. The unit is vibrating. The blower is not secured in place. Tighten the blower in place. Damaged blower wheel. Replace the blower. The hood is not secured in place. Check the installation of the hood. The unit is whistling. A filter is not in the correct position. Adjust the filters until the whistling stops. The duct pipe connections are not sealed or connected properly. Check the duct pipe connections to be sure all connections are sealed properly. The blower is working, but the lights are not. The LED light connector is disconnected. Connect the LED light connector. Defective LED light. Change the LED light. The switch board or control board is defective. Change the switch board or control board.32 Monsoon II Use, Care, and Installation Guide MONSOON II INSERT PRO Troubleshooting The hood is not venting out properly. Using the wrong size of ducting. Change the ducting to the correct size The hood might be hanging to high from the cook top. Adjust the distance between the cook top and the bottom of the hood within 24” and 36” range. The wind from the opened windows or opened doors in the surrounding area are aecting the ventilation of the hood. Close all the windows and doors to eliminate the outside wind flow. Blockage in the duct opening or ductwork. Remove all the blocking from the duct work or duct opening. The unit turns on by itself. A spot light is shining directly onto the switch controls. The switch controls are light sensitive. A direct light source onto the switch controls may disrupt switch functions. Filter is vibrating Filter is loose. Adjust or change the filter. Spring clip is broken on the filter. Change the spring clip. RF Remote control does not work. Battery is dead. Replace battery with type A23 12v. Poor communication with the liner. Remote control must be within 15 ft of liner. RF Remote lost communication with the liner. Reset liner and remote by switching power o at the circuit breaker for 5 minutes. Place remote on counter top near the liner and switch the circuit breaker back on. Possible Problem Possible Cause Solutions33 Monsoon II Use, Care, and Installation Guide ZEPHYRONLINE.COM List of Parts & Accessories Description Part Number Replacement Parts LumiLight LED, 6W Z0B0047 Bae Filter, large (each) 50210013 Bae Filter, small (each) 50210017 RF Remote Control 14000005 To order parts, visit us online at http://store.zephyronline.com or call us at
