USER MANUAL Xfilter Elysia

WARNING: High Voltage

• Risk of electric shock.

• Do not open chassis.

• Refer service to qualied service sta only.

• Before connecting the device to the main power supply, check if the right voltage is selected.

• Replace fuse with the same type and value only.

• This device must be connected to ground.

• Do not use a damaged power cord.

• Never place containers with liquid, e.g. beverages or a vase, on the unit.

• Do not expose this device to rain or moisture.

• Do not use this device near water, e.g. swimming pool, bathtub or wet basement. CAUTION: Temperature

• Surfaces of the device may become hot during operation.

• Do not install this device near any heat source such as radiators, stoves or other heat sources.

• Always allow enough ventilation space around the unit for air circula- tion.

• Do not cover circulation vents. CAUTION: Connecting & Mounting

• Never connect the output of a power amplier to this device.

• Place the unit on a rigid board or place it in an appropriate rack.

• Use the device according to this manual only. CAUTION: Humidity

• If this device is moved from a cold place to a warm room, condensation can occur inside the device. To avoid damaging the unit, please allow it to reach room temperature before switching it on.3 Welcome to lter wonderland! Thank you very much for purchasing the xlter – one of the quite few true linked stereo EQs in the market. The xlter gives you the expensive sound of an all class-A equalizer in a surprisingly aordable package, with a precise stereo image based on computer-selected, stepped potentiometers and low tolerance lm ca- pacitors. This EQ is serious about exibility. It oers high and low shelf bands which can be switched into high and low cut lters with resonance, two mid peak lters with wide and narrow Q, plus additional passive LC stag- es with shielded coils for a glorious top end. With its exceptionally open sound, straight transient projection and solid punch, the xlter is the perfect match for your xpressor – or any other piece of delicious outboard gear! Index Controls .............................................................4 Connectors ..........................................................6 Passive Massage .....................................................7 Low Shelf/Cut ........................................................ 8 High Shelf/Cut .......................................................9 Low Mid ............................................................10 High Mid ...........................................................11 Recall Sheet ........................................................12 Technical Details ....................................................13 CE Conformity ......................................................13 Warranty Info .......................................................14 Legal Info ...........................................................15 Deutsches Handbuch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Manuel Français .................................................30-8.0-12-1416148.04.0-16121.0-1.0dB Gain 4030259006002001502040010080Hz Freq 10070502k21k5600400451k0300200Hz Freq Hit It! Low Cut Low Mid Narrow Q CLASS-ASTEREO EQUALIZER XFILTER Gain -5.0-9.0-1113115.03.0-139.01.0-1.0

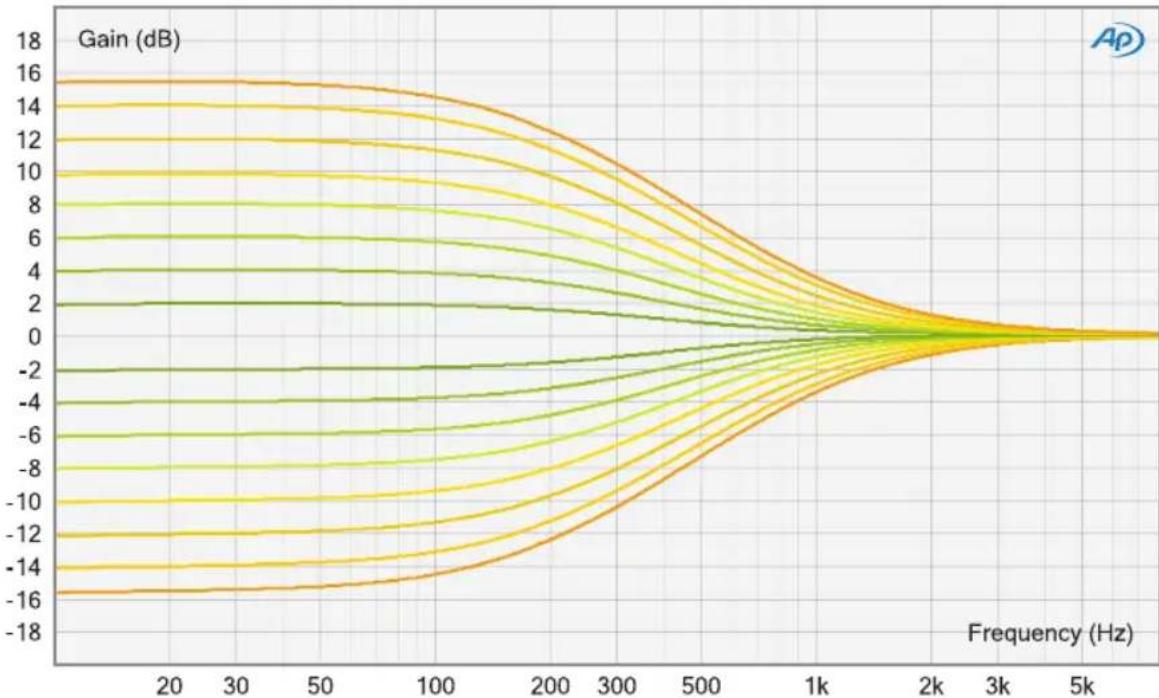

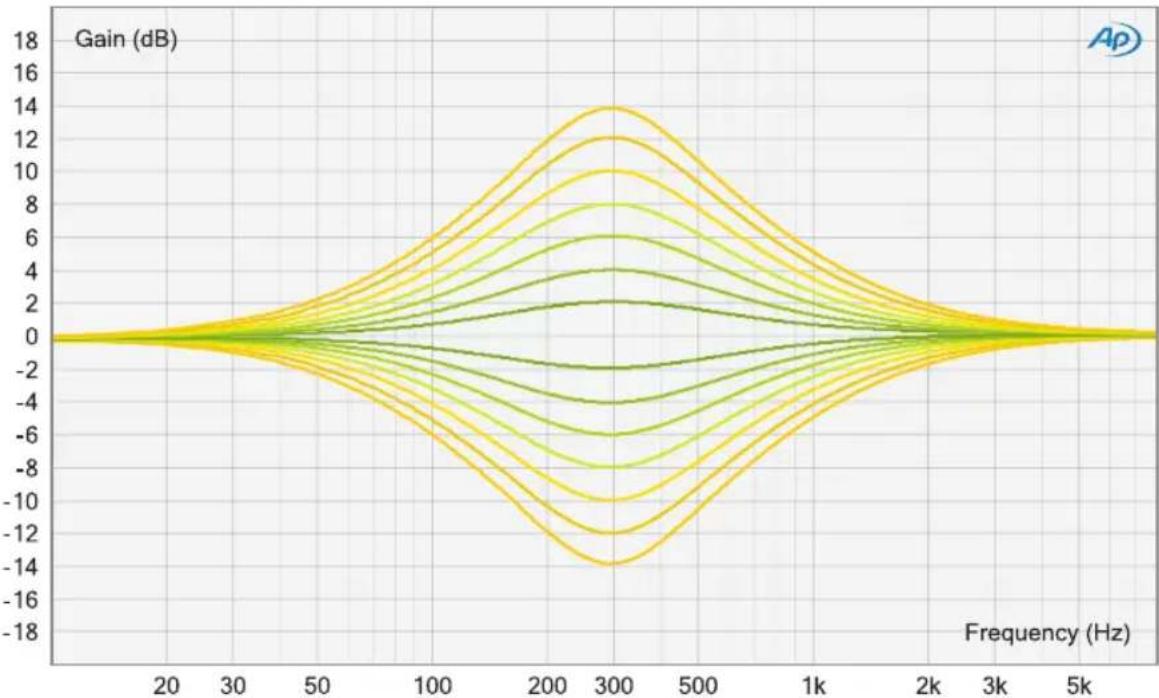

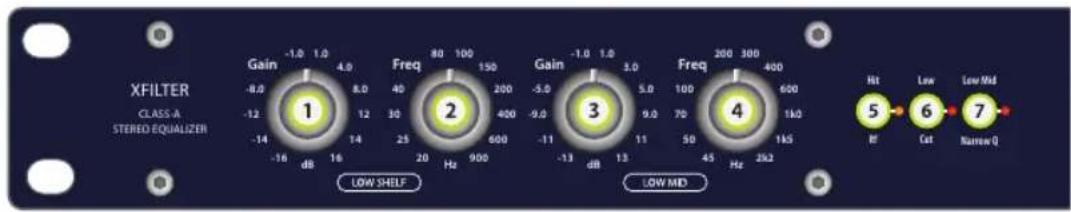

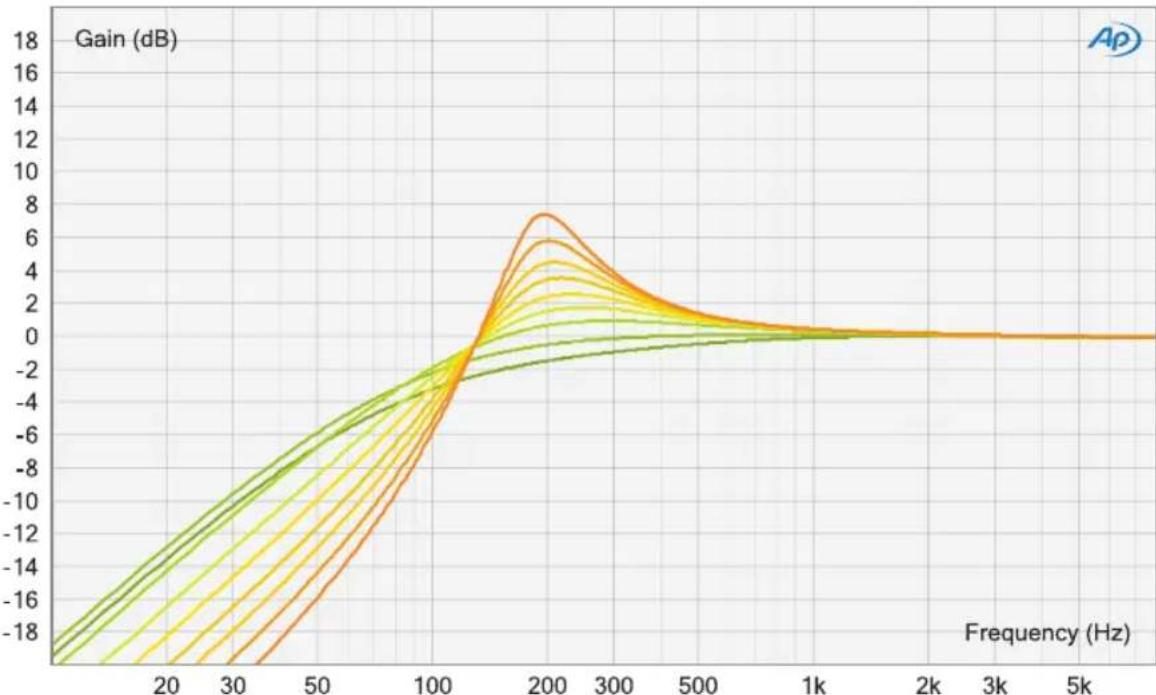

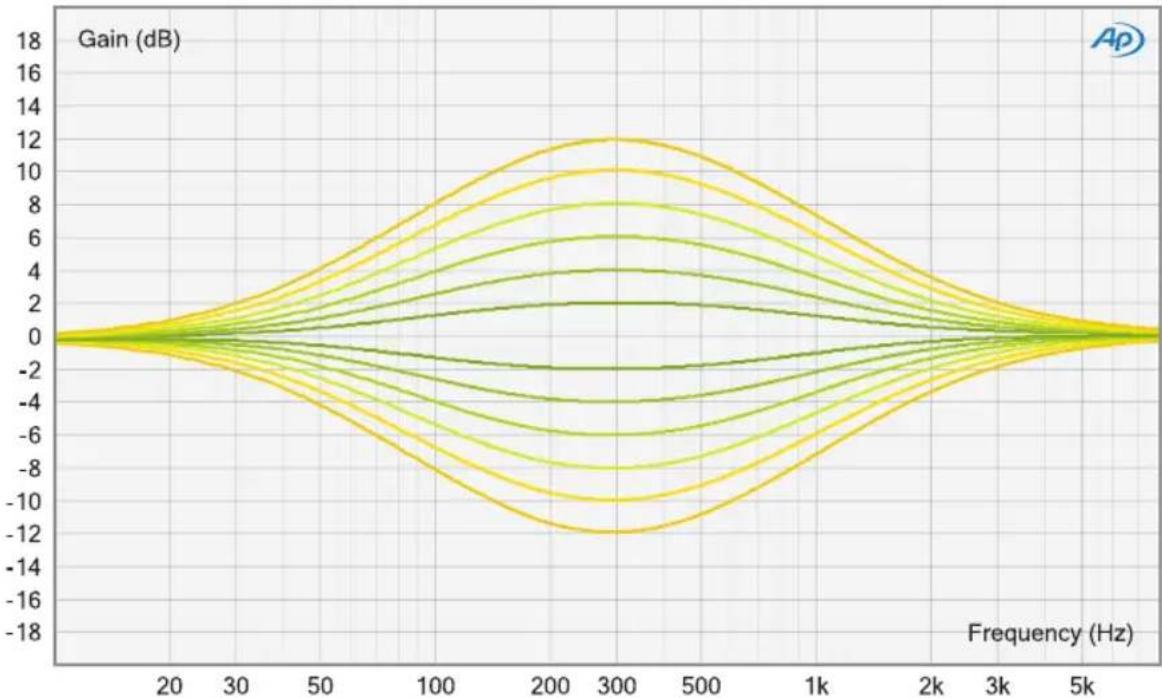

Gain (Low Shelf) Boosts or cuts the low frequency range » p. 8 Frequency (Low Shelf) Sets the frequency for the low shelf lter » p. 8 Gain (Low Mid) Boosts or cuts the low mid frequency range » p. 10 Frequency (Low Mid) Sets the center frequency for the low mid peak lter » p. 10 Hit It! Activates the xlter (LED on) or deactivates it with a hardwire bypass (LED o) Low Cut Switches the low shelf lter (LED o) into a low cut lter with resonance (LED on) » p. 8 Narrow Q (Low Mid) Changes the Q factor of the low mid lter from a wide curve (LED o) to a narrow curve (LED on) » p. 10-5.0 -9.0

1.0-1.0 High Mid Narrow Q High Cut Passive Massage

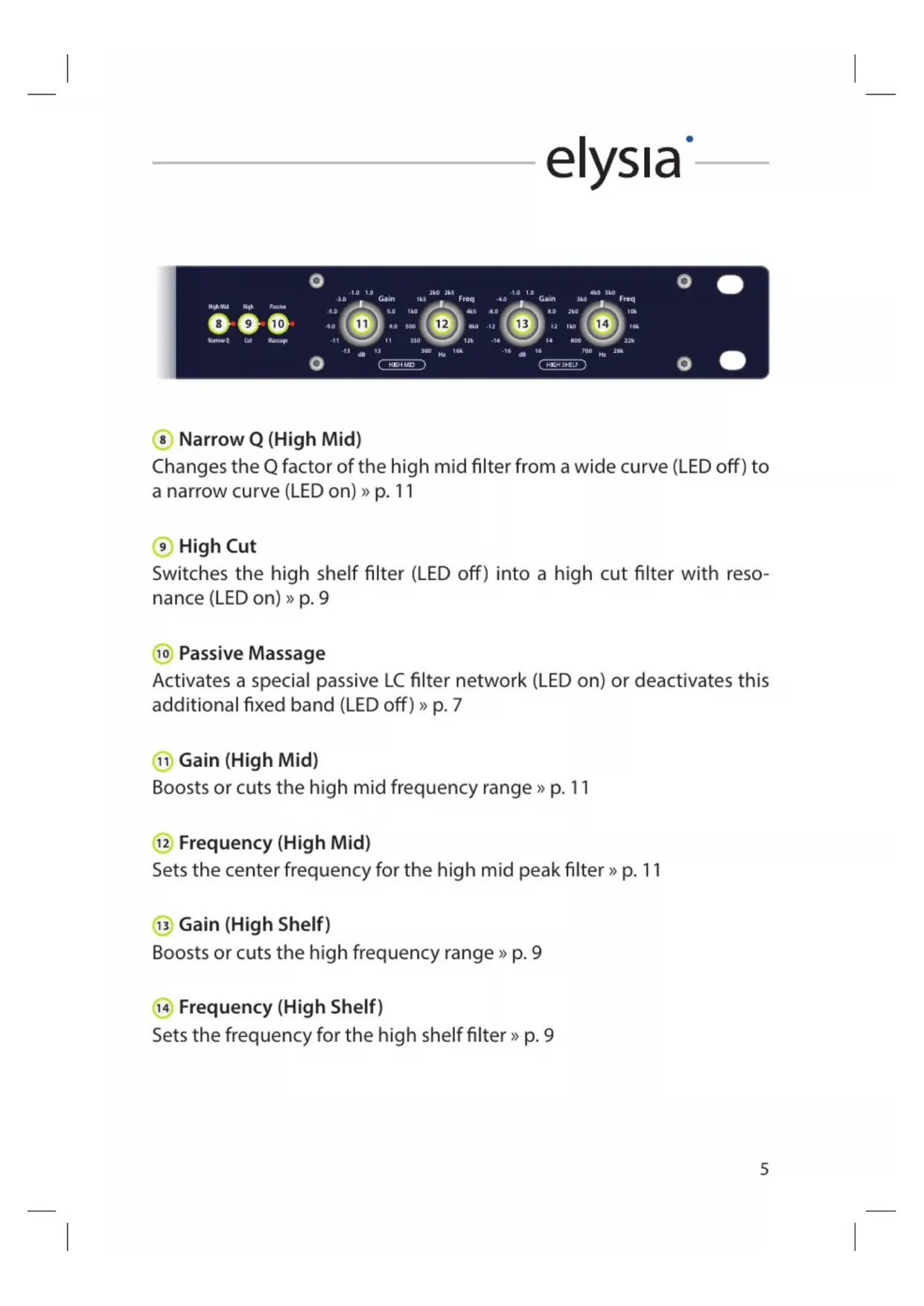

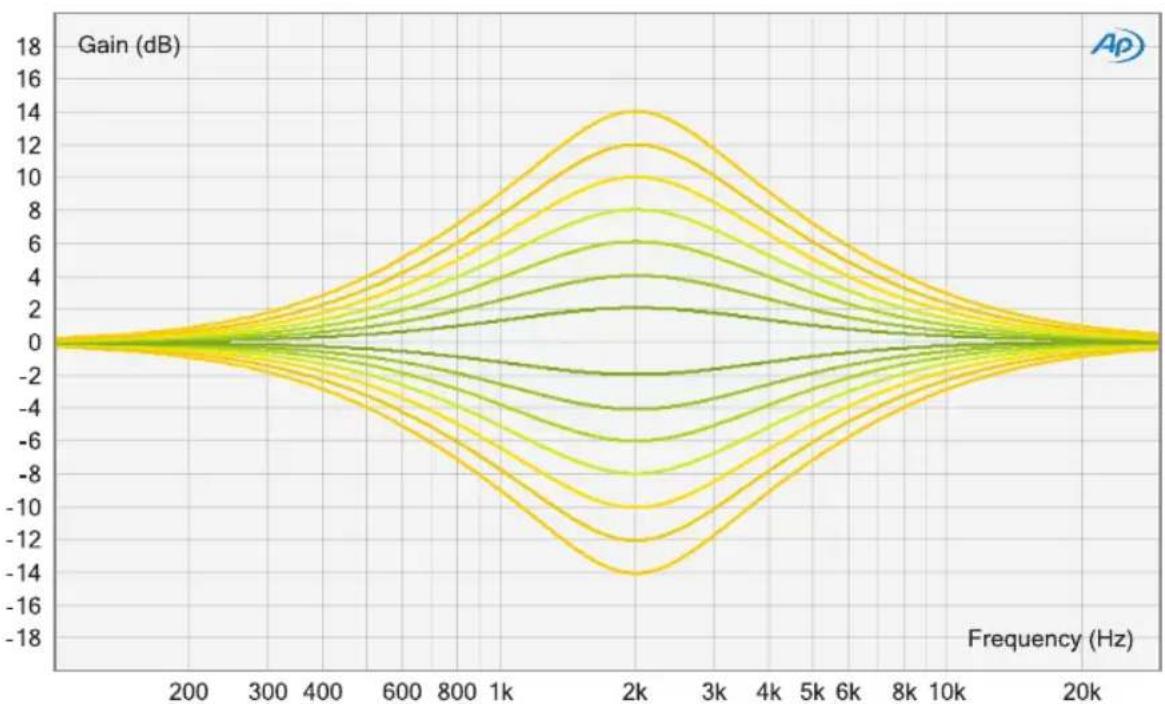

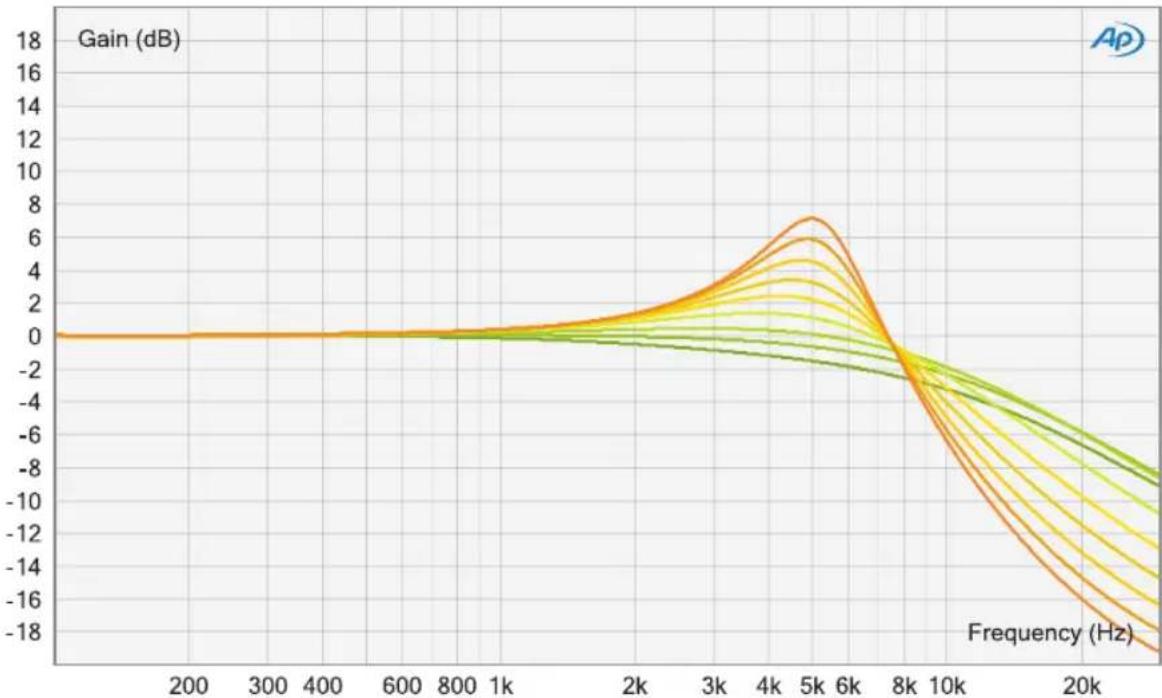

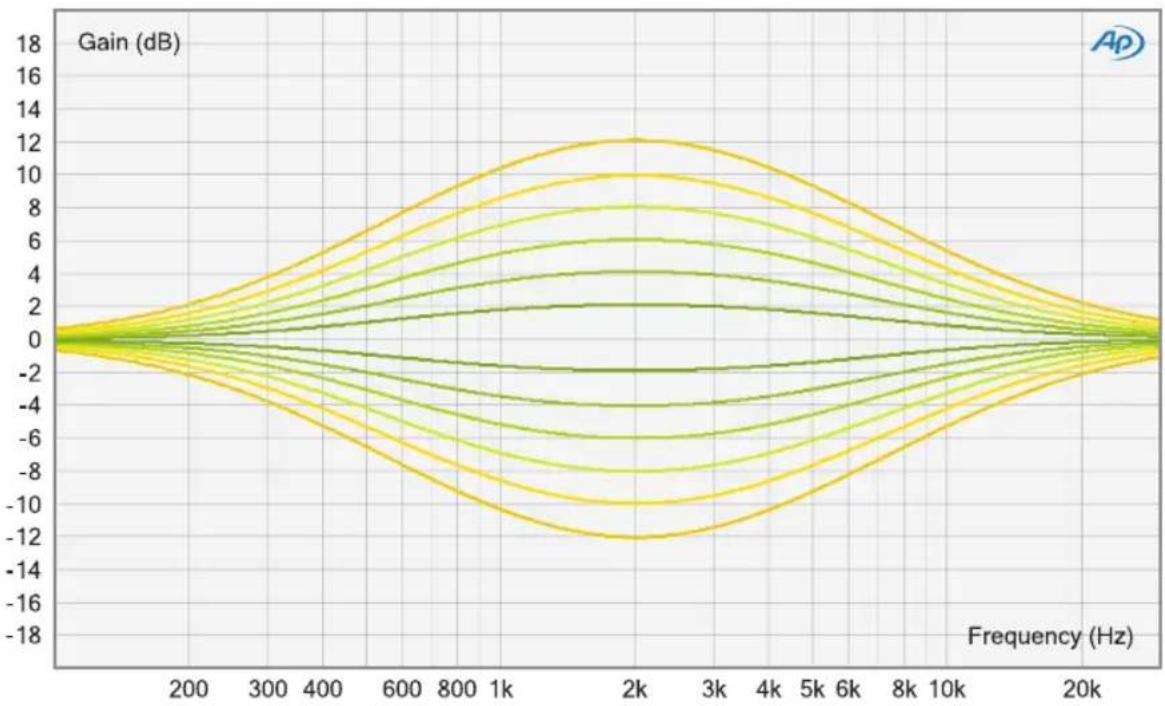

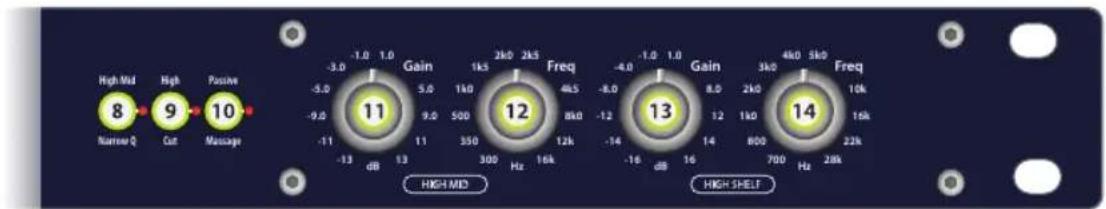

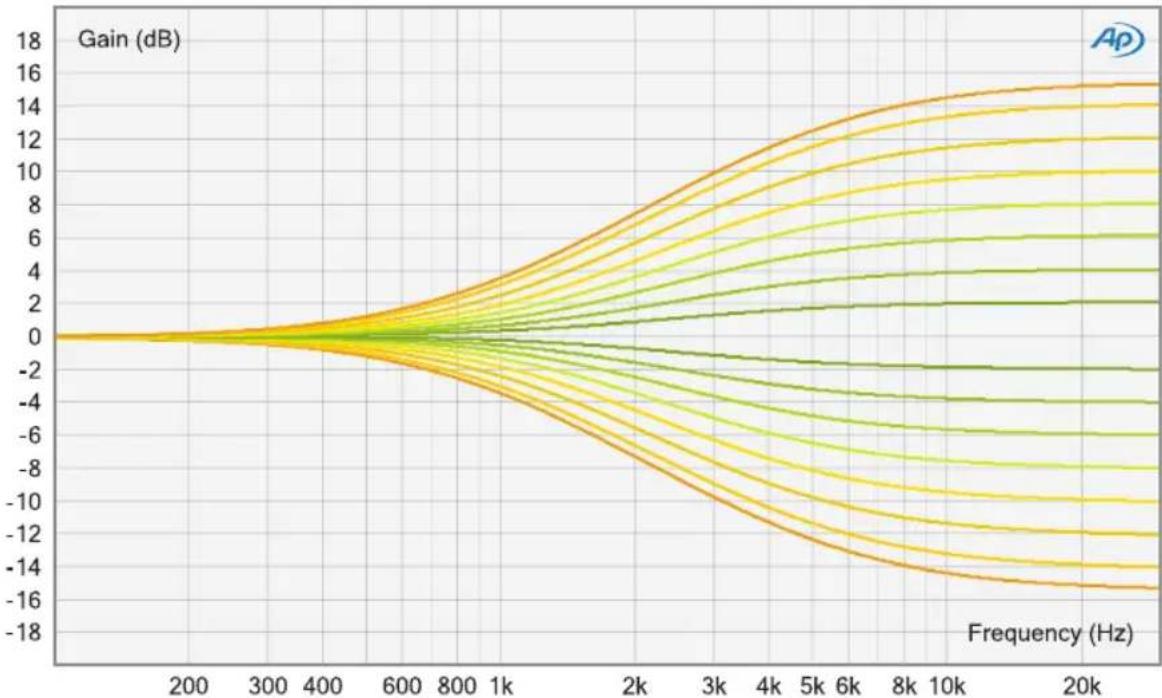

Narrow Q (High Mid) Changes the Q factor of the high mid lter from a wide curve (LED o) to a narrow curve (LED on) » p. 11 High Cut Switches the high shelf lter (LED o) into a high cut lter with reso- nance (LED on) » p. 9 Passive Massage Activates a special passive LC lter network (LED on) or deactivates this additional xed band (LED o) » p. 7 Gain (High Mid) Boosts or cuts the high mid frequency range » p. 11 Frequency (High Mid) Sets the center frequency for the high mid peak lter » p. 11 Gain (High Shelf) Boosts or cuts the high frequency range » p. 9 Frequency (High Shelf) Sets the frequency for the high shelf lter » p. 9230V AVIS: RISQUE DE CHOC ÉLECTRIQUE - NE PAS OUVRIR

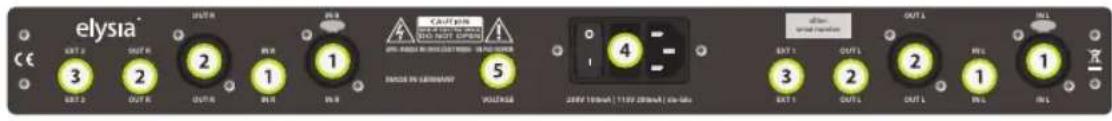

Connectors Audio inputs (XLR and ¼” phone jack) Audio outputs (XLR and ¼” phone jack) Additional audio outputs (¼” phone jack) Mains connector/power switch/fuse holder Voltage selector Mono operation: Connect either input and output 1 or 2 - both will work identically. Stereo operation: Connect both inputs and outputs 1 and 2 - the choice which channel is left and which is right is up to you. Inputs (+4 dBu) XLR balanced: Pin 1: ground Pin 2: hot (+) Pin 3: cold (-) XLR unbalanced: Pin 1: ground Pin 2: hot (+) Pin 3: ground Jack balanced: Sleeve: ground Tip: hot (+) Ring: cold (-) Jack unbalanced: Sleeve: ground Tip: hot (+) Ring: ground Outputs (+4 dBu) XLR balanced: Pin 1: ground Pin 2: hot (+) Pin 3: ground XLR unbalanced: Pin 1: ground Pin 2: hot (+) Pin 3: idle Jack balanced: Sleeve: ground Tip: hot (+) Ring: ground Jack unbalanced: Sleeve: ground Tip: hot (+) Ring: idle Fuses (2 pieces) 230V operation: 100mA slo-blo 115V operation: 200mA slo-blo7 Passive Massage Mmm... The beautiful sheen a passive EQ adds on top of everything. We all love it, we all need it! Well, here is the good news: In addition to its four exible active bands, the xlter features a switchable xed LC lter for polishing the high fre- quency range. The lter mainly consists of a capacitor and a coil per channel, but unlike the standard shelving designs, it has a slight resonance peak at 12 kHz and starts to fall o at 17 kHz. This way, the saturation-like storage eect of the shielded coil focuses on the area around the peak without pushing the complete high frequency spectrum too much.8 Low Shelf Low Cut9 High Shelf High Cut10 Low Mid (Wide Q) Low Mid (Narrow Q)11 High Mid (Wide Q) High Mid (Narrow Q)1213 Technical Details Frequency response: <10 Hz - 400 kHz (-3.0 dB) THD+N @ 0 dBu, 20 Hz - 22 kHz: 0.0018 % THD+N @ +10 dBu, 20 Hz - 22 kHz: 0.005 % Noise oor, 20 Hz - 20 kHz (A-weighted): -98 dBu Dynamic range, 20 Hz - 22 kHz: 120 dB Maximum input level: +21 dBu Maximum output level: +21 dBu Input impedance: 10 kOhm Output impedance: 68 Ohm CE Conformity The conformity of this device to the EU directives is conrmed by the CE mark on the device. This declaration becomes invalid by any unapproved modication of the device. Nettetal, 01.09.2013 - Ruben Tilgner14 Warranty Info The xlter is covered by a limited warranty for a period of 2 years against defects in parts and labor from the date of purchase. Natural wear is not covered by this warranty. Repairs or replacements will not extend the warranty period. The warranty is given to the original purchaser only and is not transfer- able. elysia will only give warranty on products purchased through au- thorized elysia dealers. The warranty will only be valid in the country of the original purchase unless otherwise pre-authorized by elysia. All warranties become void when the product has been damaged by misuse, accident, neglect, modication, tampering or unauthorized al- teration by anyone other than elysia authorized service personnel. The warrantor assumes no liability for property damage or any other inci- dental or consequential damage whatsoever which may result from fail- ure of this product. Any and all warrantees of merchantability and tness implied by law are limited to the duration of the expressed warranty. elysia will not pay for express or overnight freight service or pay for ship- ments to locations outside Germany. All damages caused by transport are not covered by this warranty. This warranty gives you specic legal rights and you may also have other rights which vary from state to state. Some of the above limitations may not apply to you.15 Legal Info The information in this document is subject to change without further notice and shall not be deemed as an obligation or warranty of any kind by the manufacturer. No warranties, express or implied, are made with regard to the quality, suitability or accuracy of this document. The manufacturer reserves the right to change the contents of this docu- ment and/or the associated products at any time without the provision of prior notice. The manufacturer shall not be held liable for damages of any kind arising from the use, or the inability to use this product or its documentation. The information in this document is subject to copyright. All rights, tech- nical changes and errata are reserved. No part of this manual may be reproduced or transmitted in any form or for any purpose without the explicitly written permission of the copyright holders. elysia and xlter are registered trademarks of elysia GmbH. Other prod- uct and brand names contained in this document are used for identica- tion purposes only. All registered trademarks, product designations or brand names used in this document are the property of their respective owners. The product has been manufactured in compliance with the RoHS directive. The purpose of this directive of the European Union is the Restriction of Hazardous Substances (RoHS) in electronic equipment in order to protect health and nature. Dispose separately! Version 1.2 © 2019 elysia GmbH16 Vorsichtsmaßnahmen WARNUNG: Hochspannung
