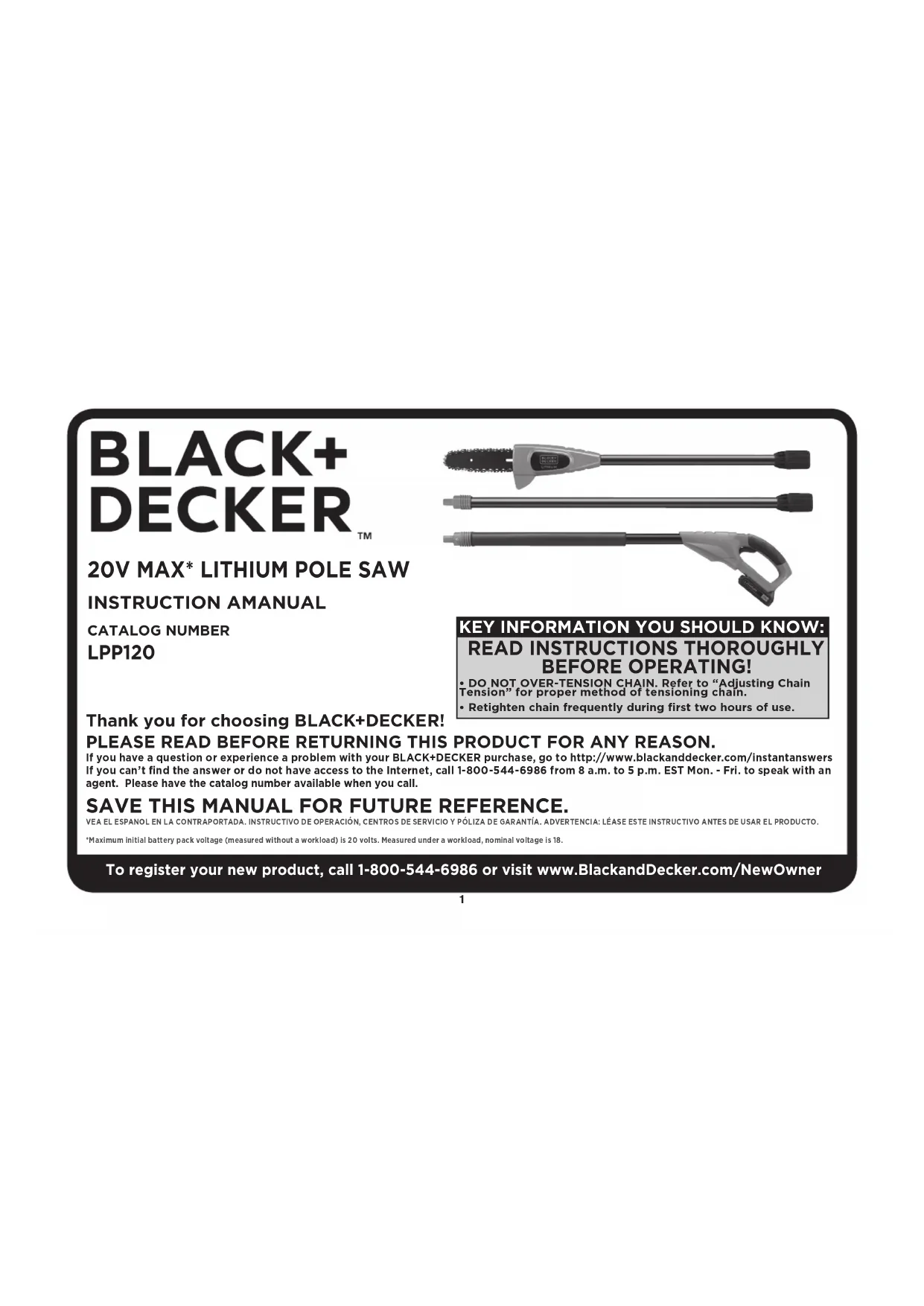

USER MANUAL LPP120 BLACK & DECKER

• DO NOT OVER-TENSION CHAIN. Refer to "Adjusting Chain Tension" for proper method of tensioning chain.

Retighten chain frequently during first two hours of use.

Thank you for choosing BLACK+DECKER!

PLEASE READ BEFORE RETURNING THIS PRODUCT FOR ANY REASON.

If you have a question or experience a problem with your BLACK+DECKER purchase, go to http://www.blackanddecker.com/Instantanswers If you can't find the answer or do not have access to the Internet, call 1-800-544-6986 from 8 a.m. to 5 p.m. EST Mon. - Fri. to speak with an agent. Please have the catalog number available when you call.

SAVE THIS MANUAL FOR FUTURE REFERENCE.

VEA EL ESPANOL EN LA CONTRAPORTADA. INSTRUCTIVO DE OPERATION, CENTROS DE SERVICIO Y POLIZA DE GARANTIA. ADVERTENCIA: LÉASE ESTE INSTRUCTIVO ANTES DE USAR EL PRODUCTO.

*Maximum initial battery pack voltage (measured without a workload) is 20 volts. Measured under a workload, nominal voltage is 18.

To register your new product, call 1-800-544-6986 or visit www.BlackandDecker.com/NewOwner

SAFETY GUIDELINES - DEFINITIONS

It is important for you to read and understand this manual. The information it contains relates to protecting YOUR SAFETY and PREVENTING PROBLEMS. The symbols below are used to help you recognize this information.

ADANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

CAUTION: Used without the safety alert symbol indicates a potentially hazardous situation which, if not avoided, may result in property damage.

IMPORTANT SAFETY RULES

WARNING: Read and understand all instructions. Failure to follow all instructions listed below may result in electric shock, fire and/or serious personal injury.
WARNING: When using electric gardening appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and personal injury, including the following:
WARNING: For safe operation read and understand owner's manual.

SAVE THESE INSTRUCTIONS

READ AND UNDERSTAND ALL INSTRUCTIONS.

• Avoid Dangerous Environment. Don't use pole saw in damp or wet locations.
• Don't Use In Rain.
• Keep Children Away. All visitors should be kept at a distance from work area.
• Dress Properly. Do not wear loose clothing or jewelry. They can be caught in moving parts. Use of rubber gloves and substantial footwear.

is recommended when working outdoors. Wear protective hair covering to contain long hair.

• Use Safety Glasses. Always use face or dust mask if operation is dusty.
• Use Right Appliance. Do not use pole saw for any job except that for which it is intended.
• Do not grasp the exposed cutting blades or cutting edges when picking up or holding the pole saw.
• Do Not Force Pole Saw. It will do the job better and with less likelihood of a risk of injury at the rate for which it was designed
• Do Not Overreach. Keep proper footing and balance at all times.
• Stay Alert. Watch what you are doing. Use common sense. Do not operate pole saw when you are tired.
• Remove Battery From Pole saw. Remove the battery from the pole saw when not in use, before servicing, when changing accessories such as chains, and the like.
• Store Idle Pole saws Indoors. When not in use, pole saw should be stored indoors in dry, and high or locked-up place out of reach of children.
• Maintain Pole saw With Care. Keep cutting edge sharp and clean for best performance and to reduce the risk of injury. Follow instructions for lubricating and changing accessories. Inspect pole saw cord periodically, and if damaged, have it repaired by an authorized service facility. Inspect extension cords periodically and replace if damaged. Keep handles dry, clean, and free from oil and grease.
• Check Damaged Parts. Before further use of the pole saw, a guard or other part that is damaged should be carefully checked to determine that it will operate properly and perform its intended function. Check for alignment of moving parts, binding of moving parts, breakage of parts, mounting, and any other condition that may affect its operation. A guard or other part that is damaged should be properly repaired or replaced by an authorized service center unless indicated elsewhere in this manual.

SAVE THESE INSTRUCTIONS

SPECIFIC SAFETY RULES

WARNING: Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to cause cancer, birth defects or other reproductive

harm. Some examples of these chemicals are:

• lead from lead-based paints,
  crystalline silica from bricks and cement and other masonry products, and arsenic and chromium from chemically-treated lumber. (CCA)

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

• Avoid prolonged contact with dust from power sanding, sawing, grinding, drilling, and other construction activities. Wear protective clothing and wash exposed areas with soap and water. Allowing dust to get into your mouth, eyes, or lay on the skin may promote absorption of harmful chemicals.

WARNING: Use of this tool can generate and/or disburse dust, which may cause serious and permanent respiratory or other injury. Always use NIOSH/OSHA approved respiratory protection appropriate for the dust exposure. Direct particles away from face and body.
CAUTION: Wear appropriate personal hearing protection during use. Under some conditions and duration of use, noise from this product may contribute to hearing loss.

Before Operating Pole Saw

• For safe operation, read and understand all instructions before using the Pole Saw. Follow all safety instructions. Failure to follow all safety instructions listed below, can result in serious personal injury.
• Watch what you are doing. Use common sense. Do not operate Pole Saw when you are tired.
• Use Pole Saw for cutting tree branches only. Do not use Pole Saw for purposes not intended. Do not use for cutting other items.
• Only well-instructed adults should operate Pole Saw. Never allow children to operate.
• Do not allow children or untrained individuals to use this unit.

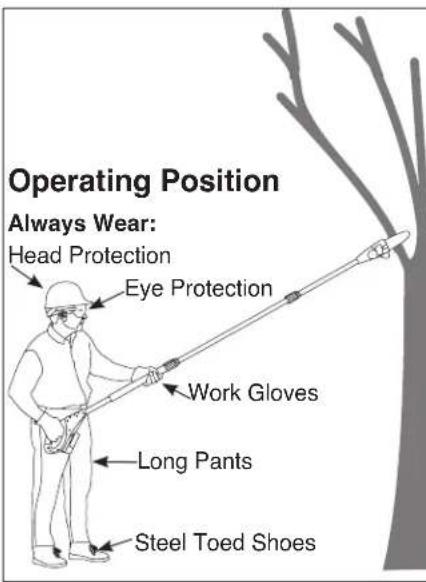

• Wear the following safety gear when operating Pole Saw: - heavy-duty gloves
• steel-toed safety footwear with non-skid soles
• safety glasses, goggles or face screen that are marked to

comply with ANSI Z87

• safety hard hat
  -ear mufflers or ear plug
• face or dust mask (if working in dusty areas)
• Wear heavy long pants and boots. Do not wear loose fitting clothing, short pants, jewelry of any kind, or go barefoot.
• Secure long hair so it is above shoulder level to prevent entanglement in any moving parts.
  Before cutting, always provide the following:
  clear work area
• secure footing
• planned retreat path from falling limbs
• Inspect tree before trimming. Make allowance for branches to fall freely to the ground.
  Do not use your Pole Saw to fell saplings.

While Operating Pole Saw

DANGER: To reduce the risk of electric shock do no use on wet surfaces. Do not expose to rain. Store indoors.
DANGER: Avoid Unintentional Starting - with battery installed, don't carry appliance with with finger on switch. Be sure switch is off when installing battery.

• Stay alert. Use common sense while operating the unit.
• Keep work area clean. Cluttered areas invite injuries.
  Always remove battery from pole saw when finished cutting or when left unattended.
• Keep children, animals and bystanders at least 50 ft. (15 m) away from Pole Saw. Only Pole Saw user should be in work area.
  Do not use the Pole Saw to cut down trees.
• Do not grasp the exposed saw chain when picking up or holding the pole saw.
• Grip Pole Saw securely - one hand on the pole, the other on the handle.
• Keep finger off trigger until ready to make cut.

Before starting Pole Saw, make sure chain is not touching anything.

• Keep all parts of body away from chain when Pole Saw is running.
• Do not force Pole Saw while cutting. Apply light pressure. It will do the job better and safer at the rate for which it was intended.

• Carry Pole Saw from one place to another

• with battery removed

• fingers off/away from trigger
• by holding pole at balance point
• with guide bar and chain to rear and with scabbard attached
• Do not cut small brush and saplings with the Pole Saw. Slender matter may catch in the chain and be whipped toward you. This could also pull you off balance.
  Do not operate in poor lighting.
• Keep firm footing and balance. Do not overreach. Overreaching can result in loss of balance or exposure to hot surfaces.
• Keep all parts of your body away from any moving part.
• Do not, under any circumstance, use any attachment or accessory on this product, which was not provided with the product, or identified as appropriate for use with this product in this Instruction Manual.
• Inspect Pole Saw before each use and after dropping or other impacts. Ensure there are no significant defects or damage.

Do not operate Pole Saw

• while under the influence of alcohol, medication, or drugs.
• in rain or in damp or wet areas.
• where highly flammable liquids or gases are present
• if Pole Saw is damaged, adjusted incorrectly, or not fully and securely assembled.
• if trigger does not turn Pole Saw on and off. Chain must stop moving when you release trigger. Have faulty switch replaced by authorized service center. See "Service Information".
• while in a hurry.
• while in tree or on a ladder.
• while on aerial booms, buckets or platforms.
• during high wind or storming weather.

GENERAL SAFETY RULES

DANGER: Shock Hazard. Serious Injury Or Death From Electrocution If Power Lines Are Contacted. Never Use Near Any Electrical Source, Wires, Or Power Lines.

WARNING: For Safe Operation Read And Understand Owner's Manual. Wear Face Shield (And/Or Safety Glasses) And Hard Hat To Protect Against Falling Debris. Always Have A Clear Work

Area, Retreat Path, And Be Aware Of Limb/Branch Location To Avoid Falling Limbs And Debris. Keep Bystanders 50 Ft (15 m) Away When Operating Saw. To Reduce The Risk Of Electric Shock Do Not Use On Wet Surfaces. Do Not Expose To Rain. Store Indoors.

• To protect yourself from falling branches do not stand directly under the branch or limb being cut. This unit should not be held at an angle over 60 degrees from ground level.
• Keep the handles dry, clean, and free of oil.

• Before you start the unit, make sure the chain is not contacting any object.
  Make sure the cutting chain has stopped before setting the unit down. Service

• Tool service must be performed only by qualified repair personnel. Service or maintenance performed by unqualified personnel could result in a risk of injury. See "Service Information".

• When servicing a tool, use only identical replacement parts. Follow instructions in the Maintenance section of this manual. Use of unauthorized parts or failure to follow Maintenance Instructions may create a risk of electric shock or injury.

Guard Against Kickback

WARNING: KICKBACK may occur when the nose or tip of the guide bar touches an object, or when the wood closes in and pinches the saw chain in the cut. Tip contact in some cases may cause a lightning fast reverse reaction, kicking the guide bar up and back towards the operator. Pinching the saw chain along the top of the guide bar may push the guide bar rapidly back towards the operator. Either of these reactions may cause you to lose control of the saw which could result in serious injury to user.

The following precautions should be followed to minimize kickback:

• Grip Pole Saw firmly. Hold the saw firmly with both hands when the unit is running. Use a firm grip with thumbs and fingers encircling the saw handle and pole.
  Do not over reach.
• Keep proper footing and balance at all times.
• Don't let the nose of the guide bar contact a log, branch, ground or other obstruction.
• Do not extend Pole Saw handle above shoulder height.
  Use devices such as low kickback chain, chain braking system and

special guide bars that reduce the risks associated with kickback.
- Only use replacement bars and chains specified by the manufacturer or the equivalent.
- Never let the moving chain contact any object at the tip of the guide bar.
- Keep the working area free from obstructions such as other trees, branches, rocks, fences, stumps, etc. Eliminate or avoid any obstruction that your saw chain could hit while you are cutting through a particular log or branch.
- Keep your saw chain sharp and properly tensioned. A loose or dull chain can increase the chance of kickback. Check tension at regular intervals with the motor stopped and battery removed.
- Begin and continue cutting only with the chain moving at full speed. If the chain is moving at a slower speed, there is a greater chance for kickback to occur.
Cut one branch at a time.
- Use extreme caution when re-entering a previous cut. Engage spiked bumpers into wood and allow chain to reach full speed before proceeding with cut.
- Do not attempt plunge cuts or bore cuts.
- Watch for shifting branches or other forces that could close a cut and pinch or fall into chain.

KICKBACK SAFETY FEATURES

WARNING: The following features are included on your Pole Saw to help reduce the hazard of kickback; however such features will not totally eliminate this dangerous reaction. As a pole saw user do not rely only on safety devices. You must follow all safety precautions, instructions, and maintenance in this manual to help avoid kickback and other forces which can result in serious injury.

• Reduced-Kickback Guide Bar, designed with a small radius tip which reduces the size of the kickback danger zone on bar tip. A reduced- kickback guide bar is one which has been demonstrated to significantly reduce the number and seriousness of kickbacks when tested in accordance with safety requirements for electric chain saws.
• Low-Kickback Chain, designed with a contoured depth gauge and guard link which deflect kickback force and allow wood to

gradually ride into the cutter. A low-kickback chain is a chain which has met kickback performance requirements of ANSI B175.1 when tested on the representative sample of chain saws.

Symbols

The label on your tool may include the following symbols. The symbols and their definitions are as follows:

V volts

Hz ......... hertz

min.....minutes current

---or DC direct current

① .ClassI Construction

(grounded) ......safety alert symbol

Class II Construction ../min or rpm...revolutions or

(double insulated) reciprocation per minute

Read instruction manual before use
Use proper respiratory protection
.Use proper eye protection
O. Use proper hearing protection

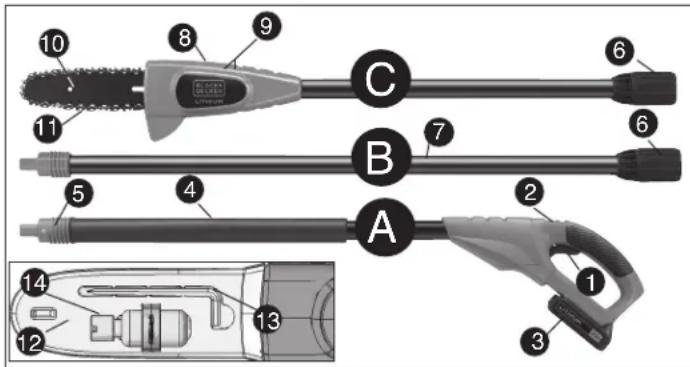

POLE SAW NAMES AND TERMS

• Drive Sprocket or Sprocket - The toothed part that drives the saw chain.
• Guide Bar - A solid railed structure that supports and guides the saw chain.
• Guide Bar Scabbard - Enclosure fitted over guide bar to prevent tooth contact when saw is not in use.
• Kickback - The backward or upward motion, or both of the guide bar occurring when the saw chain near the nose of the top area of the guide bar contacts any object such as a log or branch, or when the wood closes in and pinches the saw chain in the cut.

• Low-Kickback Chain - A chain that complies with the kickback performance requirements of ANSI B175.1-1991 (when tested on a representative sample of chain saws.

• Reduced Kickback Guide Bar - A guide bar which has been demonstrated to reduce kickback significantly.

• Replacement Saw Chain - A chain that complies with kickback performance requirements of ANSI B175.1-1991 when tested with specific chain saws. It may not meet the ANSI performance requirements when used with other saws.
• Saw Chain A loop of chain having cutting teeth, that cut the wood, and that is driven by the motor and is supported by the guide bar.
• Spiked Bumper (Spike) - The pointed tooth or teeth for use when pruning to pivot the saw and maintain position while sawing.
• Switch - A device that when operated will complete or interrupt an electrical power circuit to the motor of the chain saw.
• Switch Lockout - A movable stop that prevents the unintentional operation of the switch until manually actuated.
• Trimming (Pruning) - Process of cutting limbs from a tree.
• Undercut - An upward cut from underside of a log or limb. This is done while in normal cutting position and cutting with top of guide bar.

STORAGE RECOMMENDATIONS

1. Store indoors. The best storage place is one that is cool and dry away from direct sunlight, excess heat or cold and out of the reach of children. 2. Always reduce the tension off the chain again after finishing work. The chain contracts as it cools down. If tension is not reduced, it can damage the saw.

Transporting Pole Saw

• Always unplug the extension cord from the Pole Saw and cover the chain with the scabbard when transporting the Pole Saw.

IMPORTANT SAFETY INSTRUCTIONS FOR BATTERY CHARGERS

SAVE THESE INSTRUCTIONS: This manual contains important safety instructions for battery chargers.
- Before using charger, read all instructions and cautionary markings on charger, battery pack, and product using battery pack.

WARNING: Shock hazard. Do not allow any liquid to get inside charger.

CAUTION: Burn hazard. To reduce the risk of injury, charge only designated Black+Decker batteries. Other types of batteries may burst causing personal injury and damage.

CAUTION: Under certain conditions, with the charger plugged in to the power supply, the charger can be shorted by foreign material. Foreign materials of a conductive nature such as, but not limited to, steel wool, aluminum foil, or any buildup of metallic particles should be kept away from charger cavities. Always unplug the charger from the power supply when there is no battery pack in the cavity. Unplug charger before attempting to clean.

• The charger supplied with this product is intended to be plugged in such that it is correctly orientated in a vertical or floor mount position.
• DO NOT attempt to charge the battery pack with any chargers other than the ones in this manual. The charger and battery pack are specifically designed to work together.
• These chargers are not intended for any uses other than charging designated Black+Decker rechargeable batteries. Any other uses may result in risk of fire, electric shock or electrocution.
• Do not expose charger to rain or snow.
• Pull by plug rather than cord when disconnecting charger. This will reduce risk of damage to electric plug and cord.
• Make sure that cord is located so that it will not be stepped on, tripped over, or otherwise subjected to damage or stress.
• Do not use an extension cord unless it is absolutely necessary. Use of improper extension cord could result in risk of fire, electric shock, or electrocution.
• An extension cord must have adequate wire size (AWG or American Wire Gauge) for safety. The smaller the gauge number of the wire, the greater the capacity of the cable, that is 16 gauge has more capacity than 18 gauge. When using more than one extension to make up the total length, be sure each individual extension contains at least the minimum wire size.

Recommended Minimum Wire Size for Extension Cords

Minimum Gauge for Cord Sets
Volts	Total Length of Cord in Feet
120V	0-25	26-50	51-100	101-150
240V	0-50	51-100	101-200	201-300
Ampere Rating
More Not more American Wire Gauge
Than Than
0	-	6	18	16	16 14
6	-	10	18	16	14 12
10	-	12	16	16	14 12
12	-	16	14	12	Not Recommended

• Do not place any object on top of charger or place the charger on a soft surface that might block the ventilation slots and result in excessive internal heat. Place the charger in a position away from any heat source. The charger is ventilated through slots in the top and the bottom of the housing.
• Do not mount charger on wall or permanently affix charger to any surface. The charger is intended to use on a flat, stable surface (i.e., table top, bench top).
• Do not operate charger with damaged cord or plug - have them replaced immediately.
• Do not operate charger if it has received a sharp blow, been dropped, or otherwise damaged in any way. Take it to an authorized service center.
• Do not disassemble charger; take it to an authorized service center when service or repair is required. Incorrect reassembly may result in a risk of electric shock, electrocution or fire.
• Disconnect the charger from the outlet before attempting any cleaning. This will reduce the risk of electric shock. Removing the battery pack will not reduce this risk.
  NEVER attempt to connect 2 chargers together.
• The charger is designed to operate on standard household electrical power (120 Volts). Do not attempt to use it on any other voltage.

SAVE THESE INSTRUCTIONS

IMPORTANT SAFETY WARNINGS FOR BATTERY PACKS

WARNING: For safe operation, read this manual and manuals originally supplied with tool before using the charger.

The battery pack is not fully charged out of the carton. Before using the battery pack and charger, read the safety instructions below. Then follow charging procedures outlined.

READ ALL INSTRUCTIONS

• Do not incinerate the battery pack even if it is severely damaged or is completely worn out. The battery pack can explode in a fire. Toxic fumes and materials are created when battery packs are burned.
• Do not charge or use battery in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Inserting or removing the battery from the charger may ignite the dust or fumes.
• If battery contents come into contact with the skin, immediately wash area with mild soap and water. If battery liquid gets into the eye, rinse water over the open eye for 15 minutes or until irritation ceases. If medical attention is needed, the battery electrolyte for Li-ion batteries is composed of a mixture of liquid organic carbonates and lithium salts.
• Contents of opened battery cells may cause respiratory irritation. Provide fresh air. If symptoms persist, seek medical attention.

WARNING: Burn hazard. Battery liquid may be flammable if exposed to spark or flame.

• Charge the battery packs only in Black+Decker chargers.
  DO NOT splash or immerse in water or other liquids. This may cause premature cell failure.
• Do not store or use the tool and battery pack in locations where the temperature may reach or exceed 105^ (40^) (such as outside sheds or metal buildings in summer).

WARNING: Never attempt to open the battery pack for any reason. If battery pack case is cracked or damaged, do not insert into charger. Do not crush, drop or damage battery pack. Do not use a battery pack or charger that has received a sharp blow, been dropped, run over or damaged in any way (i.e., pierced with a nail, hit with a hammer, stepped on). Damaged battery packs should be returned to service center for recycling.
WARNING: Fire hazard. Do not store or carry battery so that metal objects can contact exposed battery terminals. For example, do not place battery in aprons, pockets, tool boxes, product kit boxes, drawers, etc., with loose nails, screws, keys, etc. Transporting batteries can possibly cause fires if the battery terminals inadvertently come in contact with conductive materials such as keys, coins, hand tools and the like. The US Department of Transportation Hazardous Material Regulations (HMR) actually prohibit transporting batteries in commerce or on airplanes (i.e., packed in suitcases and carry-on luggage) UNLESS they are properly protected from short circuits. So when transporting individual batteries, make sure that the battery terminals are protected and well insulated from materials that could contact them and cause a short circuit. NOTE: LI-ION batteries should not be put in checked baggage.

STORAGE RECOMMENDATIONS

1. The best storage place is one that is cool and dry away from direct sunlight and excess heat or cold.
2. Long storage will not harm the battery pack or charger.

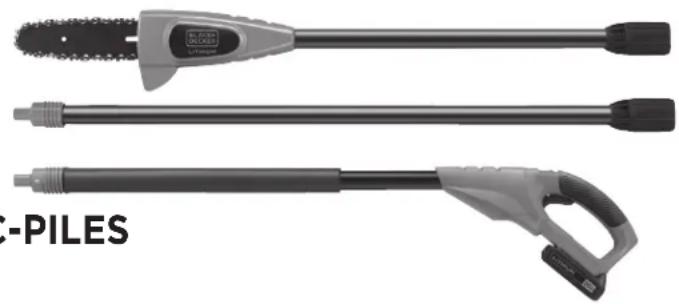

FUNCTIONAL DESCRIPTION

WARNING: Before using your Pole Saw familiarize yourself with all operating and safety features.

A. Handle Module
B. Center Extension
C. Saw Head Module
1. Trigger Switch
2. Lock Button
3. Battery
4. Foam Gripper
5. Threaded Pole
6. Threaded Sleeve

1. Center Extension Pole
2. Sprocket Cover (other side)
3. Allen Head Screws (other side)
4. Guide Bar
5. Saw Chain
6. Scabbard
7. Allen Wrench
8. Oil Bottle

CHARGING PROCEDURE

The standard charger provided will charge a fully depleted battery in about 3-4 hours.

1. Plug the charger into an appropriate outlet before inserting the battery pack.

2. Insert the battery pack into the charger as shown in figure 1.

3. The green LED will flash indicating that the battery is being charged.

4. The completion of charge is indicated by the green LED remaining on continuously. The pack is fully charged and may be used at this time or left on the charger.

Recharge discharged batteries as soon as possible after use o

battery life may be greatly diminished. It is recommended that the batteries be recharged after each use.

LEAVING THE BATTERY IN THE CHARGER

The charger and battery pack can be left connected with the green LED glowing indefinitely. The charger will keep the battery pack fresh and fully charged.

IMPORTANT CHARGING NOTES

1. Longest life and best performance can be obtained if the battery pack is charged when the air temperature is between 60^ and 80^ (16^ - 27^) . DO NOT charge the battery pack in an air temperature below +40^ (+4.5^) , or above +105^ (+40.5^) . This is important and will prevent serious damage to the battery pack.
2. The charger and battery pack may become warm to touch while charging. This is a normal condition, and does not indicate a problem. To facilitate the cooling of the battery pack after use, avoid placing the charger or battery pack in a warm environment such as in a metal shed, or an uninsulated trailer.
3. If the battery pack does not charge properly:

a. Check current at receptacle by plugging in a lamp or other appliance

b. Check to see if receptacle is connected to a light switch which turns power off when you turn out the lights.
c. Move charger and battery pack to a location where the surrounding air temperature is approximately 60^ and 80^ (16^ - 27^)
d. If charging problems persist, take the tool, battery pack and charger to your local service center.
4. The battery pack should be recharged when it fails to produce sufficient power on jobs which were easily done previously. DO NOT CONTINUE to use under these conditions. Follow the charging procedure. You may also charge a partially used pack whenever you desire with no adverse effect on the battery pack.
5. Foreign materials of a conductive nature such as, but not limited to, steel wool, aluminum foil, or any buildup of metallic particles should be kept away from charger cavities. Always unplug the charger from the power supply when there is no battery pack in the cavity. Unplug charger before attempting to clean.
6. Do not freeze or immerse charger in water or any other liquid.
WARNING: Shock hazard. Do not allow any liquid to get inside charger. Never attempt to open the battery pack for any reason. If the plastic housing of the battery pack breaks or cracks, return to a service center for recycling.

INSTALLING / REMOVING BATTERY PACK

WARNING: Make certain the lock-off button is engaged to prevent switch actuation before removing or installing battery.

TO INSTALL BATTERY PACK: Insert battery pack into tool until an audible click is heard (figure 1a).

TO REMOVE BATTERY PACK: Depress the battery release button in the back of the battery pack and pull battery pack out of tool

(figure 1b).

PREPARING YOUR POLE SAW FOR USE

WARNING: Read and understand all instructions. Failure to follow all instructions listed below may result in electric shock, fire and/or serious personal injury.

Installing and Removing Saw Chain

WARNING: Sharp moving blade. To prevent accidental operation, insure that battery is disconnected from the handle before performing the following operations. Failure to do this could result in serious personal injury.

CAUTION: Sharp moving blade. Always wear protective gloves when installing or removing the chain. The chain is sharp and can cut you when it is not running.

• Place the saw on a firm surface. Rotate the two allen head screws counterclockwise with the wrench provided as shown in figure 2.
• Remove sprocket cover, bar clamp, and allen head screws.
  To remove the chain, rotate the screw in the front of the housing using the flat screwdriver end of the wrench as shown in figure 3. Turning the screw counterclockwise allows the guide bar to recede and reduces the tension on the chain so that it may be removed.
• Lift the worn chain out of the groove the guide bar.
• Flip guide bar over.
  To replace the chain, check to make sure that the slot in the guide bar is over the two location pins shown in figure 3a and that hole below the slot is located over the adjustment pin.
• Place new chain in groove of guide

bar and around sprocket. Make sure saw teeth are facing correct direction by matching arrow on chain with graphic on housing shown here.

• Rotate the screw in the front of the housing clockwise to increase the chain tension as in Figure 3.
• Replace sprocket cover, bar clamp, and allen head screws.
• Follow instructions for adjusting the chain tension.

Adjusting Chain Tension

With the saw still on a firm surface check the chain tension. The tension is correct when the chain snaps back after being pulled 1/8 in. (3mm) away from the chain bar with light force from the middle finger and thumb as shown in figure 4. There should be no "sag" between the guide bar and the chain on the underside as shown in figure 5.
To adjust saw chain tension, loosen allen head screws.
- Rotate the screw in the front of the housing using the flat screwdriver end of the wrench as shown in figure 3.
- Do not over-tension the chain as this will lead to excessive wear and will reduce the life of the bar and chain. Overtensioning also reduces the amount of cuts you will get per battery charge.
Once chain tension is correct, tighten allen head screws to clamp bar.
- When the chain is new check the tension frequently (after disconnecting battery) during the first 2 hours of use as a new chain stretches slightly.

Chain Oiling

• A high quality bar and chain oil or SAE30 weight motor oil should be used for chain and bar lubrication. The use of a vegetable based bar and chain oil is recommended when pruning trees. Mineral oil is not recommended because it may harm trees. Never use waste oil or very thick oil. These may damage your chain saw.
• Lubricate the whole chain evenly before each use as shown in figure 6. Also lubricate the chain whenever replacing a fully discharged battery with a fully charged one.

Transporting Pole Saw

• Always remove the battery pack from the handle (figure 7) and cover the chain with the scabbard (figure 8) when transporting the Pole Saw.

ASSEMBLY

Joining Saw Head Module to Handle Module

WARNING: Sharp moving blade. To prevent accidental operation, insure that battery is disconnected from the handle and that the protective scabbard is in place on the chain before performing the following operations. Failure to do this could result in serious personal injury.

The three modules which make up the Pole Saw are keyed to insure correct assembly. If a module does not smoothly attach to another do not force fit.

Combining the handle module (A) to the saw head module (C)

creates a pole saw that is approximately 6 foot in length as shown in figure 9.

To attach the handle module to the saw head module:

1. Align the groove on the outside of the coupling end of the handle module (A) with the tongue on the inside of the coupling end of the saw head module (C). See figure 10. Push the two sections completely together.

2. Slide the threaded sleeve (6) figure 11 on the saw head module down as far as possible and rotate the sleeve clockwise until it stops and completely covers the orange threads as shown in figure 12.

WARNING: Always check to make sure that the sleeve is completely threaded on and that the orange threads are no longer visible. Not threading the sleeve completely on could result in the modules becoming disconnect condition. Periodically check the connection orange threads are visible.

Joining Center Extension to Saw Head Module and Handle Module

Adding the extension (B) to the handle module (A) and saw head module (C) creates a Pole Saw that is approximately 9 foot in length as shown in figure 13.

To attach the middle module to the handle module and saw head module:

1. Align the groove on the outside of the coupling end of the handle module (A) with the tongue on the inside of the coupling end of the center extension (B). See figure 14. Push the two sections completely together.
2. Slide the threaded sleeve (6) (figure 15) on the center extension down as far as possible and rotate the sleeve clockwise until it stops and completely covers the orange threads as shown in figure 16.
3. Repeat steps 1 and 2 above to attach the saw head module to the center extension.

WARNING: Always check to make sure that the sleeve is completely threaded on and that the orange threads are no longer visible. Not threading the sleeve completely on could result in the modules becoming disconnected creating a hazardous condition. Periodically check the connections to insure that no orange threads are visible.

DISASSEMBLY

Detaching Saw Head Module

WARNING: Sharp moving blade. To prevent accidental operation, insure that battery is disconnected from the handle and that the protective scabbard is in place on the chain before performing the following operations.

Failure to do this could result in serious personal injury. When detaching the modules, whether it is in the two module or three module mode, always detach the saw head module first. To do this, rest the handle module on the ground and grasp the center of the saw head module with one hand figure 17. Use your other

hand to loosen the threaded sleeve figure 18 and then pull the two halves apart. Repeat this process if the center extension was attached.

WARNING: Read and understand all instructions. Failure to follow all instructions listed below may result in electric shock, fire and/or serious personal injury.

CAUTION: Always reduce the tension off the chain again after finishing work. The chain contracts as it cools down. If it is not slackened off, it can damage the Pole Saw.

IMPORTANT: Never operate a Pole Saw that is damaged or improperly adjusted or that is not completely and securely assembled. Be sure that the saw chain stops moving when the trigger switch is released. Never adjust the guide bar or saw chain when the motor is operating.

Connecting the Battery

Place the battery in the tool as shown in figure 19 and be certain that it is inserted fully into the tool cavity until it "clicks" into place. To remove the battery from the tool, press down on the release button on the back of the battery (figure 20) and slide out.

balance and cause severe injury.

Pole Saw Trimming / Pruning

WARNINGS:

• Never stand directly under the limb you are cutting. Always position yourself out of the path of falling debris.

Always wear head, eye, foot and body protection. Wearing body protection helps reduce the risk of injury when operating this unit.

• Never stand on a ladder or other unstable support while using the

Pole Saw.

Always avoid any position which can

Cause you to loose your

On/Off Switch

Always be sure of your footing and grip the Pole Saw firmly with both hands with the thumb and fingers encircling the handle. To turn the tool ON pull the lock button (1) back with your thumb and then squeeze the trigger (2) with your fingers as shown in figure 21. (Once the tool is running you can release the lock button.) To turn the tool OFF, release the trigger.

Auto-Stop Chain Braking System

Your chain saw is fitted with an auto-stop chain braking system which will stop the chain quickly each time you release the rear trigger, or if kickback should occur. This system should be tested before every use.

Pruning With the Pole Saw

WARNING: Let the tool work at its own pace. Do not overload.

WARNING: When pruning trees:

• Guard Against Kickback which can result in severe injury or death. See "KICKBACK", to avoid the risk of kickback.
• Do not overreach. Make sure your footing is firm. Keep feet apart. Divide your weight evenly on both feet.
  Use both hands to grip Pole Saw as shown in figure 22.Use a firm grip.Thumbs and fingers must wrap around Pole Saw handle and pole. Keep fingers away from sawdust exhaust chute shown in figure 22a. 22a
• Never operate while in a tree, in any awkward position or on a ladder or other unstable surface. You may lose control of Pole Saw causing severe injury.

Follow directions below to trim a tee.

1. Make sure Pole Saw is running at full speed before making a cut. When starting a cut, place moving chain against limb. Hold Pole Saw firmly in place to avoid possible bouncing or skating (sideways movement) of Pole Saw.
2. Guide Pole Saw using light pressure. Make first cut six inches from tree trunk on underside of limb. Use top of guide bar to make this cut. Cut 1/3 through diameter of limb. Then make the finish cut from the top as shown in

figure 23.

If you try to cut off thick branches from the bottom, the branch may close in and pinch the saw chain in the cut. If you try to cut off thick branches from the top, without a shallow undercut, the branch may splinter figure 24.

Do not force Pole Saw. The motor will overload and can burn out. It will do the job better and safer at the rate for which it was intended.

1. Remove Pole Saw from cut while it is running at full speed. Stop Pole Saw by releasing trigger. Make sure chain has stopped before setting Pole Saw down.

Saw chain sharpness

CAUTION: Sharp chain. Always wear protective gloves when handling the chain. The chain is sharp and can cut you when it is not running.

IMPORTANT: The chain cutters will dull immediately if they touch the ground, stones, masonry or a nail while cutting.

To get the best possible performance from your chain saw it is important to keep the teeth of the chain sharp. Chain sharpening services are available from your nearest Black+Decker service center.

NOTE: Each time the chain is sharpened, it loses some of the low kickback qualities and extra caution should be used. It is recommended that a chain be sharpened no more than four times.

Saw chain tension

This should be done regularly. Refer to "Adjusting Chain Tension".

ACCESSORIES

Replacement chain and bar are available from your nearest Black+Decker service center.

Replacement chain # 623382-00, Replacement bar # 623381-00 The use of accessories not recommended in this manual may be hazardous.

POLE SAW MAINTENANCE SECTION

Regular maintenance ensures a long effective life for the tool. After every 10 minutes of use be sure to remove the battery (be aware the chain and bar can be hot!) check the bar and chain for correct tension and lubricate per pole saw instruction manual. Use only mild soap and damp cloth to clean the tool. Never let any liquid get inside the tool; never immerse any part of the tool into a liquid.

IMPORTANT: To assure product SAFETY and RELIABILITY, repairs, maintenance and adjustment should be performed by authorized service centers or other qualified service organizations, always using identical replacement parts. ACCESSORIES

WARNING: DO NOT use the Hedge Trimmer with any type of accessory or attachment. Such usage might be hazardous.

TROUBLESHOOTING

If your Pole Saw does not operate correctly check the following: Problem Possible Cause Possible Solution

• Tool will not start.

• Battery not installed properly.

• Battery not charged.
• Lock-out button not actuated.

• Pole connections not properly tightened.

• Check battery installation.

• Check battery charging requirements.

Pull back on lock button/actuate trigger.
Refer to instruction manual for pole connections.

Unit will not charge.

• Battery not inserted into charger.

Insert battery into charger until green LED appears. Charge up to 8 hours if battery is totally drained.

• Bar / chain overheated.

• Chain too tight.

• Lubrication needed.

Refer to section on adjusting chain tension.
Refer to sections for chain oiling application.

• Chain is loose.

• Chain tension set incorrectly.

Refer to section for chain tensioning.

Poor cut quality.

• Chain tension set incorrectly.

Refer to section on adjusting chain tension. Note: Excessive tension leads to excessive wear and reduction in life of bar & chain. Lubricate after every 10 minutes of use. Refer to section for installation of chain.

• Chain needs replacement.

Refer to sections for installing and removing chain.

For assistance, visit our website www.blackanddecker.com for the location of the service center nearest you or call the Black+Decker help line at 1-800-544-6986.

THE RBRC™ SEAL

The RBRC^TM (Rechargeable Battery Recycling Corporation) Seal on the LI-ION battery (or battery pack) indicates that the costs to recycle the battery (or battery pack) at the end of its useful life have already been paid by Black+Decker.

RBRC™ in cooperation with Black+Decker and other battery users, has established programs in the United States to facilitate the collection of spent LI-ION batteries. Help protect our environment and conserve natural resources by returning the spent LI-ION battery to an authorized Black+Decker service center or to your local retailer for recycling. You may also contact your local recycling center for information on where to drop off the spent battery. RBRC™ is a registered trademark of the Rechargeable Battery Recycling Corporation.

SERVICE INFORMATION

All Black+Decker Service Centers are staffed with trained personnel to provide customers with efficient and reliable power tool service. Whether you need technical advice, repair, or genuine factory replacement parts, contact the Black+Decker location nearest you. To find your local service location, call: 1-800-544-6986 or visit www.blackanddecker.com.

This Class B digital apparatus complies with Canadian ICES-003. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This Class B digital apparatus complies with Canadian ICES-003.

TWO-YEAR LIMITED WARRANTY

Black & Decker (U.S.) Inc. warranties this product to be free from defects in material or workmanship for a period of two (2) years following the date of purchase, provided that the product is used in a home environment. This limited warranty does not cover failures due to abuse, accidental damage or when repairs have been made or attempted by anyone other than Black+Decker and its Authorized Service Centers. A defective product meeting the warranty conditions set forth herein will be replaced or repaired at no charge in either of two ways:

The first, which will result in exchanges only, is to return the product to the retailer from whom it was purchased (provided that the store is a participating retailer). Returns should be made within the time period of the retailer's policy for exchanges. Proof of purchase may be required. Please check with the retailer for its specific return policy regarding time limits for returns or exchanges. The second option is to take or send the product (prepaid) to a Black+Decker owned or authorized Service Center for repair or replacement at Black+Decker's option. Proof of purchase may be required.

Black+Decker owned and authorized service centers online at www. blackanddecker.com.

This warranty does not apply to accessories. This warranty gives you specific legal rights and you may have other rights which vary from state to state. Should you have any questions, contact the manager of your nearest Black+Decker Service Center. This product is not intended for commercial use, and accordingly, such commercial use of this product will void this warranty. All other guarantees, express or implied, are hereby disclaimed.

LATIN AMERICA: This warranty does not apply to products sold in Latin America. For products sold in Latin America, check country specific warranty information contained in the packaging, call the local company or see the website for such information.

Imported by

Black & Decker (U.S.) Inc.,

701 E. Joppa Rd.

Towson, MD 21286 U.S.A.

BlackandDecker.com

1-800-544-6986

BLACK+ DECKER TM

SCIE À LONG MANCHE AVEC BLOC-PILES AU LITHIUM, 20 V MAX.*

MANUEL D'INSTRUCTIONS

NUMERO DE MODELE LPP120

MERCI D'AVOIR CHOISI BLACK + DECKER!

RENSEIGNEMENTS IMPORTANTS

LIRE LES INSTRUCTIONS AVANT D'UTILISER!

Black & Decker Canada Inc.

100 Central Ave.

Col. Americana, S. Juarez

Guadalajara, Jalisco

Tel. [phone]

Col. Fracc. Universidad

Chihuahua, Chihuahua

Tel. [phone]

Fernando González Armenta

Bolivia No. 605

Col. Felipe Carrillo Puerto

Cd. Madero, Tampico

Tel. [phone]

BOSQUES DE CIDROS ACCESO RADIATAS NO.42

COL. BOSQUES DE LAS LOMAS.

05120 MEXICO, D.F.

TEL. [phone]

018008472309/018008472312

Cat No. LPP120

Form No. 90614606

October 2014

Copyright © 2014 Black+Decker

Printed in China
