USER MANUAL UC 6620 GRUNDIG

DE-EN-ES-TR-FR-HR-PL

DEUTSCH 04-13

ENGLISH 14-20

ESPNOL 21-30

TÜRKCE 31-40

FRANCAIS 41-48

HRVATSKI 49-54

POLSKI 55-61

Electrical insulation class: II

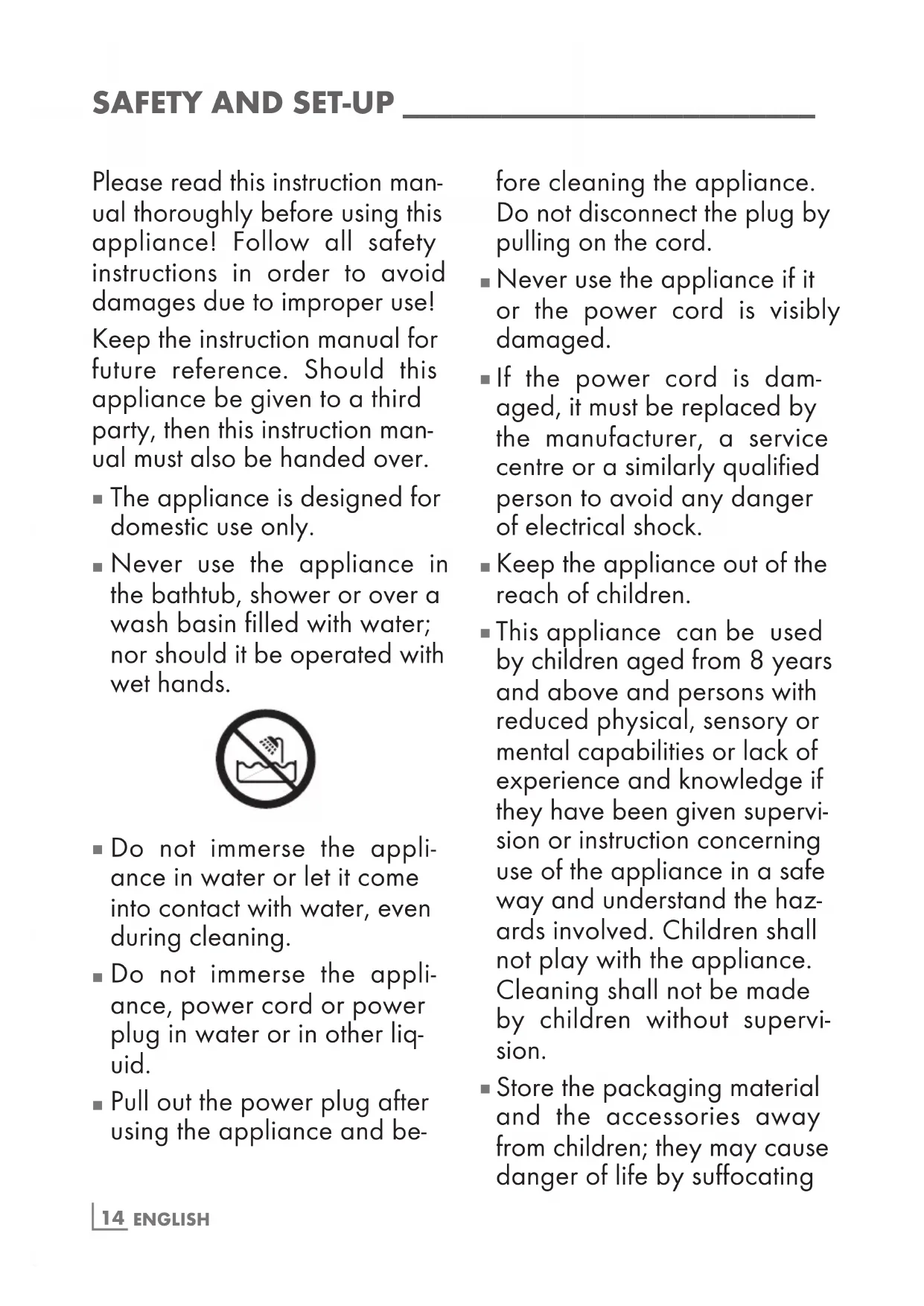

Please read this instruction manual thoroughly before using this appliance! Follow all safety instructions in order to avoid damages due to improper use! Keep the instruction manual for future reference. Should this appliance be given to a third party, then this instruction manual must also be handed over.

The appliance is designed for domestic use only.
- Never use the appliance in the bathtub, shower or over a wash basin filled with water; nor should it be operated with wet hands.

• Do not immerse the appliance in water or let it come into contact with water, even during cleaning.
• Do not immerse the appliance, power cord or power plug in water or in other liquid.
  Pull out the power plug after using the appliance and be

fore cleaning the appliance. Do not disconnect the plug by pulling on the cord.

• Never use the appliance if it or the power cord is visibly damaged.
  If the power cord is damaged, it must be replaced by the manufacturer, a service centre or a similarly qualified person to avoid any danger of electrical shock.
• Keep the appliance out of the reach of children.
  This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning shall not be made by children without supervision.
  Store the packaging material and the accessories away from children; they may cause danger of life by suffocating

and swallowing.

• Never open the appliance under any circumstance. No warranty claims are accepted for damage caused by improper handling.
• Check if the mains voltage on the type label corresponds to your local mains supply. The only way to disconnect the appliance from the mains is to pull out the plug.
• Keep the surface of the appliance, control panel and switch always clean and dry.
  To clean the appliance, see the "Cleaning and care" section.
• Do not operate the appliance without filling with water, otherwise it will get damaged.
• Do not let power cord hang over sharp edges or hot surfaces.
• Do not operate or place any part of this appliance on or near any hot surface, such as

gas or electric burners.

• Do not use the appliance for any purpose other than its intended use. The appliance is designed for cleaning jewelry, waterproof watches, glasses, etc.; see the "Which objects should be cleaned" section.
• Do not use the appliance with wet hands.
  Use the appliance on a stable work surface.
• Unplug the appliance before filling it. Do not exceed the "MAX" marking when filling with water.
• Do not place sensitive, small objects directly in stainless steel tank, otherwise they will get scratched; use the plastic cleaning basket for them.
• Do not use strong cleansing agents or chemicals, such as caustic, ammonia, bleach, detergents with strong perfumes, in the appliance.
• Do not touch the inside of the appliance and the cleaning liquid while it operates.

Dear Customer,

congratulations on the purchase your new GRUNDIG UC 6620 Ultrasonic Cleaner.

Please read the following user guide carefully to ensure that you have many years of enjoyment from your quality Grundig product at home.

Meanings of the symbols

Following symbols are used in various sections of this manual:

Important information and useful hints about usage.

WARNING: Warnings against dangerous situations concerning the security of life and property.

Electrical insulation class.

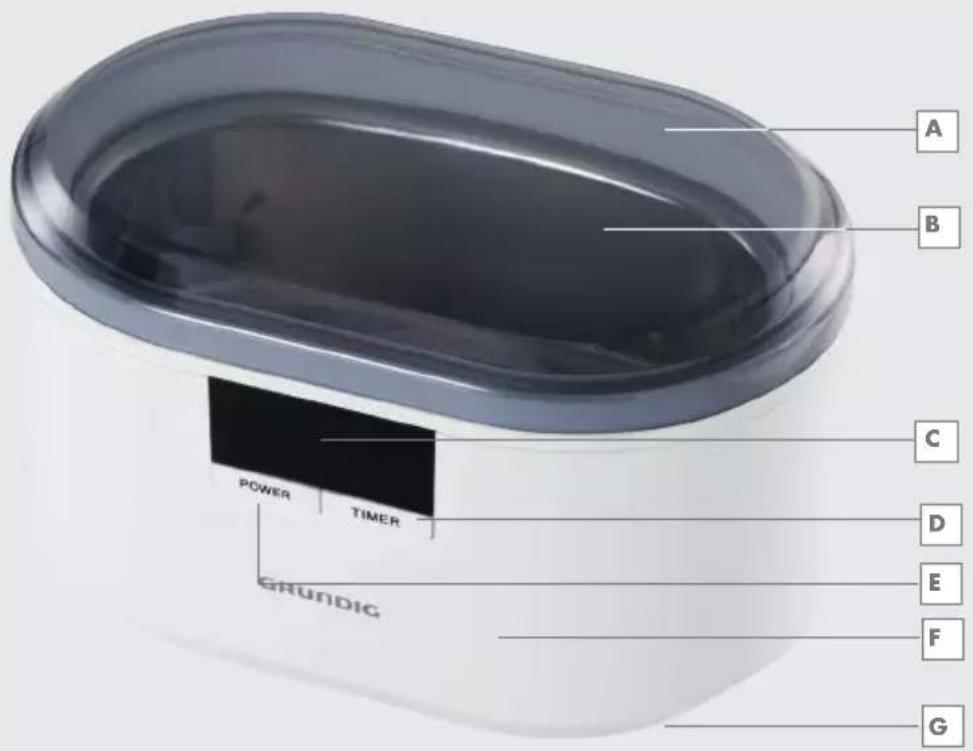

Controls and parts

See the figure on page 3.

A Translucent lid
B Stainless steel tank (600 ml)
LED Display
D Timer Button
Power Button
F Body
G Power cord

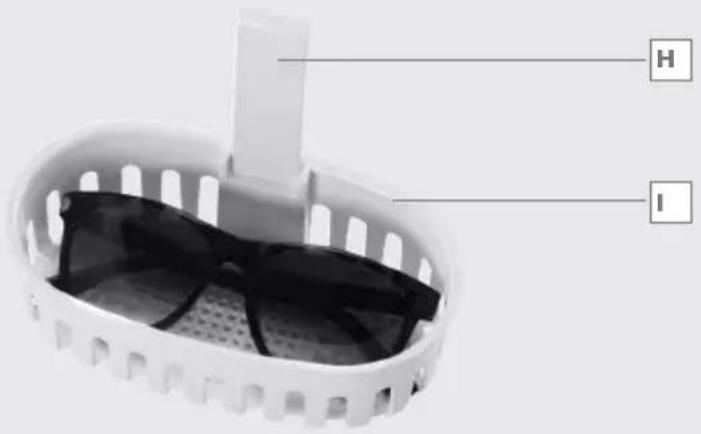

Accessories

Watch holder
Plastic cleaning basket

Which objects should be cleaned?

Glasses

Place your glasses always with the glasses in upward position into the plastic cleaning basket

Glasses or glass frames which have scratches should not be cleaned in the appliance. Ultrasonic technology can deeper the scratches.

Coated glasses can be damaged.

Gold, silver and metal jewelry

The appliance is suitable for cleaning gold, silver and metal jewelry. The jewelry should not contain fragile or porous stones. See also 'Which objects should not be cleaned?'. To be on the safe side, you should consult the store, where you purchased the jewelry, whether it is suitable for cleaning with the ultrasonic cleaner.

Metal bracelets of waterproof watches

Do not clean clockworks with the appliance since they may be damaged.

Do not clean watches which are not waterproof.

Do not clean mechanical watches with the appliance. The spiral spring in the watch may be magnetic and the watch would not show the exact time.

Other objects

Combs, dentures, braces, or heads of electric shavers;
Nibs, ink jet printer cartridges, seals;
Metal cutlery, coins, metal nozzles or valves of metal.

Which objects should not be cleaned?

Jewelry with fragile or porous stones

Do not use the appliance for cleaning fragile or porous stones, such as pearls and mother of pearl, emerald,opal, coral, turquoise, lapis lazuli, malachite, black onyx and tiger eye.

Glasses with frames made of natural materials

Do not use the device for cleaning glasses with frames made of fragile or porous natural materials such as tortoiseshell and horn.

Other objects

• Objects consist of or containing wood, textile or leather
  Contact lenses
• Costume jewelry, especially silver-plated costume jewelry

Hints and Tips

Most of the dirt will already be loosened at the first cleaning operation. If there are still some dirt particles at the objects, you can try to remove with a damp, soft cloth before repeating the cleaning operation for a second time.
Clean one side of large objects first. After finishing please turn the large objects for cleaning the other side and start operation again.
If you want to have a better cleaning for very dirty objects, you can repeat the cleaning operation for several times. Wait at least 2 minutes before you start the next cleaning operation.
You can increase the effect of cleaning by adding a few drops of a very soft liquid soap in the water. For your watches and jewelry, ask the specialists where you buy them, whether they are suitable for cleaning with liquid soap.

Before first use

Remove the transparent protection sleeve on the power button E panel before using the appliance for the first time.

Cleaning sensitive and small objects

1 Open translucent lid A and fill the stainless steel tank B with water.

Caution

Do not exceed the "MAX" marking.
Do not operate the appliance without filling with water, otherwise it will get damaged.
Use only clear, cold water.

2 Put the object in the plastic cleaning basket

3 Place the plastic cleaning basket into the stainless steel tank.
4 Close the translucent lid A.
5 Plug the power cord G into a suitable power outlet. -LED display C shows 180.
- Use timer button to adjust the cleaning time between 90-480s.
6 Press the power button E.
7 The remaining cleaning time is displayed on the screen. When the cleaning operation finishes, the screen will show 00:00.
8 After using the appliance, disconnect the power cord G from the power outlet.

9 Open the translucent lid A and take out the plastic cleaning basket with the object. Pour out the water and clean the appliance. See the "Cleaning and care" section.

Notes

You can put multiple of jewelry at the same time.
Put the glasses in the plastic cleaning basket always with the glasses in upward position.
- Plastic cleaning basket absorbs one third of the ultrasonic energy and decreases the cleaning power. So it might be necessary to repeat the cleaning operation more than once.
■ Be sure that the water level does not exceed the "MAX" marking after placing the objects into the stainless steel tank B. If the "MAX" marking is exceeded, take objects out until the water level again matches with the "MAX" marking.
The object should be immersed well into the water.

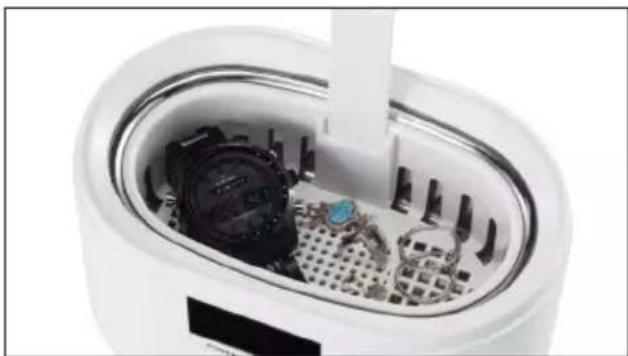

Cleaning metal bracelets of waterproof watches

1 Open translucent lid A and fill the stainless steel tank B with water.

Caution

Make sure that the watch is waterproof and suitable for cleaning in the Ultrasonic Cleaner.
Do not exceed the "MAX" marking.
Do not operate the appliance without filling with water, otherwise it will get damaged.
Use only clear, cold water.
2 Place the watch onto the plastic watch stand H in the plastic cleaning basket I.

3 Place the plastic cleaning basket into the stainless steel tank B.
4 Close the translucent lid A.
5 Plug the power cord into a suitable power outlet.

• LED display C shows 180.
• Use timer button to adjust the cleaning time between 90-480s.

6 Press the power button E.

Cleaning large objects

1 Open translucent lid A fill the stainless steel tank B with water.

Caution

Do not exceed the "MAX" marking.
- Do not operate the appliance without filling with water, otherwise it will get damaged.
Use only clear, cold water.
2 Put the object in the stainless steel tank B.
3 Plug the power cord into a suitable power outlet.

• LED display C shows 180.
• Use timer button to adjust the cleaning time between 90-480s.

Notes

• You can use the appliance with the translucent lid.
  A open for large objects.
  Clean one part of the large objects first. After cleaning, insert the uncleaned part of the object into the appliance and repeat the cleaning process.

Cleaning and care

1 Turn the appliance off and unplug it.
2 Pour out the water in the stainless steel tank B.
3 Clean and dry stainless steel tank B and the exterior of the appliance. Use only damp, soft cloth to clean.

Caution

• Never put the appliance or power cord in water or any other liquid.

Storage

If you do not plan to use the appliance for a long period of time, please store it carefully.
Make sure that it is unplugged and is completely dry.
- Do not wrap the power cord around the appliance.
Store it in a cool and dry place.
Make sure the appliance is kept out of the reach of children.

Compliance with the WEEE Directive and Disposing of the Waste Product:

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to official collection point for recycling of electrical and electronic

devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not

dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

Technical data

Power supply: 220-240V\~, 50-60Hz

Power:50W

Electrical insulation class: II

Technical and design modifications reserved.
