HS200M - Scale Brecknell - Free user manual and instructions

Product type	Medical scale
Brand	Brecknell
Model	HS200M
Maximum capacity	160 kg / 350 lb, 180 kg / 400 lb, 200 kg / 450 lb
Graduation	100 g / 0.25 lb
Height measurement range	60 to 210 cm
Minimum division value (height)	5 mm
Platform dimensions	375 cm x 275 cm
Overall dimensions (L x W x H)	530 mm x 275 mm x 1485 mm
Main functions	Body weighing and height measurement
Maintenance and cleaning	Clean with a soft, dry cloth. Do not use harsh solvents.
Safety	Conforms to OIML R76 standard. Do not exceed the maximum capacity.
Spare parts and repairability	Contact Brecknell customer service (details provided in the manual).
General information	Ideal for school infirmaries and medical examination rooms.

Frequently Asked Questions - HS200M Brecknell

How to install the HS200M scale?

Follow the steps in the manual: insert the pillar into the base, fix it with the screws, connect the spring bar to the long lever, install the height rod and the castors. See figures 1 to 5.

How to measure height with this scale?

Use the sliding height rod. Place the patient standing on the platform, lower the rod to the top of the head and read the measurement on the scale. The range is 60 to 210 cm with a precision of 5 mm.

What is the maximum capacity of the HS200M scale?

The scale is available in three versions: 160 kg (350 lb), 180 kg (400 lb) or 200 kg (450 lb). Check the exact model on your device. Never exceed this capacity.

How to maintain the scale?

Clean the scale with a soft, dry cloth. Avoid chemical solvents. For mechanical parts, lubricate lightly if necessary. Refer to the manual for details.

Is the HS200M scale compliant with standards?

Yes, it conforms to the R76 standard of the International Organization of Legal Metrology (OIML), ensuring high accuracy and sensitivity.

How to safely move the scale?

Always lift the base of the scale by taking it from the bottom. Do not drag it on the floor to avoid damaging the castors or the mechanism.

What to do if the display or measurement is unstable?

Check that the scale is on a flat and hard surface. Make sure the castors are locked and the height rod is securely attached. If the problem persists, contact customer service.

Can I use the scale for other purposes than medical weighing?

Yes, the scale can be used for other weighing needs within its maximum capacity. However, its primary use is body weighing and height measurement.

How to contact Brecknell customer service?

In the USA: call 800-637-0529 or email [e-mail]. In the UK and Europe: visit www.brecknellbases.co.uk. Contact details are provided in the manual.

What are the dimensions of the HS200M scale?

The platform measures 375 cm x 275 cm (note: likely 375 mm in reality). The overall dimensions of the assembled unit are 530 mm (L) x 275 mm (W) x 1485 mm (H).

USER MANUAL HS200M Brecknell

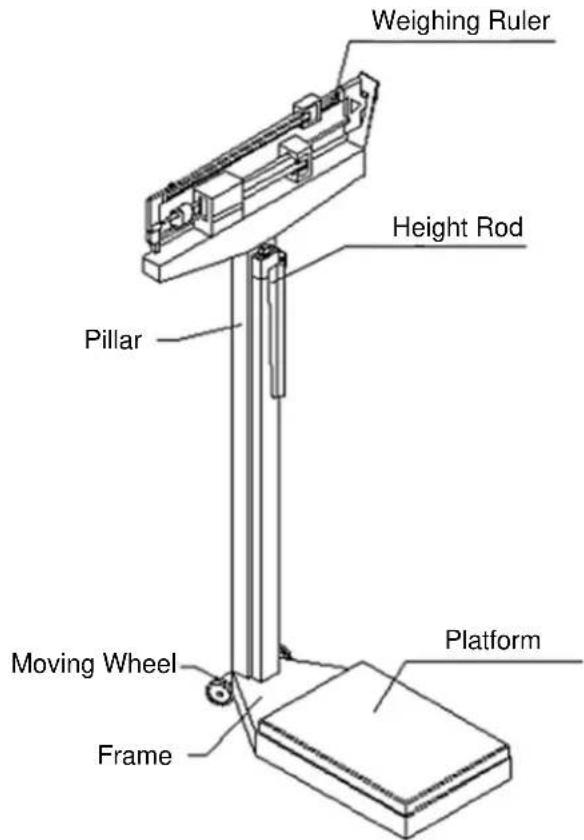

The Health Scale HS-200M is designed to both weigh the body and measure the height and meets the OIML International Recommendation R76. The scale has the advantage of a large weighing range, accuracy and high sensitivity. It is ideal for school nurse's offices or for doctor's screening rooms where height and patient weight measuring is necessary. It is also can be used for other weighing needs.

Specification:

1. Maximum capacity: 160kg/350lb, 180kg/400lb, 200kg/450lb;
2. Graduation: 100g/0.25lb
3. Height Range: 60-210cm
4. Minimum value of height per division: 5mm
5. Platform size: 375cm× 275cm
6. Overall dimension (L × W × H) 530mm × 275mm × 1485mm

Installation Instruction:

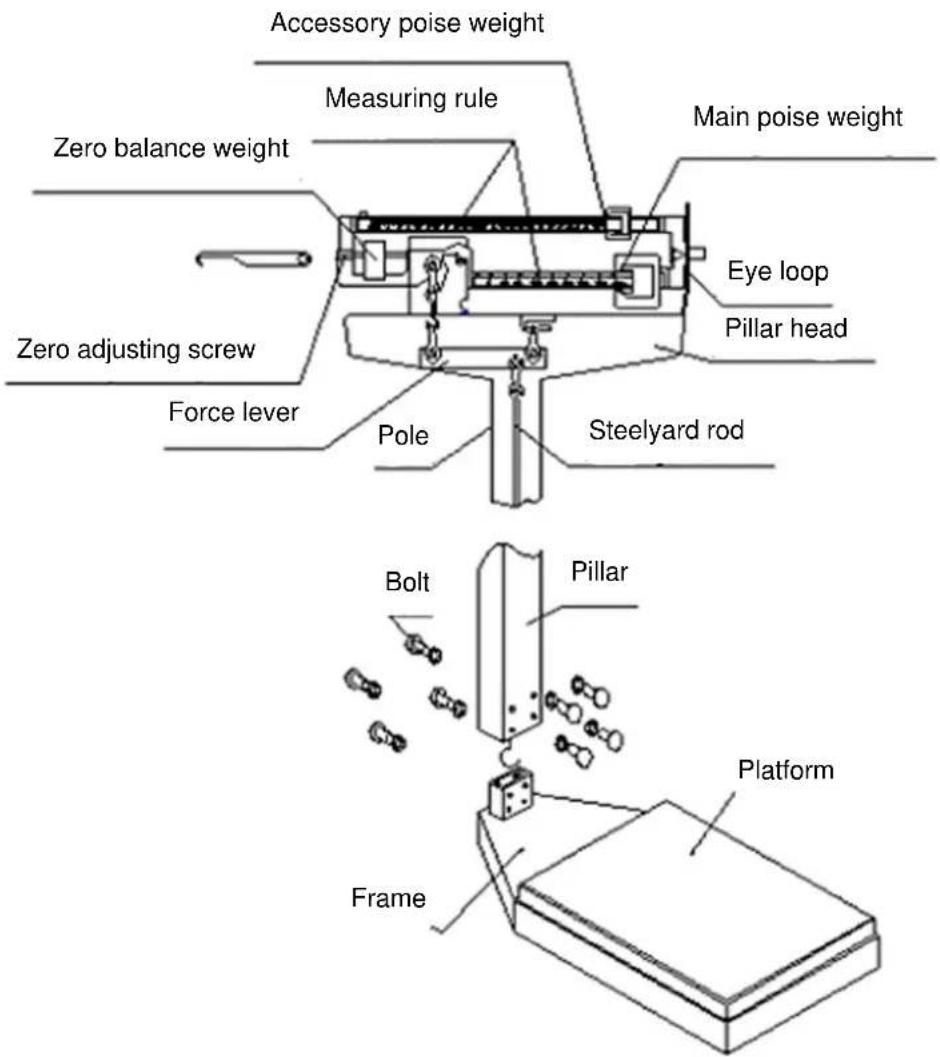

Pillar Installation (Fig.2):

1. Insert the pillar upright to the bracket on frame
2. Use the screws and washer to fix the pillar in a vertical position

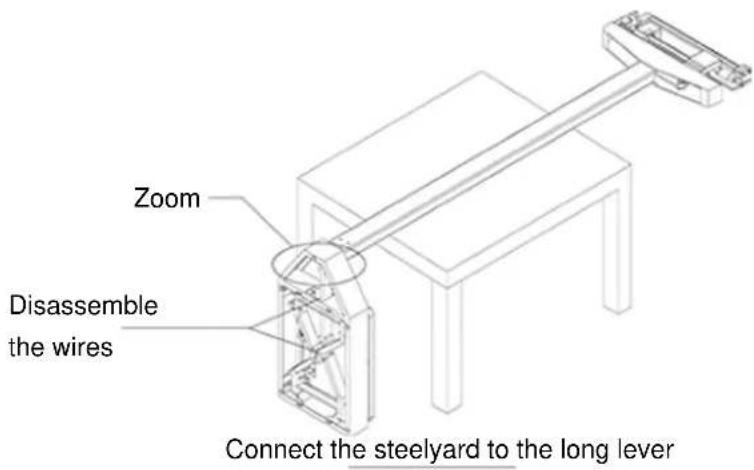

II. Connect the steelyard rod to long lever (Fig.3):

1. Lay the pillar on a table (Fig.3)
2. Disassemble the wires on the levers.
3. Insert the wrench into the small hole in front of the steelyard rod, and pull the hook of the steelyard rod with the hook of wrench (Fig. 3.1)
4. Push the long lever forward, then hook the bearing of the steelyard rod on the pivot of the long lever (Fig. 3-2)
5. Take away the wrench form the draft rod (Fig.3-3)
6. Put the scale on the ground gently

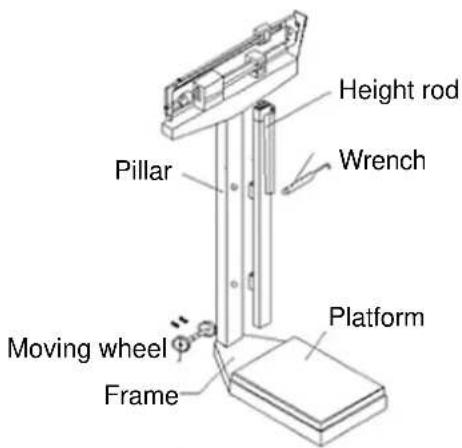

III. Height Rod Installation:

Fig 4: Height rod installation

Fig 4.1: Back side hole of the height rod

Fig 4.2

Fig 4.3

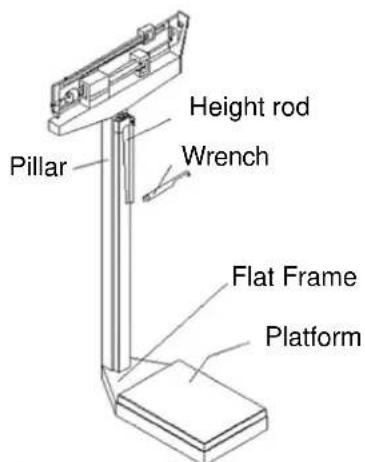

1. Insert the back side holes of the height rod into the two bolts on the front side of pillar; loosen the height rod pulling downwards until in correct position. (Fig.4-1)
2. Use the wrench to tighten the two hex-head screws. Do not over tighten the screws.
3. Remove the wrench from the two hex head screws. (Fig.4-3)

IV. Moving Wheel Installation (Fig.5):

Fig. 5

Fig. 5.1

1. Turn the wheels so that the holes are facing the rear of the scale, place the screws in the holes. (Fig.5-1)
2. Use the screws and washers to fix the wheel to the platform, adjust the angle iron to a level position and then tighten the screws.
3. When moving the scale, make sure the base of the scale is lifted from the floor, do not drag the scale.
