USER MANUAL GR 4550 Orbegozo

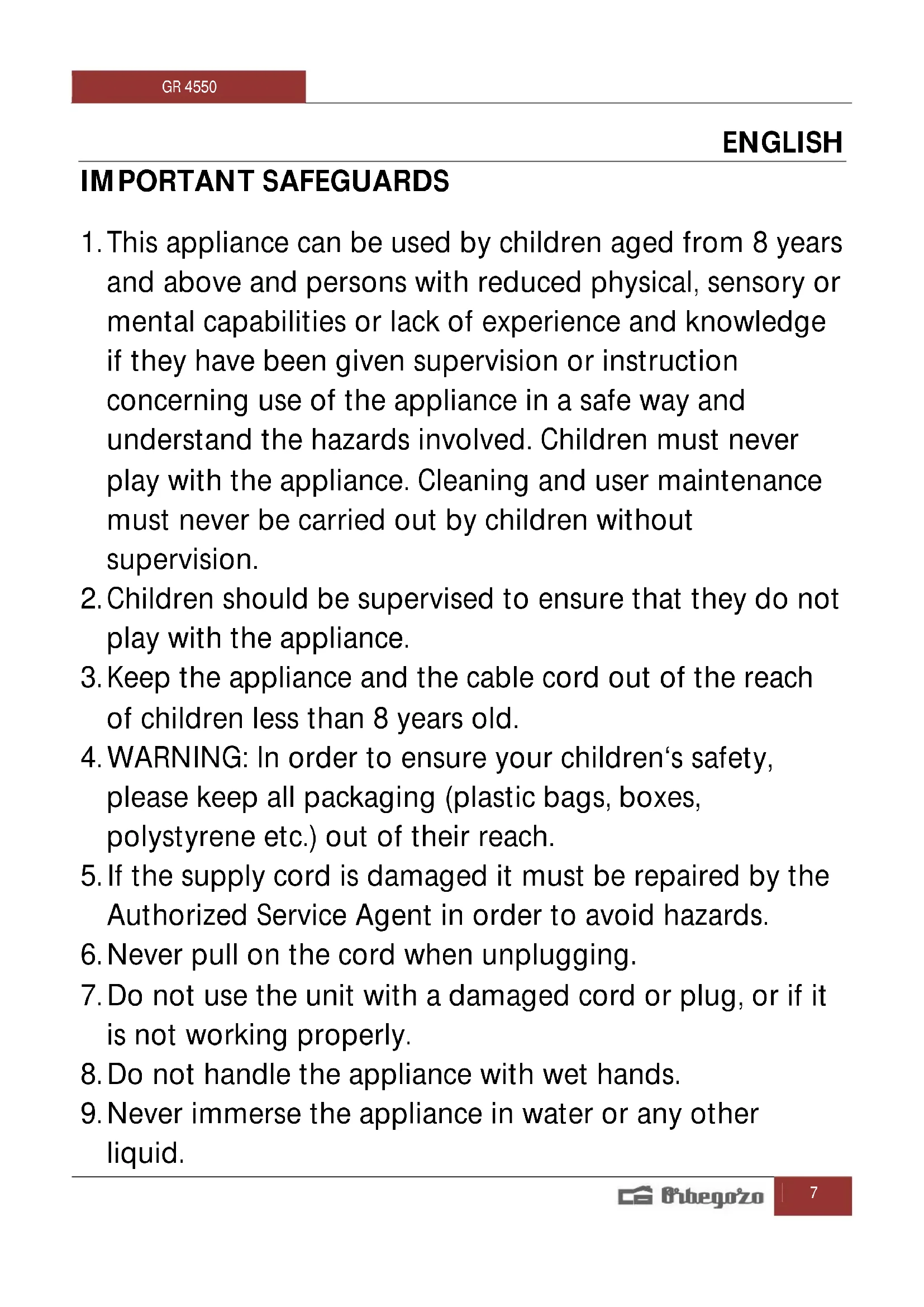

1. This appliance can be used by children aged from 8 years

and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.

2. Children should be supervised to ensure that they do not

play with the appliance.

3. Keep the appliance and the cable cord out of the reach

of children less than 8 years old.

4. WARNING: In order to ensure your children‘s safety,

please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

5. If the supply cord is damaged it must be repaired by the

Authorized Service Agent in order to avoid hazards.

6. Never pull on the cord when unplugging.

7. Do not use the unit with a damaged cord or plug, or if it

is not working properly.

8. Do not handle the appliance with wet hands.

9. Never immerse the appliance in water or any other

10. Make sure the appliance has been unplugged before

11. This appliance must be installed following the national

regulations for electrical installations.

12. This appliance is for household use only.

13. In case that you need a copy of the instruction manual,

you can find it in our website www.orbegozo.com

14. WARNING: In case of misuse, there is a risk of possible

• To reduce the risk of electric shock, do not immerse or expose the product or flexible cord to rain, moisture or any liquid other than those necessary for correct operation of the product.

• This product should not be used in the immediate vicinity of water, such as bathtub, washbowls, swimming pool etc. where the likelihood of immersion or splashing could occur.

• Ensure the power cord is kept away from the cooking plates of the Grill when in use.

• Do not leave the appliance unattended when switched on.

• Switch off and unplug from outlet when not in use, before assembling or disassembling parts and before cleaning.

• Do not use the appliance for other than its intended use.GR 4550

• Do not let the cord hang over the edge of a table or bench or touch any hot surfaces.

• Do not operate or place any part of this product on or near any hot surface (such as gas or electric burner or hot plate or in a heated oven).

• Avoid touching hot surfaces, use handles and knobs.

• When using the grill, ensure that there is sufficient air space above and all sides for air circulation.

• The use of attachments or accessories not recommended or sold by the product distributor may cause personal or property hazards or injuries.

• Do not operate the device connected to an external timer or a separate remote control system.

• ATTENTION. Hot surface. The surface can become hot during operation.

With very little imagination, you can make a fantastic variety of snacks, meals, entertaining, all type of toasted and melted snacks. There is no need to restrict yourself to the plain old type toasted Grill. BEFORE USING YOUR GRILL FOR THE FIRST TIME Note: When using the grill for the first time, the unit will emit a fine smoke. This is caused by the heating of the elements and new components and can be disregarded.

• Remove all packaging from the Grill before use.

• Check that the cooking plates are free of dust. Wipe the surface of the plates with a damp cloth and dry with cloth, kitchen towel etc.

• Place the Grill on a flat level surface. Unlock the Storage clip, and unscrew the Adjustable Height knob, this will allow the top and bottom to open and close.GR 4550

• Cooking plates must be in the closed position for pre-heating.

• Note: For the first use ONLY, season the plates by applying a thin coat of cooking oil, butter or margarine to the cooking surfaces and rub in with a paper towel. Exercise care, as the cooking plates will be hot.

HOW TO USE THE GRILL

• Select your desired temperature level with thermostat knob.

• Close the grill and plug to the mains, the red light (ON/OFF) will switch on, showing the grill is warming.

• It will take 5 minutes to reach the desired temperature, when it happens the green light (ready) will switch on.

• Open the grill, place on bottom grill place the sandwich, meat or other kind of food.

• Close the grill, the green light will switch off.

• Cook for 3-5 minutes, until the green light turns on again, until the bread is golden or until your personal taste.

• When the food is ready open the grill by the handle, to avoid touch hot surface. Remove the food with plastic or wood spatula. Never use metal utensils or knives; they could damage the non-stick coating from grill plates.

• When you finish of cooking, unplug the grill and let it open to cool down.

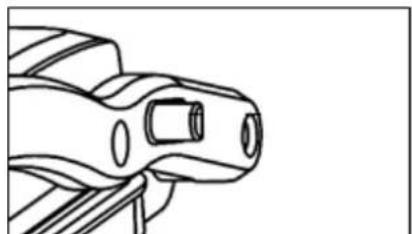

• Place the grill in a clean and flat surface. The grill can open 180º, to do it pull of the tab placed on the handle side when the grill is opened about 90º, so you can open it until 180º and you will have a bigger cooking surface.

• Use the grill in this position to cook burgers, steaks, chicken steaks (no recommended bone-in chicken, because they will not cook well), fish and vegetables.

• On this way, you can cook two kind of food avoiding mixing their flavors, cooking each one in each plate. You can also cook different cuts of meat with different thickness, allowing cook each them for different time.

• For the food will be healthier, the grill allow that the grease fall down for the inclination to the collecting grease tray, placed under the corresponding opening (back side)

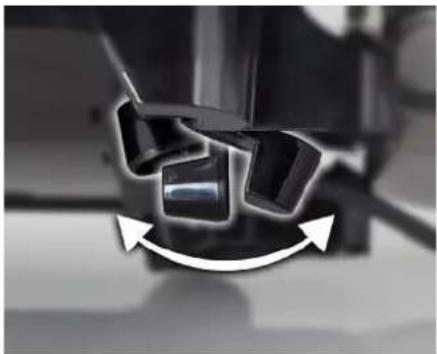

• So that the grease collects perform better their function is recommended to place the feet in the base as shown in the following image, to create a better slope.GR 4550

CLEANING AND MAINTENANCE

• Always unplug the grill and allow it to cool before cleaning. The appliance is easier to clean when it is slightly hot (not burned). It is not necessary to remove the grill to clean it. Never immerse the grill in water or put it in the dishwasher.

• Wipe the grill plates with a soft cloth to remove debris from the food. When the residues are glued, pour a little hot water over them and remove with a plastic spatula.

• Do not use abrasive products or utensils that can scratch and damage the nonstick coating of the plates.

• Clean the outside of the grill only with a damp cloth. Do not immerse in water or other liquid.

• Remove and empty the grease trap after each use and clean it in hot water with detergent. Rinse and dry before reuse. STORAGE

• Always unplug the grill before storing it.

• Always make sure the grill is cool and dry before storing.

• The power cord can be wrapped in the base when storing the appliance. Disposal of old electrical appliances. The European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance. DECLARATION OF CONFORMITY: This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2014/30/EU.GR 4550
