USER MANUAL 48591802 MILWAUKEE

contains important safety and operating in- structions for the MILWAUKEE Li-Ion charger and MILWAUKEE Li-Ion batteries.

2. Before using the battery and charger, read this

operator's manual, tool's operator’s manual, and all labels on the battery, charger and tool.

CAUTION Use MILWAUKEE Li-Ion batteries only on recommended MILWAUKEE Li-Ion products (i.e., M18™ bat- teries with M18™ charger/tools, M12™ batter- ies with M12™ charger/tools). Do not use counterfeit, aftermarket, or "knocko󰀨" batter- ies or chargers. Other battery types could explode. Do not wire a battery to a power sup- ply plug or car cigarette lighter.

4. Keep batteries out of the reach of children.

5. Avoid dangerous environments. Do not expose

to or charge in rain, moisture, snow, damp, or wet locations. Do not use battery or charger in the presence of explosive atmospheres (gaseous fumes, dust or ammable materials). Sparks may be generated when inserting or removing battery, possibly causing re.

6. Only charge in a well ventilated area and within

the Recommended Ambient Charging Tem- perature range. Do not block vents; keep them clear for proper ventilation. Do not allow smoking or open ames near a charging battery. Vented gases may explode.

7. Maintain charger cord. Pull plug rather than cord

to unplug. Never carry charger by its cord. Keep cord from heat, oil and sharp edges. Ensure cord will not be stepped on, tripped over, damaged, or stressed. Do not use charger with damaged cord or plug. Replace damaged cords immediately.

8. Avoid using an extension cord when possible.

When unavoidable, use an extension cord in good electrical condition with the proper wire gauge and length for the current rating of the charger. The pin size and shape must match the pins on the charger cord.

9. Charger is rated for 120-127 V AC ONLY.

Charger must be plugged into an appropriate receptacle.

10. Use only recommended attachments.

12. Always unplug charger before cleaning or

maintenance. Do not allow water to ow into AC/ DC plug. Use a Ground Fault Circuit Interrupter (GFCI) to reduce shock hazards.

13. Do not burn, incinerate, or expose batteries

to re or excessive temperatures above 265°F (130°C). Batteries may explode. Toxic fumes and materials are created when batteries are burned.

14. Do not crush, drop, shred, modify, or damage

battery. Always securely contain batteries during transport. Do not use a battery that has received a sharp blow, been dropped, run over, or damaged in any way (e.g., pierced with a nail, hit with a hammer, stepped on, in a vehicle accident). Do not use or charge batteries that appear dam- aged or swollen, or are not functioning properly. Damaged or modied batteries may exhibit un- predictable behavior.

15. Do not disassemble or attempt to repair bat-

teries or chargers. No internal serviceable parts. Take batteries/chargers that have been damaged, broken, or need repair to a MILWAUKEE service facility to ensure the safety of the product is maintained.

16. Battery chemicals cause serious burns.

Never allow contact with skin, eyes, or mouth. If a damaged battery leaks battery chemicals, use rubber or neoprene gloves to dispose of it. If skin is exposed to battery uids, wash with soap and water and rinse with vinegar. If eyes are exposed to battery chemicals, immediately ush with water for 20 minutes and seek medical attention.

17. Do not short circuit. A short-circuited battery

pack may cause re, personal injury, and prod- uct damage. A battery pack will short circuit if a metal object makes a connection between the positive and negative contacts on the battery pack. Do not place a battery pack near anything that may cause a short circuit (e.g., coins, keys, nails, or small metal objects in a pocket, toolbox, or drawer).

18. Do not allow uids to ow into battery pack.

Corrosive or conductive uids, such as seawa- ter, certain industrial chemicals, and bleach or bleach-containing products, etc., can cause a short circuit. Do not use battery packs that have been exposed to these types of uids.

19. Battery packs marked as Resistant are suit-

able for environments where incidental contact or exposure to oils, greases, and solvents can occur. These packs are not resistant to acids or other corrosive chemicals. Never immerse or al- low uids to penetrate the battery pack.

20. Always use a side handle when using a HIGH

OUTPUT or HIGH DEMAND battery pack 6.0 Ah or above; the output torque of some tools may increase. If your drill/driver did not come with a side handle, visit the MILWAUKEE TOOL website for the appropriate accessory handle.

21. Store the battery pack and charger in a cool,

dry place. Do not store where temperatures may exceed 120°F (50°C) such as in direct sunlight, a vehicle, or metal building during the summer.

22. Always ship Li-Ion batteries in accordance

with the current regulations governing the chosen mode of transport (e.g. ground, air, sea). When in doubt, contact MILWAUKEE, the carrier or other trained Dangerous Goods profes- sional to determine applicable regulations.

23. Maintain labels and nameplates. These carry

important information. If unreadable or miss- ing, contact a MILWAUKEE service facility for a replacement.

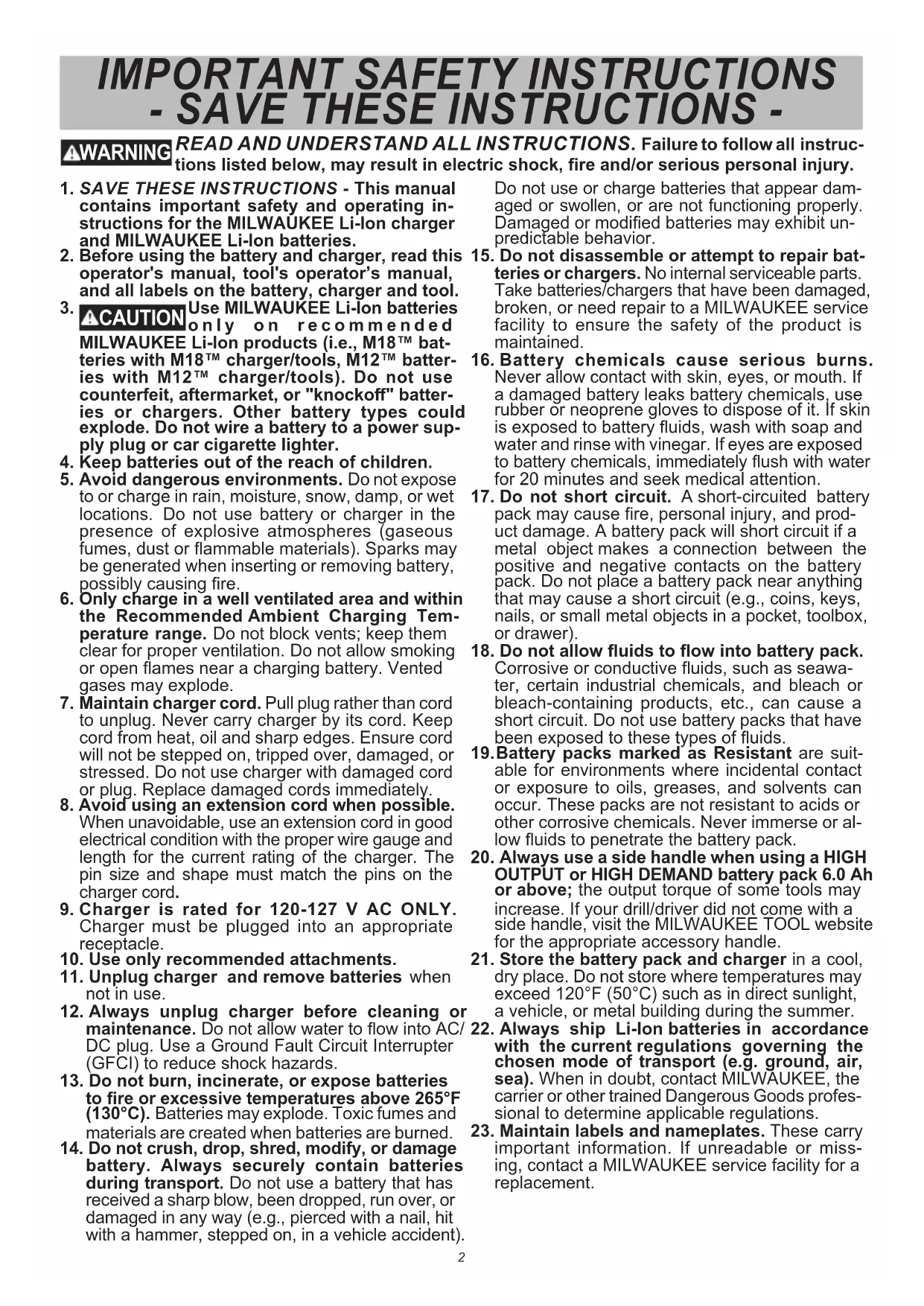

IMPORTANT SAFETY INSTRUCTIONS

- SAVE THESE INSTRUCTIONS -

• WARNING READ AND UNDERSTAND ALL INSTRUCTIONS. Failure to follow all instruc- tions listed below, may result in electric shock, re and/or serious personal injury.3 SPECIFICATIONS Cat. No p. 48
• -59-1802 Input Volts p. 120
• -127 AC Max Input Amps p. 5
• .5 AC Output Volts p. 18
• DC Max Output Amps p. 6
• DC Recommended Ambient Charging Temperature p. 40
• °F to 104°F (5°C à 40°C) M18 ™ Li-Ion Battery Packs V DC FUNCTIONAL DESCRIPTION p. 18

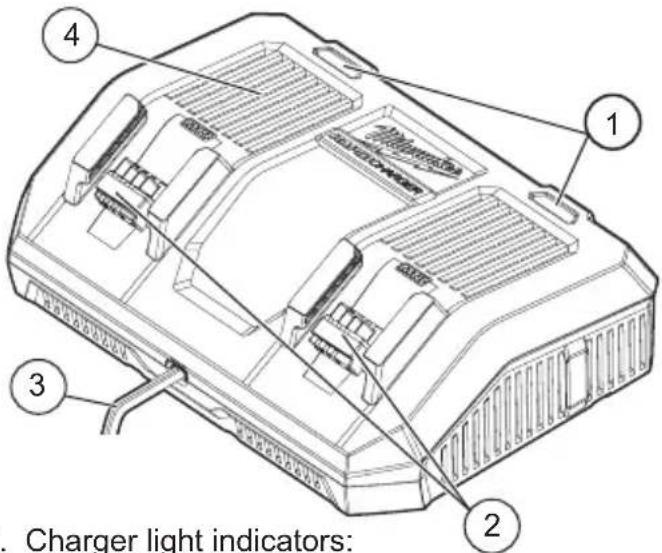

1. Charger light indicators:

Continuous red: Charging Slow ashing green: Approaching full charge Continuous green: Charging is complete Fast ashing red: Battery and/or charger is too hot/cold - Charging will begin when battery and/or charger reach correct charging temperature Flashing red/green: Damaged or faulty battery pack and/or charger

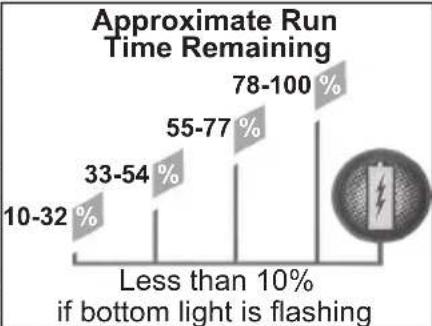

SYMBOLOGY Volts Direct Current Alternating Current Double Insulated Properly Recycle Batteries BFP Backfeed Protected Hertz Amps Approval Mark for Mexico UL Listing for Canada and U.S. BATTERY OPERATION Fuel Gauge Compared to NiCd battery pack types, MILWAUKEE Li-Ion battery packs deliver fade-free power for their entire run time. The tool will not experience a slow, gradual loss of power during use. Use the fuel gauge 78-100 %55-77 %33-54 %10-32 % Less than 10% if bottom light is ashingApproximate Run Time Remaining to determine the battery pack's re- maining run time. Press the fuel gauge button to dis- play the lights. The fuel gauge will light up for 2-3 seconds. To signal the end of discharge, 1 light on the fuel gauge will ash quickly for 2-3 seconds and the tool will not run. Charge the battery pack. An alternating blinking pattern indicates that an error or overtemperature state was encountered. Allow the battery pack to cool and reinsert. If the pattern continues, contact a MILWAUKEE service facility. If the fuel gauge doesn't appear to be working, place the battery pack on the charger and charge as needed. Immediately after using the battery pack, the fuel gauge may display a lower charge than it will if checked a few minutes later. The battery cells "re- cover" some of their charge after resting. Battery Pack Protection To protect itself from damage and extend its life, the battery pack’s intelligent circuit monitors current draw and temperature. In extremely high torque, binding, stalling, and short circuit situations, the battery pack will turn OFF the tool if the current draw becomes too high. All the fuel gauge lights will ash. Release the trigger and restart.4 Even discharged battery packs contain some energy. Before disposing, use electrical tape to cover the terminals to prevent the battery pack from shorting, which could cause a re or explosion. RBRC Battery Recycling Seals The RBRC™ Battery Recycling Seals (see the Symbology section) on battery packs indicates that MILWAUKEE has arranged for recycling with the Re- chargeable Battery Recycling Corporation (RBRC). At the end of its useful life, return the battery pack to a MILWAUKEE Branch O󰀩ce/Service Center or a participating retailer. For more information, visit the RBRC web site at www.rbrc.org. CHARGER OPERATION WARNING Charge only MILWAUKEE M18™ Li-Ion batteries in this MILWAUKEE Li-Ion charger. Other types of batteries may cause personal injury and damage. When to Charge the Battery Pack with this MILWAUKEE Charger Remove the battery pack from the product for charging when convenient for you and your job. MILWAUKEE batteries do not develop a "memory" when charged after only a partial discharge. It is not necessary to run down the battery pack before plac- ing it on the charger.

• Use the fuel gauge to determine when to charge your MILWAUKEE Li-Ion battery pack.

• The battery pack's charge can be "Topped-O󰀨" before starting a big job or long day of use.

• The only time it is necessary to charge the MILWAUKEE Li-Ion battery pack is when the battery pack has reached the end of its charge. To signal the end of charge, power to the product will drop quickly, allowing enough power to nish the opera- tion. Charge the battery pack as needed. How to Charge the Battery Pack Align the battery pack with the bay and slide the battery pack into the charger as far as possible. The red light will come on, either ashing quickly (battery pack or charger is too hot or cold), ashing slowly (communication between pack and charger) or continuous (pack is charging).

• Charge time depends on capacity of battery pack. Heavily cycled batteries may take longer to charge completely.

• On M18™ battery packs, the fuel gauge lights are displayed as the pack is being charged, indicating how fully charged the pack is. The fuel gauge will turn o󰀨 when charging is complete.

• After charging is complete, the continuous green light will come on.

• The charger will keep the battery pack fully charged if it is left on the charger. The light indicator will be same as normal charging.

• The next pack inserted in the charger will begin charging when the previous pack is fully charged.

• If the light indicator ashes red and green or does not come on, check that the battery pack is fully seated into the bay. Remove the battery pack and reinsert. If the problem persists, remove pack(s) and unplug charger for at least 2 minutes. After 2 minutes, plug charger back in and insert pack. If the problem continues, contact a MILWAUKEE service facility. Under extreme circumstances, the internal tem- perature of the battery could become too high. If this happens, the fuel gauge lights will ash in an alternating pattern and the product will not run. Allow the battery to cool down. Fuel Gauge Lights Diagnosis Solution Lights 1 - 4 Solid Remaining run time Continue working 1 Light, ashing slowly Less than 10% run time left Prepare to charge pack 1 Light, ashing quickly End of discharge Charge pack Lights 1-4, ashing quickly Current draw too high Release trigger and restart, reduce pressure Lights 1&3 / 2&4, ashing alternatingly Battery temperature too high Release trigger and allow battery to cool Cold Weather Operation MILWAUKEE Li-Ion battery packs are designed to operate in temperatures below freezing. When the battery pack is too cold, it may need to warm up before normal use. Put the battery on a product and use the product in a light application. It may “buzz” for a short time until it warms up. When the buzzing stops, use the tool normally. Transport The regulations pertaining to the transport of Li-Ion batteries are a󰀨ected by whether the battery is trans- ported in a personal vehicle or o󰀨ered for shipment via a commercial carrier. Always ship Li-Ion batteries in accordance with the current regulations governing the chosen mode of transport (e.g. ground, air, sea). When in doubt, contact MILWAUKEE, the carrier or other trained Dangerous Goods professional to determine applicable regulations. The personal transport of Li-Ion battery packs is al- lowed when done in accordance with these warnings and instructions. When shipping Li-Ion batteries with a commercial carrier, they are shipped under classi- cation UN 3480 (battery only) or UN 3481 (batteries contained in or packed with equipment). The proper packaging, labeling, marking, and documentation requirements are generally dependent upon whether the particular batteries are rated greater than or less than 100 Wh. Often, Li-Ion batteries rated 100 Wh or less are “excepted” from certain shipping regulations. In the U.S., products shipped via ground transport may be “excepted” from certain hazardous material shipping regulations if they are under 300Wh. WARNING To reduce the risk of injury or ex- plosion, never burn or incinerate a battery pack even if it is damaged, dead, or completely discharged. When burned, toxic fumes and materials are created. Disposing of MILWAUKEE Li-Ion Battery Packs MILWAUKEE Li-Ion battery packs are more environ- mentally friendly than some other types of battery packs (e.g., nickel-cadmium). Always dispose of battery packs according to federal, state and local regulations. Contact a local recycling agency for recycling locations.5 Charging a Hot or Cold Battery Pack The charger has advanced electronics that adjust the charge rate based on battery temperature. Hot or cold batteries may take longer to charge. When the battery pack temperature is outside the normal charging range, the red light will ash and the battery will not charge. Once the battery pack is within the acceptable range, normal charging will take place and the red light will be continuous. This optimizes charge time and battery life. Battery Pack Temperature Red Charger Indicator Light Charging Status Too Hot Fast Flashing Not charging Normal Range Continuous Normal charging Too Cold Fast Flashing Not charging Powering the Charger with an Inverter or Generator The charger will operate with most 120-127 V gen- erators and inverters rated at 500 Watts or higher. Mounting to the Wall Use the wall mount guides to mark the hanging points. MAINTENANCE WARNING To reduce the risk of re, personal injury, and product damage due to a short circuit, never immerse a tool, battery pack or charger in uid or allow a uid to ow inside them. Corrosive or conductive uids, such as seawater, certain industrial chemicals, and bleach or bleach containing products, etc., can cause a short circuit. Always unplug the charger and remove the battery from the charger before performing any maintenance. Never disassemble the battery or charger. Contact a MILWAUKEE service facility for ALL repairs. Do not expose battery packs, chargers or tools to uids, water, or rain, or allow them to get wet. This could damage the tool, charger, and/or battery pack. Clean out dust and debris from tool, charger and bat- tery vents and electrical contacts by vacuuming or brushing. Clean housings with a damp, soapy cloth, keeping away from all electrical contacts. Certain cleaners and solvents, such as gasoline, turpentine, lacquer thinner, paint thinner, bleach, chlorinated cleaning solvents, ammonia and household deter- gents containing ammonia, are harmful to plastics and other insulated parts; plastic casings will become brittle and crack. Never use ammable or combus- tible solvents around batteries, charger, or tools. Storage As a general practice, it is best to unplug chargers and remove battery packs when not in use, however, no damage to the battery pack will occur. Store at room temperature away from moisture. Store bat- teries upright. Do not store in damp locations where corrosion of terminals may occur. Storing in high temperatures (over 120°F) for long periods can result in permanent capacity loss for any battery. Charge before use after storing for long periods. Repairs No serviceable parts.

SERVICE - UNITED STATES

1-800-SAWDUST (1.800.729.3878) Monday-Friday, 7:00 AM - 6:30 PM CST or visit www.milwaukeetool.com Contact Corporate After Sales Service Technical Support with technical, service/repair, or warranty questions. Email: metproductsupport@milwaukeetool.com Become a Heavy Duty Club Member at www.milwaukeetool.com to receive important notications regarding your tool purchases.

Monday-Friday, 7:00 AM - 4:30 PM CST or visit www.milwaukeetool.ca LIMITED WARRANTY USA & CANADA Every MILWAUKEE Battery Pack (sold with cordless product and/or as a replacement battery pack) is warranted to the original purchaser from an authorized MILWAUKEE distributor only to be free from defects in material and workmanship. Subject to certain exceptions, MILWAUKEE will repair or replace a battery pack which, after examination, is deter-mined by MILWAUKEE to be defective in material or workmanship for the stated warranty period from date of purchase. Return of the battery pack to a MILWAUKEE factory Service Center location or MILWAUKEE Authorized Service Station, freight prepaid and insured, is required. For the proper shipping procedure of battery packs, contact 1.800.SAWDUST (1.800.729.3878), or go to www.milwaukeetool.com. A copy of the proof of purchase should be included with the return product. This warranty does not apply to damage that MILWAUKEE determines to be from repairs made or attempted by anyone other than MILWAUKEE authorized personnel, misuse, alterations, abuse, normal wear and tear, lack of maintenance, or accidents.Battery Pack Cat. No. ChemistryWarranty Period (from date of purchase)48-11-1812, 48-11-1813, 48-11-1828 (Serial number prex "B41E" and later), 48-11-1840, 48-11-1850, 48-11-1850R, 48-11-1860, 48-11-1861, 48-11-1865, 48-11-1880,48-11-1881, 48-11-1890, 48-11-2402, 48-11-2440, 48-11-2450, 48-11-2460, 48-11-2830 (Serial number prex "C71")LITHIUM-ION Three (3) Years48-11-0490, 48-11-1815,48-11-1820, 48-11-1835,48-11-2001, 48-11-2330,48-11-2401, 48-11-2420, 48-11-2425, 48-11-2430LITHIUM-ION Two (2) Years48-11-1828 (Serial number prefix "B41D" and earlier),48-11-1830 (Serial number prex "A95"),48-11-2830 (Serial number prex "A71")LITHIUM-IONTwo (2) Years - plus, Three (3) Years Pro-Rata (prorated)*48-11-0100, 48-11-1024,48-11-1830 (Serial number prex "E95"),48-11-1970, 48-11-2230Nickel-Cadmium (Ni-Cd),Nickel-Metal-Hydride (Ni-MH),LITHIUM-IONOne (1) Year*The warranty period for MILWAUKEE M18™ 48-11-1828 (with the serial number prex "B41D" and earlier), V18™ 48-11-1830 (with the serial number prex "A95"), and V28™ 48-11-2830 (with the serial number prex "A71") is ve (5) years / 2000 charges from the date of purchase, which-ever rst occurs. The rst 1000 charges or 2 years of the warranty, which-ever rst occurs, are covered through free replacement of the defective battery. This means that for the earlier of the rst 1000 charges or two (2) years from the date of purchase/rst charge, a replacement battery will be provided to the customer for any defective battery free of charge. There-after, the remaining charges up to a total of 2000 or the remainder of the ve (5) year period from the date of purchase, whichever rst occurs, will be covered on a pro rata basis. This means that every customer gets an additional 1000 charges or three (3) years of pro rata warranty on the these battery packs, depending upon the amount of use. MILWAUKEE M18™ 48-11-1828 (with the serial number prex "B41E" and later), V18™ 48-11-1830 (with the serial number prex "E95"), and M28™ 48-11-2830 (with6 RÈGLES

sible. S’il n’est pas possible d’éviter d’utiliser un cordon prolongateur, en utiliser un étant en bon état électrique et d’un calibre de l et d’une longueur ap- propriés d’après la puissance nominale actuelle du chargeur. La taille et la forme de la broche devront convenir à ceux du cordon prolongateur. the serial number prex "C71") have di󰀨erent warranty periods, as listed.Warranty Registration is not necessary to obtain the applicable warranty on a MILWAUKEE battery pack. The manufacturing date of the product will be used to determine the warranty period if no proof of purchase is provided at the time warranty service is requested.ACCEPTANCE OF THE EXCLUSIVE REPAIR AND REPLACEMENT REMEDIES DESCRIBED HEREIN IS A CONDITION OF THE CONTRACT FOR THE PURCHASE OF EVERY MILWAUKEE PRODUCT. IF YOU DO NOT AGREE TO THIS CONDITION, YOU SHOULD NOT PURCHASE THE PRODUCT. IN NO EVENT SHALL MILWAUKEE BE LIABLE FOR ANY INCIDENTAL, SPECIAL, CONSEQUENTIAL, OR PUNITIVE DAM-AGES, OR FOR ANY COSTS, ATTORNEY FEES, EXPENSES, LOSSES OR DELAYS ALLEGED TO BE AS A CONSEQUENCE OF ANY DAMAGE TO, FAILURE OF, OR DEFECT IN ANY PRODUCT INCLUDING, BUT NOT LIMITED TO, ANY CLAIMS FOR LOSS OF PROFITS. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU. THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS WARRANTIES, WRITTEN OR ORAL. TO THE EXTENT PERMITTED BY LAW, MILWAUKEE DISCLAIMS ANY IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PAR-TICULAR USE OR PURPOSE; TO THE EXTENT SUCH DISCLAIMER IS NOT PERMITTED BY LAW, SUCH IMPLIED WARRANTIES ARE LIMITED TO THE DURATION OF THE APPLICABLE EXPRESS WARRANTY AS DESCRIBED ABOVE. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU, THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.This warranty applies to product sold in the U.S.A. and Canada only.Please consult the ‘Service Center Search’ in the Parts & Service section of MILWAUKEE’s website www.milwaukeetool.com or call 1.800.SAWDUST (1.800.729.3878) to locate your nearest service facility for warranty and non-warranty service on a MILWAUKEE Battery Pack. LIMITED WARRANTY USA & CANADA This MILWAUKEE power tool* is warranted to the original purchaser from an authorized MILWAUKEE distributor only to be free from defects in ma-terial and workmanship. Subject to certain exceptions, MILWAUKEE will repair or replace any part on this power tool which, after examination, is determined by MILWAUKEE to be defective in material or workmanship for a period of ve (5) years after the date of purchase unless otherwise noted. Return of the power tool to a MILWAUKEE factory Service Center location or MILWAUKEE Authorized Service Station, freight prepaid and insured, is required. A copy of the proof of purchase should be included with the return product. This warranty does not apply to damage that MILWAUKEE determines to be from repairs made or attempted by anyone other than MILWAUKEE authorized personnel, misuse, alterations, abuse, normal wear and tear, lack of maintenance, or accidents.Normal Wear: Many power tools need periodic parts replacement and service to achieve best performance. This warranty does not cover repair when normal use has exhausted the life of a part including, but not limited to, chucks, brushes, cords, saw shoes, blade clamps, o-rings, seals, bum-pers, driver blades, pistons, strikers, lifters, and bumper cover washers.*This warranty does not cover battery packs or all power tools. Refer to the separate and distinct warranties available for those products.The warranty period for the LED in the LED Work Light (49-24-0171) and the LED Upgrade Bulb (49-81-0090) is the lifetime of the product subject to the limitations above. If during normal use the LED or LED Upgrade Bulb fails, the part will be replaced free of charge. Warranty Registration is not necessary to obtain the applicable warranty on a MILWAUKEE power tool product. The manufacturing date of the product will be used to determine the warranty period if no proof of purchase is provided at the time warranty service is requested.ACCEPTANCE OF THE EXCLUSIVE REPAIR AND REPLACEMENT REMEDIES DESCRIBED HEREIN IS A CONDITION OF THE CONTRACT FOR THE PURCHASE OF EVERY MILWAUKEE PRODUCT. IF YOU DO NOT AGREE TO THIS CONDITION, YOU SHOULD NOT PURCHASE THE PRODUCT. IN NO EVENT SHALL MILWAUKEE BE LIABLE FOR ANY INCIDENTAL, SPECIAL, CONSEQUENTIAL, OR PUNITIVE DAM-AGES, OR FOR ANY COSTS, ATTORNEY FEES, EXPENSES, LOSSES OR DELAYS ALLEGED TO BE AS A CONSEQUENCE OF ANY DAMAGE TO, FAILURE OF, OR DEFECT IN ANY PRODUCT INCLUDING, BUT NOT LIMITED TO, ANY CLAIMS FOR LOSS OF PROFITS. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU. THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS WARRANTIES, WRITTEN OR ORAL. TO THE EXTENT PERMITTED BY LAW, MILWAUKEE DISCLAIMS ANY IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PAR-TICULAR USE OR PURPOSE; TO THE EXTENT SUCH DISCLAIMER IS NOT PERMITTED BY LAW, SUCH IMPLIED WARRANTIES ARE LIMITED TO THE DURATION OF THE APPLICABLE EXPRESS WARRANTY AS DESCRIBED ABOVE. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU, THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.This warranty applies to product sold in the U.S.A. and Canada only.Please consult the ‘Service Center Search’ in the Parts & Service section of MILWAUKEE’s website www.milwaukeetool.com or call 1.800.SAWDUST (1.800.729.3878) to locate your nearest service facility for warranty and non-warranty service on a MILWAUKEE power tool.7

to re or excessive temperatures above 265°F (130°C). Batteries may explode. Toxic fumes and materials are created when batteries are burned.

Monday-Friday, 7:00 AM - 4:30 PM CST www.milwaukeetool.ca
