USER MANUAL LFT 114 HOTPOINT

LFT 114 DISHWASHEREN

Installation Keep this instruction manual in a safe place for future reference. If the appliance is sold, given away or moved, please ensure the manual is kept with the machine, so that the new owner may benefit from the advice contained within it. Please read this instruction manual carefully: it contains important information regarding the safe installation, use and maintenance of the appliance. If the appliance must be moved at any time, keep it in an upright position; if absolutely necessary, it may be tilted onto its back. Positioning and levelling

1. Remove the appliance from all packaging and check

that it has not been damaged during transportation. If it has been damaged, contact the retailer and do not proceed any further with the installation process.

2. Check the dishwasher by placing it so that its sides or

back panel are in contact with the adjacent cabinets or even with the wall. This appliance can also be recessed under a single worktop

• (see the Assembly instruction sheet).

3. Position the dishwasher on a level and sturdy floor. If

the floor is uneven, the front feet of the appliance may be adjusted until it reaches a horizontal position. If the appliance is levelled correctly, it will be more stable and much less likely to move or cause vibrations and noise while it is operating.

4. Adjust the height of the rear foot from the front of the

• on the central lower part of the dishwasher, turning a hexagonal spanner (red color) with an opening of 8 mm in a clockwise direction to increase the height or in an anticlockwise direction to decrease the height. Connecting the water and electricity supplies Connection to the water and electricity supplies should only be performed by a qualified technician. The dishwasher should not stand on top of the water hoses or the electricity supply cable. The appliance must be connected to the water supply network using new hoses. Do not use old hoses. The water inlet (A) and outlet (B) hoses and the electricity supply cable may be positioned towards the right or the left in order to achieve the best possible installation (see figure). Connecting the water inlet hose To a suitable cold water connection point: before attaching the hose, run the water until it is perfectly clear so that any impurities that may be present in the water do not clog the appliance; after performing this operation, screw the inlet hose tightly onto a tap with a ¾ gas threaded connection. To a suitable hot water connection point: your dishwasher may be supplied with hot water from the mains supply (if you have a central heating system with radiators) provided that it does not exceed a temperature of 60°C. Screw the hose to the tap as described for connection to a cold water supply. If the inlet hose is not long enough, contact a specialist store or an authorised technician (see Assistance). The water pressure must be within the values indicated in the Technical data table (see adjacent information). The hose should not be bent or compressed. Anti-flooding protection To ensure floods do not occur, the dishwasher: - is provided with a special system which blocks the water supply in the event of anomalies or leaks from inside the appliance. Some models are also equipped with the supplementary safety device New Acqua Stop *, which guarantees anti- flooding protection even in the event of a supply hose rupture.

WARNING: HAZARDOUS VOLTAGE!

Under no circumstance should the water inlet hose be cut as it contains live electrical parts.

• Only available in selected models.EN

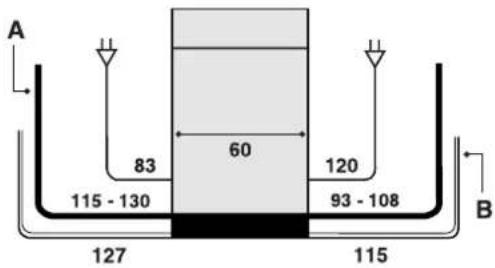

Connecting the water outlet hose Connect the outlet hose (without bending it) to a drain duct with a minimum diameter of 4 cm. Alternatively, rest it over a sink or tub; the free end of the hose should not remain immersed in water. The special plastic elbow

makes it easier to find the best layout: fix the elbow to the wall securely in order to prevent the outlet hose from moving and spilling the dirty water. The part of the hose marked with the letter A should be between 40 and 100 cm above the ground (see figure). We advise against the use of hose extensions. Electrical connection Before inserting the plug into the electrical socket, make sure that: The socket is earthed and complies with current regulations. The socket can withstand the maximum load of the appliance, which is indicated on the data plate located on the inside of the door (see chapter entitled Description of the appliance). The power supply voltage falls within the values indicated on the data plate on the inside of the door. The socket is compatible with the plug of the appliance. If this is not the case, ask an authorised technician to replace the plug (see Assistance); do not use extension cables or multiple sockets. Once the appliance has been installed, the power supply cable and the electrical socket should be easily accessible. The cable should not be bent or compressed. If the power supply cable is damaged, it must be re- placed by the manufacturer or its Technical Assistance Service in order to prevent all potential hazards. (See As- sistance) The Company shall not be held responsible for anyincidents that occur if these regulations are not observed. Anti-condensation strip* After installing the dishwasher, open the door and stick the adhesive transparent strip under the wooden shelf in order to protect it from any condensation which may form. Advice regarding the first wash cycle After the appliance has been installed, immediately before running the first wash cycle, completely fill the salt dispenser with water and add only then approximately 1 kg of salt (see chapter entitled Rinse aid and refined salt). The water may overflow: this is normal and is not a cause for concern. Select the water hardness value (see chapter entitled Rinse aid and refined salt). - After the salt has been poured into the machine, the LOW SALT indicator light

• switches off. If the salt container is not filled, the water softener and the heating element may be damaged as a result.

• Only available in selected models.

Power supply voltage See appliance data plate Total absorbed power See appliance data plate Fuse See appliance data plate This dishwasher conforms to the following European Community Directives: -2006/95/EEC dated 16/01/2007 (Low Voltage) and subsequent modifications -89/336/EEC dated 03/05/89 (Electromagnetic Compatibility) and subsequent modifications -97/17/EC (Labelling) -2002/96/ CE (Waste Electrical and Electronic Equipment WEEE)EN

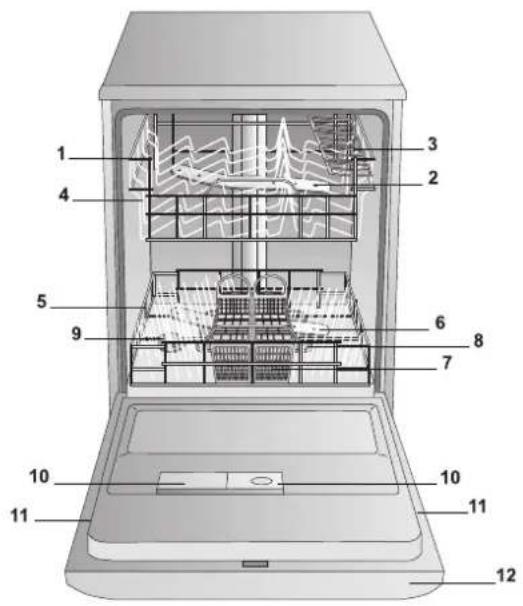

Overall view Description of the appliance

3. Tip-up compartments

6. Lower sprayer arm

***Only in completely built-in models.

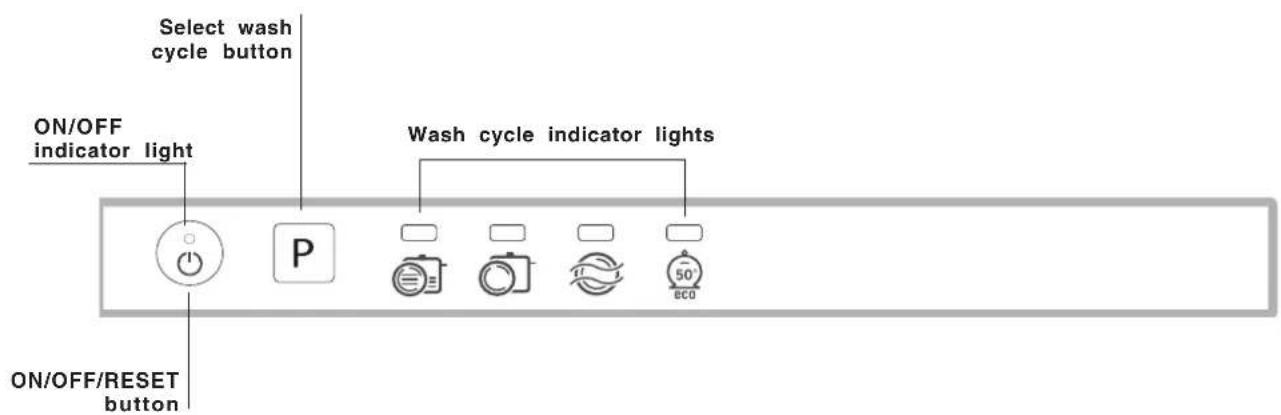

• Only available in selected models. Control panel ON/OFF/RESETbuttonON/OFFindicator lightSelect washcycle buttonWash cycle indicator lightsEN

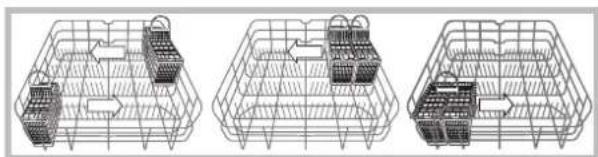

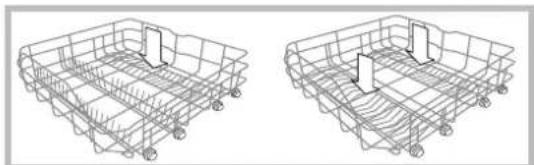

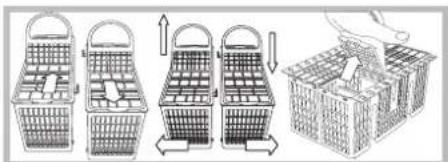

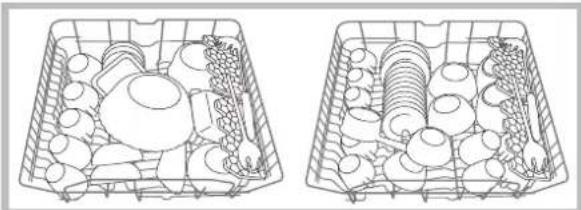

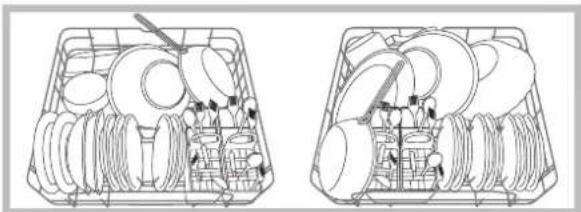

Loading the racks Before loading the racks, remove all food residues fromthe crockery and empty liquids from glasses and cups.After loading the appliance, check that the sprayer armscan rotate freely. Lower rack The lower rack can hold pans, lids, plates, salad bowls,cutlery, etc. as seen in the Loading examples.Plates and large covers should be placed at the sides of therack, ensuring that they do not block the rotation of the uppersprayer arm.Some dishwasher models are fitted with tip-up sections which can be used in a vertical position when arrangingplates or in a horizontal position when arranging pans andsalad bowls. Cutlery basket The type of cutlery basket may vary according to thedishwasher model: it may be modular, non-modular or a slidingversion. The non-modular basket must only be positioned atthe front of the lower rack.The modular basket may be separated into two parts, a solutionwhich is recommended when performing a half load wash (onlyin models offering this option), is available in a sliding version(positioned at any point on the lower rack by sliding it betweenthe fixed or tip-up inserts.- Both versions are fitted with a collapsible sliding system whichmeans the cutlery can be arranged in the best possible way.Knives and other utensils with sharp edges must beplaced in the cutlery basket with the points facingdownwards, or they must be positioned horizontally in the tip-up compartments on the upper rack. Cutlery basket positioning examples Upper rack Load this rack with delicate and lightweight crockery:glasses, tea and coffee cups, saucers, small salad bowls,saucepans and small saucepans which are not too soiled,using the Loading examples as a guide. Mugs and cups: place these on the tip-upcompartments Long sharp knives and serving utensils: place these on thetip-up compartments

Adjusting the height of the upper rack In order to make it easier to arrange the crockery, the upperrack may be moved to a higher or lower level.The height of the upper rack should ideally be adjusted WHENTHE RACK IS EMPTY.Never lift or lower the rack on one side only.Open the left and right guide rail stopsand pull out the rack; position it higher orlower as required, slide it along the guiderails until the front wheels are in placeand close the stops (see figure).If the rack is fitted with Dual Spacehandles

• (see figure), pull out the upper rack until it reaches its stop point, grip thehandles at the sides of the rack and moveit upwards or downwards, then slowly let itfall back into place. Loading examples for the upper rack Loading examples for the lower rack Items which should not be washed in the dishwasher Wooden items, objects with wooden or horn handles orglued-on parts. Items made from aluminium, copper, brass, pewter or tin. Items made from plastic material which is not heat-resistant. Antique or hand-painted porcelain. Antique silver. Silver which is not antique may, however, bewashed in the dishwasher using a delicate wash cycle,provided that it does not come into contact with other metals.We recommend the use of crockery which is dishwashersafe.
• Only available in selected models. ** The number and position may vary.EN

Start-up and use Measuring out the detergent A good wash result also depends on the correct amount of detergent being used; exceeding the stated amount does not result in a more effective wash and increases environmental pollution. Only use detergent which has been specifically designed for dishwashers. DO NOT USE washing up liquid. Using excessive detergent may result in foam residue remaining in the machine after the cycle has ended. The use of tablets is only recommended for models which offer the MULTI-FUNCTIONAL TABLETS option. To achieve the best results from each washing and drying cycle, powder detergent, rinse aid liquid and salt should be used. Compartment A: Washing detergent Compartment B: Pre-wash detergent

1. Open cover C by pressing

2. Pour in the detergent after

consulting the Table of wash cycles: For powder detergent use compartments A and B. For detergent in tablet form: when the cycle requires 1 tablet, place it in compartment A and close the cover; when it requires 2, place the second tablet at the bottom of the appliance.

3. Remove detergent residues from the edges of the

compartment and close the cover until it clicks.

• Only available in selected models. Starting the dishwasher

1. Turn the water tap on.

2. Open the door and press the ON/OFF button: you will

hear a short beep and the ON/OFF and wash cycle indicator lights switch on for a few seconds.

3. Measure out the detergent (see below).

4. Load the racks (see chapter entitled Loading the

5. Select the wash cycle in accordance with the type of

crockery and its soil level (see Table of wash cycles), by pressing the P button; the indicator light corresponding to the selected wash cycle will switch on.

7. Start the wash cycle by shutting the door: after a few

seconds have passed, a long beep signals the start of the wash cycle.

8. Two short beeps and one long one indicate the end of

the wash cycle and the indicator light corresponding to the wash cycle flashes slowly. Open the door, switch off the appliance by pressing the ON/OFF button, shut off the water tap and unplug the appliance from the electricity socket.

9. Wait for a few minutes before removing the crockery,

in order to avoid burns. Unload the racks, beginning with the lower level. The order in which the different wash programmes are displayed will change according to the frequency with which each cycle is used. Modifying a wash cycle in progress If a mistake was made during the wash cycle selection process it is possible to change the cycle, provided that it has only just begun: open the door, taking care to avoid the escaping steam, and press and hold the ON/OFF button; the machine will switch off with a long beep. Switch the machine back on using the ON/OFF button and select the new wash cycle using the P button; start the cycle by closing the door. Adding extra crockery Without switching off the machine, open the door, taking care to avoid the escaping steam, and place the crockery inside the dishwasher. Close the door: the cycle starts from the point at which it was interrupted. Accidental interruptions If the door is opened during the wash cycle, or if there is a power cut, the cycle stops. It starts again from the point at which it was interrupted once the door has been shut or the electricity supply is restored.EN

Wash cycles If the crockery is only lightly soiled or if it has been rinsed with water before being placed in the dishwasher, reduce the amount of detergent used accordingly. The number and type of wash cycles and options may vary depending on the dishwasher model. Notes: To make it easier to measure out the detergent, it is worth remembering that: 1 tablespoon = 15 grams of powder = approximately 15 ml of liquid - 1 teaspoon = 5 grams of powder = approximately 5 ml of liquid

• The Eco wash cycle adheres to the regulation EN-50242. Although it has a longer duration than other wash cycles it uses less energy and is les harmful to the environment. Note for Test Laboratories: for information relating to comparative EN testing conditions, please send an email to the following address: ASSISTENZA_EN_LVS@indesitcompany.com Detergent (A) = compartment A (B) = compartment B Wash cycle Selection instructions Wash cycle Powder Liquid Tablets Drying Wash cycle duration (tolerance ±10%) Hrs. Min. Extremely soiled dishes and pans (not to be used for delicate items). Intensive 30 g (A)

1 (A) Yes 2:15’ Normally soiled pans and dishes. Standard daily wash cycle. Normal 25 g (A) 5 g (B) 25 ml (A) 5 ml (B) 1 (A) Yes 1:45’ Preliminary wash cycle for dishes while the load is awaiting completion with the dishes from the next meal. Soak

0:08’ Environmentally-friendly wash cycle* with low energy consumption levels, suitable for pans and dishes. 25 g (A) 5 g (B) 25 ml (A) 5 ml (B) 1 (A) Yes 2:20’EN

Rinse aid and refined salt Only use products which have been specifically designed for dishwashers. Do not use table salt or industrial salt, or washing up liquid. Follow the instructions given on the packaging. If using a multi-functional product it is not necessary toadd rinse aid; however, we recommend that you add salt,especially if you live in an area where the water is hardor very hard. Follow the instructions given on thepackaging. If you do not add salt or rinse aid, the LOW SALT

• and LOW RINSE AID* indicator lights remain lit. Measuring out the rinse aid Rinse aid makes it easier for the crockery to dry, as waterruns off surfaces more readily and therefore does not leavestreaks or marks.The rinse aid dispenser should be filled: When the LOW RINSE AID
• indicator light on the control panel is illuminated;1. Open the dispenser by turning thelid (G) in an anticlockwise direction.2. Pour in the rinse aid, making sureit does not overflow from thedispenser. If this happens, clean thespill immediately with a dry cloth.3. Screw the lid back on.NEVER pour the rinse aiddirectly into the appliance tub. Adjusting the amount of rinse aid If you are not completely satisfied with the drying results,you may adjust the quantity of rinse aid used. Use ascrewdriver to turn the dosage adjuster (F) to one of the 6pre-set positions (the default position is set to 4): If there are streaks on the crockery, set the adjustmentdevice to a lower number (1-3). If drops of water remain on the crockery or if there arelimescale marks present after the cycle has finished, setthe adjuster to a higher number (4-6). Setting the water hardness Every dishwasher is equipped with a water softener which, byusing refined salt designed especially for this type ofappliance, supplies water without limescale which is then usedto wash the crockery.This dishwasher offers a setting which helps to reducepollution and optimises washing performance in accordancewith the water hardness level in your area. This information canbe obtained from the organisation which supplies yourhousehold with water.- Open the door and switch on the machine by pressing theON/OFF button.- Press the P button and hold for approximately 5 seconds;two short beeps will sound and the indicator lightcorresponding to the set degree of hardness will flashslowly on the display (the water softening system is set tonumber 2).- Press the P button repeatedly until the desired hardnesslevel has been reached (1-2-3-4-5
• see Water hardness table).E.g. hardness 1 (indicator light 1 flashing)hardness 2 (indicator light 1 illuminated, indicator light 2flashing).hardness 3 (indicator lights 1 and 2 illuminated, indicator light3 flashing and so on), up to a maximum of 5
• leves. - To exit the function, wait approximately 30 seconds or switch offthe machine using the ON/OFF button.Even if using multi-functional tablets, the salt dispenser shouldstill be filled.(°dH = hardness measured in German degrees - °f =hardness measured in French degrees - mmol/l = millimolesper litre) Measuring out the refined salt In order to achieve the best possible results using a washcycle, make sure that the dispenser is never empty. Refinedsalt removes limescale from the water, thus avoiding theformation of deposits on crockery.The salt dispenser is located in the lower part of thedishwasher (see Description) and should be filled: When the green float
• cannot be seen by simply looking at the cap of the salt dispenser. When the LOW SALT
• indicator light on the control panel is illuminated;1. Remove the lower rack andunscrew the container cap(anticlockwise).2. The first time you do this: fill thewater tank right up to its edge.3. Position the funnel
• (see figure) and fill the salt container right up to itsedge (this should hold approximately1 kg); it is not unusual for a little water to leak out.4. Remove the funnel
• and wipe any salt residue away from the opening; rinse the cap under running water and thenscrew it on, the head facing downwards so as to let the waterflow out of the four cracks which are arranged in a star shapeon the lower part of the cap. (Salt cap with green float It is advisable to perform this procedure every time youadd salt to the container.Make sure the cap is screwed on tightly, so that no detergentcan get into the container during the wash cycle (this coulddamage the water softener beyond repair).When necessary, measure out the salt before a washcycle so that any saline solution which has leaked out of thesalt dispenser is removed.
• Only available in selected models.

For values between 0°f and 10°f, we do not recommend the use of salt. * this setting may cause a slight increase in the duration of the cycle.EN

Care and maintenance Shutting off the water and electricity supplies Turn off the water tap after every wash cycle to avoidleaks. Always unplug the appliance when cleaning it andwhen performing maintenance work. Cleaning the dishwasher The external surfaces of the machine and the controlpanel may be cleaned using a non-abrasive clothwhich has been dampened with water. Do not usesolvents or abrasive products. Any marks on the inside of the appliance may beremoved using a cloth dampened with water and alittle vinegar. Preventing unpleasant odours Always keep the door of the appliance ajar in order toavoid moisture from forming and being trapped insidethe machine. Clean the seals around the door and detergentdispensers regularly using a damp sponge. This willavoid food becoming trapped in the seals, which isthe main cause behind the formation of unpleasantodours. Cleaning the sprayer arms Food residue may become encrusted onto the sprayerarms and block the holes used to spray the water. It istherefore recommended that the arms are checked fromtime to time and cleaned with a small non-metallicbrush.The two sprayer arms may both be removed.To remove the upper sprayerarm, rotate the locking ring inan anti-clockwise direction.The upper sprayer arm shouldbe replaced with the holesfacing upwards.The lower sprayer arm can beremoved by pressing on theside tabs and pulling itupwards. Cleaning the water inlet filter* If the water hoses are new or have not been used for anextended period of time, let the water run to make sure itis clear and free of impurities before performing thenecessary connections. If this precaution is not taken,the water inlet could become blocked and damage thedishwasher. Clean the water inlet filter at the tap outlet regularly. - Turn off the water tap. - Unscrew the end of the water inlet hose, remove the filter and clean it carefully under running water. - Replace the filter and screw the water hose back into position. Cleaning the filters The filter assembly consists of three filters which remove food residues from the washing water and then recirculate the water. They should be cleaned if you wish to achieve the best results in every wash. Clean the filters regularly. The dishwasher should not be used without filters, or if the filter is loose. After several washes, check the filter assembly and if necessary clean it thoroughly under running water, using a non-metallic brush and following the instructions below:

1. Turn the cylindrical filter C in an anti-clockwise direction

and pull it out (fig. 1).

2. Remove the cup filter B by exerting a slight pressure on the

side flaps (fig. 2).

3. Slide out the stainless steel plate filter A (fig. 3).

4. Inspect the trap and remove any food residue. NEVER

REMOVE the wash cycle pump (black detail) (fig. 4). After cleaning the filters, replace the filter assembly and fix it in position correctly; this is essential for maintaining the efficient operation of the dishwasher. Leaving the machine unused for extended periods Disconnect the appliance from the electricity supply and shut off the water tap. Leave the door of the appliance ajar. When you return, run a wash cycle when the dishwasher is empty.

• Only available in selected models.

Precautions and advice This appliance was designed and manufactured in compliance with current international safety standards. The following information has been provided for safety reasons and should therefore be read carefully. General safety The appliance was designed for domestic use inside the home and is not intended for commercial or industrial use. The appliance must be used by adults only, to wash domestic crockery in accordance with the instructions in this manual. The appliance must not be installed outdoors, even in covered areas. It is extremely dangerous to leave the machine exposed to rain and storms. Do not touch the appliance when barefoot. When unplugging the appliance always pull the plug from the mains socket, do not pull on the cable. The water supply tap must be shut off and the plug should be removed from the electrical socket before cleaning the appliance or carrying out any maintenance work. If the appliance breaks down, do not under any circumstances touch the internal parts in an attempt to perform the repair work yourself. Never touch the heating element. Do not lean or sit on the open door of the appliance: this may cause the appliance to overturn. The door should not be left open as it may create a dangerous obstacle. Keep detergent and rinse aid out of reach of children. The packaging material should not be used as a toy. Disposal Disposal of packaging materials: observe local legislation so that the packaging may be reused. The European Directive 2002/96/EC relating to Waste Electrical and Electronic Equipment (WEEE) states that household appliances should not be disposed of using the normal solid urban waste cycle. Exhausted appliances should be collected separately in order to optimise the cost of re-using and recycling the materials inside the machine, while preventing potential damage to the atmosphere and to public health. The crossed-out dustbin is marked on all products to remind the owner of their obligations regarding separated waste collection. For further information relating to the correct disposal of household appliances, owners may contact the relevant public authority or the local appliance dealer. Saving energy and respecting the environment Saving water and energy Only begin a wash cycle when the dishwasher is full. While waiting for the dishwasher to be filled, prevent unpleasant odours using the Soak cycle (see Wash cycles). Select a wash cycle which is suited to the type of crockery and to the soil level of the crockery using the Table of wash cycles: - For dishes with a normal soil level, use the Eco wash cycle, which guarantees low energy and water consumption levels. - If the load is smaller than usual activate the Half load option

• (see Start-up and use). If your electricity supply contract gives details of electricity saving time bands, run wash cycles during the periods when a lower tariff is applied. The Delayed start* button (see Start-up and use) helps you organise the wash cycles accordingly. Phosphate-free and chlorine-free detergents containing enzymes We strongly recommend that you use detergents that do not contain phosphates or chlorine, as these products are harmful to the environment. Enzymes provide a particularly effective action at temperatures around 50°C, and as a result detergents containing enzymes can be used in conjunction with low-temperature wash cycles in order to achieve the same results as a normal 65°C wash cycle. To avoid wasting detergent, use the product in appropriate quantities based on the manufacturers recommendations, the hardness of the water and the soil level and quantity of crockery to be washed. Even if they are biodegradable, detergents contain substances which may alter the balance of nature.

• Only available in selected models.EN

Troubleshooting Whenever the appliance fails to work, check for a solution from the following list before calling for Assistance. Malfunction: Possible causes / Solutions: The dishwasher does not start. • The plug has not been inserted into the electrical socket properly, or there is no power in the house.

• The dishwasher door has not been shut properly.
• A delayed start has been programmed (see Start-up and use). No water drains out from the dishwasher.

• The dishwasher cycle has not yet finished.
• The water outlet hose is bent (see Installation).
• The drain duct is blocked. • The filter is clogged up with food residues. The dishwasher makes excessive noise. • The dishes are rattling against each other or against the sprayer arms. • An excessive amount of foam has been produced: the detergent has not been measured out correctly or it is not suitable for use in dishwashers (see Start-up and use). The dishes and glasses are covered in a white film or limescale deposits. • The level of the refined salt is low or the dosage setting is not suited to the hardness of the water (see Rinse aid and salt).
• The lid on the salt dispenser is not closed properly. • The rinse aid has been used up or the dosage is too low. • The crockery is made from non-stick material. The dishes and glasses are streaked or have a bluish tinge.

• The rinse aid dosage is too high. The crockery has not been dried properly.

• The rinse aid has been used up or the dosage is too low (see Rinse aid and salt). • The rinse aid dispenser setting is not high enough. • A wash cycle without a drying programme has been selected. The dishes are not clean.
• The racks are overloaded (see Loading the racks).
• The crockery has not been arranged well. • The sprayer arms cannot move freely.
• The wash cycle is too gentle (see Wash cycles).
• An excessive amount of foam has been produced: the detergent has not been measured out correctly or it is not suitable for use in dishwashers (see Start-up and use).
• The lid on the rinse aid compartment has not been shut correctly.

• The filter is dirty or blocked (see Care and maintenance).

• The refined salt level is low (see Rinse aid and salt). No water enters the dishwasher/Shut off tap alarm. (several short beeps are emitted) (the 2 (Normal) and 3 (Soak) WASH CYCLES indicator lights flash).

• There is no water in the mains supply.

• The water inlet hose is bent (see Installation).
• Turn on the tap and the appliance will start after a few minutes.

• The appliance lock has been activated because no action was taken when the beeps sounded. Switch off the machine, using the ON/OFF button, turn on the tap and switch the machine back on after 20 seconds by pressing the same button. Re-programme the machine and restart the wash cycle. Water loading solenoid valve malfunction alarm (the 2 (Normal) WASH CYCLE indicator lights flash). • Switch off the machine by pressing the ON/OFF button and switch it back on after a minute. If the alarm continues, turn off the water tap to reduce the risk of flooding, remove the plug from the electrical socket and call Assistance. Water inlet hose alarm/Water inlet filter blocked. (the 1 (Intensive), the 2 (Normal) and the 3 (Soak) WASH CYCLES indicator lights flash). • Switch off the appliance by pressing the ON/OFF button. Shut off the water tap to eliminate the risk of flooding and remove the plug from the electrical socket. Make sure the water inlet filter has not become blocked by various impurities. (see “Care and maintenance” chapter).EN

Before contacting Assistance: Check whether the problem can be resolved using the Troubleshooting guide (see Troubleshooting). Restart the programme to check whether the problem has ceased to exist. If the problem persists, contact the Authorised Technical Assistance Service. Never use the services of unauthorised technicians. Please have the following information to hand: The type of malfunction. The appliance model (Mod.). The serial number (S/N). This information can be found on the appliance data plate (see Description of the appliance). Assistance.4
