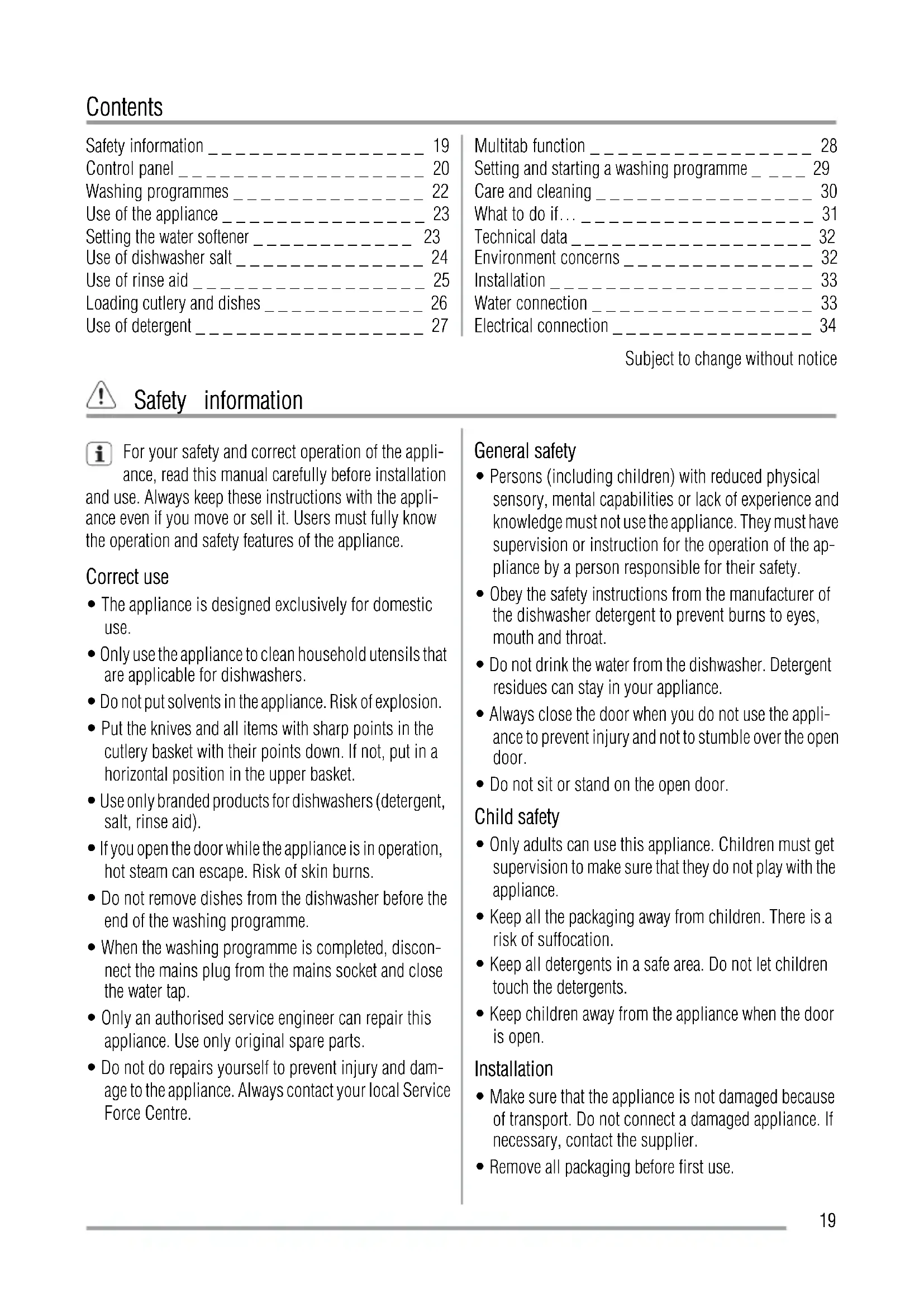

USER MANUAL ZDT 431 INDESIT

• The appliance is designed exclusively for domestic use.

• Only use the appliance to clean household utensils that are applicable for dishwashers.

• Do not put solvents in the appliance. Risk of explosion.

• Put the knives and all items with sharp points in the cutlery basket with their points down. If not, put in a horizontal position in the upper basket.

• Use only branded products for dishwashers (detergent, salt, rinse aid).

• If you open the door while the appliance is in operation, hot steam can escape. Risk of skin burns.

• Do not remove dishes from the dishwasher before the end of the washing programme.

• When the washing programme is completed, discon- nect the mains plug from the mains socket and close the water tap.

• Only an authorised service engineer can repair this appliance. Use only original spare parts.

• Do not do repairs yourself to prevent injury and dam- age to the appliance. Always contact your local Service Force Centre. General safety

• Persons (including children) with reduced physical sensory, mental capabilities or lack of experience and knowledge must not use the appliance. They must have supervision or instruction for the operation of the ap- pliance by a person responsible for their safety.

• Obey the safety instructions from the manufacturer of the dishwasher detergent to prevent burns to eyes, mouth and throat.

• Do not drink the water from the dishwasher. Detergent residues can stay in your appliance.

• Always close the door when you do not use the appli- ance to prevent injury and not to stumble over the open door.

• Do not sit or stand on the open door. Child safety

• Only adults can use this appliance. Children must get supervision to make sure that they do not play with the appliance.

• Keep all the packaging away from children. There is a risk of suffocation.

• Keep all detergents in a safe area. Do not let children touch the detergents.

• Keep children away from the appliance when the door is open. Installation

• Make sure that the appliance is not damaged because of transport. Do not connect a damaged appliance. If necessary, contact the supplier.

• Remove all packaging before first use. 19• A qualified and competent person must do the electri- cal installation.

• A qualified and competent person must do the plumb- ing installation.

• Do not change the specifications or modify this prod- uct. Risk of injury and damage to the appliance.

• Do not use the appliance: – if the mains cable or water hoses are damaged, – if the control panel, worktop or plinth area are dam- aged, that you can get access to the inner side of the appliance. Contact your local Service Force Centre.

• Do not drill into the sides of the appliance to prevent damage to hydraulic and electrical components. Warning! Carefully obey the instructions for electrical and water connections. Control panel

The indicator light comes on when it is necessary to fill the salt container. Refer to the chapter 'Use of dishwasher salt'. The salt indicator light can stay on for some hours, but it does not have an unwanted effect on the operation of the appliance.

The indicator light comes on when it is necessary to fill the rinse aid. Refer to the chapter 'Use of rinse aid'. 20Indicator lights The indicator light comes on when the washing pro- gramme is completed.

1) The indicator light is off while a washing programme operates.

Delay start button Use the delay start button to delay the start of the washing programme with an interval between 1 and 19 hours. Refer to the chapter 'Setting and starting a washing pro- gramme'. Digital display The display shows:

• Adjusted level of the water softener.

• Activation/deactivation of the rinse aid dispenser (only with multitab function on).

• Number corresponding to the selected washing pro- gramme.

• Remaining time to the end of the programme.

• End of a washing programme.

• Number of hours in delay start.

• Activation/deactivation of the audible signals. Multitab button Press this button to activate/deactivate the multitab func- tion. Refer to the chapter 'Multitab function'. Function buttons Use the function buttons for these operations:

• To set the water softener. Refer to the chapter 'Setting the water softener'.

• To deactivate/activate the audible signals. Refer to the section 'Audible signals'.

• To deactivate/activate the rinse aid dispenser, when multitab function is active. Refer to the chapter 'Mul- titab function'. Audible signals You can hear an audible signal:

• At the end of the washing programme.

• During the setting of the level of the water softener.

• When the appliance has a malfunction. The activation of the audible signals is set at the factory. Do these steps to deactivate the audible signals:

1. Switch on the appliance.

2. Make sure that the appliance is in setting mode.

3. Press and hold function buttons B and C until the

indicator lights of function buttons A, B and C start to flash.

– Indicator lights for function buttons A and B go off. – Indicator light for function button C flashes. – The digital display shows the setting. Audible signals deactivated Audible signals activated The audible signals are activated.

6. Press the function button C again.

– The digital display shows the new setting. The audible signals are deactivated.

7. Switch off the appliance to save the operation.

Do these steps to activate the audible signals:

1. Do the above procedure until the digital display

shows necessary setting. Setting mode The appliance is in setting mode when: .

• The programme selection indicator light is on.

• The digital display shows two horizontal lines (- -). The appliance must be in setting mode for these opera- tions: – To set a washing programme. – To set the water softener level. – To deactivate/activate the audible signals. – To deactivate/activate the rinse aid dispenser. If:

• The programme selection indicator light is on.

• The digital display shows the programme duration (in minutes). 21cancel the programme to go back to the setting mode. Refer to the chapter "Setting and starting a washing pro- gramme". Washing programmes Washing programmes Programme Degree of soil Type of load Programme description Any Partial load (to be com- pleted later in the day). 1 cold rinse (to prevent food scraps to bond). Detergent is not necessary with this programme. Heavy soil Crockery, cutlery, pots and pans Prewash Main wash up to 70°C 2 intermediate rinses Final rinse Drying

Any Crockery, cutlery, pots and pans Prewash Main wash up to 45°C or 70°C 1 or 2 intermediate rinses Final rinse Drying

Normal or light soil Crockery and cutlery Main wash up to 65°C Final rinse

Normal soil Crockery and cutlery Prewash Main wash up to 50°C 1 intermediate rinse Final rinse Drying Normal or light soil Delicate crockery and glassware Main wash up to 45°C 1 intermediate rinse Final rinse Drying This programme heats dishes before serving or removes dust from dishes which have not been used for a long time. 1 hot rinse 1) During the Auto programme, the soil level of the dishes is given by how cloudy the water is. The programme duration and consumptions can change. This depends if the appliance is fully or not and on the level of soil on the dishes. The appliance adjusts automatically the temperature of the water during the main wash. 2) This is the perfect daily programme to clean a not fully load. Ideal for a family of 4 persons who only want to load breakfast and dinner crockery and cutlery.

3) Test programme for test institutes. Please refer to separate leaflet supplied, for test data.

1) The digital display shows the programme duration.

The pressure and temperature of the water, the var- iations of power supply and the quantity of dishes can change these values. Use of the appliance Refer to the following instructions for each step of pro- cedure:

1. Make a check if the water softener level is correct for

the water hardness in your area. If necessary set the water softener.

2. Fill the salt container with dishwasher salt.

3. Fill the rinse aid dispenser with rinse aid.

4. Load cutlery and dishes into the dishwasher.

5. Set the correct washing programme for the type of

6. Fill the detergent dispenser with the correct quantity

If you use combi detergent tablets ('3 in 1', '4 in 1', '5 in 1', etc.), refer to the chapter 'Multitab function'. Setting the water softener The water softener removes minerals and salts from the water supply. Minerals and salts can have bad effect on the operation of the appliance. Water hardness is measured in equivalent scales:

• German degrees (dH°).

• Clarke. Adjust the water softener to the water hardness in your area. If necessary, contact your local water authority. Water hardness Water hardness setting °dH °TH mmol/l Clarke manually electronically

1) No use of salt required.

You must set the water softener manually and elec- tronically. Manual adjustment The appliance is set at the factory at position 2.

Electronic adjustment The dishwasher is factory set at level 5.

1. Switch on the appliance.

2. Make sure that the appliance is in setting mode.

3. Press and hold function buttons B and C until the

indicator lights of function buttons A, B and C start to flash.

– The indicator lights for function buttons B and C go off. – The indicator light for function button A continues to flash. – The digital display shows the current level. – You can hear an audible signal. Example: digital display shows / 5 intermittent audible signals = level 5.

6. Press the function button A one time to increase the

water softener level by one step.

7. Press the on/off button to save the operation.

Use of dishwasher salt Caution! Only use dishwashers salt. Types of salt that are not applicable for dishwashers cause damage to the water softener.

Fill the salt container with 1 litre of water (only the first operation).

It is normal that water overflows from the salt con- tainer when you fill it with salt. Make sure that there is no grain of salt outer of the salt compartment. Salt which stays on the tank for a while drills the tank. It is recommended to start a wash- ing programme immediately after you fill the salt con- tainer. This prevents of corrosion because of spilled salt. When you set electronically the water softener to level 1, the salt indicator light does not stay on. Use of rinse aid Caution! Only use branded rinse aid for dishwashers. Do these steps to fill the rinse aid dispenser:

25Caution! Do not fill the rinse aid dispenser with other products (e.g. dishwasher cleaning agent, liquid detergent). There is a risk of damage to the appliance. Adjusting the dosage of rinse aid The rinse aid dial is set at the factory at position 4. To increase or decrease the dosage refer to 'What to do if...' Loading cutlery and dishes Helpful hints and tips Caution! Only use the appliance for household utensils that are applicable for dishwashers. Do not use the appliance to clean objects that can absorb water (sponges, household cloths, etc.).

• Before you load cutlery and dishes, do these steps: – Remove all food remainings and debris. – Make burnt, remaining food in pans soft.

• While you load cutlery and dishes, do these steps: – Load hollow items (e.g. cups, glasses and pans) with the opening down. – Make sure that water does not collect in the con- tainer or in a deep base. – Make sure that cutlery and dishes do not lie inside one another. – Make sure that cutlery and dishes do not cover other cutlery and dishes. – Make sure that glasses do not touch other glasses. – Put small objects in the cutlery basket.

• Plastic items and pans with non-stick coatings can keep water droplets. Plastic items do not dry as well as porcelain and steel items.

• Put light items in the upper basket. Make sure that the items do not move. Caution! Make sure that the spray arms can move freely before you start a washing programme. Warning! Always close the door after you load or unload the appliance. An open door can be dangerous.

Arrange service dishes and large lids around the edge of the lower basket.

The rows of prongs in the lower basket can be flat to load pots, pans and bowls.

Use the cutlery grid. If the dimensions of the cutlery prevent use of the cutlery grid, remove it.

Arrange the items to let water touch all surfaces.

For longer items fold the cup racks up. Prevent to put plates in the first three sections in the front part of the upper basket. Make sure the plates tilt forward. Adjustment of the height of the upper basket If you put large plates in the lower basket, first move the upper basket to the upper position. Maximum height of the dishes upper basket lower basket Upper position 20 cm 31 cm Maximum height of the dishes upper basket lower basket Lower position 24 cm 27 cm Do these steps to move the upper basket to the upper position:

1. Pull the basket out until it stops.

2. Carefully lift the two sides until the mechanism is

engaged and the basket is stable.

Do these steps to move the upper basket to the lower position:

1. Pull the basket out until it stops.

2. Carefully lift the two sides upwards.

3. Hold the mechanism and let it fall back down slowly.

• Do not lift or lower the basket on one side only.

• If the basket is in the upper position, do not put cups on the cup racks. Use of detergent Only use detergents (powder, liquid or tablet) that are applicable for dishwashers. Follow the data on the packaging:

• Dosage recommended by the manufacturer.

• Storage recommendations. Do not use more than the correct quantity of deter- gent to save an environment.

If you use a washing pro- gramme with prewash phase, put more detergent in the prewash detergent compartment (B).

Different brands of detergent dissolve in different times. Some detergent tablets do not have the best cleaning results during short washing programmes. Use long washing programmes when you use detergent tab- lets to fully remove the detergent. Multitab function The multitab function is for combi detergent tablets. These tablets contain agents such as detergent, rinse aid and dishwasher salt. Some types of tablets can contain other agents. Do a check if these tablets are applicable for the local water hardness. Refer to the instructions from the manufacturer. When you set the multitab function, it stays on until you deactivate it. The multitab function stops automatically the flow of rinse aid and salt. The rinse aid indicator light and salt indicator light are deactivated. The programme duration can increase if you use the mul- titab function. Activate or deactivate the multitab function before the start of a washing programme. You cannot activate or deactivate the multitab function when the programme operates. Cancel the washing pro- gramme, then set the programme again. To activate the multitab function:

• Press the multitab button. The multitab indicator light comes on. To deactivate the multitab function:

• Press the multitab button. The multitab indicator light goes off. Do these steps if the drying results are not satis- factory:

• You can only activate or deactivate the rinse aid dis- penser when the multitab function is activated. To activate/deactivate the rinse aid dispenser:

1. Switch on the appliance.

2. Make sure that the appliance is in setting mode.

3. Press and hold function buttons B and C.

– The indicator lights for function buttons A, B, and C start to flash.

– The indicator lights for function buttons A and C go off. – The indicator light for function button B continues to flash. – The digital display shows the setting. Rinse aid dispenser deac- tivated Rinse aid dispenser activa- ted

6. Press function button B again.

– The digital display shows the new setting.

7. Switch off the appliance to save the operation.

3. Adjust the water hardness setting to the highest level.

4. Do a washing programme without dishes.

5. Adjust the water softener to the water hardness in your

Setting and starting a washing programme Set the washing programme with the door ajar. The washing programme only starts after you close the door. Until then it is possible to modify the settings. Do these steps to set and start a washing programme:

1. Switch on the appliance.

2. Make sure that the appliance is in setting mode.

3. Press one of two programme selection buttons again

and again until the digital display shows number corresponding to the required programme. Refer to the chapter 'Washing programmes'.

– The washing programme starts. When the washing programme operates, you cannot change the programme. Cancel the washing pro- gramme Setting and starting a washing programme with delay start

3. Press the delay start button until the display shows

– The countdown of the delay start starts. – The countdown of the delay start decreases with steps of 1 hour. – When the countdown is completed, the washing programme starts automatically. Do not open the door during the countdown to pre- vent interruption of the countdown. When you close the door again, the countdown continues from the point of interruption. Cancelling a delay start

1. Press and hold function buttons B and C until the

digital display shows two horizontal lines (- -). – When you cancel a delay start, you also cancel the washing programme.

2. Set a new washing programme.

Warning! Only interrupt or cancel a washing programme if necessary. Caution! Open the door carefully. Hot steam can come free. Interrupting a washing programme Open the door.

• The programme stops. Close the door.

• The programme continues from the point of interrup- tion. Cancelling a washing programme

1. Press and hold function buttons B and C until the

digital display shows two horizontal lines (- -).

2. Release function buttons B and C to cancel the wash-

ing programme. At this time you can do these steps:

1. Switch off the appliance.

2. Set a new washing programme .

29Fill the detergent dispenser with detergent before you set a new washing programme. End of the washing programme

• The appliance stops automatically.

• The audible signals for the end of the programme op- erate.

– The digital display shows 0. – The end indicator light comes on.

2. Switch off the appliance.

3. For better drying results, keep the door ajar for some

minutes before you remove the dishes. Let the dishes cool down before you remove them from the appliance. Hot dishes are easily damaged. Removing the load

• First remove items from the lower basket, then from the upper basket.

• There can be water on the sides and door of the appli- ance. Stainless steel becomes cool more quickly than the dishes. Care and cleaning Warning! Switch the appliance off before you clean the filters. Cleaning the filters Important! Do not use the appliance without the filters. Make sure that the installation of the filters is correct. Incorrect installation will cause unsatisfactory washing results and damage to the appliance.

Fully clean the filters A, B and C below running wa- ter.

To remove filters B and C, turn the handle approxi- mately 1/4 anticlockwise.

Remove the flat filter A from the bottom of the ap- pliance.

Put the flat filter A in the bottom of the appliance. Install the flat filter cor- rectly under the two guides D.

Put the filter system in po- sition. To lock the filter system, turn the handle clockwise until it locks in position. Important! Do not remove the spray arms. If the holes in the spray arms become clogged, remove remaining parts of soil with a cocktail stick. External cleaning Clean the external surfaces of the appliance and control panel with a damp soft cloth. Only use neutral detergents. Do not use abrasive products, scouring pads or solvents (acetone, trichloroethylene etc...). Frost precautions Caution! Do not install the appliance where the temperature is below 0 °C. The manufacturer is not responsible for damage because of frost. If not possible, empty the appliance and close the door. Disconnect the water inlet hose and remove water from the water inlet hose. 30What to do if… The appliance does not start or stops during operation. If there is a fault, first try to find a solution to the problem yourself. If you cannot find a solution to the problem yourself, contact the Service Force Centre. Caution! Switch off the appliance before you do the below suggested corrective actions. Fault code and malfunction Possible cause and solution

• intermittent audible signal

digital display shows The dishwasher does not fill with water

• The water tap is blocked or furred with limescale. Clean the water tap.

• The water tap is closed. Open the water tap.

• The filter in the water inlet hose is blocked. Clean the filter.

• The connection of the water inlet hose is not correct. The hose can be kinked or squashed. Make sure that the connection is correct.

• intermittent audible signal

digital display shows The dishwasher will not drain

• There is a blockage in the sink spigot. Clean the sink spigot.

• The connection of the water drain hose is not correct. The hose can be kinked or squashed. Make sure that the connection is correct.

• intermittent audible signal

digital display shows The anti-flood device operates

• Close the water tap and contact your local Service Force Centre. The programme does not start • The appliance door is not closed. Close the door.

• Mains plug is not connected in. Put in the mains.

• The fuse has blown out in the household fuse box. Replace the fuse.

• Delay start is set. Cancel the delay start to start the programme immediately. After the check, switch on the appliance. The programme continues from the point of interruption. If the malfunction shows again, contact your Service Force Centre. If the display shows a fault code, not described in the chart, contact your Service Force Centre. These data are necessary to help you quickly and cor- rectly:

• Product number (PNC)

• Serial number (S.N.) For these data, refer to the rating plate. Write the necessary data here: Model description : .......... Product number : .......... Serial number : .......... 31The cleaning results are not satisfactory The dishes are not clean • The selected washing programme is not applicable for the type of load and soil.

• The baskets are loaded incorrectly so that water cannot reach all surfaces.

• Spray arms do not turn freely because of incorrect arrangement of the load.

• The filters are dirty or not correctly installed.

• The quantity of detergent is too little or missing. Limescales particles on the dishes • The salt container is empty.

• The water softener is adjusted on a wrong level.

• The salt container cap is not closed correctly. The dishes are wet and dull • No rinse aid has been used.

• The rinse aid dispenser is empty. There are streaks, milky spots or a bluish coating on glasses and dishes

• Decrease the rinse aid dosage. Dry water drop signs on glasses and dishes

• Increase rinse aid dosage.

• The detergent can be the cause. Technical data Dimensions Width Height Depth 59,6 cm 81,8-87,8 cm 55,5 cm Electrical connection - Voltage - Overall power - Fuse Information on the electrical connection is given on the rating plate on the inner edge of the dishwasher door. Water supply pressure Minimum Maximum 0,05 MPa (0,5 bar) 0,8 MPa (8 bar) Capacity 12 place settings Environment concerns The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product. The packaging materials are environmentally friendly and can be recycled. The plastic components are identified by markings, e.g. >PE<, >PS<, etc. Discard the packaging materials in the applicable container at the community waste disposal facilities. 32Warning! To discard the appliance, follow the procedure:

• Pull the mains plug out of the socket.

• Cut off the mains cable and mains plug and discard them.

• Discard the door catch. This prevents the children to close themselves inside the appliance and endanger their lives. Installation Warning! Make sure that mains plug is disconnected from the mains socket during installation. Important! Obey the instructions in the enclosed template to:

• Build-in the appliance.

• Install the furniture panel.

• Connect to the water supply and drain. Install the appliance under a counter (kitchen worktop or sink). If a repair is necessary, the appliance must be easily ac- cessible for the engineer. Put the appliance adjacent to a water tap and a drain. For the venting of the dishwasher only water fill, water drain and power supply cable openings are necessary. The dishwasher has adjustable feet to allow the adjust- ment of the height. Make sure that the water inlet hose, the drain hose and the supply cable are not kinked or squashed, when you insert the machine. Attaching the appliance to the adjacent units Make sure that the counter below which you attach the appliance is a safe structure (adjacent kitchen units, cab- inets, wall). Adjusting the level of the appliance Make sure that the appliance is level to close and seal the door correctly. If the level of the appliance is correct, the door does not catch on the sides of the cabinet. If the door does not close correctly, loosen or tighten the adjustable feet until the appliance is level. Water connection Water inlet hose Connected the appliance to a hot (max. 60°) or cold water supply. If the hot water comes from alternative sources of energy that are more environmentally friendly (e.g. solar or pho- tovoltaic panels and aeolian), use a hot water supply to decrease energy consumption. Connect the inlet hose to a water tap with an external thread of 3/4”. Caution! Do not use connection hoses from an old appliance. The water pressure must be in the limits (refer to the chapter 'Technical data'). Make sure that the local water authority gives you the average mains pressure in your area. Make sure that there are no kinks in the water inlet hose and that the water inlet hose is not squashed or entangled. Turn the inlet hose to the left or the right to suit the in- stallation. Fit the locknut correctly to prevent water leaks. Caution! Do not connect the appliance to new pipes or pipes that are not used for a long time. Let the water run for some minutes, then connect the inlet hose. Water inlet hose with safety valve The water inlet hose is a double-walled and has an inner mains cable and a safety valve. The water inlet hose is under pressure only while the water is running. If there is a leak in the water inlet hose, the safety valve interrupts the running water. Warning! Danger- ous voltage Be careful when you connect the water inlet hose: 33• Do not put the water inlet hose or the safety valve in water.

• If the water inlet hose or the safety valve is damaged, immediately disconnect the mains plug from the mains socket.

• Only let the Service Force Centre replace the water inlet hose with safety valve. Drain hose

Connect the water drain hose to the sink spigot. max 85 cm min 40 cm max 400 cm
