USER MANUAL F100 KeepOut

Thank you for choosing Keep Out's Mechanical Gaming Keyboard F100 Description

The F100 is a mechanical keyboard that aims to offer gamers a product of great quality with a simple and elegant design, with its own Keep Out personality. Each key is individually backlit in a clear and crisp green, provides a perfect view of the keys in total darkness. With the additional software you can record your favorite macros for a unique gaming experience and with its 8 additional multimedia keys, you get full control of your team. Devastate your opponent with the F100 keypad.

Technical Specifications

Fully mechanical keys with "Non-Click" technology. WASD and Cursor keys have "Non-Click" keys, Network and the rest Black "Non-Click" keys. Keys individually illuminated retro green 110 mechanical keys with "non-click" technology and life up to 50,000,000 keystrokes. 3 customizable profiles. additional software Additional 8 interchangeable keys (WASD and arrow keys). 12 multimedia control functions 5 programmable macro keys to create Function "Gaming Mode" which allows the activation / desactivation of the Windows key USB 2.0 Cable braided nylon fiber anti ghosting system Compatible with Windows XP / Vista / 7/8 Dimensions: 50.4 * 17.8 * 2.53cm Weight: 1285G

Package contents

· Gaming Keyboard F100
· Quick Installation Guide in multiple languages
- Keys W, A, S, D and additional cursors. Special tool for extracting keys

- Software Installation CD

Note: Make sure that your package contains the items described above. If you find any items are missing or damaged, please contact your dealer.

Installation

1 Connection: Connect the Gaming Keyboard in a free USB port on your pc.
1. Insert the included installation CD in your drive.
2. Double-click My Computer, select your DVD drive and run the autorun.exe file.
3. Install the drivers for your device.
2 Once installed, restart your pc.

Software

Lighting

-To change the keyboard backlight should do it manually using the following commands:

1. Press Fn + "Page Down" to reduce lighting
2. Press Fn + "Retro Page" to increase lighting
3. Press Fn + Esc to fix the lighting or put in intermittent mode

Profiles

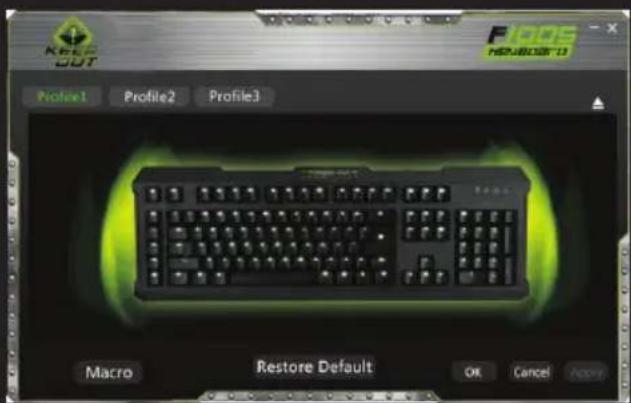

-Open the software from Start / All Programs or icon of the

KEE OUT Profile1 Profile2 Profile3 Profile 1000 Macro Restore Default OK Cancel Add

EN

taskbar in the lower right corner of your desktop.

In the keyboard memory, you can save to 3 profiles. Just click on any of them and "Apply" to activate.

Macro Function

If you want to program a macro, follow these steps: (For example we will set the "G1" key)

1. First, click the key you want to program, in this case "G1". Then the configuration window opens.

KORE OUT Profile1 Profile2 Profile3 F005 NE80070 Key Settings Macro Name Keys Ac Delay(m/s) + - Macro Macro Media Function Record/Delay Cycles OK Cancel

1. To create a new 'Macro' click on "+" and if you want to assign a custom name to the macro.

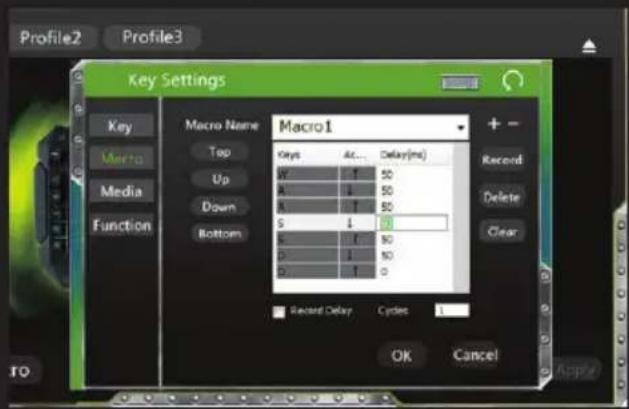

2. To record the macro click the "Record" option, it will start recording the "Macro". For example, if you want to burn the letter combination "WASD" press "Record" and then press on your keyboard the letters "WASD". When finished, click "Record". (You can also change the "Delay time", for this click on the "Delay" column, as shown in the picture.

Profile2 Profile3 Key Settings Macro Name Macro1 Top Up Down Bottom Macro Key: Ac... Delay(ml) W T 50 A T 50 A T 50 S ↓ 1 S T 90 D T 90 D T 0 Record Delay Cycles 1 OK Cancel

3.1 The "delay" is the delay between the keystrokes that are entered in the macro. It is measured in milliseconds.
4. Once we have programmed the macro, click on "OK" to save. Now every time you press the "G1" key, will be writing the "WASD" command.

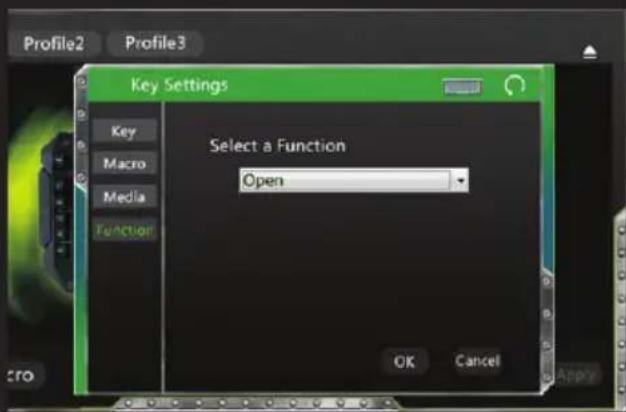

5., We can also assign a function to a key as a "Copy", "Paste", "Open". We'll just have to click the button you want to modify and assign a function as shown in the picture, then click "Ok".

Profile2 Profile3 Key Settings Select a Function Open OK Cancel Apply

1. To create macros manually (without using the software), you must follow the following steps:

1. Press the "REC" button to see the LEDs flashing top right. (LEDs "Shift", "Num Lock)

2. Now press the key you want to record (ex: "G1"), then the LED indicator on the top right of the keyboard will blink faster.

3. Now we can press the keys with which we want to perform the "G1" function. (For example, press WASD).

4. To end recording, press "REC" after doing this, every time you click the "G1" key will be operating the WASD keys. How to cancel the macros?

5. Press "REC" and you'll see the LED on the top right of the keyboard flashing.

6. Now press cancel which we want, in this case "G1".
7. Finally press "REC" and the macro will be canceled.

"Fn" Keys

The Fn key in combination with other keys performs multimedia and special functions:

1. Fn + F1 Open media player
2. Fn + F2 decrease volume
3. Fn + F3 increase volume
4. Fn + F4 to disable sound
5. Fn + F5 Stop
6. Fn + F6 Previous Track
7. FN + F7 Play / Pause
8. Fn + F8 Next Track
9. Fn + F9 Open mail
10. Fn + F10 Open the default browser
11. Fn + F11 Lock the keypad
12. Fn + F12 Calculator
13. Fn + Q keyboard response speeds (30/60 milliseconds)
14. Fn + TAB on / off the lighting of the gaming keys
15. Fn + Esc 15 changes the illumination mode: steady / flashing

"Gaming Key" Windows lock feature

Pressing the FN key + Windows key to enable or disable the Windows key, so that nothing hinders you during play sessions.

Restore defaults

You can restore defaults by clicking the "Restore Default" button on the software keyboard.

Technical Support

For more information on installing and configuring this product go to our web site www.keepoutgaming.com or write an email to the following address: [e-mail]

ES

Introducción

KEE OUT Profile1 Profile2 Profiles Profile3 Profile4 Profile5 Macro Restore Default OK Cancel Help

KEEC JOT Profile1 Profile2 Profile3 Key Settings Macro Name Keys Act... Delay(min) Record Delay Cycles OK Cancel

Profile2 Profile3 Key Settings Select a Function Open OK Cancel Apply

KEES CUT Profile1 Profile2 Profile3 Profile 1 Profile 2 Profile 3 Macro Restore Default OK Cancel Help

KEEC OUT Profile1 Profile2 Profile3 Profile 1 Profile 2 Profile 3 Key Settings Macro Name Kays Acc... Delay(m) + - Macro Media Function Record Delay Cycles OK Cancel F005 NE80040

Profile2 Profile3 Key Settings Macro Name Macro1 Top Up Down Bottom Macro Macra Media Function + - Records Delete Clear Record Delay Cycles OK Cancel

Profile2 Profile3 Key Settings Select a Function Open OK Cancel

KORE Profile1 Profile2 Profile3 Key Settings Macro Name Keys AC... Default(m) Record Delay Codes OK Cancel Macro

Profile2 Profile3 Key Settings Macro Name Macro1 Macro Top Up Down Bottom S S D D Record Delay Cycles OK Cancel + - Record Delete Clear TO

Profile2 Profile3 Key Settings Key Macro Media Function Select a Function Open OK Cancel Apply

"Ok".

Como cancelar as macros?

Chaves "Fn"

EC DECLARATION OF CONFORMITY

We declare under our sole responsibility that the product:

Brand name: KEEP OUT

Model no: F100, F110, F89, F80

Product description: Gaming Usb Keyboard

The measurements shown in this test report were made in accordance with the procedures given in the:

- EMC DIRECTIVE: 2004/108/EC

- RoHS DIRECTIVE: 2011/65/EU

To which this declaration is based on with full conformance to the following European norms and standards:

EN 55022:2010

- EN 61000-3-2:2006+A1:2009+A2:2009

- EN 61000-3-3:2008

- EN 55024:2010

- EN 61000-4-2:2009, EN 61000-4-3:2006+A1:2008+A2:2010

- EN 61000-4-4:2012, EN 61000-4-5:2006

- EN 61000-4-6:2009, EN 61000-4-8:2010, EN 61000-4-11:2004

Signed Jun 25, 2014

Jose Luis Ruiz Gómez

Managing Director

KEEP OUT

ADD: Polígono Industrial Guadalquivir

Gelves (Sevilla), Spain.

Website: www.keepoutgaming.com

CE

Importado por / Imported by:

APPROX IBERIA S. L.

CIF: B-91202499

Soporte técnico / Technical support:

[e-mail]

The content of this guide is subject to typographical errors.
