USER MANUAL Pureline Pro Compact 6912 NOVY

EN Installation Instructions 11

Novy Pureline Pro Compact

6910 - 6911 - 6912

6920 - 6921 - 6922

NL

1 VOORSCHRIFTEN VOOR VEILIGHEID EN MONTAGE

Meer informatie over de Novy producten, accessoires en diensten kunt u vinden op internet: www.novy.com

1 SAFETY AND ASSEMBLY REGULATIONS

Further information on Novy products, accessories and services may be found on the internet: www.novy.com

These are the installation instructions for the appliance as shown on the front. The directions for use are in a separate booklet supplied with the appliance.

These installation instructions make use of a number of symbols. The meanings of the symbols are shown below.

Symbol Meaning Action
	Indication Explanation of an indication on the hood.
	Warning This symbol indicates an important tip or a dangerous situation

Observe this instruction in order to prevent injury and damage to property.

ngs before installation

- This appliance complies with the applicable safety instructions. However, inexpert installation may cause personal injury or damage to the appliance.

- The appliance is intended exclusively for household use (preparation of food) and excludes all other domestic, commercial or industrial use. Do not use the appliance outside.

- Check the condition of the appliance and the installation fittings as soon as you remove them from the packaging. Remove the appliance from the packaging with care. Do not use sharp knives to open the packaging.

- Do not install the appliance if it is damaged, and in that case inform Novy.

- Check on the basis of the drawing A that all the materials for installation have been supplied. The grease filters are in the appliance.

- Novy is not liable for damage resulting from incorrect assembly, incorrect connection, incorrect use or incorrect operation.

- The installation and electrical connection of the appliance should be left to a recognised expert.

- Safety is guaranteed only with expert installation in accordance with the installation manual. The installing technician is responsible for proper operation at the installation location.

- For easier installation of the appliance, it is advisable to carry it out with at least 2 people.

- Read the directions for use and the installation instructions before installing and using this appliance. You will find important information here for the assembly and use of the appliance.

- Metal parts may have sharp edges, and you may injure yourself on them. For that reason, wear protective gloves during installation.

ation instructions for the appliance

- Ensure that the structure on or in which the appliance is to be installed can bear its weight.

- Faulty or damaged parts may only be replaced by original Novy parts.

- The larger the distance between the appliance and the hob, the less easily the cooking vapours can be taken up by the appliance. For this reason, pay heed to the stated (recommended) installation height.

- If a different distance is specified in the installation instructions for the gas hob, the largest distance indicated applies.

- In order to ensure that the cooking vapours are taken up in an optimal way, the appliance, or the structure into which the appliance is being installed, should extend over the hob. When using your own structure, ensure that the appliance is installed centred above the hob.

- For optimal operation, the hob should not be larger than the appliance or the structure into which the appliance is installed.

st or recirculation

Before starting to install, you need to have decided whether you are making an extraction duct to the outside, or whether you are going to use the extractor hood as a recirculation extractor hood. If opting for recirculation, you will find the recirculation kit with the accessories in these installation instructions.

the exhaust duct

For optimum performance of the cooker hood it is important to pay attention to the following points:

- The hood has a connection for flat exhaust duct (89x222mm). If necessary, this can be transferred to a circular exhaust duct of ∅ 150 mm at a later stage.

- You will achieve the best operation and lowest possible noise level for the appliance by connecting the extraction duct by as short a route as possible, with as few bends as possible and using the prescribed diameter.

- Use smooth, non-flammable pipes with an internal diameter that is equal to the external diameter of the connection nozzle of the hood.

- Use flat duct with rounded corners and with air deflectors. Available at Novy.

- Do not reduce the exhaust diameter. This will lower the capacity and raise the noise level.

- Avoid right-angle bends. Use rounded bends for effective airflow.

- Use of a flexible extraction hose should be kept to a minimum, and it should only be used for making small bridging sections, for example as the link between the outlet nozzle and the extraction duct. Maximally extend flexible ducts and cut them to size.

- Ensure that the extraction duct is not crushed and that there are no kinks in the duct.

- Use a hose clamp or aluminum tape for airtight connections.

• With a horizontal extraction duct, install it at a slight incline to ensure that condensation does not run back to the appliance.
• Condensation may arise as a result of temperature differences if the extraction duct passes through cool rooms. Ensure that the extraction duct is insulated.
• In case of an exhaust pipe through the outside wall passing a cavity wall, make sure that the exhaust duct fully bridges the cavity and slightly declines to the outside.
• In case of an exhaust pipe through the wall, use a wall vent.
• In case of an exhaust pipe through the roof, use a double-walled roof passage with adequate outlet capacity.
• When connecting to a short extraction duct, it may be desirable to install a non-return valve in the duct in order to prevent backdraught from wind.
• Make sur that sufficient air is supplied. Fresh air can be supplied by slightly opening a window or an outside door or by installing an inlet grate.
• The appliance may not be connected to a flue or chimney that is currently in use, or that serves as ventilation for rooms with hearths.

However large the kitchen or the room with open kitchen is, only so much air can be extracted from the room as is supplied. Too little air supply could result in a yield loss of 50% and more.

If the extraction is used at the same time as a combustion system (for example heaters fired by gas, oil, wood or coal, hot water boilers using gas, gas hobs and gas ovens), combustion gases may be sucked back in and lead to poisoning.

A combustion system uses air from the room as combustion air. Combustion gases arise as a result, which are removed to the outside by an extraction system.

The appliance sucks in air from the kitchen and adjacent rooms. Negative pressure occurs if the air supply is inadequate. The toxic gases are then sucked back from the chimney or extraction duct into the room.

With simultaneous use of the appliance and combustion appliances in the same room, the negative pressure may not exceed 4 Pa (=0.04 mBar). Negative pressure can be prevented by allowing sufficient air into the room through openings that cannot be closed (for example through windows or doors, in combination with a ventilation cabinet in the wall).

Have an expert assess the overall ventilation system in your home for a proposal on suitable measures in the area of air supply.

When using the appliance with an internal or external motor (unit) with air extraction to the outside, there must be adequate air supply in the room where the appliance has been installed / is positioned, so that fresh air can flow in. Fresh air can be provided by tilting a window, opening a door or installing an inlet grille.

With an appliance with recirculation, there must be a minimum of ventilation in the room where the appliance has been installed / is positioned. Ventilation can be provided by the overall ventilation in the home or by tilting a window or opening a door.

Certain appliances are fitted with a connection for a window contact switch (see the technical specifications for your appliance). If the appliance is to operate at the same time as a heating appliance that needs air from the room, and if the required supply can only take place through a single open window, there is the option of connecting the appliance to a window contact switch (not included). This ensures that the appliance operates only when the window is open. If the window is closed, the fan cannot be switched on.

Contact your technician for the correct accessories for your appliance.

Installation instructions for the outlet

• The appliance may only be connected with the power plug to a socket with an earth (230 V – 50 Hz).
• Safety is only assured when the appliance is connected to an earth cable in accordance with the instructions laid down.
• The appliance must be able to be disconnected from the power at any desired point.
• Position the socket in such a way that the power plug of the appliance can be inserted easily.
• Do not use an extension cable for the connection to the electrical mains.
• Electric shock: never switch on a faulty appliance, this could cause an electric shock. Take the power plug out of the socket, or switch off at the distribution cabinet. Contact the Novy service department.
• Repairs and replacing faulty or damaged wiring must only be carried out by technicians who have undergone instruction by Novy.
• Moisture that has got into the appliance may cause an electric shock. Do not use a high pressure or steam cleaner.

2 ACCESSORIES

Novy Sense sensor

This cooker hood can be equipped with an automatic speed control (Novy Sense sensor). In auto mode, a sensor inside the appliance recognises the intensity of cooking fumes and odours. The optimum motor speed is set automatically using this sensor.

This optional kit must be fitted to the motor outlet before installing the cooker hood.

- Kit Novy Sense sensor for automatic speed control upon detection of cooking fumes and odours 6910.070

Flexible duct

In order to simplify the installation, it is advisable to make the final piece between the flat duct work and hood from flexible, flat exhaust duct (906.408).

Recirculation

If you choose recirculation, Novy offers the outlet box in various sizes, including type 841.400 / 842.400 / 843.400 or type 7931.400 / 7932.400 / 7933.400.

Accessories flat exhaust duct

- Flexible exhaust tube length 750 mm 906.408

- Flat exhaust channel duct1000 mm (dimensions: 89x222x1000 mm) 906.401

- Connection piece (dimensions: 94x227x80 mm) 906.402

– Horizontal curve (dimensions: 94x227x290 mm) 906.403

- Vertical curve (dimensions: 94x175x227 mm) 906.404

- Curve 15^ (dimensions: 94x227x138 mm) 906.418

- Carrier adapter (dimensions: 94x227x205 mm) 906.405

- Transition piece to ∅150 mm (dimensions: 94x227x190 mm) 906.406

- Wall conduct kit for flat exhaust duct 89x222mm including built-in heat retention non-return valve 906.425

- Stainless Steel blind grill with non-return valve (dimensions: 290 x 160 mm) 906.407

Accessories circular exhaust tube

• Circular exhaust tube length 1000 mm ∅150 mm 906.415
• Connection piece ∅150 mm 906.417
• Curve 90° ∅150 mm 906.416
  – Aluminium external grill for ∅150 mm 906.178
• Wall conduct kit for ducting ∅150 mm including built-in heat retention non-return valve 906.420
• Non-return valve ∅150 mm 906.432

General accessories

• Hose clamp adjustment ∅60-215 mm 906.291
  – Aluminium tapeøll 50 m 906.292
  – Stainless steel cleaner: maintenance product for cleaning the stainless steel 906.060

InTouch

InTouch offers you the possibility to control the Novy cooker hood from the Novy InTouch induction cooking plate. The ceiling hood may, as a default, be combined with InTouch induction cooking plates.

Visit the website for the different models of induction cooking plates with InTouch.

Window switch

This hood is equipped with a connection for a contact window switch. If the hood is to work simultaneously with a heating appliance that pulls air from the room, and if the required supply of fresh air can only be through an open window, it is possible to connect a window contact switch (not supplied) to the hood.

This ensures the hood only works if the window is open. When the window is closed, the fan can not be turned on. A window contact cable set is available as an accessory (part number 990.036). Using the cable set, it is possible to make a connection between the hood controller to the outside of the hood. A window contact switch can then be connected (not included).

Further information on Novy products, accessories and services may be found on the internet: www.novy.com

NL Montage ZONDER optionele Novy Sense sensor
FR Installation SANS le capteur optionnel Novy Sense
DE Installation OHNE optionalen Novy Sense Sensor
EN Installation WITHOUT the optional Novy Sense sensor

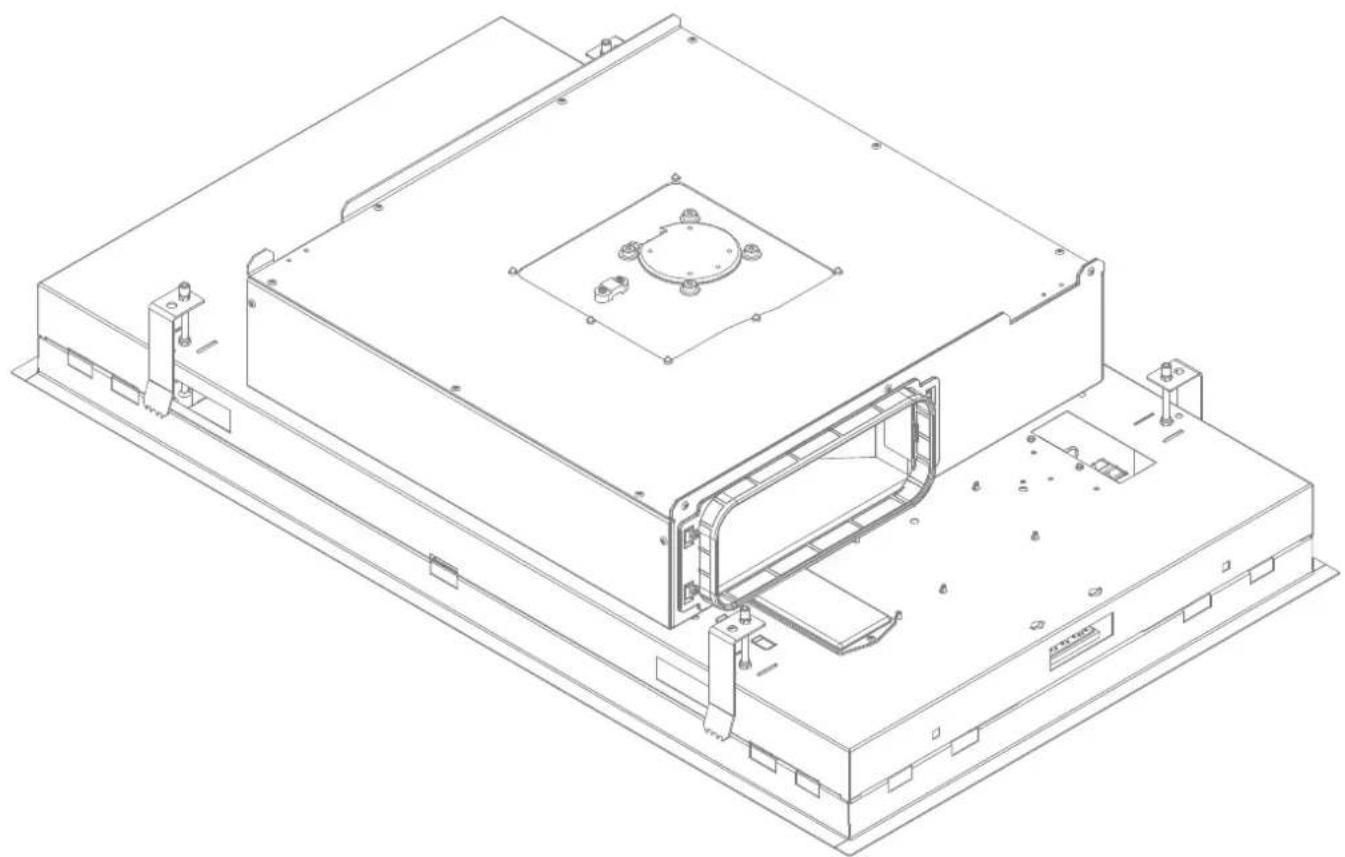

Technical line drawing of an electronic device chassis with mounting brackets and internal components (no text or symbols)

NL

afondunit kan

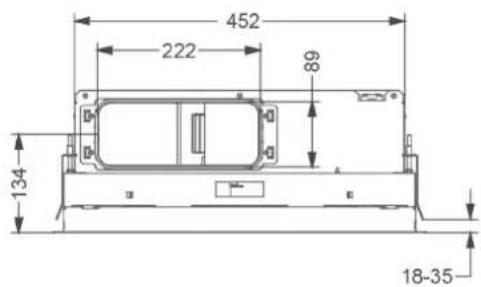

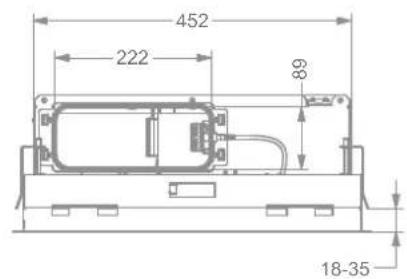

built into plates with a thickness of 18-35mm. Do not mount directly into gypsum board; always make sure there is reinforcement for the tightening of the mounting clamps. Make sure there is a socket near the ceiling unit, so that the power may, at all times, be removed from the ceiling unit.

use of the

substantial own weight of the hood, the ceiling must have sufficient load bearing capacity.

recommended

mounting height for an electric or ceramic cooking plate is min. 600 mm and max. 1600 mm. The mounting height for a gas or induction cooking plate is min. 650 mm and max. 1600 mm.

Technical line drawing of a rectangular mechanical component with rounded corners and mounting flanges (no text or symbols)

4 x 906116

1 × 840029

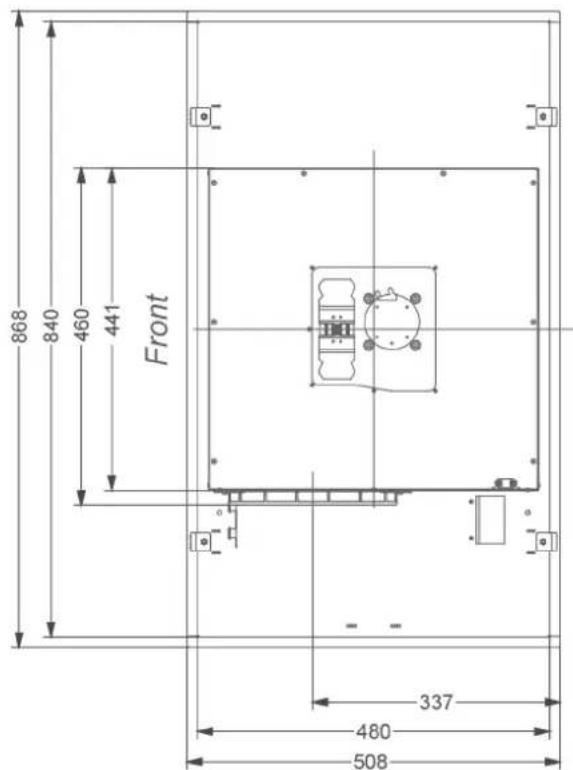

845/1145 485

2

Technical diagram showing a device with labeled components and an inset view of a screwdriver inserted into a component.

3

Technical line drawing of a mechanical assembly with circular components and rotational arrows (no text or symbols)

NL 3 INSTALLATIE

① Create an cut-out opening:

Model 6910 / 6911 / 6912 – Cut-out 845mm x 485mm

Model 6920 / 6921 / 6922 – Cut-out 1145mm x 485mm

② The cooker hood should be mounted with the control on the right side of the user, so that the bottom panel opens away from you and the filter can be easily removed from the cooker hood.

As standard, the exhaust opening of the motor is to right. If required, the exhaust opening can be be modified.

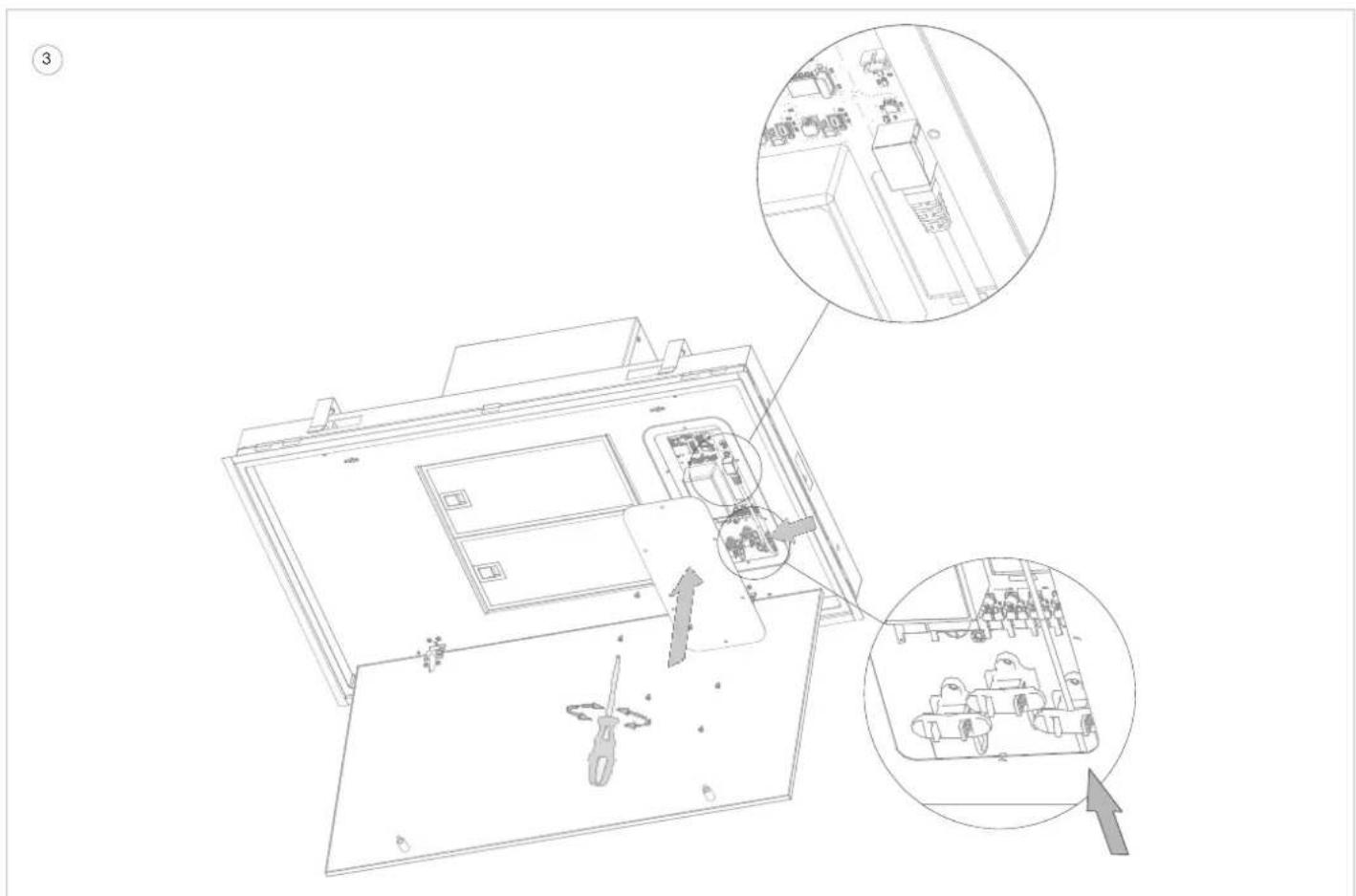

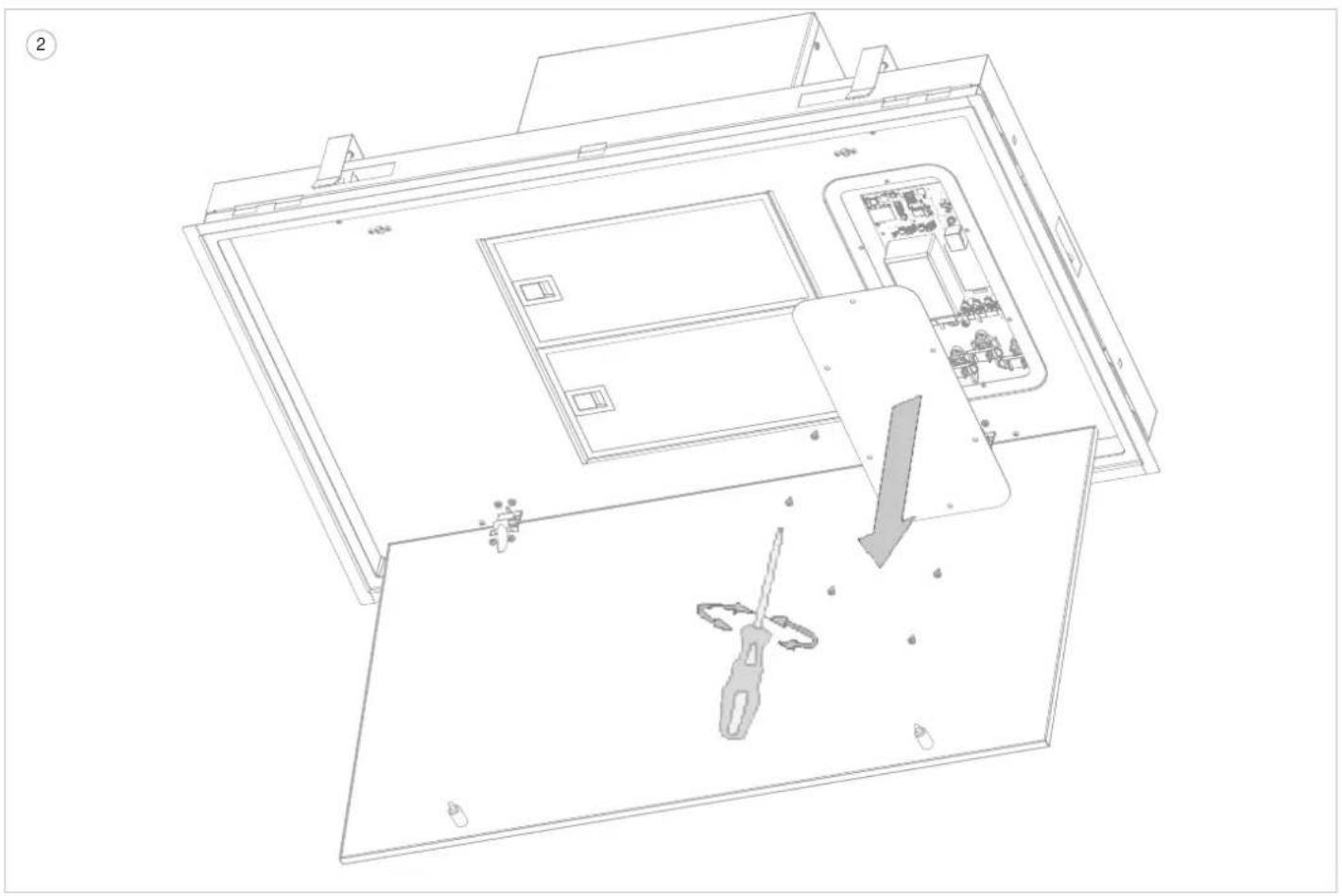

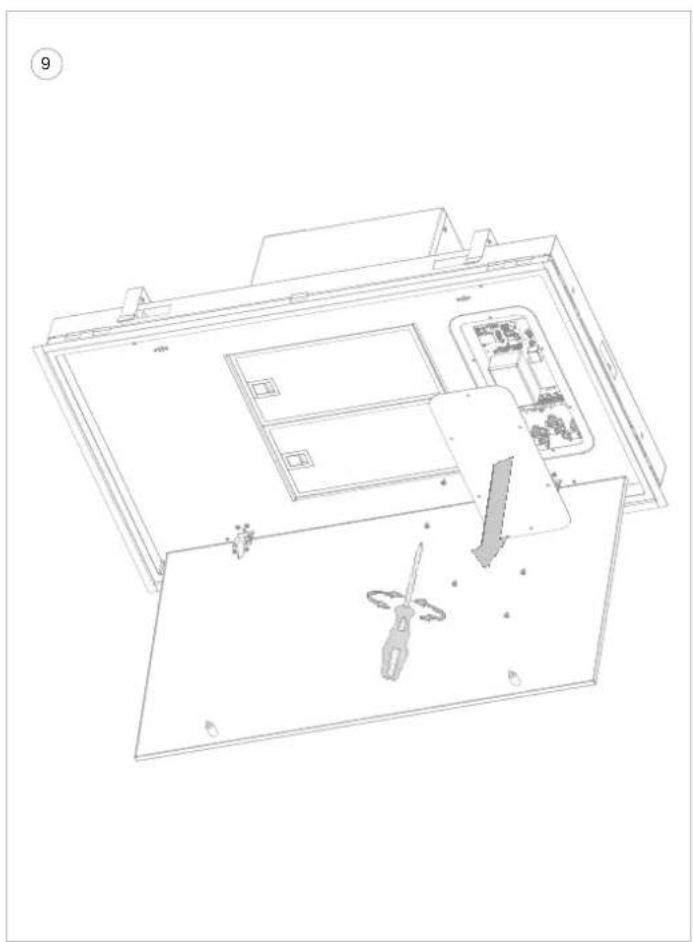

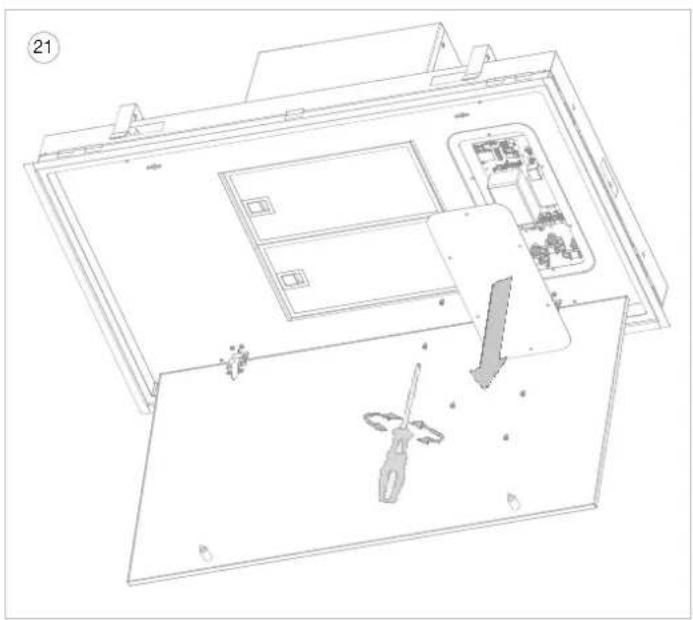

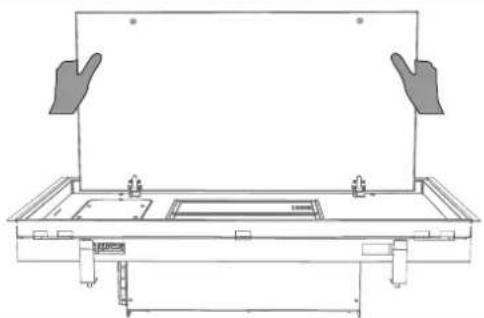

- Open the bottom panel and remove the filters from the hood.

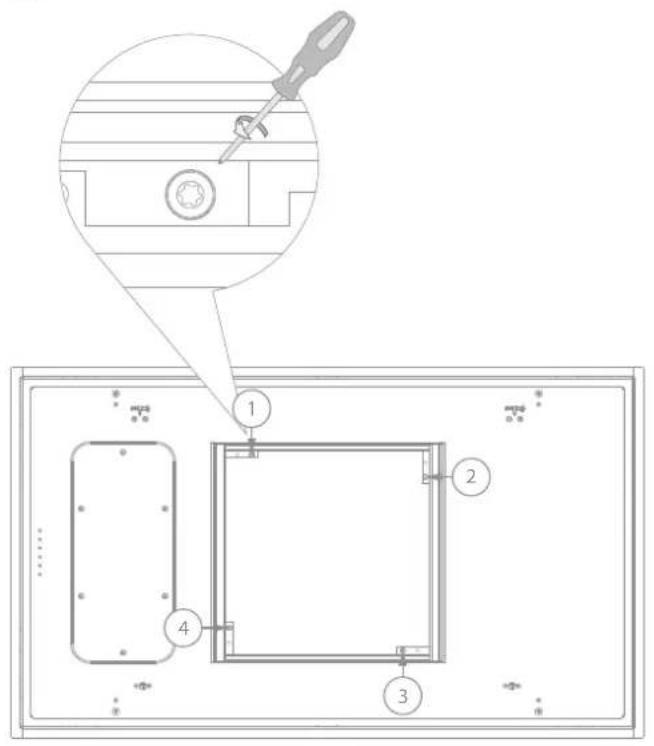

- Loosen the 4 screws in accordance with the drawing.

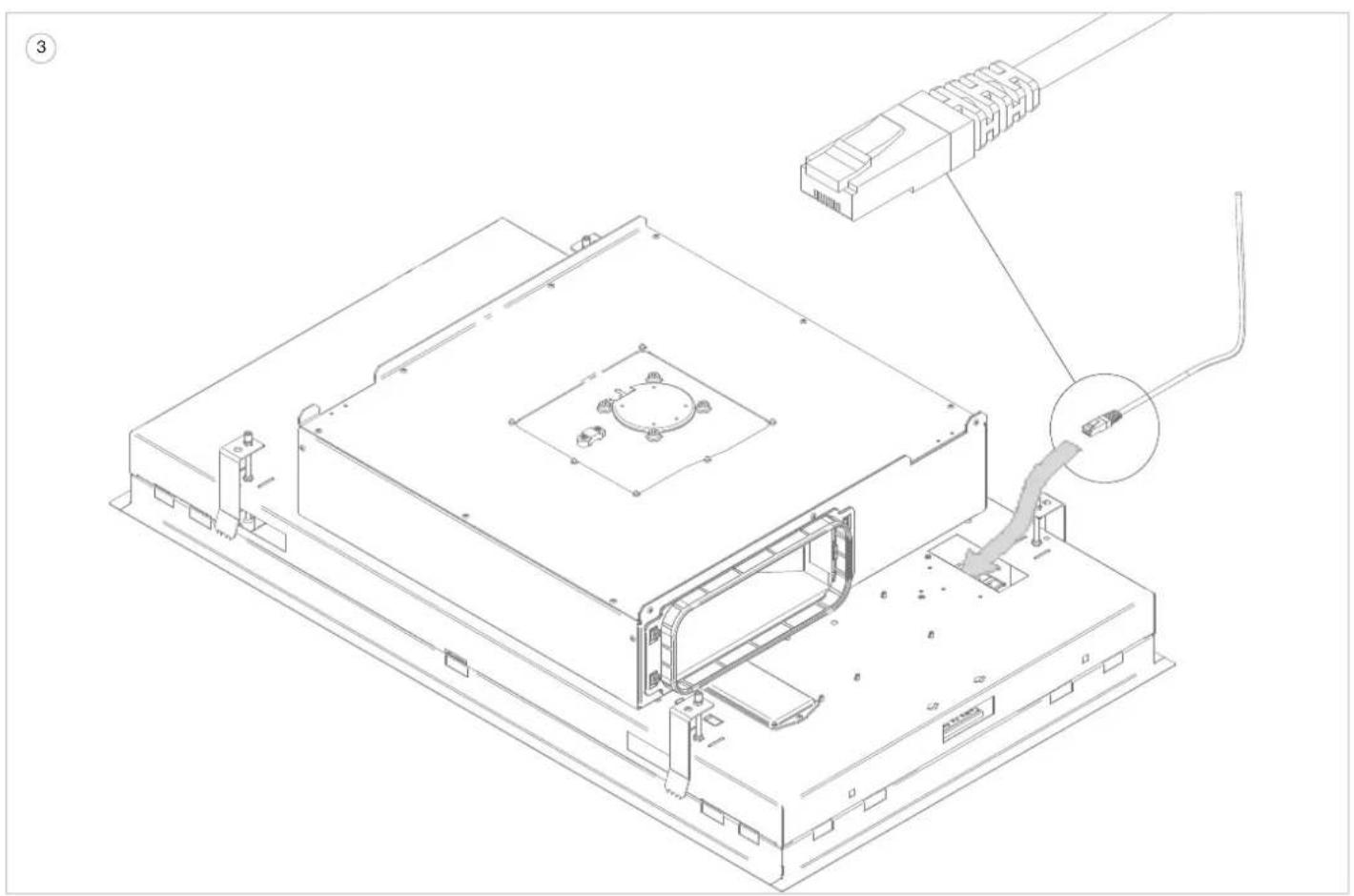

③ Turn the motor so the exhaust is in the desired position and screw the motor with the 4 screws.

Art.nr: 906401 Art.nr: 906402 Art.nr: 906408

Technical line drawing of a mechanical component or assembly (no text or symbols present)

Technical diagram showing structural deformation with labeled components and directional arrows indicating movement or flow.

Isometric architectural diagram of a rectangular structure with three upward arrows indicating vertical and horizontal components, no text or symbols present.

NL

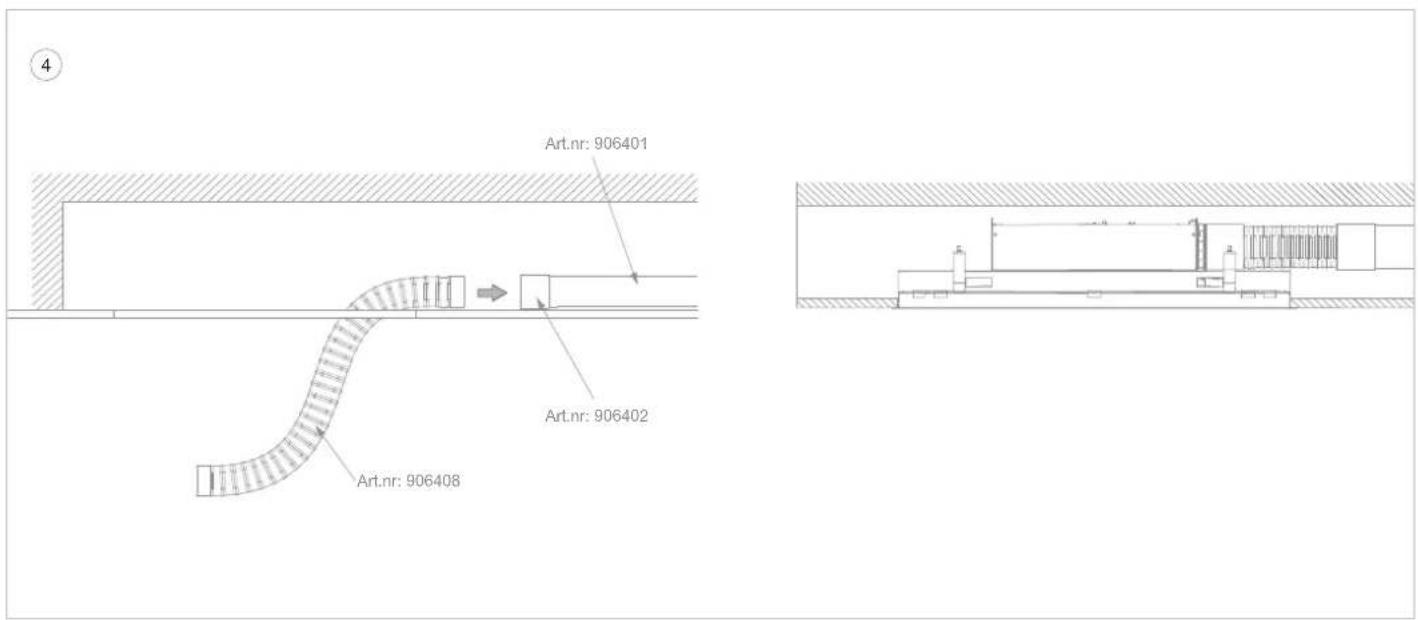

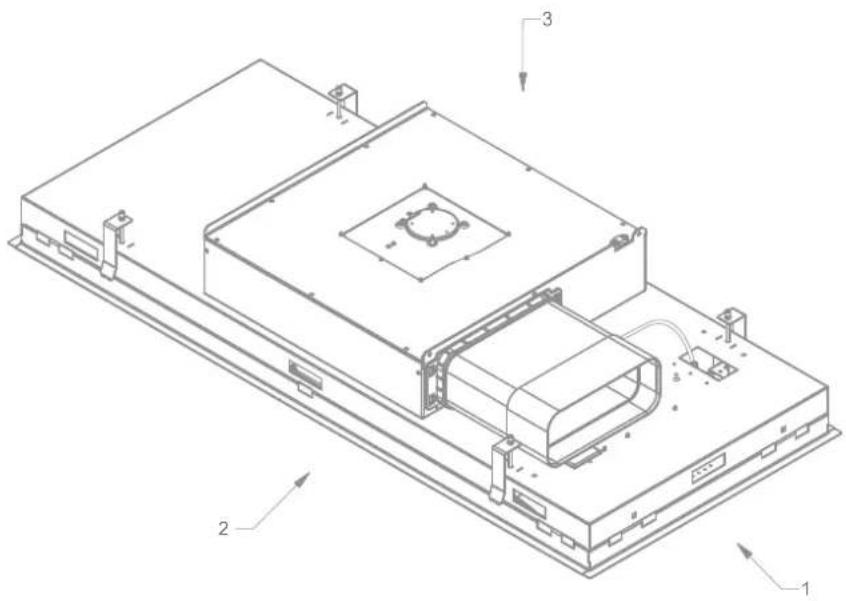

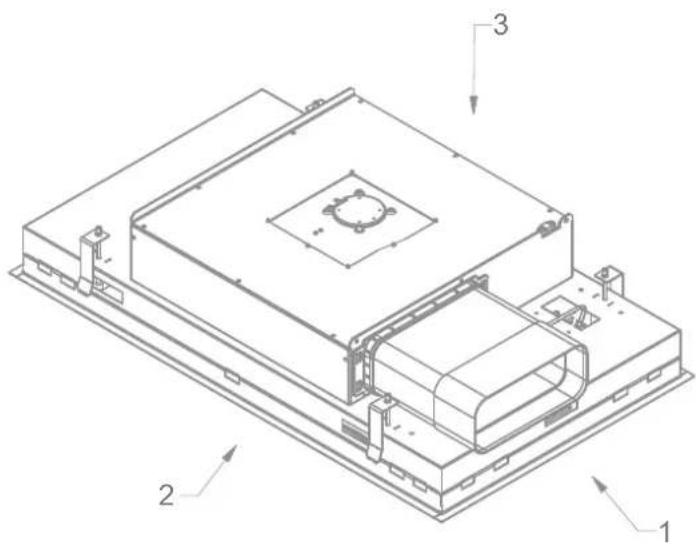

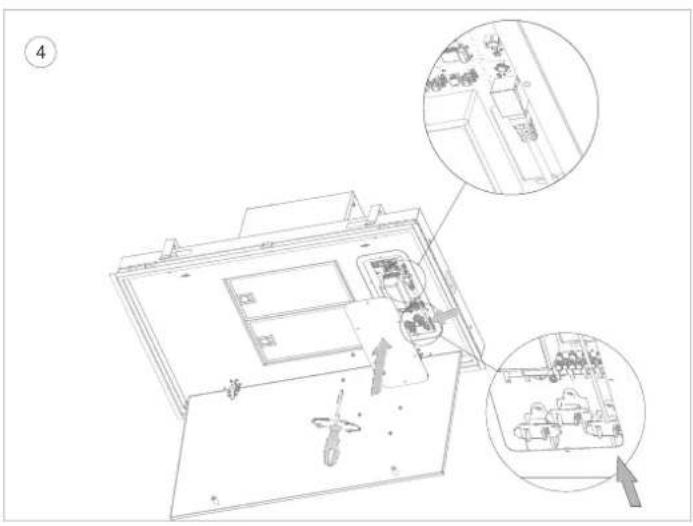

4 In order to simplify the installation, it is advisable to make the final piece between the flat duct work and hood from flexible, flat exhaust channel. This is available as accessory from Novy (906.408).

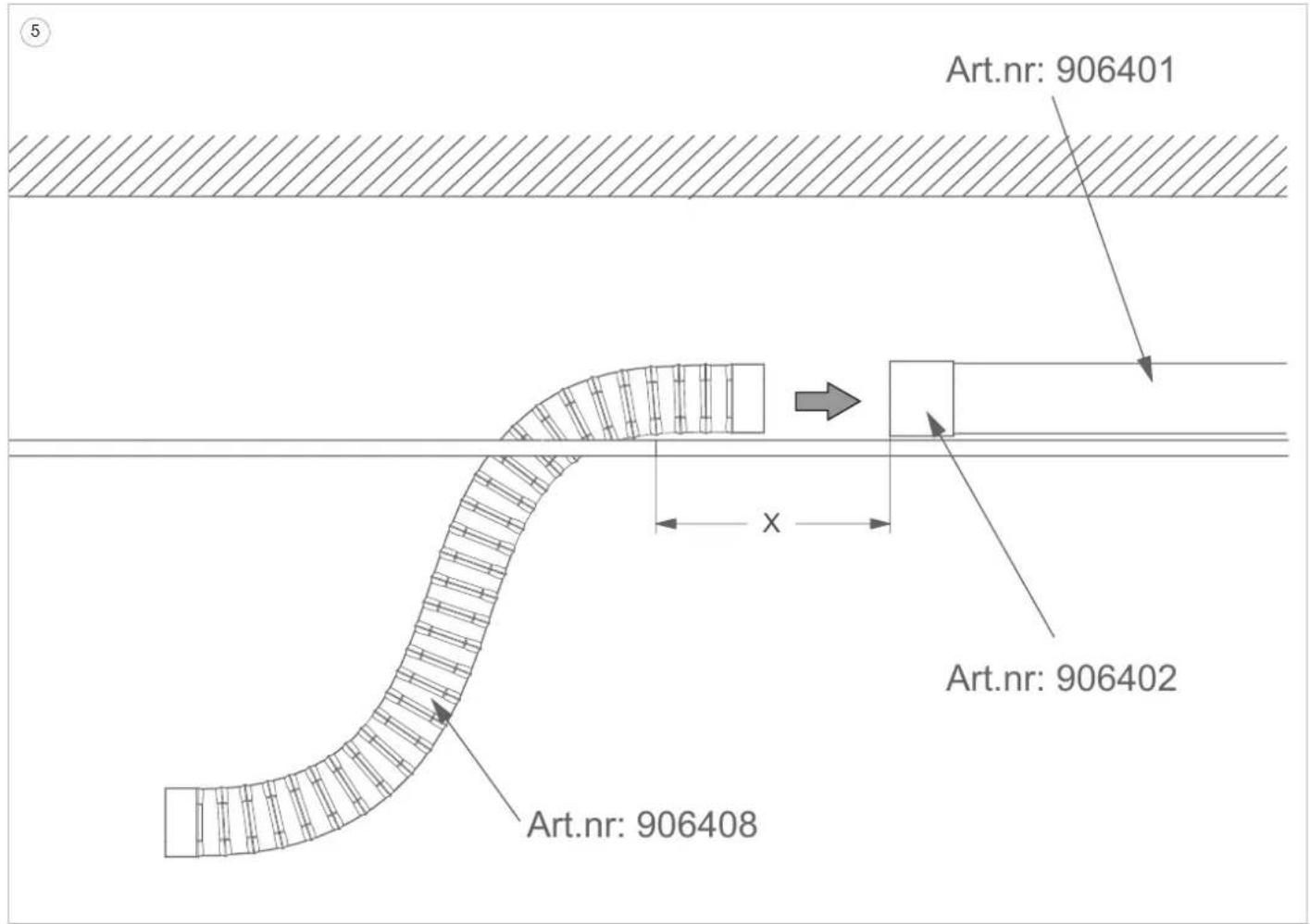

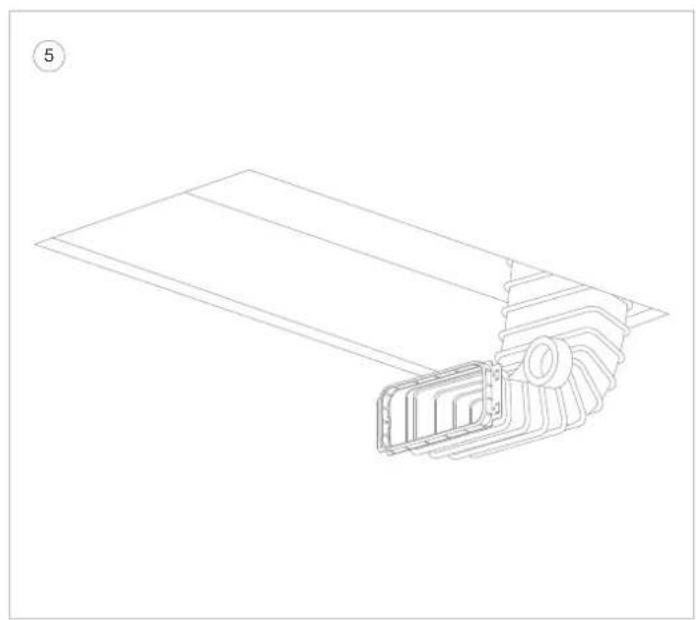

5 If the flexible flat exhaust channel is to be used, connect the flexible exhaust channel onto the connection piece with tape (taking the length of the flexible exhaust channel into account).

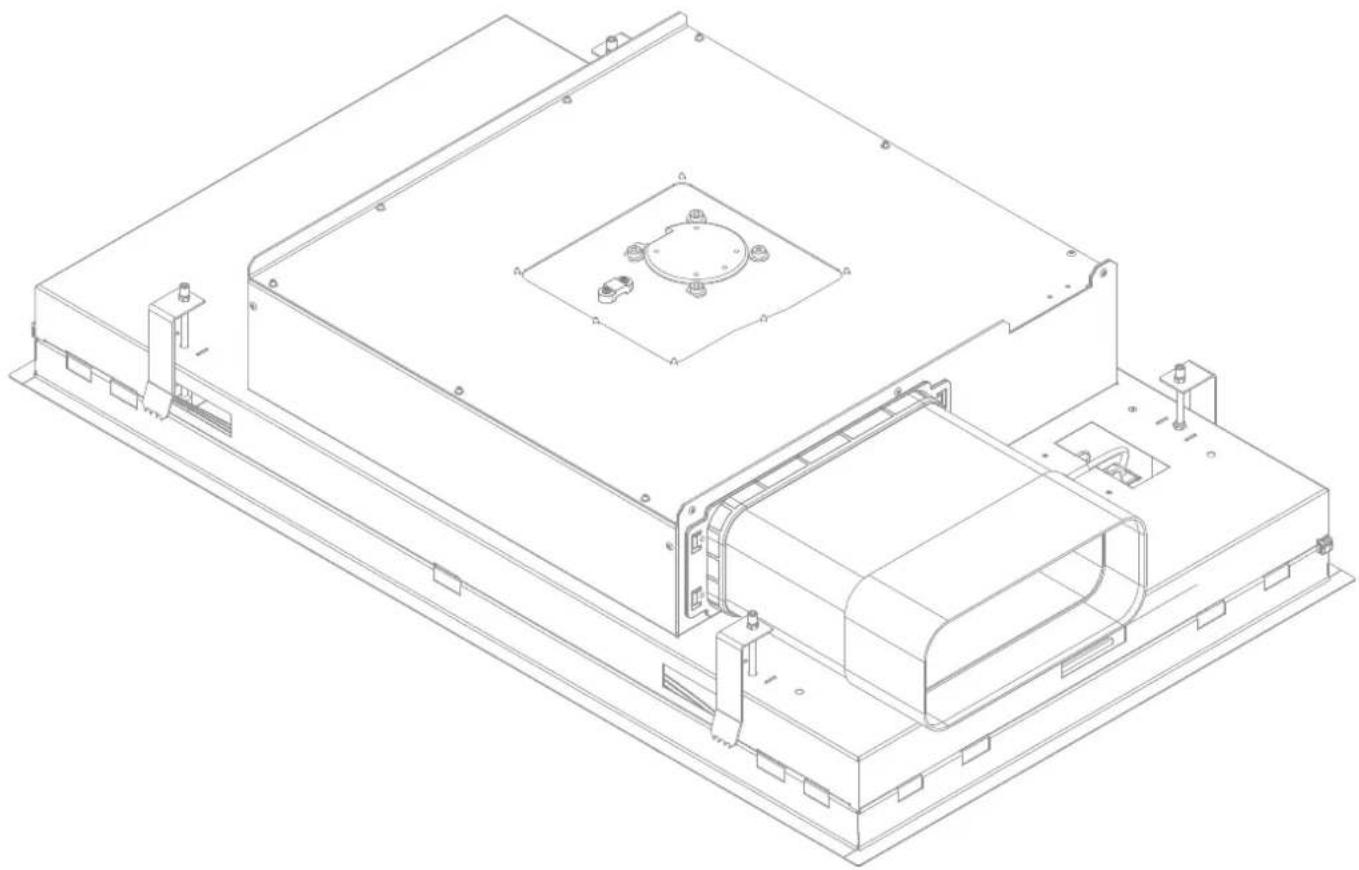

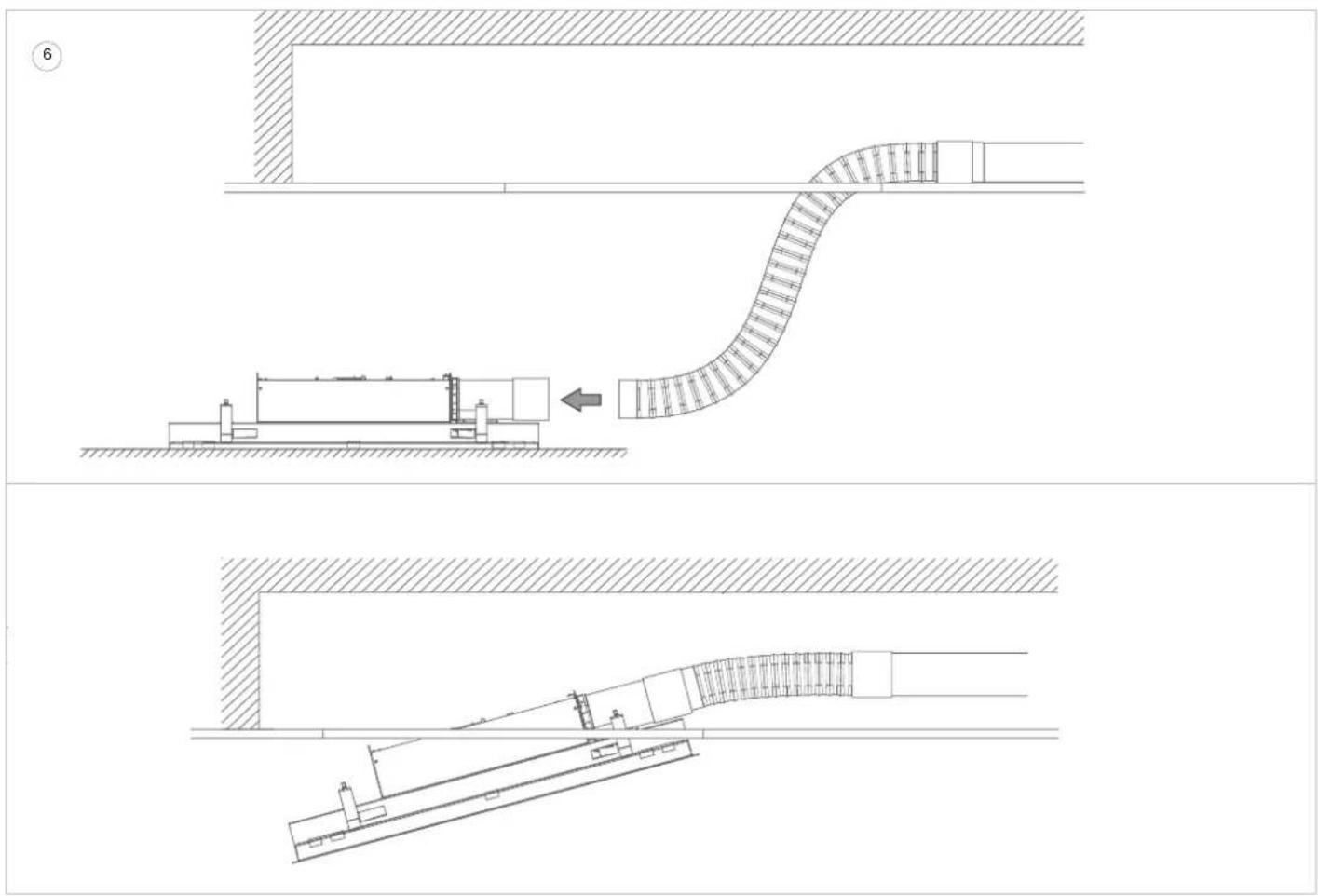

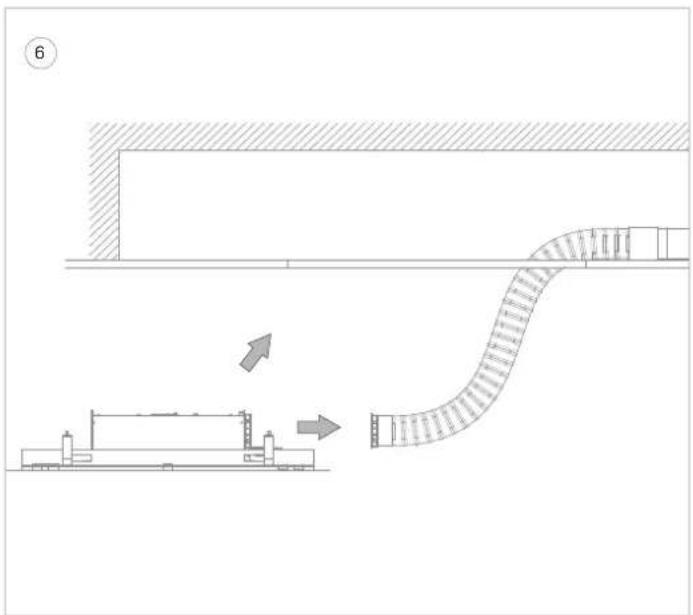

⑥ Click the connection piece (6810.030) onto the motor housing and screw in 4 screws (906.116).

ole for flat exhaust charge channel (internal) dimension of 89 x 222 mm.

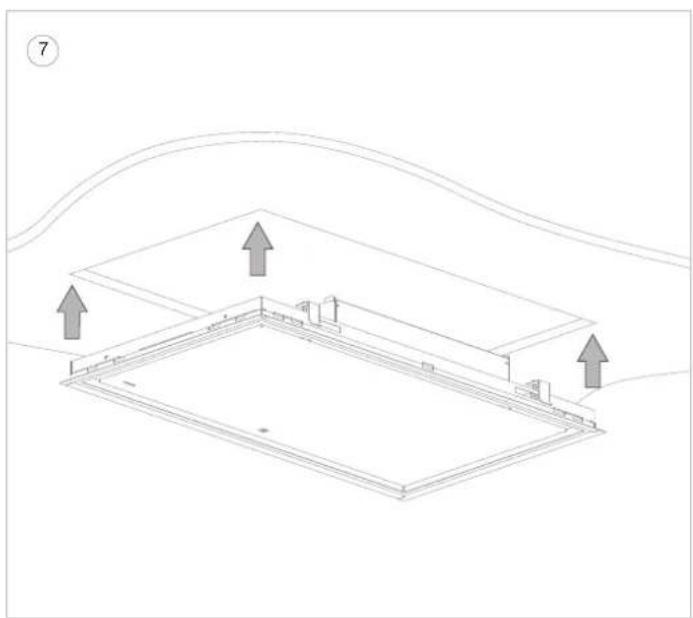

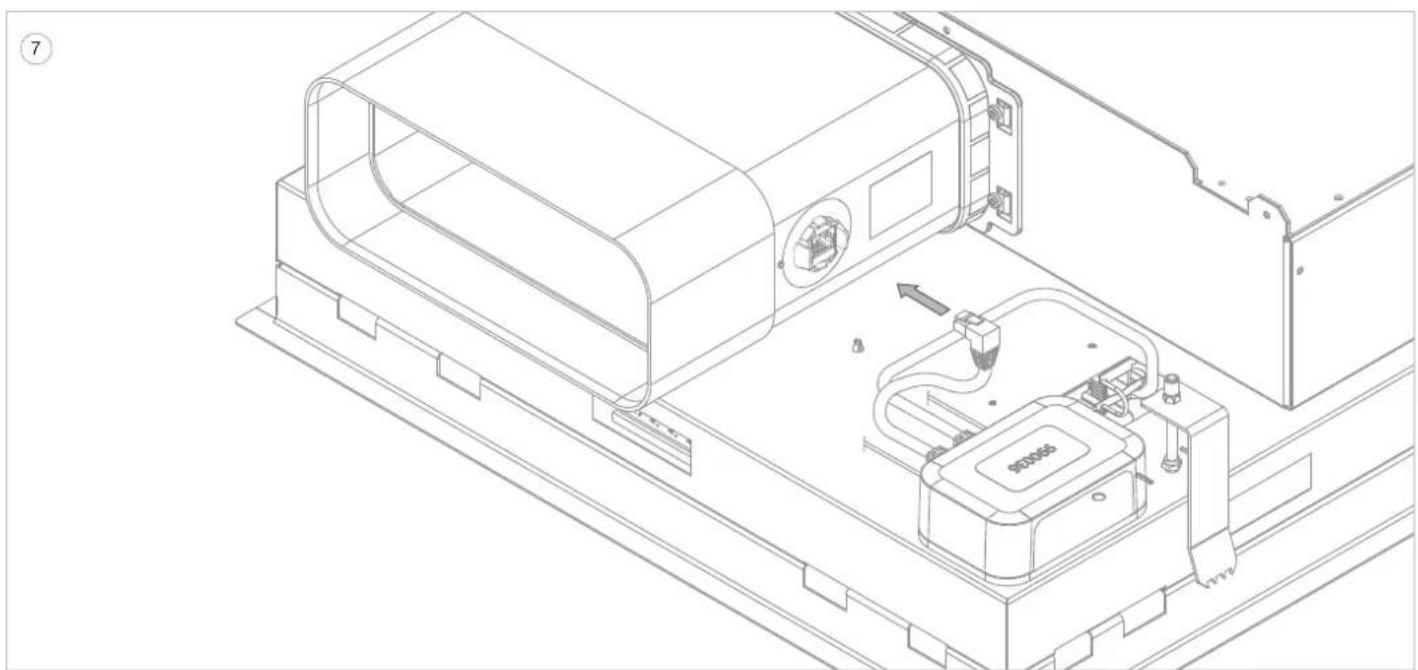

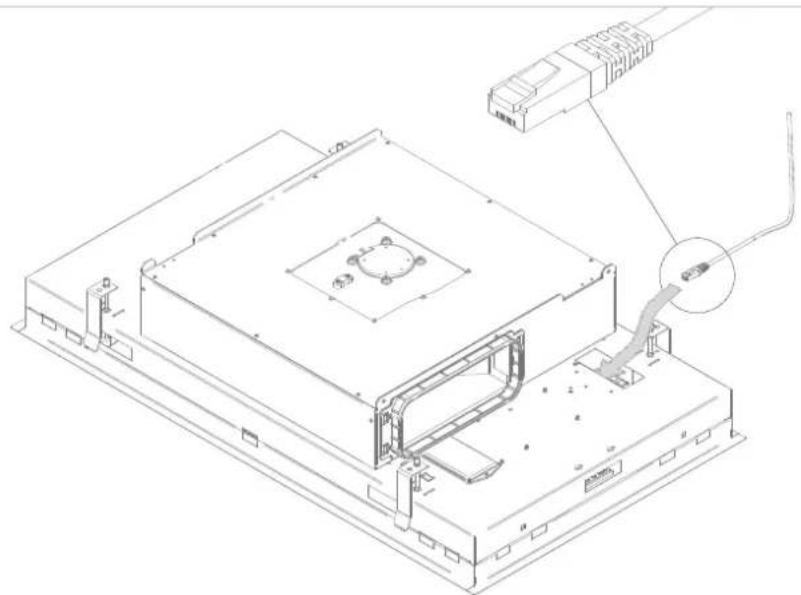

⑦ Put the plug into the socket. Push the ceiling unit up into the cut-out opening by pushing on the edges until you hear a firm click.

t push on the bottom panel!

The ceiling unit will now remain suspended in place.

8 2 1 4 3

NL

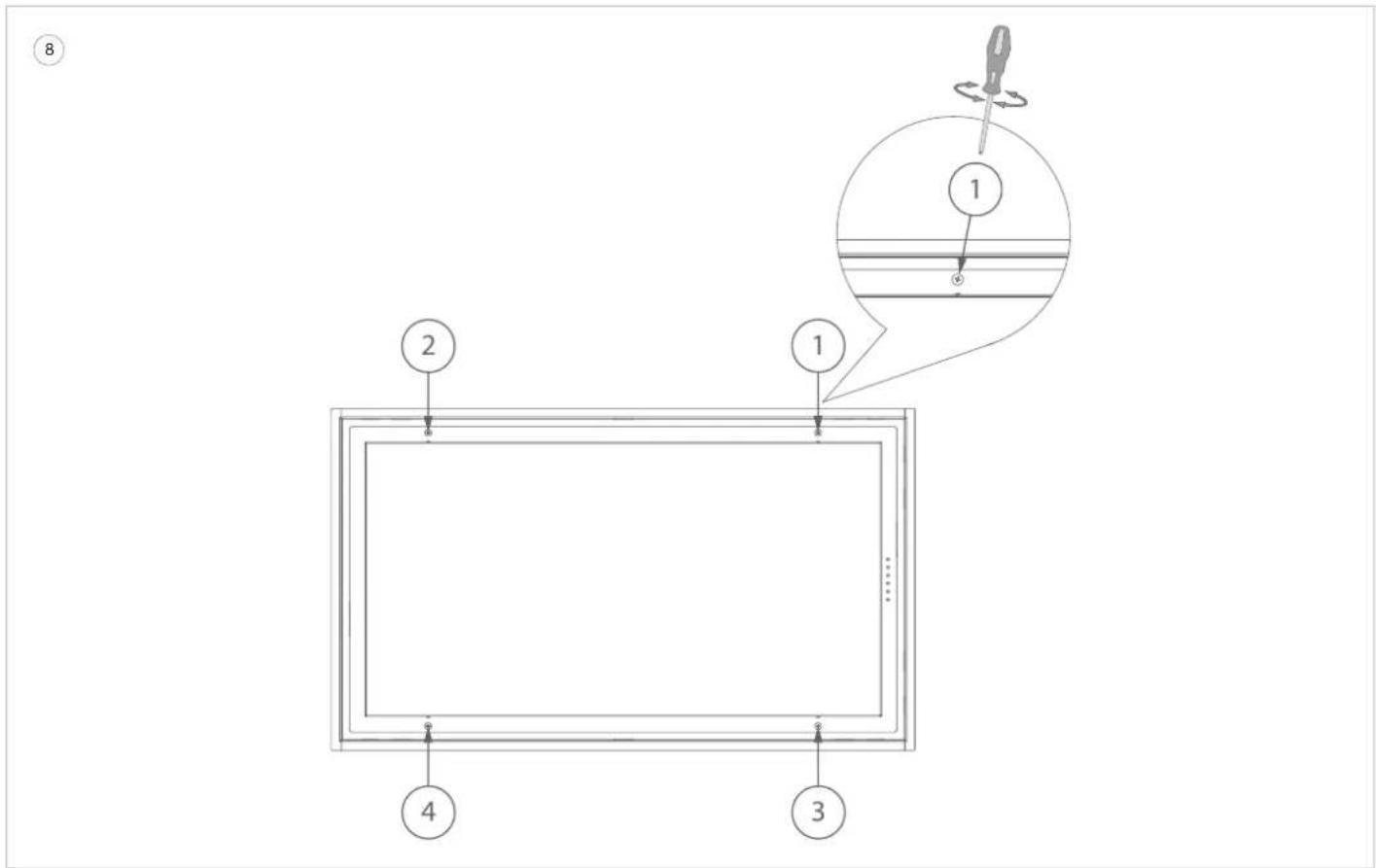

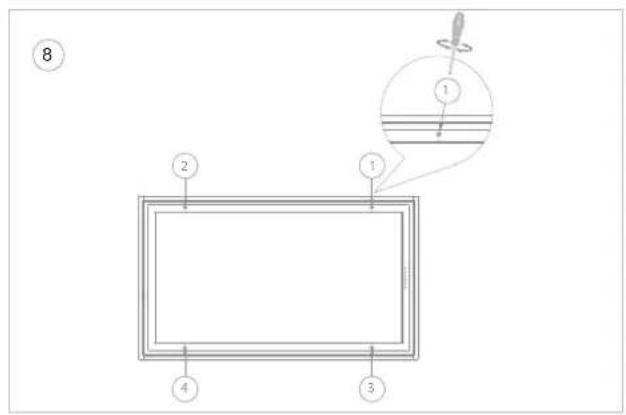

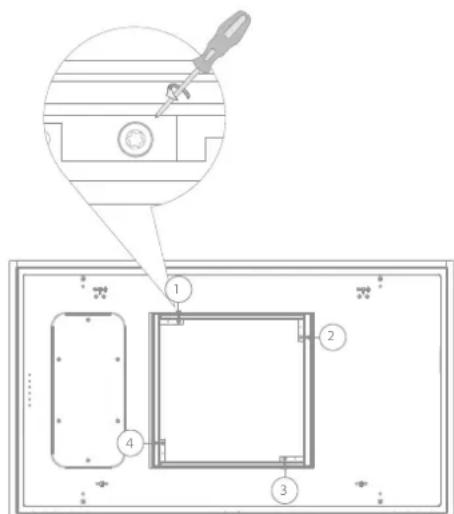

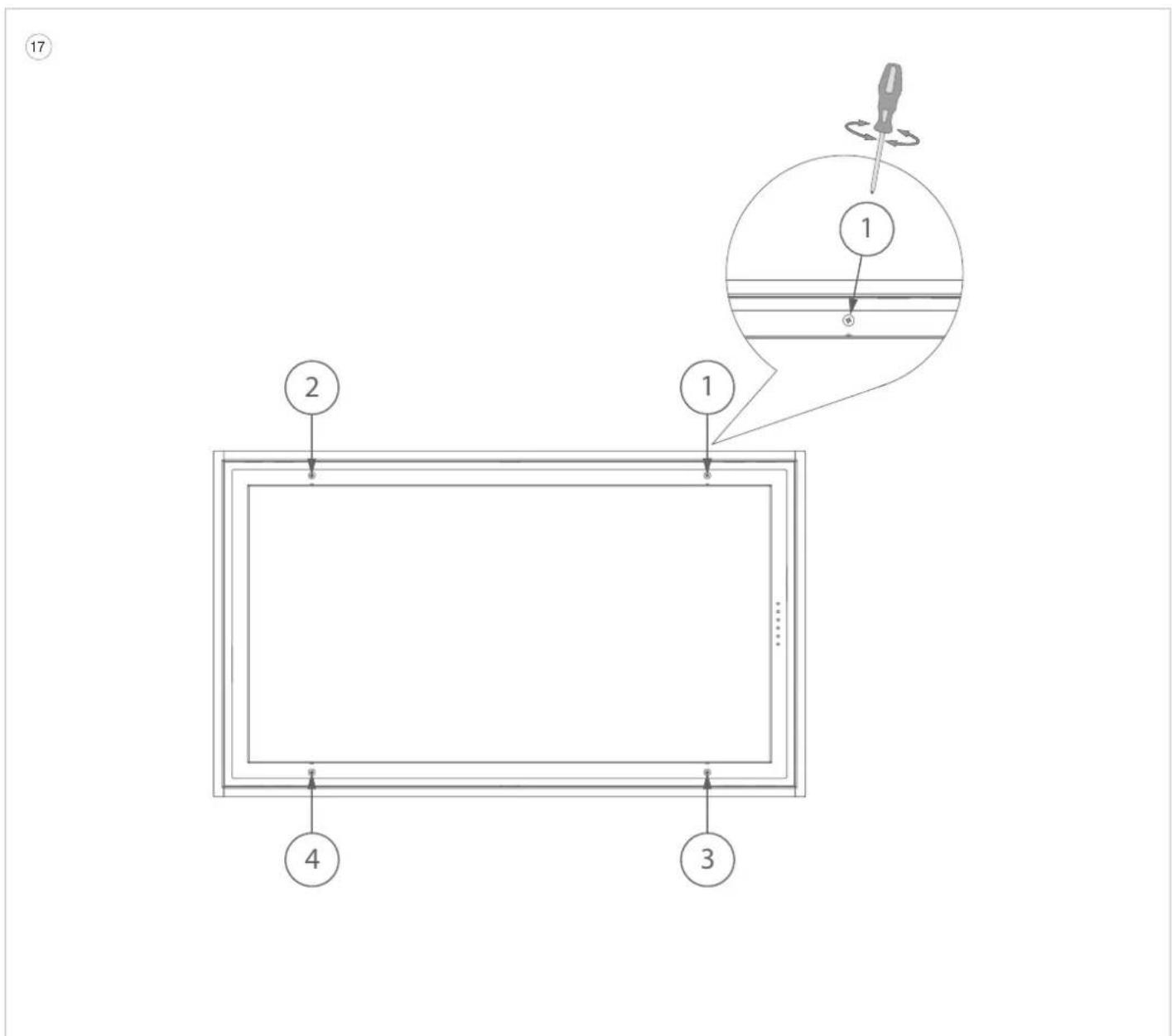

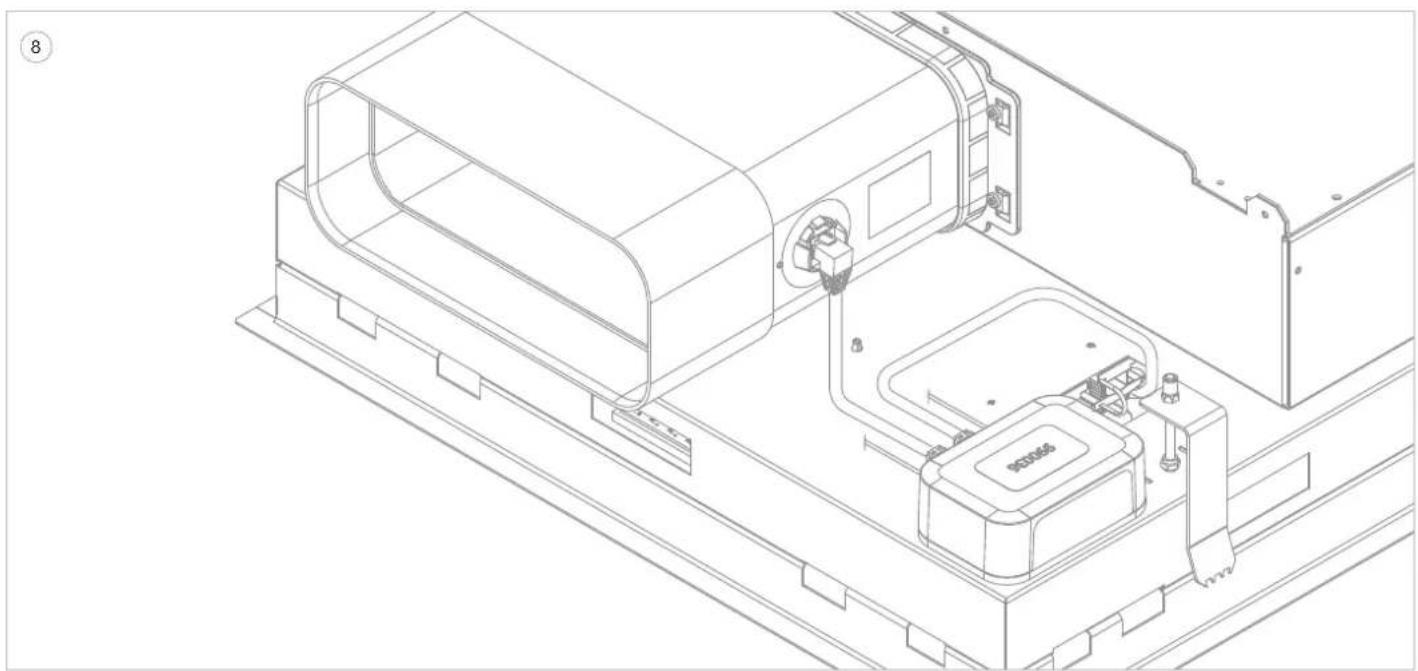

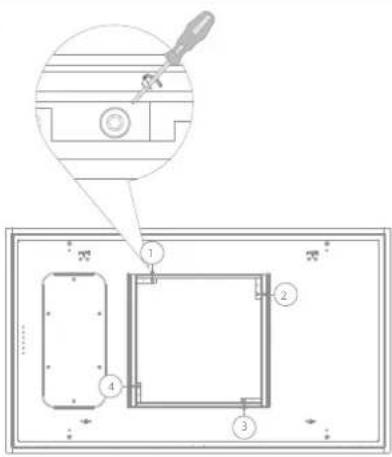

8 Tighten the 4 clamping screws by hand in order to attach the ceiling unit (caution: Do not over-tighten in gypsum boards). As soon as these clamping screws are tightened, the ceiling unit is ready for use.

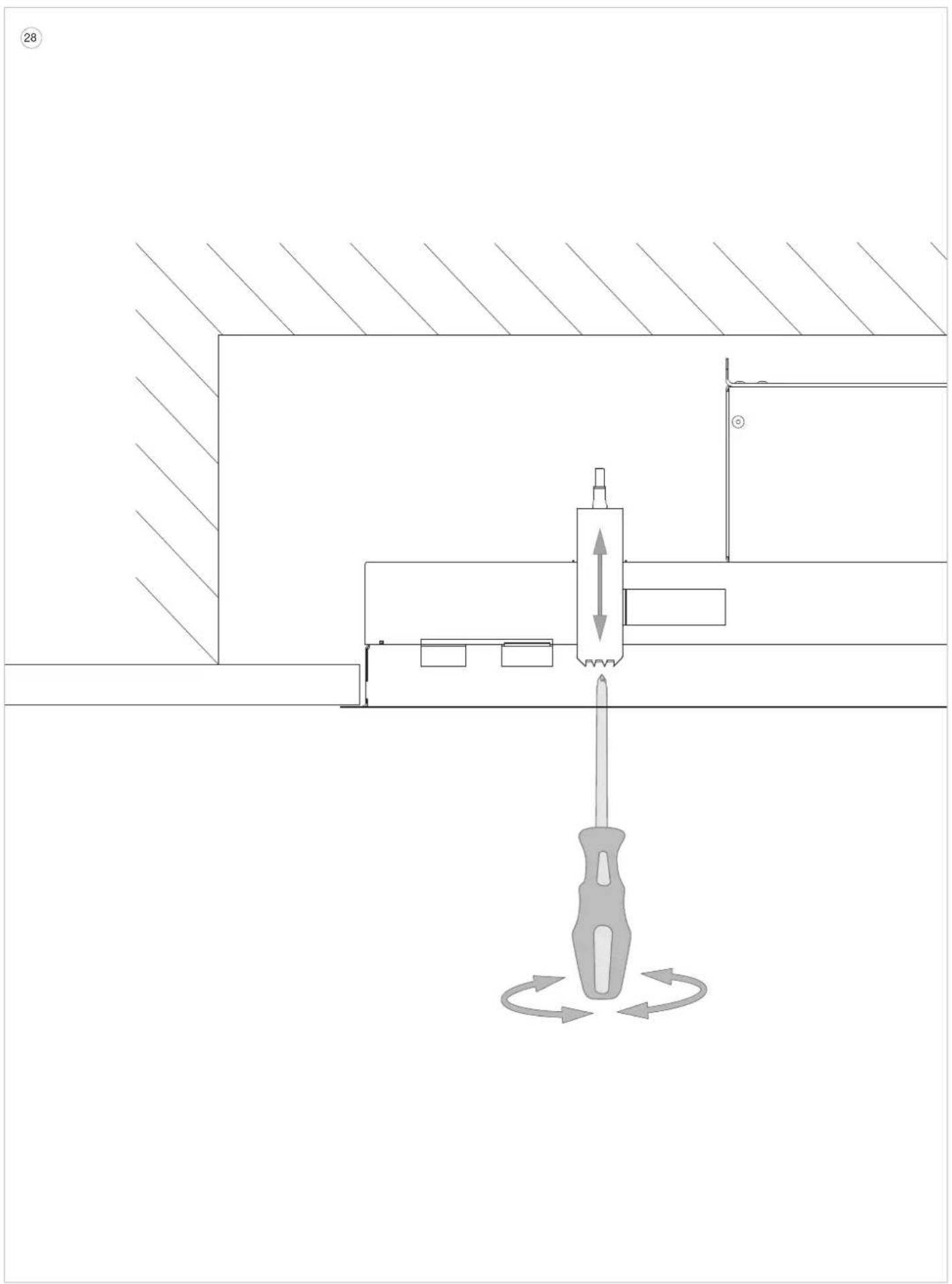

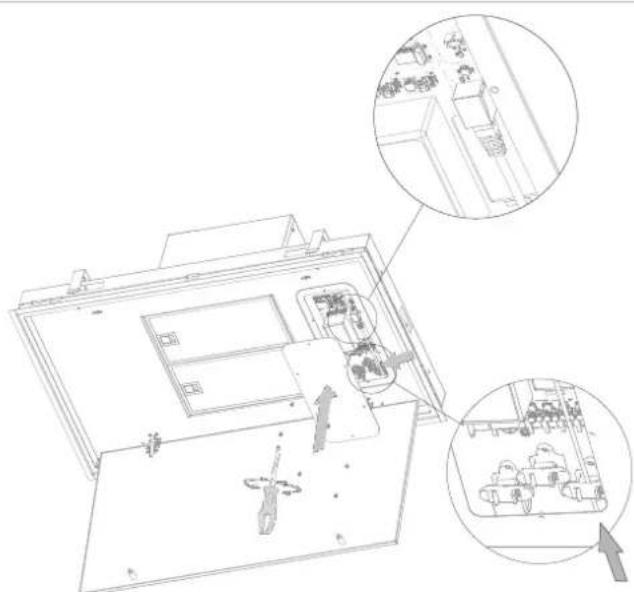

⑨ Removing the ceiling unit

Before dismantling, protect the hob with, for example, cardboard or a cloth in case a screw or clamp falls down.

Perform the following actions only when the power is off at the wall socket.

Next, the 4 clamping screws need to be fully unscrewed. Once these are unscrewed, the ceiling unit will come down. Please note that the motor unit lies loose on the housing of the cooker hood.

Please note that the unscrewed clamping springs can fall down.

NL Montage MET optionele Novy Sense sensor
FR Installation AVEC le capteur optionnel Novy Sense
DE Installation MIT optionalem Novy Sense Sensor
EN Installation WITH the optional Novy Sense sensor

Technical line drawing of a mechanical assembly with mounting brackets and a central circular component (no text or symbols)

NL

ovy Sense sensor

sor kit is an optional accessory.

eiling unit can be

built into plates with a thickness of 18-35mm. Do not mount directly into gypsum board; always make sure there is reinforcement for the tightening of the mounting clamps. Make sure there is a socket near the ceiling unit, so that the power may, at all times, be removed from the ceiling unit.

use of the

substantial own weight of the hood, the ceiling must have sufficient load bearing capacity.

recommended

mounting height for an electric or ceramic cooking plate is min. 600 mm and max. 1600 mm. The mounting height for a gas or induction cooking plate is min. 650 mm and max. 1600 mm.

A

Technical line drawing of a rectangular mechanical component with mounting flanges (no text or symbols)

1 × 6810.030

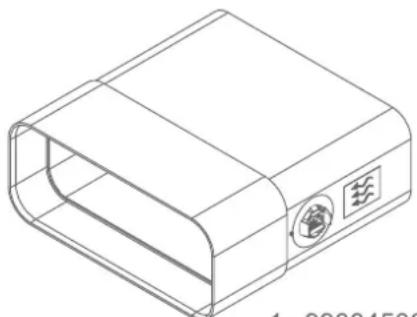

Isometric line drawing of a rectangular electronic device with a circular button and label (no text or symbols on the device itself)

Technical line drawing of a coiled cylindrical component (no text or symbols)

1x 906432

NAVY

1 × 840049

Coiled broadband cable with two connectors (no text or symbols visible)

1 × 99004008

1 × 906116

NL 3 INSTALLATIE

ALGEMEEN

This cooker hood is equipped with the optional automatic speed control (Novy Sense sensor). Disregarding the following installation instructions can have a negative effect on the automatic speed control.

- Always install a non-return valve in the exhaust pipe to prevent backdraught from wind. The non-return valve is included in the Novy Sense sensor kit. Install the non-return valve as close as possible to the outer wall or roof outlet.

- Don't use the non-return valve provided in the Novy Sense sensor kit if the wall or roof outlet is already fitted with a non-return valve or if you are using a Novy wall conduct kit 906.407, 906.425, 906.420 or a Novy wall exhaust grill 906.078 or 906.178. These kits / wall exhaust grills are already equipped with a non-return valve(function).

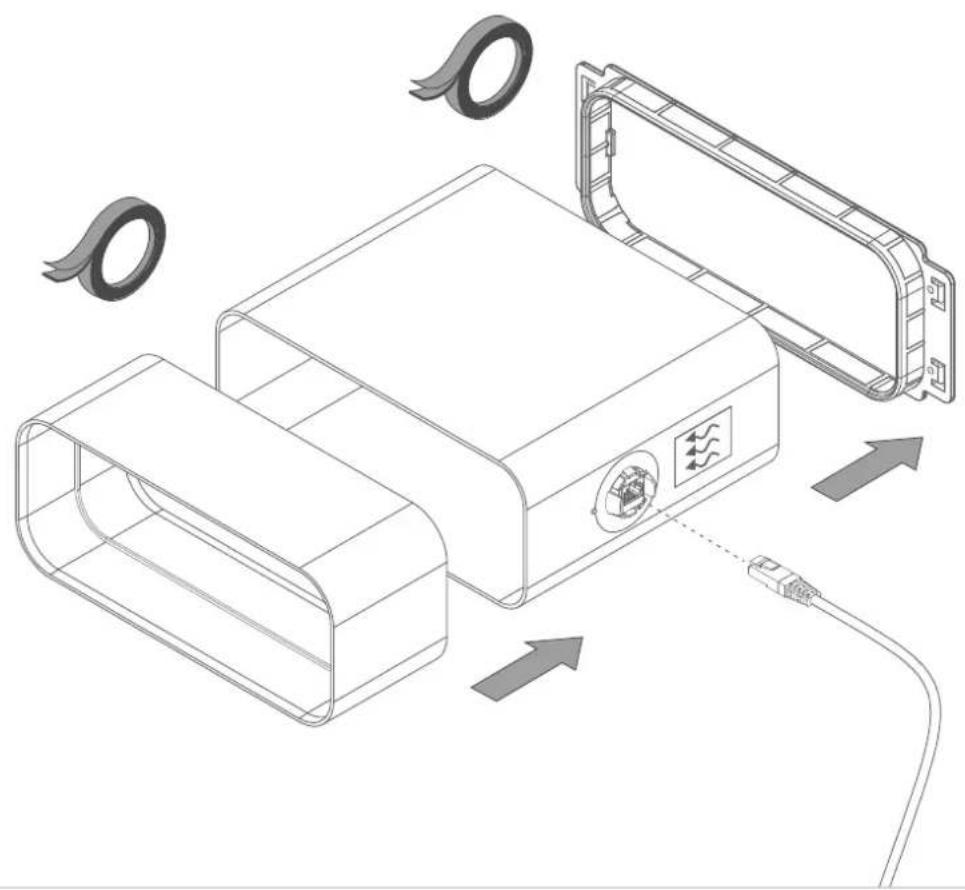

- An arrow on the housing of the Novy Sense sensor indicates the required direction of the airflow. The arrow must pointed downstream.

- The Novy Sense sensor kit has to be mounted directly at the exhaust opening of the cooker hood.

1

845/1145 485

NL

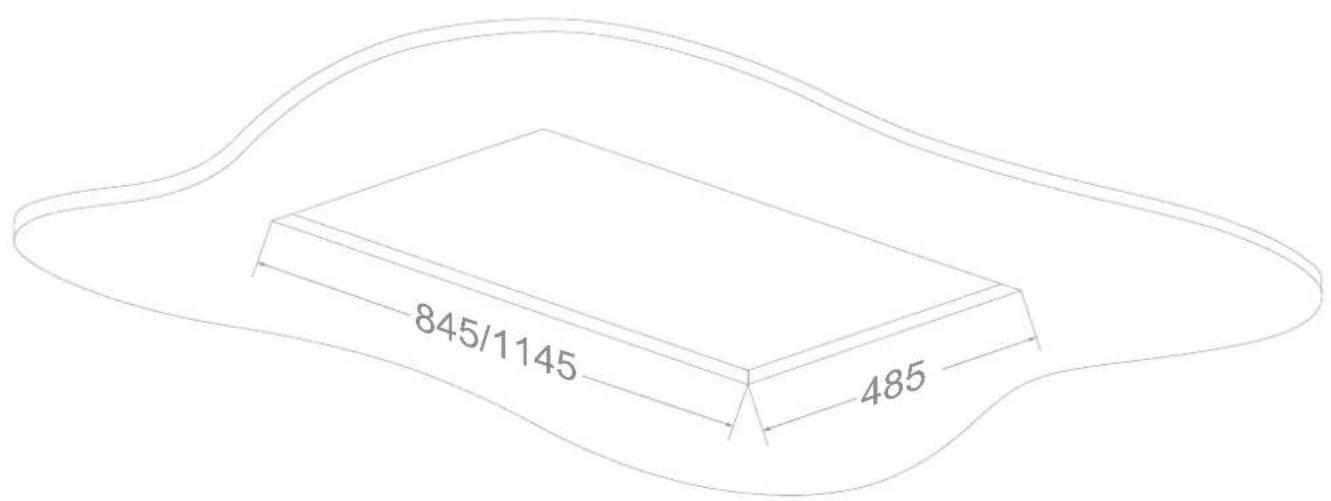

① Create a cut-out opening:

Model 6910 / 6911 / 6912 - Cut-out 845mm x 485mm

Model 6920 / 6921 / 6922 - Cut-out 1145mm x 485mm

The cooker hood should be mounted with the display on the right side of the user, so that the bottom panel opens always from you and the grease filters can be easily removed from the cooker hood.

As standard, the exhaust opening of the motor is to the right. If required, the exhaust opening can be modified.

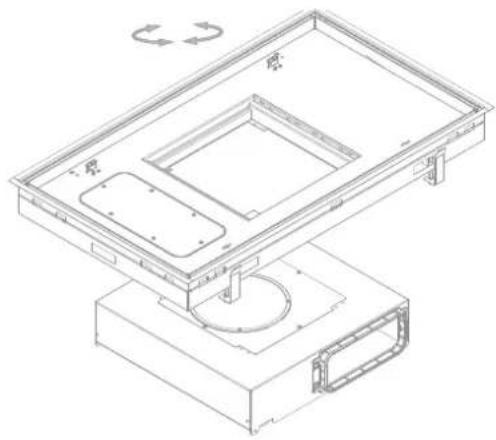

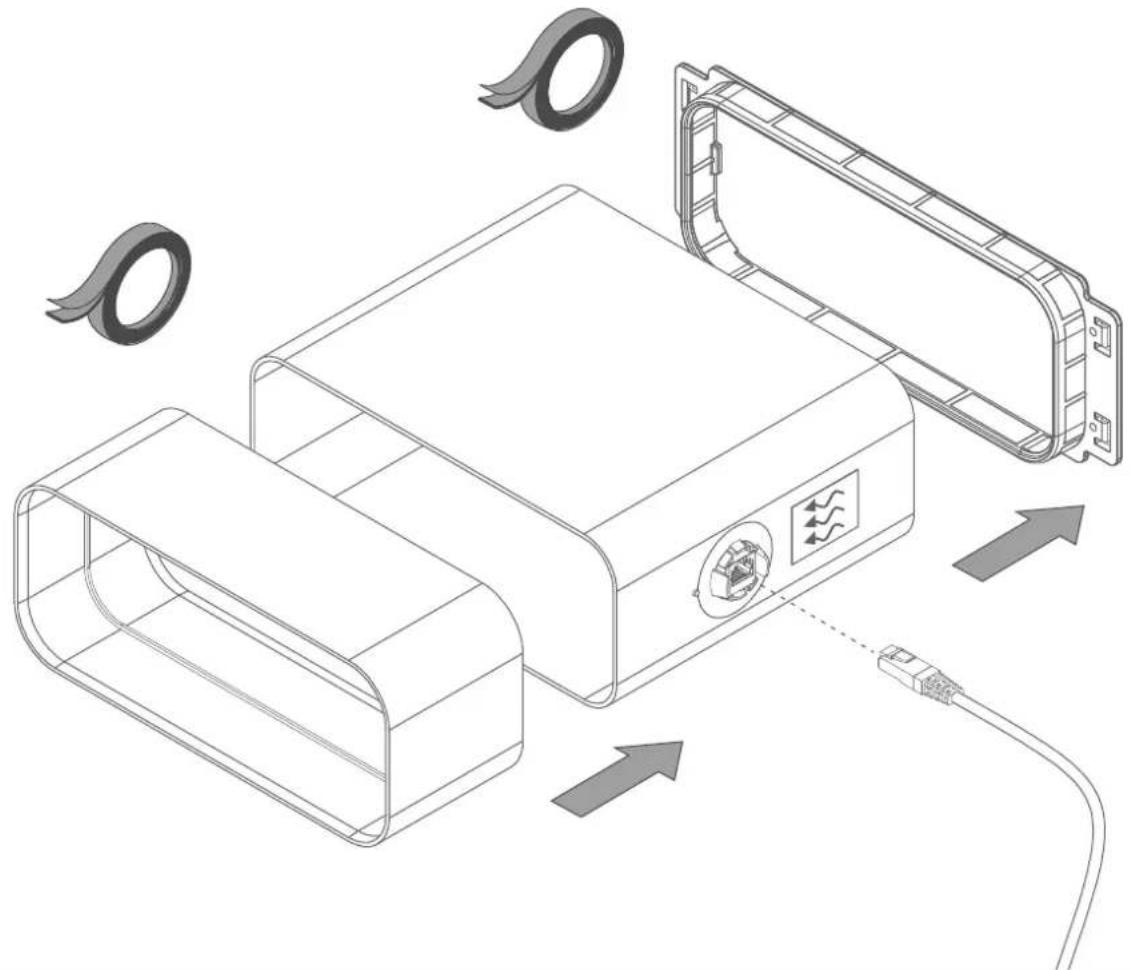

Installation with exhaust opening to the right

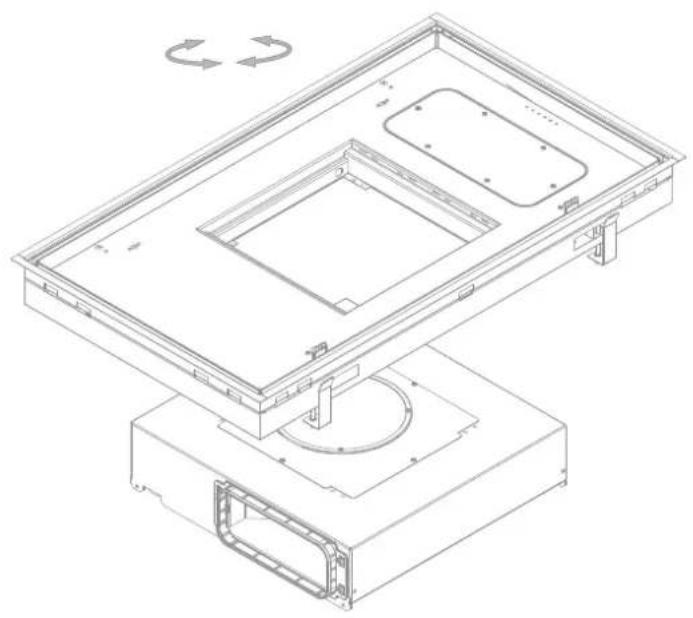

Installation with exhaust opening to the left Installation with exhaust opening to front/ rear

See next pages

This cooker hood is suitable for flat exhaust ducts with (internal) dimension of 89 x 222 mm.

NL

Be extremely careful if you use the cooker hood at the same time as a combustion system that requires air from the same room. In these installation instructions, carefully read the topic "air supply" in the chapter "Safety and assembly regulations".

For safe operation, it may be necessary to combine the cooker hood with a window contact switch. A window contact switch ensures that the cooker hood only works if the window is open. If the window is closed, the fan cannot be switched on.

For safe operation, it may be necessary to open an electrical air supply valve as soon as the cooker hood is switched on.

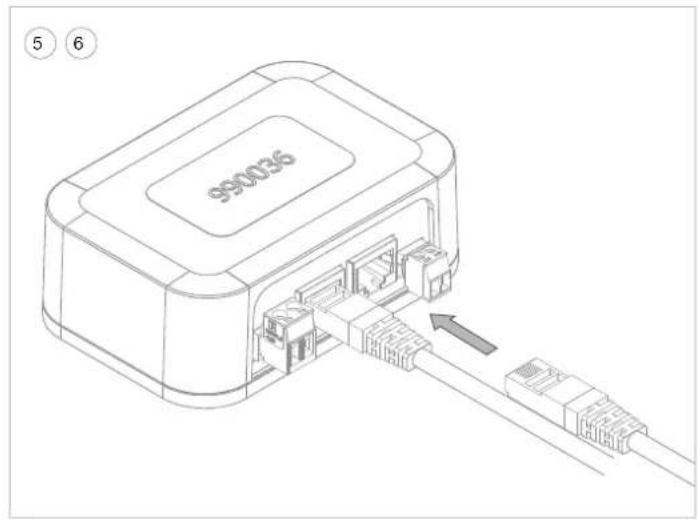

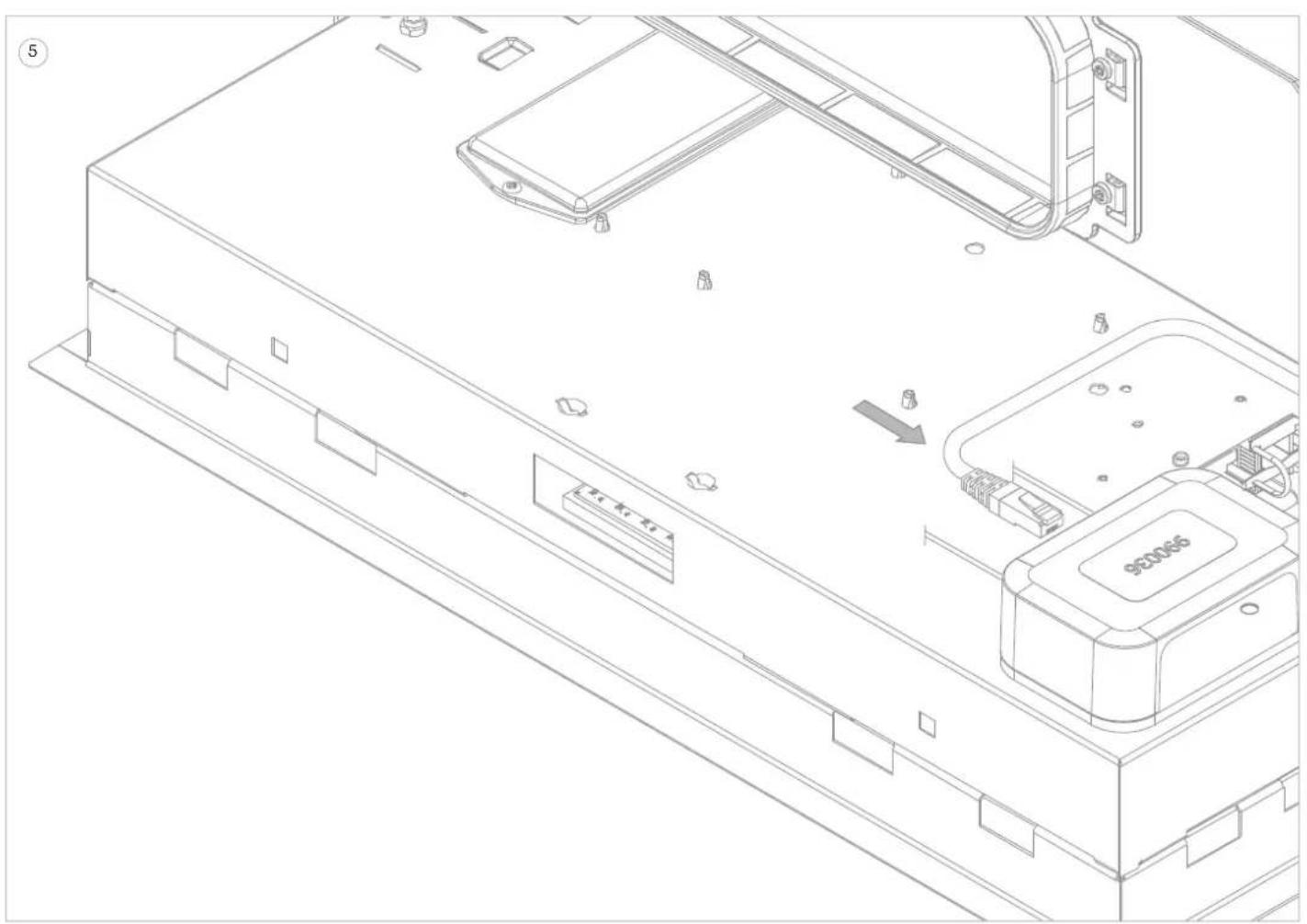

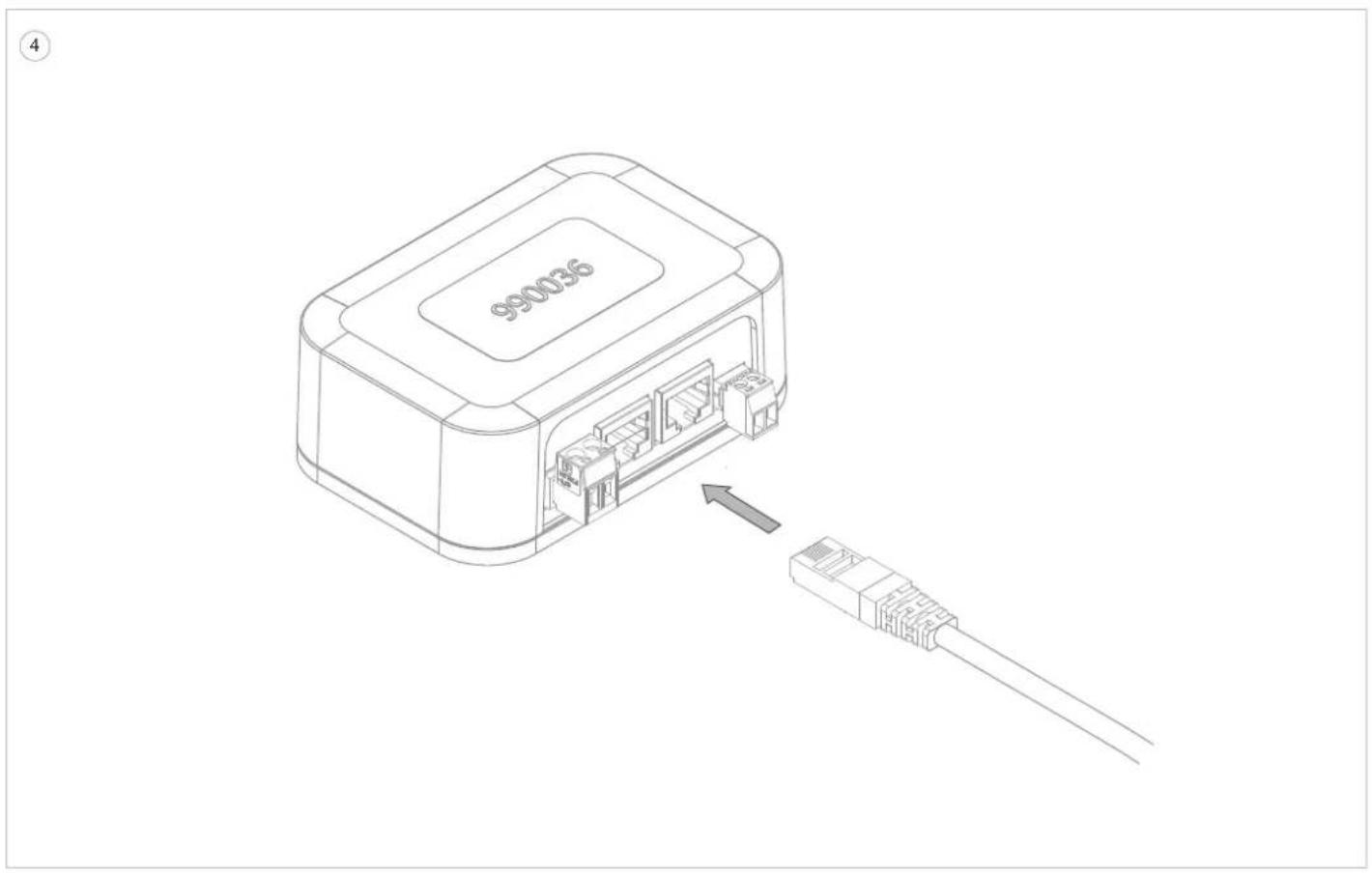

With the optional Novy input/output module 990.036 it is possible to combine a window contact switch or electric air supply valve (not included) with the cooker hood.

If this option is selected, the Novy input / output module 990.036 must be installed prior to the assembly operations in step 4 / 13 / 24.

The assembly of the module 990036 is explained from page 55 of this manual.

Technical line drawing of an open electrical enclosure with screwdriver and internal components (no text or symbols)

Technical line drawing of an electronic device with a connector and cable inserted (no text or symbols)

Technical diagram showing a device interior with screwdriver and internal components, including zoomed-in insets for assembly or inspection.

NL

Installation with exhaust opening to the RIGHT

on, do not perform any of the follo- operations while the unit is energised. sure that the power is off or that the of the cooker hood is unplugged

① Open the bottom panel of the cooker hood and remove the 6 screws (TX15) from the service hatch.
After this, the circuit board of the cooker hood is visible.
② Route the supplied UTP cable (99004008) from above through the indicated opening so that the cable exits at the circuit board.
③ Connect the RJ45 connector of the UTP cable into the indicated connector on the circuit board.
Fix the UTP cable in the indicated strain relief.
Then replace the service hatch and fix with the 6 screws (TX15).

4

Technical line drawing of a device with internal components and airflow indicators (no text or symbols)

NL

4 Click the connection piece (6810.030) onto the motor housing and screw in 4 screws for fixation (906.116).

Connect the sensor kit to the connection piece (6810.030), mind the direction of the airflow as indicated on the sticker of the Novy Sense sensor. The arrow must pointed downstream. Then mount the supplied connection piece (906.402) on the sensor kit. Use tape for an airtight connection.

Connect the cable of the sensor kit to the connection socket provided in the sensor kit.

Use tape to fixate this cable to the casing of the cooker hood.

Art.nr: 906401 Art.nr: 906402 Art.nr: 906408

NL

⑤ To simplify the installation, we recommend using flexible flat exhaust ducting for the last section between the flat ductwork and the cooker hood. This is available as accessory from Novy (906.408).

Make sure that after installation, the flexible flat duct is not bend in a S-curve (= overlap) between the cooker hood and the flat ductwork. This increases the pressure loss in the duct and has a negative effect on the efficiency of the cooker hood.

Overlap can be avoided by observing the following clearance between the end of the flat ductwork and the edge of the cut-out opening in the ceiling:

Model 6910 / 6911 / 6912 - minimum 300mm and maximum 320mm (X)

Model 6920 / 6921 / 6922 - minimum 150mm and maximum 170mm (X)

Connect the flexible flat duct (906.408) to the flat ductwork using a connection piece (906.402 not supplied). Use tape for an airtight connection. Pay attention to the required free space between the flat ductwork and the cut-out opening. Leave the flexible duct hanging out of the cut-out opening.

8 2 1 1 4 3

NL

6 Place the cooker hood as close as possible to the cut-out opening and connect the flexible duct to the sensor kit. Use tape for an airtight connection.

7 Put the plug into the socket. Push the ceiling unit by its edges (not on the bottom panel) at an angle upwards into the cut-out opening and click it into place with the clamping springs.

t push on the bottom panel!

The ceiling unit will now remain suspended in place.

⑧ Tighten the 4 clamping screws by hand to permanently secure the ceiling unit (caution: do not tighten too hard in plasterboard).

The cooker hood is now r eady for use.

Technical line drawing of an open electrical enclosure with screwdriver and internal components (no text or symbols)

Technical line drawing of an electronic device with a connector and cable inserted (no text or symbols)

Technical diagram showing a device interior with labeled components and zoomed-in views, including screwdriver insertion and floor seating.

NL

Installation with exhaust opening to the LEFT

on, do not perform any of the follo- operations while the unit is energised. sure that the power is off or that the of the cooker hood is unplugged.

⑨ Open the bottom panel of the cooker hood and remove the 6 screws (TX15) from the service hatch.

After this, the circuit board of the cooker hood is visible.

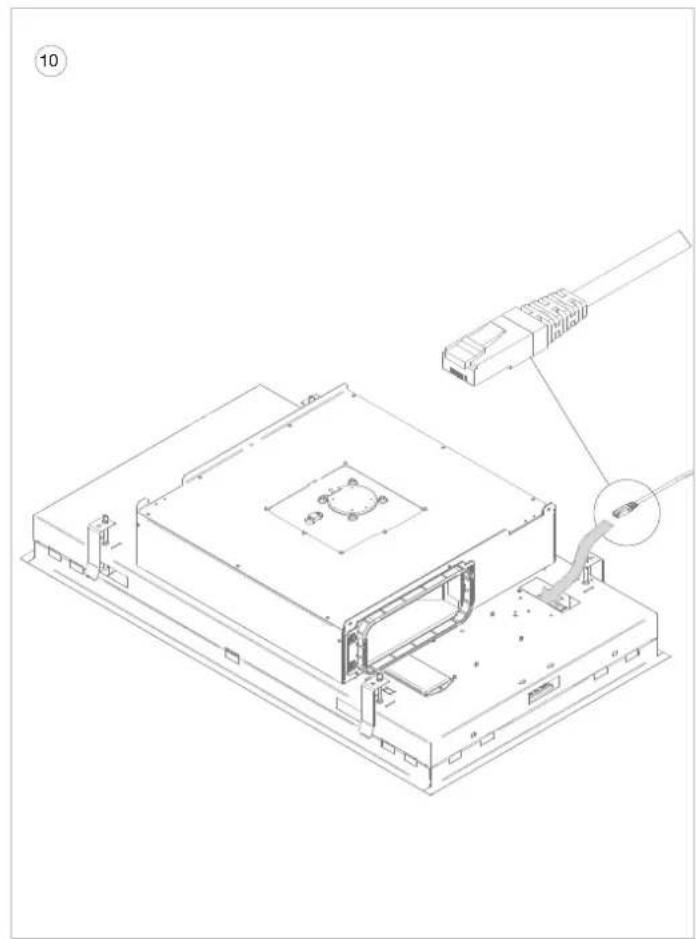

10 Route the supplied UTP cable (99004008) from above through the indicated opening so that the cable exits at the circuit board.

⑪ Connect the RJ45 connector of the UTP cable into the indicated connector on the circuit board.

Fix the UTP cable in the indicated strain relief.

Then replace the service hatch and fix with the 6 screws (TX15).

12

Technical diagram showing a screwdriver inserted into a device with labeled components 1, 2, 3, and 4, including a magnified view of the component.

Technical line drawing of a mechanical assembly with circular components and rotational arrows (no text or symbols)

13

Technical line drawing of a device with attached panel and cable, showing internal components and airflow direction (no text or symbols)

NL

• Open the bottom panel and remove the grease filters from the cooker hood.

- Loosen the 4 screws in accordance with the drawing. The motor unit is now detached.

- Turn the motor unit until the exhaust opening is to the left and screw the motor unit back on using the 4 screws.

- Place the grease filters in the ceiling unit and close the bottom panel.

13 Click the connection piece (6810.030) onto the motor housing and screw in 4 screws for fixation (906.116). Connect the sensor kit to the connection piece (6810.030), mind the direction of the airflow as indicated on the sticker of the Novy Sense sensor. The arrow must pointed downstream. Then mount the supplied connection piece (906.402) on the sensor kit. Use tape for an airtight connection.

Connect the cable of the sensor kit to the connection socket provided in the sensor kit.

Use tape to fixate this cable to the casing of the cooker hood.

Art.nr: 906401 Art.nr: 906402 Art.nr: 906408

NL

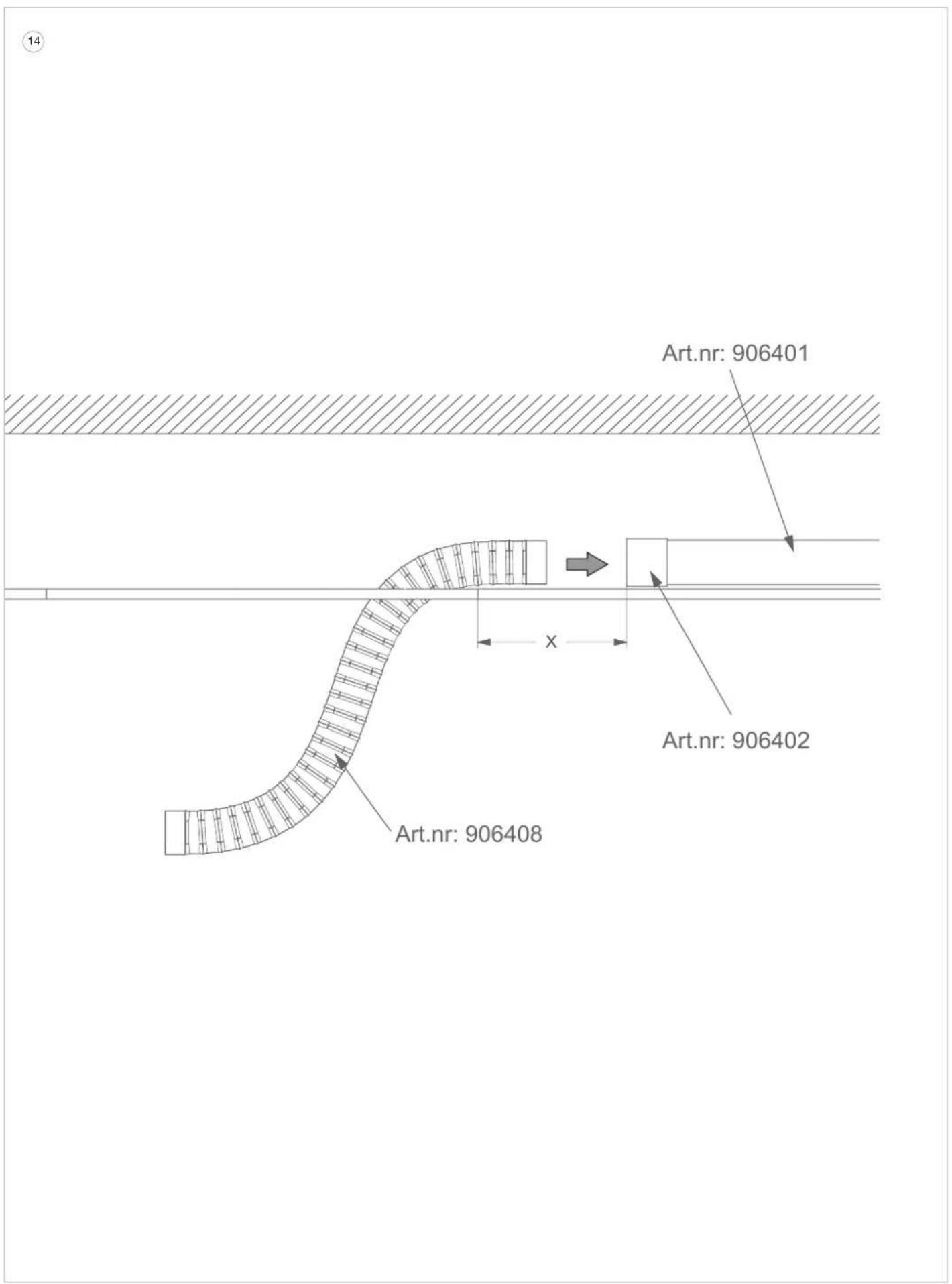

14 To simplify the installation, we recommend using flexible flat exhaust ducting for the last section between the flat ductwork and the cooker hood. This is available as accessory from Novy (906.408).

Make sure that after installation, the flexible flat duct is not bend in a S-curve (= overlap) between the cooker hood and the flat ductwork. This increases the pressure loss in the duct and has a negative effect on the efficiency of the cooker hood.

Overlap can be avoided by observing the following clearance between the end of the flat ductwork and the edge of the cut-out opening in the ceiling:

Model 6910 / 6911 / 6912 - minimum 300mm and maximum 320mm (X)

Model 6920 / 6921 / 6922 - minimum 150mm and maximum 170mm (X)

Connect the flexible flat duct (906.408) to the flat ductwork using a connection piece (906.402 not supplied). Use tape for an airtight connection. Pay attention to the required free space between the flat ductwork and the cut-out opening. Leave the flexible duct hanging out of the cut-out opening.

Technical diagram showing a conveyor belt system with a moving cart and a building, no text or symbols present

Architectural cross-section diagram showing structural elements and a sloped slope (no text or labels)

Technical diagram showing a rectangular frame with numbered components and an inset magnified view of a tool interacting with a horizontal line.

NL

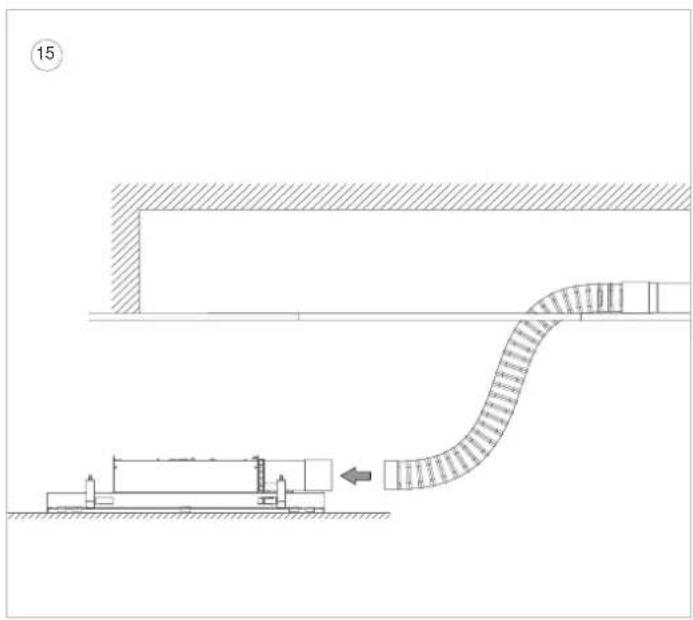

15 Place the cooker hood as close as possible to the cut-out opening and connect the flexible duct to the sensor kit. Use tape for an airtight connection.

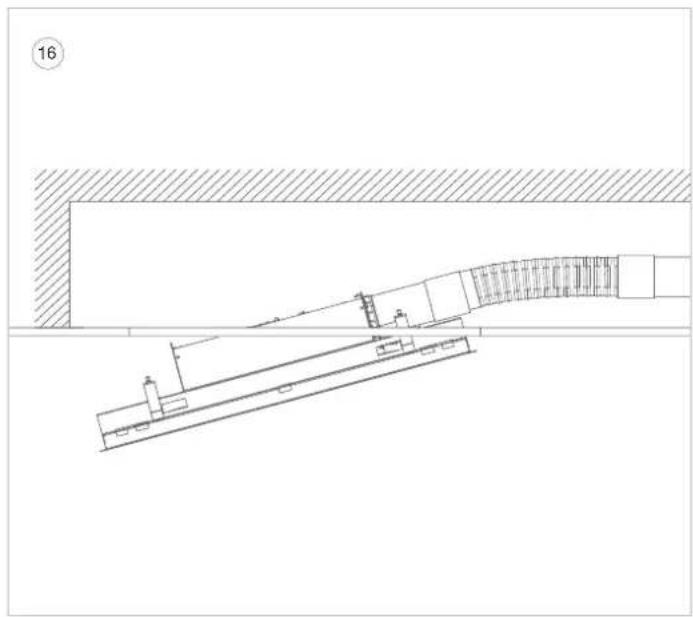

16 Put the plug into the socket. Push the ceiling unit by its edges (not on the bottom panel) at an angle upwards into the cut-out opening and click it into place with the clamping springs.

t push on the bottom panel!

The ceiling unit will now remain suspended in place.

17 Tighten the 4 clamping screws by hand to permanently secure the ceiling unit (caution: do not tighten too hard in plasterboard).

The cooker hood is now r eady for use.

18

Technical diagram showing a mechanical assembly with numbered components and an inset view of a tool interacting with a component.

Technical line drawing of a mechanical assembly with no visible text or symbols

NL

Installation with exhaust opening to FRONT/REAR

The appliance can only be installed with the exhaust direction towards the front/rear if there is a free space of approx. 25 cm (distance Y in drawing 15) at the front and back of the cooker hood to slide the motor unit up during installation.

18

- Open the bottom panel and remove the grease filters from the cooker hood. Note: For easier installation, the bottom panel can be removed from the cooker hood.

• Loosen the 4 screws in accordance with the drawing. The motor unit is now detached.
• Turn the motor unit until the exhaust opening is to the front or rear and screw the motor unit back on using the 4 screws.
• Do not replace the grease filters yet. Close the bottom panel (if applicable).
• Click the connection piece (6810.030) onto the motor housing and screw in 4 screws for fixation (906.116).

For easier installation, the bottom panel can be removed from the cooker hood.

19

Technical line drawing of a mechanical assembly with two hands raised above a blank panel (no text or symbols)

19 Removing and replacing the bottom panel

If the bottom plate is to be removed from the cooker hood for installation, proceed as follows:

- Grasp the bottom panel at the left and right ends.

- Slowly tilt the bottom panel downwards and continue to hold it in place.

- As soon as the bottom panel is at a 90° angle downwards, the bottom panel can be slid to the right to remove it from the hinges. Here you will feel some resistance. Do this with caution to prevent damage to the cooker hood. Make sure you hold the bottom panel securely at all times.

- T o replace the bottom panel, grasp the bottom panel at the left and right ends and hold it in place. Make sure you hold the bottom panel securely at all times.

- Hold the bottom panel in a 90^ angle downwards and slide the bottom panel to the left over the hinges until you notice a click.

- The bottom panel cannot be closed if the bottom panel is not fully positioned over the hinges. - The bottom panel can then be closed.

20 To simplify the installation, we recommend using flexible flat exhaust ducting for the last section between the flat ductwork and the cooker hood. This is available as accessory from Novy (906.408).

Make sure that after installation, the flexible flat duct is not bend in a S-curve (= overlap) between the cooker hood and the flat duct work. This increases the pressure loss in the duct and has a negative effect on the efficiency of the cooker hood.

Overlap can be avoided by observing the following clearance between the end of the flat ductwork and the edge of the cut-out opening in the ceiling:

- Model 6910 / 6911 / 6912 – minimum 500mm and maximum 520mm (X)

- Model 6920 / 6921 / 6922 – minimum 500mm and maximum 520mm (X)

Connect the flexible flat duct (906.408) to the flat ductwork using a connection piece (906.402 not supplied). Use tape for an airtight connection. Pay attention to the required free space between the flat ductwork and the cut-out opening.

Technical line drawing of an open electrical enclosure with screwdriver and internal components (no text or symbols)

Technical diagram of an electronic device with labeled components and wiring connections

Technical diagram of a device interior with zoomed-in views highlighting internal components and structural features.

Diagram showing a mechanical component being inserted into a device, with no visible text or symbols

NL

Caution, do not perform any of the following operations while the unit is energised. Make sure that the power is off or that the plug of the cooker hood is unplugged.

21 Open the bottom panel of the cooker hood and remove the 6 screws (TX15) from the service hatch.

After this, the circuit board of the cooker hood is visible.

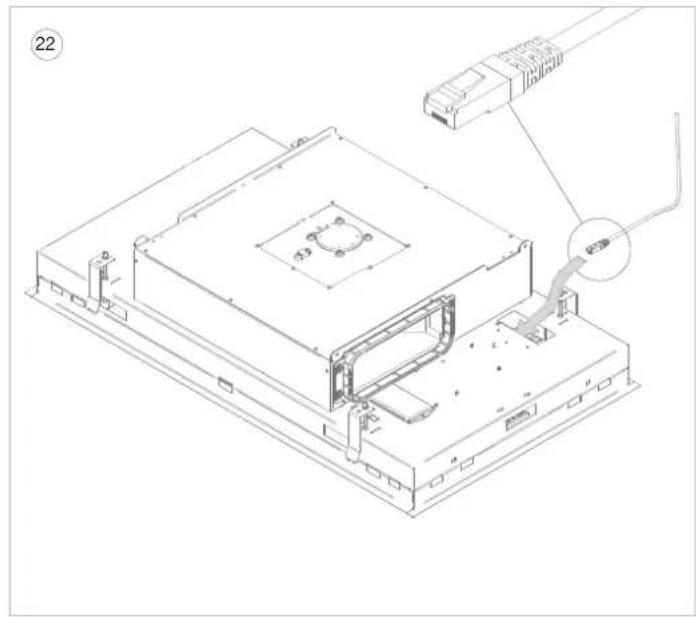

22 Route the supplied UTP cable (99004008) from above through the indicated opening so that the cable exits at the circuit board.

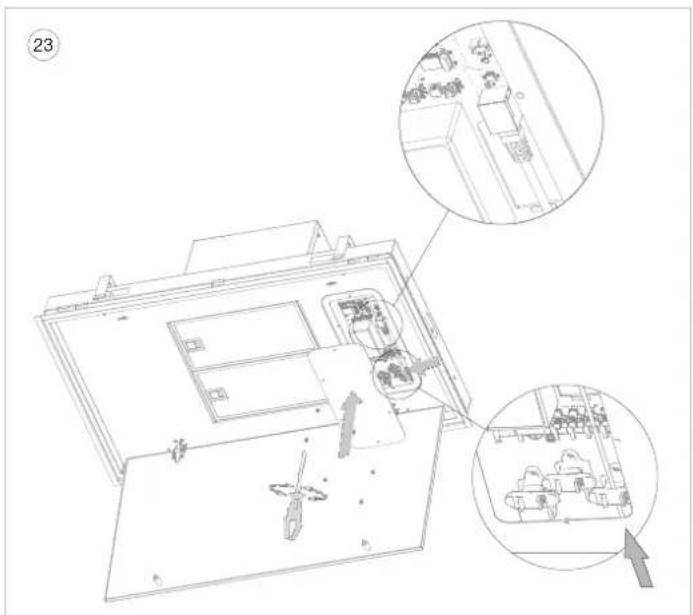

23 Connect the RJ45 connector of the UTP cable into the indicated connector on the circuit board. Fix the UTP cable in the indicated strain relief.

Then replace the service hatch and fix with the 6 screws (TX15).

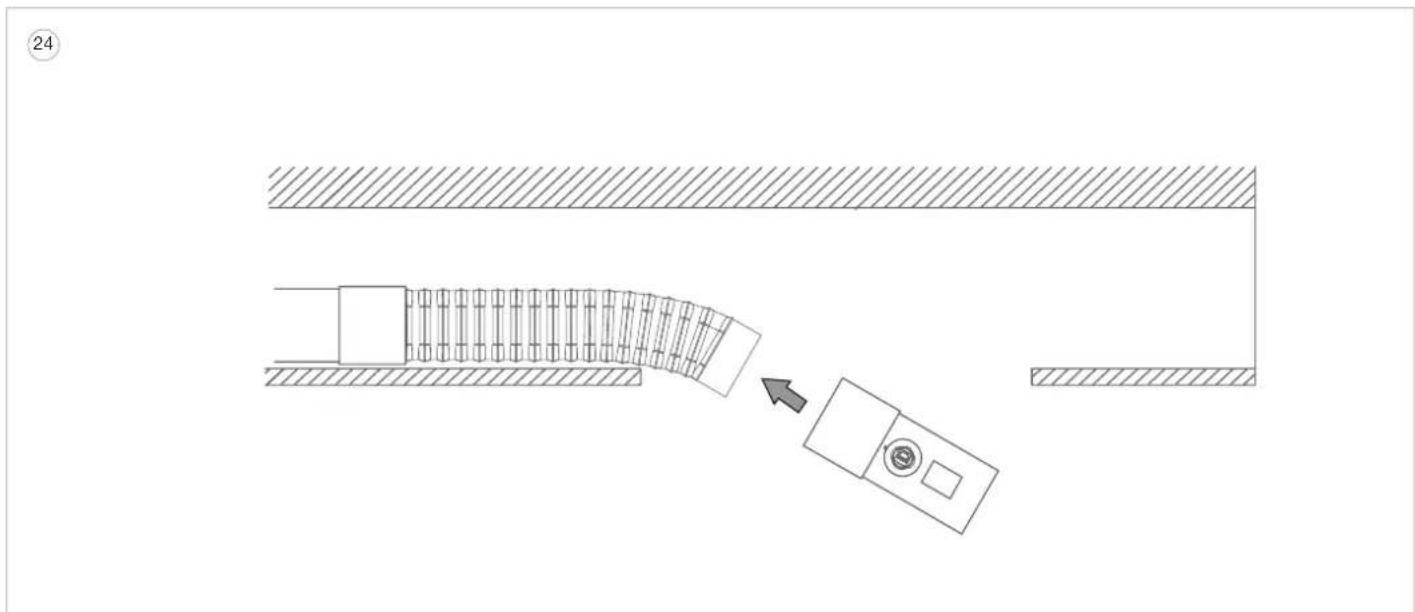

24 Connect the sensor kit with the supplied connection piece (906.402) to the flexible flat exhaust duct (906.408), paying attention to the direction of the airflow as indicated on the sticker of the Novy Sense sensor. The arrow must pointed downstream. Use tape for an airtight connection.

Place the complete assembly above the ceiling.

25

NL

Technical diagram showing mechanical assembly and airflow control system with labeled components and directional arrows

DU

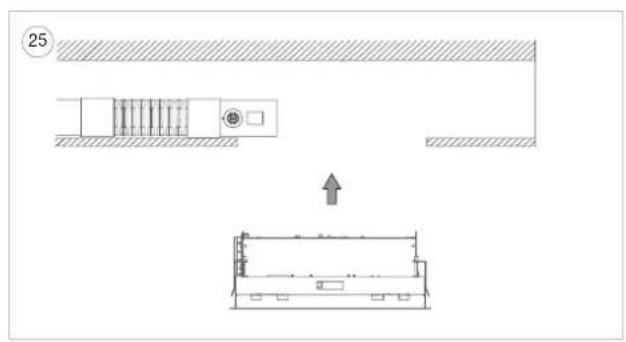

25 Put the plug into the socket.

Caution, do not install under voltage. Make sur e that the power is off at the socket.

Push the ceiling unit by its edges (not on the bottom panel) upwards into the cut-out opening and click it into place with the clamping springs.

: push on the bottom panel!

The ceiling unit will now remain suspended in place.

26 Tighten the 4 clamping screws by hand to permanently secure the ceiling unit (caution: do not tighten too hard in plasterboard).

27

ion, plug is in the socket. Only carry the following actions if the power is off socket.

• Open the bottom panel and remove the grease filters from the cooker hood. (if applicable).
• Loosen the 4 screws in accordance with the drawing. The motor unit is now detached
• Slide the motor unit off the ductwork (approx. 25 cm) so that there is a free opening to the false ceiling.
• Connect the cable from the sensor kit to the connector socket in the sensor kit.

- Connect the sensor kit to the connection piece (6810.030) of the motor unit and use tape for an airtight connection.

- Slide the motor unit back into place, making sure that the cable of the sensor kit is not caught between the housing of the cooker hood and the motor unit.

- Screw the motor unit back on using the 4 screws.

- Reinstall the bottom panel (if applicable), place the grease filters in the ceiling unit and close the bottom panel.

- Restore power to the socket.

The cooker hood is now ready for use.

Technical diagram showing a screwdriver inserted into a mechanical component with directional arrows indicating motion or flow.

NL

For ALL exhaust directions

Dismantling the ceiling unit

28 Before dismantling, protect the hob with, for example, cardboard or a cloth in case a screw or clamp falls down.

Perform the following actions only when the power is off at the wall socket.

To dismantle the ceiling unit, first disconnect the motor unit from the cooker hood housing before dismantling the cooker hood (see drawing 2).

Next, the 4 clamping screws need to be fully unscrewed. Once these are unscrewed, the ceiling unit will come down. Please note that the motor unit lies loose on the housing of the cooker hood.

Please note that the unscrewed clamping springs can fall down.

NL MONTAGE NOVY Input/output module 990.036 ZONDER Novy Sense sensor

Technical line drawing of an open storage or filing cabinet with a screwdriver inserted, showing internal components and no text or symbols.

2

Technical line drawing of an electronic device with a cable and connector, showing internal components and mounting base (no text or symbols)

3

Technical diagram of a room interior with labeled components and zoomed-in detail views

NL MONTAGE

Carefully read the safety and installation instructions of this accessory and of the cooker hood with which it can be combined before installing and using it.

Caution, do not perform any of the following operations while the unit is energised. Make sure that the power is off or that the plug of the cooker hood is unplugged.

① Open the bottom panel of the cooker hood and remove the 6 screws (TX15) from the service hatch.
After this, the circuit board of the cooker hood is visible.
Route the supplied UTP cable (99004008) from above through the indicated opening so that the cable exits at the circuit board.
3 Connect the RJ45 connector of the UTP cable into the indicated connector on the circuit board.
Fix the UTP cable in the indicated strain relief.

Then replace the service hatch and fix with the 6 screws (TX15).

990036

Technical line drawing of an electronic device chassis with labeled components and a directional arrow (no text or symbols beyond basic labels)

NL

4 Place the RJ45 connector of the UTP cable coming from the cooker hood in one of the two RJ45 connector inputs of the input / output module 990.036.
⑤ Use the tape supplied (906292) to fixate the input/output module to the housing of the cooker hood. First degrease the surface to be glued with the included degreasing cloth (661057). Avoid blocking the openings for electrical connections in the housing of the cooker hood.

Check and connect the other connections of the module according to your installation situation (see electrical diagram in manual of Novy input / output module 990036).

NL MONTAGE NOVY Input/output module 990.036 MET Novy Sense sensor

Technical line drawing of an electronic device chassis with internal components and mounting base (no text or symbols)

Technical line drawing of an open computer case with a downward arrow indicating a cut or repair process (no text or symbols present)

Technical line drawing of an electronic device chassis with connectors and a cable inserted (no text or symbols)

NL MONTAGE

Carefully read the safety and installation instructions of this accessory and of the cooker hood with which it can be combined before installing and using it.

Caution, do not perform any of the following operations while the unit is energised. Make sure that the power is off or that the plug of the cooker hood is unplugged.

If the UTP cable of the sensor kit is already connected to the cooker hood; remove the RJ45 connector from the connector socket of the sensor kit. If not applicable; go to step 2 directly.
② Open the bottom panel of the cooker hood and remove the 6 screws (TX15) from the service hatch. After this, the circuit board of the cooker hood is visible.
③ Route the supplied UTP cable (99004008) from above through the indicated opening so that the cable exits at the circuit board.

Technical diagram of a kitchen interior with zoomed-in views and component labels

990036 ⑤ ⑥

Technical line drawing of an electronic device assembly with labeled components (no readable text or symbols)

Technical line drawing of an electronic device assembly with labeled components (no readable text or symbols)

NL

④ Connect the RJ45 connector of the UTP cable into the indicated connector on the circuit board. Fix the UTP cable in the indicated strain relief.

Then replace the service hatch and fix with the 6 screws (TX15).

⑤ Place the RJ45 connector of the UTP cable coming from the cooker hood in one of the two RJ45 connector inputs of the input / output module 990036.

⑥ Then insert the RJ45 connector (not with angled connector) of the supplied separate UTP cable (99003607) into the other RJ45 connector input of the input / output module 990.036.

⑦ Insert the RJ45 angled connector of the supplied separate UTP cable 999003607) into the connector socket of the sensor kit.

8 Use the tape supplied (182151) to fixate the input/output module to the housing of the cooker hood. First degrease the surface to be glued with the included degreasing cloth (661057). Avoid blocking the openings for electrical connections in the housing of the cooker hood.

Check and connect the other connections of the module according to your installation situation (see electrical diagram in manual of Novy input / output module 990036).

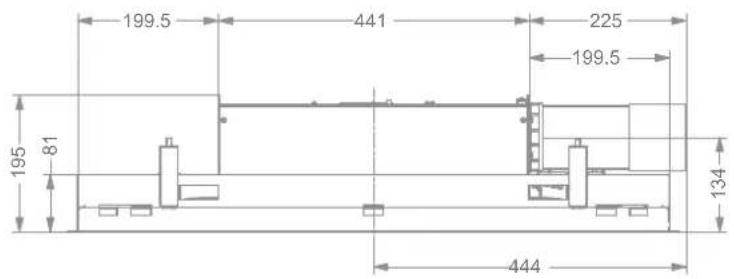

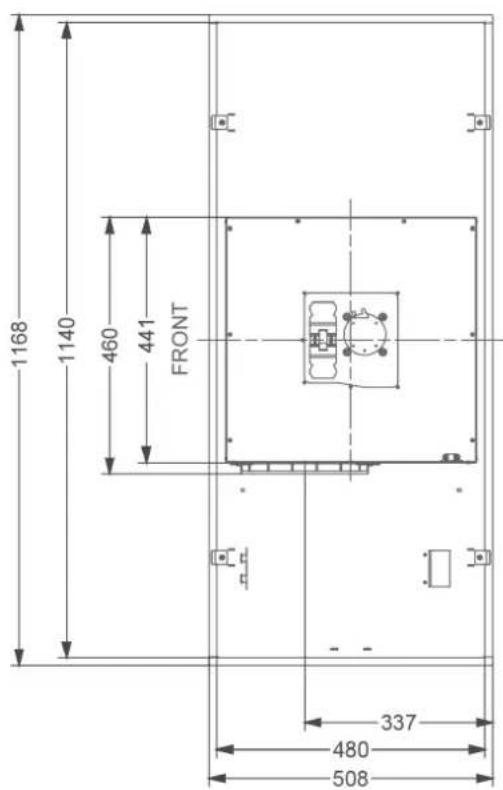

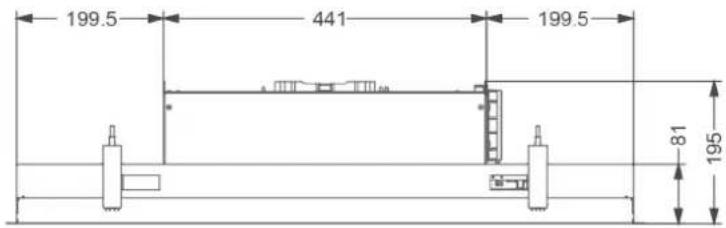

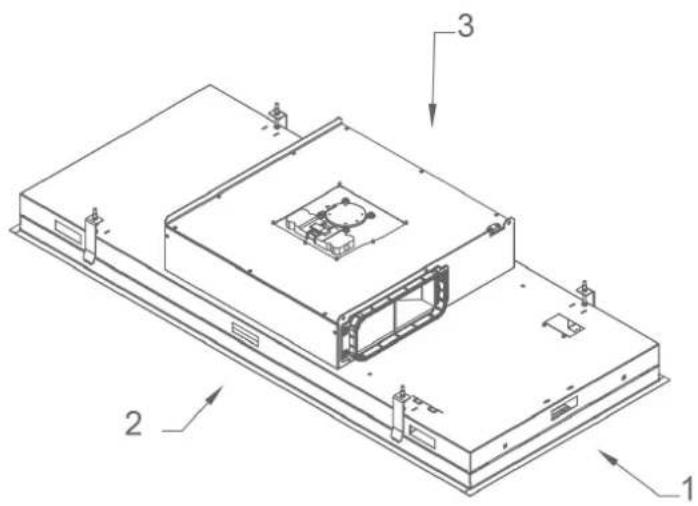

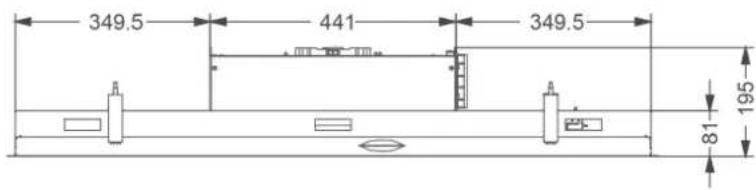

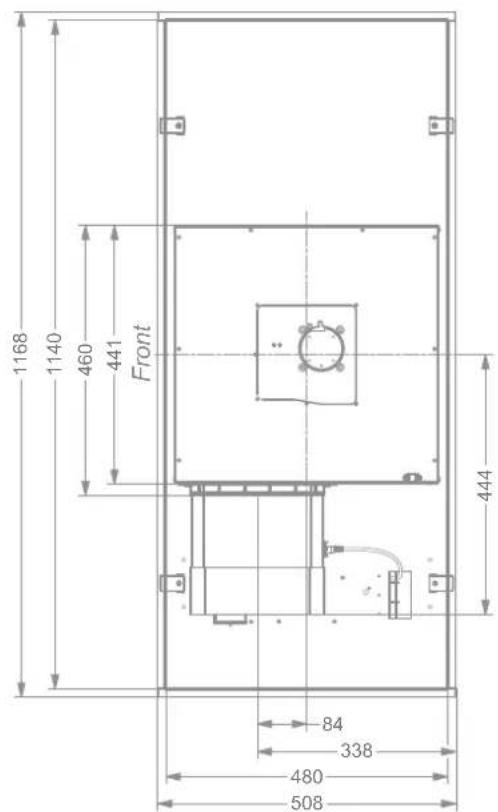

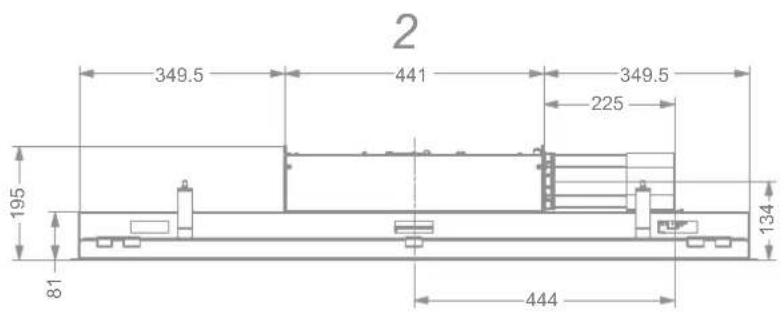

Afmetingen - Dimensions - Abmessungen - Dimensions

6910, 6911, 6912

ZONDER/SANS/OHNE/WITHOUT Novy Sense sensor

1

452 222 89 134 18-35

2

199.5 441 199.5 81 195

4

3

868 460 441 Front 337 480 508

Technical diagram of a device with labeled components and directional arrows indicating assembly or assembly steps.

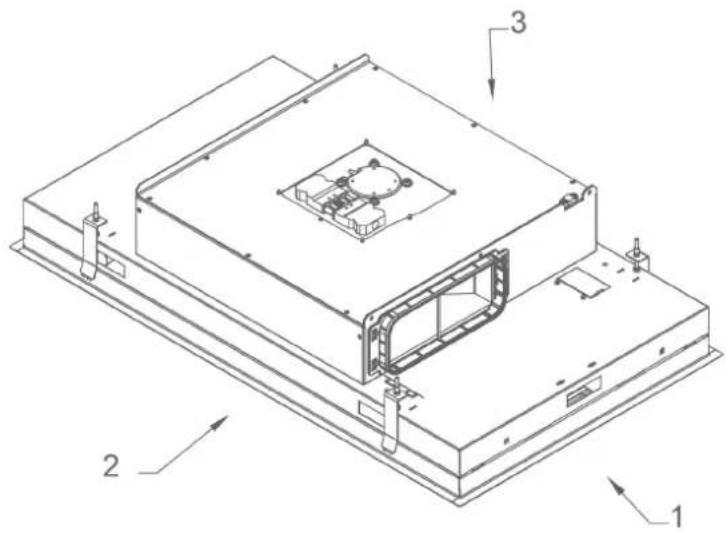

Afmetingen - Dimensions - Abmessungen - Dimensions

6920, 6921, 6922

ZONDER/SANS/OHNE/WITHOUT Novy Sense sensor

1

452 222 89 134 18-35

2

349.5 441 349.5 81 195

3

1168 1140 460 441 FRONT 337 480 508

4

Technical diagram of a device with labeled components and directional arrows indicating assembly or assembly steps.

Afmetingen - Dimensions - Abmessungen - Dimensions

6910, 6911, 6912

MET/AVEC/MIT/WITH Novy Sense sensor

1

452 222 89 18-35

2

199.5 441 225 199.5 81 195 134 444

3

868 840 460 441 Front 444 84 337 480 508

4

Technical diagram of a device with labeled components 1, 2, and 3, showing internal structure and mounting points.

Afmetingen - Dimensions - Abmessungen - Dimensions

6920, 6921, 6922

MET/AVEC/MIT/WITH Novy Sense sensor

1 452 222 89 18-35

3

2 349.5 441 349.5 225 195 81 134 444

4

1168 1140 460 441 Front 444 84 338 480 508

Technical line drawing of an electronic device chassis with labeled components (no text or symbols present)

NOVY nv behoudt zich het recht voor te allen tijde en zonder voorbehoud de constructie en de prijzen van haar producten te wijzigen. NOVY SA se réserve le droit de modifier à tout moment et sans réserve la fabrication et les prix de ses produits. Die NOVY AG behält sich das Recht vor, zu jeder Zeit und ohne Vorbehalt die Konstruktion und die Preise ihrer Produkte zu ändern. NOVY nv reserves the right at any time and without reservation to change the structure and the prices of its products.
