53655 - Kettle WestBend - Free user manual and instructions

USER MANUAL 53655 WestBend

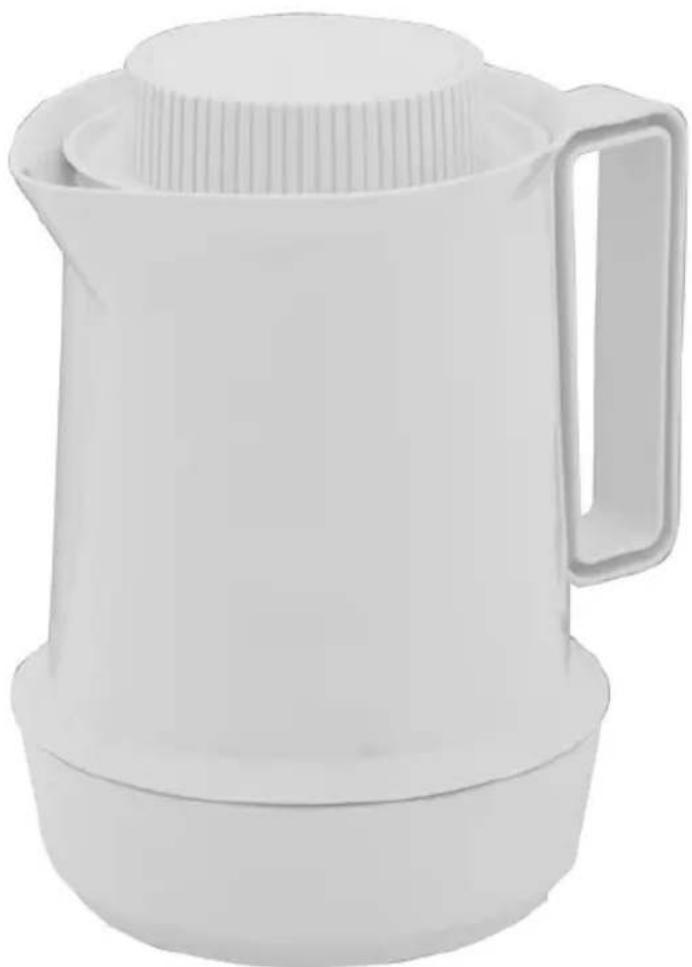

White plastic water dispenser with lid and handle, no visible text or symbols

Register this and other Focus Electrics products through our website:

www.registerfocus.com

Important Safeguards 2

Before Using for the First Time .... 3

Using Your Hot Pot.... 3

Cleaning Your Hot Pot 4

Warranty....5

SAVE THIS INSTRUCTION MANUAL FOR FUTURE REFERENCE

IMPORTANT SAFEGUARDS

CAUTION

To prevent personal injury or property damage, read and follow all instructions and warnings.

When using electrical appliances, basic safety precautions should always be followed including:

• Read all instructions.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against fire, electric shock, and injury to persons do not immerse cord, plugs, or other electric parts in water or other liquids.
• Close supervision is necessary when this appliance is used by or near children.
• Always unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts and before cleaning.
• Do not operate any appliance with a damaged cord or plug, after the appliance malfunctions, or has been damaged in any manner. For service information see warranty page.
• The use of accessory attachments not recommended by Focus Electrics may cause fire, electric shock, or injury.
• Do not use this appliance outdoors.
• Do not let cord hang over the edge of the table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• To disconnect, turn any control to "OFF," then remove plug from wall outlet.
• Do not use appliance for other than intended use.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• Scalding may occur if cover is removed during the brew (heat) cycle.
• Do not attempt to repair this appliance yourself.
• A short power-supply cord is provided to reduce risks resulting from becoming entangled in or tripping over a longer cord.
• Longer extension cords are available, but care must be exercised in their use. While use of an extension cord is not recommended, if you must use one, ensure that the marked electrical rating of the extension cord is equal to or greater than that of the appliance. If the plug is of the grounded type, the extension cord must be a grounding-type 3-wire cord. To avoid pulling, tripping or entanglement, position the extension cord so that it does not hang over the edge of the counter, table or other area where it can be pulled on by children or tripped over.

• This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.

• Do not use an outlet or extension cord if the plug fits loosely or if the outlet or extension cord feels hot.

• For household use only.

SAVE THESE INSTRUCTIONS

BEFORE USING FOR THE FIRST TIME

Please check all packaging material carefully before discarding. Many accessory parts are contained within the packaging material.

Before using, clean the entire appliance according to the cleaning instructions.

THIS APPLIANCE IS DESIGNED FOR HEATING WATER ONLY. DO NOT ADD OTHER LIQUIDS OR FOOD TO HOT POT FOR HEATING PURPOSES AS A BOIL-OVER CAN OCCUR.

USING YOUR HOT POT

1. Remove cover by turning it counter-clockwise. Fill Hot Pot with cold water to the desired cup level, using the 5½-ounce cup markings on the inside of the pot as a guide. Do not heat less than 2 or more than 5 cups of water at one time.
2. Place appliance on dry, level, heat-resistant surface, away from any edge. Secure cover onto Hot Pot by aligning nubs on rim of cover with notches in rim of pot. Turn clockwise. Cover will drop slightly. Continue turning until cover is secured in place. Note arrows on cover for correct turning direction. Care should still be used when moving Hot Pot as the secured cover will not prevent water from spilling if tipped over.

1. Plug cord into a 120 volt, AC electric outlet only. Allow water to heat until a boil is reached. Two cups of water will be heated in about 4 minutes; 5 cups of water in about 9 minutes.

2. After water is heated, with cover secured onto Hot Pot, pour water through spout into a heat-resistant serving container. Water will remain serving hot as long as pot is plugged into an electrical outlet. When less than 2 cups of water remain in the pot, unplug cord from electrical outlet to prevent pot from boiling dry. Remove cover from pot to determine amount of water left inside. If you wish to heat additional water, unplug and empty water. Refill with cold water and follow steps above.

3. A small amount of smoke and/or odor may occur upon heating due to the release of manufacturing oils – this is normal.

4. Some minor expansion/contraction sounds may occur during heating and cooling – this is normal.

Always make sure Hot Pot is unplugged from electrical outlet and the entire appliance has cooled before cleaning.

1. Fill Hot Pot with hot tap water to the 3-cup level. Add a small amount of dish soap and wash inside of pot with a dishcloth or sponge. Drain pot, rinse inside with tap water and dry.
2. Wash cover in hot soapy water, rinse and dry.

Do not use metal scouring pads or harsh cleansers on Hot Pot or cover as scratching will occur. Do not wash cover or Hot Pot in an automatic dishwasher.

Special Cleaning to Remove Mineral Deposits: Over time, mineral deposits from water will build up on the inside of the Hot Pot. These deposits must be removed to prevent possible pitting and damage to the metal bottom, which can cause water to leak out of pot. To prevent severe buildup of mineral deposits, always empty and clean after each use.

1. Fill pot to the 3-cup level with white distilled vinegar and add water to the 5-cup level. Secure cover onto pot and plug into electrical outlet. Allow solution to heat for 20 to 30 minutes, or until deposits are dissolved.
2. Unplug cord from electrical outlet, drain pot and allow to cool before cleaning, following general cleaning instructions above.

PRODUCT WARRANTY

Appliance 1 Year Limited Warranty

Focus Electrics, LLC (“Focus Electrics”) warrants this appliance from failures in the material and workmanship for one (1) year from the date of original purchase with proof of purchase, provided the appliance is operated and maintained in conformity with the provided Instruction Manual. Any failed part of the appliance will be repaired or replaced without charge at Focus Electrics' discretion. This warranty applies to indoor household use only.

This warranty does not cover any damage, including discoloration, to any non-stick surface of the appliance. This warranty is null and void, as determined solely by Focus Electrics if the appliance is damaged through accident, misuse, abuse, negligence, scratching, or if the appliance is altered in any way.

THIS WARRANTY IS IN LIEU OF ALL IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, PERFORMANCE, OR OTHERWISE, WHICH ARE HEREBY EXCLUDED. IN NO EVENT SHALL FOCUS ELECTRICS BE LIABLE FOR ANY DAMAGES, WHETHER DIRECT, INDIRECT, INCIDENTAL, FORSEEABLE, CONSEQUENTIAL, OR SPECIAL, ARISING OUT OF OR IN CONNECTION WITH THIS APPLIANCE.

If you think the appliance has failed or requires service within its warranty period, please contact the Focus Electrics Customer Service Department at [phone], or e-mail us at [e-mail]. A receipt proving the original purchase date will be required for all warranty claims, hand written receipts are not accepted. You may also be required to return the appliance for inspection and evaluation. Return shipping costs are not refundable. Focus Electrics is not responsible for returns lost in transit.

Valid only in USA and Canada

REPLACEMENT PARTS

Replacement parts, if available, may be ordered directly from Focus Electrics, LLC several ways. Order online at www.focuselectrics.com, e-mail [e-mail], over the phone by calling [phone], or by writing to:

Focus Electrics, LLC

Attn: Customer Service

P. O. Box 2780

West Bend, WI 53095

To order with a check or money order, please first contact Customer Service for an order total. Mail your payment along with a letter stating the model or catalog number of your appliance, which can be found on the bottom or back of the appliance, a description of the part or parts you are ordering, and the quantity you would like. Your check should be made payable to Focus Electrics, LLC.

Your state/province's sales tax and a shipping fee will be added to your total charge. Please allow two weeks for processing and delivery.

This manual contains important and helpful information regarding the safe use and care of your new Focus Electrics product. For future reference, attach dated sales receipt for warranty proof of purchase and record the following information:

Date purchased or received as gift: ____

Where purchased and price, if known: ____

Item number and Date Code (shown bottom/back of product):

WestBend®

BOUILLOIRE ÉLECTRIQUE

Mode d'emploi

White plastic water dispenser with lid and handle, no visible text or symbols

Focus Electrics, LLC

Attn : Service clientèle

P. O. Box 2780

West Bend, WI 53095

White plastic water dispenser with handle and spout, no visible text or symbols

Focus Electrics, LLC

Attn: Customer Service

P. O. Box 2780

West Bend, WI 53095
