6400 - Kettle WestBend - Free user manual and instructions

Brand	WestBend
Model	6400
Product Type	Whistling Electric Kettle
Capacity	Approximately 1.7 L (max fill to spout, minimum 25 cl)
Power	1500 W (estimated at 120 V)
Voltage	120 V AC, 60 Hz
Material	Metal (likely stainless steel)
Usage	Boil water only
Whistle function	Whistles when water boils; volume depends on water level
Safety	Dry boil protection (auto shut-off)
Cleaning	Wipe exterior with damp cloth; descale regularly with white vinegar
Descale recommended	Soft water: once a year; medium water: once every 3 months; hard water: once a month
Warranty	1 year (parts and labor, household use only)
Spare parts	Available at www.westbend.com or from customer service
Dimensions	Not specified (standard kettle, height ~25 cm, diameter ~20 cm)
Weight	Not specified (estimated ~1 kg)
Electrical supply	Short polarized cord; avoid extension cord if possible
Maintenance	Empty between uses to reduce mineral deposits
Use with children	Supervision required; hot surfaces

Frequently Asked Questions - 6400 WestBend

What to do if the kettle does not whistle?

Check that the water level is sufficient (at least 25 cl). The whistle may be quieter with little water. Make sure the spout is not clogged and that the water is actually boiling. If the problem persists, descale the kettle.

Can I heat other liquids besides water?

No, use the kettle only to boil water. Other liquids or foods may damage the appliance.

How to descale the kettle?

Mix 25 cl of white vinegar and 25 cl of cold water in the kettle. Bring to a boil, then let it sit for 15 to 30 minutes. Discard the mixture and rinse thoroughly with clean water. Repeat if necessary.

The kettle stops by itself: what to do?

This is the dry boil protection. Unplug the kettle, let it cool completely, then fill it with water before reusing.

What type of plug should I use?

The kettle has a polarized plug (one wider blade). Use a suitable 120 V power outlet. Do not modify the plug.

Can I use an extension cord?

Using an extension cord is not recommended. If necessary, use an extension cord with a power rating at least equal to that of the kettle (1500 W) and position it to avoid tripping.

How to clean the outside of the kettle?

Wipe the outside with a damp cloth. Do not use scouring pads or abrasive powder to avoid scratches.

Why is there smoke or smell on first use?

It is normal: this comes from manufacturing oils that dissipate during initial heating. Boil and discard water two or three times before first use.

The kettle makes noise when heating, is it normal?

Yes, small expansion/contraction sounds are normal during heating and cooling.

Where can I buy spare parts?

Order online at www.westbend.com (Spare Parts section) or contact customer service at [phone] or by email at [e-mail]. Have the model number (6400) ready.

USER MANUAL 6400 WestBend

White kettle and saucer on a white background (no text or symbols visible)

Register this and other West Bend® Housewares products through our website:

www.westbend.com

Important Safeguards....2

Heat Precautions....2

Electricity Precautions....3

Precautions For Use Around Children....4

Using Your Kettle .... 4

Cleaning Your Kettle 5

Decalcifying Your Kettle 5

Warranty....6

SAVE THIS INSTRUCTION MANUAL FOR FUTURE REFERENCE

IMPORTANT SAFEGUARDS

CAUTION

To prevent personal injury or property damage, read and follow all instructions and warnings.

When using electrical appliances, basic safety precautions should always be followed including the following:

• Read all instructions, including these important safeguards and the care and use instructions in this manual.
• Do not use appliance for other than intended use.
• Do not place on or near a hot gas or electric burner, or a heated oven.
• Do not leave unit unattended while plugged into electrical outlet.
• The use of accessory attachments not recommended by West Bend® Housewares, LLC may result in fire, electric shock or injury to persons.
• Do not operate if the appliance is not working properly or if it has been damaged in any manner. For service information see warranty page.
• Do not attempt to repair this appliance yourself.
• For household use only.

CAUTION

To prevent burns, personal injury or property damage, read and follow all instructions and warnings.

HEAT PRECAUTIONS

• Do not touch hot surfaces. Use handles or knobs. Use extreme caution when pouring as boiling water can cause scalding.
• Do not move an appliance containing hot foods or hot liquids.
• Do not use this appliance on the stovetop, under broiler, in the oven, in the refrigerator or freezer.
• Do not refill the kettle while the appliance is plugged in. Unplug the machine and allow to cool before refilling with water.

CAUTION

To prevent electrical shock, personal injury or property damage, read and follow all instructions and warnings.

ELECTRICITY PRECAUTIONS

• To protect against fire, electric shock and injury to persons, do not immerse cord, plugs, or other electric parts in water or other liquids.
• Do not operate any appliance with a damaged cord or plug.
• Do not use this appliance outdoors.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
• Always unplug from electrical outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts and before cleaning.
• Your kettle has a short cord as a safety precaution to avoid pulling, tripping or entanglement. Position the cord so that it does not hang over the edge of the counter, table or other area or touch hot surfaces.
• While use of an extension cord is not recommended, if you must use one, make sure the cord has the same or higher wattage as the kettle (wattage is stamped on the underside of the kettle). To avoid pulling, tripping or entanglement position the extension cord so that it does not hang over the edge of the counter, table or other area.
• Use an electrical outlet that accommodates the polarized plug on the kettle. On a polarized plug, one blade of the plug is wider than the other. If the plug does not fit fully into the outlet or extension cord, reverse the plug. If the plug still does not fit fully, contact a qualified electrician. Do not alter the plug.
• Do not use an outlet or extension cord if the plug fits loosely or if the outlet or extension cord feels hot.
• Keep the cord away from hot parts of the appliance and hot surfaces during operation.

CAUTION

To prevent burns or other personal injuries to children, read and follow all instructions and warnings.

PRECAUTIONS FOR USE AROUND CHILDREN

• Always supervise children.
- Do not allow children to operate or be near the kettle, as the outside surfaces are hot during use.
- Do not allow cord to hang over any edge where a child can reach it. Arrange cord to avoid pulling, tripping or entanglement.

SAVE THESE INSTRUCTIONS

USING YOUR KETTLE

First Use: Remove all packaging from kettle. Fill kettle with cold water to the Maximum Fill Indicator. Plug cord into electrical outlet and bring water to a boil. Unplug cord from electrical outlet and dispose of water, being careful of escaping steam. We recommend repeating this process two to three times and emptying after each occasion to remove any residues that may be left from the manufacturing process.

General Use:

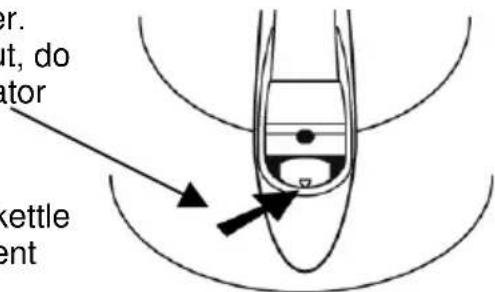

1. Fill the kettle with desired amount of cold water. To prevent hot water from boiling out of spout, do not fill the kettle past the Maximum Fill Indicator located inside of spout.
2. Place appliance on dry, level, heat-resistant surface, away from any edge. Note: Direct kettle spout away from cabinets, walls, etc to prevent possible steam damage.
3. Plug cord into a 120 volt AC electrical outlet ONLY. When water reaches a boil, whistle will sound. Unplug cord from electrical outlet. Due to escaping steam, exercise caution when pouring hot water from kettle. Note: Loudness of whistle will vary with amount of water in kettle-the fuller the kettle, the louder the whistle.

- Never fill the kettle past the Maximum Fill Indicator and always ensure there is at least 1 cup (8 ounces) of water in the kettle for heating.

- Only use the kettle for boiling water. Do not add other liquids or foods to kettle for heating as damage to kettle can occur.

- It is best to always add freshly drawn cold tap water to kettle for heating.

- Do not plug empty kettle into electrical outlet, always use with water.

- Use extreme caution when pouring as boiling water can cause scalding.

er. ut, do ator kettle ent

• Between uses, empty water from kettle to prevent severe buildup of mineral deposits from forming wich can cause pitting of the metal base.
• Some smoke and/or odor may occur upon heating due to the release of manufacturing oils – this is normal.
• Some minor expansion/contraction sounds may occur during heating and cooling – this is normal.
• Your kettle is equipped with a self-resetting boil-dry protector: If the kettle is accidentally plugged in with less than the minimum level of water, the boil-dry protector will operate to safely cut-off the power. For continued use, unplug kettle and allow to cool before re-use.

CLEANING YOUR KETTLE

1. Always unplug cord from electrical outlet and allow kettle to cool completely before cleaning. Do not immerse the kettle, cord, plugs or other electric parts in water or other liquid. Do not clean in an automatic dishwasher.
2. The exterior of the kettle can be wiped clean with a damp cloth. To prevent scratching, do not use abrasive scouring pads or powders on exterior surfaces.
3. Decalcify the kettle periodically. See the "Decalcifying Your Kettle" section.

DECALCIFYING YOUR KETTLE

- Over time, mineral deposits build up on internal parts and effect the operation of the appliance causing the need for your kettle to be decalcified periodically to maintain performance. The frequency of decalcification depends on the hardness of your water and how often you use the kettle. Indications that decalcifying is necessary are:

• Increased noise during production
• Excessive steaming
• Longer heating times

- If usage is regular, decalcifying should be carried out as follows:

• With soft water, decalcify once per year
• With medium water, decalcify every quarter year
• With hard water, decalcify once a month

- We recommend the use of vinegar for decalcifying.

1. Always unplug cord from electrical outlet and allow the entire unit to cool completely before cleaning.
2. Fill kettle with 1 cup (8 ounces) EACH of white distilled vinegar and cold tap water.
3. Plug cord into electrical outlet. When the mixture has come to a full boil, unplug cord from electrical outlet and let kettle stand for 15 to 30 minutes to dissolve the deposits. Dispose of vinegar mixture and rinse kettle several times with cold tap water. If buildup is severe, repeat steps 1-3.

PRODUCT WARRANTY

Appliance 1 Year Limited Warranty

West Bend® Housewares, LLC warrants this appliance from failures in the material and workmanship for 1 year from the date of original purchase, provided the appliance is operated and maintained in conformity with the West Bend® Housewares, LLC Instruction Manual. Any failed part of the appliance will be repaired or replaced without charge at West Bend® Housewares, LLC discretion. This warranty applies to indoor household use only.

The West Bend® Housewares, LLC warranty does not cover any damage, including discoloration, to any non-stick surface of the appliance. The West Bend® Housewares, LLC warranty is null and void, as determined solely by West Bend® Housewares, LLC, if the appliance is damaged through accident, misuse or abuse, scratching, overheating, or if the appliance is altered in any way or if used outside of an indoor household setting.

This warranty gives you specific legal rights. You may also have other rights, which may vary from state to state.

THIS WARRANTY IS IN LIEU OF ALL IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, PERFORMANCE, OR OTHERWISE, WHICH ARE HEREBY EXCLUDED. IN NO EVENT SHALL WEST BEND® HOUSEWARES, LLC BE LIABLE FOR ANY DAMAGES, WHETHER DIRECT, IMMEDIATE, INCIDENTAL, FORESEEABLE, CONSEQUENTIAL, OR SPECIAL, ARISING OUT OF OR IN CONNECTION WITH ITS APPLIANCE.

If you think the appliance has failed or requires service within its warranty period, return it to the original place of purchase. For further details please contact the West Bend® Housewares Customer Service Department at [phone] or e-mail us at [e-mail]. Return shipping fees are non-refundable. Hand-written receipts are not accepted. West Bend Housewares, LLC is not responsible for returns lost in transit.

Valid only in USA and Canada

REPLACEMENT PARTS

Replacement parts, if available, may be ordered direct from West Bend® Housewares, LLC by ordering online at www.westbend.com: Replacement Parts. Or you may call or e-mail the service department at the number/e-mail address listed above, or by writing to us at:

West Bend Housewares, LLC

Attn: Customer Service

P.O. Box 2780

West Bend, WI 53095

Be sure to include the catalog/model number of your appliance (located on the bottom/back of the unit) and a description and quantity of the part you wish to order. Along with this include your name, mailing address, Visa/MasterCard number, expiration date and the name as it appears on the card. Checks can be made payable to West Bend Housewares, LLC Call Customer Service to obtain purchase amount. Your state's sales tax and a shipping/processing fee will be added to your total charge. Please allow two (2) weeks for delivery.

This manual contains important and helpful information regarding the safe use and care of your new West Bend® Housewares, LLC product. For future reference, attach dated sales receipt for warranty proof of purchase and record the following information:

Date purchased or received as gift: ____

Where purchased and price, if known: ____

Item Number and Date Code (shown bottom/back of product): ____

WEST BEND®

HOUSEWARES,LLC

White kettle and saucer with a teacup, no visible text or symbols on the main objects

West Bend Housewares, LLC

Attn: Customer Service

P.O. Box 2780

West Bend, WI 53095

White kettle and saucer on a white background (no text or symbols visible)

GARANTIA DEL PRODUCTO

West Bend Housewares, LLC

Attn: Customer Service

P.O. Box 2780
