53783 - Kettle WestBend - Free user manual and instructions

Product type	Electric kettle
Brand	WestBend
Model	53783
Power supply	120 V~, polarized plug
Capacity	Approximately 1.7 L (MIN and MAX indicators)
Main functions	Automatic shut-off at boil, power indicator light, overheat protection (dry boil function)
Automatic shut-off	Yes, activates when water boils or in case of dry operation
Power base	Heating base with polarized connector, removable kettle
Filter	Removable filter, must be in place for automatic shut-off
Body material	Not specified, likely stainless steel or heat-resistant plastic
External cleaning	Damp cloth, do not immerse
Descaling	Undiluted white vinegar, frequency depending on water hardness
Safety	Automatic shut-off, dry boil protection, lid locked during heating
Warranty	1 year (limited, parts and labor), valid in USA and Canada
Spare parts	Filter, heating base (not interchangeable with other brands)
Repairability	Do not repair yourself, contact Focus Electrics customer service
Intended use	Indoor household use, boil water only
First use	Boil 2 to 3 times and discard
Manual content	20 pages, available in French, English, Spanish

Frequently Asked Questions - 53783 WestBend

How to clean the WestBend 53783 kettle?

Set the switch to OFF, unplug and let cool. Clean the exterior with a damp cloth. Never immerse the kettle, base, or cord in water.

How often should I descale my kettle?

Frequency depends on water hardness: with soft water, descale once a year; medium hard water, every three months; hard water, once a month. Use undiluted white vinegar for descaling.

What to do if the kettle stops before water boils?

This may be due to heavy limescale buildup. Perform descaling. Make sure the filter is properly in place and the water level is between the MIN and MAX marks.

Can the kettle be used with a travel adapter?

No, the kettle is designed for 120 V voltage only. Use with an adapter or converter could damage the appliance or cause a fire hazard.

How does automatic shut-off work?

The automatic shut-off activates when water reaches boiling. It also activates in case of dry operation (less water than MIN level) to prevent overheating.

Can I open the lid while water is heating?

No, never open the lid during heating. Hot steam can cause burns. Wait until the kettle is off and cooled.

Is the base compatible with other kettles?

No, the heating base is specific to this WestBend 53783 model. Do not use the kettle with another base and vice versa.

Why is there smoke or odor during first use?

This is normal. Manufacturing oils may produce some smoke and odor. Boil 2 to 3 times and discard to remove these residues.

What to do if the kettle does not turn on?

Check that the filter is properly in place, the switch is set to ON, and the kettle is correctly placed on the base. Ensure the electrical outlet works. If the problem persists, contact customer service.

Is the kettle under warranty?

Yes, it comes with a limited one-year warranty from the date of purchase, covering defects in parts and labor. Keep your proof of purchase. For claims, contact Focus Electrics at [phone] or by email at [e-mail].

USER MANUAL 53783 WestBend

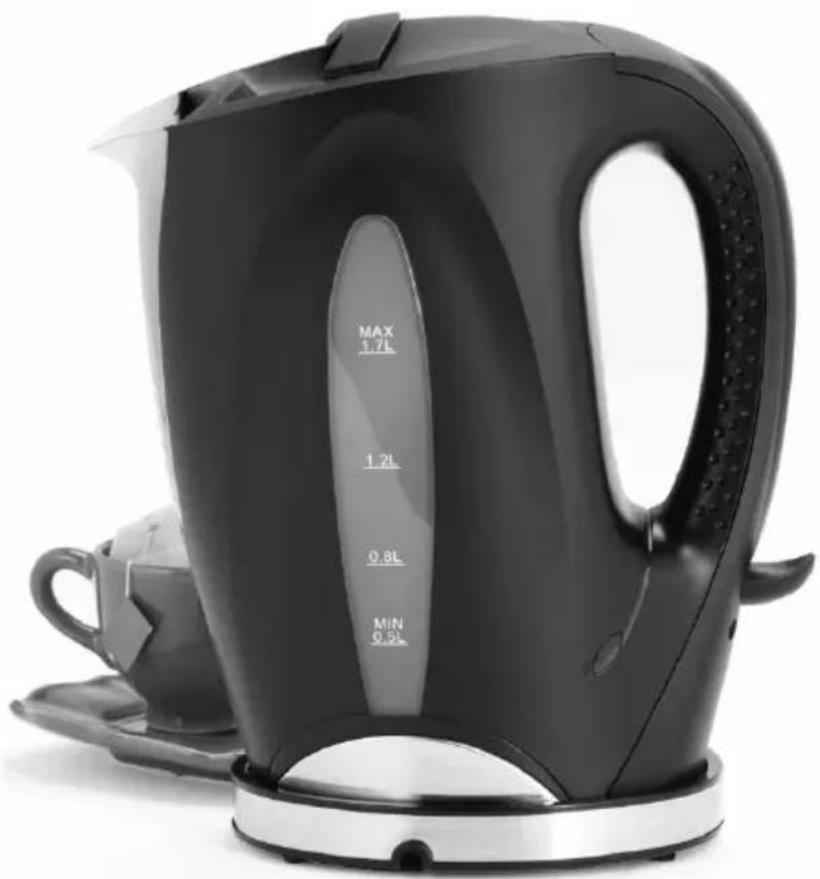

Black kettle with water level markings (MAX 1.7L, 1.2L, 0.8L, MIN 0.8L) and a teacup on the base (no visible text or symbols beyond branding)

Register this and other Focus Electrics products through our website:

www.focuselectrics.com

Important Safeguards....2

Operating Precautions....3

Using Your Kettle 4

Cleaning Your Kettle 5

Decalcifying Your Kettle 5

Warranty....6

SAVE THIS INSTRUCTION MANUAL FOR FUTURE REFERENCE

IMPORTANT SAFEGUARDS

CAUTION

To prevent personal injury or property damage, read and follow all instructions and warnings.

When using electrical appliances, basic safety precautions should always be followed including the following:

• Read all instructions, including these important safeguards and the care and use instructions in this manual.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against fire, electric shock and injury to persons, do not immerse cord, plugs, or other electric parts in water or other liquids.
• Close supervision is necessary when this appliance is used by or near children.
• Unplug the appliance from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts and before cleaning.
• Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or if the appliance is dropped or damaged in any manner. If you experience any problems with your appliance, unplug it immediately from the electrical outlet. For service information see warranty page.
• The use of accessory attachments not recommended by Focus Electrics may cause fire, electric shock, or injury to persons.
• Do not use this appliance outdoors.
• Do not let cord hang over the edge of a table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "OFF," then remove plug from wall outlet.
• Do not use appliance for other than intended use.
• The lid must be correctly in place during use and the spout must be free from obstruction.
• Scalding may occur if the lid is removed during the brewing cycle.
• This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.
  • For household use only.

CAUTION

To prevent personal injury or property damage, read and follow all instructions and warnings.

OPERATING PRECAUTIONS

• Do not leave appliance unattended while plugged into electrical outlet.
• Use extreme caution when pouring as boiling water can cause scalding.
• Do not refill the water reservoir while the appliance is on. Turn the appliance off and allow to cool before refilling with water.
• Do not operate without filter in place.
• Do not open the lid during the heating cycle as scalding may occur.
• Do not plug cord into electrical outlet unless power switch is in "OFF" position.
• Always ensure kettle is switched to the "OFF" position before removing from the power base.
• A short power-supply cord is provided to reduce risks resulting from becoming entangled in or tripping over a longer cord.
• Longer, detachable power-supply cords or extension cords are available and may be used if care is exercised in their use. While use of an extension cord is not recommended, if you must use one, the marked electrical rating of the detachable power-supply cord or extension cord should be at least as great as the electrical rating of the appliance. If the appliance is of the grounded type, the extension cord should be a grounding-type 3-wire cord. The cord should be arranged so that it will not hang over the counter top or tabletop where it can be pulled by children or tripped over.
• Do not attempt to repair this appliance yourself.

SAVE THESE INSTRUCTIONS

USING YOUR KETTLE

First Use: Remove all packaging from the kettle and the power base. Before using, wipe the outside of the kettle with a damp cloth and wash the filter in warm, soapy water, rinse thoroughly and dry. Note: We recommend that water be boiled two to three times and emptied after each occasion to remove any residues from the manufacturing process.

1. Place the appliance on a dry, level, heat-resistant surface, away from any edge.
2. With switch in the "OFF" position, plug the cord into a 120 volt, AC electric outlet only.
3. The filter must be in place to activate the auto-shut off feature and for proper operation. Fill the kettle, taking care not to splash the electrical contacts on the bottom of the appliance and observing the "MIN" and "MAX" level markings. If the electrical contact area of the kettle gets wet, it should be dried before use.

4. Fit the kettle onto the power base. Plug the power base into the electrical outlet and depress the switch into the "ON" position. The red power indicator will illuminate. When the kettle has finished boiling, the automatic shut-off system will switch the kettle to "OFF.".

5. Always ensure the water level does not exceed the "MAX" level and is above the "MIN" level as indicated by the water level indicator.

6. Only use the kettle for boiling water.
7. Do not operate the kettle dry. Always use with water.
8. The kettle can only be used with the complementing power base. These parts cannot be interchanged with other types or brands of kettles.
9. Ensure the power is switched to "OFF" before removing the kettle from the base.
10. Use extreme caution when pouring as boiling water can cause scalding.
11. Some smoke and/or odor may occur upon heating due to the release of manufacturing oils – this is normal.
12. Some minor expansion/contraction sounds may occur during heating and cooling – this is normal.
13. Your kettle is equipped with a self-resetting boil-dry protector: If the kettle is accidentally switched on with less than the minimum level of water, the boil-dry protector will cut off the power. For continued use, switch the kettle to the "OFF" position and allow the kettle and control system to cool down before re-use.

CLEANING YOUR KETTLE

1. Switch the kettle to the "OFF" position, unplug from the electrical outlet and allow the entire appliance to cool completely before cleaning. CAUTION: Do not immerse the kettle, base, cord, plugs or other electric parts in water or other liquids.
2. The exterior of the kettle can be wiped clean with a damp cloth.
3. Decalcify the kettle periodically. See the "Decalcifying Your Kettle" section.

DECALCIFYING YOUR KETTLE

- Over time, mineral deposits build up on internal parts and affect the operation of the appliance causing the need for your kettle to be decalcified periodically to maintain performance. The frequency of decalcification depends on the hardness of your water and how often you use the kettle. Indications that decalcifying is necessary are:

• Increased noise during production
• Excessive steaming
• Longer heating times

- If usage is regular, decalcifying should be carried out as follows:

• With soft water, decalcify once per year
• With medium water, decalcify every quarter year
• With hard water, decalcify once a month

- We recommend the use of vinegar for decalcifying.

1. Switch the appliance to the "OFF" position, unplug from the electrical outlet and allow the entire appliance to cool completely before cleaning.
2. Pour 16 ounces ( 12 Quart mark) of fresh, cool, undiluted, white household vinegar into the water reservoir.
3. Plug the appliance into the electrical outlet, switch to the "ON" position and allow the kettle to fully heat and shut off automatically. Dispose of "vinegar" when complete.
4. Follow the same step as above except using clear, cool water to rinse any remaining traces of the vinegar from the kettle. Rinse twice using clean, cool water each time.

PRODUCT WARRANTY

Appliance 1 Year Limited Warranty

Focus Electrics, LLC (“Focus Electrics”) warrants this appliance from failures in the material and workmanship for one (1) year from the date of original purchase with proof of purchase, provided the appliance is operated and maintained in conformity with the provided Instruction Manual. Any failed part of the appliance will be repaired or replaced without charge at Focus Electrics’ discretion. This warranty applies to indoor household use only.

This warranty does not cover any damage, including discoloration, to any non-stick surface of the appliance. This warranty is null and void, as determined solely by Focus Electrics if the appliance is damaged through accident, misuse, abuse, negligence, scratching, or if the appliance is altered in any way.

THIS WARRANTY IS IN LIEU OF ALL IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, PERFORMANCE, OR OTHERWISE, WHICH ARE HEREBY EXCLUDED. IN NO EVENT SHALL FOCUS ELECTRICS BE LIABLE FOR ANY DAMAGES, WHETHER DIRECT, INDIRECT, INCIDENTAL, FORSEEABLE, CONSEQUENTIAL, OR SPECIAL, ARISING OUT OF OR IN CONNECTION WITH THIS APPLIANCE.

If you think the appliance has failed or requires service within its warranty period, please contact the Focus Electrics Customer Service Department at [phone], or e-mail us at [e-mail]. A receipt proving the original purchase date will be required for all warranty claims, hand written receipts are not accepted. You may also be required to return the appliance for inspection and evaluation. Return shipping costs are not refundable. Focus Electrics is not responsible for returns lost in transit.

Valid only in USA and Canada

REPLACEMENT PARTS

Replacement parts, if available, may be ordered directly from Focus Electrics, LLC several ways. Order online at www.focuselectrics.com, e-mail [e-mail], over the phone by calling [phone], or by writing to:

Focus Electrics, LLC

Attn: Customer Service

P. O. Box 2780

West Bend, WI 53095

To order with a check or money order, please first contact Customer Service for an order total. Mail your payment along with a letter stating the model or catalog number of your appliance, which can be found on the bottom or back of the unit, a description of the part or parts you are ordering, and the quantity you would like. Your check should be made payable to Focus Electrics, LLC.

Your state/province's sales tax and a shipping fee will be added to your total charge. Please allow two weeks for processing and delivery.

This manual contains important and helpful information regarding the safe use and care of your new Focus Electrics product. For future reference, attach dated sales receipt for warranty proof of purchase and record the following information:

Date purchased or received as gift:

Where purchased and price, if known:

Item number and Date Code (shown bottom/back of product):

WEST BEND®

BOUILLIORE

Mode d'emploi

Black and white photo of a modern black kettle with a teacup, no visible text or symbols on the device itself.

Focus Electrics, LLC

Attn: Customer Service

P. O. Box 2780

West Bend, WI 53095

Black kettle with water level markings (MAX 1.7L, 1.2L, 0.8L, MIN 0.5L) and a teacup on the base (no visible text or symbols beyond measurement labels)

Focus Electrics, LLC

Attn: Customer Service

P. O. Box 2780

West Bend, WI 53095
