USER MANUAL Smoothie Express Lifestyle SE3000 WestBend

BACK TO BASICS SMOOTHIE EXPRESS™ Instruction Manual

Register this and other Focus Electronics products through our website: www.registerfocus.com

Important Safeguards 2 Before Using for the First Time 3 Using Your Smoothie Express™ 3 Cleaning Your Smoothie Express™ 4 Recipes 5 Warranty 7

SAVE THIS INSTRUCTION MANUAL FOR FUTURE REFERENCE

IMPORTANT SAFEGUARDS

CAUTION

To prevent personal injury or property damage, read and follow all instructions and warnings.

When using electrical appliances, basic safety precautions should always be followed including:

• Read all instructions.
• To protect against fire, electric shock, and injury to persons do not immerse cord, plugs, or other electric parts in water or other liquids.
• Close supervision is necessary when this appliance is used by or near children.
• Always unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts and before cleaning.
• Do not operate any appliance with a damaged cord or plug, after the appliance malfunctions, or has been damaged in any manner. For service information see warranty page.
• The use of accessory attachments, including canning jars, not recommended by Focus Electronics may cause fire, electric shock, or injury.
• Do not use this appliance outdoors.
• Do not let cord hang over the edge of the table or counter, or touch hot surfaces.
• To disconnect, turn any control to "OFF," then remove plug from wall outlet.
• Do not use appliance for other than intended use.
• Do not attempt to repair this appliance yourself.
• A short power-supply cord is provided to reduce risks resulting from becoming entangled in or tripping over a longer cord.
• Longer extension cords are available, but care must be exercised in their use. While use of an extension cord is not recommended, if you must use one, ensure that the marked electrical rating of the extension cord is equal to or greater than that of the appliance. If the plug is of the grounded type, the extension cord must be a grounding-type 3-wire cord. To avoid pulling, tripping or entanglement, position the extension cord so that it does not hang over the edge of the counter, table or other area where it can be pulled on by children or tripped over.
• This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.
• Do not use an outlet or extension cord if the plug fits loosely or if the outlet or extension cord feels hot.
• Avoid contact with moving parts.
• Blades are sharp; handle carefully.

• Do not blend hot liquids. Never pour boiling water into the blending jar.

• After running the motor continuously for ninety seconds, wait at least three minutes before running the motor again.

• To reduce the risk of injury, never place blade assembly blades on base without blending mug properly attached.
• For household use only.

SAVE THESE INSTRUCTIONS

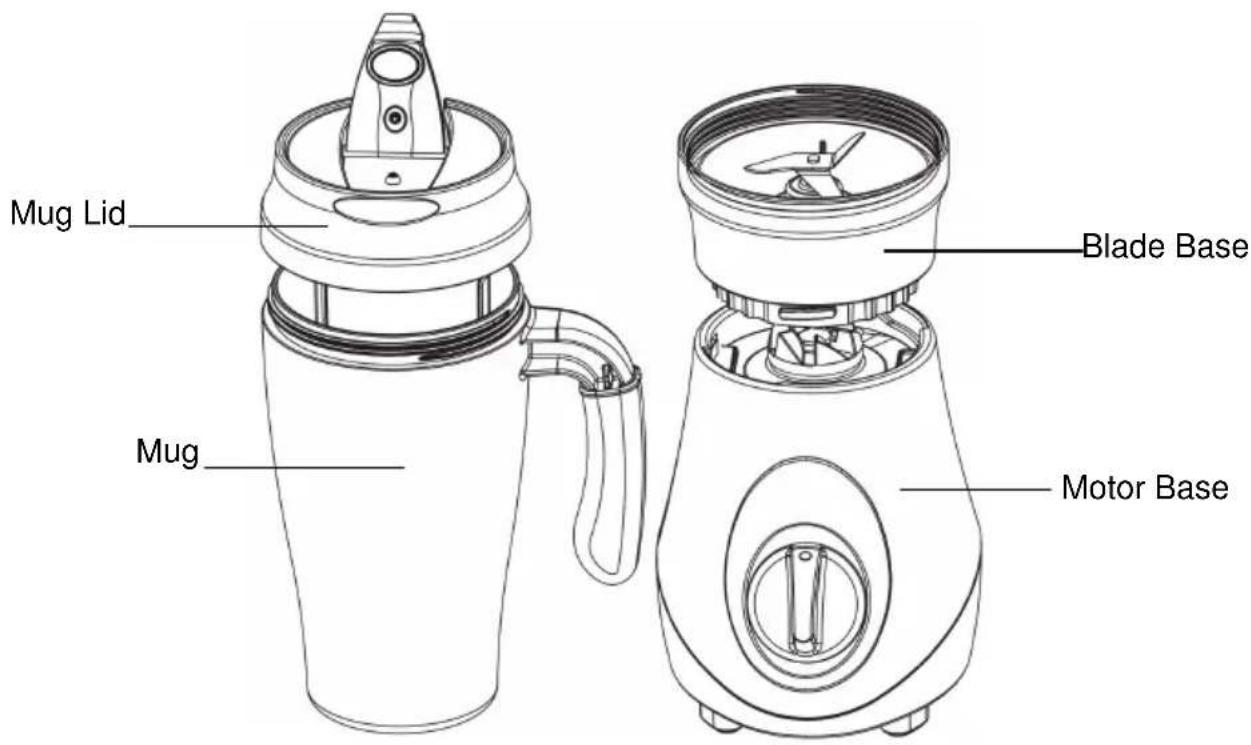

BEFORE USING FOR THE FIRST TIME

Please check all packaging material carefully before discarding. Many accessory parts are contained within the packaging material.

Before using your Smoothie Express™ wash all parts, except the motor base, in warm, soapy water, rinse thoroughly and dry. The gasket should not be removed from the blade base for cleaning. Do not wash parts in the dishwasher.

USING YOUR SMOOTHHIE EXPRESS

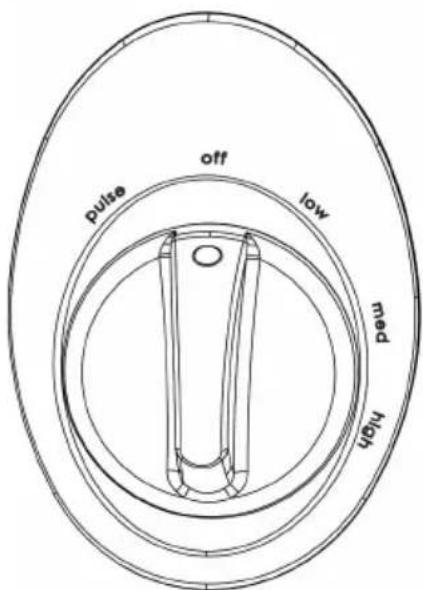

CONTROL BUTTONS:

PULSE - gives short bursts of power at high speed. Use "PULSE" to begin the mixing of ice and other hard ingredients.

OFF - turns the appliance "OFF."

LOW - runs the appliance at low speed. Use this speed for the initial 15 seconds of mixing.

MED - runs the appliance at a medium speed. Use this speed for the majority of blending tasks.

HIGH - runs the appliance at high speed. Use this speed for the final stages of mixing, if desired.

The Smoothie Express™ mug has convenient measuring marks to create perfect smoothies and

frozen drinks. To make your favorite drink, follow these simple steps:

TO MIX:

16

1. ADD ICE - Add ice or frozen ingredients to the line on the side of the mug. Frozen ingredients include ice, frozen fruit, frozen yogurt, ice cream, etc.
2. ADD LIQUIDS - Add any combination of liquid ingredients until the total level

CUPS OZ

reaches up to the mark on the side of the mug. Liquids

include any soft ingredients such as fruit, milk, fruit juice, herbal supplements, or yogurt in any combination you think would be tasty.

1. Place the blade base on the mug and turn clockwise to tighten.
2. With the blade base firmly attached to the mug, flip the mug over and secure the blade base onto the motor base by turning the mug clockwise.

Note: The Smoothie Express™ includes a small, clear gasket inside the rim of the blade base as well as a travel lid. The gasket provides an effective seal between the mug and the blade base or lid. These gaskets should not be removed. If the clear gasket becomes dislodged from the blender base or lid, contact Focus Electronics' customer service. See warranty page.

1. Pulse the mixture 2 or 3 times by turning the dial to "PULSE."
2. Turn the dial on the motor base to "LOW" for 15 seconds to begin blending.
3. Turn the dial to "MED" until the ingredients are completely mixed. Note: After running the motor continuously for ninety seconds, wait at least three minutes before running the motor again.

TO GO:

1. Unlock the mug from the motor base and then flip the mug over.
2. Turn the blade base counter-clockwise and remove it from the mug.
3. Place the mug lid on the mug and turn clockwise to tighten.

Note: Do not store contents inside of the mug with the lid on. Pressure may build up inside of the mug causing the contents to expand rapidly when the cover is removed.

CLEANING YOUR SMOOTHIE EXPRESS

1. Switch to "OFF" and unplug from the electrical outlet.
2. Wipe the motor base with a damp cloth or sponge. To remove stubborn spots, use a mild, non-abrasive cleanser.
3. Carefully wash all parts except for the motor base in warm, soapy water, rinse and dry thoroughly. Do not wash parts in the dishwasher. Note: If the lid or blade base is difficult to remove from the mug, rinse or soak the mug and the blade base or lid in warm, soapy water. Then, using a damp cloth to grip the lid or blade base, unscrew from the mug by turning the lid or blade base counterclockwise.

THIS APPLIANCE HAS NO USER SERVICEABLE PARTS.

RECIPES

Directions for all recipes: Add all frozen ingredients, then pour in all liquid ingredients. Blend at "PULSE" setting for three short bursts; then use the "LOW" or "MED" setting to blend until smooth. Serve immediately. Makes 1-2 servings.

STRAWBERRY BANANA SUPREMESMOOTHIE

1/2 cup Strawberry nectar or apple juice
1 / 2 cup Milk
1 / 2 Frozen banana (chunks)
1 14 cups Frozen strawberries
1/2 cup Strawberry yogurt

MANGO TANGO SMOOTHIE

12 cup Pineapple juice
1 / 2 cup Orange juice
1/4 Frozen banana (chunks)
1/2 cup Pineapple sherbet
3/4 cup Frozen mango slices

BERRY SWIRL SMOOTHIE

1 / 2 cupApplejuice
3/4 cup Lemonade
1/2 cup Frozen raspberries
1/4 cup Frozen strawberries
1 / 2 cup Raspberry sherbet

RASPBERRY CREAM SMOOTHIE

1 / 2 cup Orange juice
12 cup Raspberry yogurt
1 / 2 cup Vanilla frozen yogurt
1/4 Frozen banana (chunks)
3/4 cup Frozen raspberries

RASPBERRY SUNRISE SMOOTHIE

1 14 cups Orange juice
3/4 cup Frozen raspberries
1 / 2 cup Raspberry sherbet
1 / 2 cup Ice

ORANGE BANANA CREAM SMOOTHIE

1 / 2 cup Milk
3/4 cup Orange juice
1/4 tsp. Vanilla
1/4 Frozen banana (chunks)
1/2 cup Vanilla frozen yogurt
1/4 cup Orange yogurt
112 tbs. Orange juice concentrate

LEMON LOUIE SMOOTHIE

1 cup Lemonade
1 / 2 cup Lemon yogurt
3/4 cup Frozen pineapple chunks
1 / 2 cup Pineapple sherbet
1 / 2 cup Ice

PEACH REFRESHER SMOOTHIE

1 cup Peach nectar or apple juice
12 cup Vanilla frozen yogurt
1/4 Banana
1/2 cup Peach yogurt
3/4 cup Frozen peach slices

BANANA LIME SUBLIME SMOOTHIE

1 cup Limeade
1/2 Banana
1 / 2 cup Lime sherbet
112 tbs. Coconut milk
1 / 2 cup Ice

LOW-FAT STRAWBERRY ORANGE SMOOTHHIE

1 cup Strawberries
1/4 cup Orange juice
1 / 2 cup Skim milk
1 / 2 cup Plain nonfat yogurt
1 / 2 cup Ice

LEMONADE WATERMELON SOOTHER

1 cup Watermelon (pulp, not rind)
1 12 oz. Frozen lemonade concentrate
(1/4 of a 6 oz. can)
1/2 cup Lemon/lime soda
1 / 2 tsp. Grenadine syrup
1 / 2 -1 cup Ice, to desired consistency
*Add water if necessary

CHOCOLATE TREAT

1 34 oz. Package of instant chocolate pudding mix
3/4 cup Milk
3 / 4 cup Ice
1/2 Banana

PIÑA COLADA SMOOTHIE

212 tbs. Coconut milk
1¼ cups Pineapple juice
14 cup Vanilla ice cream
1/4 Frozen banana (chunks)
34 cup Frozen pineapple chunks

STRAWBERRY LEMON SURPRISE SMOOTHIE

1 cup Lemonade
1 cup Frozen strawberries
1/2 cup Strawberry yogurt

HAWAIIAN HOLIDAY SMOOTHIE

1/2 cup Passion fruit nectar
1 / 2 cup Guava nectar
1 / 2 cup Orange sherbet
1/4 cup Frozen strawberries
1/4 cup Frozen mango slices
2 tbs. Coconut milk
1/2 cup Strawberry yogurt
1/4 cup Frozen banana (chunks)

PRODUCT WARRANTY

Appliance 1 Year Limited Warranty

Focus Electronics, LLC ("Focus Electronics") warrants this appliance from failures in the material and workmanship for one (1) year from the date of original purchase with proof of purchase, provided the appliance is operated and maintained in conformity with the provided Instruction Manual. Any failed part of the appliance will be repaired or replaced without charge at Focus Electronics' discretion. This warranty applies to indoor household use only.

This warranty does not cover any damage, including discoloration, to any non-stick surface of the appliance. This warranty is null and void, as determined solely by Focus Electronics if the appliance is damaged through accident, misuse, abuse, negligence, scratching, or if the appliance is altered in any way.

THIS WARRANTY IS IN LIEU OF ALL IMPLIED WARRANTYES, INCLUDING WARRANTYES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, PERFORMANCE, OR OTHERWISE, WHICH ARE HEREBY EXCLUDING. IN NO EVENT SHALL FOCUS ELECTRICS BE LIABLE FOR ANY DAMAGES, WHETHER DIRECT, INDIRECT, INCIDENTAL, FORSEEABLE, CONSEQUENTIAL, OR SPECIAL, ARISING OUT OF OR IN CONNECTION WITH THIS APPLIANCE.

If you think the appliance has failed or requires service within its warranty period, please contact the Focus Electronics Customer Service Department at [phone], or e-mail us at [e-mail]. A receipt proving the original purchase date will be required for all warranty claims, hand written receipts are not accepted. You may also be required to return the appliance for inspection and evaluation. Return shipping costs are not refundable. Focus Electronics is not responsible for returns lost in transit.

Valid only in USA and Canada

REplacement Parts

Replacement parts, if available, may be ordered directly from Focus Electronics, LLC several ways. Order online at www.focuselectrics.com, e-mail [e-mail], over the phone by calling [phone], or by writing to:

Focus Electronics, LLC

Attn: Customer Service

P.O.Box 2780

West Bend, WI 53095

To order with a check or money order, please first contact Customer Service for an order total. Mail your payment along with a letter stating the model or catalog number of your appliance, which can be found on the bottom or back of the unit, a description of the part or parts you are ordering, and the quantity you would like. Your check should be made payable to Focus Electronics, LLC.

Your state/province's sales tax and a shipping fee will be added to your total charge. Please allow two weeks for processing and delivery.

This manual contains important and helpful information regarding the safe use and care of your new Focus Electronics product. For future reference, attach dated sales receipt for warranty proof of purchase and record the following information:

Date purchased or received as gift:

Where purchased and price, if known:

Item number and Date Code (shown bottom/back of product):
