USER MANUAL BPE32 WestBend

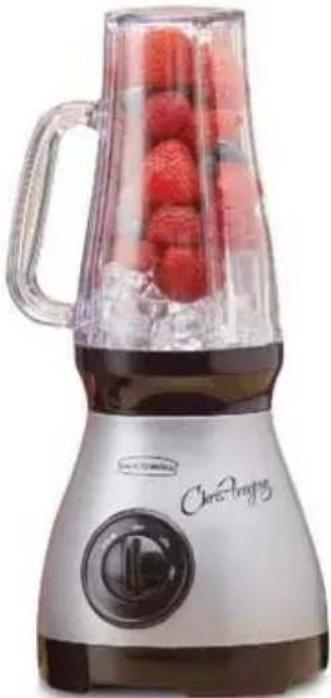

White Cine-frying blender with fresh strawberries inside, no visible text or symbols on the device itself.

Register this and other Focus Electrics products through our website:

www.focuselectrics.com

Important Safeguards 2

Using Your Blender Express ^TM 3

Cleaning Your Blender Express™ 6

Recipes 7

Warranty 10

SAVE THIS INSTRUCTION MANUAL FOR FUTURE REFERENCE

IMPORTANT SAFEGUARDS

CAUTION

To prevent personal injury or property damage, read and follow all instructions and warnings.

When using electrical appliances, basic safety precautions should always be followed including the following:

• Read all instructions, including these important safeguards and the care and use instructions in this manual.
• To protect against electrical shock, do not put the cord, plug or the motor assembly in water or other liquid.
• Close supervision is necessary when this appliance is used by or near children.
• Unplug the appliance from outlet when not in use, before putting on or taking off parts and before cleaning.
• Avoid contact with moving parts.

- Do not operate this appliance with a damaged cord or plug, after the appliance malfunctions or if the appliance is dropped or damaged in any manner. If you experience any problems with your machine, unplug it immediately from the electrical outlet. For service information see warranty page.

- The use of accessory attachments, including canning jars, not recommended or sold by Focus Electrics may cause fire, electric shock or injury.

- Do not use outdoors.

- Do not let the cord hang over the edge of a table or counter.

- Do not let the cord come into contact with hot surfaces, including a stove.

- Do not place on or near a hot gas or electrical burner or in a heated oven.

- Do not use this appliance for other than its intended use.

- Turn off the machine before removing the blending mug from the base and before placing the blending mug on the base.

- Do not run motor without blending mug properly attached to motor base or when blending mug is empty.

- Keep hands and utensils out of blending mug while mixing ingredients to reduce risk of severe injury to persons or damage to the machine.

- Blades are sharp; handle carefully.

• Always operate the appliance with the lid in place.

- Do not blend excessively hot liquids. Never pour boiling water into the blending jar.

- Be sure to turn switch to "OFF" position after each use.

- To disconnect, grip plug and pull from wall outlet. Never pull on cord to disconnect.

CAUTION

To prevent personal injury or property damage, read and follow all instructions and warnings.

• Never leave the house while the appliance is on.
• A short power-supply cord is provided to reduce risks resulting from becoming entangled in or tripping over a longer cord.
• Longer, detachable power-supply cords or extension cords are available and may be used if care is exercised in their use. While use of an extension cord is not recommended, if you must use one, the marked electrical rating of the detachable power-supply cord or extension cord should be at least as great as the electrical rating of the appliance. If the appliance is of the grounded type, the extension cord should be a grounding-type 3-wire cord. The cord should be arranged so that it will not hang over the counter top or tabletop where it can be pulled by children or tripped over.
• After running the motor continuously for ninety seconds, wait at least three minutes before running the motor again.
• This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.
• To reduce the risk of injury, never place cutter-assembly blades on base without blending mug properly attached.
  • For household use only.

SAVE THESE INSTRUCTIONS

Before using your Blender Express™ wash all parts, except for the motor base, in warm, soapy water, rinse thoroughly and dry. The gasket should not be removed from the blade base for cleaning. Do not wash parts in the dishwasher.

CONTROL BUTTONS:

PULSE - gives short bursts of power at high speed. Use "PULSE" to begin the mixing of ice and other hard ingredients.

OFF - turns the appliance "OFF."

LOW - runs the appliance at low speed. Use this speed for the initial 15 seconds of mixing.

HIGH - runs the appliance at high speed. Use this speed for the final stages of mixing.

PULSE OFF LOW HIGH

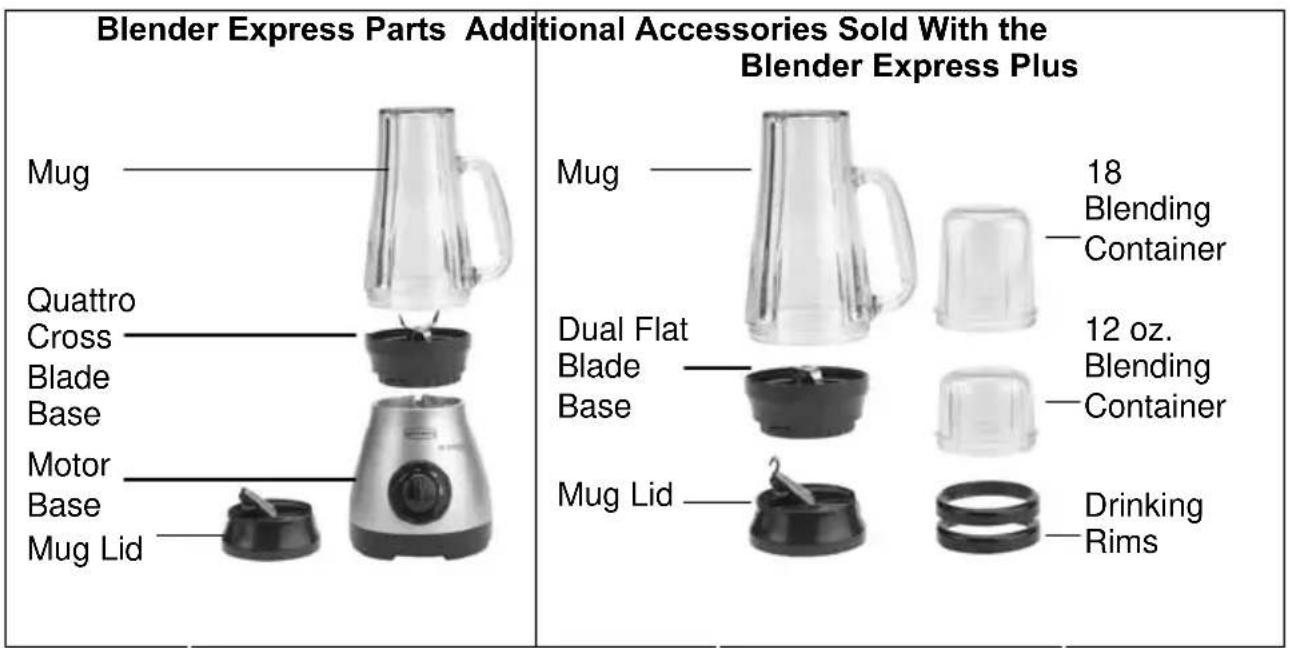

Blender Express Parts Additional Accessories Sold With the Blender Express Plus Mug Quattro Cross Blade Base Motor Base Mug Lid 18 Blending Container Dual Flat Blade Base 12 oz. Blending Container Mug Lid Drinking Rims

SPEED SELECTION GUIDE

QUATTRO CROSS BLADE BASE
INGREDIENTS	SPEED	RESULT
Smoothies, Shakes, Malts, Baby Food, Purees	Pulse and High Smooth and Creamy
Soups, Sauces Pulse and Low Smooth and Creamy
Batters Low Thick and creamy

DUAL FLAT BLADE BASE
INGREDIENTS	SPEED	RESULT
Beans	High	Finely
Nuts	High	Crumbled
Whipped Cream Low Thick
Salsa, Chutney, Relish	Pulse	Chunky
Salad Dressing Low Creamy
Cheese	Pulse and Low Crumbled
Firm Fruit & Vegetables	Pulse and Low Chopped
Soft Fruit & Vegetables	Pulse and Low Minced

The Blender Express™ mug has convenient measuring marks to create perfect smoothies and frozen drinks. To make your favorite drink, follow these simple steps:

TO MIX:

1. ADD ICE – Add ice or frozen ingredients until the total level reaches the FROZEN INGREDIENTS line on the side of the mug. Frozen ingredients include ice, frozen fruit, frozen yogurt, ice cream, etc.

2. ADD LIQUIDS – Add any combination of liquid ingredients up to the LIQUIDS mark on the side of the mug. Liquids include any soft ingredients such as fruit, milk, fruit juice, herbal supplements, or yogurt in any combination you think would be tasty.

3. Place the blade base on the mug and turn clockwise to tighten. Note: For the Blender Express™ Plus, you can use both blade bases, interchangeably, between the mugs and the blending containers.

4. With the blade base firmly attached to the mug, flip the mug over and secure the blade base onto the motor base by turning the mug clockwise.

Note: The Blender Express ^™ includes a small, clear gasket inside the rim of the blade base as well as a travel lid. The gasket provides an effective seal between the mug and the blade base or lid. These gaskets should not be removed. If the clear gasket becomes dislodged from the blender base or lid, replace by setting the gasket flat onto the circular slot inside the perimeter of the blade base (blade side up) or the lid. Holding the blade base (blade side up) or lid with both hands, use your thumbs to lightly push the gasket down into the circular slot of the base perimeter until it is firmly in place. Screw the mug onto the blade base or lid to ensure the gasket is seated properly.

1. Pulse the mixture 2 or 3 times by turning the dial to "PULSE."

2. Turn the dial on the motor base to "LOW" for 15 seconds to begin blending.

3. Turn the dial to "HIGH" until the ingredients are completely mixed. . Note: After running the motor continuously for ninety seconds, wait at least three minutes before running the motor again.

4. To make a thicker smoothie, add more frozen ingredients.

5. To make a thinner smoothie, add more liquid ingredients.

TO GO:

1. Unlock the mug from the motor base and then flip the mug over.
2. Turn the blade base counter-clockwise and remove it from the mug.
3. Place the mug lid on the mug and turn clockwise to tighten. Enjoy!

Note: Do not store contents inside of the mug with the lid on. Pressure may build up inside of the mug causing the contents to expand rapidly when the cover is removed.

1. Switch to "OFF" and unplug from the electrical outlet.
2. Wipe the motor base with a damp cloth or sponge. To remove stubborn spots, use a mild, non-abrasive cleanser.
3. Carefully wash all parts except for the motor base in warm, soapy water, rinse and dry thoroughly. Do not wash parts in the dishwasher. Note: If the lid or blade base is difficult to remove from the mug, rinse or soak the mug and the blade base or lid in warm, soapy water. Then, using a damp cloth to grip the lid or blade base, unscrew from the mug by turning the lid or blade base counterclockwise.

RECIPES

Directions for all recipes: Add all frozen ingredients, then pour in all liquid ingredients. Blend at "PULSE" setting for three short bursts; then use the "LOW" or "HIGH" setting to blend until smooth. Serve immediately. Makes 1-2 servings.

STRAWBERRY BANANA SUPREME SMOOTHIE
12 cup Strawberry nectar or apple juice
12 cup Milk
12 Frozen banana (chunks)
114 cups Frozen strawberries
12 cup Strawberry yogurt

MANGO TANGO SMOOTHIE

12 cup Pineapple juice

12 cup Orange juice

14 Frozen banana (chunks)

12 cup Pineapple sherbet

34 cup Frozen mango slices

BERRY SWIRL SMOOTHIE

12 cup Apple juice

34 cup Lemonade

12 cup Frozen raspberries

14 cup Frozen strawberries

12 cup Raspberry sherbet

RASPBERRY CREAM SMOOTHIE

12 cup Orange juice

12 cup Raspberry yogurt

12 cup Vanilla frozen yogurt

14 Frozen banana (chunks)

34 cup Frozen raspberries

RASPBERRY SUNRISE SMOOTHIE
114 cups Orange juice
34 cup Frozen raspberries
12 cup Raspberry sherbet
12 cup Ice
ORANGE BANANA CREAM SMOOTHIE
12 cup Milk
34 cup Orange juice
14 tsp. Vanilla
14 Frozen banana (chunks)
12 cup Vanilla frozen yogurt
14 cup Orange yogurt
112 tbs. Orange juice concentrate

LEMON LOUIE SMOOTHIE
1 cup Lemonade
12 cup Lemon yogurt
34 cup Frozen pineapple chunks
12 cup Pineapple sherbet
12 cup Ice

PEACH REFRESHER SMOOTHIE
1 cup Peach	nectar or apple juice
12 cup Vanilla	frozen yogurt
14	Banana
12 cup Peach	yogurt
34 cup Frozen	peach slices

BANANA LIME SUBLIME SMOOTHIE
1 cup Limeade
12	Banana
12 cup Lime sherbet
112 tbs. Coconut milk
12 cup Ice

PIÑA COLADA SMOOTHIE

212 tbs. Coconut milk

114 cups Pineapple juice

14 cup Vanilla ice cream

14 Frozen banana (chunks)

34 cup Frozen pineapple chunks

STRAWBERRY LEMON SURPRISE SMOOTHIE

1 cup Lemonade

1 cup Frozen strawberries

12 cup Strawberry yogurt

HAWAIIAN HOLIDAY SMOOTHIE

12 cup Passion fruit nectar

12 cup Guava nectar

12 cup Orange sherbet

14 cup Frozen strawberries

14 cup Frozen mango slices

2 tbs. Coconut milk

12 cup Strawberry yogurt

14 cup Frozen banana (chunks)

LOW-FAT STRAWBERRY ORANGE SMOOTHIE
1 cup Strawberries
14 cup Orange juice
12 cup Skim milk
12 cup Plain nonfat yogurt
12 cup Ice

LEMONADE WATERMELON SOOTHER
1 cup Watermelon (pulp, not rind)
112 oz. Frozen lemonade concentrate ( 14 of a 6 oz. can)
12 cup Lemon/lime soda
12 tsp. Grenadine syrup
12 -1 cup Ice, to desired consistency
*Add water if necessary

CHOCOLATE TREAT
134 oz. Package of instant chocolate pudding mix
34 cup Milk
34 cup Ice
12	Banana

PRODUCT WARRANTY

Appliance 1 Year Limited Warranty

Focus Electrics, LLC (“Focus Electrics”) warrants this appliance from failures in the material and workmanship for one (1) year from the date of original purchase with proof of purchase, provided the appliance is operated and maintained in conformity with the provided Instruction Manual. Any failed part of the appliance will be repaired or replaced without charge at Focus Electrics’ discretion. This warranty applies to indoor household use only.

This warranty does not cover any damage, including discoloration, to any non-stick surface of the appliance. This warranty is null and void, as determined solely by Focus Electrics if the appliance is damaged through accident, misuse, abuse, negligence, scratching, or if the appliance is altered in any way.

THIS WARRANTY IS IN LIEU OF ALL IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, PERFORMANCE, OR OTHERWISE, WHICH ARE HEREBY EXCLUDED. IN NO EVENT SHALL FOCUS ELECTRICS BE LIABLE FOR ANY DAMAGES, WHETHER DIRECT, INDIRECT, INCIDENTAL, FORSEEABLE, CONSEQUENTIAL, OR SPECIAL, ARISING OUT OF OR IN CONNECTION WITH THIS APPLIANCE.

If you think the appliance has failed or requires service within its warranty period, please contact the Focus Electrics Customer Service Department at [phone], or e-mail us at [e-mail]. A receipt proving the original purchase date will be required for all warranty claims, hand written receipts are not accepted. You may also be required to return the appliance for inspection and evaluation. Return shipping costs are not refundable. Focus Electrics is not responsible for returns lost in transit.

Valid only in USA and Canada

REPLACEMENT PARTS

Replacement parts, if available, may be ordered directly from Focus Electrics, LLC several ways. Order online at www.focuselectrics.com, e-mail [e-mail], over the phone by calling [phone], or by writing to:

Focus Electrics, LLC

Attn: Customer Service

P. O. Box 2780

West Bend, WI 53095

To order with a check or money order, please first contact Customer Service for an order total. Mail your payment along with a letter stating the model or catalog number of your appliance, which can be found on the bottom or back of the unit, a description of the part or parts you are ordering, and the quantity you would like. Your check should be made payable to Focus Electrics, LLC.

Your state/province's sales tax and a shipping fee will be added to your total charge. Please allow two weeks for processing and delivery.

This manual contains important and helpful information regarding the safe use and care of your new Focus Electrics product. For future reference, attach dated sales receipt for warranty proof of purchase and record the following information:

Date purchased or received as gift:

Where purchased and price, if known:

Item number and Date Code (shown bottom/back of product):
