IMB1000 - Blender WestBend - Free user manual and instructions

Product Type	Blender
Model	IMB1000
Brand	WestBend (Back to Basics)
Capacity	48 oz (glass blending jar)
Jar Material	Glass (dishwasher safe)
Blade Material	Stainless steel
Motor Power	600 watts continuous / 700 watts pulse power
Speed Settings	6 speeds (Blend, Smooth, Ice Crush, Chop, Mix, Puree) + Pulse/Stop
Special Features	Stir stick for increased blending efficiency; spill-proof pour spout
Control Type	Push-button panel with Pulse/Stop
Safety Features	Polarized plug; short cord; automatic shut-off after 3 minutes operation with 5-minute cool down
Cleaning	Glass jar dishwasher safe; blade base, lid, and stir stick wash with warm soapy water
Warranty	1-year limited warranty
Power Cord Length	Short cord (approx. 2-3 feet)
Dimensions (Approx.)	8 in x 7 in x 15 in (height with jar)
Weight (Approx.)	6 lbs

Frequently Asked Questions - IMB1000 WestBend

How do I clean the blender after use?

Remove the blade base from the jar and wash the blade base, rubber gasket, lid, lid cap, and stir stick with warm soapy water. The glass jar is dishwasher safe.

Can I blend hot liquids?

No, do not blend excessively hot liquids or pour boiling water into the blending jar. If blending hot liquids, remove the center piece of the two-piece lid to allow steam to escape.

How do I use the pulse function?

The PULSE button creates short bursts of power. Press and release repeatedly for initial ice crushing or to control texture. The blades should stop between pulses.

What should I do if the motor stalls?

Turn off and unplug the unit. Remove a portion of the ingredients before attempting to continue.

Can I use the blender continuously for more than 3 minutes?

No, after running the motor continuously for 3 minutes, wait at least 5 minutes before running it again to avoid overheating.

How do I assemble the blending jar?

Place the rubber gasket onto the blade base, screw the blade base onto the jar by twisting counter‑clockwise until tight, then push the lid onto the jar and insert the lid cap or stir stick.

What is the stir stick used for?

The stir stick can be rotated counter‑clockwise while the blender is running to increase blending efficiency, especially for frozen drinks.

What ingredients should I add first?

Always add liquid ingredients first, then add frozen or solid ingredients to prevent excessive motor wear.

How do I obtain warranty service?

Contact Back to Basics at 1‑800‑688‑1989 or email [e-mail]. Provide proof of purchase and a brief explanation of the problem.

Is the blender suitable for crushing ice?

Yes, the Ice Master is designed with heavy stainless steel blades and an Ice Crush setting specifically for crushing ice and frozen fruit. Use short bursts with the PULSE button.

USER MANUAL IMB1000 WestBend

Exterior view of a modern kitchen blender with clear glass and black lid (no text or symbols visible on the device itself)

ICE MASTER ™ 3000

Congratulations! We hope you enjoy your new Back to Basics® Ice Master Blender. The Ice Master is designed for endless blending and ice crushing possibilities and easy clean-up capabilities. The Ice Master has been designed with smart settings (blend, smooth, ice crush, chop, mix and puree) that let you prepare your favorite fresh ingredients to make gourmet soups, homemade salsa's, icy cocktails, thick and delicious frozen smoothies and shakes, baby food and more.

The powerful 600-watt / 700-watt pulse power motor, specially-designed stainless steel blades and 6-speed operation work together to precisely blend and chop all types of ingredients for exact recipe specifications. The Ice Master has been specifically designed with heavy stainless steel blades to easily crush ice and frozen fruit. The Ice Master includes the revolutionary stir stick, which when rotated counter-clockwise, increases blending efficiency. The 48-ounce glass blending jar has a spill-proof pour spout and is dishwasher-safe.

Enjoy!

ONE-YEAR LIMITED WARRANTY

Back to Basics Products, Inc., warrants your new Ice Master ^™ 3000 to be free from defects in materials and workmanship under normal household use for a period of 3 years from the date of purchase. During this period, such defects will be repaired or the product will be replaced at Back to Basics' ^® discretion without charge. This warranty does not cover exterior or interior finish or damage caused by misuse, accident, or negligence.

A purchase receipt or other proof of date of original purchase will be required before warranty service is rendered. Please fill out and return the warranty registration card located on page 22.

If a problem with this houseware item develops during or after the warranty period, please contact Back to Basics Products, Inc. for service.

If service is required:

• Send a brief letter explaining the problem. Be sure to include your name, address, and phone number.
• For faster service, call 1.800-688-1989 or e-mail [e-mail].
• Most service problems are resolved with the replacement of a part. If this is not the case, we will give you instructions for returning the unit.

Any appliance submitted for repair must be sent (transportation charges prepaid) to:

Back to Basics Products, Inc.

675 West 14600 South

Bluffdale, UT 84065

If you have any questions concerning the use or care of this product, or comments regarding your experience with the product, please write a letter explaining the nature of your concern.

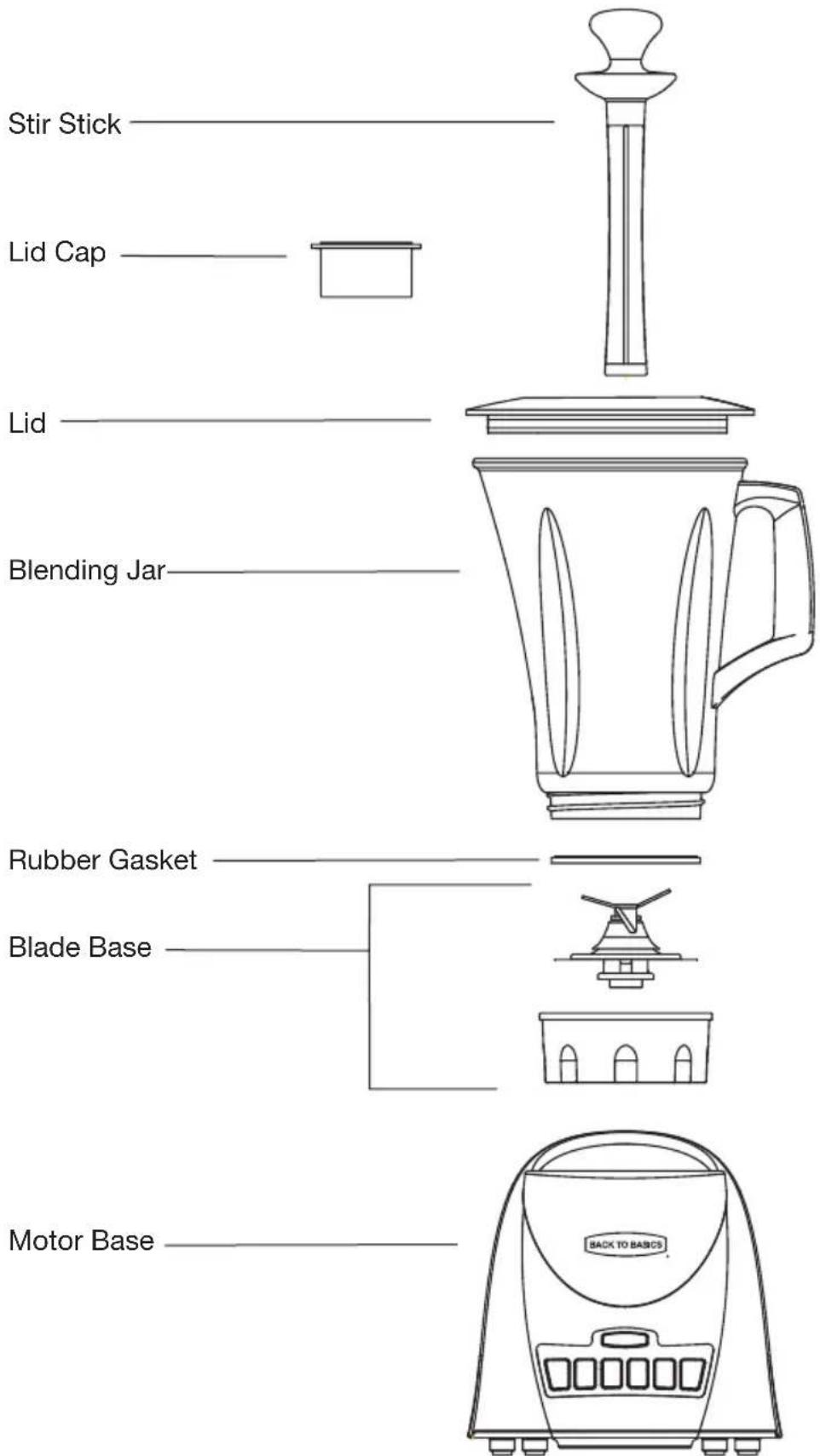

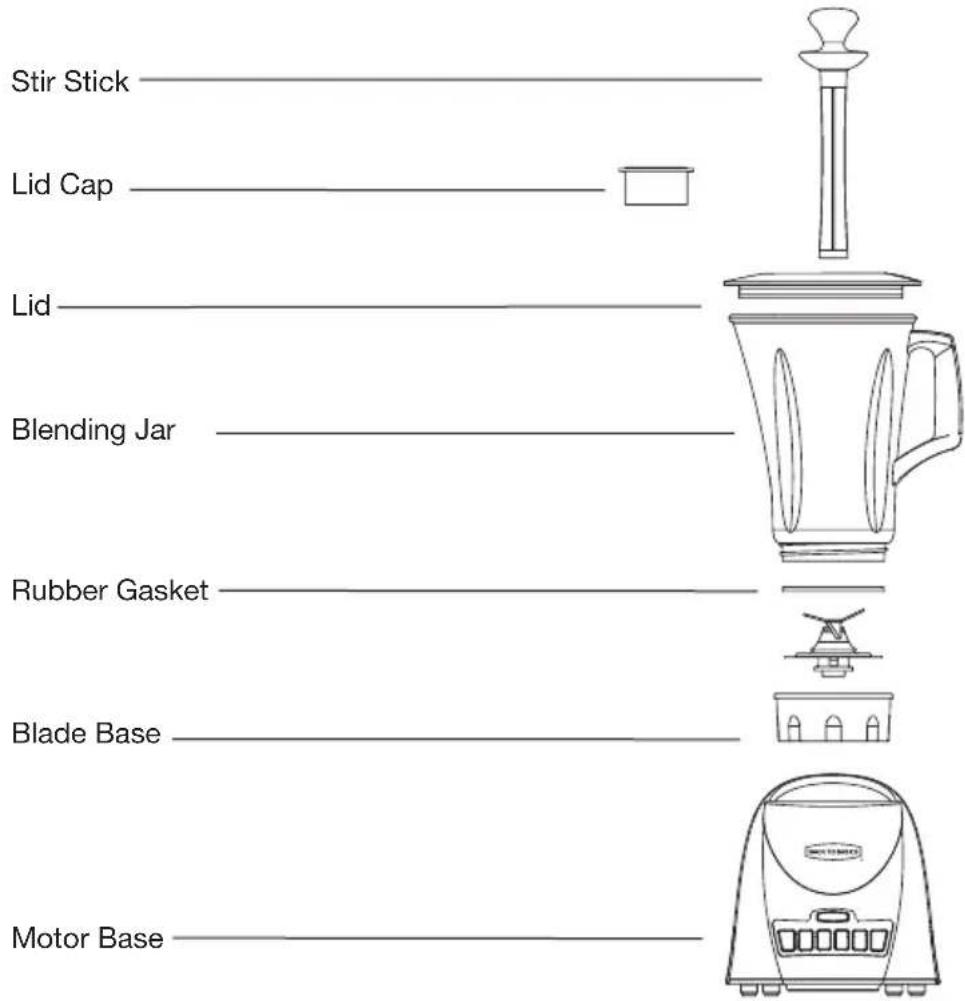

ICE MASTER™ 3000 PARTS

IMPORTANT SAFEGUARDS

WARNING

WARNING: This appliance is not a toy. Close adult supervision is necessary when used by or near children. Please do not leave this unit unattended with children.

When using electrical appliances, basic safety precautions should always be followed:

• Read all instructions.
• To protect against risk of electrical shock do not put cord, plug or motor in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug appliance from outlet when not in use, before putting on or taking off parts, and before cleaning.
• Make sure appliance is OFF when not in use, before putting on or taking off parts, and before cleaning.

- Avoid contacting moving parts.

- Do not operate any appliance with a damaged cord or plug or if the appliance malfunctions, or is dropped or damaged in any manner. Return appliance to Back to Basics for examination, repair or electrical or mechanical adjustment.

- The use of attachments, including canning jars, not recommended by the manufacturer may cause a risk of injury to persons.

- Do not use outdoors.

- Do not let cord hang over edge of table or counter.

- Do not let cord contact hot surface, including the stove.

- Do not use this appliance for other than it’s intended use.

- Keep hands and utensils (other than included stir stick) out of container while blending to reduce the risk of severe injury to persons or damage to the appliance. A scraper may be used but must be used only when the blender is not running.

• Blades are sharp. Handle carefully.
• To reduce the risk of injury, never place cutter-assembly blades on base without blending jar properly attached.

IMPORTANT SAFEGUARDS

• Always operate blender with lid in place.
- When blending hot liquids, remove center piece of two-piece lid.
- Keep hands and utensils out of container to reduce the risk of injury to persons or damage to the mixer.
- Be sure to turn switch to OFF position after each use.
- Never add ingredients to container while appliance is operating.
- Container must be properly in place before operating appliance.
- The use of accessory attachments not recommended or sold by Back to Basics may cause fire, electrical shock or injury.
- Do not place on or near a hot gas or electrical burner or in a heated oven.
- Turn off machine before removing the blending jar from the base and before placing the blending jar on the base.
- Do not run motor without blending jar properly attached to motor base or when blending jar is empty.
- Do not blend excessively hot liquids. Never pour boiling water into the blending jar.
- Be sure to turn switch to OFF position after each use.
- To disconnect, grip plug and pull from wall outlet. Never pull on cord to disconnect.
- Never leave the house while the appliance is on.
- A short cord set is provided to reduce the hazards resulting from becoming entangled in or tripping over a longer cord.
- Extension cords may be used if care is exercised in their use. The marked electrical rating of the extension cord should be at least as great as the electrical rating of the appliance. The extension cord should be arranged so that it will not drape over the counter top where it can be tripped over or pulled by children.
- After running the motor continuously for three minutes, wait at least five minutes before running the motor again.

IMPORTANT SAFEGUARDS

- This appliance has a polarized plug (one blade is wider than the other). To reduce risk of electric shock, this plug will fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not modify the appliance plug in any way.

SAVE THESE INSTRUCTIONS. INTENDED FOR HOUSEHOLD USE ONLY.

Use and Care (Assembly)

To use your Ice Master 3000, begin by assembling the blending jar.

1. Position the rubber gasket down onto the circular fl at surface in the blade base.
2. Screw blade base on the bottom of the blending jar by twisting the blade base counter clockwise until tightened onto the blending jar. Make sure that the blade base is tightly fastened to the blending jar and that the rubber gasket is properly compressed between the blending jar and the blade base.
3. Push the lid onto the top of the blending jar. Place the clear lid cap in the center of the lid or place the stir stick through the center of the lid if blending liquids or frozen drinks.
4. Place the blending jar onto the motor base so that the bottom of the blade base is sitting flat on the motor base.
5. Plug in the cord. Your Ice Master 3000 Blender is now ready to use!

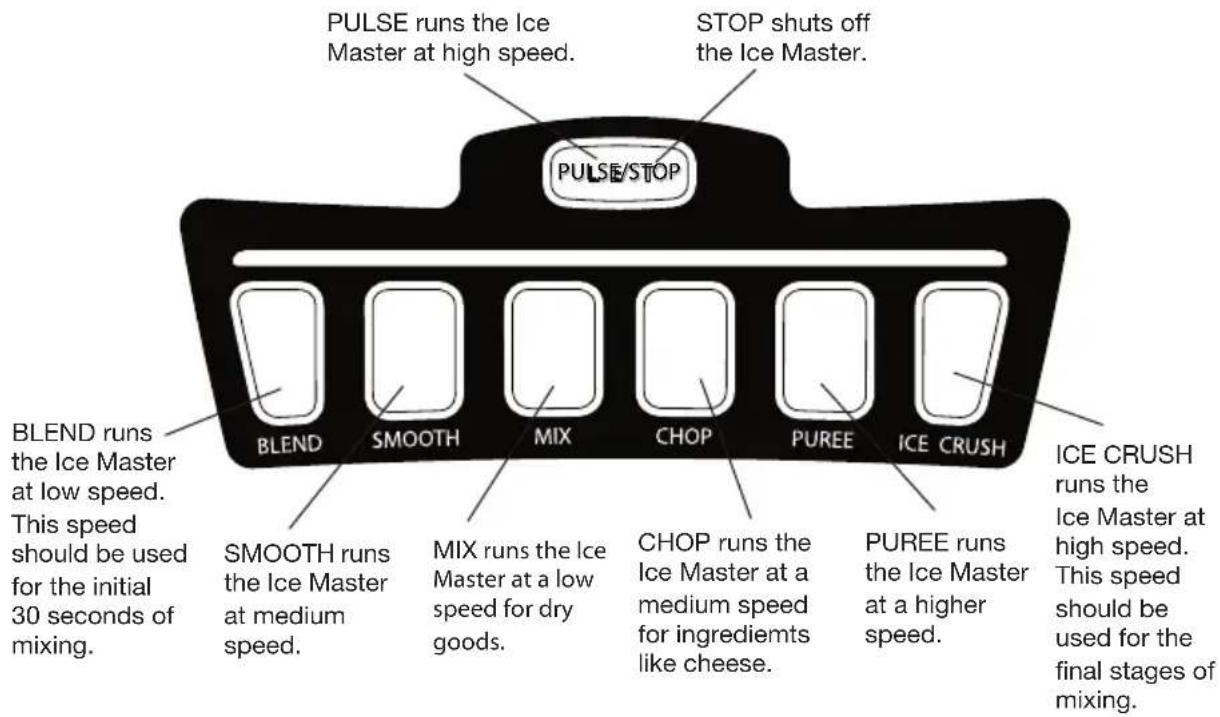

ICE MASTER CONTROL BUTTONS

BLENDER OPERATION

1. Assemble the blender blade base onto the blending jar.

2. Add ingredients to the blending jar and replace the lid. You may add more ingredients through the hole in the center of the lid. (Note: Add liquid ingredients first, then add frozen or solid ingredients. This will prevent excessive wear and stress on the motor.) Cover the hole with the clear lid cap or stir stick during operation.

3. TO START BLENDING: Choose a speed for blending the ingredients on the control panel .

4. TO STOP BLENDING: To stop the blending process, push the PULSE/STOP button.

5. PULSE MODE: The PULSE button allows you to create short bursts of power. To use the PULSE function, repeatedly push and release the PULSE button. The PULSE function should be used in the initial stage of blending ice and frozen ingredients for smoothies and other frozen drinks. The PULSE function should also be used to break apart larger pieces of food or to control the texture of food when chunkier results are desired.

6. ICE CRUSH: Short bursts not continuous.

SPEED SELECTION GUIDE

INGREDIENTS: SPEED: RESULT:
Salsa Blend Chunky
Nuts Blend Coarse
Bread, Cookies, Crackers	Blend Coarse
Heavy Whipping Cream	Smooth Thick
Mayonnaise Smooth	Creamy
Salad Dressing	Smooth Creamy
Cheese Pulse then	Smooth Coarse
Grating / Chopping Citrus Zest	Chop Fine
Smoothies, Cocktails, Shakes	Ice Crush then Smooth Thick and Smooth
Baby Foods / Fruit & Vegetable purees	Puree Smooth and Creamy
Spices Puree	Fine

• Thicker Smoothie: To make a thicker smoothie, add more frozen ingredients.
• Thinner Smoothie: To make a thinner smoothie, add more liquid ingredients.
• Always add liquid ingredients to the blending jar first and then add remaining ingredients. This will prevent excessive wear on the motor and ensure that the ingredients are properly blended.
• Cut harder foods (e.g. cheese) into approximately 1 inch cubes to achieve better chopping results.
• The stir stick may be used to assist in making frozen drinks or for blending any other types of ingredients. When the stir stick is not being used, be sure to place the clear lid cover over the hole in the center of the lid.
• When chopping dry ingredients such as bread crumbs, nuts, spices, etc., make sure that the blending jar and blade base are completely dry.
• The PULSE button should be operated in short bursts. As the PULSE button is pressed and released, the blades should stop rotating between pulses.
• Do not attempt to mix or knead heavy dough, mash potatoes or beat egg whites.
• Do not over-blend foods. Most ingredients should be properly blended or chopped in seconds. Do not operate motor base for longer than 3 minutes at a time.
• If the motor stalls, turn off and unplug the unit. Remove a portion of the ingredients before attempting to continue.
• Do not add boiling liquids to the blending jar.

CARE AND CLEANING

Before using your Ice Master for the first time and after each use, be sure to thoroughly wash the blending jar, blade base, lid and stir stick. To prolong the life of your Ice Master, do not wash plastic parts in the dishwasher.

If you experience any problem with your machine, unplug it immediately from the electrical outlet, then contact Back to Basics® at 1.800-688-1989.

Line drawing of a blender with top handle and side panel (no text or symbols)

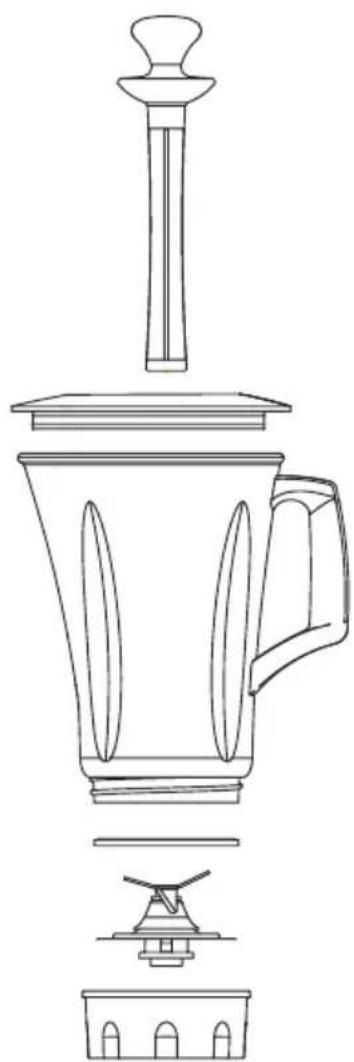

CLEANING AND ASSEMBLY

To disassemble valve for cleaning:

1. Remove the blade base from blending jar.
2. Clean blade base and rubber gasket with warm soapy water.
3. Remove lid from blending jar.
4. Clean lid, clean lid cover and stir stick with warm soapy water.
5. Blending jar is dishwasher safe.
6. Once all parts are dry reassemble as shown.

WAFFLES

2 cups flour

1 tbsp. sugar

1 tbsp. salt

1 tbsp. baking powder

1^3/_4 cups milk

^1/_2 cup vegetable oil

2 eggs

Place milk, oil and eggs in blending jar and cover with lid. Push the BLEND button and blend for 20 seconds. Add flour, sugar, baking powder and salt. Push the blend button and blend until well mixed. Pour batter onto pre-heated waffle maker.

FRENCH TOAST

2 eggs

1 tsp. sugar

1 tbsp. vanilla

^1/_4 tsp. cinnamon

1 cup milk

8 slices of bread

Combine all ingredient but bread in blending jar. Push MIX button and mix for 10 seconds. Pour mixture onto plate and dip bottom sides of bread slices in mixture. Cook on medium heat until brown.

HUMMUS

1 can or 19 ounces Garbanzo Beans

12 cup lemon juice

1 tsp. Sesame oil

3 cloves of garlic

1 tsp. salt

water

Place beans, lemon juice, sesame oil, garlic cloves and salt in blending jar. Push PUREE button and add water to thin if mixture is too thick.

GRAHAM CRACKER CRUST

2^1/2 cups graham cracker crumbs

^1/_2 cup melted butter

Place graham crackers in blending jar, push the CHOP button and chop until graham crackers are chopped up. Combine graham cracker crumbs and butter and press into bottom of pie pan.

SALSA

2 (28oz.) cans whole tomatoes (undrained)

^1/_2 onion (quartered)

^1/_2 tsp. minced garlic

1 tsp. lime juice

1 tsp. salt

4 can green chiles (undrained)

2 tbsp. chopped cilantro

Place tomatoes, onion, garlic, lime juice, chiles and cilantro in blending jar. Push the BLEND button and blend to desired consistency.

STRAWBERRY BANANA SUPREME SMOOTHIE

1 cup strawberry nectar or apple juice

1 cup milk

1 frozen banana (chunks)

2½ cups frozen strawberries

1 cup strawberry yogurt

Pour in all liquid ingredients. Add all frozen ingredients. Blend at PULSE setting for 30 seconds; then blend until smooth. While the machine is running, move the stir stick around counter-clockwise to aid mixing. Serve immediately. Makes 3–5 servings.

MANGO TANGO SMOOTHIE

1 cup pineapple juice

1 cup orange juice

12 frozen banana (chunks)

1 cup pineapple sherbet

1½ cups frozen mango slices

Pour in all liquid ingredients. Add all frozen ingredients. Blend at PULSE setting for 30 seconds; then blend until smooth. While the machine is running, move the stir stick around counter-clockwise to aid mixing. Serve immediately. Makes 3–5 servings.

BERRY BLAST SMOOTHIE

1 cup apple juice

1 12 cups lemonade

1 cup frozen raspberries

12 cup frozen strawberries

1 cup raspberry sherbet

Pour in all liquid ingredients. Add all frozen ingredients. Blend at PULSE setting for 30 seconds; then blend until smooth. While the machine is running, move the stir stick around counter-clockwise to aid mixing. Serve immediately. Makes 3–5 servings.

RASPBERRY CREAM SMOOTHIE

1 cup orange juice
1 cup raspberry yogurt
1 cup vanilla frozen yogurt
12 frozen banana (chunks)
1½ cups frozen raspberries

Pour in all liquid ingredients. Add all frozen ingredients. Blend at PULSE setting for 30 seconds; then blend until smooth. While the machine is running, move the stir stick around counter-clockwise to aid mixing. Serve immediately. Makes 3–5 servings.

ORANGE BANANA CREAM SMOOTHIE

1 cup milk
1½ cups orange juice
12 tsp. vanilla
1 / 2 frozen banana (chunks)
1 cup vanilla frozen yogurt
12 cup orange yogurt
3 tbs. orange juice concentrate

Pour in all liquid ingredients. Add all frozen ingredients. Blend at PULSE setting for 30 seconds; then blend until smooth. While the machine is running, move the stir stick around counter-clockwise to aid mixing. Serve immediately. Makes 3–5 servings.

RASPBERRY SUNRISE SMOOTHIE

2½ cups orange juice
1½ cups frozen raspberries
1 cup raspberry sherbet
1 cup ice

Pour in all liquid ingredients. Add all frozen ingredients. Blend at PULSE setting for 30 seconds; then blend until smooth. While the machine is running, move the stir stick around counter-clockwise to aid mixing. Serve immediately. Makes 3–5 servings.

LEMON LOUIE SMOOTHIE

2 cups lemonade

1 cup lemon yogurt

1½ cups frozen pineapple (chunks)

1 cup pineapple sherbet

1 cup ice

Pour in all liquid ingredients. Add all frozen ingredients. Blend atPULSE setting for 30 seconds; then blend until smooth. While the machine is running, move the stir stick around counter-clockwise to aid mixing. Serve immediately. Makes 3–5 servings.

PEACH REFRESHER SMOOTHIE

2 cups peach nectar or apple juice

1 cup vanilla frozen yogurt

12 banana

1 cup peach yogurt

1½ cups frozen peach slices

Pour in all liquid ingredients. Add all frozen ingredients. Blend atPULSE setting for 30 seconds; then blend until smooth. While the machine is running, move the stir stick around counter-clockwise to aid mixing. Serve immediately. Makes 3–5 servings.

BANANA LIME SUBLIME SMOOTHIE

2 cups limeade

1 banana

1 cup lime sherbet

3 tbs. coconut milk

1 cup ice

Pour in all liquid ingredients. Add all frozen ingredients. Blend atPULSE setting for 30 seconds; then blend until smooth. While the machine is running, move the stir stick around counter-clockwise to aid mixing. Serve immediately. Makes 3–5 servings.

PIÑA COLADA SMOOTHIE

5 tbs. coconut milk

2½ cups pineapple juice

12 cup vanilla ice cream

12 frozen banana (chunks)

1½ cups frozen pineapple chunks

Pour in all liquid ingredients. Add all frozen ingredients. Blend at PULSE setting for 30 seconds; then blend until smooth. While the machine is running, move the stir stick around counter-clockwise to aid mixing. Serve immediately. Makes 3–5 servings..

STRAWBERRY LEMON SURPRISE SMOOTHIE

2 cups lemonade

2 cups frozen strawberries

1 cup strawberry yogurt

Pour in all liquid ingredients. Add all frozen ingredients. Blend at PULSE setting for 30 seconds; then blend until smooth. While the machine is running, move the stir stick around counter-clockwise to aid mixing. Serve immediately. Makes 3–5 servings.

HAWAIIAN HOLIDAY SMOOTHIE

1 cup passion fruit nectar

1 cup guava nectar

1 cup orange sherbet

12 cup frozen strawberries

12 cup frozen mango slices

4 tbs. coconut milk

1 cup strawberry yogurt

12 cup frozen banana (chunks)

Pour in all liquid ingredients. Add all frozen ingredients. Blend at PULSE setting for 30 seconds; then blend until smooth. While the machine is running, move the stir stick around counter-clockwise to aid mixing. Serve immediately. Makes 3–5 servings.

LOW-FAT STRAWBERRY ORANGE SMOOTHIE

2 cups strawberries

^1/_2 cup orange juice

1 cup skim milk

1 cup plain nonfat yogurt

1 cup ice

Pour in all liquid ingredients. Add all frozen ingredients. Blend at PULSE setting for 30 seconds; then blend until smooth. While the machine is running, move the stir stick around counter-clockwise to aid mixing. Serve immediately. Makes 3–5 servings.

LEMONADE WATERMELON SOOTHER

1-2 cups ice, to desired consistency

*add water if necessary

Pour in all liquid ingredients. Add all frozen ingredients. Blend at PULSE setting for 30 seconds; then blend until smooth. While the machine is running, move the stir stick around counter-clockwise to aid mixing. Serve immediately. Makes 3–5 servings.

CHOCOLATE TREAT

3.5 oz. package of instant chocolate pudding mix

1^1/2 cups milk

1½ cups ice

1 banana

Pour in all liquid ingredients. Add all frozen ingredients. Blend at PULSE setting for 30 seconds; then blend until smooth. While the machine is running, move the stir stick around counter-clockwise to aid mixing. Serve immediately. Makes 3–5 servings.

MY RECIPES AND NOTES

MY RECIPES AND NOTES

Please complete and return this product warranty card or register your product online at: backtobasicsproducts.com within 10 days of purchase.

THIS INFORMATION IS FOR INTERNAL USE ONLY

Mr. Mrs. Ms.

Model: IMB3000

1. Name ____

2. Address

City ____ State ____ Zip Code ____

1. E-Mail Address ____

2. Age: □18-24 25-34 □35-49 50+ □

3. Marital Status: Married Single □

4. Number of Children in the House: 12 yrs and under ____ 13-18 yrs ____

5. Income: □ Below \25,000 □ \25,001-\50,000 □ \50,001-\75,000 □ \75,001+

6. Where was this product purchased?

7. How did you become aware of this product?

____ Gift ____ Recommendation from friend ____ TV advertisement ____ Saw product in store ____ Print ad ____ TV shopping program ____ Magazine article ____ Internet ____ Other ____

1. What were the two most important reasons influencing your purchase:

____ Gift ____ Recommended by sales person ____ Special offer ____ Recommended by friend ____ Product appearance ____ Prior experience with Back to Basics ____ Ease of operation ____ Back to Basics brand reputation ____ Quality/durability ____ Value for price ____ Product features ____ Product packaging ____ Other ____

1. Why did you purchase this Back to Basics product?

____ To replacement/upgrade current product ____ Not satisfied with current product(s) already owned ____ First product(s) ever owned ____ Received as a gift

1. Would you be interested in being contacted via e-mail for promotions, recipes, new product information, etc.? YES □ NO □

COMMENTS ____

Please detach and mail registration card within 10 days of purchase to validate warranty.

Place Stamp Here

BACK TO BASICS PRODUCTS, INC.

675 West 14600 South

Bluffdale, UT 84065 USA
