Product type	Blender
Brand	WestBend
Model	FB500
Power	120 V, 60 Hz
Functions	Multiple speeds (Low, Medium, High), Pulse, Crushed ice, Automatic programs (Smoothie, Protein supplement, Marinades, Iced drink, Meal replacement)
Pitcher capacity	32 oz (approximately 0.95 L)
Travel cup	24 oz (approximately 0.71 L)
Pitcher material	Plastic
Safety	Polarized plug, short cord, automatic shut-off after programs, sharp blades
Care and cleaning	Hand wash only (not dishwasher safe)
Warranty	1 year limited
Replacement parts	Available at www.focuselectrics.com
Use	Household use only

Frequently Asked Questions - FB500 WestBend

How to assemble the blender?

Screw the blade base onto the pitcher by turning counterclockwise. Place the lid and cap. Plug in the appliance.

How to use the pulse function?

Press and hold the PULSE button for a few seconds, then release. Repeat to control the texture of food.

How to clean the blender?

Unplug the appliance. Wipe the motor base with a damp cloth. Hand wash other parts in warm soapy water and dry them. Do not put them in the dishwasher.

What to do if the motor stalls?

Turn off the appliance and unplug it. Remove some of the ingredients before restarting.

Can I blend hot liquids?

No, do not pour boiling liquids into the pitcher as this could crack it.

Can I use the blender with a travel cup?

Yes, screw the blade base onto the cup, turn it upside down and place it on the motor base. Use the blending functions.

How to disassemble the spigot for cleaning?

Unscrew the spigot from the pitcher. Remove the stopper, shut-off stem, and spring. Clean each piece with soapy water, then reassemble.

What is the warranty?

Limited 1-year warranty from date of purchase. Valid in USA and Canada only.

How to order replacement parts?

Visit www.focuselectrics.com or contact customer service at [phone]. Provide the model number and desired part.

Can I wash the parts in the dishwasher?

No, the dishwasher can damage the parts. Hand wash them in warm soapy water.

USER MANUAL FB500 WestBend

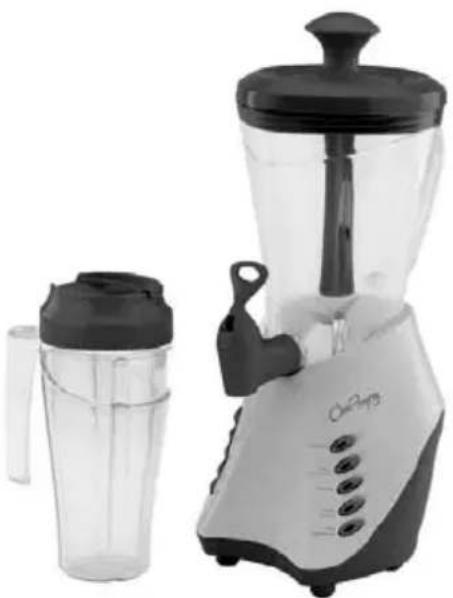

Exterior view of a modern O2O pens blender with clear lid and side bowl (no text or symbols visible)

Register this and other Focus Electrics products through our website:

www.focuselectrics.com

Important Safeguards....2

Operating Precautions....2

Electricity Precautions 3

Precautions For Use Around Children 4

Blending Jar Precautions 4

Assembling Your Blender....5

Using Your Blender 6

Cleaning Your Blender 8

Helpful Hints 10

Recipes 11

Warranty 16

SAVE THIS INSTRUCTION MANUAL FOR FUTURE REFERENCE

IMPORTANT SAFEGUARDS

CAUTION

To prevent personal injury or property damage, read and follow all instructions and warnings.

When using electrical appliances, basic safety precautions should always be followed including the following:

• Read all instructions, including these important safeguards and the care and use instructions in this manual.
• Do not use appliance for other than intended use.
• The use of accessory attachments, including canning jars, not recommended by Focus Electrics may cause injuries.
• Do not operate if the appliance is not working properly or if it has been damaged in any manner. For service information see warranty page.
• Do not leave appliance unattended while plugged into an electrical outlet.
• Keep hands and utensils out of the blending jar while blending to reduce the risk of severe injury to persons or damage to the appliance. A scraper may be used but must be used only when the appliance is unplugged and not in operation.
• Do not attempt to repair this appliance yourself.
  • For household use only.

CAUTION

To prevent personal injuries, read and follow all instructions and warnings.

OPERATING PRECAUTIONS

• Blades are sharp. Use extreme caution during assembly, while operating, disassembly and cleaning.
• Do not use if blades are broken, cracked or loose.
  • Always operate appliance with lid in place.
  • Always hold blending jar while processing for stability.
  • Do not leave appliance unattended while it is operating.
  • Do not remove blending jar from base until the motor has stopped completely.
• Do not use a cracked, chipped or broken blending jar.
• When blending hot liquids, remove lid cap. For a closed-top container, do not blend hot liquids.
• Flashing light indicates ready to operate. Avoid any contact with blades or moveable parts.
• To reduce the risk of injury, never place cutting assembly blades on motor base without blending jar properly attached.
• Do not use this appliance on the stovetop, under broiler, in the oven, or in the refrigerator or freezer.

CAUTION

To prevent electrical shock, personal injury or property damage, read and follow all instructions and warnings.

ELECTRICITY PRECAUTIONS

• To protect against electric shock, do not immerse cord, plugs, or other electric parts in water or other liquids.
• Do not operate any appliance with a damaged cord or plug.
• Do not use this appliance outdoors.
• Do not plug cord into wall outlet unless power switch is in "OFF" position.
• Always turn control to "OFF" and unplug the appliance from outlet when not in use, before cleaning. Allow to cool before putting on or taking off parts and before cleaning.
• A short power-supply cord is provided to reduce risks resulting from becoming entangled in or tripping over a longer cord.
• Longer detachable power-supply cords or extension cords are available and may be used if care is exercised in their use. While use of an extension cord is not recommended, if you must use one, the marked electrical rating of the detachable power-supply cord or extension cord should be at least as great as the electrical rating of the appliance. If the appliance is of the grounded type, the extension cord should be a grounding-type 3-wire cord. The cord should be arranged so that it will not hang over the counter top or tabletop where it can be pulled by children or tripped over.
• This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.
• Do not use an outlet or extension cord if the plug fits loosely or if the outlet or extension cord feels hot.
• Do not attempt to use a voltage converter or other device to adapt your appliance to a different outlet or voltage, as damage will occur.
• Do not let cord contact hot surface, including the stove.

CAUTION

To prevent burns or other personal injuries to children, read and follow all instructions and warnings.

PRECAUTIONS FOR USE AROUND CHILDREN

• Close supervision is necessary when this appliance is used by or near children.
• Do not allow cord to hang over any edge where a child can reach it. Arrange cord to avoid pulling, tripping or entanglement.

CAUTION

BLENDING JAR PRECAUTIONS

• The blending jar is designed for use with this appliance only. Do not use the blending jar provided with this appliance for any other appliance or application.
• Do not place blending jar on hot surface or in a heated oven.
• Use caution when cleaning blending jar with blades assembled. Wipe exterior with damp cloth, and only rinse interior. If necessary to clean inside of blending jar, disassemble and clean following the instructions in the assembly and cleaning sections of this manual.
• Do not use a cracked blending jar or a blending jar having a loose or weakened cutting blade retainer.
• Do not clean blending jar with cleansers, steel wool pads, or other abrasive materials.

SAVE THESE INSTRUCTIONS

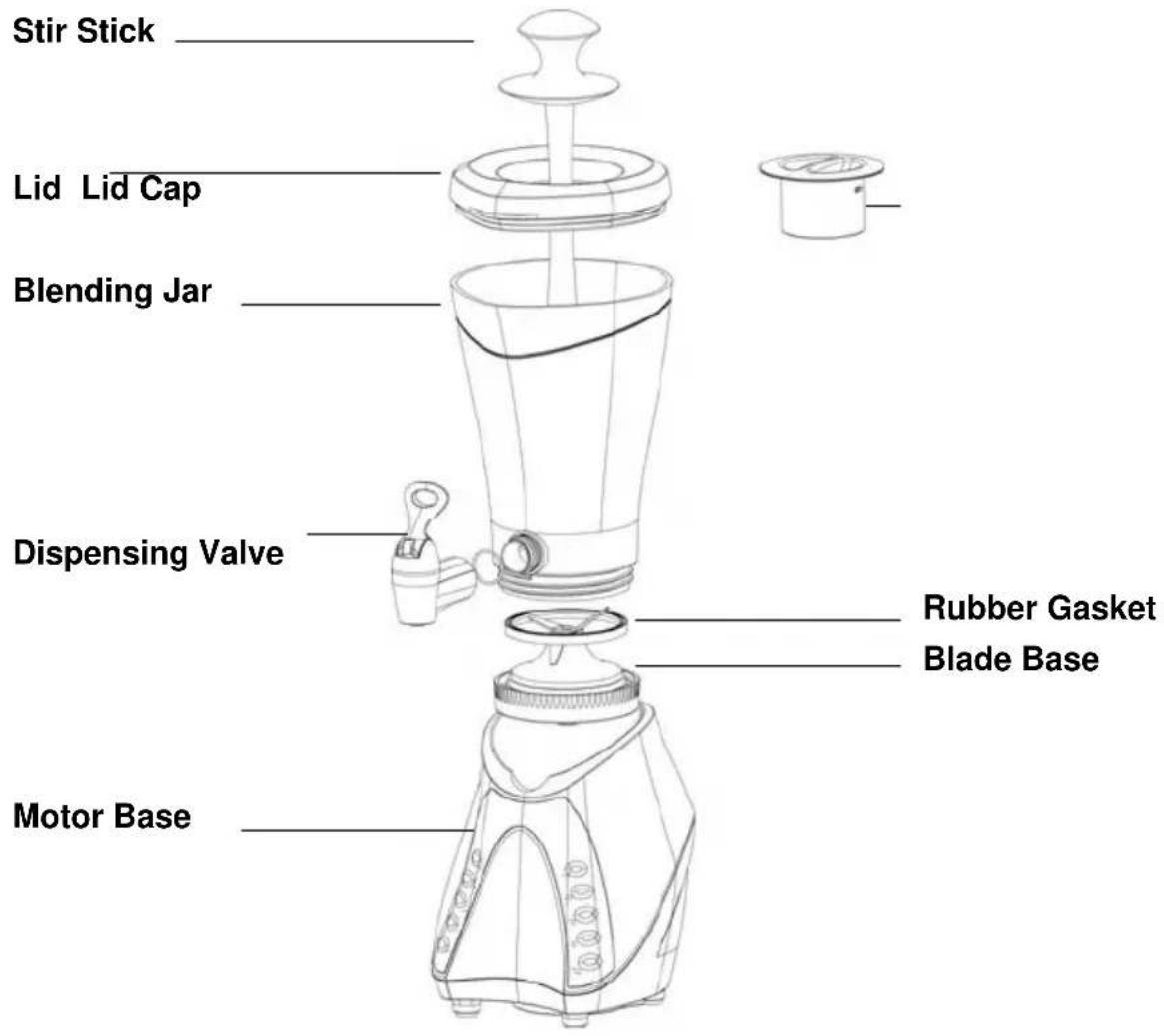

ASSEMBLING YOUR BLENDER

Before assembling your Chris Freytag Health Blender wash all parts, except for the motor base, in warm, soapy water, rinse thoroughly and dry. Unscrew and disassemble the valve for cleaning (see Cleaning Your Blender section). To prolong the life of your smoothie maker, do not wash parts in the dishwasher.

1. Screw blade base on the bottom of the blending jar by twisting the blade base counter-clockwise until tightened. Make sure that the blade base is tightly fastened to the blending jar and that the rubber gasket is properly compressed between the blending jar and the blade base.
2. Press the lid onto the top of the blending jar. Press the clear lid cap in the center of the lid or place the stir stick through the center of the lid if blending liquids or frozen drinks.
3. Place the blending jar onto the motor base so that the bottom of the blade base is sitting flat on the motor base.
4. Plug in the cord. Your blender is now ready to use.

• Note: The rubber gasket on the blade base is not removable.

Stir Stick Lid Lid Cap Blending Jar Dispensing Valve Motor Base Rubber Gasket Blade Base

USING YOUR BLENDER

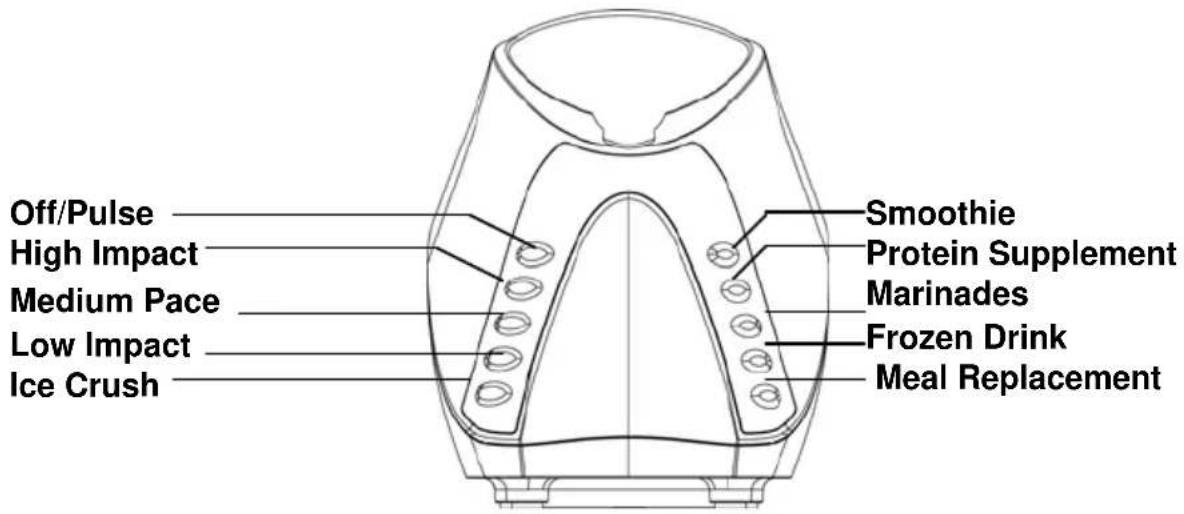

CONTROL BUTTONS

Off/Pulse High Impact Medium Pace Low Impact Ice Crush Smoothie Protein Supplement Marinades Frozen Drink Meal Replacement

OFF - turns off the machine.

PULSE: The "PULSE" button allows you to create short bursts of power. To use the "PULSE" function, repeatedly press and release the "PULSE" button, holding for a few seconds each time. The "PULSE" function should be used in the initial stage of blending ice and frozen ingredients for smoothies and other frozen drinks. The "PULSE" function should also be used to break apart larger pieces of food or to control the texture of food when chunkier results are desired.

HIGH IMPACT—Runs the unit at high speed. Use this speed for the final stages of mixing. Do not use this speed for dispensing.

MEDIUM PACE—Runs the unit at medium speed. Use this speed for the majority of blending tasks.

LOW IMPACT- Runs the unit at low speed. Use this speed for the initial 10 seconds of mixing as well as for dispensing.

ICE CRUSH: The "ICE CRUSH" button allows you to crush ice and other frozen ingredients. In selecting "ICE CRUSH", the motor will pulsate to a high speed until the desired consistency is reached.

SMOOTHIE, PROTEIN SUPPLEMENT, MARINADES, FROZEN DRINK and MEAL REPLACEMENT: These single-button controls are pre-programmed to mix your smoothie, energy supplement, powdered drink, frozen drink or weight loss shake. Each setting is programmed to run at a different speed for specific amounts of time. The Health Blender will automatically shut-off when complete. Just push the button once and the Health Blender does all the work for you.

BLENDER OPERATION

1. Assemble the blade base onto the blending jar.
2. Add ingredients to the blending jar and replace the lid. You may add more ingredients through the hole in the center of the lid. Note: Add liquid ingredients first, and then add frozen or solid ingredients. This will prevent excessive wear on the motor. Cover the hole with the clear lid cover or stir stick during operation. Note: When using the stir stick, turn the stir stick counterclockwise to thoroughly mix the ingredients.
3. From the "OFF" position, press the desired function.
4. To stop the blending process, press the "OFF" button.

To make your favorite frozen drinks, follow the steps below.

1. ADD LIQUIDS – Add desired combination of liquid ingredients. Liquids include any soft ingredients such as fruit, milk, fruit juice, herbal supplements, or yogurt in any combination you think would be tasty.
   We are, of course, partial to the Back to Basics® smoothie mixes, which quickly and easily make three delicious 8-ounce smoothies.

2. ADD ICE – Add desired amount of ice or frozen ingredients. Frozen ingredients include ice, frozen fruit, frozen yogurt, ice cream, etc.

3. SMOOTH IT – With the lid on and the stir stick (use as directed below) set in the hole on the lid, pulse the mixture 2 or 3 times by pressing the "PULSE" button. Then press a speed or fitness setting and wait until the ingredients are completely mixed.

STIR STICK OPERATION – When in use and while the machine is running, stir or rotate the Stir Stick in a counter-clockwise direction so that the Stir Stick scrapes or contacts the sides of the blending jar. This stirring operation will aid in mixing the contents of the blending jar by forcing the ingredients into the mixing blades.

1. SERVE IT – To serve the drink, press the “LOW IMPACT” button, place a cup under the valve and press down the valve lever. Stir the contents in the blending jar with the stir stick while dispensing thick drinks. As the drink level reaches the bottom of the blending jar, a thick mix may stop dispensing. Add a few tablespoons of liquid to increase flow. When the blending jar is empty, turn the machine “OFF” and enjoy. You can continue making drinks one after another, but be sure to give the Blender a 5-minute break after 3 minutes of continuous use.

Illustration of a kitchen blender with handle and lid (no text or symbols)

• To make a thicker drink, add more frozen ingredients.
• To make a thinner drink, add more liquid ingredients.

1. Add ice or frozen ingredients until the total level reaches the 112 cups line on the side of the mug. (Frozen ingredients include ice, frozen fruit, frozen yogurt, ice cream, etc).
2. Add any combination of liquid ingredients up to the 212 cups line on the side of the mug. (Liquids include any soft ingredients such as fruit, milk, fruit juice, herbal supplements, or yogurt).
3. Place the blade base on the mug and turn counter-clockwise to attach the blade base to the mug.
4. With the blade base firmly attached to the mug, flip the mug over and place the mug on the motor base.
5. Press the desired blending function.
6. To stop the blending process, press the "OFF" button.
7. Remove the mug from the motor base and flip the mug over.
8. Turn the blade base clockwise and remove it from the mug.
9. Screw the mug lid counter-clockwise firmly in place on top of the mug and you are ready to go.

CLEANING YOUR BLENDER

1. Switch to "OFF" and unplug from electrical outlet.
2. Wipe motor base with a damp cloth or sponge. To remove stubborn spots, use a mild, non-abrasive cleanser.
3. Remove blade assembly from the blending jar. Unscrew and disassemble the dispensing valve. Carefully wash all parts except for motor base in warm, soapy water, rinse and dry thoroughly. To prolong the life of your smoothie maker, do not wash parts in the dishwasher.

CLEANING THE 24 OZ. TRAVEL MUG

1. Follow directions 1 and 2 from Cleaning Your Blender.
2. Thoroughly wash the mug, lid and blade base. Do not wash parts in the dishwasher. Note: If the lid or blade base is difficult to remove from the mug, rinse or soak the mug and the blade base/lid in hot, soapy water, then using a damp cloth to grip the lid or blade base, unscrew from the mug by turning the lid or blade base clockwise.

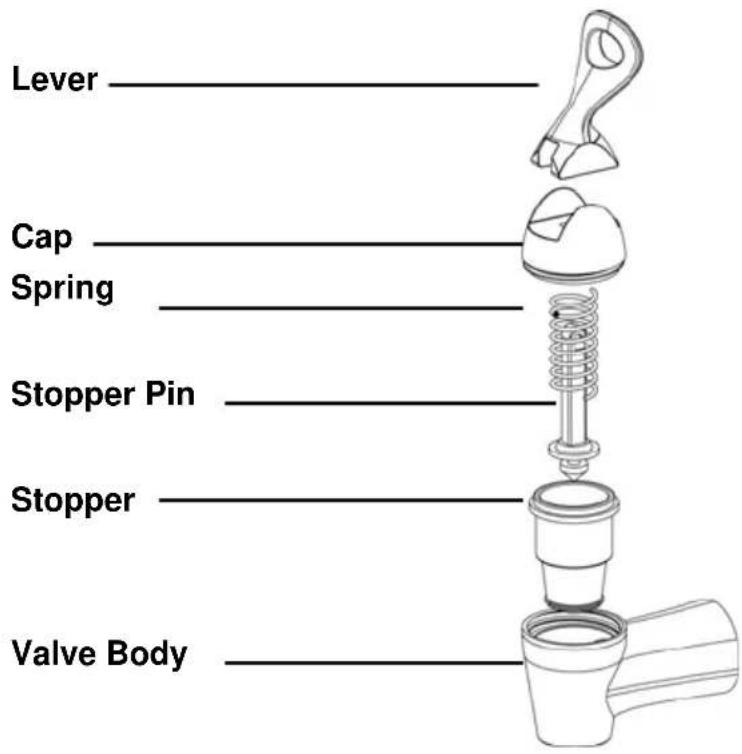

CLEANING THE DISPENSING VALVE

1. Remove the valve from the blending jar by unscrewing the entire valve counterclockwise.
2. Remove the cap from the valve body by unscrewing it counter-clockwise.
3. Squeeze cap and stopper together and slide the lever off the stopper pin.
4. Remove the spring.
5. Remove the stopper and stopper pin by pulling the rubber rim of the stopper. The stopper and pin are tightly fit and need not be separated.
6. Clean all parts in warm, soapy water, allow to dry thoroughly and reassemble in the order shown.

Lever Cap Spring Stopper Pin Stopper Valve Body

HELPFUL HINTS

• Always add liquid ingredients to the blending jar first and then add remaining ingredients. This will prevent excessive wear on the motor and ensure that the ingredients are properly blended.
• Cut harder foods into approximately 1-inch cubes to achieve better results.
• The stir stick may be used to assist in making frozen drinks or for blending any other types of ingredients. When the stir stick is not being used, be sure to place the clear lid cover over the hole in the center of the lid.
• When using the stir stick turn the stir stick counter-clockwise to thoroughly mix the ingredients.
• When chopping dry ingredients such as breadcrumbs, nuts, spices, etc., ensure the blending jar and blade base are completely dry.
• The "PULSE" button should be operated in short bursts. As the "PULSE" button is pressed and released, the blades should stop rotating between pulses.
• Do not attempt to mix or knead heavy dough, mash potatoes or beat egg whites.
• Do not over-blend foods. Most ingredients should be properly blended or chopped in seconds. Do not operate motor base for longer than 3 minutes at a time.
• If the motor stalls, turn off and unplug the unit. Remove a portion of the ingredients before attempting to continue.
• Do not add boiling liquids to the blending jar as cracking of the blending jar may occur.

RECIPES

Directions for all recipes: Pour liquid ingredients into the blending jar. Add all frozen ingredients. Blend at "PULSE" setting for 30 seconds; then blend at "ON" setting until smooth. While the machine is running, move the Stir Stick around counterclockwise to aid mixing. Serve immediately. Makes 3-5 servings; approximately 32 oz.

STRAWBERRY BANANA SUPREME SMOOTHIE
1 cup Strawberry nectar or apple juice
1 cup Milk
1 Frozen banana (chunks)
2 12 cups Frozen strawberries
1 cup Strawberry yogurt (non-fat)

MANGO TANGO SMOOTHIE

1 cup Pineapple juice

1 cup Orange juice

12 Frozen banana (chunks)

1 cup Pineapple sherbet

112 cups Frozen mango slices

VITAMIN C ATTACK
2-3 cups Sliced watermelon
1 cup Sliced cantaloupe
14 cup Strawberries
1 cup Low-fat plain yogurt
2-3 cups Ice

PROTEIN SHAKE
14 cup Chocolate-flavored whey protein powder
14 cup Chocolate-flavored Slimfast ^ powder
1	Banana
1 cup Skim milk
1 cup Ice
ORANGE BANANA CREAM SMOOTHIE
1 cup Milk
112 cups Orange juice
12 tsp. Vanilla
12 Frozen banana (chunks)
1 cup Vanilla frozen yogurt
12 cup Orange yogurt (non-fat)
3 tbs. Orange juice concentrate

PROTEIN POWER
112 -2 cups Milk
2 tbs. Dry chocolate milk mix
12 tsp. Dry chocolate pudding mix
14 cup Peanut butter
1	Sliced banana
2 cups Ice

CARBO CREATION
1 cup Apple juice
1 cup Sliced peaches
14 cup Blueberries
12 cup Strawberries
1 cup Vanilla yogurt
212 cups Ice

PEACH REFRESHER SMOOTHIE
2 cups Peach	nectar or apple juice
1 cup Vanilla	frozen yogurt
12	Banana
1 cup Peach	yogurt (non-fat)
112 cups Frozen peach slices
BANANA LIME SUBLIME SMOOTHIE
2 cups Limeade
1	Banana
1 cup Lime sherbet
3 tbs. Coconut milk
1 cup Ice

SUPER HEALTHY SHAKE
1 cup Vanilla	yogurt (non-fat)
1	Banana
1 cup Frozen	strawberries or peaches
4 oz. Frozen	orange juice concentrate

CRANBERRY SPRITZER
2 cups Cranberry juice
12 cup Club soda
12 cup Vanilla yogurt (non-fat)
1 cup Ice
Garnish with mint sprigs if desired

HAWAIIAN HOLIDAY SMOOTHIE
1 cup Passion fruit nectar
1 cup Guava nectar
1 cup Orange sherbet
12 cup Frozen strawberries
12 cup Frozen mango slices
4 tbs. Coconut milk
1 cup Strawberry yogurt (non-fat)
12 cup Frozen banana (chunks)
LOW-FAT STRAWBERRY ORANGE SMOOTHIE
2 cups Strawberries
12 cup Orange juice
1 cup Skim milk
1 cup Plain yogurt (non-fat)
1 cup Ice

WATERMELON WAISTLINE
2 12 cups Chopped watermelon
1 cup Raspberry sherbet (low-fat)
2 cups Ice

CHOCOLATE LOVERS LOW-FAT SMOOTHIE
2 tbs. Dry ch	cocolate mix
12 tsp. Dry low-fat pudding mix
112 cups Non-fat skim milk
12 tsp. Vanilla extract
2 cups Ice
12 cup Raspberries (optional)

For the following recipes: Pour liquid ingredients into the blending jar. Add in the remaining ingredients. Blend at the "MARINADE" setting. While the machine is running, move the Stir Stick around counter-clockwise to aid mixing

Basic Salad Dressing
12 cup Olive Oil
14 cup White wine vinegar
18 tsp. Salt
18 tsp. Pepper
12 tsp. Dill (or you can substitute basil)
1 tbs. Dijon mustard
1 Clove minded garlic
You can adjust the mustard, garlic, and spices to match your taste.
PEANUT BUTTER MARINADE/DIPPING SAUCE
1 tbs. Ground coriander
1 tbs. Salt
12 tsp. Pepper
1 cup Chopped onion
2 Cloves garlic (peeled or minced)
12 cup Soy sauce
14 cup Lemon or lime juice
12 cup Peanut butter
14 cup Brown sugar
12 cup Oil
Marinate chicken chunks on skewers or marinate full boneless, skinless chicken breasts in a zip lock bag with the mixture for several hours. Place the marinated meat on the grill until thoroughly cooked. Save some of the mixture that has NOT touched the meat and use it as a dip for vegetables or on a salad. Serves 4.

Spicy Pork or Chicken Marinade

13 cup Soy sauce

2 tbs. Chopped fresh cilantro

2 tsp. Minced garlic

3 tbs. Brown sugar

1 tsp. Dry mustard

12 tsp. Paprika

Marinate pork tenderloin or boneless, skinless chicken breasts in a zip lock bag with the mixture for several hours. Place the marinated meat on the grill until thoroughly cooked. Serves 4.

PRODUCT WARRANTY

Appliance 1 Year Limited Warranty

Focus Electrics, LLC (“Focus Electrics”) warrants this appliance from failures in the material and workmanship for one (1) year from the date of original purchase with proof of purchase, provided the appliance is operated and maintained in conformity with the provided Instruction Manual. Any failed part of the appliance will be repaired or replaced without charge at Focus Electrics’ discretion. This warranty applies to indoor household use only.

This warranty does not cover any damage, including discoloration, to any non-stick surface of the appliance. This warranty is null and void, as determined solely by Focus Electrics if the appliance is damaged through accident, misuse, abuse, negligence, scratching, or if the appliance is altered in any way.

THIS WARRANTY IS IN LIEU OF ALL IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, PERFORMANCE, OR OTHERWISE, WHICH ARE HEREBY EXCLUDED. IN NO EVENT SHALL FOCUS ELECTRICS BE LIABLE FOR ANY DAMAGES, WHETHER DIRECT, INDIRECT, INCIDENTAL, FORSEEABLE, CONSEQUENTIAL, OR SPECIAL, ARISING OUT OF OR IN CONNECTION WITH THIS APPLIANCE.

If you think the appliance has failed or requires service within its warranty period, please contact the Focus Electrics Customer Service Department at [phone] or e-mail us at [e-mail]. Return shipping fees are non-refundable. A receipt proving original purchase date will be required for all warranty claims. Hand-written receipts are not accepted. Focus Electrics is not responsible for returns lost in transit.

Valid only in USA and Canada

REPLACEMENT PARTS

Replacement parts, if available, may be ordered directly from Focus Electrics online at www.focuselectrics.com, or you may call or e-mail the service department at the number/e-mail address listed above, or by writing to us at:

Focus Electrics, LLC

Attn: Customer Service

P. O. Box 2780

West Bend, WI 53095

Be sure to include the catalog/model number of your appliance (located on the bottom/back of the unit) and a description and quantity of the part you wish to order. Along with this include your name, mailing address, Visa/MasterCard number, expiration date and the name as it appears on the card. Checks can be made payable to Focus Electrics, LLC. Call Customer Service to obtain purchase amount. Your state's sales tax and a shipping/processing fee will be added to your total charge. Please allow two (2) weeks for delivery.

This manual contains important and helpful information regarding the safe use and care of your new Focus Electrics product. For future reference, attach dated sales receipt for warranty proof of purchase and record the following information:

Date purchased or received as gift: ____

Where purchased and price, if known: ____

Item number and Date Code (shown bottom/back of product): ____

BACK TO BASICS®

Chris Trenta MÉLANGEUR SANTÉ

Mode d'emploi

Exterior view of a modern blender with a black lid and side bowl (no text or symbols visible)

Illustration of a blender with liquid-filled pan and glass lid (no text or symbols)

Focus Electrics, LLC

Attn: Customer Service

P. O. Box 2780

West Bend, WI 53095

Exterior view of a modern blender with black lid and side bowl (no text or symbols visible)

Illustration of a blender with liquid and a glass cup (no text or symbols)

Focus Electrics, LLC

Attn: Customer Service

P. O. Box 2780

West Bend, WI 53095
