TTEP01 - Earplug TaoTronics - Free user manual and instructions

USER MANUAL TTEP01 TaoTronics

Address: 46724 Lakeview Blvd, Fremont, CA 94538

EUROPE

E-mail:

[e-mail] (UK)

[e-mail] (DE)

[e-mail] (FR)

[e-mail] (ES)

[e-mail] (IT)

EU Importer: ZBT International Trading GmbH, Lederstr 21a,

Shenzhen NearbyExpress Technology Development Company Limited

Address: Block D, Minle Industrial Park, Melban Road, Longhua District,

Shenzhen, China. 518131

MADE IN CHINA

Hello

TAOTRONICS ACTIVE NOISE CONTROL EARPHONES

User Guide

CONTENTS

English

01/06

Deutsch

07/13

Français

14/20

Español

21/27

Italiano

28/34

日本語

35/40

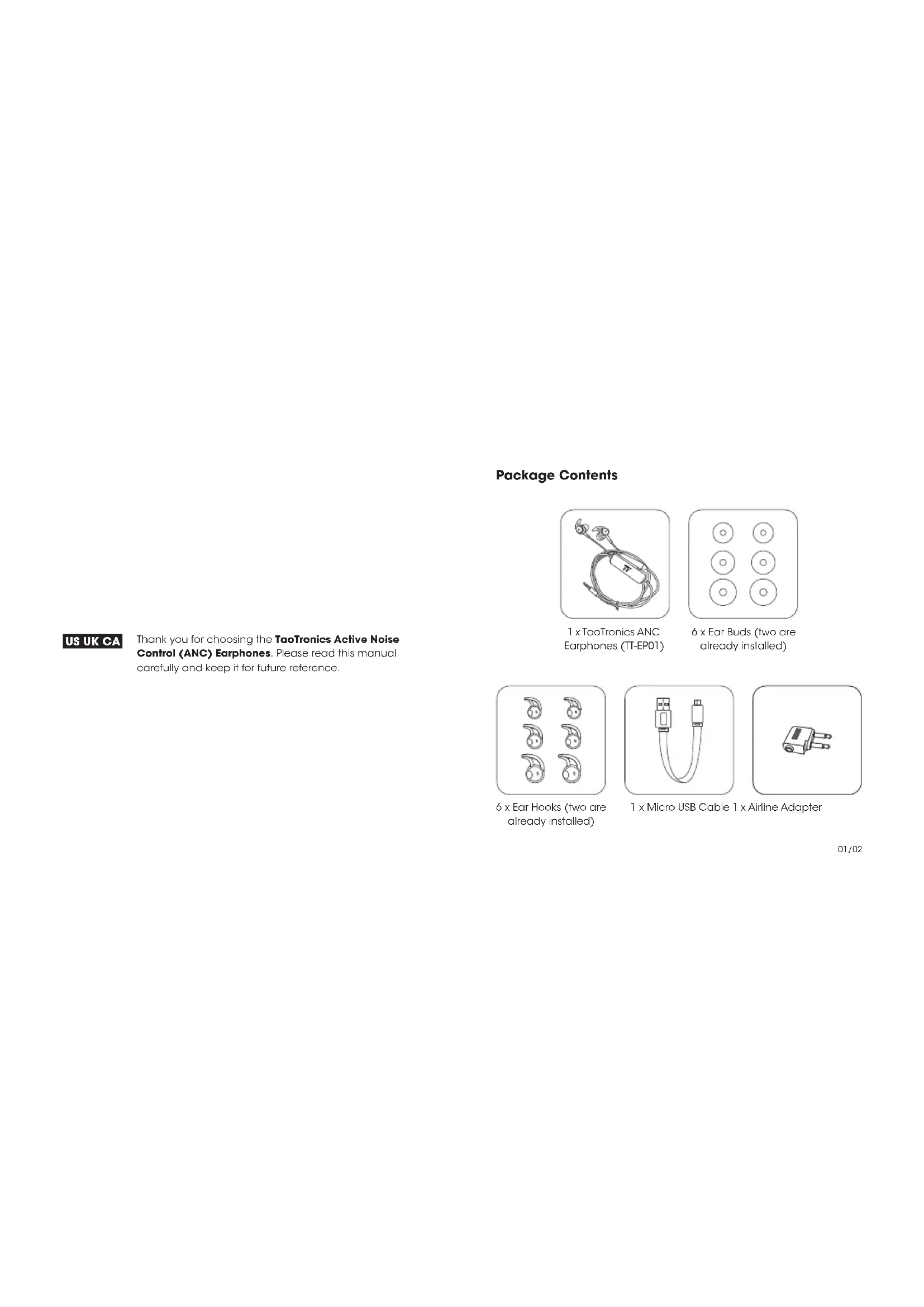

Package Contents

Simple line drawing of a medical or laboratory device with no visible text, numbers, or symbols.

1 x TaoTronics ANC Earphones (TT-EP01)

Simple diagram of six circles arranged in two rows within a rounded square (no text or symbols)

6 x Ear Buds (two are already installed)

US UK CA

Thank you for choosing the TaoTronics Active Noise Control (ANC) Earphones. Please read this manual carefully and keep it for future reference.

Six identical cartoon-style moon icons arranged in two rows (no text or symbols)

6 x Ear Hooks (two are already installed)

Simple line drawing of a USB cable with two connectors (no text or symbols)

1 x Micro USB Cable 1 x Airline Adapter

Simple line drawing of a three-pin electronic component (no text or symbols)

Product Diagram

① Volume +
② Multifunction Button: Play/Pause, Answer/End Call, Previous/Next Track, Activate Voice Control
③ Volume -
④ Microphone

① ② ③

④

① ANC ON / OFF Button
② ANC LED Indicator
③ Micro USB Charging Port

Diagram of a vertical cylindrical device with labeled ports and internal components, marked with numbers ① and ②.

③

Specifications

Frequency Response	20Hz - 20kHz
Impedance	32Ω
Maximum Input Power	5mW
Working Time (ANC Mode)	15 hours
Charging Time	Approx. 2 hours
Cord Length	1.4 meter
Noise Reduction Coefficient (NRC)	100 - 500Hz
Noise Reduction Rating	15 - 30dB

Care and Maintenance

• Charge the earphones at least once every 6 months.
• Keep the earphones away from wet or humid areas.
• Do not put the product under direct sunlight or hot areas. High temperatures will shorten the lifespan of the earphones and its battery.
• Do not try to take the product apart.
• Do not drop or knock your earphones on hard surfaces.
• Do not use chemicals or detergents to clean the product.
• Do not scrape the surface with sharp objects.

Warranty

TaoTronics earphones are covered by the TaoTronics Parts and Labor Warranty for 12 months from the date of their original purchase. If the device becomes defective, please contact TaoTronics Support to launch warranty claim. We will instruct you on how to return the defective unit back to us for repair and replacement.

The following are excluded from the TaoTronics warranty:

• Device purchased as 2nd hand, used or from unauthorized sellers
• Damage resulted from misuse and abusive action
- Damage resulted from chemical, fire, radioactive substance, poison, liquid
• Damage resulted from natural disaster
- Damage caused to any 3rd party / person / object and beyond

No return will be accepted without seller authorization.

Statement

We can only provide after sale services for products that are sold by TaoTronics or TaoTronics authorized retailer and distributor. If you have purchased your unit from a different place, please contact the seller for return and warranty issues.

Lieferumfang

Line drawing of a coiled cable with two connectors and a labeled component (no text or symbols)

Simple diagram of six circles arranged in two rows within a rounded square (no text or symbols)

Six identical cartoon-style icons arranged in two rows, each with a crescent shape and a dot (no text or symbols)

Simple line drawing of a USB cable with two connectors (no text or symbols)

Simple line drawing of a two-pin electronic component (no text or symbols)

Produktdiagramm

Diagram of a vertical cylindrical device with labeled parts, showing two ports and a central control knob.

③

Spezifikationen

Line drawing of a coiled cable with two connectors and a labeled component (no text or symbols)

Simple diagram of six circles arranged in two rows, no text or symbols present

Six identical cartoon-style moon icons arranged in two rows (no text or symbols)

Simple line drawing of two USB connectors with a coiled cable (no text or symbols)

Line drawing of a two-pin electronic component (no text or symbols)

Technical diagram of a vertical cylindrical device with labeled components and polarity indicators

Diagram of a vertical cylindrical device with labeled parts, showing internal components and directional arrows.

Pure diagram of a vertical cylindrical object with internal channels and a labeled section (no text or symbols)

Spécifications

Line drawing of a coiled cable with two connectors and a labeled component (no text or symbols)

1 x Auriculares ANC de TaoTronics modelo (TT-EP 01)

Simple diagram of six circles arranged in two rows within a rounded square (no text or symbols)

Six identical cartoon-style moon icons arranged in two rows, each with a curved line above (no text or symbols)

Simple line drawing of two USB connectors with a curved cable (no text or symbols)

Line drawing of a two-pin electrical plug (no text or symbols)

Diagram of a vertical cylindrical device with labeled parts, showing two ports and a central control knob.

③

Line drawing of a coiled cable with two connectors and a labeled component (no text or symbols)

Simple diagram of six circles arranged in two rows, no text or symbols present

Six identical cartoon-style moon icons arranged in two rows (no text or symbols)

Simple line drawing of two USB connectors with leads, no text or symbols present

Line drawing of a two-pin electronic component (no text or symbols)

Schema del Prodotto

Technical diagram of a vertical cylindrical device with labeled components and polarity indicators

Diagram of a vertical cylindrical device with labeled ports and internal components, marked with numbers ① and ②.

Pure diagram of a vertical cylindrical object with two vertical tubes and a handle, no text or symbols present.

Specifiche tecniche

Line drawing of a coiled cable with earphones and connectors (no text or symbols)

Simple diagram of six circles arranged in two rows within a rounded square (no text or symbols)

6xイヤーバッツ (1セットは装着済)

Six identical cartoon character illustrations arranged in two rows (no text or symbols)

Simple line drawing of a USB connector with two ports, no text or symbols present

1 x マイクロUSB ケーブル

Line drawing of a two-pin electrical plug (no text or symbols)

1 x 飛行機用アダプター

製品図

Diagram of a vertical cylindrical device with labeled parts, showing two ports and a central control knob.

③

製品仕様

This device complies with Part 15 of the FCC Rules, Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must withstand any interference received, including interference that may cause undesired operation.

TECHNOLOGY ENHANCES LIFE
