Brand	Ninja
Model	Nutri BL481
Category	Blender
Product Type	Nutri Ninja Personal Blender
Power	1000 W
Voltage	120 V, 60 Hz
Cup Capacities	18 oz, 24 oz, 32 oz (depending on model)
Cup Material	BPA-Free Plastic
Blades	Pro Extractor Blades with 4 blades
Automatic Programs	AUTO-iQ: Blend and Crush
Manual Functions	Start/Stop, Pulse, Timer
Screen Type	Digital Time Display
Lids	Sip & Seal with flip-top cap
Safety	Polarized plug, auto shut-off, thermal overload protector
Cleaning Cups and Blades	Dishwasher (top rack recommended)
Cleaning Motor Base	Damp cloth, do not immerse
Cord Storage	Wrap around base
Non-Slip Feet	Suction cups
Warranty	1 year limited
Use	Household only
Country of Origin	Not specified in the manual

Frequently Asked Questions - Nutri BL481 NINJA

The blender does not start, what to do?

First check that the appliance is plugged in and that the cup is properly inserted and turned clockwise until it clicks. The display should light up. If the problem persists, wait 30 minutes after a thermal shutdown.

How to clean the motor base?

Never immerse the motor base in water. Clean it with a damp cloth and dry immediately.

Can I put the cups and blades in the dishwasher?

Yes, the cups, lids, and blade assemblies are dishwasher safe. Place small accessories in the top rack to avoid damage.

How to use the AUTO-iQ mode?

Assemble the cup with ingredients, screw on the blades, flip it onto the motor base and turn until it clicks. Press BLEND or CRUSH depending on your food: the program alternates pulses and pauses for optimal results, then stops automatically.

How much ingredients can I put in the cup?

Never exceed the Max line on the cup. For best results, first add fresh fruits/vegetables, then powders/nuts, liquids, and finally ice.

The motor stops during use, what is happening?

This is likely the thermal overload protector cutting power in case of overload. Unplug the appliance, empty the cup, remove any blockage, and let it cool for 30 minutes before using again.

Can I blend hot ingredients?

No, never blend hot foods or liquids. Let them cool to avoid burns and damage to accessories.

How to prevent food from sticking to the blades?

Preferably use AUTO-iQ programs that include pauses. If necessary, add a little more liquid. For chopping, cut food into even pieces and use short pulses with PULSE.

The lid does not screw on easily, what to do?

Place the cup on a flat surface and align the threads of the lid or blades. Turn gently clockwise until the assembly is flush and airtight.

Where to find replacement parts?

Visit the official website www.ninjakitchen.com or call 1-877-646-5288 to order cups, blades, or lids.

USER MANUAL Nutri BL481 NINJA

IMPORTANT SAFETY INSTRUCTIONS

For Household Use Only

WHEN USING ELECTRICAL APPLIANCES, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED, INCLUDING THE FOLLOWING:

READ ALL INSTRUCTIONS BEFORE USING YOUR Nutri Ninja® WITH AUTO-iQ™.

POLARIZED PLUG

WARNING: To reduce the risk of electric shock, this appliance has a polarized plug (one blade is wider than the other). This plug will fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install the proper outlet. DO NOT modify the plug in any way.

WARNING:

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY:

1. To protect against electrical shock, do not submerge the appliance or allow the power cord to come into contact with water or any other liquid.
2. DO NOT allow young children to operate the appliance or use as a toy. Close supervision is necessary when any appliance is used by or near children.
3. Never leave an appliance unattended when in use.
4. Remove the power cord from the electrical outlet when not in use, before assembling or disassembling parts and before cleaning. To unplug, grasp the plug and pull from the electrical outlet. Never pull from the power cord.
5. DO NOT abuse the power cord. Never carry the appliance by the power cord or yank it to disconnect from electrical outlet; instead grasp the plug and pull to disconnect.
6. DO NOT operate any appliance with a damaged cord or plug, or after the appliance malfunctions, has been dropped or damaged in any manner. Return the appliance to EURO-PRO Operating LLC for examination, repair or adjustment.
7. DO NOT let the power cord hang over the edge of table or counter or touch hot surfaces such as the stove.

8. Always use appliance on a dry, level surface.

9. Keep hands, hair, clothing, as well as utensils out of cup while processing to reduce the risk of severe injury to persons or damage to the appliance. A scraper may be used but only when the appliance is not running.

10. CAUTION: Blade assembly is sharp, handle with care. When handling the blade assembly, always hold by the base of the blade assembly.
11. Avoid contact with moving parts.
12. DO NOT attempt to sharpen blades.
13. DO NOT use the appliance if blade assembly is bent or damaged.
14. To reduce risk of injury, never place the blade assembly on the base without the proper attachment.
15. DO NOT operate this appliance on or near any hot surfaces (such as gas or electric burner or in a heated oven).
16. The use of attachments or accessories not recommended or sold by the manufacturer may cause fire, electric shock or personal injury.
17. DO NOT remove the cup from the motor base while the appliance is running.
18. To reduce the risk of injury, NEVER operate the appliance without the blade assembly in place; DO NOT try to defeat the interlock mechanism; make sure that the attachment is properly installed before operating the appliance.

19. DO NOT expose cups to extreme temperature changes.

20. CAUTION: DO NOT PROCESS HOT FOODS OR HOT LIQUIDS.

21. CAUTION: DO NOT process dry ingredients without adding liquid to the cup. This product is not intended for dry blending.

22. DO NOT overfill.

23. DO NOT operate the appliance empty.

24. If the appliance overheats, a thermal switch will become activated and shut off the motor. To reset, unplug the appliance and let it cool down for approximately 30 minutes before using again.

25. THIS PRODUCT IS INTENDED FOR HOUSEHOLD USE ONLY. Do not use this appliance for anything other than its intended use. Do not use outdoors.

26. Appliance accessories are not intended to be used in the microwave. Do not place the cup or the lid in the microwave as it may result in damage to the accessories.

WARNING: Extension cords are not recommended for use with this product.

SAVE THESE INSTRUCTIONS

CONSIGNES DE SÉCURITÉ IMPORTANTES

THIS BOOK COVERS MODEL NUMBERS:

BL480 70

BL481 70

BL482 70

BL483 70

BL484 70

TECHNICAL SPECIFICATIONS

Voltage: 120V., 60Hz.

Power: 1000 Watts

Cup Capacity:

32 ounces (4 cups)

24 ounces (3 cups)

18 ounces (2.25 cups)

Euro-Pro, Nutri Ninja, AUTO-iQ, Sip & Seal, Pro Extractor Blades and Ninja are trademarks of Euro-Pro Operating LLC.

CE MANUEL CONCERNE LE MODÈLE :

BL480 70

BL481 70

BL482 70

BL483 70

BL484 70

Thank you for purchasing the Nutri Ninja® with AUTO-iQ™

Getting to Know Your Nutri Ninja® with AUTO-iQ™ 10

Before First Use 12

Use 13

Suggested Uses....14

Care & Maintenance....15

Troubleshooting Guide....16

Replacement Parts 16

Sample Recipes....17

Warranty & Registration....19

Contenu

Sample Recipes....27

Sample Recipes....37

Line drawing of a glass container with a lid and side rod, labeled 'C' in the corner (no text or symbols on the container itself)

Simple line drawing of a cylindrical container with a lid and internal structure (no text or symbols)

Simple line drawing of a cylindrical container with a lid and internal structure, labeled 'e' at bottom right (no text or symbols on the object itself)

TARE EXP 88 KDD PAGE Mio Q 725 PUBS

f

a Pro Extractor Blades ^TM Assembly
b Sip & Seal ^TM Lid
c Small 18 oz. Nutri Ninja® Cup
d Regular 24 oz. Nutri Ninja® Cup
e Jumbo Multi Serve 32 oz. Nutri Ninja ^® Cup

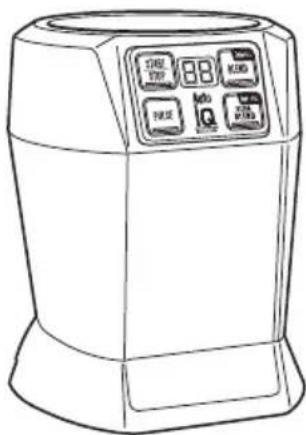

f Motor Base
g Power Cord (not shown)
h Inspiration Guide (not shown, included in some models)
i Cookbook (not shown, included in some models)

NOTE: The quantity, sizes, and presence of some accessories depends on the specific model configuration. All configurations include a motor base, blade assembly, Nutri Ninja ^ cups, Sip & Seal ^TM Lids, power cord, and instructions.

Welcome to the Ninja® AUTO-iQ™ Experience! The Nutri Ninja® with AUTO-iQ™ features pre-programmed settings that take the guesswork out of drink and meal making. These programs are timed to deliver consistent, delicious results that finish on their own so all you have to do is press a button and enjoy!

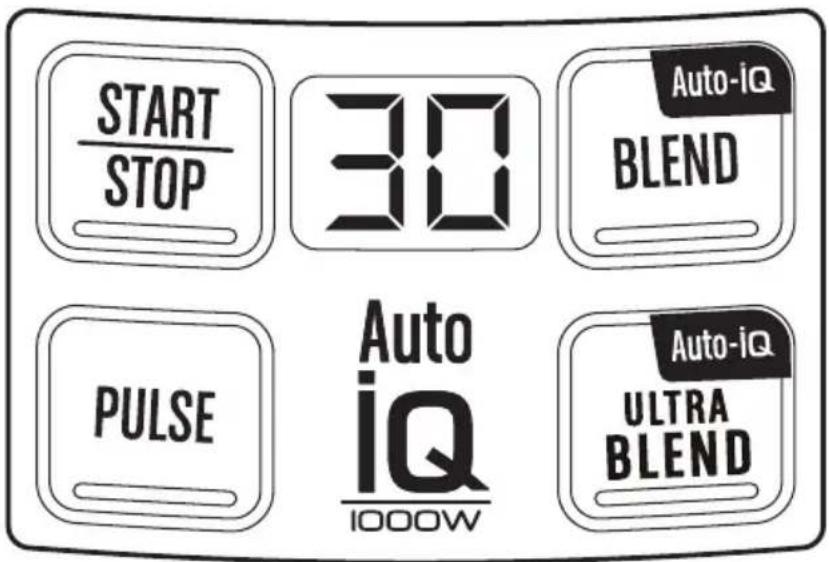

START STOP 30 Auto-iQ BLEND PULSE Auto iQ 1000W Auto-iQ ULTRA BLEND

FEATURES:

• Nutrient & Vitamin Extraction
• 1000 Watt Motor
- User Interface:

START | STOP

Press once to start continuous running, press again to stop.

Timer counts up by seconds, up to 60 seconds.

PULSE

Runs only while pressed down. Short presses make short pulses.

Timer counts up by seconds as long as pressed down.

AUTO-iQ BLEND

Pulses and blends fresh or softer ingredients to create smooth consistent results. Timer counts down.

AUTOQUTRA BLEND

Pulses and blends frozen, fibrous or hard ingredients to create smooth consistent results. Timer counts down.

• Personalized, healthy drinks and juices
- Sip & Seal ^TM lids for drinks on the go
- Nutri Ninja ^ Cups, BPA free
- Cord storage

PLEASE KEEP THESE IMPORTANT SAFEGUARDS IN MIND WHEN USING THE APPLIANCE:

IMPORTANT: Attachments are interchangeable.
CAUTION: Blades are sharp! Use extreme caution when handling the blade assemblies. Always hold them by the base of the blade assembly.
IMPORTANT: Never run the appliance empty.
CAUTION: DO NOT PROCESS HOT FOODS OR HOT LIQUIDS.
CAUTION: Never attempt to remove the cup while the appliance is still running.
WARNING: Never leave the appliance unattended while in use.

1 Remove all packaging material and labels from the appliance.
2 Wash the lids, cups and blade assembly in warm, soapy water with a soft cloth. Use caution when washing the blade assembly as the blades are very sharp.
3 Rinse and dry thoroughly.
4 Cups, lids and blade assembly are all dishwasher safe. It is recommended that the lids and attachments be placed on the top rack. Ensure that the blade assembly is removed from the cups before placing in the dishwasher.
5 Wipe the motor base clean with a damp cloth.

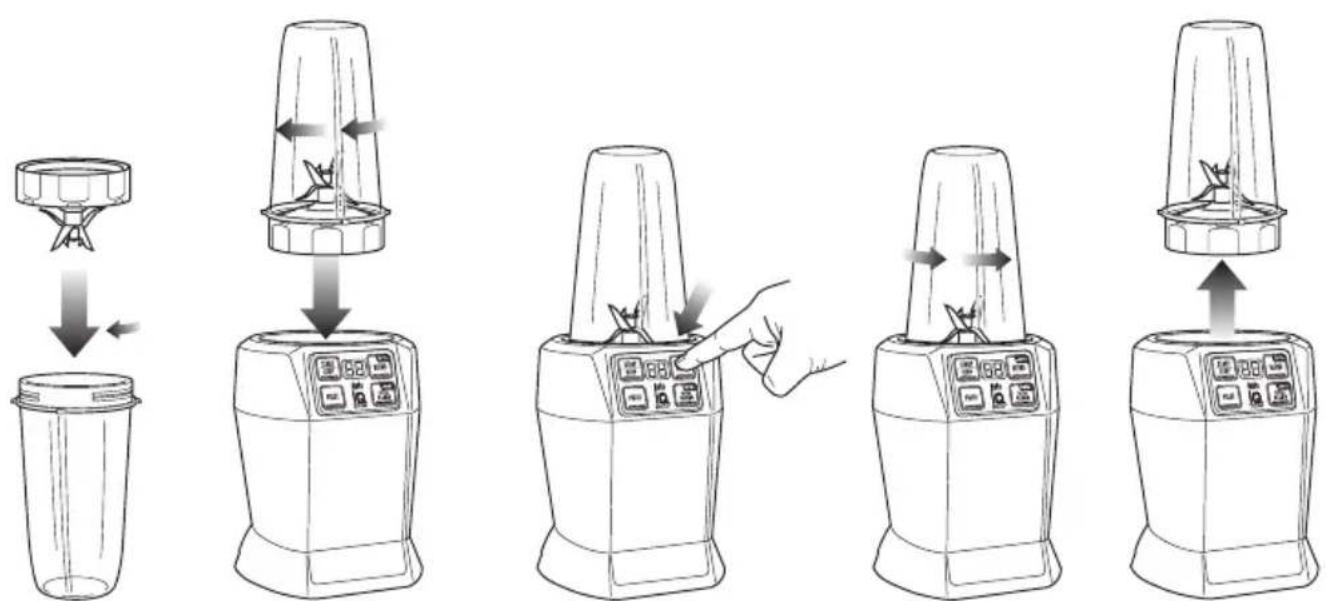

ASSEMBLY USE REMOVAL

IMPORTANT: Place the motor base on a clean, dry, level surface such as a counter or table top.

1 Make sure that the motor base is plugged in for use. No lights will turn on.
2 Add ingredients to the cup.
NOTE: Do not overfill! to avoid spilling, do not add ingredients past the "MAX" fill line.
3 Place the blade assembly onto the cup and twist it on tightly until you have a good seal. (Fig. 1)
4 Turn the cup upside down and place it onto the motor base, aligning the tabs on the cup with the motor base. Turn it clockwise, until you feel it click into place. The Timer light will illuminate.(Fig. 2)
5 Press one of the buttons to activate. (Fig. 3)

NOTE: When using the AUTO-iQ™ presets, the unit will operate using pulses, pauses and continuous runs. The pauses allow the contents of the cup to settle. When the timer reaches "0", it will stop by itself.

6 To remove the cup, ensure that the motor has stopped running. Then turn the cup counter clockwise (Fig. 4) and pull straight up to remove. (Fig. 5)
7 Turn the cup upright and remove the blade assembly by twisting the blade assembly counter clockwise. Be sure to store the blade assembly attached to an empty cup when not in use.
8 Twist the Sip & Seal ^™ lid onto the cup to enjoy your drink on the go. Press flip top cap firmly into the opening to get the best seal. The flip top cap locks open when pressed backward.
9 Make sure that the motor base is unplugged when not in use.
10 To remove the motor base unit, tip the unit forward from the rear to easily disengage the suction cups.

Suggested Uses

PURPOSE / FUNCTION	SUGGESTED CUP TYPE OF FOOD
Chopping / Pulsing	18 oz.24 oz.	SalsaLeafy Herbs
Mixing	24 oz.32 oz.	BattersDips
Sauces	24 oz.32 oz.	VinaigrettesSalad DressingsSimple Sauces
Frozen Blending	18 oz.24 oz.32 oz.	IceFrozen FruitIce Cream
Nutrient Juices/Smoothies	18 oz.24 oz.32 oz.	FruitsVegetablesLeafy Greens

CAUTION: DO NOT process dry ingredients without adding liquid to the cup. This product is not intended for dry blending.

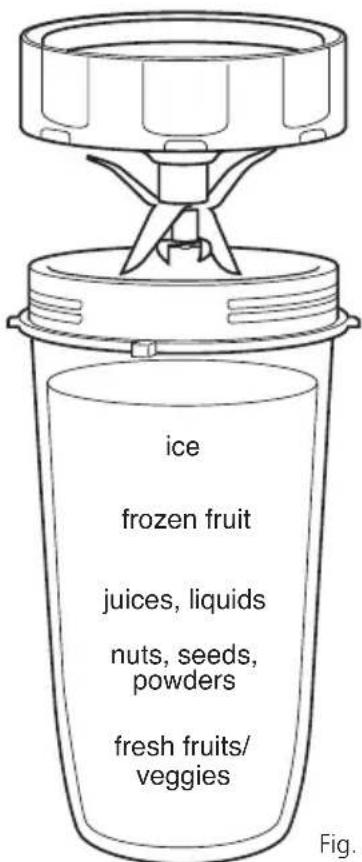

FILLING YOUR Nutri Ninja®

For best results, always follow recipe directions when filling your Nutri Ninja® cups. When you're not using a recipe, use the following guidelines:

Start with your Fresh Fruit or Veggies. Then add any Nuts, Seeds or Powder followed by any liquids like Juice or Milk. More liquid can help to integrate powder. Then add your Frozen Fruit and Ice. Remember to securely tighten the blade and don't overfill the cups. (Fig. 6)

ice frozen fruit juices, liquids nuts, seeds, powders fresh fruits/ veggies Fig.

Fig. 6

HOW TO CLEAN

CAUTION: Make sure that the motor base is unplugged from the power source before inserting or removing any attachment and before cleaning.
CAUTION: DO NOT immerse the motor base into water or any other liquid.

1 Separate/remove all parts from each other.
2 Clean the motor base with a damp cloth and wipe dry.
3 Place cups in the dishwasher. Place the lids and attachments on the top rack. Use caution when handling the blade assemblies as the blades are very sharp.

NOTE: You may also wash the cups by filling the cup to the Max fill line with warm water and a drop of dish washing detergent, placing the blade assembly on the cup and pulsing a few times. Do not fill the cup more than Max fill line with water because it will overflow. Once clean, remove the cup from the motor base. Rinse the cup, attachment and lid under running water. Allow all the parts to dry before storing.

If the appliance needs servicing, please call customer service at 1-877-646-5288.

HOW TO STORE

1 Store the Nutri Ninja ^® with AUTO-iQ ^™ upright. Secure the power cord underneath the base by wrapping the cord around the cord wrap. Do not place anything on top. Store the cups and the rest of the attachments along side the appliance where they will not be damaged and won't cause a hazard.

RESETTING THE MOTOR THERMOSTAT

The Nutri Ninja ^® with AUTO-iQ ^™ features a unique safety system which prevents damage to the unit's motor and drive system should you inadvertently overload your appliance. If the appliance is being overloaded, the motor will stop. To reset the appliance, follow the resetting procedure below:

1 Unplug the appliance from the electrical outlet.
2 Remove and empty the cup and ensure that no food is jamming the cutting blades.
3 Allow the appliance to cool for approximately 30 minutes.
4 Re-install the cup onto the base and re-plug the appliance into the electrical outlet.
5 Proceed to use the appliance as before while making sure not to exceed the recommended maximum capacities.

Troubleshooting Guide

PROBLEMS POSSIBLE REASONS & SOLUTIONS
Unit doesn't turn on	Make sure the unit is plugged inInsert and rotate cup clockwise in the base until it " clicks". Display should turn on.
Unit doesn't turn off	Remove cup from base by rotating cup counter clockwise and lifting out. Display should turn off. Unplug the power cord from the outlet.
Lid/blade assembly hard to assemble	Set the cup on a level surface. Place the lid or blade assembly on the top of the cup and align the threads so that the lid/blades sit flat on the cup. Twist clockwise so that the lid/blades evenly align to the cup until you have a tight seal.
Food is not evenly chopped	For best results when chopping, make sure all ingredients are as dry as possible. Cut pieces down to even sizes, and reduce the amount of food in the cup. Use very short pulses by quickly pressing the "PULSE" button.
Doesn't mix well, food gets stuck.	Using the AUTO-iQTM programs is the easiest way to achieve great results. The pulses and pauses allow the food to settle towards the blade. If food is routinely getting stuck adding some liquid will usually help.When packing the cups, start with fresh items, then powders/nuts. Add liquids, and finally frozen items or ice.
Unit moves on counter while blending	Make sure the surface as well as the feet of the unit are clean and dry.
Unit is difficult to remove from counter for storage	Tip unit forward from the back to easily disengage the suction feet.

Replacement Parts

ORDERING REPLACEMENT PARTS

To order additional parts and attachments, please visit our website: www.ninjakitchen.com or feel free to contact customer service: 1-877-646-5288.

Watermelon Cooler

Ingredients:

14 pear, seeded, cut into chunks
2 large fresh basil leaves with stems removed
2 cups chilled watermelon, seeded, cut into chunks

Directions:

1. Place all ingredients in the order listed above into the Nutri Ninja ^® 24oz. cup.
2. Lock cup onto the base and select AUTO-iQ ^TM BLEND

Purple Potion

Ingredients:

^3/_4 cup beets, peeled, cut into chunks

1 cup frozen blueberries
1¼ cup carrot juice

Directions:

1. Place the beets with 2 cups of water into a small saucepan over medium heat and cook until tender. Drain, cool completely and set aside.
2. Place all the ingredients in the order listed above into the Nutri Ninja ^® 24oz cup.
3. Lock cup onto the base and select AUTO-iQ ^TM ULTRA BLEND

Easy Weeknight Burgers

Ingredients:

8 ounces London Broil, trimmed of fat, cut into 2-inch pieces

Kosher salt and fresh ground black pepper to taste

2 hamburger buns, sliced

Toppings of choice

Directions:

1. Place the meat in the Ninja 24 ounce cup. Lock cup into base and press START|STOP for 15 seconds.
2. Season ground meat with salt and pepper and form into two patties.
3. Lightly coat a nonstick skillet with cooking spray. Over medium heat, cook the burgers to desired doneness, about 4-5 minutes per side for medium.
4. Serve each burger on a bun with toppings of choice.

Notes

EURO-PRO

ONE (1) YEAR LIMITED WARRANTY

EURO-PRO Operating LLC warrants this product to be free from material defects and workmanship for a period of one (1) year from the date of purchase when utilized for normal household use, subject to the following conditions, exclusions and exceptions.

The liability of EURO-PRO Operating LLC is limited solely to the cost of the repair or replacement of the unit at our option. This Limited Warranty does not cover normal wear of parts and does not apply to any unit that has been tampered with or used for commercial purposes. This Limited Warranty does not cover damage caused by misuse, abuse, negligent handling or damage due to faulty packaging or mishandling in transit. This Limited Warranty does not cover damage or defects caused by or resulting from damages from shipping or repairs, service or alteration to the product or any of its parts, which have been performed by a repair person not authorized by EURO-PRO Operating LLC.

If your appliance fails to operate properly while in use under normal household conditions within the Limited Warranty period, you may return the complete appliance and accessories with proof of purchase and date, freight prepaid. For Customer Service support, call 1-877-646-5288 or visit our website www.ninjakitchen.com.

If the appliance is found by EURO-PRO Operating LLC to be defective, in EURO-PRO Operating LLC's sole discretion, we will repair or replace it free of charge. Proof of purchase date and a check made payable to EURO-PRO Operating LLC in the amount of \$19.95 to cover the cost of return shipping and handling must be included.*

This Limited Warranty is extended to the original purchaser of the unit and excludes all other legal, implied and/or conventional warranties. The responsibility of EURO-PRO Operating LLC if any, is limited to the specific obligations expressly assumed by it under the terms of this Limited Warranty.

In no event is EURO-PRO Operating LLC liable for incidental or consequential damages to anyone of any nature whatsoever. Some states do not permit the exclusion or limitation of incidental or consequential damages, so the above may not apply to you.

This Limited Warranty gives you specific legal rights, and you may also have other rights which vary from state to state or from province to province.

*IMPORTANT: Carefully pack item to avoid damage in shipping. Be sure to include proof of purchase date and to attach tag to item before packing with your name, complete address and phone number with a note giving purchase information, model number and what you believe is the problem with the item. We recommend you insure the package (as damage in shipping is not covered by your Limited Warranty). Mark the outside of your package "ATTENTION CUSTOMER SERVICE".

Product Registration

Please visit www.ninjakitchen.com or call 1-877-646-5288 to register your new Ninja® product within ten (10) days of purchase. You will be asked to provide the store name, date of purchase and model number along with your name and address.

The registration will enable us to contact you in the unlikely event of a product safety notification. By registering you acknowledge to have read and understood the instructions for use, and warnings set forth in the accompanying instructions.

Simple line drawing of a glass container with a lid and side rod (no text or symbols)

Simple line drawing of a cylindrical container with a lid and internal structure (no text or symbols)

Simple line drawing of a cylindrical container with a lid and internal structure (no text or symbols)

TIME EXP 88 KDD MODE MHz Q 275 PUBS

f

a Jeu de lames Pro Extractor Blades MC
b Couvercle Sip & Seal MD
c Petit gobelet Nutri Ninja MD, 18 oz
d Gobelet Nutri Ninja MD régulier, 24 oz
e Gobelet Nutri Ninja ^MD géant pour portions multiples, 32 oz

Simple line drawing of a glass container with a lid and side port, no text or symbols present.

Simple line drawing of a cylindrical container with a lid and internal structure (no text or symbols)

Simple line drawing of a cylindrical container with a lid and internal structure (no text or symbols)

TIME EXP 88 KDD MODE MHz Q 275 PUBS

f

a Mecanismo de Cuchilla extractora Pro MR
b Tapa Sip & Seal MR
c Taza Nutri Ninja ^® chica de 18 oz.
d Taza Nutri Ninja ^® normal de 24 oz.
e Taza Nutri Ninja® grande de 32 oz para varias porciones

ice frozen fruit juices, liquids nuts, seeds, powders fresh fruits/ veggies Fig.

Fig. 6

www.ninjakitchen.com

Illustrations may differ from actual product. We are constantly striving to improve our products, therefore the specifications contained herein are subject to change without notice.
