OLED 4K Bravia XR55A83JAEP - Television SONY - Free user manual and instructions

Product Type	OLED 4K TV
Brand	Sony
Model	XR55A83JAEP
Screen size (diagonal)	138.8 cm (55 inches)
Resolution	3840 x 2160 pixels (4K Ultra HD)
Display technology	OLED panel with XR processor
Dimensions with stand (W x H x D)	122.7 x 73.5 x 33.0 cm
Dimensions without stand (W x H x D)	122.7 x 71.2 x 5.3 cm
Weight with stand	19 kg
Weight without stand	17.8 kg
Power supply	220-240 V AC, 50 Hz
Power consumption (Standard mode)	122 W
Power consumption (Standby)	0.5 W
Energy efficiency class	B
TV tuner	DVB-T/T2, DVB-C, DVB-S/S2
HDMI connectivity	4 HDMI inputs (HDCP 2.3), including 1 with eARC
USB connectivity	2 USB 2.0 ports, 1 USB 3.1 port
Network	Wi-Fi 5 (2.4/5 GHz), Bluetooth 5.0, Ethernet 10/100
Audio output	Optical jack, headphone jack, HDMI eARC, S-CENTER SPEAKER IN
Smart functions	Google TV, Google Assistant, built-in Chromecast, voice recognition
HDR formats	Dolby Vision, HDR10, HLG
Audio	Dolby Atmos, Dolby Audio, DTS Digital Surround
Anti-burn-in functions	Panel refresh, pixel shift, automatic brightness reduction
Included accessories	Remote control, batteries, table stand, power cord, installation guide
Wall mount compatible	Mount SU-WL850 or SU-WL450 (optional)
Operating temperature	0°C to 40°C

Frequently Asked Questions - OLED 4K Bravia XR55A83JAEP SONY

The remote control does not work, what should I do?

Replace the batteries. If the problem persists, check that the remote control sensor is not obstructed. You can also restart the TV by unplugging the power cord for two minutes.

How can I prevent image retention on my OLED TV?

Avoid displaying static images (logos, clocks) for long periods. Use the Wide mode to fill the screen. Enable the pixel shift and automatic brightness reduction functions. Only perform the panel refresh once a year maximum.

I forgot the parental lock password, how can I reset it?

Enter the PIN code 9999 to access settings, then set a new PIN code.

The screen goes black and there is no sound, what should I do?

Restart the TV by holding down the Power button for 5 seconds. If nothing happens, unplug the power cord, wait 2 minutes, then plug it back in. Also consult the Help Guide via the HELP button.

How do I update the TV software?

Connect the TV to the Internet, then go to Settings > System > Software update. You can also update via USB by downloading the file from the Sony website.

When should I perform the panel refresh?

Only if image retention is very visible. Do not perform it more than once a year, as it may reduce the panel's lifespan. The operation lasts about one hour and requires an ambient temperature between 10°C and 40°C.

Can I install my TV on the wall?

Yes, use a Sony SU-WL850 or SU-WL450 wall mount (not supplied). Installation must be carried out by a qualified professional. Follow the instructions provided with the mount.

The TV does not detect my HDMI source, what should I do?

Check that the HDMI cable is properly connected and is of the Ultra High Speed type. Try another HDMI port. Make sure the source is turned on. Restart the TV.

How do I use the Google voice assistant?

Press the microphone button on the remote control and speak. An Internet connection is required. To activate the built-in microphone, turn the BUILT-IN MIC SWITCH switch to ON. See the Help Guide for more details.

What cables are needed to connect a soundbar?

Use an HDMI cable for connection to the HDMI IN 3 (eARC) input to enjoy Dolby Atmos sound. You can also use an optical or audio jack. The TV has an S-CENTER SPEAKER IN input for compatible audio systems.

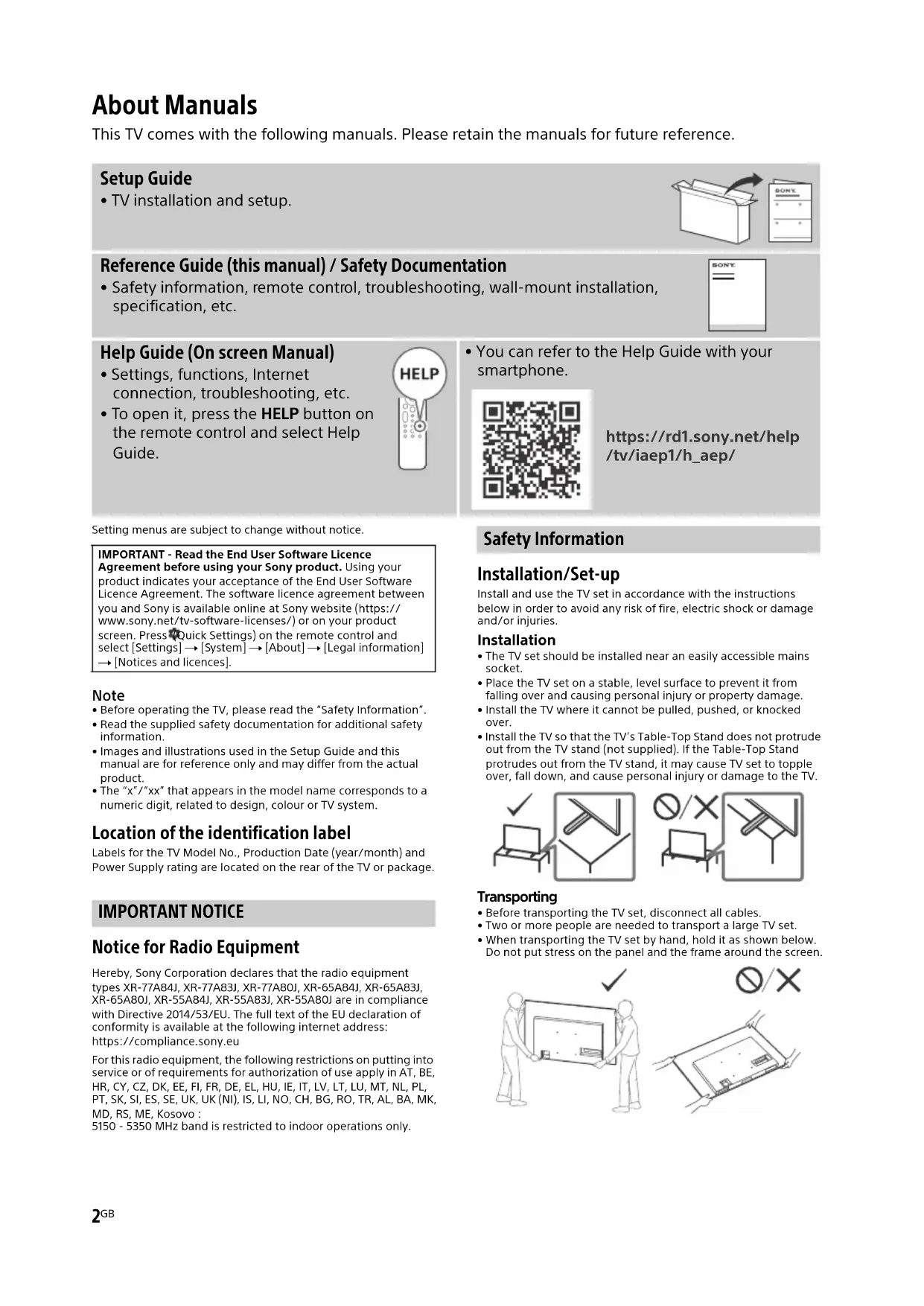

USER MANUAL OLED 4K Bravia XR55A83JAEP SONY

This TV comes with the following manuals. Please retain the manuals for future reference.

Setup Guide

• TV installation and setup.

Reference Guide (this manual) / Safety Documentation

• Safety information, remote control, troubleshooting, wall-mount installation, specification, etc.

Help Guide (On screen Manual)

• Settings, functions, Internet connection, troubleshooting, etc.
• To open it, press the HELP button on the remote control and select Help Guide.

• You can refer to the Help Guide with your smartphone.

https://rd1.sony.net/help /tv/iaep1/h_aep/

Setting menus are subject to change without notice.

IMPORTANT - Read the End User Software Licence

Agreement before using your Sony product. Using your product indicates your acceptance of the End User Software Licence Agreement. The software licence agreement between you and Sony is available online at Sony website (https:// www.sony.net/tv-software-licenses/) or on your product screen. Press Quick Settings) on the remote control and select [Settings] → [System] → [About] → [Legal information] → [Notices and licences].

Note

• Before operating the TV, please read the "Safety Information".
• Read the supplied safety documentation for additional safety information. Images and illustrations used in the Setup Guide and this manual are for reference only and may differ from the actual product. The "x"/"xx" that appears in the model name corresponds to a numeric digit, related to design, colour or TV system.

Location of the identification label

Labels for the TV Model No., Production Date (year/month) and Power Supply rating are located on the rear of the TV or package.

IMPORTANT NOTICE

Notice for Radio Equipment

Hereby, Sony Corporation declares that the radio equipment types XR-77A84J, XR-77A83J, XR-77A80J, XR-65A84J, XR-65A83J, XR-65A80J, XR-55A84J, XR-55A83J, XR-55A80J are in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://compliance.sony.eu

For this radio equipment, the following restrictions on putting into service or of requirements for authorization of use apply in AT, BE, HR, CY, CZ, DK, EE, FI, FR, DE, EL, HU, IE, IT, LV, LT, LU, MT, NL, PL, PT, SK, SI, ES, SE, UK, UK (NI), IS, LI, NO, CH, BG, RO, TR, AL, BA, MK, MD, RS, ME. Kosovo:

5150 - 5350 MHz band is restricted to indoor operations only.

Safety Information

Installation/Set-up

Install and use the TV set in accordance with the instructions below in order to avoid any risk of fire, electric shock or damage and/or injuries.

Installation

• The TV set should be installed near an easily accessible mains socket.
• Place the TV set on a stable, level surface to prevent it from falling over and causing personal injury or property damage. Install the TV where it cannot be pulled, pushed, or knocked over.

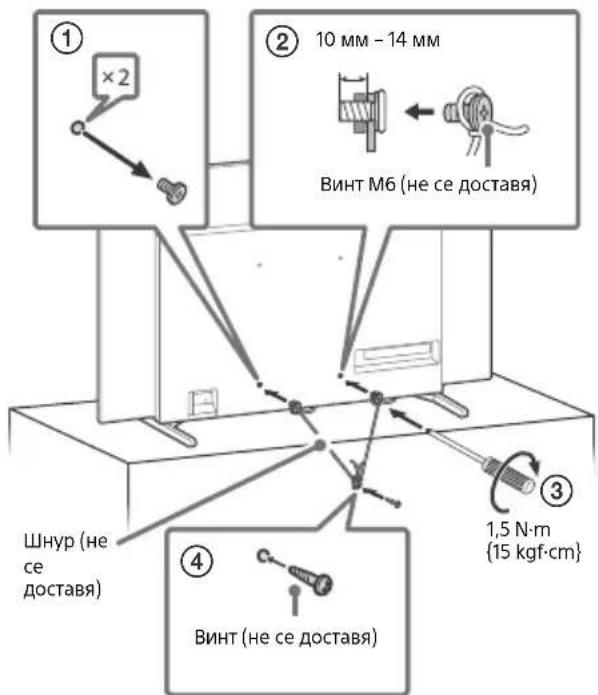

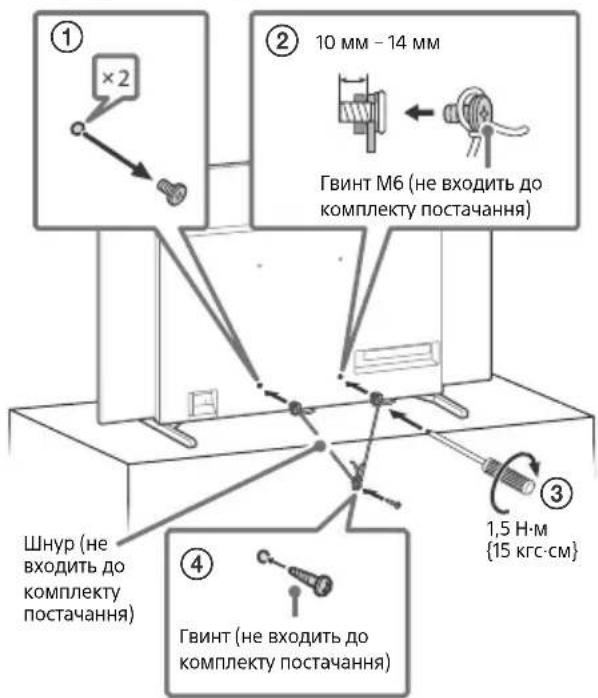

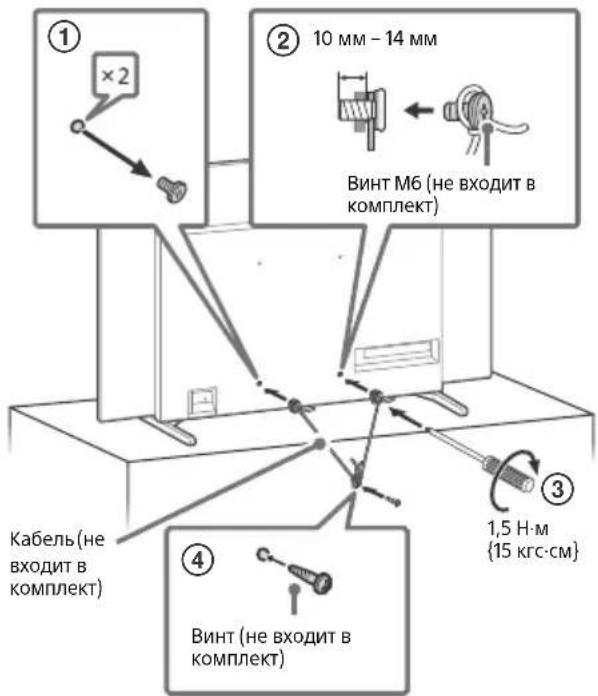

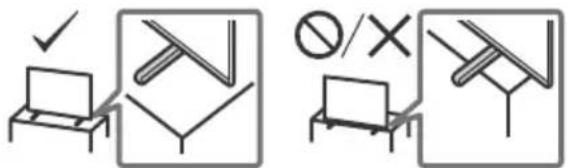

• Install the TV so that the TV's Table-Top Stand does not protrude out from the TV stand (not supplied). If the Table-Top Stand protrudes out from the TV stand, it may cause TV set to topple over, fall down, and cause personal injury or damage to the TV.

Transporting

• Before transporting the TV set, disconnect all cables.
• Two or more people are needed to transport a large TV set.
• When transporting the TV set by hand, hold it as shown below. Do not put stress on the panel and the frame around the screen.

• When handling or mounting the TV set, do not lay down the TV.

• When transporting the TV set, do not subject it to jolts or excessive vibration.
• When transporting the TV set for repairs or when moving, pack it using the original carton and packing material.

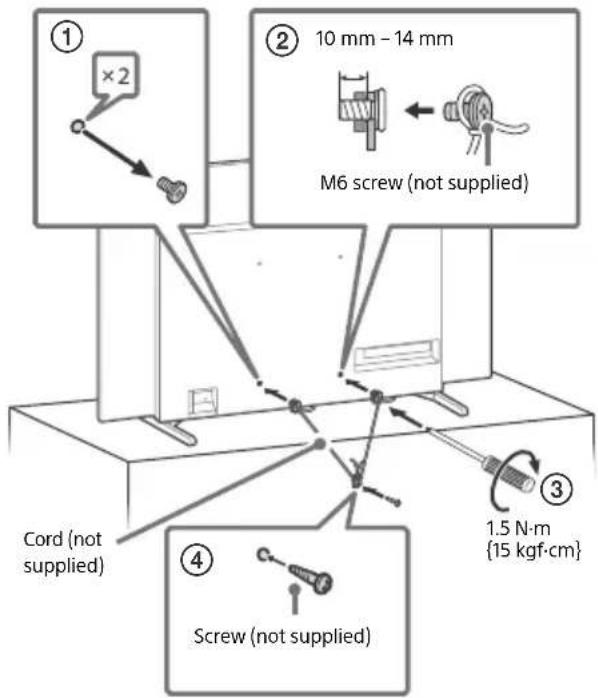

Topple prevention

Protecting the TV Screen (OLED TV)

Precautions to Protect the Screen from Damage

Image retention

OLED TVs are susceptible to image retention (burn-in) due to the characteristics of the materials used. Image retention may occur if images are displayed in the same location on the screen repeatedly or over extended periods of time. This is not a malfunction of the TV. Avoid displaying images that may cause image retention.

The following are examples of images that may cause image retention:

• Content with black bars either on the top and bottom and/or the left and right sides of the screen. (for example, Letterboxed, 4:3 screen, Standard definition)
• Static images such as photos. Video games that might have static content in some part of the screen.
• On-screen menus, programme guides, channel logos etc.
• Static content from applications.
• On-screen tickers, such as those used for news and headlines.

To reduce the risk of image retention:

• Sony recommends that you turn off the TV normally by pressing the power button on the remote control or the TV.
• Fill the screen by changing [Wide mode] to eliminate the black bars. Select [Wide mode] other than [Normal].
• Turn off the OSD (On Screen Display) by pressing the (Info/Text reveal) button, and turn off the menus from connected equipment. For details, refer to the instruction manuals for the connected equipment.
• Avoid displaying static images with bright colours (including white), clocks or logos on any portion of the screen.
• Set the picture settings based on the ambient conditions. The Standard Picture is recommended for home use and when viewing content that often displays the station logos, etc.

The TV has following features to help reduce/prevent image retention.

Panel refresh

A panel refresh will adjust the panel uniformity. Panel refresh can be performed and should only be used when image retention is very noticeable.

Caution:

• The Panel refresh function may affect the panel. Do not perform Panel refresh more than once a year as it may affect the usable life of the panel.
• Panel refresh takes about one hour to complete.
• A white line may be displayed on the screen during the Panel refresh, this is not a malfunction of the TV.
• Panel refresh will only work when the room temperature is between 10°C and 40°C.

Pixel shift

Automatically moves the image on the screen to prevent image retention.

Other feature

The screen brightness is automatically reduced when displaying still images, clocks, bright colours or logos etc.

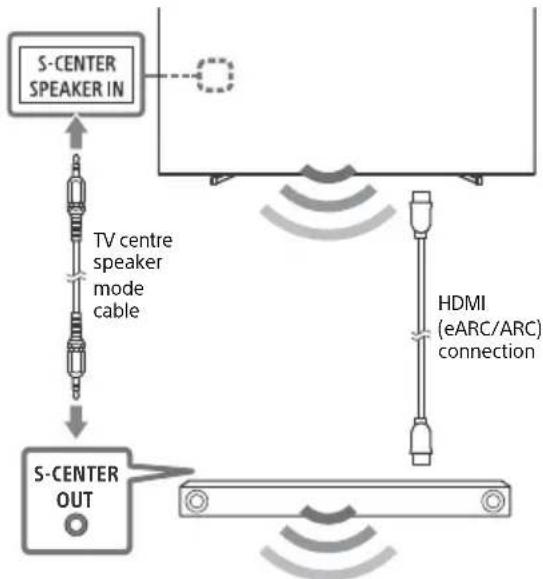

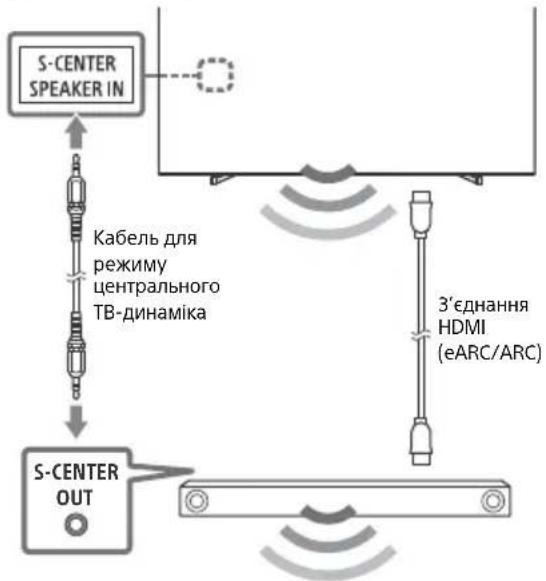

Using TV as Part of Audio System

Note

• Before connecting cables, disconnect the mains lead of both TV and AV receiver. Refer to the instruction manual of the Audio system with S-CENTER OUT terminal for detail.

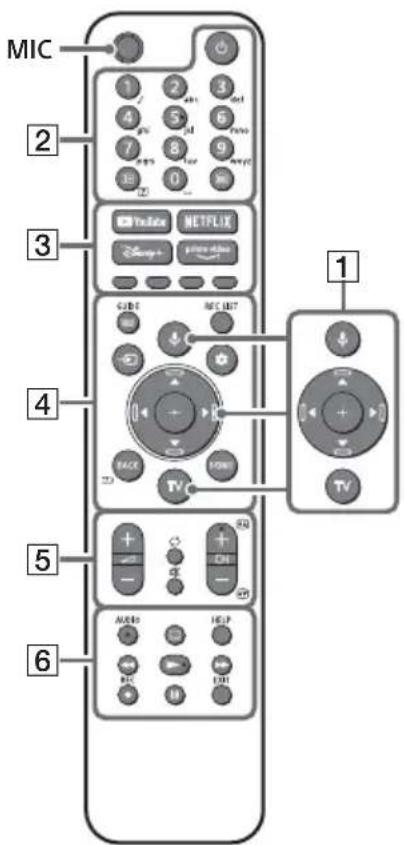

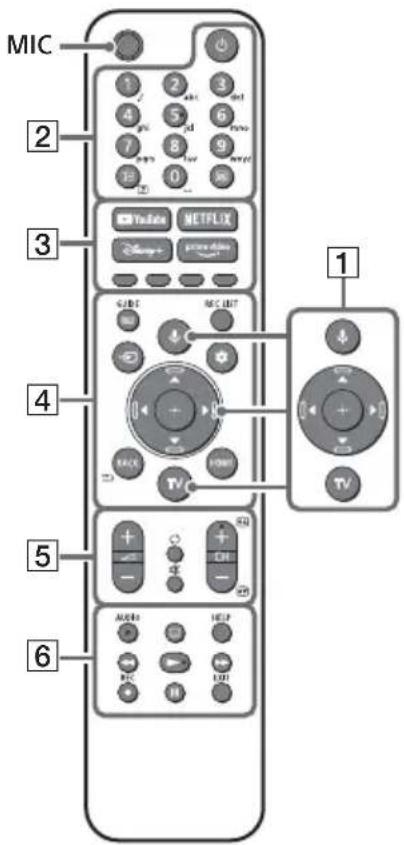

Remote Control and TV

The remote control shape, layout, availability and function of remote control buttons may vary depending on your region/country/TV model/TV settings.

1 (Microphone)/ Google Assistant: Use Google Assistant*1*2 or voice search*2 For hints on how to control your TV, press the microphone button on the remote control and say "voice hints".

▲/▼/◀/▶/OK On screen menu navigation and selection.

TV: Display TV channel list or switch to input.

2 (Power)

Number buttons

/Info/Text reveal): Display information. (Text): Display text information.

3 YouTubeTM / NETFLIX / Disney+ / Prime Video / Colour buttons 4 GUIDE Display the digital programme guide of TV or TV box*3.

REC LIST: Display the Rec list of USB HDD*4/ DVR*3.

Input select): Display and select the input source, etc.

Quick settings: Display Quick Settings.

BACK/

HOME

5 +/-(Volume)

(Jump)

(Mute)*5

CH + / - / : Select the channel, or next (3A) / previous (3V) page.

6 AUDIO: Select the sound of multilingual source or dual sound (depend on programme source).

(Subtitle setting)

HELP: Display the Help menu.

Record the currently viewed programme on USB HDD*4/DVR*3.

EXIT

Remote Control sensor / Light sensor / LED

7 (Power) BUILT-IN MIC SWITCH: Turn on/off the built-in MIC. Built-in MIC 1* 2 6 : To enable the built-in MIC, press the microphone button on the remote control and follow the on-screen instructions.

1 Only on limited region/country/TV model/language. 2 Google Assistant or voice search requires an Internet connection. 3 [TV box setup] setting is required. 4 Not available for Italy. 5 Accessibility shortcut is available by pressing and holding (Mute). 6 Power consumption will increase when the built-in MIC is enabled as it is always listening.

For more information, refer to the Help Guide.

Installing the TV to the Wall

Using the optional Wall-Mount Bracket (SU-WL850 or SU-WL450)* (not supplied)

To Customers:

For product protection and safety reasons, Sony strongly recommends that installation of your TV be performed by Sony dealers or licensed contractors. Do not attempt to install it yourself.

To Sony Dealers and Contractors:

Provide full attention to safety during the installation, periodic maintenance and examination of this product.

Wall-Mount Bracket Installation Information

For instructions on Wall-Mount Bracket installation, see the Installation Information (Wall-Mount Bracket) on the product page for your TV model.

• Follow the instruction guide provided with the Wall-Mount Bracket for your model. Sufficient expertise is required in installing this TV, especially to determine the strength of the wall for withstanding the TV's weight.
• Sony is not liable for any damage or injury caused by mishandling or improper installation.
• Only qualified service personnel should carry out wall-mount installations.
• For safety reasons, it is strongly recommended that you use Sony accessories, including:
• Wall-Mount Bracket SU-WL850
• Wall-Mount Bracket SU-WL450
• Be sure to use the screws supplied with the Wall-Mount Bracket when attaching the Wall-Mount Bracket to the TV set. The supplied screws are designed as indicated by illustration when measured from the attaching surface of the Wall-Mount Bracket. The diameter and length of the screws differ depending on the Wall-Mount Bracket model. Use of screws other than those supplied may result in internal damage to the TV set or cause it to fall, etc.

10 mm - 14 mm

Screw (M6)

Wall-Mount Bracket

TV's rear cover

• Be sure to store the unused screws and Table-Top Stand in a safe place until you are ready to attach the Table-Top Stand. Keep the screws away from small children.
• Only on limited region/country/TV model.

Troubleshooting

General troubleshooting for issues like: black screen, no sound, frozen picture, TV does not respond, or network is lost, do the following steps.

1. Restart your TV by pressing the power button on the remote control for about five seconds. The TV will restart. If the TV does not recover, try unplugging the mains lead, then press the power button on the TV and release it. Wait for two minutes, and plug in the mains lead. Or, press the power button on the TV for about 40 seconds until the TV turns off. 2. Refer to the Help menu by pressing HELP on the remote control. 3. Connect your TV to the Internet and perform a software update. Sony recommends you to keep your TV software updated. Software updates provide new features and performance improvements. 4. Visit Sony support website (information provided at the end of this manual).

When you plug in the TV, the TV may not be able to turn on for a while even if you press the power button on the remote control or the TV.

It takes time to initialize the system. Wait for about one minute, then operate it again.

The remote control does not function.

• Replace the batteries. The parental lock password has been forgotten.
• Enter 9999 for the PIN and enter the new PIN.

The screen becomes darker while watching TV.

• If the whole image or part of the image remains still, the screen brightness will be gradually reduced to prevent image retention. This is not a malfunction of the TV.

You are concerned about image retention.

If the same image is displayed repeatedly or for long periods of time, image retention may occur. To reduce image retention, we recommend that you turn off the TV normally by pressing the power button on the remote control or the TV.

Note

• Perform Panel refresh only when image retention is particularly noticeable. Avoid performing Panel refresh more than once a year because it may affect the usable life of the panel.
• Images that include clocks, logos and bright colours (including white) easily cause image retention. Avoid displaying these types of images for long periods of time, otherwise image retention may occur.

A white line appears on the screen.

• The Panel refresh has been performed. A white line may be displayed on the screen during the Panel refresh. This is not a malfunction of the TV. Panel refresh starts after the TV is turned off and takes about one hour to complete.

The message [Panel refresh did not finish...] is displayed.

When i) the TV is turned on, ii) the mains lead is unplugged, or iii) the room temperature falls outside of the range between 10°C and 40°C during the Panel refresh, the Panel refresh is not completed. Please avoid the above three conditions during the Panel refresh.

For more information on troubleshooting, refer to the Help Guide.

Specifications

System

Panel system: OLED (Organic Light Emitting Diode) Panel

TV system: Depend on your country/area selection/TV model

Analogue: B/G, D/K, I

Digital: DVB-T/DVB-C/DVB-T2

Satellite: DVB-S/DVB-S2

Colour system: PAL/SECAM/NTSC3.58 (Video only)/NTSC4.43 (Video only)

Channel coverage: Depend on your country/

Channel coverage: Depends on your country/

area selection/TV model

Analogue: UHF/VHF/Cable

Digital: UHF/VHF/Cable

Satellite: IF Frequency 950-2150 MHz

Sound output

XR-77A8xJ: 20 W + 20 W + 10 W

XR-65A8xJ/55A8xJ: 10 W + 10 W + 10 W

Wireless technology

Protocol IEEE 802.11a/b/g/n/ac

Bluetooth® Version 4.2

Frequency band(s)

Frequency range Output power
Wireless LAN (TV)
2400-2483.5 MHz	< 20.0 dBm
5150-5250 MHz	< 23.0 dBm
5250-5350 MHz	< 20.0 dBm
5470-5725 MHz	< 20.0 dBm
5725-5850 MHz	< 13.9 dBm
Bluetooth® (TV)
2400-2483.5 MHz < 10.0 dBm
Bluetooth® (Remote control)
2400-2483.5 MHz < 10.0 dBm

Input/Output jacks

Antenna (aerial)/cable

75 ohm external terminal for VHF/UHF

Satellite antenna

Female F Type Connector, 75 ohm.

DiSEqC 1.0, LNB 13 V/18 V & 22 kHz tone, Single

Cable Distribution EN50494.

/ AVIN/S-CENTER SPEAKER IN

Video/Audio input (mini jack)

S-centre speaker input (mini jack)

HDMI IN 1/2/3/4 (HDCP 2.3-compatible)

Video:

4096×2160p (50, 60 Hz) 1 2, 4096 × 2160p

(24 Hz)*1 3840×2160p (50, 60 Hz)*2, 3840×2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p, PC

Formats*3

3840 × 2160p (100, 120 Hz) *2*4

Audio:

In eARC (Enhanced Audio Return Channel)

mode

Refer to the online Help Guide for details.

Except eARC mode

5.1 channel linear PCM: 32/44.1/48/88.2/

96/176.4/192 kHz 16/20/24 bits, Dolby

Audio, Dolby Atmos, DTS

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (HDMI IN 3 only)*5

In eARC mode

refer to the online Help Guide for details.

In ARC mode

Two channel linear PCM: 48 kHz 16 bits,

Dolby Audio, Dolby Atmos, DTS

DIGITAL AUDIO OUT (OPTICAL)

Digital optical jack (Two channel linear PCM:

48 kHz 16 bits, Dolby Audio, DTS)

USB device port (3 USB HDD device for REC feature)

USB port 1 and 2 support High Speed USB

(USB 2.0)

USB port 3 supports Super Speed USB (USB 3.1 Gen 1)

CAM (Conditional Access Module) slot

LAN

10BASE-T/100BASE-TX connector (Depending on the operating environment of the network, connection speed may differ. The

communication rate and quality are not guaranteed.)

Power, Product Fiche and others

Power requirements

220V-240VAC,50Hz

Energy Efficiency Class*7

(Except Egypt)

XR-77A8xJ:A

XR-65A8xJ:A

XR-55A8xJ:B

(For Egypt only)

XR-77A80J:C

XR-65A80J: D

XR-55A80J: D

Screen size (measured diagonally) (Approx.) (Except Egypt)

XR-77A8xJ: 194.7 cm / 77 inches

XR-65A8xJ: 163.9 cm / 65 inches

XR-55A8xJ: 138.8 cm / 55 inches (For Egypt only)

XR-77A80J: 77 inches / 194.7 cm

XR-65A80J: 65 inches / 163.9 cm

XR-55A80J: 55 inches / 138.8 cm

Power consumption*7

In [Standard] mode

(Except Egypt)

XR-77A8xJ: 198 W

XR-65A8xJ: 154 W

XR-55A8xJ: 122 W

(For Egypt only)

XR-77A80J: 182.0 W

XR-65A80J: 144.6 W

XR-55A80J: 122.0 W

Annual energy consumption*7 (Except Egypt)*8

XR-77A8xJ: 275 kWh per year

XR-65A8xJ: 214 kWh per year

XR-55A8xJ: 169 kWh per year (For Egypt only)*9

XR-77A80J: 505 kWh per year

XR-65A80J: 402 kWh per year

XR-55A80J: 339 kWh per year

Standby power consumption*7*10*11

XR-77A8xJ: 0.50 W (29 W in software/EPG update mode)

XR-65A8xJ: 0.50 W (26 W in software/EPG update mode)

XR-55A8xJ: 0.50 W (27 W in software/EPG update mode)

Display resolution (horizontal × vertical) (pixels) 3840×2160

Output rating

500 mA (for USB 1/2), 900 mA (for USB 3)

Dimensions (Approx.) (w × h × d) (cm)

with Table-Top Stand

Standard position:

XR-77A8xJ: 172.2 × 102.2 × 36.7

XR-65A8xJ: 144.8 × 85.9 × 33.0

XR-55A8xJ: 122.7 × 73.5 × 33.0

Narrow position:

XR-77A8xJ: 172.2 × 102.2 × 36.7

XR-65A8xJ: 144.8 × 85.9 × 33.0

XR-55A8xJ: 122.7 × 73.5 × 33.0

Sound bar position:

XR-77A8xJ: 172.2 × 107.1 × 36.7

XR-65A8xJ: 144.8 × 90.8 × 33.0

XR-55A8xJ: 122.7 × 78.4 × 33.0

without Table-Top Stand

XR-77A8xJ: 172.2 × 99.9 × 5.4

XR-65A8xJ: 144.8 × 83.6 × 5.3

XR-55A8xJ: 122.7 × 71.2 × 5.3

Stand width (Approx.) (cm)

Standard position: 103.4

Narrow position: 69.2

Sound bar position: 103.6

Mass (Approx.) (kg)

with Table-Top Stand

XR-77A8xJ: 30.1

XR-65A8xJ: 23.5

XR-55A8xJ: 19

without Table-Top Stand

XR-77A8xJ: 28.9

XR-65A8xJ: 22.3

XR-55A8xJ: 17.8

Others

Optional accessories

Wall-Mount Bracket: SU-WL850 / SU-WL450

Operating temperature: 0°C - 40°C

Operating humidity: 10% - 80% RH (non-condensing)

*1 When 4096 × 2160p is input and [Wide mode] is set to [Normal], the resolution is displayed as 3840 × 2160p. To display 4096 × 2160p, set [Wide mode] setting to [Full 1] or [Full 2].

*2 Refer to the on-screen menu to set [HDMI signal format].

*3 Refer to the online Help Guide for details.

*4 HDMI IN 3 & 4 only. Use the Ultra High Speed HDMI Cable to connect.

*5 Connect your audio system to the HDMI IN 3 to route TV audio to your audio system.

*6 Function not available in Italy.

*7 This information is for EU and other countries whose relevant regulation is based on EU energy labelling regulation.

8 Energy consumption in kWh per year, based on the power consumption of the television operating 4 hours per day for 365 days. The actual energy consumption will depend on how the television is used. 9 Energy consumption in kWh per year, based on the power consumption of the television operating 8 hours per day for 365 days. The actual energy consumption will depend on how the television is used. 10 Specified standby power is reached after the TV finishes necessary internal processes. 11 Standby power consumption will increase when your TV is connected to the network.

Note

• Optional accessories availability depends on countries/region/TV model/stock.
• Design and specifications are subject to change without notice.
• Subscriptions for services and applications may be required and additional terms, conditions and/or charges may apply when using Google Assistant.
• Product fiche in this manual is for COMMISSION DELEGATED REGULATION (EU) 1062/2010. Refer to its website for (EU) 2019/2013 information.

Notes on Digital TV function

• Digital TV (DVB terrestrial, satellite and cable), interactive services and network functions may not be available in all countries or areas. Some functions might not be enabled or might not operate correctly with some providers and network environments. Some TV service providers may charge a fee for their services.
• This TV supports digital broadcasting using MPEG-2, H.264/MPEG-4 AVC and H.265/HEVC CODECs, but compatibility with all operator/service signals, which may change over time, cannot be guaranteed.

Trademark Information

• The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
• Dolby, Dolby Vision, Dolby Atmos, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation. Manufactured under license from Dolby Laboratories. Confidential unpublished works. Copyright © 1992-2020 Dolby Laboratories. All rights reserved.
• Gracenote, the Gracenote logo and logotype, "Powered by Gracenote" logo are either registered trademarks or trademarks of Gracenote, Inc. in the United States and/or other countries.
• Google TV and related logos are trademarks of Google LLC.
• For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. DTS, Digital Surround, and the DTS logo are registered trademarks or trademarks of DTS, Inc. in the United States and other countries. © 2020 DTS, Inc. ALL RIGHTS RESERVED.
• Netflix is a registered trademark of Netflix, Inc.
• DiSEqCTM is a trademark of EUTELSAT. This TV supports DiSEqC 1.0. This TV is not intended for controlling motorized antennas.
• TUXERA is a registered trademark of Tuxera Inc. in the US and other countries.
• All other trademarks are the property of their respective owners.

Product registration number (COMMISSION DELEGATED REGULATION (EU) 2019/2013)

XR-77A84J (421402), XR-77A83J (421401), XR-77A80J (421399), XR-65A84J (421398), XR-65A83J (421397), XR-65A80J (421394), XR-55A84J (416286), XR-55A83J (416282), XR-55A80J (416238).

https://rd1.sony.net/help /tv/iaep1/h_aep/

1 (Microphone) / Google Assistant):

https://www.sony.eu/support

Analogue: B/G, D/K, I

Satellite: DVB-S/DVB-S2

Analogue: UHF/VHF/Cable

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p,

Formats PC*3

3840 × 2160p (100, 120Hz) ^{2 4}

Audio:

In eARC (Enhanced Audio Return

Channel) mode

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (HDMI IN 3)

(only)*5

In eARC mode

https://rd1.sony.net/help /tv/iaep1/h_aep/

https://www.sony.eu/support

Digital: UHF/VHF/Cable

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p,

PC formats*3

3840 × 2160p (100, 120Hz) ^{2 4}

Audio:

In eARC mode (Enhanced Audio Return

Channel)

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (only HDMI IN 3)*5

In eARC mode

DIGITAL AUDIO OUT (OPTICAL)

Optical digital output (2-channel linear PCM: 48 kHz 16 bits, Dolby Audio, DTS)

Stereo mini jack

Headphones

1, 2, 3

(HDD 6 REC)*

https://rd1.sony.net/help/tv/iaep1/h_aep/

https://www.sony.eu/support

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p,

PC formats*

3840 × 2160p (100, 120 Hz)²⁴

Audio:

In eARC (Enhanced Audio Return

Channel) mode

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (only HDMI IN 3)*5

In eARC mode

Two-channel linear PCM: 48 kHz 16 bits,

Dolby Audio, Dolby Atmos, DTS

DIGITAL AUDIO OUT (OPTICAL)

https://rd1.sony.net/help /tv/iaep1/h_aep/

https://www.sony.eu/support

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p,

Computer formats*3

3840 × 2160p (100, 120Hz) ^{2 4}

Audio:

In eARC (Enhanced Audio Return Channel) mode

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (only HDMI IN 3)*5

In eARC mode

DIGITAL AUDIO OUT (OPTICAL)

High-Speed-USB (USB 2.0)

SuperSpeed-USB (USB 3.1 Gen 1)

XR-65A8xJ: 163.9 cm / 65 inches

XR-55A8xJ: 138.8 cm / 55 inches

Power consumption*

In [Standard] mode

XR-77A8xJ: 198 W

XR-65A8xJ: 154 W

XR-65A8xJ:154W

XR-55A8xJ:122W

https://rd1.sony.net/help/tv/iaep1/h_aep/

Installing the TV on the wall

https://www.sony.eu/support

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p,

PC formats*3

3840 × 2160p (100, 120Hz) ^{2 4}

Audio:

In eARC (Enhanced Audio Return

Channel) mode

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (Only HDMI IN 3)*5

In eARC mode

DIGITAL AUDIO OUT (OPTICAL)

Optical digital audio output (PCM linear 2 channels: 48 kHz 16 bits, Dolby Audio, DTS)

(Stereo mini jack)

Headphones

1,2,3

(HDD 6 REC)*

USB device port (device

USB HDD for REC functionality)

USB ports 1 and 2 support High Speed USB (USB 2.0)

USB port 3 supports Super Speed USB

(USB 3.1 Gen 1)

CAM slot (Conditional Access Module)

https://rd1.sony.net/help /tv/iaep1/h_aep/

https://www.sony.eu/support

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p, formats

PC*3

3840 × 2160p (100, 120Hz) ^{2 4}

Audio:

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (only HDMI IN 3)*5

In eARC mode

DIGITAL AUDIO OUT (OPTICAL)

https://rd1.sony.net/help /tv/iaep1/h_aep/

See the Help Guide for more information.

Installation information for Wall-mount

For instructions on installing the Wall-mount, see the installation information (Wall-mount) on the product page for your TV model. https://www.sony.eu/support

In eARC (Enhanced Audio Return

Channel) mode

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (Only HDMI IN 3)*5

In eARC mode

See the online help guide for details.

In ARC mode

DIGITAL AUDIO OUT (OPTICAL)

500 mA (for USB 1/2), 900 mA (for USB 3)

Mass (Approx.) (W × H × D) (cm)

with table stand

Standard position:

XR-77A8xJ: 172.2 × 102.2 × 36.7

XR-65A8xJ: 144.8 × 85.9 × 33.0

XR-55A8xJ: 122.7 × 73.5 × 33.0

Restricted position:

XR-77A8xJ: 172.2 × 102.2 × 36.7

XR-65A8xJ: 144.8 × 85.9 × 33.0

XR-55A8xJ: 122.7 × 73.5 × 33.0

Soundbar unit position:

XR-77A8xJ: 172.2 × 107.1 × 36.7

XR-65A8xJ: 144.8 × 90.8 × 33.0

XR-55A8xJ: 122.7 × 78.4 × 33.0

without table-top stand

XR-77A8xJ: 172.2 × 99.9 × 5.4

XR-65A8xJ: 144.8 × 83.6 × 5.3

https://rd1.sony.net/help/tv/iaep1/h_aep/

Setting menus may change without notice.

https://www.sony.eu/support

In eARC (Enhanced Audio Return

Channel) mode

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (on HDMI IN 3) 5

In eARC mode

2-channel linear PCM: 48 kHz 16-bit, Dolby

Audio, Dolby Atmos, DTS

DIGITAL AUDIO OUT (OPTICAL)

Digital optical connector (2-channel linear PCM:

48 kHz 16-bit, Dolby Audio, DTS)

(Stereo minijack)

Headphones

1, 2, 3 (HDD 6 REC)*

USB port (for 3 USB HDD devices for

REC function)

In [Standard] mode

XR-77A8xJ: 198 W

XR-65A8xJ: 154 W

XR-55A8xJ: 122 W

500 mA (for USB 1/2), 900 mA (for USB 3)

Mass (approx.) (b × h × d) (cm)

Including TV stand

Standard position:

XR-77A8xJ: 172.2 × 102.2 × 36.7

XR-65A8xJ: 144.8 × 85.9 × 33.0

XR-55A8xJ: 122.7 × 73.5 × 33.0

Narrow position:

XR-77A8xJ: 172.2 × 102.2 × 36.7

XR-65A8xJ: 144.8 × 85.9 × 33.0

XR-55A8xJ: 122.7 × 73.5 × 33.0

Soundbar position:

XR-77A8xJ: 172.2 × 107.1 × 36.7

XR-65A8xJ: 144.8 × 90.8 × 33.0

XR-55A8xJ: 122.7 × 78.4 × 33.0

Without TV stand

XR-77A8xJ: 172.2 × 99.9 × 5.4

XR-65A8xJ: 144.8 × 83.6 × 5.3

https://rd1.sony.net/help/tv/iaep1/h_aep/

eARC (Enhanced Audio Return

Channel) mode

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (HDMI IN 3 only)*5 in eARC mode

DIGITAL AUDIO OUT (OPTICAL)

https://rd1.sony.net/help/tv/iaep1/h_aep/

Settings menus may change without notice.

(Caption settings)

HELP: Displays the Help menu.

<</>>/11

• Start the program shown on the USB HDD*4/DVR*3.

EXIT

7 (Power)

BUILT-IN MIC SWITCH: Turns the built-in microphone on/off.

https://www.sony.eu/support

In eARC (Enhanced Audio Return

Channel) mode

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (only HDMI IN 3) 5

In eARC mode

DIGITAL AUDIO OUT (OPTICAL)

Digital optical connector (supports linear PCM: 48 kHz 16-bit, Dolby Audio, DTS)

(minijack, stereo)

Headphones

1,2,3 (HDD 6 REC)*

AM-spor (Conditional Access Module)

LAN

500 mA (for USB 1/2), 900 mA (for USB 3)

Weight (approx.) (w × h × d) (cm)

with table stand

Standard placement:

XR-77A8xJ: 172.2 × 102.2 × 36.7

XR-65A8xJ: 144.8 × 85.9 × 33.0

XR-55A8xJ: 122.7 × 73.5 × 33.0

Narrow placement:

XR-77A8xJ: 172.2 × 102.2 × 36.7

XR-65A8xJ: 144.8 × 85.9 × 33.0

XR-55A8xJ: 122.7 × 73.5 × 33.0

Soundbar placement:

XR-77A8xJ: 172.2 × 107.1 × 36.7

XR-65A8xJ: 144.8 × 90.8 × 33.0

XR-55A8xJ: 122.7 × 78.4 × 33.0

with table-top stand

XR-77A8xJ: 172.2 × 99.9 × 5.4

XR-65A8xJ: 144.8 × 83.6 × 5.3

https://rd1.sony.net/help/tv/iaep1/h_aep/

https://www.sony.eu/support

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p, computer formats*3

3840 × 2160p (100, 120 Hz)*2*4

Audio:

In eARC (Enhanced Audio Return Channel) mode

USB port 3 supports Super Speed USB (USB 3.1 Gen 1)

https://rd1.sony.net/help/tv/iaep1/h_aep/

Settings may be changed without prior notice.

IMPORTANT - Before using your Sony product, please read the End User Software License Agreement. By using the product, you confirm that you agree to the End User Software License Agreement. The software license agreement between you and Sony is available online on Sony's website (https://www.sony.net/tv-software-licenses/) or on the screen of your purchased product. Press (Quick Settings) on the remote control, select [Settings] -> [System] -> [About] -> [Legal information] -> [Notices and licenses].

Note

https://www.sony.eu/support

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (only HDMI IN 3)*5

In eARC mode

DIGITAL AUDIO OUT (OPTICAL)

https://rd1.sony.net/help/tv/iaep1/h_aep/

Menu settings may be changed without notice.

IMPORTANT - Before using your Sony product, please read the End User Software License Agreement.

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p,

PC formats*3

3840 × 2160p (100, 120 Hz) ^2*4

Audio:

In eARC (Enhanced Audio Return Channel) mode

For details, see the online Manual.

Except in eARC mode

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (Only HDMI IN 3 model) ⁵

In eARC mode

For details, see the online Manual.

In ARC mode

2-channel linear PCM: 48 kHz 16 bits,

Dolby Audio, Dolby Atmos, DTS

DIGITAL AUDIO OUT (OPTICAL)

Stand width (Approx.) (cm)

https://rd1.sony.net/help /tv/iaep1/h_aep/

https://www.sony.eu/support

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p, PC

formats*3

3840 x 2160p (100, 120 Hz) *4

Audio:

in eARC (Enhanced Audio Return Channel)

mode

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (only HDMI IN 3)*5

in eARC mode

DIGITAL AUDIO OUT (OPTICAL)

https://rd1.sony.net/help/tv/iaep1/h_aep/

Settings menus can be changed without prior notice.

Analog: B/G, D/K, I

Digital: DVB-T/DVB-C/DVB-T2

Satellite: DVB-S/DVB-S2

Color system: PAL/SECAM/NTSC3.58 (Video only)/NTSC4.43 (Video only)

Analog: UHF/VHF/Cable

Digital: UHF/VHF/Cable

Satellite: IF frequency 950-2150 MHz

Audio output

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p,

PC formats*3

3840 × 2160p (100, 120Hz) ^{2 4}

Audio:

In eARC mode (Enhanced Audio Return

Channel)

For details, consult the Online Help Guide.

Online Help Guide.

eARC/ARC (Enhanced Audio Return Channel/ Audio Return Channel) (Only HDMI IN 3)*5

In eARC mode

For details, consult the Online Help Guide.

In ARC mode

DIGITAL AUDIO OUT (OPTICAL)

Optical digital jack (2-channel linear PCM: 48 kHz 16-bit, Dolby Audio, DTS)

Optical digital jack (2-channel linear PCM: 48 kHz 16-bit, Dolby Audio, DTS)

Optical digital jack (2-channel linear PCM: 48 kHz 16-bit, Dolby Audio, DTS)

(Mini stereo jack)

Headphones

1,2,3 (HDD 6 REC)*

USB device port (3 HDD devices

https://rd1.sony.net/help/tv/iaep1/h_aep/

The settings and setup information may change without notice.

IMPORTANT - Before using your Sony product, please read the End User License Agreement on the screen. Using your product indicates that you accept the End User License Agreement on the screen. The End User License Agreement between you and Sony is also available on the Sony website (https://www.sony.net/tv-software-licenses/) and on the screen of your product. Press the HOME button, then select [Settings] → [System] → [Information] → [Legal Information] → [License Notices].

Caution

- Please read the safety documentation for additional safety information. The illustrations used in the setup guide and in this guide are for reference only and may differ from the actual product. The model name, corresponding to the model, may appear in the name, color, or system of the television.

Model Information

The model number, date of manufacture (year/month), and power class are located on the rear of the television or on the packaging.

IMPORTANT CAUTION

Caution for radio equipment

Hereby, Sony Corporation declares that this radio equipment type XR-77A84J, XR-77A83J, XR-77A80J, XR-65A84J, XR-65A83J, XR-65A80J, XR-55A84J, XR-55A83J, XR-55A80J is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://compliance.sony.eu

For this radio equipment, the following restrictions apply for putting into service or for authorization of use in AT, BE, HR, CY, CZ, DK, EE, FI, FR, DE, EL, HU, IE, IT, LV, LT, LU, MT, NL, PL, PT, SK, SI, ES, SE, UK, UK (NI), IS, LI, NO, CH, BG, RO, TR, AL, BA, MK, MD, RS, ME, Kosovo:

5150 - 5350 MHz frequency is restricted to indoor use only.

Safety Information

Installation/Setup

Install and use the television in accordance with the instructions described below to avoid the risk of fire, electric shock, or damage and/or injury.

The television must be placed close to the power outlet. - Place the television on a stable, flat surface to avoid it falling, which could cause injury or damage to property. - Install the television in a place where it cannot be pushed, pulled, or knocked over.

• Place the television so that the table for the TV is not in contact with the table on which the television is placed (not touching). If the table for the TV is pulled out directly from the table on which the television is placed, this could cause the television to tip over and could cause injury or damage to the television.

Moving

- Before moving the television, disconnect all cables from it. Moving a large television requires two or more people. When moving the television to a shelf, hold it as shown below. Do not press on the panel near the screen.

When moving or securing the television, do not hold it by the stand.

• When moving, do not expose the television to sudden impacts or vibrations. When moving the television for repair or disposal, pack it using the original packaging material.

Preventing falls

Protecting the screen of the television (OLED TV)

Preventive measures to protect the screen from damage

Image retention

OLED TVs are susceptible to image retention (burn-in) due to the characteristics of the display panel used. Image retention may occur if a still image is displayed on the screen repeatedly or for an extended period of time. This is not a malfunction of the television. Avoid displaying images that may cause image retention.

Examples of images that may cause image retention include:

Content with black bars at the top and bottom or left and right sides of the screen. (For example, letterboxed format, 4:3 screen, standard resolution) - Still images such as video game screens, which have static content in some areas of the screen. - Screen menus, program guides, channel logos, etc. - Static content from applications. - Screen brightness, such as settings used for news broadcasts.

To reduce the risk of image retention:

• Sony recommends using the TV as usual, as if you were using a remote control for the TV. Press the screen, then apply [Wide screen mode] to remove the black bars. For [Wide screen mode], select, then select [Normal]. It turns off (Screen Display) by pressing the button I+/INFO/DISPLAY TEXT) and turns off the menu from the connected equipment. For details, see the user manual for the connected equipment. - Adjust the picture settings with the remote control (including brightness), time, or emblem to suit your screen. Set the picture according to the conditions of the environment. The standard picture mode is recommended for home use when viewing content that often shows static images.

The TV has functions that help reduce or prevent image retention.

Panel refresh

Refreshes the panel to improve the image. You can refresh the panel, but only if image retention is severe.

Caution:

The panel refresh function may shorten the panel's lifespan. Do not refresh the panel more than once a year, as this may reduce the panel's lifespan. - Panel refresh takes about one hour. - During panel refresh, a white line may appear on the screen; this is not a malfunction of the TV. - Panel refresh works only when the room temperature is between 10 °C and 40 °C.

Pixel shift

Automatically shifts the image on the screen to prevent image retention.

Other functions

The brightness of the screen automatically decreases when static images, time, or logos are displayed.

Input/Output jacks

Antenna/cable

75 ohm external terminal for VHF/UHF

Satellite antenna

Connector type F, female, 75 ohm.

DiSEqC 1.0, LNB 13 V/18 V & 22 kHz TOH

Distribution over 1 cable EN50494.

• / -AV IN / S-CENTER SPEAKER IN

Video/audio input (mini jack)

Input for S-center high speaker (mini jack)

HDMI IN 1/2/3/4 (compatible with HDCP 2.3)

Video:

4096×2160p (50, 60 Hz)*1*2, 4096×2160p

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p, PC

Formats*3

3840×2160p (100, 120 Hz)*2*4

Audio:

In eARC mode (Enhanced Audio Return

Channel)

For more information, refer to the operating instructions.

For more information, refer to the operating instructions.

Connection via eARC

5.1 channel linear PCM: 32/44.1/48/

88.2/96/176.4/192 kHz 16/20/24 bit,

Dolby Audio, Dolby Atmos, DTS

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (via HDMI IN 3)*5

eARC mode

For more information, refer to the operating instructions.

ARC mode

DIGITAL AUDIO OUT (OPTICAL)

Digital optical output (2-channel linear

PCM: 48 kHz 16 bit, Dolby Audio, DTS)

1, 2, 3 (HDD 6 REC)*

USB port (2 USB HDD)

device for backup)

USB ports 1 and 2 support High Speed USB (USB 2.0)

USB port 3 supports Super Speed USB

(USB 3.1 Gen 1)

LAN (for network conditions) jack

LAN

10BASE-T/100BASE-TX connector (B)

Depending on network conditions, the speed of data transfer

may vary. The quality of

communication is not guaranteed.

The quality of communication is not guaranteed.

Storage, product name and other

XR-65A8xJ: 214 kWh per year

XR-55A8xJ: 169 kWh per year

Energy consumption

Standby 7 9*10

XR-77A8xJ: 0.50 W (29 W in standby with network activation / EPG)

XR-65A8xJ: 0.50 W (26 W in standby with network activation / EPG)

XR-55A8xJ: 0.50 W (27 W in standby with network activation / EPG)

Resolution on display (horizontal × vertical)

(pixels)

3840 × 2160

Output nominal data

500 mA (for USB 1/2), 900 mA (for USB 3)

Dimensions (approx.) (w× B× d) (cm)

With stand

Standard position:

XR-77A8xJ: 172.2 × 102.2 × 36.7

XR-65A8xJ: 144.8 × 85.9 × 33.0

XR-55A8xJ: 122.7 × 73.5 × 33.0

Wall-mounted position:

XR-77A8xJ: 172.2 × 102.2 × 36.7

XR-65A8xJ: 144.8 × 85.9 × 33.0

XR-55A8xJ: 122.7 × 73.5 × 33.0

Position on stand:

XR-77A8xJ: 172.2 × 107.1 × 36.7

XR-65A8xJ: 144.8 × 90.8 × 33.0

XR-55A8xJ: 122.7 × 78.4 × 33.0

Without stand mass

XR-77A8xJ: 172.2 × 99.9 × 5.4

XR-65A8xJ: 144.8 × 83.6 × 5.3

Relative humidity

10% - 80% (without condensation)

*1 When 4096 × 2160p is input and [Signal processor mode] is set to [Normal], the resolution is displayed as 3840 × 2160p. To display 4096 × 2160p, set [Signal processor mode] to [Off 1] or [Off 2].

*2 See the on-screen menu to set [HDMI signal format].

*3 For more information, refer to the online help guide.

*4 Only HDMI IN 3 & 4. Use a high-speed HDMI cable for 4K content.

*5 Connect the audio system to HDMI IN 3 to output the TV audio to your audio system.

https://rd1.sony.net/help /tv/iaep1/h_aep/

https://www.sony.eu/support

Follow the instructions provided with the TV to install the stand. Ensure you have the necessary experience for the installation of this television, or consult a professional to avoid any damage to the wall that supports the weight of the television.

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p, PC

Computer formats

3840 × 2160p (100, 120 Hz)²⁴

Hxoc:

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (only via HDMI IN 3)*5

Set the ARC setting

Refer to the electronic manual

DIGITAL AUDIO OUT (OPTICAL)

Information about commercial marks

• The terms HDMI and HDMI High-Definition Multimedia Interface, as well as the HDMI logo, are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries. Dolby, Dolby Vision, Dolby Atmos, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation. Manufactured under license from Dolby Laboratories. Unauthorized works are prohibited. Copyright © 1992-2020 Dolby Laboratories. All rights reserved. The Gracenote name, logo, and the "Powered by Gracenote" logo are registered trademarks or trademarks of Gracenote, Inc. in the United States and/or other countries.
• The Google TV name and related logos are trademarks of Google LLC.
• For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. The DTS name, Digital Surround, and the DTS logo are registered trademarks or trademarks of DTS, Inc. in the United States and other countries. © 2020 DTS, Inc. ALL RIGHTS RESERVED. The Netflix name is a trademark of Netflix, Inc. The DiSEqC™ name is a trademark of EUTELSAT. This television supports the DiSEqC 1.0 protocol. This television is not intended for controlling motorized antennas. The TUXERA name is a registered trademark of Tuxera Inc. in the U.S. and other countries.
• All other trademarks are
• the property of their respective owners.

Product registration number (according to Regulation (EU) 2019/2013)

XR-77A84J (421402), XR-77A83J (421401), XR-77A80J (421399), XR-65A84J (421398), XR-65A83J (421397), XR-65A80J (421394), XR-55A84J (416286), XR-55A83J (416282), XR-55A80J (416238).

About the Guides

https://rd1.sony.net/help /tv/iaep1/h_aep/

Panel System: OLED (Organic Light Emitting

Diode - Organic Light Emitting Diode) Panel

Digital: UHF/VHF/Cable

Satellite: IF Frequency 950-2150 MHz

Audio output

XR-77A8xJ: 20W + 20W + 10W

XR-65A8xJ/55A8xJ:10W+10W+10W

eARC (Enhanced Audio Return Channel)

mode

For details, refer to the online Help Guide.

Except in eARC mode

5.1 channel linear PCM: 32/44.1/48/88.2/

96/176.4/192 kHz 16/20/24 bit, Dolby

Audio, Dolby Atmos, DTS

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (only HDMI IN 3)*5

In eARC mode

For details, refer to the online Help Guide.

In ARC mode

2-channel linear PCM: 48 kHz 16 bit, Dolby

Audio, Dolby Atmos, DTS

DIGITAL AUDIO OUT (OPTICAL)

Digital optical jack (2-channel linear PCM: 48 kHz

16 bit, Dolby Audio, DTS)

(Stereo Mini Jack)

Headphones

1,2,3 (HDD 6 REC)*

USB device port (3 for recording feature)

HDD devices)

Ports 1 and 2 support High Speed USB (USB 2.0)

Port 3 supports Super Speed USB (USB 3.1

Gen 1)

CAM (Conditional Access Module) slot

LAN

https://rd1.sony.net/help/tv/iaep1/h_aep/

Safety

Installation/Connection

To avoid fire, electric shock, damage to the TV, or injury, perform installation and operation of the TV according to the following instructions.

Installation

The TV should be installed near an easily accessible power outlet. To prevent tipping or injury, install the TV on a stable, flat surface. - Install the TV in a place where it cannot be pulled or tipped over.

• Position the TV in such a way that its stand does not extend beyond the TV stand (not included in the package). If the stand extends beyond the TV stand, the TV may tip over and fall, which could result in injury or damage to the TV.

Moving the TV

• Before moving the TV, disconnect all cables from it. -For large TVs, two or more people are required.
• When carrying the TV by hand, hold it as shown below. Do not apply pressure to the panel or the screen frame.

-When installing the TV, do not place it with the screen facing down.

• When transporting, protect the TV from shocks and strong vibrations. If it is necessary to deliver the TV to a repair shop or transport it to another location, pack it in the cardboard box and packing materials in which it was originally supplied.

Preventing tipping over

Protecting the TV screen (OLED TV)

Precautions for protecting the screen from damage

Afterimage effect

Due to the properties of the materials used in OLED TVs, an afterimage effect (image retention on the screen) may occur. The afterimage effect can occur if images are displayed repeatedly in the same location or for extended periods of time. This is not a malfunction of the TV. Do not display images that can cause the afterimage effect.

Below are examples of images that can cause the afterimage effect:

Content with black bars at the top and bottom and/or left and right on the screen. (e.g., letterboxed screen format, 4:3 at standard resolution) -Still images, such as photographs. Videos that may have still content in certain parts of the screen. -Screen menus, TV programs, channel logos, etc. -Still content in apps -Screen tickers, for example in news and headlines.

To reduce the risk of the afterimage effect occurring:

• Sony recommends turning off the TV in the usual way, by pressing the power button on the remote control or on the TV. Fill the screen by selecting [Wide screen mode] to eliminate black bars. Select [Wide screen mode] instead of [4:3].
• Turn off the OSD (on-screen display) functions (using the [1] FORMAT/EXIT button) and also turn off the menu on the connected equipment. For details, refer to the operating instructions for the connected equipment. Standard on-screen displays may appear with artifacts (including flickering) in the lower part of the screen.

Set the image settings according to the ambient conditions. For home viewing, as well as for viewing content with on-screen displays of station logos, T.I. recommends the standard image setting.

The TV provides the following functions to reduce or prevent the afterimage effect.

Panel Refresh

Panel refresh is performed to correct uniformity of the screen. You can perform panel refresh; this option should be used only when noticeable signs of the afterimage effect appear.

Caution:

• The panel refresh function may affect the panel. Do not perform panel refresh more than once a day, as this may affect the panel's lifespan.
• Panel refresh takes approximately 1 hour.
• While performing the panel refresh function, the screen may appear dark; this is not a sign of a TV malfunction.
• Panel refresh works only at temperatures from 10°C to 40°C

Pixel Shift

Automatic shifting of the screen image to prevent the afterimage effect.

Function

Screen brightness decreases automatically when displaying photos, clocks, bright lights, or logos.

For customer information:

To ensure the safety of the product, Sony strongly recommends that only qualified service personnel or licensed installers perform the TV installation. Do not attempt to install it yourself.

For Sony dealers and installers:

Pay special attention to safety during installation, periodic maintenance, and inspection of this product.

Mount the TV using the bracket for wall mounting

Bracket for wall mounting

Rear cover of the TV

Keep the unused screws and table-top stand in a safe place until you are ready to secure the table-top stand. Keep the screws out of the reach of children. *Only in certain regions/countries/TV models.

Troubleshooting

The main ways to solve and fix the following problems: blank screen, no sound, frozen frames, no response when pressing buttons, network loss. If these problems occur, perform the following actions.

1 Restart the TV by pressing the power button on the remote control for about five seconds. If the TV does not return to the previous mode, try disconnecting the power cord, then press the power button on the TV and release it. Wait for two minutes, then reconnect the power cord. Or press and hold the power button on the TV for about 40 seconds until the TV turns off. 2 See the help menu by pressing the HELP button on the remote control. 3 Connect the TV to the internet and perform a software update. Sony recommends updating the TV software in a timely manner. Thanks to the software update, the TV's performance improves, and new functions become available. 4 Visit the Sony support website (information provided at the end of this manual).

The remote control does not work.

• Replace the batteries.

Forgot the PIN for the "Parental Lock" function.

Enter 9999 as the PIN code and enter a new PIN code.

The screen darkens while watching the TV.

• If a still image is displayed on the screen, the screen brightness gradually decreases to prevent the afterimage effect. This is not a malfunction of the TV.

You are concerned about the afterimage effect.

If a still image is displayed repeatedly or for a long time on the screen, an afterimage effect may occur. To reduce the afterimage effect, we recommend turning off the TV in the standard way by pressing the power button on the TV.

Solution

• Perform the panel refresh only if the afterimage effect is strongly noticeable. Do not perform the panel refresh more than once a day, as this may affect the panel's lifespan.
• Images containing high contrast colors (including white) can quickly lead to the afterimage effect. Do not allow prolonged display of such images, otherwise the afterimage effect may occur.

A white line is displayed on the screen.

• Panel refresh has been performed. When performing the panel refresh function, a white line may appear on the screen. This is not a malfunction of the TV. The panel refresh starts after turning off the TV and takes approximately an hour.

The message [Panel refresh not completed...] is displayed.

If i) the TV is turned on, ii) the power cable is disconnected, or iii) the ambient temperature goes outside the range of 10°C - 40°C during the execution of the panel refresh function, this process will not be completed. Avoid the three conditions mentioned above during the panel refresh.

Analog: B/G, D/K, I

Digital: DVB-T/DVB-C/DVB-T2

Satellite: DVB-S/DVB-S2

Color system: PAL/SECAM/NTSC3.58 (only

Video)/NTSC4.43 (only Video)

We accept the following channels:

Depending on the selected country/region/model of the TV

Analog: UHF/VHF/cable

UHF/VHF/cable

Satellite: intermediate frequency

950-2150 MHz

Audio output

XR-77A8xJ: 20W+20W+10W

XR-65A8xJ/55A8xJ: 10W+10W+10W

Wireless technology

Protocol IEEE 802.11a/b/g/n/ac

Bluetooth® version 4.2

Input/Output connectors

Antenna/cable

75 ohm connector for VHF/UHF

Antenna connector

F-type connector, 75 Ω.

DiSEqC 1.0, LNB 13 V/18 V, tone 22 kHz, pulse.

via a single cable EN50494.

/AVIN/S-CENTER SPEAKER IN

Video/audio output (minijack connector)

Input connector for center speaker

S-Center Speaker (minijack connector)

HDMI IN 1/2/3/4 (with HDCP 2.3 support)

Video:

4096×2160p (50, 60 Hz) *1*2, 4096×2160p

(24 Hz)*1, 3840×2160p (50, 60 Hz)*, 3840×

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p,

Formats K^*3

3840 × 2160 p (100, 120 u ) ^*2 4

Audio:

In eARC mode (Enhanced Audio Return Channel)

For detailed information, see the Interactive Reference Guide.

Except for eARC

5.1-channel linear PCM: 32/44.1/

48/88.2/96/176.4/192 kHz 16/20/24 bit,

Dolby Audio, Dolby Atmos, DTS

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (Only HDMI IN 3)*5

In eARC mode

For detailed information, see the Interactive Reference Guide.

In eARC mode

Linear PCM: 48 kHz 16 bit, Dolby Audio, Dolby Atmos, DTS

DIGITAL AUDIO OUT (OPTICAL)

Optical digital output

(Supports: 48 kHz, 16-bit, Dolby Audio, DTS)

Stereo mini-jack

Headphones

1, 2,

(HDD 6 REC)*

USB device port (hard disk)

USB port with recording function

USB ports 1 and 2 support

high-speed USB connection

(USB 2.0)

USB port 3 supports super-speed USB connection (USB 3.1 Gen 1)

CAM slot (limited access module)

LAN

10BASE-T/100BASE-TX (speed

of connection depends on the

network environment. Speed and quality of transmission

of data are not guaranteed.)

Power supply, reference data sheet of the device and other

Electrical requirements

220V-240V AC, 50 Hz

Energy efficiency class

XR-77A8xJ:A

XR-65A8xJ:A

XR-55A8xJ:B

Screen size (diagonal) (approx.)

XR-77A8xJ:194.7cm/77 inches

XR-65A8xJ:163.9cm/65 inches

XR-55A8xJ:138.8cm/55 inches

Power consumption in standby mode

[Standard]

XR-77A8xJ: 12.3 mW/cm²

XR-65A8xJ: 13.5 mW/cm²

XR-55A8xJ: 14.9 mW/cm²

Energy consumption

Standby time [Standard]

XR-77A8xJ: 198 W

XR-65A8xJ: 154 W

XR-55A8xJ: 122 W

Annual energy consumption*

XR-77A8xJ: 275 kWh per year

XR-65A8xJ: 214 kWh per year

XR-55A8xJ: 169 kWh per year

Power consumption in standby mode*89

Software and EPG data updates

Software and EPG data updates

Software and EPG data updates

Screen resolution (horizontal × vertical) (dots)

3840 × 2160

Output parameters

500 mA (for USB 1/2), 900 mA (for USB 3)

Dimensions (approx.) (W × H × D) (cm)

Supplied accessories

Standard position:

XR-77A8xJ: 172.2 × 102.2 × 36.7

XR-65A8xJ: 144.8 × 85.9 × 33.0

XR-55A8xJ: 122.7 × 73.5 × 33.0

Position:

XR-77A8xJ: 172.2 × 102.2 × 36.7

XR-65A8xJ: 144.8 × 85.9 × 33.0

XR-55A8xJ: 122.7 × 73.5 × 33.0

Sound bar position:

XR-77A8xJ: 172.2 × 107.1 × 36.7

XR-65A8xJ: 144.8 × 90.8 × 33.0

XR-55A8xJ: 122.7 × 78.4 × 33.0

Without tabletop stand

With tabletop stand

XR-77A8xJ: 30.1

XR-65A8xJ: 23.5

XR-55A8xJ: 19

Without tabletop stand

XR-77A8xJ: 28.9

XR-65A8xJ: 22.3

XR-55A8xJ: 17.8

PpOuee

Accessories

For wall-mounted installation:

SU-WL850 / SU-WL450

Storage conditions:

Products should be stored in their original packaging in dark, dry, clean, well-ventilated rooms,

isolated from sources of acids and alkalis. Storage temperature: from

-20°C to +60°C. Relative storage humidity: < 80% (without condensation).

Operating temperature: from 0°C to 40°C

Operating relative humidity: 10-80% (without condensation).

1 When a 4096×2160p signal is input and the [Wide mode] parameter is set to [Normal], the resolution is converted to 3840×2160p. To obtain a 4096×2160p image, set the [Wide mode] parameter to [Full 1] or [Full 2]. 2 See the on-screen menu to set [HDMI signal format]. 3 For more information, see the Interactive Reference Guide. 4 Only HDMI IN 3 & 4. When connecting, use Ultra High Speed HDMI Cables. 5 Connect an audio system to HDMI IN 3 to output the TV's audio signal to the audio system. 6 Function not available for this model. 7 Annual power consumption in kWh is based on the TV operating 4 hours per day for 365 days. Actual power consumption will vary depending on how the TV is used. 8 The indicated standby power consumption is achieved after the TV has completed the necessary internal processes. 9 Standby power consumption will increase when the TV is connected to the network. 10 Note: Maximum values for both parameters cannot be achieved simultaneously.

Availability of additional accessories depends on the country/region/model of the TV/availability in stores. Design and technical specifications may be changed without notice. Subscriptions for services and applications may be required, and additional terms, conditions and/or fees may apply when using Google Assistant.

Note regarding digital TV

• Digital TV (digital terrestrial/satellite/cable TV broadcasting), interactive services and functions may not be available in all countries and regions. Some functions may not work or may work incorrectly with some service providers and in some network environments. TV service providers may set additional fees for their services. This TV supports digital broadcasting using MPEG-2, H.264/MPEG-4 AVC and H.265/HEVC codecs, but its compatibility with all operator/service signals, which may change over time, is not guaranteed.

Information about trademarks

• The terms HDMI and HDMI High-Definition Multimedia Interface and the HDMI logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.
• The name Dolby, Dolby Vision, Dolby Atmos, Dolby Audio and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation. Manufactured under license from Dolby Laboratories. Confidential unpublished works. Copyright © 1992-2020 Dolby Laboratories. All rights reserved.
• Gracenote, the Gracenote logo and logotype, and the "Powered by Gracenote" logo are registered trademarks or trademarks of Gracenote, Inc. in the United States and/or other countries.
• Google TV and accompanying logos are trademarks of Google LLC. For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. DTS, Digital Surround and the DTS logos are registered trademarks or trademarks of DTS, Inc. in the United States and other countries. © 2020 DTS, Inc. All rights reserved.
• Netflix is a registered trademark of Netflix, Inc.
• DiSEqC™ is a trademark of EUTELSAT. This TV supports the DiSEqC 1.0 communication protocol. This TV is not intended for controlling motorized antennas.
• TUXERA is a registered trademark of Tuxera Inc. in the United States and other countries. All other trademarks are the property of their respective owners.

For manuals

Keep this manual for future reference.

Setup Guide

Installation and setup of the TV.

Setup Guide (this guide) / Safety Documentation

• Information on safe operation, remote control, setup, and troubleshooting, as well as the TV's specifications.

Setup Guide (Ukrainian)

Setup of the TV, Internet connection, and troubleshooting. - To open it, press the HELP button on the remote control and select "Help".

https://rd1.sony.net/help /tv/iaep1/h_aep/

The setup menu may change without notice.

IMPORTANT - Read the end user license agreement before using the Sony product.

By using this product, you accept the end user license agreement for the software. This license agreement is available online at the Sony website (https://www.sony.net/ tv-software-licenses/) or on the screen of your product. Press (Settings) on the remote control and select [Setup] → [System] → [About] → [Legal information] → [Notices and licenses].

Note

• Before using the TV, please read the safety information for safe operation. Familiarize yourself with the safety documentation to obtain basic safety information. The illustrations in this manual may differ from the actual product. These illustrations are provided for reference only. The letters "X" in the model name indicate the numerical designation of the model and the construction of the TV system.

Location of the identification label

The label indicating the model number, production date (year/month), and electrical parameters is located on the TV or on the packaging.

The date of manufacture is indicated on the packaging label in the following format: YYYY/MM, where YYYY is the year and MM is the month of manufacture.

IMPORTANT NOTE

Product name: Television

Sony Corporation hereby declares that the Sony televisions models XR-77A8OJ, XR-65A8OJ, XR-55A8OJ comply with the technical regulations on radio equipment; the full text of the declaration of conformity is available at the following address: http://www.compliance.sony.ua/.

Radio equipment may be used on the territory of Ukraine without restrictions on the radio frequency spectrum.

Manufacturer: Sony Corporation, 1-7-1 Konan Minato-ku Tokyo, 108-0075 Japan

Made in Slovakia. Country of manufacture is indicated on the product and packaging.

Safety information

Installation/Setup

Install and use the television in accordance with the instructions below to prevent the risk of fire, electric shock, and/or injury.

Installation

The television must be installed near an easily accessible electrical outlet. Place the television on a stable surface to prevent it from falling and causing injury or damage to the TV or other property. - Place the television on a stable surface.

• Install the television in such a way that the stand does not protrude beyond the edges of the TV (does not extend beyond the TV's footprint). If the stand protrudes beyond the edges of the TV, it may cause the TV to tip over or fall, resulting in injury or damage to the TV.

Transportation

• Before transporting the TV, disconnect all cables. To transport a large TV, two or more people are required. When carrying the TV by hand, hold it as shown in the illustration. Do not press on the panel and the frame around the screen.

The TV should be installed, mounted, and assembled only by qualified personnel.

• When moving the TV, hold it by the bottom or by the sides.
• When transporting the TV to a service center or when moving, pack it in the box, using the original packaging materials.

Precautions

Protecting the OLED screen of the TV

Measures to prevent image retention

Image retention effect

Due to the characteristic materials from which the OLED screen is made, an image retention effect may occur. This can also happen in cases where the same image is displayed on the screen for a long time. This does not indicate a malfunction of the TV. Avoid displaying images that may cause the image retention effect.

The following are examples of such images:

Images with black bars at the top and bottom, and/or on the left and right sides of the screen. (For example, widescreen content displayed on a standard TV with a 4:3 screen, or standard images - static images, such as photos. Video games, which may have static images in any part of the screen. - Screen menus, electronic program guides, channel logos. - Static contrast images in program broadcasts. Screen notifications such as time, channel number, etc., used in headers and news.

To reduce the occurrence of the image retention effect:

Sony recommends turning off the TV using the remote control when not in use. Stretch the image to fill the entire screen by selecting the [Wide mode] to avoid black bars. Use [Wide mode], not [Normal] mode. Turn off the on-screen display (OSD) and all menus connected to it by pressing the + / (Normal/Text display) button. See the detailed information in the manuals of connected devices. Avoid displaying static images with bright colors (including white), as well as clocks and logos in any part of the screen. Set the image parameters according to the conditions of the viewing environment. The Standard Picture mode (Standard format) is recommended for viewing static content, such as channel logos.

The TV has functions that help reduce the image retention effect or eliminate it.

Panel refresh function

The refresh function ensures uniform brightness of the panel. The panel can be refreshed when there are noticeable image retention effects.

3actepekhi 3axo#n:

FUNCTIONALITY OF THE REMOTE CONTROL. Update the largest icons, otherwise it may negatively affect the service of the remote control. - The update procedure takes about one hour. The update procedure on the screen may be displayed as a service. This does not indicate a malfunction. The remote control works only if the room temperature is between 10°C and 40°C.

Function of the settings

This function automatically adjusts the screen image to obtain the best picture.

Other functions

The screen automatically turns off when displaying static images, such as photos, or when the screen is not used for a long time.

Use the remote control with the audio system

Note

• Before connecting any cables, disconnect the TV and the AV device from the power outlet. - For more details, refer to the user manual for the system with the 'CENTER OUT' feature.

Remote control for TV

The shape of the remote control, its buttons, and their functions may vary depending on the region/country/model/settings of the TV.

(Microphone)/Google Assistant):

Using Google Assistant*1*2 or voice search*2. To get instructions on how to control the TV, press the microphone button on the remote control and say "Voice instructions".*1

Δ / / / Extreme menu for navigation and selection.

TV: Select a TV channel or switch to the input.

(NotyXHiCTb)

Khonkn3 zuΦpaMn

Display of information / Display of text: Display of information.

(Text): Display of text information.

YouTubeTM / NETFLIX / Disney+ / Prime Video / Kolbopobi KhoNKu GUIDE: Display of digital program of broadcaster or TV provider*3.

REC LIST: Display of list of recordings USB HDD 4/DVR 3.

(Select input channel):

Display and selection of input signal source.

(Picture settings): Display of picture settings.

BACK/

HOME

5 +/-(volume)

(previous)

(Mute)*5

CH + / - / Channel selection or

Hactynho/ nonepedhboi (）ctopiKn.

6 AUDIO: Select the sound of a multi-channel source or full sound (depending on the source of transmission).

(subtitle parameters)

HELP: Display of the on-screen menu.

←/→/→/11

REC: Recording of the exact transmission to a USB HDD/DVR device.

EXIT

https://www.保养.eu/support

Follow the instructions provided for the wall-mount bracket for partial mounting of your model. For installation of the TV, especially for determining the strength of the wall, to fully support the weight of the TV, it is necessary to have sufficient experience.

• Sony company does not bear any responsibility for damage or injuries caused by incorrect operation or installation. Installation of the TV on the wall must be carried out only by qualified service center personnel. For safety measures, it is recommended to use additional Sony mounting accessories, including: - Wall-mount bracket SU-WL850 - Wall-mount bracket SU-WL450 - When attaching the TV to the wall-mount bracket, use the screws provided with the bracket. The parameters of the screws shown in the illustration are provided for the condition of mounting on a flat surface of the wall-mount bracket. The diameters and lengths of the screws vary depending on the model of the wall-mount bracket. The use of any other screws, except those provided, may cause internal damage to the TV or its fall.

Screws (M6) for wall-mount bracket for attaching the TV

• Be sure to store unused screws and the wall-mount bracket in a safe place until they are needed. Keep screws away from small children. *Only for certain regions/countries/TV models.

When you plug in the TV, the TV may not turn on immediately after connecting the power cord or the remote control device or the TV itself.

Initialization of the system takes some time. Wait for a minute, then press the button again.

The remote control does not work.

To enter the menu for setting the "Parental Lock" function

• Enter 9999 for the PIN code and enter a new PIN code.

Tuner: Frequency range 950-2150 MHz

Audio output

XR-77A8xJ: 20W+20W+10W

XR-65A8xJ/55A8xJ: 10W+10W+10W

Wireless technology

Protocol IEEE 802.11a/b/g/n/ac

Bluetooth® 4.2

Television:

Стондэр Зв'язky (мереки, Intерфейсу, пeredавандах) - IEEE 802.11a/b/g/n/ac
СMuγа радючacrToT, в Який працюe (пeredаванда /\ Приманнaya)	Мakсимальна notyxнICTb ВириромінЮванда у Заэначевин СMuгax разючacrToT
2400-2483,5 МГц 20,Ф дБм
5150-5350 МГц,5470-5670 МГц,5670-5725 МГц,5725-5850 МГц	20,0 дБм

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p,

Formats PC*3

3840 × 2160 p (100, 120 u ) ^*2 4

Audio:

Type eARC (Enhanced Audio Return Channel)

Detailed information. See the manual.

Besides eARC

5.1-channel linear PCM

Sampling rates: 32/44.1/48/88.2/96/176.4/

192 kHz, 16/20/24 bit, Dolby Audio, Dolby

Atmos, DTS

eARC/ARC (Enhanced Audio Return Channel/Audio Return Channel) (via HDMI IN 3)*5

Type eARC

Detailed information. See the manual.

Type ARC

DIGITAL AUDIO OUT (OPTICAL)

Digital optical output (two-channel linear PCM: 48 kHz, 16 bit, Dolby Audio, DTS)

(PO3'EMMiHi-CTepeo)

HabyuHHKU

1,2,3 (HDD 6 REC)*

Iopr USB npncptpo (Bpncptpii USB

220V-240V AC, 50Hz

Energy efficiency class

XR-77A8xJ:A

XR-65A8xJ:A

XR-55A8xJ:B

Screen diagonal of the TV,

centimeters and inches:

XR-77A8xJ: 194.7 cm / 77 inches

XR-65A8xJ: 163.9 cm / 65 inches

XR-55A8xJ: 138.8 cm / 55 inches

Power consumption of the TV in operation

XR-77A8xJ:198BT

XR-65A8xJ:154BT

XR-55A8xJ:122BT

Power consumption in standby mode

XR-77A8xJ:275 kWh per year

XR-65A8xJ:214 kWh per year

XR-55A8xJ:169 kWh per year

Power consumption of the TV in modes "Standby" or "Off"

XR-77A8xJ:0.50 W (29 W in software update mode / electronic program guide)

XR-65A8xJ:0.50 W (26 W in software update mode / electronic program guide)

XR-55A8xJ:0.50 W (27 W in software update mode / electronic program guide)

Screen resolution of the TV in

active horizontal and vertical pixels:

3840 pixels (horizontal) × 2160 pixels (vertical)

500 mA (for USB 1/2), 900 mA (for USB 3)

Dimensions (approx.) (W x H x D) (cm)

With stand

Standard position:

XR-77A8xJ: 172.2 × 102.2 × 36.7

XR-65A8xJ: 144.8 × 85.9 × 33.0

XR-55A8xJ: 122.7 × 73.5 × 33.0

Narrow position:

XR-77A8xJ: 172.2 × 102.2 × 36.7

XR-65A8xJ: 144.8 × 85.9 × 33.0

XR-55A8xJ: 122.7 × 73.5 × 33.0

Wall-mount hole pattern:

XR-77A8xJ: 172.2 × 107.1 × 36.7

XR-65A8xJ: 144.8 × 90.8 × 33.0

XR-55A8xJ: 122.7 × 78.4 × 33.0

Included mounting hardware:

SU-WL850/SU-WL450

Storage conditions:

Store the product in its original packaging in a dark, dry, clean, well-ventilated room, away from places where acids and alkalis are stored.

Storage temperature: from -20 °C to +60 °C. Relative humidity during storage: <80% (without condensation).

Operating temperature: from 0 °C to 40 °C

Operating relative humidity: 10% - 80% (without condensation).

*1 When [4K 4096x2160p] input and [Wide Screen Mode] are set to [Normal], the resolution is displayed as 3840x2160p. To display 4096x2160p, set [Wide Screen Mode] to [Full 1] or [Full 2].

*2 See the on-screen menu to set the [HDMI Signal Format] parameter.

*3 For detailed information, see the user manual.

(50) 1080i, 1080/24p. (j, j, 120, 100, 60, 50, 30) 1080p

480p, 576p, 720/24p. (j 60, 50, 30) 720p. (j 60

3+

4+2j (3j 120, 100) 2160p × 3840

eARC (Enhanced Audio Return Channel)

eARC

/96/88.2/48/44.1/32: PCM, 5.1

Dolby Audio 24/20/16 192/176.4

DTS, Dolby Atmos

eARC/ARC (Enhanced Audio Return Channel/Audio Return Channel)

eARC

ARC

16/48: PCM

DTS, Dolby Atmos, Dolby Audio

DIGITAL AUDIO OUT (OPTICAL)

(DTS, Dolby Audio 16

__SUPPIMER__

aai 10

p

15a 1000000000000000000000000000000000000000

5jgall 1000/1000 1000/1000

a0gul

13! 13

1.12 13.14 15.16 17.18 19.10

:

010g yj jy 40gll yj yj yj yj yj yj yj yj yj yj yj yj yj

aogyoljyssyessy

( 5,0) ( 1,5)

1 1

1

∴ 0.1,0.2,0.3,0.4,0.5,0.6,0.7

https://rd1.sony.net/help/tv/iaep1/

h_aep/

. 1

∴ b 1b 2 = b 1b 3

∴ ( x - 1) < x

.

1

1

https://www.sony.eu/support
