HTDistX - Audio Amplifier BLACKSTAR - Free user manual and instructions

Product Type	Tube Distortion Pedal for Guitar
Brand	Blackstar
Model	HT-DistX
Dimensions (L x W x H)	160 x 119 x 80 mm
Weight	1.2 kg
Power Supply	16 V AC / 0.8 A (adapter included)
Tube	ECC83 / 12AX7
Controls	Gain, Bass, Middle, Treble, ISF (Infinite Shape Feature), Level
Input	6.35 mm jack (Input), Impedance 1 MΩ
Outputs	6.35 mm jack (Output), Emulated Output (cabinet simulation)
Output Impedance	< 1 kΩ
Switching	On/Off footswitch with indicator LED
Observation window	Grid allowing to see the tube
Safety	Do not open the case, use only the supplied adapter, avoid humidity
Maintenance and cleaning	Disconnect before cleaning, use a dry cloth
Spare parts and repairability	Repairs by qualified personnel only
Warranty	Consult your usual retailer

Frequently Asked Questions - HTDistX BLACKSTAR

How to replace the tube in the HT-DistX?

Replacing the ECC83 / 12AX7 tube must be done by a qualified technician. Do not open the case yourself.

Can I use a different power supply than the one provided?

No, use exclusively the 16 V AC / 0.8 A adapter supplied by Blackstar to avoid any damage.

What is the ISF button and how to use it?

The ISF (Infinite Shape Feature) modifies the response curve of bass, mids and treble. Set to the left, it gives an American sound (aggressive mids); to the right, a British sound (less aggressive). Start in the middle and adjust according to your preferences.

What is the difference between the Output and Emulated Output?

The Output is designed to be connected to a guitar amp or other pedals. The Emulated Output simulates an amplifier cabinet and can be connected directly to a mixing desk or recorder.

How to adjust the output level and gain?

Use the Level knob for overall volume and Gain for distortion. Generally, at low gain, increase the Level; at high gain, decrease the Level to avoid saturation.

What to do if the LED does not light up?

Check that the adapter is properly connected and that the mains socket works. If the problem persists, contact your dealer.

The pedal produces excessive background noise, what to do?

Make sure to use a quality shielded cable and that the power supply is stable. Keep the pedal away from sources of electromagnetic interference.

Can I place the HT-DistX in an effects loop?

Yes, but for best results, it is recommended to place it in first position in your effects chain, before any other pedal.

What type of jack to use?

Use mono 6.35 mm (1/4 inch) jack cables. The input impedance is 1 MΩ, suitable for most guitars.

Where can I find the full manual?

The full manual is available for free download on notice-facile.com in PDF format.

USER MANUAL HTDistX BLACKSTAR

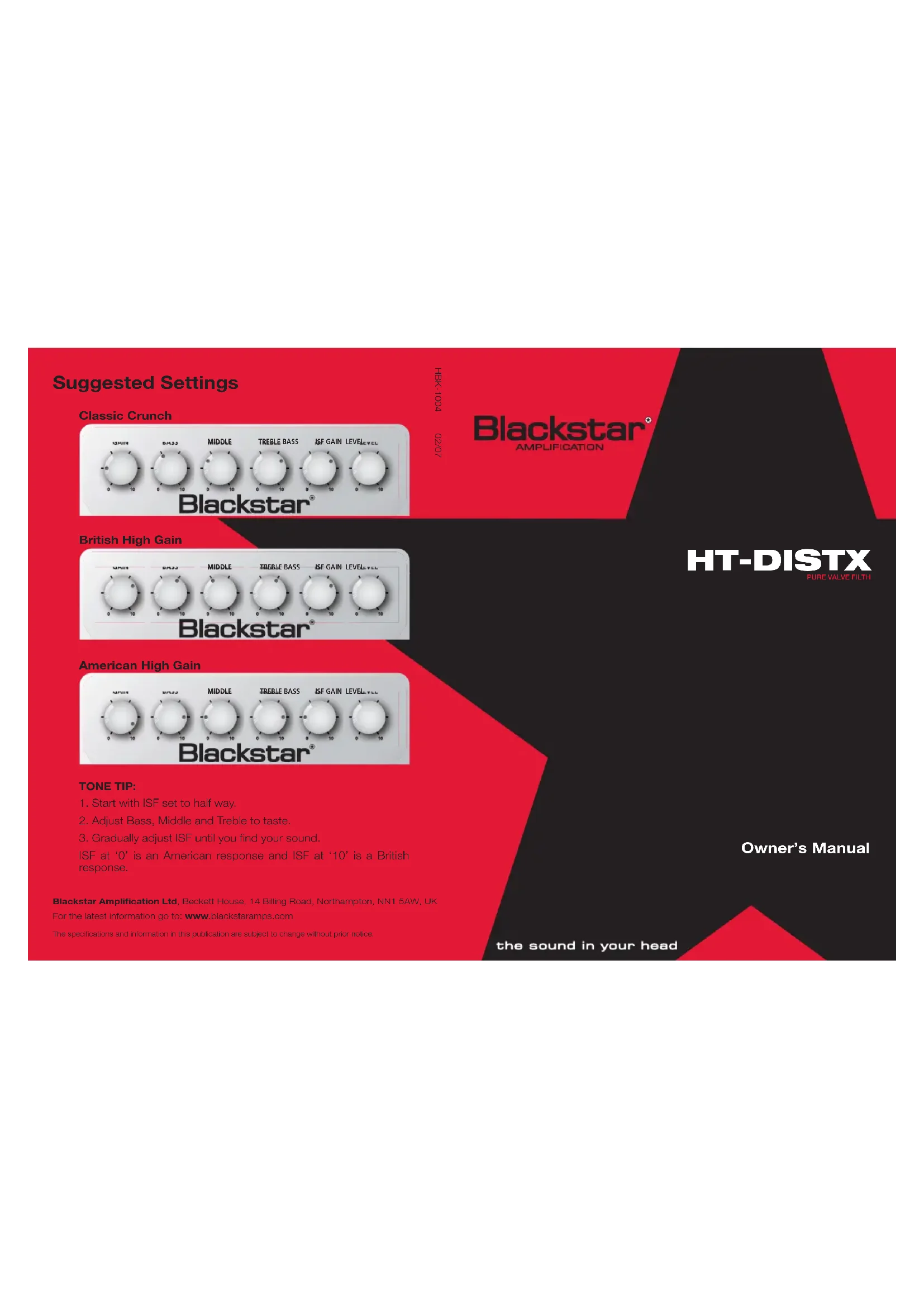

HBK 1004 02/07

Blackstar® AMPLIFICATION

British High Gain

HT-DISTX

American High Gain

TONE TIP:

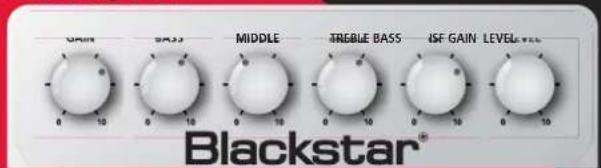

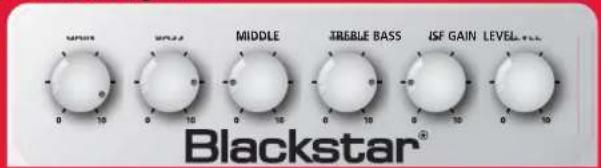

1. Start with ISF set to half way.
2. Adjust Bass, Middle and Treble to taste.
3. Gradually adjust ISF until you find your sound.
   ISF at '0' is an American response and ISF at '10' is a British response.

Blackstar Amplification Ltd, Beckott House, 14 Billing Road, Northampton, NNI 5AW, UK

For the latest, information go to: www.blackstaramps.com

The specifications and information in this publication are subject to change without prior notice.

Owner's Manual

the sound in your head

Warning!

Important safety information!

Read the following information carefully. Save all instructions for future reference.

Danger! High internal operating voltages

Do not open the equipment case. There are no user serviceable parts in this equipment. Refer all servicing to qualified service personnel.

Unauthorised modification of this equipment is expressly forbidden by Blackstar Amplification Limited.

Never push objects of any kind into ventilation slots on the equipment casing.

Do not expose this apparatus to rain, liquids or moisture of any type.

Only use the correct Blackstar approved AC adapter supplied. Unplug the AC adapter from the mains supply when not in use.

All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.

N16549

Introduction

Thank you for purchasing this Blackstar valve effects pedal. Like all our products this pedal is the result of countless hours of painstaking Research and Development by our world-class design team. Based in Northampton (UK), the Blackstar team are all experienced musicians themselves and the sole aim of the development process is to provide guitarists with products which are the ultimate tools for self expression.

All Blackstar products are subjected to extensive laboratory and road testing to ensure that they are truly uncompromising in terms of reliability, quality and above all TONE.

If you like what you hear and want to find out more about the Blackstar range of products please visit our website at www.blackstaramps.com.

Thanks!

The Blackstar Team

Features

The HT-DISTX allows more tonal adjustment than any other pedal around. The patent-applied-for ISF (Infinite Shape Feature) circuit gives you infinite adjustment over the characteristics of the tone control network and takes you from the USA to the UK and anywhere in between. So now, for the first time, you can effectively design your own tone and finally find 'the sound in your head'.

This pedal is designed to deliver the most aggressive high gain valve tones that modern guitarists need and the high voltage valve design means all the tones available are extremely dynamic and natural. A no compromise speaker emulated output allows you to get your great guitar tone straight to tape or disk.

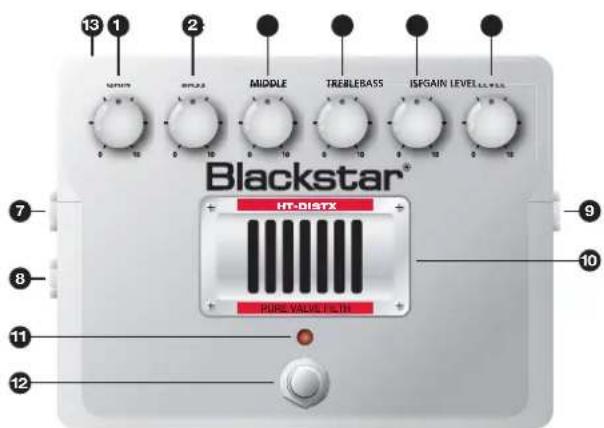

Controls

1. Gain

The Gain control adjusts the amount of overdrive or distortion that the pedal will deliver. As the Gain control is increased clockwise (CW) the sound becomes more overdriven moving through crunch tones until, at its maximum position, a full distorted lead tone is arrived at.

2. Bass

The Bass control adjusts the amount of low end frequencies in your tone. This pedal has an advanced tone shaping circuit which allows the tone to be tight and cutting, counter clockwise (CCW), to warm and thumping (CW).

3. Middle

The Middle control adjusts the amount of middle frequencies in your tone. The middle frequencies are particularly important in getting the amount of 'body' your tone has. With the Middle control set to its minimum position (fully CCW) the sound will be aggressive and scooped, this is a tone ideal for aggressive rhythm playing. As the Middle control is increased (CW) the amount of 'body' is increased, which is more suitable for sustained lead guitar tones.

4. Treble

The Treble control allows exact adjustment of the treble frequencies within the sound. At low settings (CCW) the sound will be warm and darker in character. As the Treble control is increased (CW) the sound will become brighter. At the maximum settings the sound will be aggressive and cutting.

5. ISF (Infinite Shape Feature)

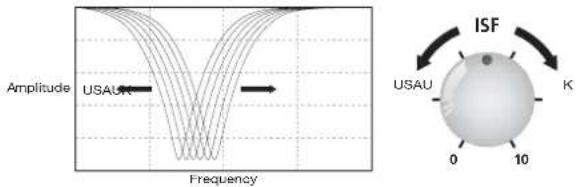

The ISF control works in conjunction with the Bass, Middle and Treble controls. It allows you to choose the exact tone signature you prefer. Fully CCW is a more American characteristic with a light bottom end and more aggressive middle, and fully CW is a

British characteristic which is more 'woody' and less aggressive. See illustration below.

We recommend that to start with the ISF is set to half way and the Bass, Middle and Treble are set to taste. Then try gradually adjusting the ISF CW and CCW until you find the sound you prefer.

6. Level

The Level control sets the overall level or volume from the pedal. It should be used in conjunction with the Gain control to achieve the exact type of drive you require. Generally speaking at lower Gain settings the Volume will be increased and at higher Gain settings the Volume should be decreased.

7. Output

This output is for connection to the input of your amplifier or into other pedals or effects. For best noise performance we recommend you place the overdrive pedal first in the effects chain. Always use a good quality screened guitar lead.

8. Speaker Emulated Output

This output emulates the tonal characteristics of a guitar speaker cabinet and provides a natural valve overdrive tone for connection to a recording device or mixing desk. Always use a good quality screened guitar lead.

9. Input

Plug your guitar in here. Always use a good quality screened guitar lead.

10. Valve Viewing Window

Through this grille you can see the ECC83 valve at the heart of your pedal.

WARNING: Do not attempt to remove the fixing screws or grille. No user serviceable parts inside.

11. Effect On/Off LED

When the RED LED is on the pedal is on. When the LED is not on the pedal is off.

12. Effect On/Off Switch

Press this switch to turn the effect on or off.

13. AC Inlet

For the input of the 16V AC / 0.8A adapter supplied. Always use a Blackstar approved adapter.

Technical Specification

Power: 16V AC

Maximum Current Draw: 0.8A

Controls: Gain, Bass, Middle, Treble, ISF, Level

Valve: ECC83 / 12AX7

Switches: On/Off Switch

Indicators: Effect On/Off, Power On/Off (Valve Backlight LED)

Jacks: Input, Output, Emulated Output

Input Impedance: 1MΩ

Output Impedance: < 1KΩ

Dimensions (mm): 160 x 119 x 80

Weight: 1.2kg

AC Adaptor: ADA Series supplied
