HEAVY-DUTY COMMERCIAL VACUUM EXTRA ROBUSTE ASPIRATEUR COMMERCIAL HEAVY-DUTY ASPIRADORA COMMERCIAL

TO REDUCE THE RISK OF INJURY, USER MUST READ AND UNDERSTAND OPERATOR'S MANUAL.

AFIN DE RÉDUIRE LE RISQUE DE BLESSURES, L'UTILISATEUR DOIT LIRE ET BIEN COMPRENDRE LE MANUEL DE L'UTILISATEUR.

IMPORTANT SAFETY INSTRUCTIONS

WARNING

Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. When using an electrical appliance, basic precautions should always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE.

WARNING

TO REDUCE

THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY:

- Do not leave appliance when plugged in. Unplug from outlet when not in use and before servicing. Connect to a properly grounded outlet only. See Grounding Instructions.

- Do not expose to rain – store indoors. - Do not allow to be used as a toy. Close attention is necessary when used by or near children. - Use only as described in this manual. Use only manufacturer's recommended attachments.

- Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center.

- Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.

- Do not unplug by pulling on cord. To unplug grasp the plug not the cord.

- Do not handle plug or appliance with wet hands. - Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything else that may reduce air flow. - Keep hair, loose clothing, fingers, and all parts

• Do not pick up anything that is burning or smoking such as cigarettes, matches, or hot ashes.

- Do not use without dust bag and/or filters in place.

- Turn off all controls before unplugging. - Use extra care when cleaning on stairs. - Do not use to pick up flammable or combustible liquids such as gasoline or use in areas where they may be present.

• Vacuum cleaners have motors and other parts that can produce arcs or sparks during normal use. Do not use within 20 feet of areas where explosive gases may be present (such as gasoline pumps and places where liquids like paint thinners, cleaners, solvents, etc. are stored).

- Unplug power cord whenever motor head is removed from tank.

- Do not use in the presence of explosive liquids or vapors.

• To reduce the risk of health hazards from vapors or dust, do not vacuum toxic, carcinogenic or other hazardous materials such as asbestos, arsenic, barium, beryllium, lead, pesticides or other health endangering materials.

- Do not use where oxygen or anesthetics are used. - Wear electrically insulated footwear, such as rubber boots, when vacuuming wet material.

- Maintain labels and nameplates. These carry important information. If unreadable or missing, contact a MILWAUKEE service facility for a free replacement.

- WARNING! Do NOT use this vacuum cleaner to vacuum lead paint debris because this may-disperse fine lead particles into the air. This vacuum cleaner is not intended for use under EPA Regulation 40 CFR Part 745 for lead paint material cleanup.

- WARNING: Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

- lead from lead-based paint

• crystalline silica from bricks and cement and other masonry products, and

• arsenic and chromium from chemically-treated-lumber.

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

READ AND SAVE ALL INSTRUCTIONS FOR FUTURE USE

GROUNDING INSTRUCTIONS

This appliance must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This appliance is equipped with a cord having an equipment-grounding conductor and grounding plug. The plug must be inserted into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

WARNING

connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or service person if you are in doubt as to whether the outlet is properly grounded. Do not modify the plug provided with the appliance - If it will not be the outlet, have a proper outlet installed by a qualified electrician.

This appliance is for use on a nominal 120-volt circuit, and has a grounded plug that looks like the plug illustrated in sketch A. A temporary adaptor that looks like the adaptor illustrated in sketches B and C may be used to connect this plug to a 2-pole receptacle as shown in sketch B if a properly grounded outlet is not available. The temporary adaptor should be used only until a properly grounded outlet (sketch A) can be installed by a qualified electrician. The green colored rigid ear, lug or the like extending from the adaptor must be connected to a permanent ground such as a properly grounded outlet box cover. Whenever the adaptor is used, it must be held in place by a metal screw.

GROUNDING METHODS

GROUNDED OUTLET GROUNDING PIN (A) GROUNDED OUTLET BOX (II) ADAPTER METAL SCREW TAB FOR GROUNDING SCREW (C)

IN CANADA, THE USE OF A TEMPORARY ADAPTOR IS NOT PERMITTED BY THE CANADIAN ELECTRICAL CODE. Make sure that the appliance is connected to an outlet having the same configuration as the plug. No adaptor should be used with this appliance.

EXTENSION CORDS

Grounded tools require a three wire extension cord. As the distance from the supply outlet increases, you must use a heavier gauge extension cord. Using extension cords with inadequately sized wire causes a serious drop in voltage, resulting in loss of power and possible tool damage. Refer to the table shown to determine the required minimum wire size.

The smaller the gauge number of the wire, the greater the capacity of the cord. For example, a 14 gauge cord can carry a higher current than a 16 gauge cord. When using more than one extension cord to make up the total length, be sure each cord contains at least the minimum wire size required. If you are using one extension cord for more than one tool, add the nameplate amperes and use the sum to determine the required minimum wire size.

Guidelines for Using Extension Cords

- If you are using an extension cord outdoors, be sure it is marked with the suffix "W-A" ("W" in Canada) to indicate that it is acceptable for outdoor use.

- Be sure your extension cord is properly wired and in good electrical condition. Always replace a damaged extension cord or have it repaired by a qualified person before using it.

- Protect your extension cords from sharp objects, excessive heat and damp or wet areas.

Recommended Minimum Wire Gauge For Extension Cords*
	Extension Cord Length
Nameplate Amperes	25' 50'	75' 100'	150'
0 - 2.0	18	18	18	18	16
2.1 - 3.4	18	18	18	16	14
3.5 - 5.0	18	18	16	14	12
5.1 - 7.0	18	16	14	12	12
7.1 - 12.0	16	14	12	10	--
12.1 - 16.0	14	12	10	--	--
16.1 - 20.0	12	10	--	--	--

* Based on limiting the line voltage drop to five volts at 150% of the rated amperes.

SPECIFICATIONS

Cat. No.	Volts AC	Amps	For Materials	Tank Capacity Gallons	Air Flow Cubic Feet per Minute	Sealed Suction in Water
8936-20	120	12"	Wet or Dry	7.5	190	60"
8938-20	120	7.4	Wet or Dry	9	100	80"
8950	120	8	Wet or Dry	8	143	45"
8955	120	8	Wet or Dry	10	143	45"

For Cat. No. 8936-20 with onboard outlet: The entire unit is rated at 12 amps. The vacuum motor is rated at 9.5 amps. The outlet on the motor head is rated at 8 amps.

FUNCTIONAL DESCRIPTION

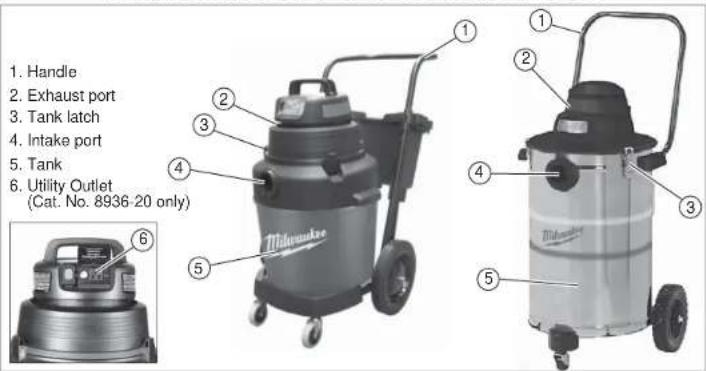

1. Handle 2. Exhaust port 3. Tank latch 4. Intake port 5. Tank 6. Utility Outlet (Cat. No. 8936-20 only)

SYMBOLGY

Hz	Hertz
A	Amps
cULus	Underwriters Laboratories, Inc.United States and Canada

ASSEMBLY

WARNING

To reduce

the risk of injury, always unplug tool before changing or removing accessories. Only use accessories specifically recommended for this tool. Others may be hazardous.

Assembling Dolly (Cat. No. 8955)

Assemble as shown in the diagram. You will need a hammer and a phillips screwdriver.

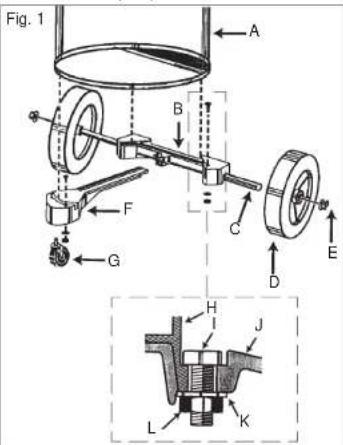

Fig. 1 A B C D E F G H J L K

1. Place wheels on rear frame (B) by tapping in the axle (C), sitting the wheel (D) on the axle and tapping a cap nut (E) on with a hammer.
2. Align front frame (F) and rear frame (B) so that they t together and t lip of tank (H) into the grooves in front and rear frames.
3. Secure frame (B and F) to the tank by placing the hex bolts (I) through the holes in dolly and securing them with nut (L) and washer (K) as shown.
4. Insert caster (G) and push down until caster snaps into place.

Installing Handle (Cat. No. 8955)

You will need either a 11 at blade screwdriver or a socket driver and a wrench or a pair of pliers.

Fig. 2

1. Place dolly handle between tank and side handle on either side of the tank.

2. Fasten tightly with slotted hex head screws.

Assembling Dolly (Cat. No. 8938-20)

Assemble as shown in the diagram. You will need: (2) 1/2 inch open end wrenches, (2) 7/16 inch open end wrenches, or a socket set and a hammer.

Fig. 3

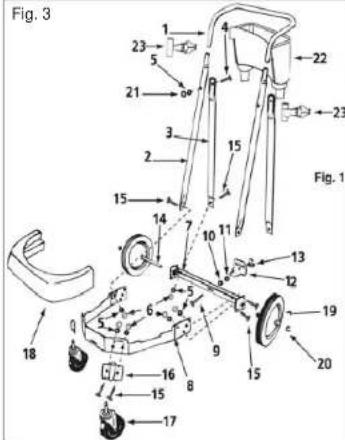

Fig. 3 23 5 21 4 22 23 3 15 15 14 10 11 13 12 19 18 6 9 15 16 8 17 20 Fig. 1

1. Insert 2-1/2 inch long bolt through the center hole in rear frame, attach split lockwasher, and nuts. Tighten securely.
2. Attach handle brace to back of rear frame with 5/8 inch long machine screws, lockwashers, and nuts (Finger tight only).

3. Position main frame inside rear frame. Attach with (2) 5/8 inch long machine screws, lockwashers and nuts in both sides. Tighten securely.

4. Attach handle uprights, inside main frame (make sure buttons at top face inward) using 5/8 inch long machine screws, lockwashers and nuts (Finger tighten only). Align holes at top of handle braces with holes in handle uprights. Attach with 1-1/4 inch long machine screws, lockwashers, and nuts. Tighten securely.

5. Go back and tighten machine screws at bottom of uprights and braces.
6. Attach caster sockets (open end down) to front of main frame using 5/8 inch long machine screws, lockwashers, and nuts. Insert casters into sockets.
7. Apply basket adapters to uprights (Fig 3). (See Fig. 2 for correct positioning of adapters.)
8. Attach handle onto uprights by pushing down and holding buttons on uprights.
9. Place tank retaining bracket through slot and bolt in rear frame and screw on knob.
10. Slide bumper down over main dolly frame until it bottoms out.
11. Place axle upright on a hard surface and hammer on (1) cap nut. Place (1) wheel on axle and slide down to cap nut. Slide axle through rear of frame and slide on other wheel. Before assembling cap nut on other end of axle, be certain dolly is assembled correctly. (You may place tank on dolly and tighten knob of retaining bracket to be sure of correct assembly.)
12. After ensuring dolly is assembled correctly remove tank and place dolly on side with installed cap nut on hard surface and hammer second cap nut on axle.
13. Place accessory baket on adapters and snap in place while pulling out on outer lip of basket rim. (Fig. 4).

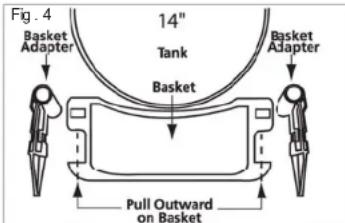

Fig. 4 Basket Adapter 14" Tank Basket Basket Adapter Basket Pull Outward on Basket

Attaching Caddy and Casters (Cat. No. 8936-20) You will only need a 1 at head screwdriver.

1. Slide caddy over attaching boss' on bottom of vacuum cleaner tank.
2. Install screws and tighten.
3. Slide caster housings over attaching boss' on bottom of vacuum cleaner tank.
4. Install screws and tighten
5. Push caster wheel shafts into attaching holes on bottom of caster housings and bottom of caddy until they click.

⚠ WARNING To reduce the risk of injury, always unplug the tool before removing the motor head.

Installing and cleaning Cartridge Filters

1. Unplug vacuum cleaner.
2. To remove a liter for cleaning, hold onto base of lid cage with one hand and turn retainer counter clockwise to loosen (Fig. 5). Caution: Use care when handling motor head. Dropping motor head may cause permanent damage.
3. Remove liter cartridge from motor head (Fig. 6). Handle filters carefully when removing for cleaning. Even a small hole can cause dust to be exhausted. Do not use a liter with a hole or tear. Replace immediately.
4. Clean the liter (Fig. 7): • Clean a dry liter cartridge by tapping the filter cartridge on the inside of a waste container or by blowing loose dirt using exhaust port.
5. Clean a wet filter cartridge by rinsing it from the inside. Make sure that the filter is dry before using it to pick up dry material.
   When wet (to prevent mold and/or mildew build-up), the cartridge liter should be removed and allowed to air dry for a 24-hour period before being re-installed on the liter cage.
6. Slide clean cartridge filter over filter cage (Fig. 8).
7. Place fi Iter retainer on top of cartridge fi Iter.
8. Hold onto base of lid cage with one hand and turn retainer clockwise to tighten (Fig. 9).

⚠ WARNING To reduce the risk of injury, always unplug the tool before removing the motor head.

Installing and cleaning foam & Iters (some models)

1. Unplug vacuum cleaner.
2. Remove motor head. Caution: Use care when handling motor head. Dropping motor head may cause permanent damage.
3. Remove the foam filter sleeve (and cloth filter if present) from motor head.
4. Clean the foam filter sleeve by rinsing it from the inside. Make sure that the filter is dry before using it to pick up dry material. Clean cloth filters by shaking off loose material and brushing the filter with a (Fig. 10).
5. Attach the clear foam 5 liter sleeve to motor head (Fig. 11) If you plan to vacuum dry material into a 5 liter bag, expand the paper 5 liter bag and at cardboard collar onto the intake port as far as possible.
6. If you plan to vacuum dry material and you are using the foam filter sleeve, you must also use the cloth filter.
7. Replace motor head and snap down tank latches.

soft bristle brush

Fig. 11 wet materials dry materials

OPERATION

Vacuuming wet or dry materials

When vacuuming dry materials, either the liter cartridge or the foam liter sleeve AND the cloth liter are required. There are other filters that can be used with the required lters to provide additional filtration when vacuuming dry mate-

rial. Follow the the instructions included with these sitters. Empty tank and clean silter frequently. Be sure sitters are dry before using the vacuum to pick up dry material. Dry material will clog wet sitters and make them difficult to clean.

Fig. 12 Float cage Float

When vacuuming wet materials, either the a liter cartridge or a foam elter sleeve is required. A boat valve shuts off suction when the tank is full. Be sure that the oat is clean and moves freely in the boat cage to ensure that the a oat valve works. If you are vacuuming a large amount of liquid, the a liter cartridge can become saturated and a mist can appear from the exhaust port. If this happens, dry the a liter by running the vacuum (without picking up anything) for 10 minutes.

WARNING If the float is clean and moves freely and the suction does not shut off when tank is a lled (you will be able to see water In the exhaust port), send motorhead to the nearest MILWAUKEE service facility for repair.

Starting and Stopping the Vacuum

To turn vacuum cleaner on, switch the ON/OFF switch to the ON position.

To turn vacuum cleaner off, switch the ON/OFF switch to the OFF position.

For Cat. No. 8936-20:

To turn vacuum on, set the AUTO/OFF/ON switch to ON position.

To turn vacuum off, set the AUTO/OFF/ON switch to the OFF position. To turn the vacuum on automatically by using a tool plugged into the outlet on the motor head, set the AUTO/OFF/ON switch to the AUTO position.

Removing liquid from the vacuum tank

1. Unplug vacuum cleaner.

2. Remove motor head and set aside.

3. Block wheels.

4. Carefully dump contents into £ oor drain. Do not dump through intake port.

5. Rinse and dry tank.

Do not store vacuum cleaner with liquid in tank. Run the vacuum for about 10 minutes without picking up anything to dry the inside of the tank and the filter cartridge.

Using the vacuum as a blower (Cat. Nos. 8950 & 8955 only)

WARNING To reduce the risk of injury: wear safety glasses and a dustmask when using the vacuum cleaner as a blower.

Attach hose to exhaust port on the motor head, attach the appropriate accessory to the hose, turn the vacuum on.

Using the vacuum cleaner to collect dust created by tools

Many tools (such as sanders) are designed so that they can be used with vacuum cleaners. The vacuum cleaners collect the dust that these tools create before it gets into the air or onto the 100r. Vacuum cleaners with the AUTO setting are ideal for collecting dust because they can be set up to turn on and off automatically by using the tool's on and off switch. Vacuum cleaners without an AUTO setting can also be used to collect dust. The operator will simply have to turn the vacuum on and off.

Using the vacuums (without the automatic switch) as dust collection device for a tool

1. Connect vacuum hose to tool's dust collection port.

2. Turn the vacuum cleaner on.

3. Turn on tool.

To use the vacuum cleaner as an automatic dust collection device for a tool (with Cat. No. 8936-20 only)

WARNING To reduce the risk of a re, electric shock or injury: Do not plug any tool or appliance rated over 8 amps into the outlet on the vacuum cleaner. Check nameplate of the tool for the amp rating. To reduce the risk of injury, tool must be turned off before placing switch in the auto position.

1. Connect vacuum hose to tool.

2. With the power switch in the "O" (Off) position, plug power cord of the tool (also turned off) into the electrical outlet on the vacuum cleaner's motor head.

3. Set the AUTO/OFF/ON switch to AUTO. A very brief running operation of the vacuum will occur. This is normal. Now the vacuum will operate "On Demand".

4. Turn tool on and the vacuum cleaner will start automatically a few seconds later. Turn tool off and vacuum will stop automatically a few seconds later.

Utility Outlet Load - vs - Vacuum Performance. The unique design of the "On Demand" feature of this unit will cause the vacuum performance to vary with the amount of current drawn from the utility outlet. The electronic circuit automatically adjusts the power of the vacuum unit to compensate for the power being drawn from the utility outlet. This adjustment allows the total system current draw to stay within the safety regulatory agencies maximum of 12 Amps. What ever the amount of current is being drawn for utility work, the remainder from 12 Amps is allowed to the vacuum unit to provide the maximum allowable vacuum performance during the work. As soon as the utility work stops, the vacuum returns to full power during the delay period before turning off.

ACCESSORIES

WARNING To reduce the risk of injury, always unplug the tool before attaching or removing accessories. Use only specifically recommended accessories. Others may be hazardous.

For a complete listing of accessories refer to your MILWAUKEE Electric Tool catalog or go on-line to www.milwaukeetool.com. To obtain a catalog, contact your local distributor or a service center.

MAINTENANCE

WARNING To reduce the risk of injury, always unplug your tool before performing any maintenance. Never disassemble the tool or try to do any rewiring on the tool's electrical system. Contact a MILWAUKEE service facility for ALL repairs.

Maintaining Tools

Keep your tool in good repair by adopting a regular maintenance program. Before use, examine the general condition of your tool. Inspect guards, switches, tool cord set and extension cord for damage. Check for loose screws, misalignment, binding of moving parts, improper mounting, broken parts and any other condition that may affect its safe operation. If abnormal noise or vibration occurs, turn the tool off immediately and have the problem corrected before further use. Do not use a damaged tool. Tag damaged tools "DO NOT USE" until repaired (see "Repairs").

Under normal conditions, relubrication is not necessary until the motor brushes need to be replaced. After six months to one year, depending on use, return your tool to the nearest MILWAUKEE service facility for the following:

• Lubrication

• Brush inspection and replacement
• Mechanical inspection and cleaning (gears, spindles, bearings, housing, etc.)
• Electrical inspection (switch, cord, armature, etc.)
• Testing to assure proper mechanical and electrical operation

WARNING To reduce the risk of injury, electric shock and damage to the tool, never immerse your tool in liquid or allow a liquid to grow inside the tool.

Cleaning

Clean dust and debris from vents. Keep the tool handles clean, dry and free of oil or grease. Use only mild soap and a damp cloth to clean your tool since certain cleaning agents and solvents are harmful to plastics and other insulated parts. Some of these include: gasoline, turpentine, lacquer thinner, paint thinner, chlorinated cleaning solvents, ammonia and household detergents containing ammonia. Never use a ammable or combustible solvents around tools.

Storage

Before storing the vacuum cleaner, always empty and clean the tank. Never allow debris to sit in the tank for any extended period of time. The vacuum cleaner should be stored indoors.

Repairs

If your tool is damaged, return the entire tool to the nearest service center.

LIMITED WARRANTY - USA AND CANADA

Every MILWAUKEE power tool (including cordless product - tool, battery pack(s) - see separate & distinct CORDLESS BATTERY PACK LIMITED WARRANTY statements & battery charger and Work Lights*) is warranted to the original purchaser only to be free from defects in material and workmanship. Subject to certain exceptions, MILWAUKEE will repair or replace any part on an electric power tool which, after examination, is determined by MILWAUKEE to be defective in material or workmanship for a period of five (5) years* after the date of purchase unless otherwise noted. Return of the power tool to a MILWAUKEE factory Service Center location or MILWAUKEE Authorized Service Station, freight prepaid and insured, is required. A copy of the proof of purchase should be included with the return product. This warranty does not apply to damage that MILWAUKEE determines to be from repairs made or attempted by anyone other than MILWAUKEE authorized personnel, misuse, alterations, abuse, normal wear and tear, lack of maintenance, or accidents.

*The warranty period for, Job Site Radios, M12™ Power Port, M18™ Power Source, and Trade Titan™ Industrial Work Carts is one (1) year from the date of purchase. The warranty period for a LED Work Light and LED Upgrade Bulb is a limited LIFETIME warranty to the original purchaser only, if during normal use the LED bulb fails the Work Light or Upgrade Bulb will be replaced free of charge.

*This warranty does not cover Air Nailers & Stapler, Airless Paint Sprayer, Cordless Battery Packs, Gasoline Driven Portable Power Generators, Hand Tools, Hoist – Electric, Lever & Hand Chain, M12™ Heated Jackets, Reconditioned product and Test & Measurement products. There are separate and distinct warranties available for these products.

Warranty Registration is not necessary to obtain the applicable warranty on a MILWAUKEE power tool product. The manufacturing date of the product will be used to determine the warranty period if no proof of purchase is provided at the time warranty service is requested.

ACCEPTANCE OF THE EXCLUSIVE REPAIR AND REPLACEMENT REMEDIES DESCRIBED HEREIN IS A CONDITION OF THE CONTRACT FOR THE PURCHASE OF EVERY MILWAUKEE PRODUCT. IF YOU DO NOT AGREE TO THIS CONDITION, YOU SHOULD NOT PURCHASE THE PRODUCT. IN NO EVENT SHALL MILWAUKEE BE LIABLE FOR ANY INCIDENTAL, SPECIAL, CONSEQUENTIAL OR PUNITIVE DAMAGES, OR FOR ANY COSTS, ATTORNEY FEES, EXPENSES, LOSSES OR DELAYS ALLEGED TO BE AS A CONSEQUENCE OF ANY DAMAGE TO FAILURE OF, OR DEFECT IN ANY PRODUCT INCLUDING, BUT NOT LIMITED TO, ANY CLAIMS FOR LOSS OF PROFITS. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU. THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS WARRANTIES, WRITTEN OR ORAL. TO THE EXTENT PERMITTED BY LAW, MILWAUKEE DISCLAIMS ANY IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR USE OR PURPOSE; TO THE EXTENT SUCH DISCLAIMER IS NOT PERMITTED BY LAW, SUCH IMPLIED WARRANTIES ARE LIMITED TO THE DURATION OF THE APPLICABLE EXPRESS WARRANTY AS DESCRIBED ABOVE. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE. This warranty applies to product sold in the U.S.A. and Canada only.

Please consult the 'Service Center Search' in the Parts & Service section of MILWAUKEE's website www.mil-waukeetool.com or call 1.800.SAWDUST (1.800.729.3878) to locate your nearest service facility for warranty and non-warranty service on a Milwaukee electric power tool.

LIMITED WARRANTY - MEXICO, CENTRAL AMERICA AND CARIBBEAN

TECHTRONIC INDUSTRIES warranty is for 5 year since the original purchase date. This warranty card covers any defect in material and workmanship on this Power Too

To make this warranty valid, present this warranty card, sealed/stamped by the distributor or store where you purchased the product, to the Authorized Service Center (ASC). Or, if this card has not been sealed/stamped, present the original proof of purchase to the ASC.

Call toll-free 1 800 832 1949 to find the nearest ASC, for service, parts, accessories or components.

Procedure to make this warranty valid

Take the product to the ASC, along with the warranty card sealed/stamped by the distributor or store where you purchased the product, and there any faulty piece or component will be replaced without cost for you. We will cover all freight costs relative with this warranty process.

Exceptions

This warranty is not valid in the following situations:

a) When the product is used in a different manners from the end-user guide or instruction manual. b) When the conditions of use are not normal.

c) When the product was modified or repaired by people not authorized by TECHTRONIC INDUSTRIES.

Note: If cord set is damaged, it should be replaced by an Authorized Service Center to avoid electric risks.

RVICE AND ATTENTION CENTER

Model:

Date of Purchase:

Distributor or Store Stamp:

Av Presidente Mazarik 29 Piso 7, 11570 Chapultepec Morales Miguel Hidalgo, Distrito Federal, Mexico Ph. 52 55 4180-3547

IMPORTED AND COMMERCIALIZED BY:

TECHTRONIC INDUSTRIES MEXICO, S.A. DE C.V.

Av Presidente Mazarik 29 Piso 7, 11570 Chapultepec Morales Miguel Hidalgo, Distrito Federal, Mexico

INSTRUCTIONS IMPORTANTES CONCERNANT LA SÉCURITÉ

Fig. 1 A B C D E F G H J L K

Miguel Hidalgo, Disinto Federal, Mexico

Date d'achal: 160-3547

① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ⑴ ⑵ ⑶ ⑷ ⑸ ⑹ ⑺ Milwaukee

SIMBOLOGIA

Hz	Hertz
A	Amperios
C US	Underwriters Laboratories, Inc.,Estados Unidos y Canadá

TIERRA

Fig. 1 A B C D E F G H J L K

Para Cat. No. 8936-20:

UNITED STATES MILWAUKEE Service

MILWAUKEE prides itself in producing a premium quality product that is NOTHING BUT HEAVY DUTY®. Your satisfaction with our products is very important to us! If you encounter any problems with the operation of this tool, or you would like to locate the factory Service/Sales Support Branch or authorized service station nearest you, please call... Additionally, we have a nationwide network of authorized Distributors ready to assist you with your tool and accessory needs. Check your "Yellow Pages" phone directory under "Tools-Electric" for the names & addresses of those nearest you or see the 'Where To Buy' section of our website.

1-800-SAWDUST

(1.800.729.3878)

Monday-Friday 7:00 AM - 6:30 PM

Central Time

or visit our website at

www.milwaukeetool.com

For service information, use the 'Service Center Search' icon found in the 'Parts & Service' section.

Contact our Corporate After Sales Service Technical Support about ...

• Technical Questions

• Service/Repair Questions

• Warranty

call: 1-800-SAWDUST

fax: [phone]

email: [e-mail]

Register your tool online at www.milwaukeeetool.com and...

- receive important notifications regarding

your purchase

- ensure that your tool is protected under the

warranty

• become a HEAVY DUTY club member

CANADA - Service MILWAUKEE

MILWAUKEE prides itself in producing a premium quality product that is NOTHING BUT HEAVY DUTY ^8 . Your satisfaction with our products is very important to us!

If you encounter any problems with the operation of this tool, or you would like to locate the factory Service/Sales Support Branch or authorized service station nearest you, please call...

1.800.268.4015

Monday – Friday 7:00 – 4:30 CST

fax: [phone]

Milwaukee Electric Tool (Canada) Ltd

140 Fernstaff Court, Unit 4 18129 TTT Avenue NW Vaughan, ON L4K 3L8 Edmonton, AB T5S 2P2

Additionally, we have a nationwide network of authorized Distributors ready to assist you with your tool and accessory needs. Call 1.800.268.4015 to find the names and addresses of the closest retailers or consult "Where to buy" on our Web site

www.milwaukeetool.com

Milwaukee Electric Tool (Canada) Ltd

140 Fernstaff Court, Unit 4 18129 111 Avenue N Vaughan, ON L4K 3L8 Edmonton. AB T5S 2P2

Lunes a Viernes (9am a 6pm)

MILWAUKEE ELECTRIC TOOL CORPORATION

13135 West Lisbon Road • Brookfield, Wisconsin, U.S.A. 53005

58-14-8936d10

11/13 Printed in USA

87548-33
