USER MANUAL GDS 18V1000 Professional BOSCH

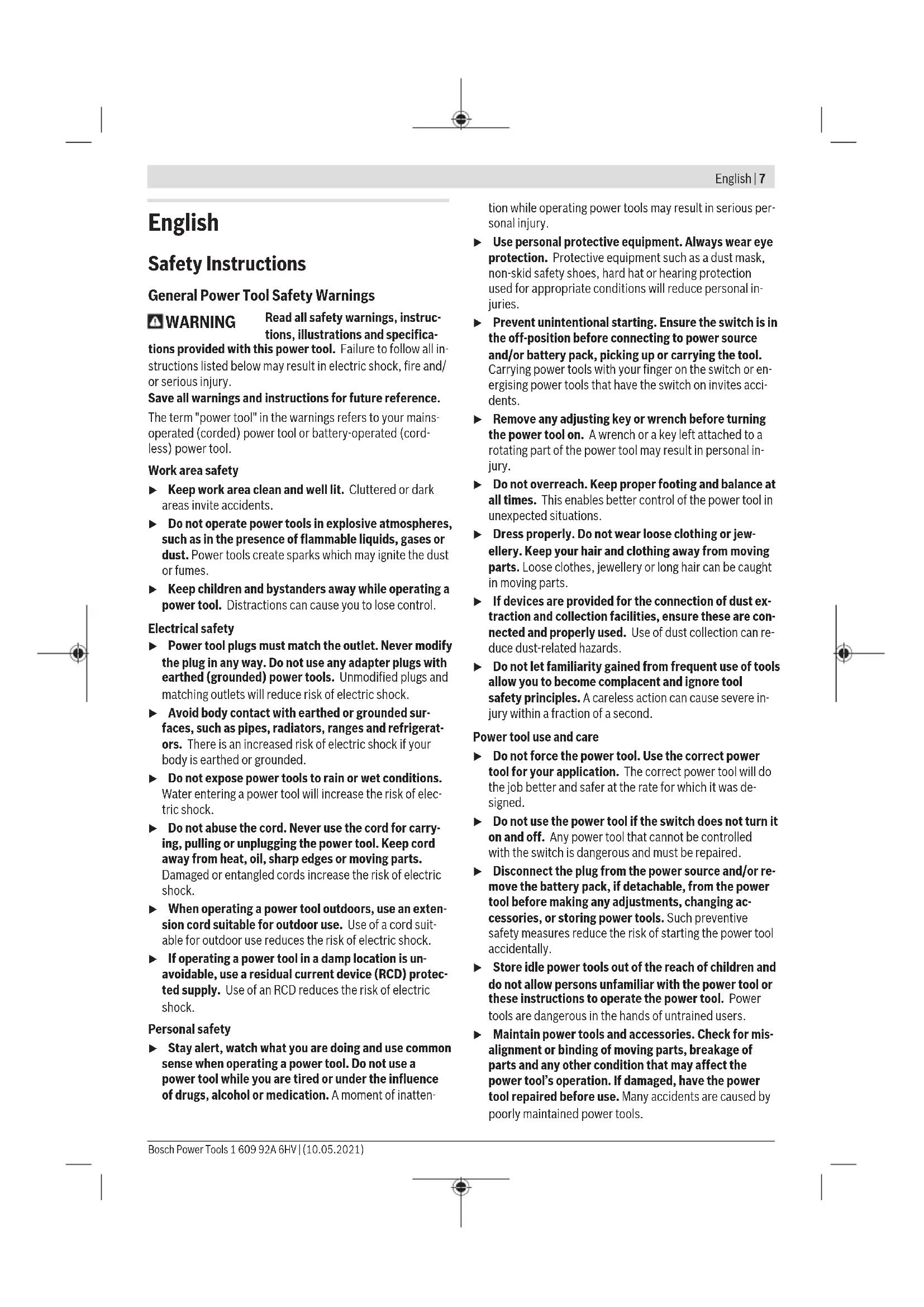

1 609 92A 6HV | (10.05.2021) Bosch Power ToolsEnglish | 7 English Safety Instructions General Power Tool Safety Warnings WARNING Read all safety warnings, instruc- tions, illustrations and specifica- tions provided with this power tool. Failure to follow all in- structions listed below may result in electric shock, fire and/ or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains- operated (corded) power tool or battery-operated (cord- less) power tool. Work area safety u Keep work area clean and well lit. Cluttered or dark areas invite accidents. u Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. u Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control. Electrical safety u Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. u Avoid body contact with earthed or grounded sur- faces, such as pipes, radiators, ranges and refrigerat- ors. There is an increased risk of electric shock if your body is earthed or grounded. u Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of elec- tric shock. u Do not abuse the cord. Never use the cord for carry- ing, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. u When operating a power tool outdoors, use an exten- sion cord suitable for outdoor use. Use of a cord suit- able for outdoor use reduces the risk of electric shock. u If operating a power tool in a damp location is un- avoidable, use a residual current device (RCD) protec- ted supply. Use of an RCD reduces the risk of electric shock. Personal safety u Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inatten- tion while operating power tools may result in serious per- sonal injury. u Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal in- juries. u Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or en- ergising power tools that have the switch on invites acci- dents. u Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal in- jury. u Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. u Dress properly. Do not wear loose clothing or jew- ellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. u If devices are provided for the connection of dust ex- traction and collection facilities, ensure these are con- nected and properly used. Use of dust collection can re- duce dust-related hazards. u Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe in- jury within a fraction of a second. Power tool use and care u Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was de- signed. u Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. u Disconnect the plug from the power source and/or re- move the battery pack, if detachable, from the power tool before making any adjustments, changing ac- cessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. u Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. u Maintain power tools and accessories. Check for mis- alignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. Bosch Power Tools 1 609 92A 6HV | (10.05.2021)8 | English u Keep cutting tools sharp and clean. Properly main- tained cutting tools with sharp cutting edges are less likely to bind and are easier to control. u Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into ac- count the working conditions and the work to be per- formed. Use of the power tool for operations different from those intended could result in a hazardous situation. u Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations. Battery tool use and care u Recharge only with the charger specified by the manu- facturer. A charger that is suitable for one type of bat- tery pack may create a risk of fire when used with another battery pack. u Use power tools only with specifically designated bat- tery packs. Use of any other battery packs may create a risk of injury and fire. u When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire. u Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally oc- curs, flush with water. If liquid contacts eyes, addi- tionally seek medical help. Liquid ejected from the bat- tery may cause irritation or burns. u Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury. u Do not expose a battery pack or tool to fire or excess- ive temperature. Exposure to fire or temperature above 130°C may cause explosion. u Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire. Service u Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. u Never service damaged battery packs. Service of bat- tery packs should only be performed by the manufacturer or authorized service providers. Safety Warnings for Impact Wrenches u Hold the power tool by insulated gripping surfaces, when performing an operation where the fastener may contact hidden wiring. Fasteners contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock. u Use suitable detectors to determine if there are hid- den supply lines or contact the local utility company for assistance. Contact with electric cables can cause fire and electric shock. Damaging gas lines can lead to ex- plosion. Breaking water pipes causes property damage. u Hold the power tool securely. When tightening and loosening screws be prepared for temporarily high torque reactions. u Secure the workpiece. A workpiece clamped with clamping devices or in a vice is held more secure than by hand. u Always wait until the power tool has come to a com- plete stop before placing it down. The application tool can jam and cause you to lose control of the power tool. u In case of damage and improper use of the battery, va- pours may be emitted. The battery can set alight or ex- plode. Ensure the area is well ventilated and seek medical attention should you experience any adverse effects. The vapours may irritate the respiratory system. u Do not open the battery. There is a risk of short-circuit- ing. u The battery can be damaged by pointed objects such as nails or screwdrivers or by force applied externally. An internal short circuit may occur, causing the battery to burn, smoke, explode or overheat. u Only use the battery with products from the manufac- turer. This is the only way in which you can protect the battery against dangerous overload. Protect the battery against heat, e.g. against continuous intense sunlight, fire, dirt, water and moisture. There is a risk of explosion and short-circuiting. u Application tools can become hot during operation. There is a risk of burns when changing the application tool. Use protective gloves to remove the application tool. u Caution! When using the power tool with Bluetooth

, a fault may occur in other devices and systems, aero- planes and medical devices (e.g. pacemakers, hearing aids). Also, damage to people and animals in the im- mediate vicinity cannot be completely excluded. Do not use the power tool with Bluetooth

in the vicinity of medical devices, petrol stations, chemical plants, areas with a potentially explosive atmosphere or in blasting areas. Do not use the power tool with Bluetooth

in aircraft. Avoid using the product near your body for extended periods. The Bluetooth® word mark and logos are registered trade- marks owned by Bluetooth SIG, Inc. and any use of such marks by Robert Bosch Power Tools GmbH is under li- cense. 1 609 92A 6HV | (10.05.2021) Bosch Power ToolsEnglish | 9 Product Description and Specifications Read all the safety and general instructions. Failure to observe the safety and general in- structions may result in electric shock, fire and/or serious injury. Please observe the illustrations at the beginning of this oper- ating manual. Intended Use The machine is intended for driving in and loosening screws and bolts as well as for tightening and loosening nuts within the respective range of dimension. With the Bluetooth

Low Energy Module GCY42 inserted, power tool data and settings can be transferred between the power tool and a mobile device by means of Bluetooth

wire- less technology. Product features The numbering of the product features refers to the diagram of the power tool on the graphics page. (1) Tool holder (2) Rotational direction switch (3) Bluetooth® Low Energy Module cover GCY42 (4) Ladder clip (5) Battery

(6) Battery release button

(7) User interface (8) On/off switch (9) Handle (insulated gripping surface) (10) Application tool (e.g. impact socket)

Accessories shown or described are not included with the product as standard. You can find the complete selection of accessories in our accessories range. Technical Data Cordless Impact Wrench GDS 18V-1000 GDS 18V-1050H GDS 18V-1000C GDS 18V-1050HC Article number 3601JJ83.. 3601JJ85.. 3601JJ80.. 3601JJ82.. Rated voltage V= 18 18 18 18 No-load speed

0–800 0–800 0–800 0–800 – Setting 2 min

0–2600 0–2600 0–2600 0–2600 Torque

– – Bluetooth® 4.1 (Low Energy) Bluetooth® 4.1 (Low Energy) Signal interval s – – 8 8 Max. signal range

Measured at 20−25°C with rechargeable batteryProCORE18V 8.0Ah.

Measured withGBA 18V 1.5Ah andGBA 18V 12Ah. C) The mobile terminal devices must be compatible with Bluetooth® Low Energy devices (version 4.1) and support the Generic Access Profile (GAP). D) The signal range may vary greatly depending on external conditions, including the receiving device used. The Bluetooth® range may be signi- ficantly weaker inside closed rooms and through metallic barriers (e.g. walls, shelving units, cases, etc.). Noise/Vibration Information GDS 18V-1000 GDS 18V-1050H GDS 18V-1000C GDS 18V-1050HC Noise emission values determined according toEN62841-2-2. Typically, the A-weighted noise level of the power tool is Sound pressure level Sound power level UncertaintyK Wear hearing protection! dB(A) dB(A)

(triax vector sum) and uncertainty K determined according toEN62841-2-2: Impact tightening of fasteners of the maximum capacity of the tool

The vibration level and noise emission value given in these instructions have been measured in accordance with a standardised measuring procedure and may be used to com- pare power tools. They may also be used for a preliminary estimation of vibration and noise emissions. The stated vibration level and noise emission value repres- ent the main applications of the power tool. However, if the power tool is used for other applications, with different ap- plication tools or is poorly maintained, the vibration level and noise emission value may differ. This may significantly increase the vibration and noise emissions over the total working period. To estimate vibration and noise emissions accurately, the times when the tool is switched off or when it is running but not actually being used should also be taken into account. This may significantly reduce vibration and noise emissions over the total working period. Implement additional safety measures to protect the oper- ator from the effects of vibration, such as servicing the power tool and application tools, keeping their hands warm, and organising workflows correctly. Assembly u Remove the battery from the power tool before carry- ing out work on the power tool (e.g. maintenance, changing tool, etc.). The battery should also be re- moved for transport and storage. There is risk of injury from unintentionally pressing the on/off switch. 1 609 92A 6HV | (10.05.2021) Bosch Power ToolsEnglish | 11 Charging the Battery u Use only the chargers listed in the technical data. Only these chargers are matched to the lithium-ion battery of your power tool. Note: The battery is supplied partially charged. To ensure full battery capacity, fully charge the battery in the charger before using your power tool for the first time. The lithium-ion battery can be charged at any time without reducing its service life. Interrupting the charging process does not damage the battery. The lithium-ion battery is protected against deep discharge by the "Electronic Cell Protection (ECP)". When the battery is discharged, the power tool is switched off by means of a protective circuit: The application tool no longer rotates. u Do not continue to press the On/Off switch after the power tool has automatically switched off. The battery can be damaged. Follow the instructions on correct disposal. Removing the Battery The battery (5) is equipped with two locking levels to pre- vent the battery from falling out when pushing the battery re- lease button (6) unintentionally. As long as the battery is in- serted in the power tool, it is held in position by means of a spring. To remove the battery (5), press the release button (6) and pull the battery out of the power tool. Do not use force to do this. Battery charge indicator The green LEDs on the battery charge indicator indicate the state of charge of the battery. For safety reasons, it is only possible to check the state of charge when the power tool is not in operation. Press the button for the battery charge indicator or to show the state of charge. This is also possible when the bat- tery is removed. If no LED lights up after pressing the button for the battery charge indicator, then the battery is defective and must be replaced. Battery model GBA 18V... LEDs Capacity 3× continuous green light 60−100% 2× continuous green light 30−60% 1× continuous green light 5−30% 1× flashing green light 0−5% Battery model ProCORE18V... LEDs Capacity 5× continuous green light 80−100% 4× continuous green light 60−80% 3× continuous green light 40−60% 2× continuous green light 20−40% 1× continuous green light 5−20% 1× flashing green light 0−5% Inserting the Bluetooth® Low Energy Module GCY42 (Accessory) Read the corresponding operating instructions for informa- tion about the Bluetooth® Low Energy ModuleGCY42. Changing the Tool (see figures A–B) u Remove the battery from the power tool before carry- ing out work on the power tool (e.g. maintenance, changing tool, etc.). The battery should also be re- moved for transport and storage. There is risk of injury from unintentionally pressing the on/off switch. u When working with an application tool, pay attention that the application tool is connected securely to the tool holder. When the application tool is not securely connected with the tool holder, it can come off during ap- plication. Slide the application tool (10) onto the square drive of the tool holder (1). Operation Method of Operation The tool holder (1) (with the application tool) is driven by an electric motor via a gear and impact mechanism. The working procedure is divided into two phases: Screwing in and tightening (impact mechanism in action). The impact mechanism is activated as soon as the screwed connection runs tight and load is therefore put on the motor. The impact mechanism then converts the power of the mo- tor to steady rotary impacts. When loosening screws or nuts, the process is reversed. Starting Operation u Always place the power tool down on its side and do not lay it on the battery. The power tool can tip over de- pending on the application tool and battery used. Inserting the battery Note: The use of batteries unsuitable for your power tool can lead to malfunctions or damage to the power tool. Push the charged battery(5) into the base of the power tool until the battery is securely locked. Bosch Power Tools 1 609 92A 6HV | (10.05.2021)12 | English Set the rotational direction (see figureE) The rotational direction switch (2) is used to change the ro- tational direction of the power tool. However, this is not pos- sible while the on/off switch (8) is being pressed. Right rotation: To drive in screws and tighten nuts, press the rotational direction switch (2) through to the left stop. Left Rotation: To loosen and unscrew screws and nuts, press the rotational direction switch (2) through to the right stop. Adjusting the Speed/Impact Rate You can adjust the speed/impact rate of the power tool when it is on by pressing in the on/off switch (8) to varying ex- tents. Applying light pressure to the on/off switch (8) results in a low rotational speed/impact rate. Applying increasing pres- sure to the switch increases the speed/impact rate. Switching on/off To start the power tool, press and hold the on/off switch (8). The worklight (15) lights up when the on/off switch (8) is lightly or fully pressed, allowing the work area to be illumin- ated in poor lighting conditions. To switch off the power tool, release the on/off switch (8). User interface (see figures D–E) GDS 18V-1000C / GDS 18V-1050HC: The user interface(7) is used to preselect the speed and working mode and to indicate the status of the power tool. Status indications Status indicator for power tool(11) Meaning/cause Solution Green Status OK – Yellow Critical temperature has been reached or re- chargeable battery is almost empty Run the power tool at no load and allow it to cool down, or replace or charge the battery soon Illuminated red Power tool has overheated or rechargeable battery is empty Allow the power tool to cool down, or replace or charge the battery Flashing blue Power tool is connected to a mobile device or settings are being transferred

Speed preselection With the speed preselection button (16), you can preselect the required speed in three stages. Press button (16) as of- ten as needed until the required setting is indicated in the speed indicator (17). The selected setting will be saved. GDS 18V-1000C / GDS 18V-1050HC: You can also preselect the speed using the Bosch Toolbox app. The required speed depends on the material and the work- ing conditions; it can be ascertained through practical tests. The information in the table below describes the recommen- ded values. Basic speed setting at level

Number of speed settings

0–1 100 0–2 300 0–3 400 You can use the button for speed preselection (16) to preselect the required speed, even during operation. Switching On the Worklight GDS 18V-1000 / GDS 18V-1050H: To switch the worklight(15) on or off, press the worklight button(13). u Do not look directly into the worklight; it can blind you. Selecting the working mode GDS 18V-1000C / GDS 18V-1050HC: The power tool has two preset working modes A and B (12). You can also programme working modes for different applic- ations and adjust existing modes via the Bosch Toolbox un- der A and B (12). To switch between the working modes A and B (12), press button (14). Practical advice u Only apply the power tool to the screw/nut when the tool is switched off. Rotating tool inserts can slip off. u The power tool with inserted Bluetooth

Low Energy ModuleGCY42 (accessory) is equipped with a radio interface. Local operating restrictions, e.g. in aircraft or hospitals, must be observed. The torque depends on the impact duration. The maximum achieved torque results from the sum of all individual torques achieved through impact. Maximum torque is achieved after an impact duration of 6–10seconds. After this duration, the tightening torque increases only minimally. The impact duration is to be determined for each required tightening torque. The tightening torque actually achieved should always be checked with a torque wrench. 1 609 92A 6HV | (10.05.2021) Bosch Power ToolsEnglish | 13 Screw applications with hard, spring-loaded or soft seats When the achieved torques in an impact series are measured during a test and transferred into a diagram, the result is the curve of a torque characteristic. The height of the curve cor- responds with the maximum reachable torque, and the steepness indicates the duration in which this is achieved. A torque gradient depends on the following factors: – Strength properties of the screws/nuts – Type of backing (washer, disc spring, seal) – Strength properties of the material being screwed/bolted together – Lubrication conditions at the screw/bolt connection The following application cases result accordingly: – A hard seat is a metal-to-metal screw application which uses washers. After a relatively short impact duration, the maximum torque is reached (steep characteristic curve). Unnecessary long impact duration only causes damage to the machine. – A spring-loaded seat is also a metal-to-metal screw ap- plication but uses spring washers, disc springs, studs or screws/nuts with conical seats. It is also called a spring- loaded seat when extensions are used. – A soft seat is a screw application of e.g. metal on wood or a screw application that uses lead washers or fibre wash- ers as backing. For a spring-loaded seat as well as for a soft seat, the max- imum tightening torque is lower than for a hard seat. Also, a clearly longer impact duration is required. Guide values for maximum screw tightening torques Figures given in Nm; calculated from the tensional cross-section; utilisation of the yield point: 90% (with friction coefficient

total =0.12). As a control measure, always check the tightening torque with a torque wrench. Property classes according to DIN

Standard screws High-strength screws

0–2600 0–2600 0–2600 0–2600 Couple

– – Bluetooth® 4.1 (Low Energy) Bluetooth® 4.1 (Low Energy) Distância do sinal s – – 8 8 Alcance máx. do sinal

– – Bluetooth® 4.1 (Low Energy) Bluetooth® 4.1 (Low Energy) Distância do sinal s – – 8 8 Alcance máx. do sinal

0–800 0–800 0–800 0–800 – 设置2

0–2600 0–2600 0–2600 0–2600

0–2600 0–2600 0–2600 0–2600 Torsi

0–8000–8000–8000–800

0–24000–24000–23000–2300

0–3500–3500–3500–350

0–7000–7500–6500–650

––Bluetooth® 4.1 (Low Energy) Bluetooth® 4.1 (Low Energy)

0–8000–8000–8000–800

0–2'6000–2'6000–2'6000–2'600

Nm0–7000–7500–6500–650

––Bluetooth® 4.1 (Low Energy) Bluetooth® 4.1 (Low Energy)

1 609 92A 6HV | (10.05.2021) Bosch Power Tools| 103 Licenses Copyright © 2004 - 2020, Texas Instruments Incorporated All rights reserved. Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following con- ditions are met: – Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. – Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclai- mer in the documentation and/or other materials provided with the distribution. – Neither the name of Texas Instruments Incorporated nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission. THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMI- TED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTER- RUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (IN- CLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Copyright © 2009–2020 ARM LIMITED All rights reserved. Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following con- ditions are met: – Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. – Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclai- mer in the documentation and/or other materials provided with the distribution. – Neither the name of ARM nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission. THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMI- TED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTER- RUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (IN- CLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Copyright © 2011 Petteri Aimonen This software is provided 'as-is', without any express or implied warranty. In no event will the authors be held liable for any da- mages arising from the use of this software. Permission is granted to anyone to use this software for any purpose, including commercial applications, and to alter it and re- distribute it freely, subject to the following restrictions: 1. The origin of this software must not be misrepresented; you must not claim that you wrote the original software. If you use this software in a product, an acknowledgment in the product documentation would be appreciated but is not required. 2. Altered source versions must be plainly marked as such, and must not be misrepresented as being the original software.

3. This notice may not be removed or altered from any source distribution.

EU Declaration of Conformity We declare under our sole responsibility that the stated products comply with all applicable provisions of the directives and regulations listed below and are in conformity with the following standards. Technical file at: * Cordless Impact Wrench Article number
