USER MANUAL IS 19Q30 NE INDESIT

Download the complete instruction manual on http:// docs . indesit . eu or call the phone number shown on the warranty booklet. Before using the appliance, read these safety instructions. Keep them nearby for future reference. These instructions and the appliance itself provide important safety warnings to be observed at all times. The manufacturer declines any liability for failure to observe these safety instructions, for inappropriate use of the appliance or incorrect setting of controls.

WARNING: If the hob surface is cracked, do not

use the appliance - risk of electric shock.

WARNING: Danger of re: Do not store items on

the cooking surfaces. CAUTION: The cooking process has to be supervised. A short cooking process has to be supervised continuously.

WARNING: Unattended cooking on a hob with fat

or oil can be dangerous - risk of re. NEVER try to extinguish a re with water: instead, switch o the appliance and then cover ame e.g. with a lid or a re blanket. Do not use the hob as a work surface or support. Keep clothes or other ammable materials away from the appliance, until all the components have cooled down completely - risk of re. Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot. Very young children (0-3 years) should be kept away from the appliance. Young children (3-8years) should be kept away from the appliance unless continuously supervised. Children from 8years old and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge can use this appliance only if they are supervised or have been given instructions on safe use and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance must not be carried out by children without supervision. After use, switch o the hob element by its control and do not rely on the pan detector.

WARNING: The appliance and its accessible parts

become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised. PERMITTED USE CAUTION: the appliance is not intended to be operated by means of an external switching device, such as a timer, or separate remote controlled system. This appliance is intended to be used in household and similar applications such as: sta kitchen areas in shops, oces and other working environments; farm houses; by clients in hotels, motels, bed & breakfast and other residential environments. No other use is permitted (e.g. heating rooms). This appliance is not for professional use. Do not use the appliance outdoors. INSTALLATION The appliance must be handled and installed by two or more persons - risk of injury. Use protective gloves to unpack and install - risk of cuts. Installation, including water supply (if any), electrical connections and repairs must be carried out by a qualied technician. Do not repair or replace any part of the appliance unless specically stated in the user manual. Keep children away from the installation site. After unpacking the appliance, make sure that it has not been damaged during transport. In the event of problems, contact the dealer or your nearest After-sales Service. Once installed, packaging waste (plastic, styrofoam parts etc.) must be stored out of reach of children - risk of suocation. The appliance must be disconnected from the power supply before any installation operation - risk of electric shock. During installation, make sure the appliance does not damage the power cable - risk of re or electric shock. Only activate the appliance when the installation has been completed. Carry out all cabinet cutting operations before tting the appliance and remove all wood chips and sawdust. If the appliance is not installed above an oven, a separator panel (not included) must be installed in the compartment under the appliance. ELECTRICAL WARNINGS It must be possible to disconnect the appliance from the power supply by unplugging it if plug is accessible, or by a multi-pole switch installed upstream of the socket in accordance with the wiring rules and the appliance must be earthed in conformity with national electrical safety standards. Do not use extension leads, multiple sockets or adapters. The electrical components must not be accessible to the user after installation. Do not use the appliance when you are wet or barefoot. Do not operate this appliance if it has a damaged power cable or plug, if it is not working properly, or if it has been damaged or dropped. Installation using a power cable plug is not allowed unless the product is already equipped with the one provided by the Manufacturer. SAFETY INSTRUCTIONS

IMPORTANT TO BE READ AND OBSERVED

ENIf the supply cord is damaged, it must be replaced with an identical one by the manufacturer, its service agent or similarly qualied persons in order to avoid a hazard - risk of electric shock.

CLEANING AND MAINTENANCE

WARNING: Ensure that the appliance is switched

o and disconnected from the power supply before performing any maintenance operation; never use steam cleaning equipment - risk of electric shock. Do not use abrasive or corrosive products, chlorine-based cleaners or pan scourers.

DISPOSAL OF PACKAGING MATERIALS

The packaging material is 100% recyclable and is marked with the recycle symbol

The various parts of the packaging must therefore be disposed of responsibly and in full compliance with local authority regulations governing waste disposal.

DISPOSAL OF HOUSEHOLD APPLIANCES

This appliance is manufactured with recyclable or reusable materials. Dispose of it in accordance with local waste disposal regulations. For further information on the treatment, recovery and recycling of household electrical appliances, contact your local authority, the collection service for household waste or the store where you purchased the appliance. This appliance is marked in compliance with European Directive 2012/19/EU, Waste Electrical and Electronic Equipment (WEEE) and with the Waste Electrical and Electronic Equipment regulations 2013 (as amended). By ensuring this product is disposed of correctly, you will help prevent negative consequences for the environment and human health. The symbol on the product or on the accompanying documentation indicates that it should not be treated as domestic waste but must be taken to an appropriate collection center for the recycling of electrical and electronic equipment.

Make the most of your hot plate’s residual heat by switching it o a few minutes before you nish cooking. The base of your pot or pan should cover the hot plate completely; a container that is smaller than the hot plate will cause energy to be wasted. Cover your pots and pans with tight-tting lids while cooking and use as little water as possible. Cooking with the lid o will greatly increase energy consumption. Use only at-bottomed pots and pans.

DECLARATION OF CONFORMITY

This appliance meets Ecodesign requirements of European Regulation 66/2014 and The Ecodesign for Energy-Related Products and Energy Information (Amendment) (EU Exit) Regulations 2019 in compliance with the European standard EN 60350-2. NOTE People with a pacemaker or similar medical device should use care when standing near this induction cooktop while it is on. The electromagnetic eld may aect the pacemaker or similar device. Consult your doctor, or the manufacturer of the pacemaker or similar medical device for additional information about its eects with electromagnetic elds of the induction cooktop.INSTALLATION 6mm kit 4801 211 00112 R = Max. 10 mmR = 11.5 mm 4 mm 267 mm510 mm488 mm284 mm 50 mm R = Max 10 mmMin. 35 mm

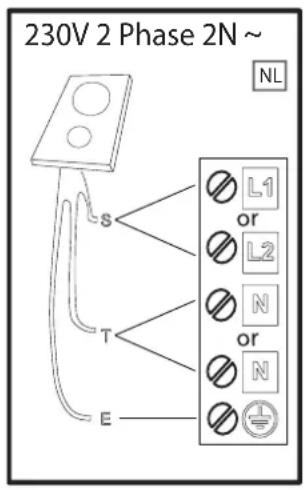

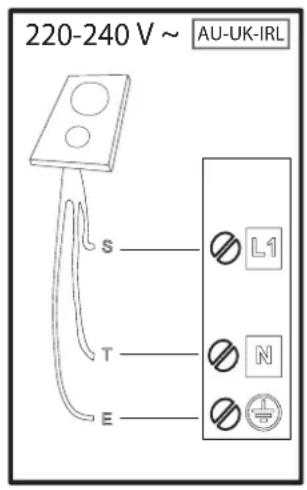

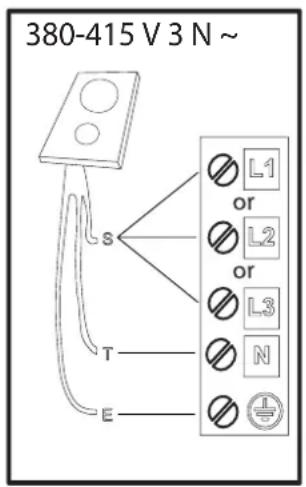

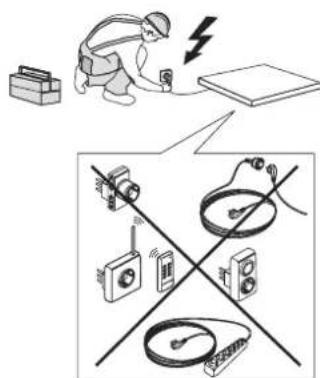

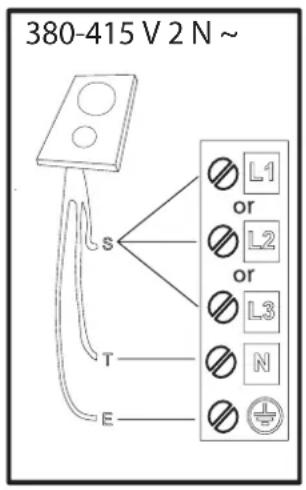

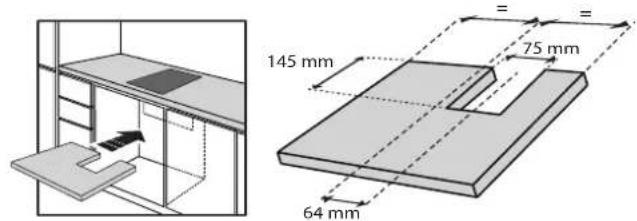

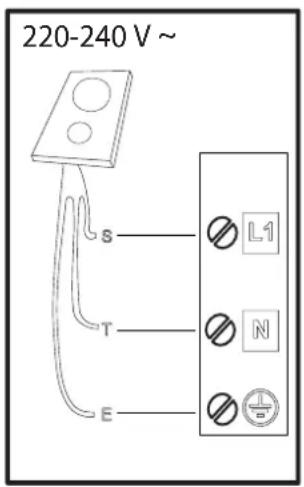

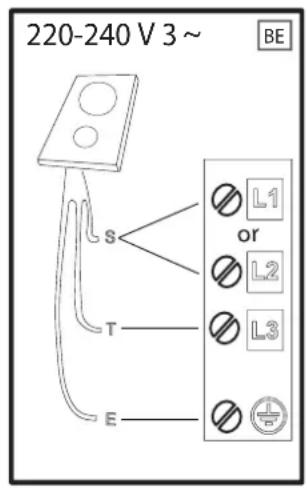

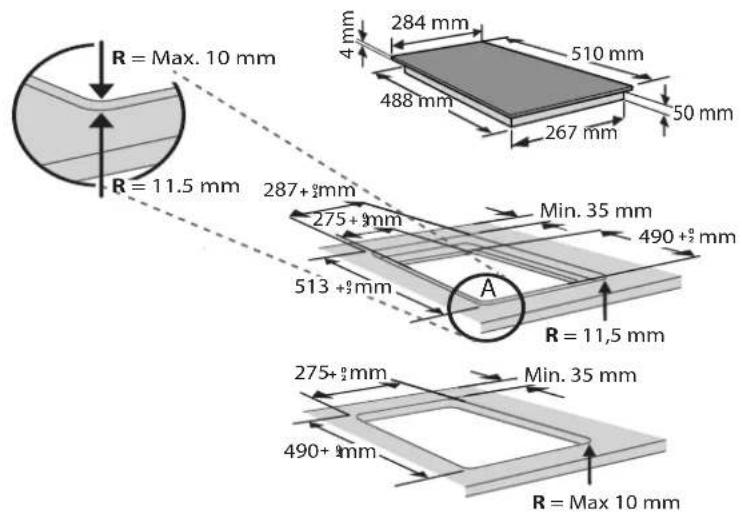

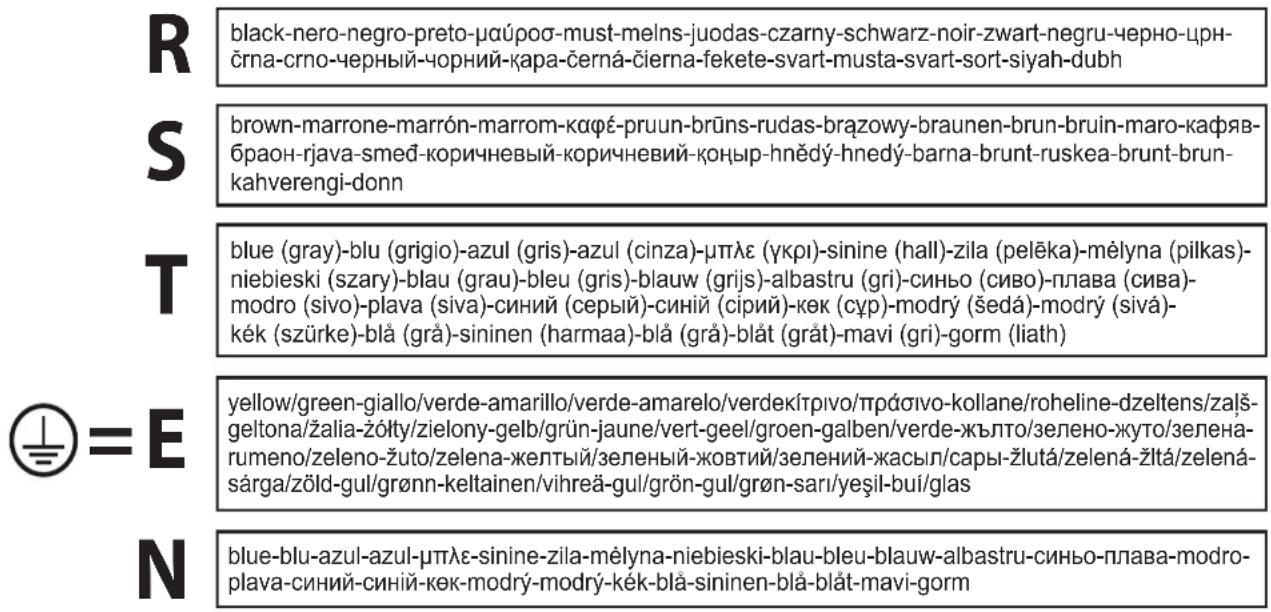

2ELECTRICAL CONNECTION Electrical connection must be made before connecting the appliance to the electricity supply. Installation must be carried out by qualied personnel who know the current safety and installation regulations. Specically, installation must be carried out in compliance with the regulations of the local electricity supply company. Make sure the voltage specied on the data plate located on the bottom of the appliance is the same as that of the home. Regulations require that the appliance be earthed: use conductors (including the earth conductor) of the appropriate size only. blue-blu-azul-azul-μπλε-sinine-zila-mėlyna-niebieski-blau-bleu-blauw-albastru-синьо-плава-modro- plava-синий-синій-көк-modrý-modrý-kék-blå-sininen-blå-blåt-mavi-gorm

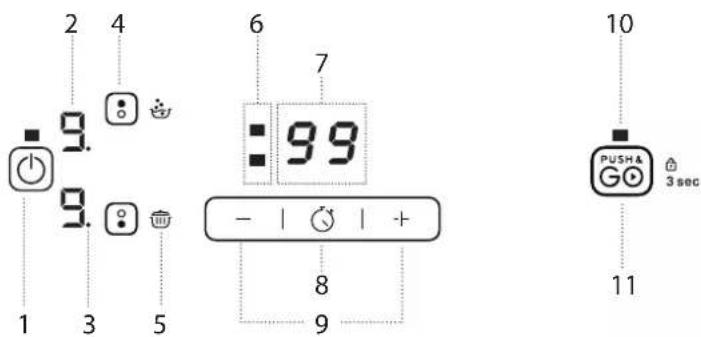

1. On/O button2. Cooking level selected3. Zone selection indicator4. Cooking zone selection button5. Special function icon6. Timer indicators active for the selected zone7. Cooking time indicator8. Timer activation button9. Power and cooking time adjustment buttons10. Indicator light – function active11. PUSH&GO/Child lock button – 3secondsTHANK YOU FOR BUYING A WHIRLPOOL PRODUCTIn order to receive a more complete assistance, please register your product on www . indesit . com / register.

Before using the appliance carefully read the Safety Instruction.

Owner's manualFIRST TIME USE POWER MANAGEMENT At the time of purchase, the hob is set to the maximum possible power. Adjust the setting concerning the limits of your home's electrical system as described in the following paragraph. N.B: Depending on the power selected for the hob, some of the cooking zone power levels and functions (e.g. boil or fast heating) could be automatically limited to prevent the selected limit from being exceeded. To set the power of the hob: Once you have connected the device to the mains power supply, you can set the power level within 60seconds. Press the “+“ button for at least 3seconds. The display shows “PL“. Press the button to conrm. Use the “+“ and

buttons to select the desired power level. The power levels available are: 2,5kW – 3,7kW. Conrm by pressing

The power level selected will stay in the memory even if the power supply is interrupted. To change the power level, disconnect the appliance from the mains for at least 60seconds, then plug it back in and repeat the steps above. If an error occurs during the setting sequence, the “EE“ symbol will appear, and you will hear a beep. If this happens, repeat the operation. If the error persists, contact the After-Sales Service.

ACOUSTIC SIGNAL ON/OFF

To switch the acoustic signal on/o:

• Connect the hob to the power supply;

• Wait for the switch-on sequence;

• Within 60seconds, press the buttons “+“ and simultaneously for at least 5seconds. DEMO MODE (reheating deactivated, see the section on “Troubleshooting“) To switch the demo mode on and o:

• Connect the hob to the power supply;

• Wait for the switch-on sequence;

seconds, simultaneously press the left-hand cooking zone selection buttons for at least 3

seconds (as shown below);

• “DE“ will show on the display. 3 sec. ACCESSORIES

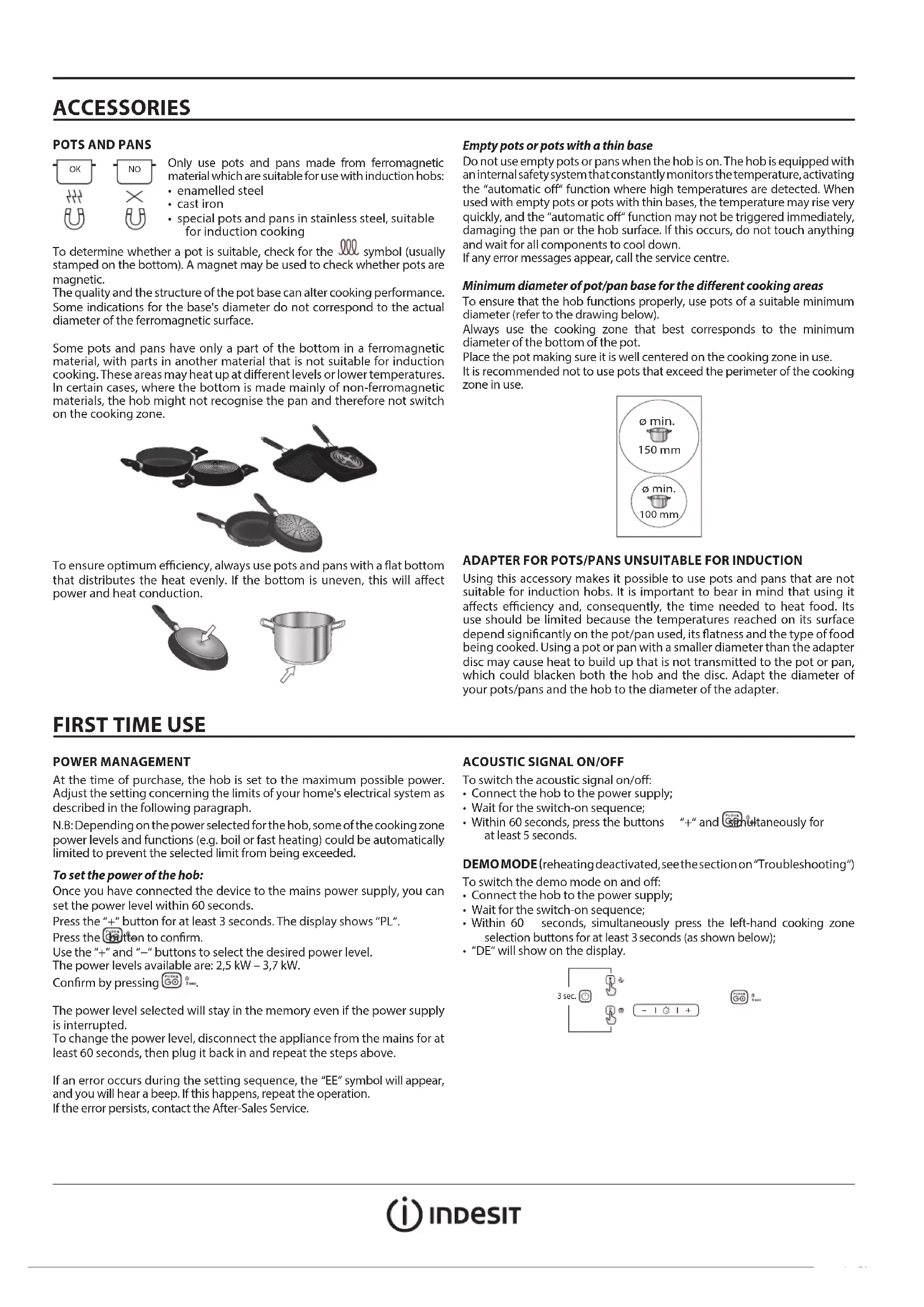

Only use pots and pans made from ferromagnetic material which are suitable for use with induction hobs:

• special pots and pans in stainless steel, suitable for induction cooking To determine whether a pot is suitable, check for the symbol (usually stamped on the bottom). A magnet may be used to check whether pots are magnetic. The quality and the structure of the pot base can alter cooking performance. Some indications for the base's diameter do not correspond to the actual diameter of the ferromagnetic surface. Some pots and pans have only a part of the bottom in a ferromagnetic material, with parts in another material that is not suitable for induction cooking. These areas may heat up at dierent levels or lower temperatures. In certain cases, where the bottom is made mainly of non-ferromagnetic materials, the hob might not recognise the pan and therefore not switch on the cooking zone. To ensure optimum eciency, always use pots and pans with a at bottom that distributes the heat evenly. If the bottom is uneven, this will aect power and heat conduction. NOOK Empty pots or pots with a thin base Do not use empty pots or pans when the hob is on. The hob is equipped with an internal safety system that constantly monitors the temperature, activating the “automatic o“ function where high temperatures are detected. When used with empty pots or pots with thin bases, the temperature may rise very quickly, and the “automatic o“ function may not be triggered immediately, damaging the pan or the hob surface. If this occurs, do not touch anything and wait for all components to cool down. If any error messages appear, call the service centre. Minimum diameter of pot/pan base for the dierent cooking areas To ensure that the hob functions properly, use pots of a suitable minimum diameter (refer to the drawing below). Always use the cooking zone that best corresponds to the minimum diameter of the bottom of the pot. Place the pot making sure it is well centered on the cooking zone in use. It is recommended not to use pots that exceed the perimeter of the cooking zone in use. ø min. 100 mm ø min. 150 mm ADAPTER FOR POTS/PANS UNSUITABLE FOR INDUCTION Using this accessory makes it possible to use pots and pans that are not suitable for induction hobs. It is important to bear in mind that using it aects eciency and, consequently, the time needed to heat food. Its use should be limited because the temperatures reached on its surface depend signicantly on the pot/pan used, its atness and the type of food being cooked. Using a pot or pan with a smaller diameter than the adapter disc may cause heat to build up that is not transmitted to the pot or pan, which could blacken both the hob and the disc. Adapt the diameter of your pots/pans and the hob to the diameter of the adapter.DAILY USE

SWITCHING THE HOB ON/OFF

To turn the hob on, press the power button for around 1 second. To turn the hob o, press the same button again, and all cooking zones will be deactivated. POSITIONING Locate the desired cooking zone by referring to the position symbols. Do not cover the control panel symbols with the cooking pot. Please note: In the cooking zones close to the control panel, it is advisable to keep pots and pans inside the markings (taking both the bottom of the pan and the upper edge into consideration, as this tends to be larger). This prevents excessive overheating of the keypad. When grilling or frying, please use the rear cooking zones wherever possible.

ACTIVATING/DEACTIVATING COOKING ZONES AND ADJUSTING

POWER LEVELS To activate the cooking zones: Select the pre-selected cooking zone by pressing the corresponding zone selection button. The display will show level “0“. Each cooking zone has dierent power levels that can be adjusted using the “+“/“−“ buttons, from a minimum of 1 to a maximum of 9. Some cooking zones have a fast heating function (Booster), shown on the display with the letter “P“. Power indicator display Selected cooking zone indicator To deactivate the cooking zones: Select the cooking zone to be switched o by pressing the corresponding zone selection button (a dot will light up on the display, to the power level indicator's bottom right). Press the "−" to set the level to "0 ". To switch o immediately, press and hold the zone selection button for 3seconds. The cooking zone is deactivated, and the residual heat indicator "H "appears on the display.

To lock the settings and prevent it from being switched on accidentally, press and hold the PUSH&GO/Child lock button for 3 seconds. A beep and a warning light above the symbol indicate that this function has been activated. The control panel is locked except for the switching o function ( ). To unlock the controls, repeat the activation procedure. TIMER The timer enables a cooking time to be set for all of the zones. To activate the timer: Select and activate the cooking zone for which you wish to set the timer. Press the button with the clock icon and set the desired time, using the “+“ and “−“ buttons. The timer LED for the zone in use will be illuminated. A few seconds after the last touch, the timer will start the countdown and the dot on the display that indicates that the seconds are passing will ash. When the set time is up, an acoustic signal will sound, and the cooking zone will switch o automatically. After selecting the zone and the clock icon, the time can be changed at any point, and several timers can be activated simultaneously. The timer always shows the time set for the selected area or the shortest remaining time. When more than one timer is active, the ashing LED indicates the zone for which the cooking time is visible on the display. To set the timer for another zone, repeat the above steps. To deactivate the timer: Select the cooking zone for which you wish to deactivate the timer. Press the button with the clock icon (

for 3seconds. Alternatively, press the button with the clock icon and then press and hold the “−“ button until the display shows “0:0“. FUNCTIONS PUSH&GO The “PUSH&GO“ button activates the special functions. Place the pot in position and select the cooking zone. Press the “PUSH&GO“ button. The display of the selected area will show “A“. To deactivate the special function and return to manual mode, select the cooking zone and press the “PUSH&GO“ button again. The power level when using special functions is pre-set by the hob and cannot be modied. PUSH&WARM This feature allows you to keep your food at an ideal temperature, usually after cooking is complete or reducing liquids very slowly. Ideal for serving foods at the perfect temperature. PUSH&BOIL This function allows you to bring water to the boil and keep it boiling, with lower energy consumption. About 2 litres of water (preferably at room temperature) should be placed in the pan. In all cases, users are advised to monitor the boiling water closely and check the amount of water remaining regularly. If the pots are big and the water quantity is higher than 2 litres, we recommend using a lid to optimize boiling time.

MAINTENANCE AND CLEANING

POWER LEVEL TYPE OF COOKING

LEVEL USE (indicating cooking experience and habits) Maximum power P Fast heating/Booster Ideal for rapidly increasing the food temperature to fast boiling in the case of water or rapidly heating cooking liquids.

boiling Ideal for browning, starting to cook, frying deep-frozen products, fast boiling. High power

grilling Ideal for sautéing, maintaining a lively boil, cooking and grilling (for a short period of time, 5-10 minutes).

grilling Ideal for sautéing, maintaining a light boil, cooking and grilling (for a medium period of time, 10-20 minutes), preheating accessories. Medium power

grilling Ideal for stewing, maintaining a gentle boil, cooking (for a long period of time). Creaming pasta.

creaming Ideal for long-cooking recipes (rice, sauces, roasts, sh) with liquids (e.g. water, wines, broth, milk), creaming pasta.

Ideal for long-cooking recipes (less than a litre in volume: rice, sauces, roasts, sh) with liquids (e.g. water, wines, broth, milk). Low power

creaming Ideal for softening butter, gently melting chocolate, thawing small products and keeping just-cooked food warm (e.g. sauces, soups, minestrone).

Ideal for keeping just-cooked food warm, for creaming risottos, and keeping serving dishes warm (with induction-suitable accessory). Zero power 0 Support surface Hob in standby or o mode (possible end-of-cooking residual heat, indicated by an “H“).

• Do not use steam cleaning equipment.

• Before cleaning, make sure the cooking zones are switched o and that the residual heat indicator (“H“) is not displayed. Important:

• Do not use abrasive sponges or scouring pads as they may damage the glass.

• After each use, clean the hob (when it is cool) to remove any deposits and stains from food residue.

• A surface that is not kept suitably clean may reduce the sensitivity of control panel buttons.

• Use a scraper only if residues are stuck to the hob. Follow the scraper manufacturer's instructions to avoid scratching the glass.

• Sugar or foods with high sugar content can damage the hob and must be immediately removed.

• Salt, sugar and sand could scratch the glass surface.

• Use a soft cloth, absorbent kitchen paper or a special hob cleaner (follow the Manufacturer’s instructions).

• Spills of liquid in the cooking zones can cause the pots to move or vibrate.

• After cleaning the hob, dry thoroughly. INDICATORS RESIDUAL HEAT If "H "appears on the display, this means that the cooking zone is hot. The indicator lights up even if the zone has not been activated but has been heated due to the adjacent zones' use or because a hot pot has been placed on it. When the cooking zone has cooled down, the “H“ disappears.

POT INCORRECTLY POSITIONED OR MISSING

This symbol appears if the pot is not suitable for induction cooking, is not positioned correctly or is not of an appropriate size for the cooking zone selected. If no pot is detected within 30seconds of making the selection, the cooking zone switches o. The cooking table oers an example of the cooking type for each power level. The actual delivered power of each power level depends on the cooking zone dimension.Induction hobs may whistle or creak during normal operation. These noises actually come from the cookware and are linked to the pan bottoms' characteristics (for example, when the bottoms are made from dierent layers of material or are irregular). These noises may vary according to the type of cookware used and the amount of food it contains and not the symptom of something wrong.

• Check that the electricity supply has not been shut o.

• If you cannot turn the hob o after using it, disconnect it from the power supply.

• If alphanumeric codes appear on the display when the hob is switched on, consult the following table for instructions. Please note: The presence of water, liquid spilled from pots or any objects resting on any of the hob buttons can accidentally activate or deactivate the control panel lock function.

DISPLAY CODE DESCRIPTION POSSIBLE CAUSES SOLUTION

F0E1 Cookware is detected, but it is not compatible with the requested operation. The cookware is not well positioned on the cooking zone or is not compatible with one or more cooking zones. Press the On/O button twice to remove the F0E1 code and restore the cooking zone's functionality. Then, try to use the cookware with a dierent cooking zone or use dierent cookware. F0E7 Wrong power cord connection. The power supply connection is not exactly as indicated in the “ELECTRICAL CONNECTION“ paragraph. Adjust the power supply connection according to the “ELECTRICAL CONNECTION“ paragraph. F0EA The control panel switches o because of excessively high temperatures. The internal temperature of the electronic parts is too high. Wait for the hob to cool down before using it again. F0E9 The cooking zone turns o when the temperatures are too high. The internal temperature of electronic parts is too high. Wait until the cooking area has cooled o before using it again. F0E2, F0E4, F0E6, F0E8, F0EC, F1E1, F2E1, F6E1, F6E3, F7E5, F7E6 Disconnect the hob from the power supply. Wait a few seconds then reconnect the hob to the power supply. If the problem persists, call the service centre and specify the error code that appears on the display. d E [when the hob is off] The hob does not switch heat up. The functions do not come on. DEMO MODE on. Follow the instructions in the “DEMO MODE“ paragraph. e.g.

The hob does not allow a special function to be activated. The power regulator limits the power levels in accordance with the maximum value set for the hob. See paragraph “Power management“. e.g.

Power level lower than level requested

The hob automatically sets a minimum power level to ensure that the cooking zone can be used. The power regulator limits the power levels in accordance with the maximum value set for the hob. See paragraph “Power management“.

Owner's manualAFTERSALES SERVICE To receive more complete assistance, please register your product on www . indesit . com / register. BEFORE CALLING THE AFTER-SALES SERVICE:

1. See if you can solve the problem by yourself with the help of the

TROUBLESHOOTING suggestions.

2. Switch the appliance o and back on again to see if the fault persists.

IF AFTER THE ABOVE CHECKS THE FAULT STILL OCCURS, GET IN TOUCH WITH THE NEAREST AFTER-SALES SERVICE. To receive assistance, call the number shown on the warranty booklet or follow the website's instructions on www . indesit . com . When contacting our Client After sales service, always specify:

• a brief description of the fault;

• the type and exact model of the appliance; XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXMade in X Type: XXXMod.: XXX

XXXX XXX XXXXX XX XXXX XXXX X XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX

• the serial number (number after the word SN on the rating plate located under the appliance). The serial number is also indicated in the documentation; Mod. Ind.C. XXXX XXXX XXXX XXX XXX Prod.N. 86999XXXXXXX S.N.

• your telephone number. If any repairs are required, please contact an authorized after-sales service (to guarantee that original spare parts will be used and repairs carried out correctly). In the case of ush-mounted installation, call the After Sales Service to request assembly of screws kit 4801 211 00112.

Policies, standard documentation and additional product information can be found by:

• Using QR code in your appliance;

• Visiting our website docs . indesit.eu;

• Alternatively, contact our After-sales Service (See phone number in the warranty booklet). When contacting our After-sales Service, please state the codes provided on your product's identication plate.
