WorkWise WWSSD3622 - Office Tripp Lite - Free user manual and instructions

Product Type	Height-adjustable sit-stand desk (converter)
Brand	Tripp Lite
Model	WorkWise WWSSD3622
Approximate dimensions (W × D × H)	91.4 × 55.9 × 10.2-50.8 cm (36 × 22 × 4-20 in)
Height adjustment range	38 cm (15 in)
Maximum load capacity	15 kg (33 lb)
Lifting mechanism	Gas lift (gas spring)
Power supply	None (mechanical)
Material	Not specified (likely steel and plastic)
Color	Not specified (usually black or gray)
Package contents	Workstation, 2 mounting feet, 6 hex screws, 1 hex key, 1 cable management clamp, 2 single-use cable ties, 4 felt pads
Key features	Continuous height adjustment, keyboard tray, integrated cable management, tool-free assembly
Care and cleaning	Clean with a soft, dry cloth; do not use abrasive cleaners or solvents
Safety	Do not exceed maximum load; avoid hand contact with support bars during adjustment; leave enough cable slack to prevent pinching
Warranty	5-year limited warranty against defects in materials and workmanship
Customer support	www.tripplite.com/support
Repairability	Spare parts available from manufacturer; professional repair recommended

Frequently Asked Questions - WorkWise WWSSD3622 Tripp Lite

How to assemble the WorkWise WWSSD3622 desk?

Remove the package contents, turn the workstation on its back, attach the mounting feet with the hex screws and provided hex key, then cut the single-use cable ties. Refer to the manual for detailed steps.

What is the maximum weight capacity of this desk?

The maximum capacity is 15 kg (33 lb). Never exceed this load to avoid injury or damage.

How to adjust the desk height?

Press the two handles located under the desktop to raise or lower the desk. The gas lift mechanism allows continuous adjustment over a range of 38 cm.

Can I use multiple monitors on this desk?

Yes, as long as the total weight of equipment (monitors, computer, etc.) does not exceed 15 kg. Place monitors centered on the top surface.

How to manage cables with this desk?

Attach the cable management clamp to the edge of the keyboard tray, route keyboard and mouse cables through the clamp, then use the single-use cable ties to bundle other cables. Leave enough slack to allow vertical movement.

What to do if the desk does not rise or is stuck?

Check that the load does not exceed the maximum capacity. Ensure no object is blocking the mechanism. If the problem persists, contact Tripp Lite support.

Is the warranty transferable to a new buyer?

The 5-year limited warranty applies to the original purchaser. It is generally not transferable unless otherwise stated by Tripp Lite.

Can I clean the desk with water?

Use a soft, dry cloth to clean surfaces. Avoid water, abrasive cleaners, and solvents that could damage the finish.

Is the desk stable on carpet?

Yes, thanks to the felt pads included. Attach them under the feet to prevent scratches and ensure better grip on carpet or hard floors.

How to avoid cable pinching during adjustment?

Ensure cables have enough slack to follow vertical movement. Do not let cables wrap around support bars. Follow the cable routing instructions in the manual.

USER MANUAL WorkWise WWSSD3622 Tripp Lite

Register your product for quicker service and ultimate peace of mind. You could also win an ISOBAR6ULTRA surge protector—a $100 value! www.triplite.com/warranty

1111 W. 35th Street, Chicago, IL 60609 USA • www.triplite.com/support

Copyright © 2017 Tripp Lite. All rights reserved.

Component Checklist

IMPORTANT: Ensure all parts according to the component checklist have been received prior to installation. If any parts are missing or faulty, visit www.triplite.com/support for service.

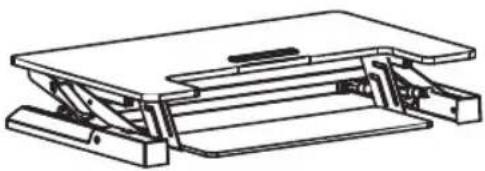

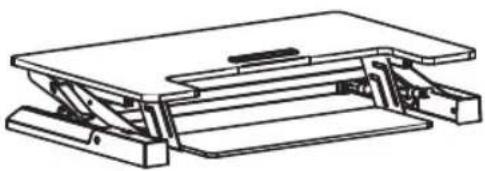

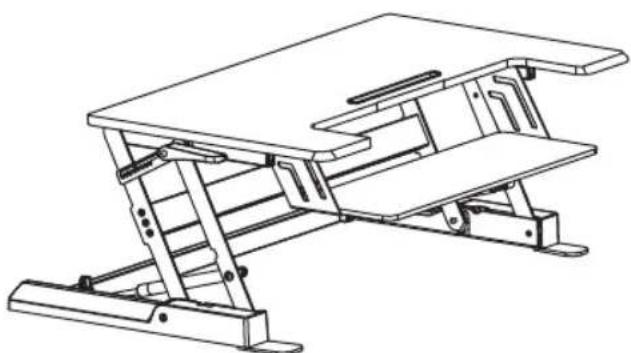

Workstation

x1

Mounting Feet

x2

4 mm Hex Screw

x6

4 mm Hex Key

x1

Cable Management Clamp

x1

Zip Tie

x2

Felt Pads

x4

Assembly

1

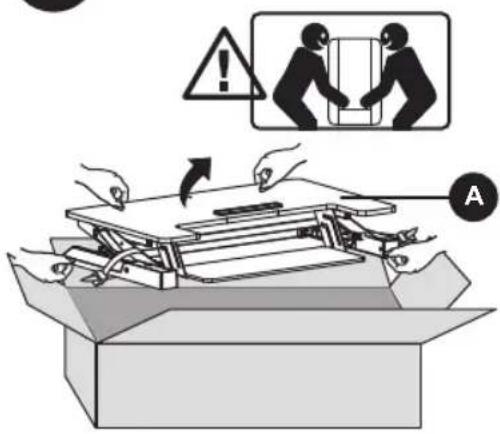

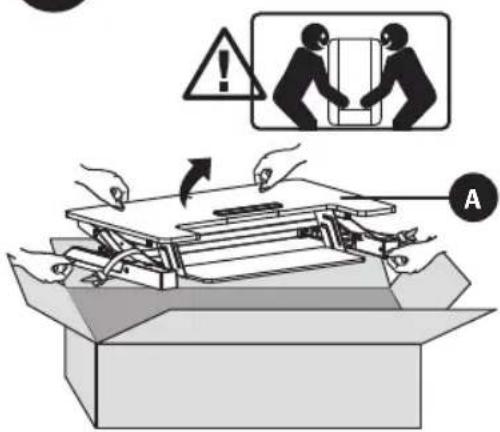

Remove contents from package.

WARNING: Impact hazard!

Moving part can crush and cut.

Assembly

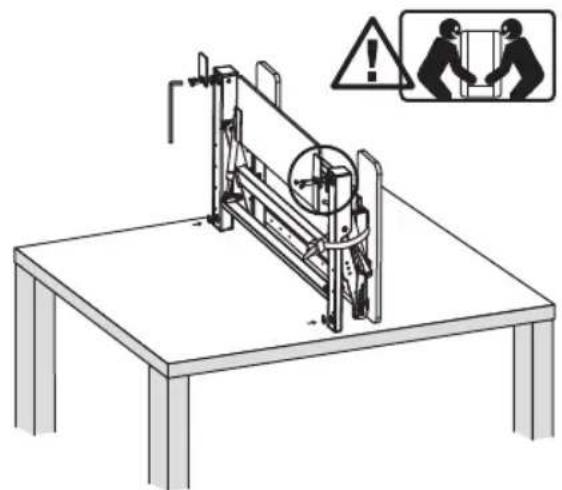

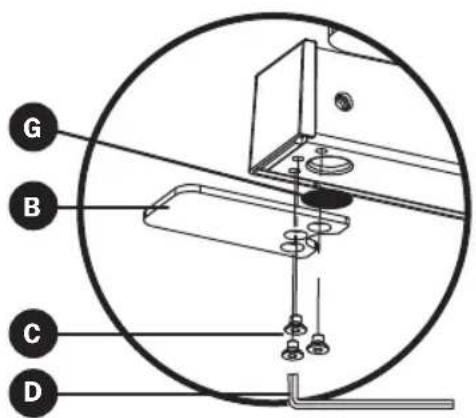

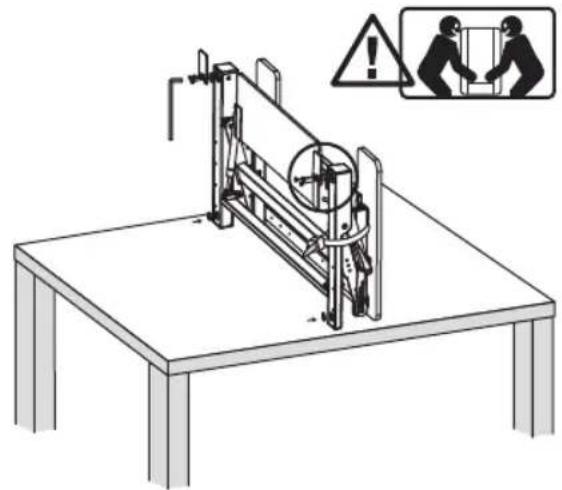

Flip the workstation onto its rear side so it stands upright. For improved stability and traction, attach the washers, mounting feet and hex screws. Secure hardware with the included 4 mm hex key.

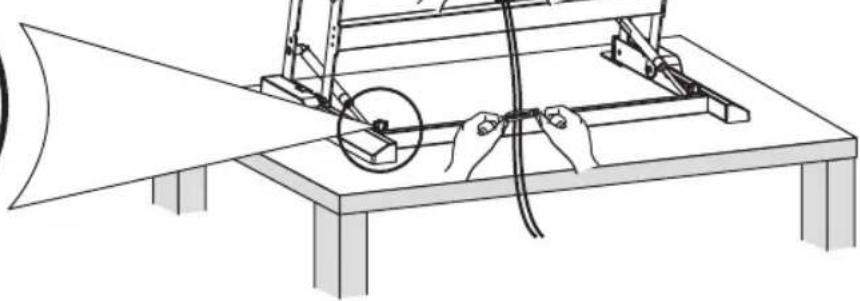

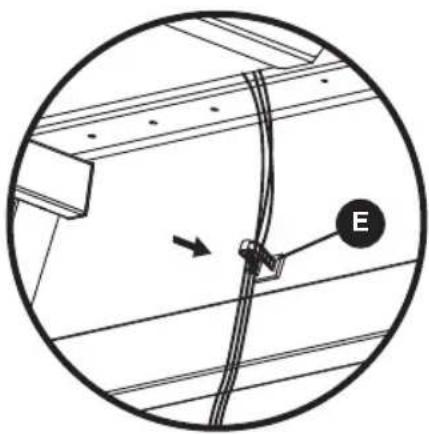

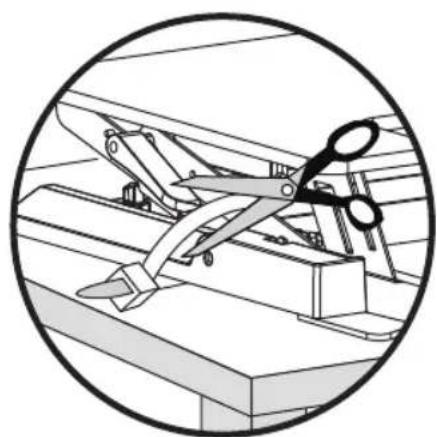

Using scissors or other sharp tool, cut the zip ties securing the workstation.

Assembly

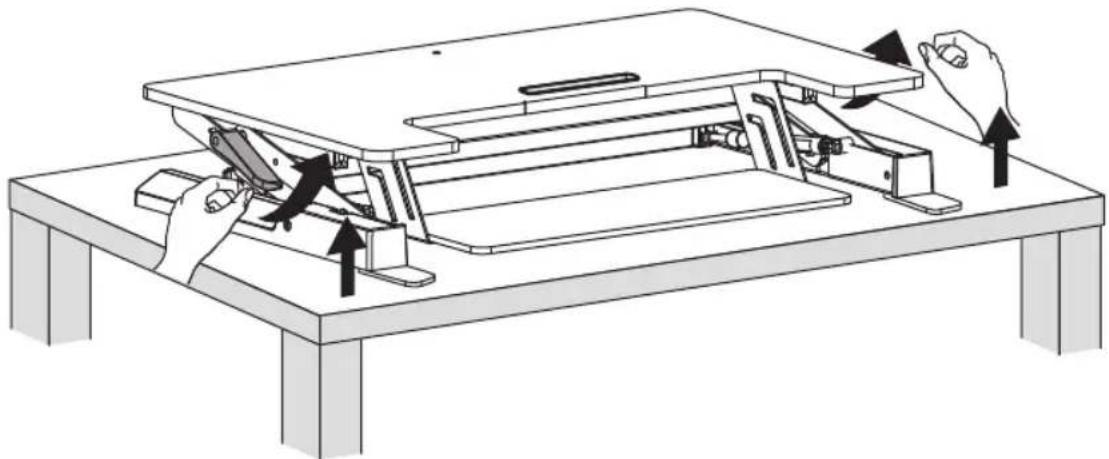

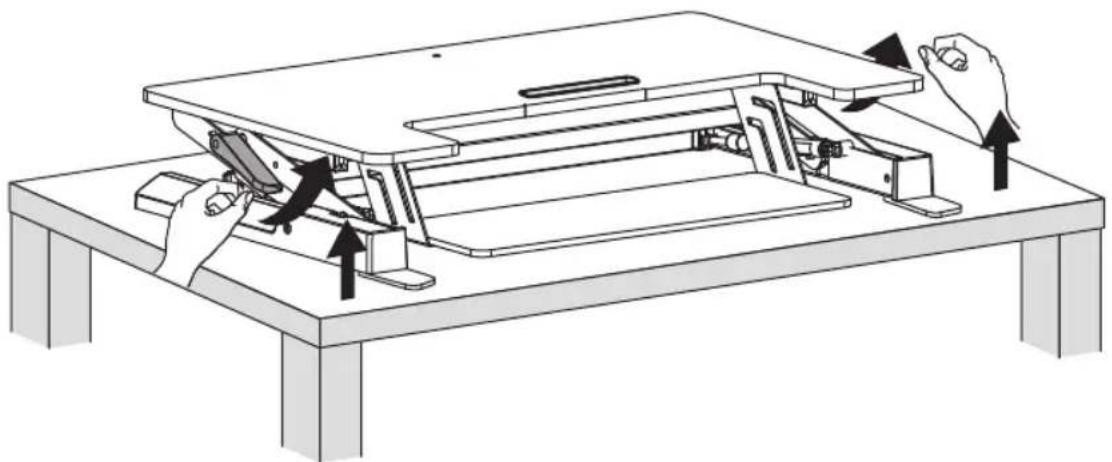

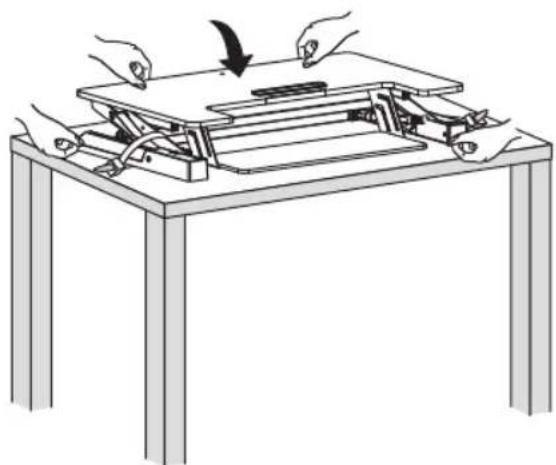

Press both workstation handles to raise or lower the unit.

Assembly

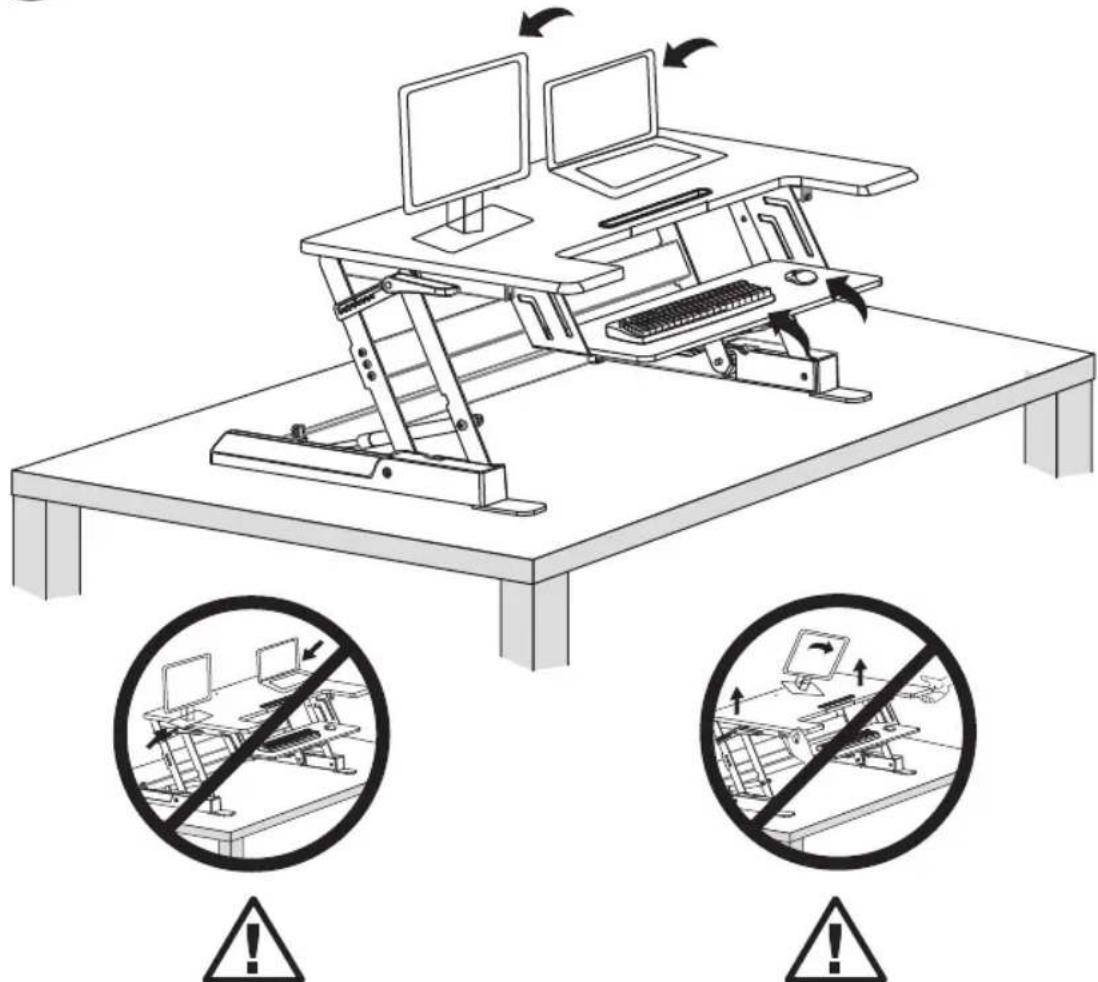

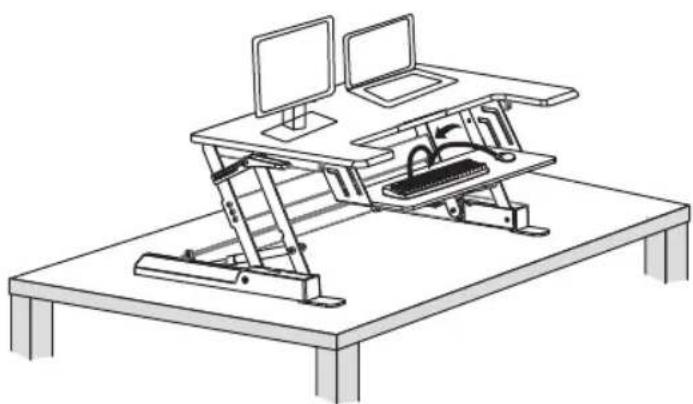

Place monitors, keyboard and/or laptops onto the workstation.

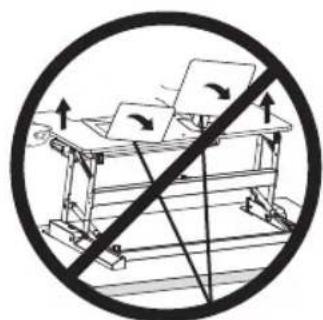

Keep monitors and laptops placed firmly in the center of the top surface. Allowing any part of the equipment to hang off the edge may result in property damage and/or personal injury.

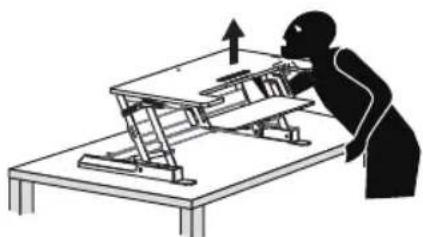

Make sure to raise the unit slowly. Raising the workstation too quickly may create an unstable situation resulting in property damage and/or personal injury.

Assembly

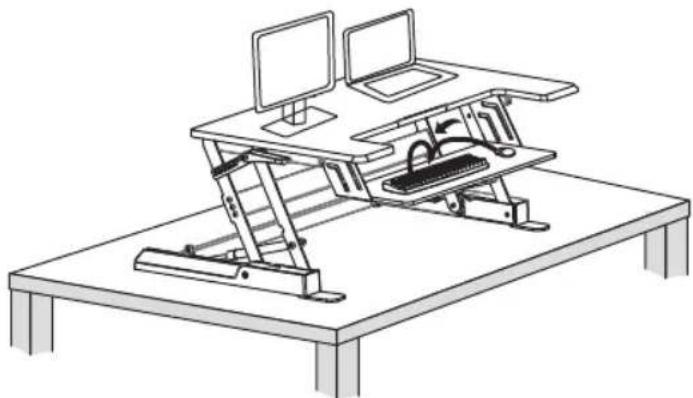

Attach the cable management clamp to the rear side of the keyboard tray. Route keyboard and mouse cables through the clamp, as needed.

Assembly

Use the included zip ties to bundle and organize equipment cables

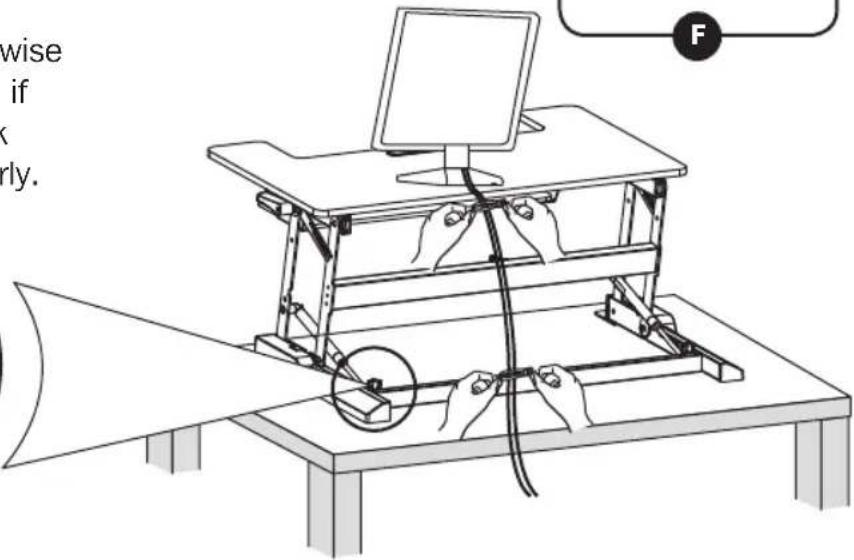

Turn side knob clockwise or counter-clockwise if the latch cannot lock into the notch properly.

Leave enough cable slack to allow for full range of vertical motion (15" / 38 cm). Failure to heed this warning may result in property damage and/or personal injury.

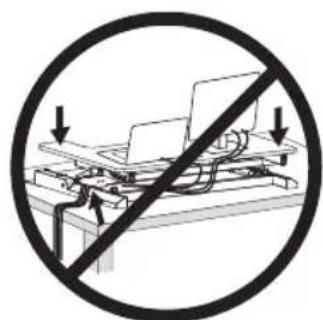

To avoid the potential to pinch cables, it is important to follow the cable routing instructions in this manual. Failure to follow these instructions may result in equipment damage and/or personal injury.

WARNING

PINCH POINT

DO NOT place hands on or near support bars. Pinch points are created during lifting and lowering the worksurface. Failure to follow these instructions may result in serious personal injury.

Warranty and Product Registration

5-Year Limited Warranty

Seller warrants this product, if used in accordance with all applicable instructions, to be free from original defects in material and workmanship for a period of 5 years from the date of initial purchase. If the product should prove defective in material or workmanship within that period, Seller will repair or replace the product, in its sole discretion.

THIS WARRANTY DOES NOT APPLY TO NORMAL WEAR OR TO DAMAGE RESULTING FROM ACCIDENT, MISUSE, ABUSE OR NEGLECT. SELLER MAKES NO EXPRESS WARRANTY OTHER THAN THE WARRANTY EXPRESSLY SET FORTH HEREIN. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ALL IMPLIED WARRANTYIES, INCLUDING ALL WARRANTYES OF MERCHANTABILITY OR FITNESS, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE; AND THIS WARRANTY EXPRESSLY EXCUSES ALL INCIDENTAL AND CONSEQUENTIAL DAMAGES. (Some states do not allow limitations on how long an implied warranty lasts, and some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may have other rights which vary from jurisdiction to jurisdiction).

WARNING: The individual user should take care to determine prior to use whether this device is suitable, adequate or safe for the use intended. Since individual applications are subject to great variation, the manufacturer makes no representation or warranty as to the suitability or fitness of these devices for any specific application.

PRODUCT REGISTRATION

Visit www.triplite.com/warranty today to register your new Tripp Lite product. You'll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!*

• No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.

Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice.

1111 W. 35th Street, Chicago, IL 60609 USA • www.triplite.com/support

1111 W. 35th Street, Chicago, IL 60609 USA • www.triplite.com/support

1111 W. 35th Street, Chicago, IL 60609 USA • www.triplite.com/support

1111 W. 35th Street, Chicago, IL 60609 USA • www.triplite.com/support

Manufacturing Excellence.

1111 W. 35th Street, Chicago, IL 60609 USA • www.triplite.com/support
