USER MANUAL WWSSFDSAM Tripp Lite

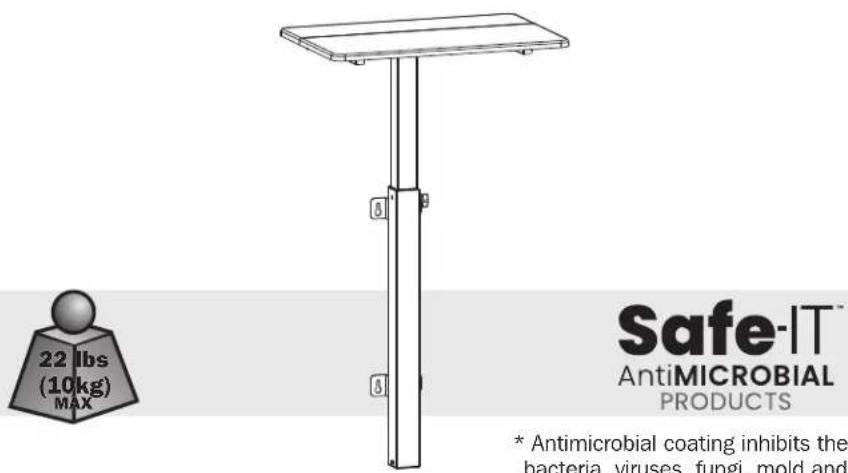

Adjustable-Height Wall-Mount Workstation with Antimicrobial Coating\*
Model: WWSSFDSAM
Español 5 • Français 9 • Русский 13 • Deutsch 17
WARRANTY REGISTRATION
Register your product today and be automatically entered to win an ISOBAR ^® surge protector in our monthly drawing!
tripplite.com/warranty
1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support
Copyright © 2021 Tripp Lite. All rights reserved.
Safety Instructions
WARNING
- Do not begin the installation until you have read and understood the instructions and warnings contained in this manual. If you have any questions regarding any of the instructions or warnings, please visit tripplite.com/support.
- This mount was designed to be installed and utilized ONLY as specified in this manual. Improper installation of this product may cause damage or serious injury.
- This product should only be installed by someone of good mechanical ability, with basic building experience and a full understanding of this instruction manual.
- Ensure the mounting surface can safely support the combined load of the equipment and all attached hardware and components.
- Use an assistant or mechanical lifting equipment to safely lift and position equipment.
- Tighten screws firmly, but do not over-tighten. Over-tightening screws can damage the unit and greatly reduce the screws' holding power.
- This product is intended for indoor use only. Using this product outdoors could lead to product failure and personal injury.
Warranty and Product Registration
5-Year Limited Warranty
Seller warrants this product, if used in accordance with all applicable instructions, to be free from original defects in material and workmanship for a period of 5 years from the date of initial purchase. If the product should prove defective in material or workmanship within that period, Seller will repair or replace the product, at its sole discretion.
THIS WARRANTY DOES NOT APPLY TO NORMAL WEAR OR TO DAMAGE RESULTING FROM ACCIDENT, MISUSE, ABUSE OR NEGLECT. SELLER MAKES NO EXPRESS WARRANTIES OTHER THAN THE WARRANTY EXPRESSLY SET FORTH HEREIN. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ALL IMPLIED WARRANTIES, INCLUDING ALL WARRANTIES OF MERCHANTABILITY OR FITNESS, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE; AND THIS WARRANTY EXPRESSLY EXCLUDES ALL INCIDENTAL AND CONSEQUENTIAL DAMAGES. (Some states do not allow limitations on how long an implied warranty lasts, and some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may have other rights which vary from jurisdiction to jurisdiction.)
WARNING: The individual user should take care to determine prior to use whether this device is suitable, adequate or safe for the use intended. Since individual applications are subject to great variation, the manufacturer makes no representation or warranty as to the suitability or fitness of these devices for any specific application.
PRODUCT REGISTRATION
Visit tripplite.com/warranty today to register your new Tripp Lite product. You'll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!*
* No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.
Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice. Photos and illustrations may differ slightly from actual products.
Component Checklist
IMPORTANT: Ensure you have received all parts according to the component checklist prior to installing. If any parts are missing or faulty, visit tripplite.com/support for service.
B (x1)
C (x1)
W-A (x4)
D (x1)
E
F
G (x1)
H (x1)
W-B (x4)

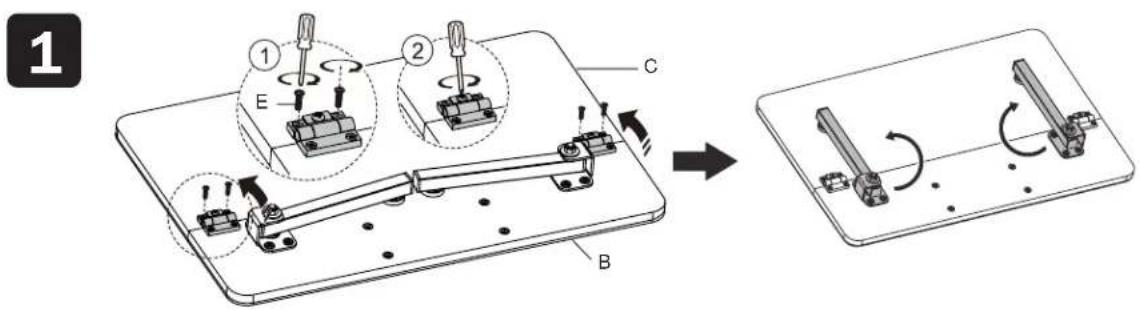

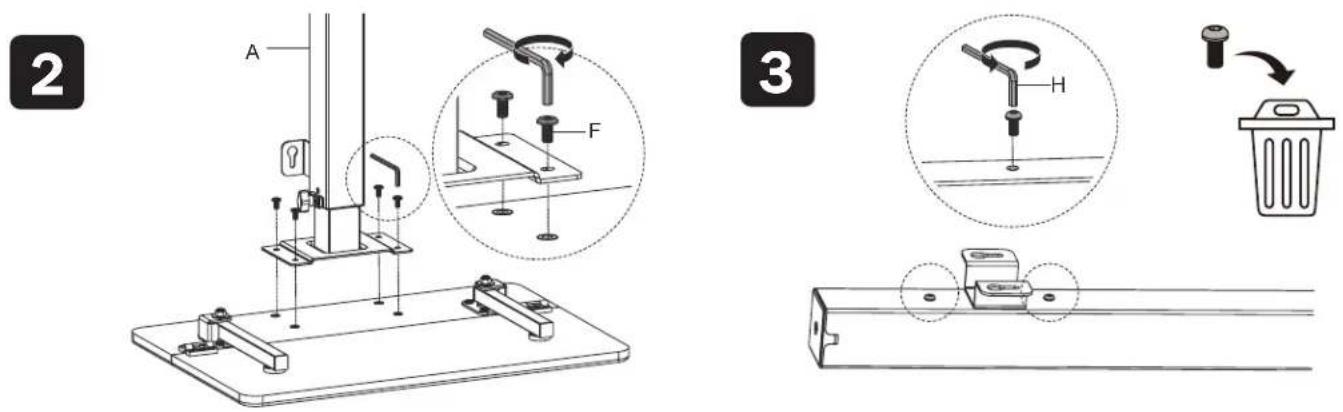

Assembly and Installation


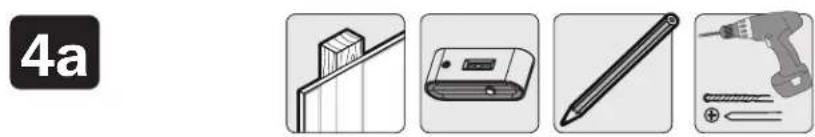

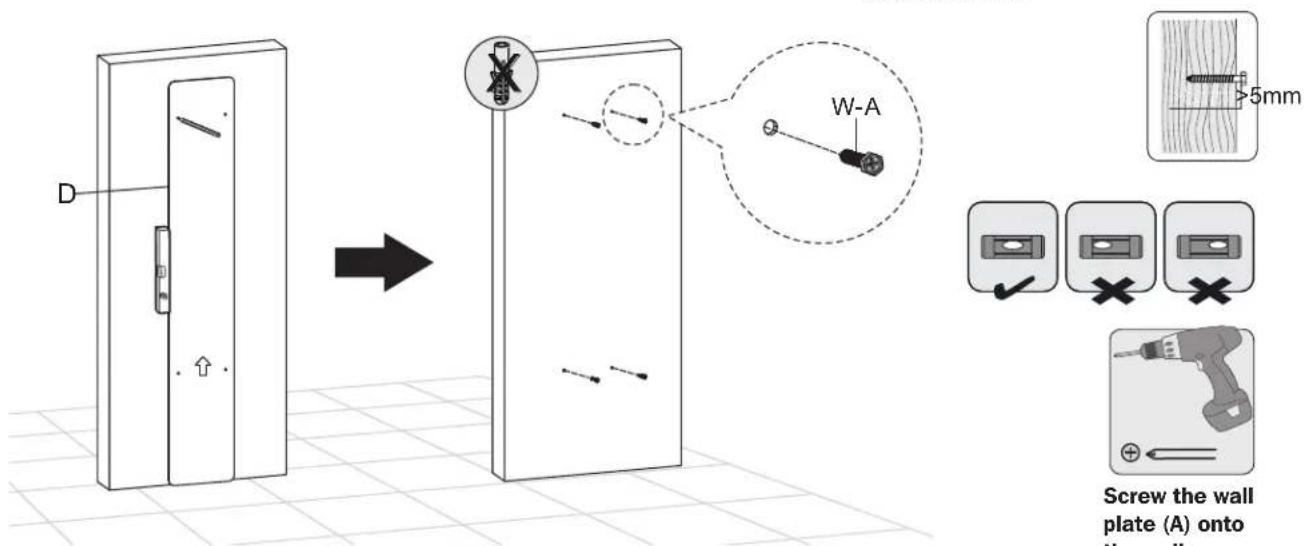

Four grayscale icons representing different tools or devices: a pencil, a battery pack, a screwdriver, and a tool (no text or symbols)Mounting on Wood Wall
Find and mark the Drill pilot holes. exact location of mounting holes.
Note: This product is designed to be installed on solid concrete walls, masonry walls or wood walls.
Assembly and Installation
4b

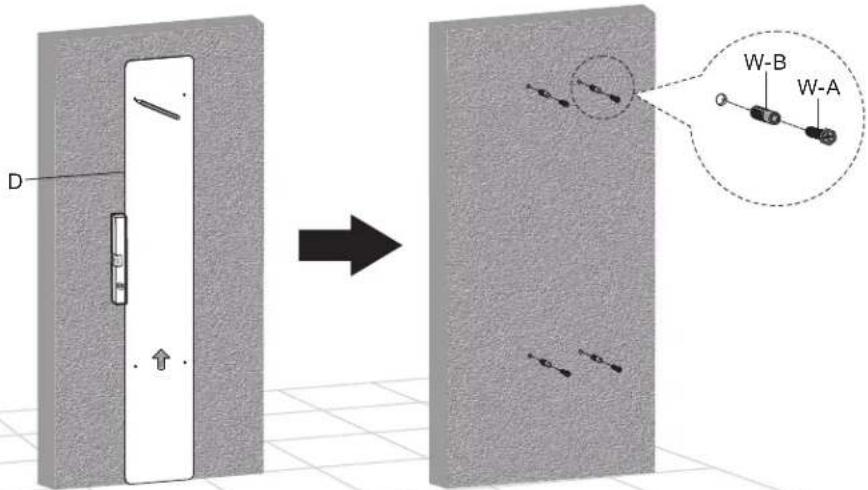

Mounting on Concrete or Masonry Wall
Note: This product is designed to be installed on solid concrete walls, masonry walls or wood walls.
Find and mark the exact location of mounting holes.

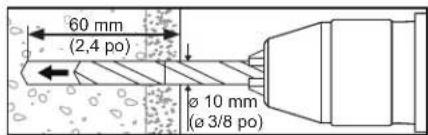

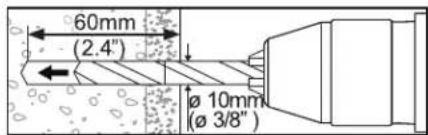

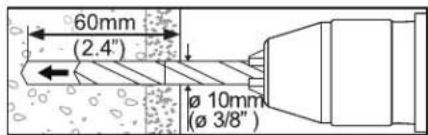

Drill pilot holes.
Screw the wall plate (A) onto the wall.
5
6

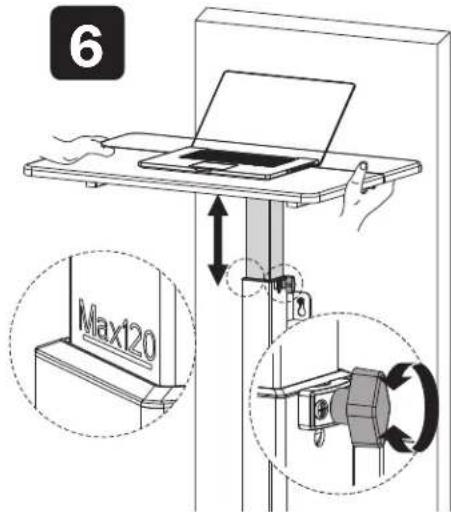

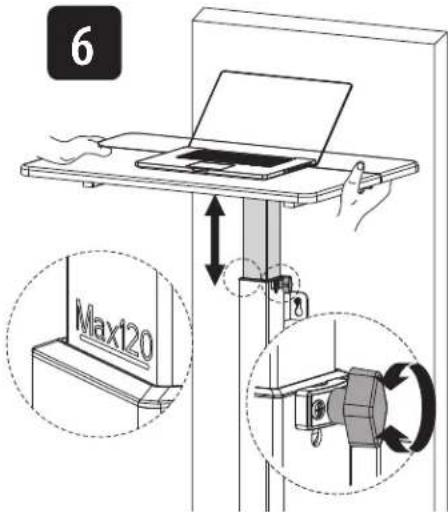

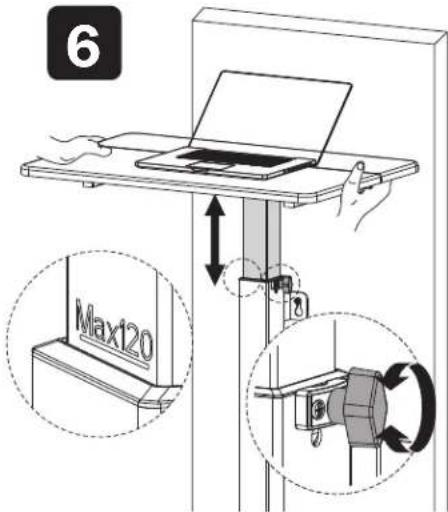

Warning!
Always use both hands when adjusting the table height to avoid the possibility of it accidentally falling. Once the proper preset height is reached, lock the table in position using the rotary knob.
Note: When MAXIMUM HEIGHT IS REACHED the table will fully release to the lowest position.
Manufacturing Excellence.
1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support
1111 W. 35th Street, Chicago, IL 60609 EE UU • tripplite.com/support
B (x1)
C (x1)
W-A (x4)
D (x1)
M4x12 (x4)
M6x12 (x4)
G (x1)
H (x1)
W-B (x4)
6
iAdvertencia!
1111 W. 35th Street, Chicago, IL 60609 EE UU • tripplite.com/support
1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support
B (x1)
C (x1)
W-A (x4)
D (x1)
E
G (x1)
H (x1)
W-B (x4)
6
Avertissement!
1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support
1111 W. 35th Street, Chicago, IL 60609 USA - tripplite.com/support
Сборка и установка
1
2
4a
6
Внимание!
1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support
Bedienungsanleitung
Manufacturing Excellence.
1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support
B (x1)
C (x1)
W-A (x4)
D (x1)
M4x12 (x4)
E
M6x12 (x4)
F
G (x1)
H (x1)
W-B (x4)
6
Warnung!
Manufacturing Excellence.
1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support
