Product type	Vertical fan heater
Brand	DeLonghi
Model	Vertical Edge HFS50D22
Category	Supplementary heating
Heating power	2000 W (2 settings: 1000 W / 2000 W)
Power supply	220-240 V ~ 50/60 Hz
Dimensions (L x D x H)	26.5 x 22.5 x 74.5 cm
Weight	3.5 kg
Heating type	Fan heater with electric heating element
Thermostat	Adjustable thermostat
Power levels	2 levels + fan-only mode (cold air)
Overheat protection	Safety device that shuts off the appliance in case of overheating
Tip-over protection	Safety switch that cuts off the appliance if it falls
Frost protection	Anti-freeze function (maintains a minimum temperature)
Ventilation	Built-in fan for hot or cold air distribution
Indicator light	Power indicator
Material	Heat-resistant plastic
Color	Black / Silver
Cable length	1.8 m
Recommended heating area	Up to 25 m²
Use	Indoors only, on a stable horizontal surface
Maintenance	Clean with a soft dry cloth; do not immerse
Storage	In a dry place away from dust
Remote control batteries	2 AAA batteries (not included) – model with remote control

Frequently Asked Questions - Vertical Edge HFS50D22 DELONGHI

How to clean the DeLonghi Vertical Edge fan heater?

Unplug the appliance and let it cool down. Use a soft dry cloth to clean the exterior surfaces. Never use water, solvents, or abrasive products. For the grilles, a vacuum cleaner with a soft brush can be used.

What to do if the appliance turns off by itself?

This is usually due to the overheat safety device. Unplug the appliance, wait a few minutes, check that the air intake and outlet grilles are not obstructed, then plug it back in. If the problem persists, contact DeLonghi customer service.

Can I use an extension cord with this heater?

It is not recommended to use an extension cord. If necessary, use an extension cord in good condition, of sufficient cross-section (at least 1.5 mm²) and not exceeding the maximum power indicated. Make sure the extension cord is fully unwound to avoid overheating.

Is the appliance safe to use in a child's room?

Yes, but under supervision. Children under 3 years old should not approach without supervision. Children aged 3 to 8 can turn the appliance on/off if it is installed correctly and under adult supervision. Caution: some parts become very hot.

How to activate the anti-freeze function?

The anti-freeze function is usually selected by turning the thermostat to the minimum position (often a snowflake symbol). The appliance then maintains a temperature of about 5°C to protect against frost.

The fan continues to run after turning off the heating, is this normal?

Yes, this is normal. Some models are equipped with a device that delays the fan stop by a few seconds to dissipate residual heat and protect internal components.

What safety distance must be maintained around the appliance?

Do not place any fabric, curtain, or flammable material within 1 meter of the air outlet grille. The appliance must not be installed directly under a power outlet.

Can I use the appliance in a small room like a bathroom?

No, it is prohibited to use the appliance near showers, bathtubs, sinks, or swimming pools. In addition, do not use it in a room smaller than 4 m² if occupied by persons unable to leave the room on their own.

How to store the heater after the heating season?

Make sure the appliance is off and unplugged. Let it cool down completely. Clean it with a dry cloth. Store it in a dry place away from dust. Do not place anything on the appliance.

What to do if the remote control stops working?

First check the batteries: replace them with new AAA batteries. Make sure the remote control is pointed towards the appliance's receiver and that no obstacle blocks the signal. If the problem persists, contact customer service.

USER MANUAL Vertical Edge HFS50D22 DELONGHI

A) If your appliance comes fitted with a plug, it will incorporate a 13 Amp fuse. If it does not fit your socket, the plug should be cut off from the mains lead, and an appropriate plug fitted, as below.
WARNING: Very carefully dispose of the cut off plug after removing the fuse: do not insert in a 13 Amp socket elsewhere in the house as this could cause a shock hazard.
With alternative plugs not incorporating a fuse, the circuit must be re-fitted when changing the fuse using a 13 Amp Asta approved fuse to BS 1362. In the event of losing the fuse cover, the plug must NOT be used until a replacement fuse cover can be obtained from your nearest electrical dealer. The colour of the correct replacement fuse cover is that as marked on the base of the plug.
B) If your appliance is not fitted with a plug, please follow the instructions provided below:

Important

The wires in the mains lead are coloured in accordance with the following code:

Blue:

Neutral

Brown:

Live

As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.

The wire which is coloured brown must be connected to the terminal which si marked with the letter L or coloured red.

Failure to observe the warning may result in life threatening injury by electric shock.

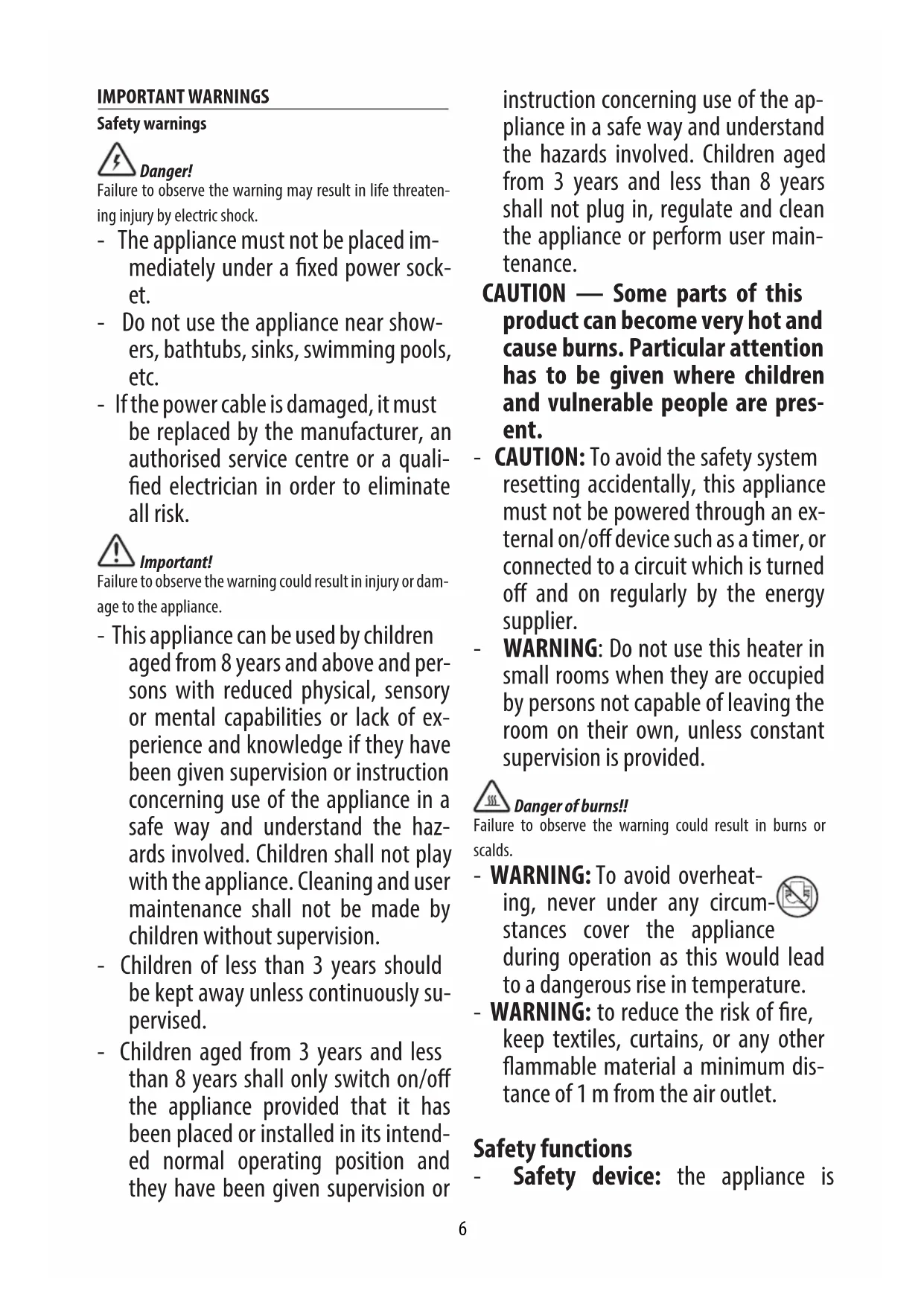

• The appliance must not be placed immediately under a fixed power socket.
• Do not use the appliance near showers, bathtubs, sinks, swimming pools, etc.
• If the power cable is damaged, it must be replaced by the manufacturer, an authorised service centre or a qualified electrician in order to eliminate all risk.

Important!

Failure to observe the warning could result in injury or damage to the appliance.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- Children of less than 3 years should be kept away unless continuously supervised.

- Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or

instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

CAUTION — Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

- CAUTION: To avoid the safety system resetting accidentally, this appliance must not be powered through an external on/off device such as a timer, or connected to a circuit which is turned off and on regularly by the energy supplier.

- WARNING: Do not use this heater in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided.

Danger of burns!!

Failure to observe the warning could result in burns or scalds.

- WARNING: To avoid overheating, never under any circumstances cover the appliance during operation as this would lead to a dangerous rise in temperature.

- WARNING: to reduce the risk of fire, keep textiles, curtains, or any other flammable material a minimum distance of 1 m from the air outlet.

Safety functions

- Safety device: the appliance is

fitted with a safety device which switches it off in the event of accidental overheating (e.g. obstruction of air intake and outlet grilles, motor turning slowly or not at all).

To reset, unplug the appliance from the mains socket for a few minutes, remove the cause of overheating then plug in again. If the appliance doesn't work please contact the De'Longhi Customer Service.

- Tip over safety device: Certain models are fitted with a tip-over switch which turns the appliance off if it falls over. To restart the appliance, simply place it upright again.

Please note:

This symbol indicates recommendations and important information for the user.

• Use this heater on a horizontal and stable surface.
• Always use the appliance in an up-right position.
• Do not use this heater if it has been dropped.
• Do not use if there are visible signs of damage to the heater.
• The use of extension leads is not recommended. However if they cannot be avoided, follow the instructions accompanying the extension lead and never exceed the power limit marked on the extension.
• Do not use the appliance near walls, furniture, curtains, etc.
• Do not use the appliance in rooms with a floor area of less than 4m^2 .
• Before putting the appliance away, make sure it is completely off and unplugged from the mains socket.

Do not store in dusty atmospheres.

• Do not rest anything on the appliance.
• The appliance must not be hung.
• Some models are supplied with a device which delays of few seconds the fan shut off.
• Do not use the appliance to dry laundry. Do not obstruct the air intake and outlet area (danger of overheating).
• For clothes dryers only: This appliance is intended only for drying textiles washed in water.

Important!

• WARNING - KEEP BATTERIES OUT OF REACH OF CHILDREN.
• Swallowing may lead to serious injury in as little as 2 hours or death, due to chemical burns and potential perforation of the oesophagus.
• Examine devices and make sure the battery compartment is correctly secured. Do not use if compartment is not secure.
• Dispose of used button batteries immediately and safely. Flat batteries can still be dangerous.

Fundamental safety warnings

Dear customer - the plug on the appliance heats up during use. This is completely normal.

This HIGH POWER HEATING APPLIANCE complies with our usual high standards. You should, however, make sure that your power socket is in good condition and that the plug on the appliance is plugged into the socket correctly to avoid accidental overheating. If the appliance is used for long periods of

time, we recommend checking the plug and mains socket regularly. If in doubt, consult an electrician.

For non-EU countries only:

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

Disposing of the appliance

The appliance must not be disposed of with household waste, but taken to an authorised waste separation and recycling centre.
