BP4B - Battery BLAUPUNKT - Free user manual and instructions

Product Type	Rechargeable Lithium-Ion Battery
Brand	Blaupunkt
Model	BP4B
Capacity	4 Ah
Voltage	18 V DC
Cell Type	Lithium-Ion
Charging Time (Fast Charge)	2 hours
Charging Time (Slow Charge)	8 to 10 hours
Charge Level Indicator	4 LED indicators (0-10%, 10-25%, 25-50%, 50-75%, 75-100%)
Safety Lock	Yes, for battery removal
Recommended Charging Temperature	0 °C to 45 °C
Storage Temperature	4 °C to 27 °C, in a dry place
Charge Level for Long-Term Storage	30 to 50% charge
Maintenance and Cleaning	Do not repair yourself. Contact the dealer for any maintenance.
Safety	General instructions: avoid short-circuit, do not open, use only with Blaupunkt chargers and tools.
Spare Parts and Repairability	Not user-repairable. Contact an authorized service center.
Warranty	3 years against manufacturing defects
Compliance	CE, RoHS
Disposal	Do not dispose of with household waste. Recycle according to WEEE directive.

Frequently Asked Questions - BP4B BLAUPUNKT

How to charge the Blaupunkt BP4B battery for the first time?

Before first use, fully charge the battery using the charger recommended by Blaupunkt. The battery is delivered with a low charge level. Only use the compatible Blaupunkt charger. The red LED indicates charging, the green LED indicates full charge.

What are the charging times for the BP4B battery?

The fast charging time is approximately 2 hours and the slow charging time is 8 to 10 hours. Wait at least 30 minutes between charges to let the charger cool down if charging multiple batteries.

How to interpret the charge level indicator?

Press the button on the side of the battery. The LED indicators show the remaining charge: 0 LED = 0-10%, 1 = 10-25%, 2 = 25-50%, 3 = 50-75%, 4 = 75-100%.

What is the ideal temperature for charging and storing the battery?

Do not charge the battery if the temperature is below 0 °C or above 45 °C. For storage, keep it in a dry place between 4 °C and 27 °C, with a charge level of 30 to 50%.

Can I use the BP4B battery with other Blaupunkt tools?

Yes, the BP4B battery is compatible with Blaupunkt power tools of the same range (18 V). Use only Blaupunkt batteries and chargers to avoid fire risks.

What to do in case of contact with battery liquid?

In case of skin contact, rinse thoroughly with clean water. If liquid contacts eyes, rinse for at least 10 minutes and seek medical attention immediately. The liquid is a 25-30% potassium hydroxide solution.

How to remove and install the battery on a tool?

To install, slide the battery onto the tool until it clicks. To remove, push the lock outward while pulling the battery. Always ensure the tool is turned off before removing the battery.

How to store the battery if not used for more than 6 months?

Store it with a charge level of 30 to 50% in a dry, temperate place. Before reusing, discharge it to 10-20% then fully recharge to optimize its lifespan.

What to do if the battery does not charge or the LEDs do not light up?

Immediately remove the battery from the charger to avoid damage. Check that you are using the correct Blaupunkt charger. If the problem persists, contact your dealer. Do not attempt to repair the battery yourself.

How to dispose of the battery at end of life?

Do not dispose of the battery with household waste. According to the WEEE directive (2012/19/EU), take it to a recycling center or an authorized collection point. The battery contains lithium and must be recycled in an environmentally friendly manner.

USER MANUAL BP4B BLAUPUNKT

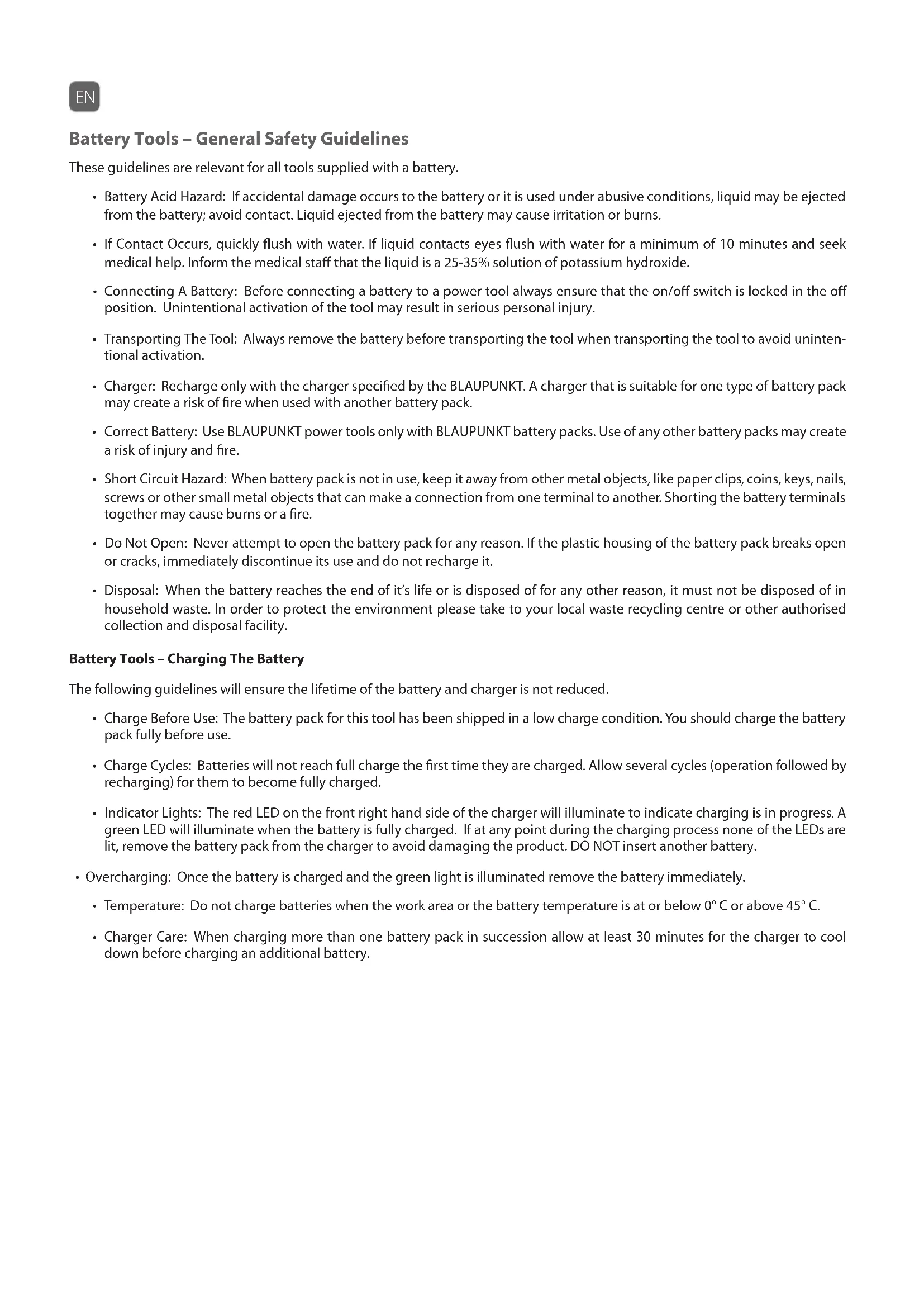

Battery Tools - General Safety Guidelines

These guidelines are relevant for all tools supplied with a battery.

• Battery Acid Hazard: If accidental damage occurs to the battery or it is used under abusive conditions, liquid may be ejected from the battery; avoid contact. Liquid ejected from the battery may cause irritation or burns.
• If Contact Occurs, quickly flush with water. If liquid contacts eyes flush with water for a minimum of 10 minutes and seek medical help. Inform the medical staff that the liquid is a 25 - 35% solution of potassium hydroxide.
• Connecting A Battery: Before connecting a battery to a power tool always ensure that the on/off switch is locked in the off position. Unintentional activation of the tool may result in serious personal injury.
• Transporting The Tool: Always remove the battery before transporting the tool when transporting the tool to avoid unintentional activation.
• Charger: Recharge only with the charger specified by the BLAUPUNKT. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
• Correct Battery: Use BLAUPUNKT power tools only with BLAUPUNKT battery packs. Use of any other battery packs may create a risk of injury and fire.
• Short Circuit Hazard: When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
• Do Not Open: Never attempt to open the battery pack for any reason. If the plastic housing of the battery pack breaks open or cracks, immediately discontinue its use and do not recharge it.
• Disposal: When the battery reaches the end of its life or is disposed of for any other reason, it must not be disposed of in household waste. In order to protect the environment please take to your local waste recycling centre or other authorised collection and disposal facility.

Battery Tools - Charging The Battery

The following guidelines will ensure the lifetime of the battery and charger is not reduced.

• Charge Before Use: The battery pack for this tool has been shipped in a low charge condition. You should charge the battery pack fully before use.
• Charge Cycles: Batteries will not reach full charge the first time they are charged. Allow several cycles (operation followed by recharging) for them to become fully charged.
• Indicator Lights: The red LED on the front right hand side of the charger will illuminate to indicate charging is in progress. A green LED will illuminate when the battery is fully charged. If at any point during the charging process none of the LEDs are lit, remove the battery pack from the charger to avoid damaging the product. DO NOT insert another battery.

Overcharging: Once the battery is charged and the green light is illuminated remove the battery immediately.

• Temperature: Do not charge batteries when the work area or the battery temperature is at or below 0^ or above 45^ .
• Charger Care: When charging more than one battery pack in succession allow at least 30 minutes for the charger to cool down before charging an additional battery.

Battery Tools - Battery Charge Level Lights

The battery is fitted with a charge level indicator so you can check the remaining power during use. To display the remaining charge press the button on the side of the battery and refer to the following table.

Number of Lights Illuminated Charge Remaining
0 0 - 10 %
1 10 - 25 %
2 25 - 50 %
3 50 - 75 %
4 75 - 100 %

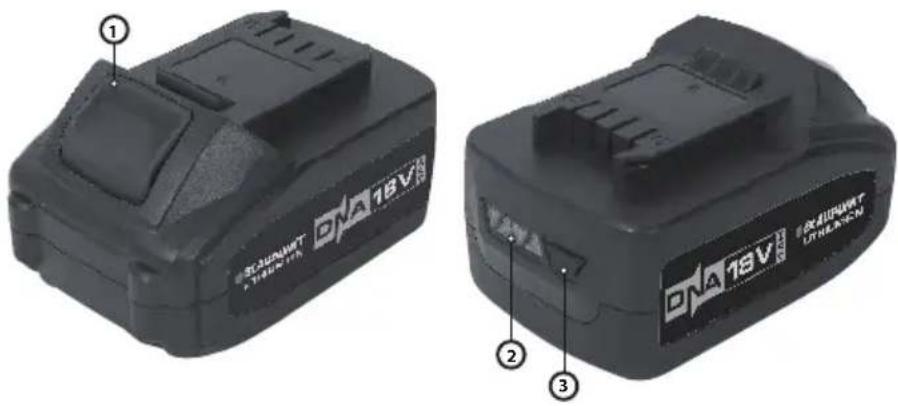

Operating Instructions

1	Latch
2	Charge Level Indicator
3	Charge Level Indicator Button

Fitting the Battery

Slide battery into position on the tool or charger until you hear a 'click' sound.

Removing the Battery

To remove the battery, release it from the lock by pressing the latch and slide off.

Maintenance

The batteries have been designed to provide maximum trouble free life. However like all batteries they will eventually wear out. DO NOT attempt to perform maintenance on the batteries and contact your dealer for advice.

Storage

The battery should be stored in a dry location where the temperature is above 4^ and below 27^ . Store batteries in a charged condition (Minimum of 30-50%)

To charge the battery after more than 6 months storage period, it is recommended to discharge the battery to at least 10 - 20% (by running it in a tool) and fully charge afterwards to maximise battery life.

Product Specifications

Model	BP2B
Capacity	2Ah
Voltage 18V DC
Cell Type Lithium-lon
Charge Time (Fast Charger) 1 Hr
Charge Time (Slow Charger) 3-5 Hrs

Model	BP4B
Capacity	4Ah
Voltage 18V DC
Cell Type Lithium-lon
Charge Time (Fast Charger) 2 Hrs
Charge Time (Slow Charger) 8-10 Hrs

Symbols

The manual or rating plate on your tool may show symbols. These represent important information about the product or instructions on its use.

You must read the instruction manua Wear protective footwear
CE	Product is compliant with CE safety standards		Wear ear protection
RoHS COMPLIANT	Product is compliant with RoHS safety standards		Wear safety gloves
!	General warning		Wear protective clothing
	Disposition of in compliance with WEEE standards		Wear safety mask
LHION	Contains Lithium-lon battery		Wear eye protection
	Product is double insulated		Wear head protection
	Fire hazard		Wear respiratory protection
	Electrocution hazard

Do not dispose of in general waste.

As stated in European Directive 2012/19/EU for Waste Electrical and Electronic Equipment, this product must be disposed of in an environmentally safe manner. We recommend taking it to a recycling facility.

Warranty

This product has 6 month warranty for manufacturing defects. The warranty period will be counted from the date of purchase of the product, according to purchase invoice. Product warranty only covers manufacturing defects, defects resulting from improper use, such as dropping, improper transportation, connection to the mains power supply not in compliance with the voltage specified in this manual, insertion of foreign objects and natural wear of parts and parts Such as plastic parts (caps, buttons, handles, latch locks, power cables, etc.) and metal parts (wires, motors, etc.). Also not covered are damages due to agents of nature, lightning, flood, sea, oxidation, humidity etc.). The product will lose its warranty if it presents defects, which after analysis by our technicians, are characterised as being improperly used, used for professional use or for the purpose for which it is not intended (according to the Owner's Manual). This warranty will be void if it is found that the device has been tampered with, has been repaired by a person or service not authorized by Unold AG. The guarantee is only valid with the receipt/invoice provided at purchase.

In the event of a claim for remedy of defects, please send the appliance to our after sales service, properly packaged and postage paid, together with a copy of the automatically generated sales receipt, which must show the date of purchase, and a description of the defect. If the defect is covered by the warranty, the customer will be reimbursed for the shipping costs only in Germany.

Any claims of the end consumer vis-à-vis the retailer are not limited by this warranty.

Please keep the packaging for possible shipping in case of warranty / repair.

Natural wear is not covered under warranty.

This product is for domestic use only.

SAVE THESE INSTRUCTIONS
