USER MANUAL BP2B BLAUPUNKT

BLAUPUNKT LITHIUM-ION DNA 18V 24H BLAUPUNKT LITHIUM-ION DNA 18V 24H

Enjoy it.

Li-ion 18V/(4.0A & 2.0A) DNA Akku

18V Lithium Ion Battery - 2.0Ah & 4.0Ah

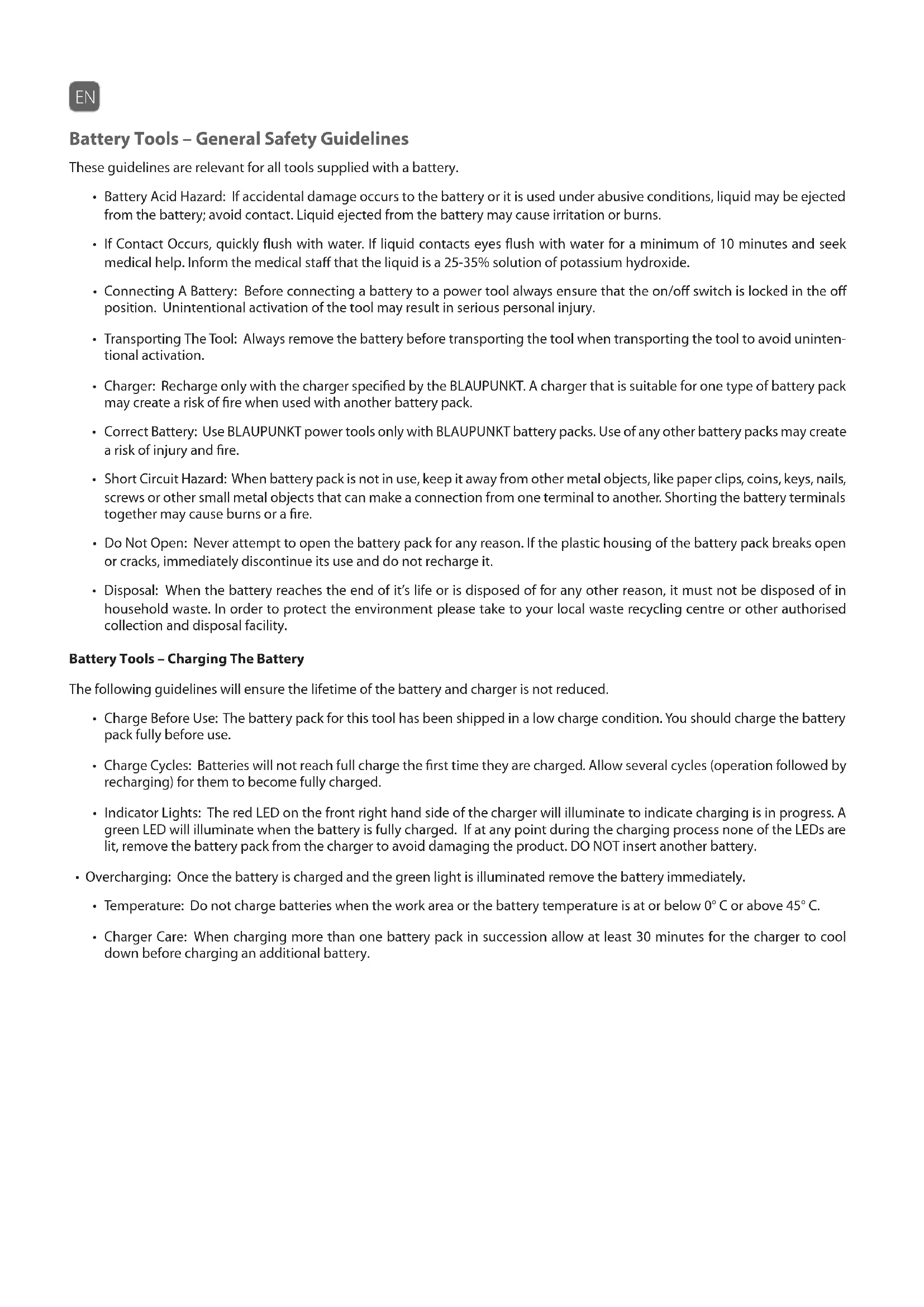

Battery Tools – General Safety Guidelines

These guidelines are relevant for all tools supplied with a battery.

- Battery Acid Hazard: If accidental damage occurs to the battery or it is used under abusive conditions, liquid may be ejected from the battery; avoid contact. Liquid ejected from the battery may cause irritation or burns.

- If Contact Occurs, quickly flush with water. If liquid contacts eyes flush with water for a minimum of 10 minutes and seek medical help. Inform the medical staff that the liquid is a 25 - 35% solution of potassium hydroxide.

- Connecting A Battery: Before connecting a battery to a power tool always ensure that the on/off switch is locked in the off position. Unintentional activation of the tool may result in serious personal injury.

- Transporting The Tool: Always remove the battery before transporting the tool when transporting the tool to avoid unintentional activation.

- Charger: Recharge only with the charger specified by the BLAUPUNKT. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

- Correct Battery: Use BLAUPUNKT power tools only with BLAUPUNKT battery packs. Use of any other battery packs may create a risk of injury and fire.

- Short Circuit Hazard: When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

- Do Not Open: Never attempt to open the battery pack for any reason. If the plastic housing of the battery pack breaks open or cracks, immediately discontinue its use and do not recharge it.

- Disposal: When the battery reaches the end of it's life or is disposed of for any other reason, it must not be disposed of in household waste. In order to protect the environment please take to your local waste recycling centre or other authorised collection and disposal facility.

Battery Tools – Charging The Battery

The following guidelines will ensure the lifetime of the battery and charger is not reduced.

- Charge Before Use: The battery pack for this tool has been shipped in a low charge condition. You should charge the battery pack fully before use.

- Charge Cycles: Batteries will not reach full charge the first time they are charged. Allow several cycles (operation followed by recharging) for them to become fully charged.

- Indicator Lights: The red LED on the front right hand side of the charger will illuminate to indicate charging is in progress. A green LED will illuminate when the battery is fully charged. If at any point during the charging process none of the LEDs are lit, remove the battery pack from the charger to avoid damaging the product. DO NOT insert another battery.

• Overcharging: Once the battery is charged and the green light is illuminated remove the battery immediately.

- Temperature: Do not charge batteries when the work area or the battery temperature is at or below 0^ or above 45^ .

- Charger Care: When charging more than one battery pack in succession allow at least 30 minutes for the charger to cool down before charging an additional battery.

Battery Tools – Battery Charge Level Lights

The battery is fitted with a charge level indicator so you can check the remaining power during use. To display the remaining charge press the button on the side of the battery and refer to the following table.

Number of Lights Illuminated Charge Remaining
0 0 – 10 %
1 10 – 25 %
2 25 – 50 %
3 50 – 75 %
4 75 – 100 %

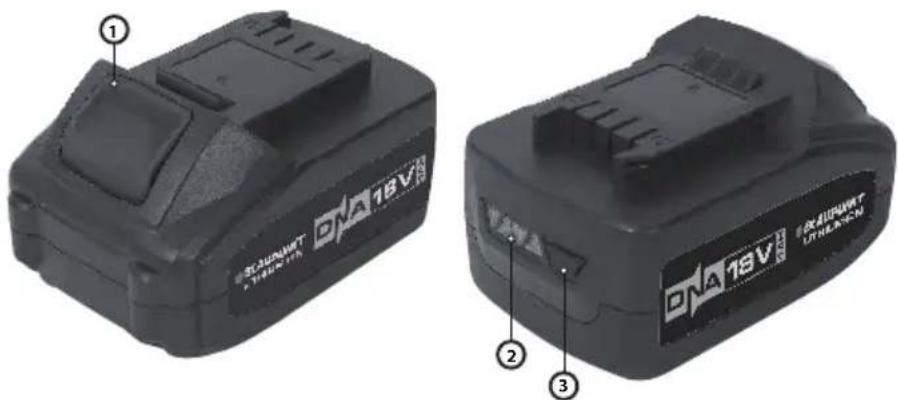

Operating Instructions

1	Latch
2	Charge Level Indicator
3	Charge Level Indicator Button

Fitting the Battery

Slide battery into position on the tool or charger until you hear a 'click' sound.

Removing the Battery

To remove the battery, release it from the lock by pressing the latch and slide off.

Maintenance

The batteries have been designed to provide maximum trouble free life. However like all batteries they will eventually wear out. DO NOT attempt to perform maintenance on the batteries and contact your dealer for advice.

Storage

The battery should be stored in a dry location where the temperature is above 4°C and below 27°C. Store batteries in a charged condition (Minimum of 30-50%)

To charge the battery after more than 6 months storage period, it is recommended to discharge the battery to at least 10 - 20% (by running it in a tool) and fully charge afterwards to maximise battery life.

Product Specifications

Model	BP2B
Capacity	2Ah
Voltage 18V DC
Cell Type Lithium-Ion
Charge Time (Fast Charger) 1 Hr
Charge Time (Slow Charger) 3-5 Hrs

Model	BP4B
Capacity	4Ah
Voltage 18V DC
Cell Type Lithium-Ion
Charge Time (Fast Charger) 2 Hrs
Charge Time (Slow Charger) 8-10 Hrs

Symbols

The manual or rating plate on your tool may show symbols. These represent important information about the product or instructions on its use.

	You must read the instruction manua Wear		e footwear
	Product is compliant with CE safety standards		Wear ear protection
	Product is compliant with RoHS safety standards		Wear safety gloves
	General warning		Wear protective clothing
	Dispose of in compliance with WEEE standards		Wear safety mask
	Contains Lithium-Ion battery		Wear eye protection
	Product is double insulated		Wear head protection
	Fire hazard		Wear respiratory protection
	Electrocution hazard

DISPOSAL

Do not dispose of in general waste.

As stated in European Directive 2012/19/EU for Waste Electrical and Electronic Equipment, this product must be disposed of in an environmentally safe manner. We recommend taking it to a recycling facility.

Warranty

This product has 6 month warranty for manufacturing defects. The warranty period will be counted from the date of purchase of the product, according to purchase invoice. Product warranty only covers manufacturing defects, defects resulting from improper use, such as dropping, improper transportation, connection to the mains power supply not in compliance with the voltage specified in this manual, insertion of foreign objects and natural wear of parts and parts Such as plastic parts (caps, buttons, handles, latch locks, power cables, etc.) and metal parts (wires, motors, etc.). Also not covered are damages due to agents of nature, lightning, flood, sea, oxidation, humidity etc.). The product will lose its warranty if it presents defects, which after analysis by our technicians, are characterised as being improperly used, used for professional use or for the purpose for which it is not intended (according to the Owner's Manual). This warranty will be void if it is found that the device has been tampered with, has been repaired by a person or service not authorized by Unold AG. The guarantee is only valid with the receipt/invoice provided at purchase.

In the event of a claim for remedy of defects, please send the appliance to our after sales service, properly packaged and postage paid, together with a copy of the automatically generated sales receipt, which must show the date of purchase, and a description of the defect. If the defect is covered by the warranty, the customer will be reimbursed for the shipping costs only in Germany.

Any claims of the end consumer vis-à-vis the retailer are not limited by this warranty.

Please keep the packaging for possible shipping in case of warranty / repair.

Natural wear is not covered under warranty.

This product is for domestic use only.

SAVE THESE INSTRUCTIONS
