USER MANUAL EN1812 Tripp Lite

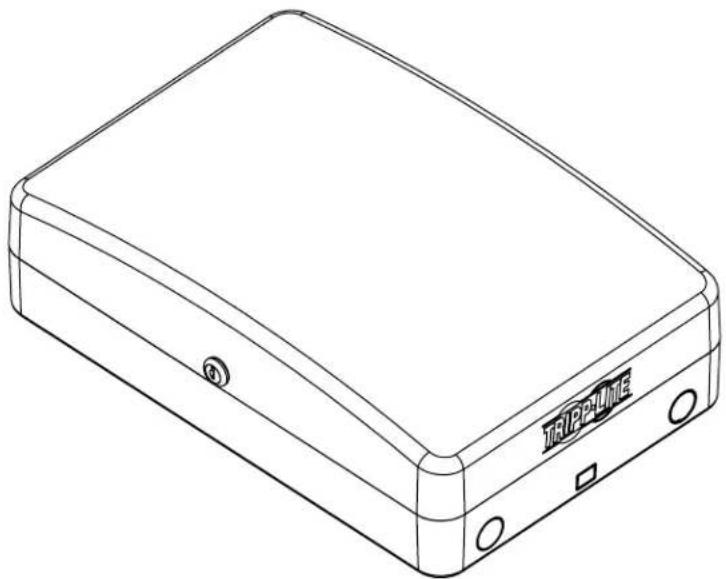

18" x 12" ABS Wireless Access Point Enclosure with Lock

Model: EN1812

Line drawing of a rectangular electronic device labeled 'TRIPPUNE' with mounting holes and a circular button (no additional text or symbols)

Español 5 • Français 9 • Русский 13

PROTECT YOUR INVESTMENT!

Register your product for quicker service and ultimate peace of mind.

You could also win an ISOBAR6ULTRA surge protector—a \$100 value!

www.tripplite.com/warranty

TRIPP·LITE

Manufacturing Excellence.

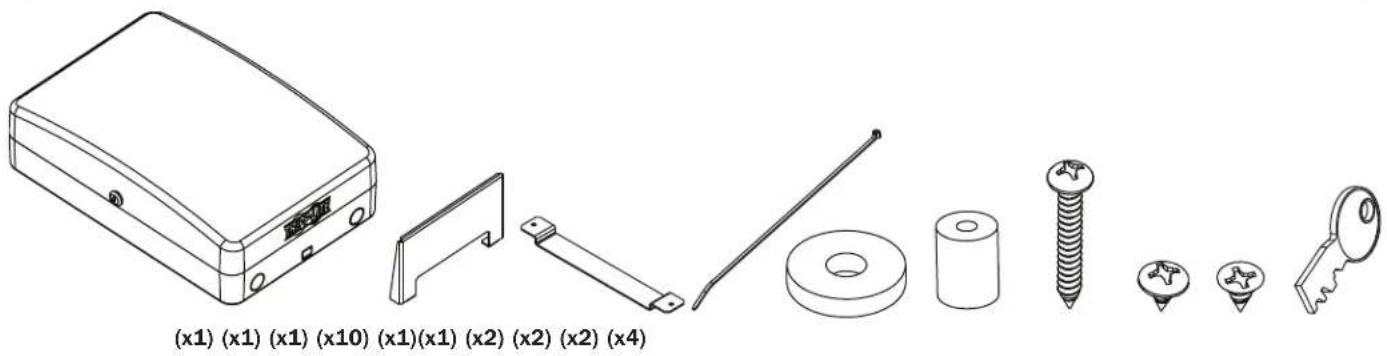

Components List

IMPORTANT:

Ensure that you have received all parts according to the component checklist prior to installing. If any parts are missing or faulty, visit www.tripplite.com/support for service.

Technical line drawings of various electronic components and parts, including a box, bracket, screw, and key (no text or symbols on the items themselves)

Installation

1. Mount Enclosure Box to Wall

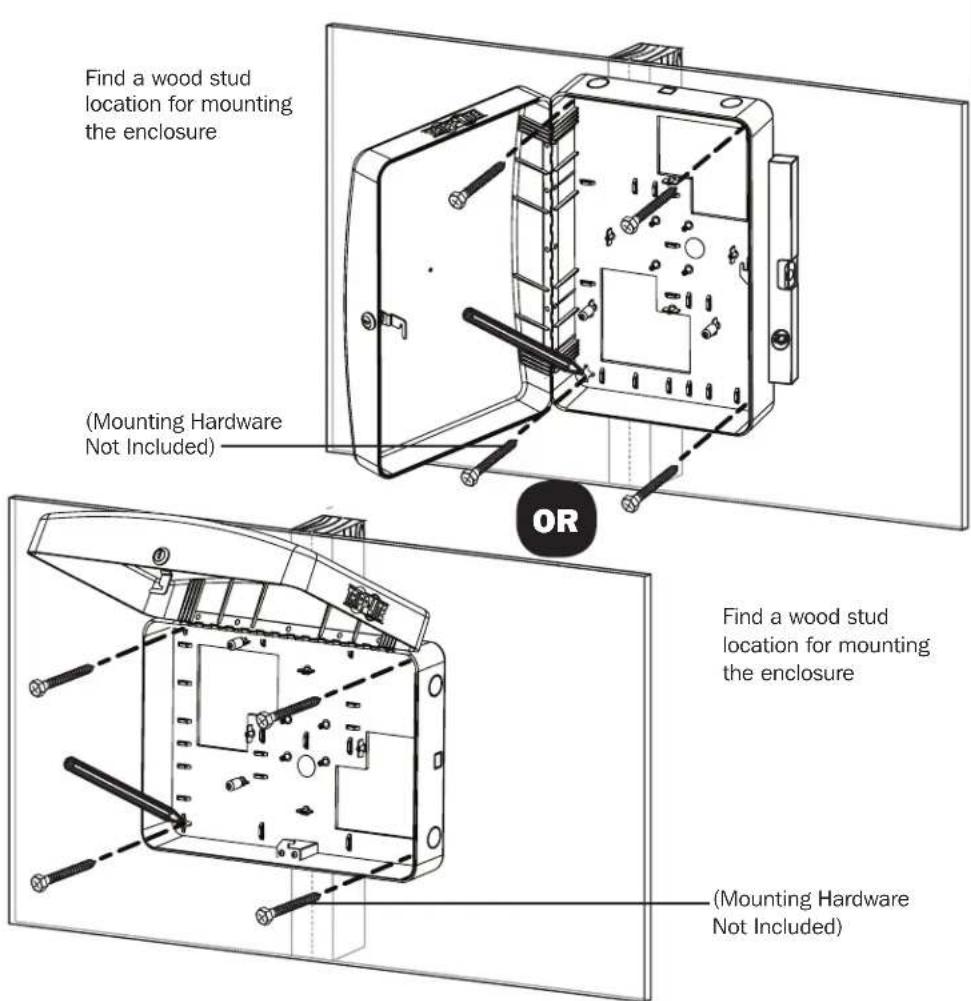

Find a wood stud location for mounting the enclosure (Mounting Hardware Not Included) OR Find a wood stud location for mounting the enclosure (Mounting Hardware Not Included)

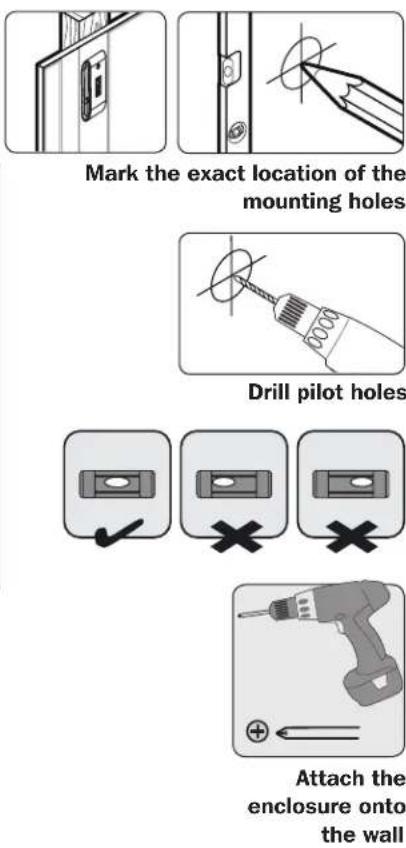

Mark the exact location of the mounting holes Drill pilot holes Attach the enclosure onto the wall

Installation

• Installers are responsible for providing wall-mounting hardware. Use a minimum of two #10 x 2" or larger screws (not included) to secure the enclosure in place.
• Make sure mounting screws are anchored into the center of the studs. Use of a stud finder is highly recommended.
• If there is no stud at the mounting location, it is recommended you use four anchors to secure the enclosure in place. Due to the weight of the enclosure, plastic expansion wall anchors are not recommended for drywall installations. Suitable anchors include: threaded drywall anchors, threaded drywall toggles, sleeve-type hollow wall anchors (a.k.a. molly bolts) or toggle bolts.
• If placing the enclosure over a telecommunications receptacle, remove the wall plate, then fasten the enclosure to the wall. Once secured, fasten the wall plate over the receptacle.
• If no telecommunications receptacle is available, a surface mount box (or biscuit jack) and equipment cord can be mounted inside the unit.
• Use an adhesive-backed surface mount box.

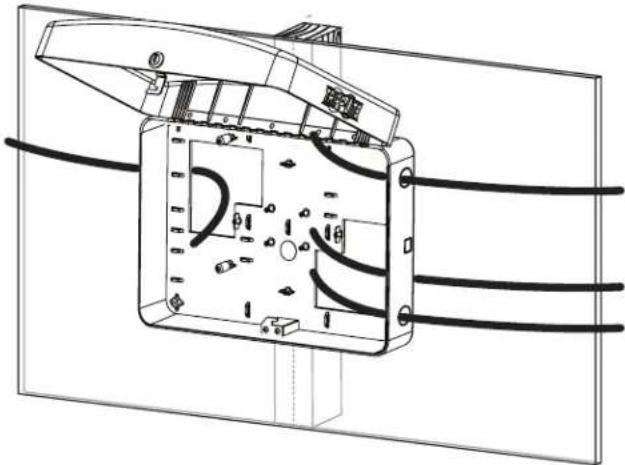

2. Run Data and Power Cable (If Required) Through the Rear Cutout or Side Conduit Cutout

Technical line drawing of an electrical enclosure with wiring and mounting holes (no text or symbols)

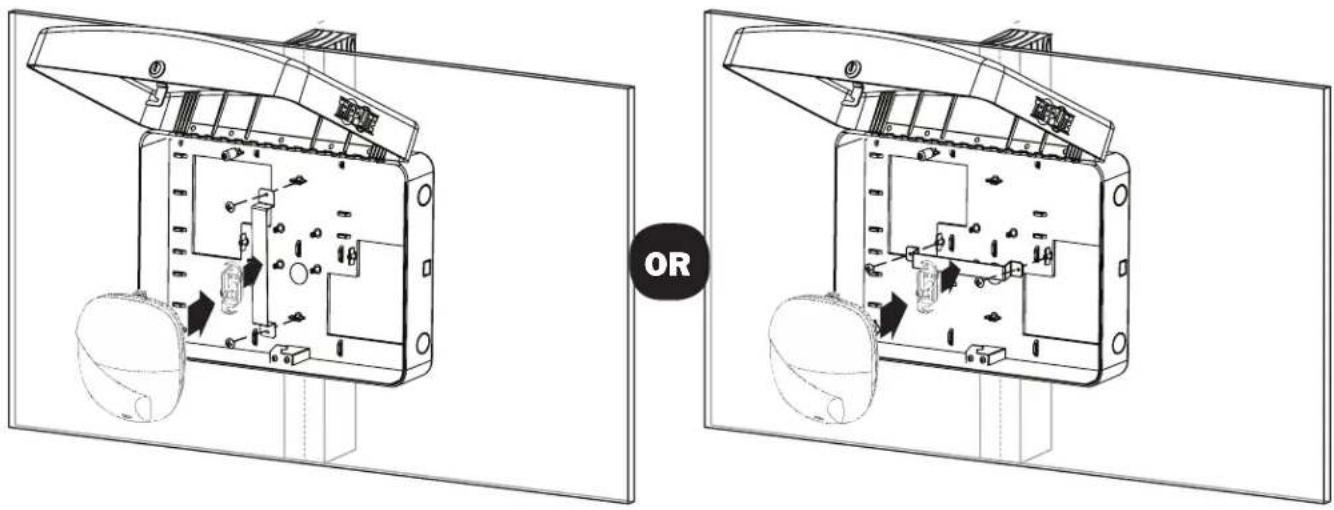

3. Using the Provided Screws, Attach the Access Point

IMPORTANT!

Attach all data and power cables to the access point prior to attaching to the enclosure.

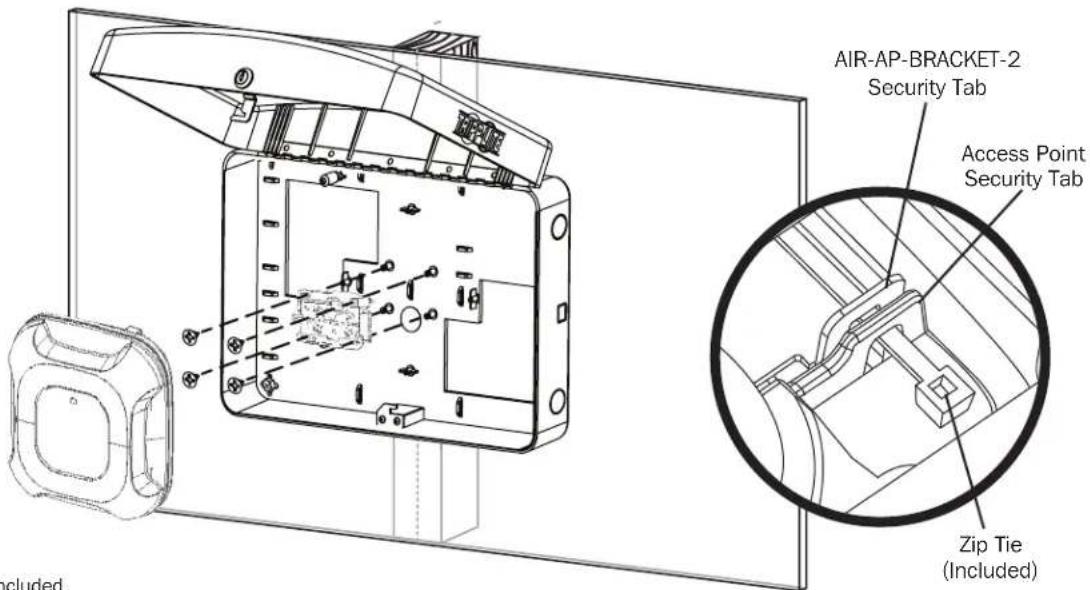

3a. Cisco Low-Profile Bracket\* Installation

AIR-AP-BRACKET-2 Security Tab Access Point Security Tab Zip Tie (Included) included.

* Cisco brackets not included.

Installation

3b. Aruba or Other T-Bar Mounted Access Point Installation

Technical line drawing of a mechanical device showing internal components and assembly (no text or symbols)
