Product Type	Wireless IR Signal Extender
Brand	Tripp Lite
Model	B164-101-WIR
Housing Material	Aluminum
IR Frequency	20 to 60 kHz
Transmission Frequency	915 MHz
Power Gain	10 dBm
Transmission Distance	200 m (656 ft)
Transmitter (TX) Dimensions	23 x 44 x 36 mm
Receiver (RX) Dimensions	23 x 44 x 23 mm
Unit Weight	40 g (TX and RX)
Power Supply	USB 5V DC (cables included)
Power Consumption	< 300 mW (TX and RX)
Operating Temperature	0 °C to 40 °C
Storage Temperature	-20 °C to 60 °C
Relative Humidity	10 to 90 % (non-condensing)
Warranty	3 years
Main Functions	Wireless IR signal extension, TX/RX pairing, real-time transmission
Package Contents	Transmitter, receiver, IR-In and IR-Out cables, 2 USB cables, 2 antennas, manual
Maintenance and Cleaning	Clean with a dry cloth, avoid moisture and solvents
Safety	Indoor use, do not expose to water, do not use for life-support devices
Spare Parts / Repairability	Not provided by the manufacturer; contact Tripp Lite support in case of failure

Frequently Asked Questions - B164101WIR Tripp Lite

What is the maximum range of the IR extender?

The maximum range is 200 meters (656 feet) in open space.

How do I pair the transmitter and receiver?

Press the LOCK ID button on the receiver for 4 seconds until the blue LED flashes. Then, press the LOCK ID button on the transmitter for 4 seconds. The LED turns off when pairing is successful.

What types of IR signals are supported?

The extender supports IR signals with a frequency range of 20 to 60 kHz.

Does the device require external power?

Yes, the transmitter and receiver are powered via USB 5V DC. Two USB cables are included.

Can I use this extender with any IR device?

Yes, it is compatible with any device using a standard IR remote control (TV, Blu-ray, set-top box, etc.) within the supported frequency range.

Is there any delay in signal transmission?

No, the high-performance IR technology ensures real-time transmission with no perceptible delay.

What if the LEDs do not turn on?

Check that the USB cables are properly connected and the power source is working. If the problem persists, contact Tripp Lite support.

Can I use the extender with multiple receivers?

No, this model is designed for one-to-one pairing between one transmitter and one receiver.

What are the usage precautions?

Avoid exposure to water, excessive humidity, and extreme temperatures. Do not use the device for life-support systems.

How do I maintain the extender?

Clean it with a soft, dry cloth. Do not use chemicals or abrasives. Store it in a dry, temperate place.

USER MANUAL B164101WIR Tripp Lite

Wireless IR Signal Extender

Model: B164-101-WIR

Español 7 • Français 13 • Русский 19

PROTECT YOUR INVESTMENT!

Register your product for quicker service and ultimate peace of mind.

You could also win an ISOBAR6ULTRA surge protector— a \$100 value!

www.tripplite.com/warranty

Manufacturing Excellence.

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

Copyright © 2018 Tripp Lite. All rights reserved.

Product Features

• Extend the range of your IR-enabled equipment up to 656 ft. (200 m)
• Compatible with IR signal frequency ranges from 20 to 60 kHz
• High-performance IR technology provides real-time signal transmission without delay
• Durable aluminum housing enhances heat dissipation for reliable performance
• Compact and portable design allows for convenient placement
• Power-saving design with USB-powered transmitter and receiver units
  • IR transmitter and receiver included

Package Includes

• B164-101-WIR Wireless IR Extender
- IR-Out Cable
- IR-In Cable
• (x2) USB Power Cables
• (x2) Wireless Signal Antennas
- Owner's Manual

Feature Identification

IR Transmitter (TX) Unit:

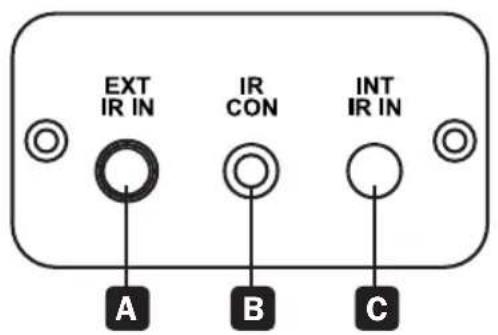

A EXT IR IN: Connect the included IR-In cable to receive the IR signal.
B IR CON: This blue LED indicator illuminates when the IR signal is working.
C INT IR IN: Built-in IR signal receiver head.

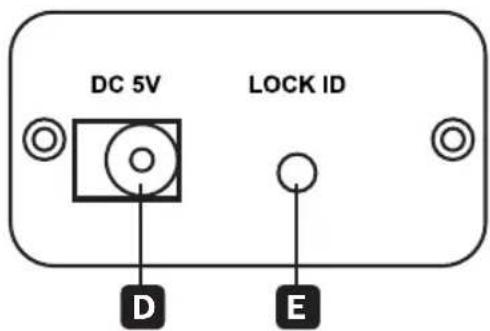

D DC 5V: Connect one of the included USB Power cables to power the unit.
E LOCK ID: This button pairs the transmitter and receiver units.

IR Receiver (RX) Unit:

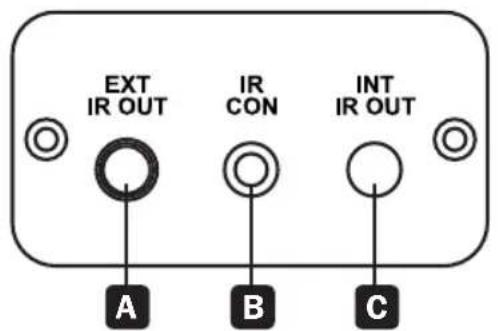

A EXT IR OUT: Connect the included IR-Out cable to allow the unit to send the IR signal.
B IR CON: This blue LED indicator illuminates when the IR signal is working.
C INT IR OUT: Built-in IR signal emitter head.

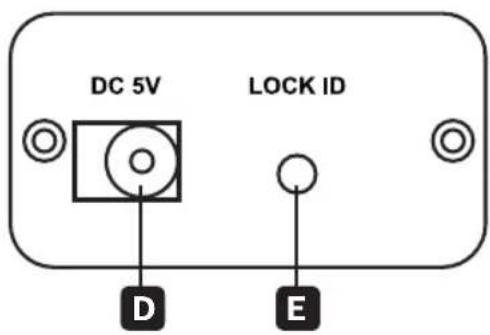

D DC 5V: Connect one of the included USB Power cables to power the unit.
E LOCK ID: This button pairs the transmitter and receiver units.

Pairing Instructions

1. Power the IR Transmitter and Receiver units using the included USB Power cables.

2. Press and hold the IR Receiver's LOCK ID button for 4 seconds or until the built-in blue IR CON LED begins to blink.

3. Once the IR Receiver unit is in pairing mode, press and hold the IR Transmitter's LOCK ID button for 4 seconds or until the IR Transmitter unit is paired with the IR Receiver unit.

Note: The blue IR CON LED on the IR Receiver unit will stop blinking and turn off once the IR Transmitter and Receiver units have been paired.

Installation

Note: The TX and RX units must be paired before use.


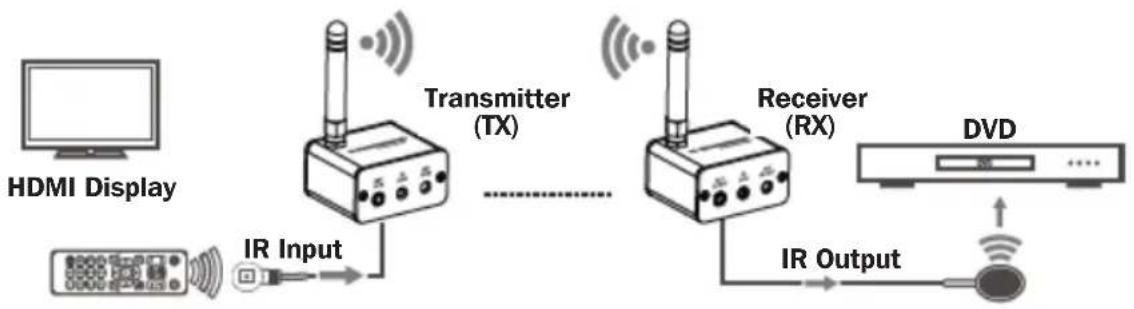

1. Position the IR Transmitter unit in a place where you wish to control your IR-enabled device from up to 656 ft. (200 m) away.

2. Connect the included IR-In cable to the IR Transmitter unit.

3. Place the IR Receiver unit near the IR-enabled equipment you wish to control (Blu-ray™, cable box, etc).

4. Connect the included IR-Out cable to the IR Receiver unit.

Note: Make sure there are no obstructions between your IR-enabled equipment and the IR-Out cable's emitter head.

1. Reconnect the included USB Power cables to the IR Transmitter and Receiver units.

Specifications

Model B164-101-WIR
Material of Construction Aluminum
IR Frequency 20-60 kHz
Transmission (RF) Frequency 915M
Power Gain 10 dBm
Transmission Distance 656 ft. (200 m)
Dimensions TX: 0.9 x 1.7 x 1.4 in. (23 x 44 x 36 mm)RX: 0.9 x 1.7 x 0.9 in. (23 x 44 x 23 mm)
Weight TX: 1.4 oz. (40 g)	RX: 1.4 oz. (40 g)
Power Consumption TX: <300mV	RX: <300mV
Operating Temperature 32° to 104°F (0° to 40°C)
Storage Temperature -4° to 140°F (-20° to 60°C)
Relative Humidity 10% to 90%,	Non-Condensing

Warranty and Product Registration

3-Year Limited Warranty

TRIPP LITE warrants its products to be free from defects in materials and workmanship for a period of three (3) years from the date of initial purchase. TRIPP LITE's obligation under this warranty is limited to repairing or replacing (at its sole option) any such defective products. To obtain service under this warranty, you must obtain a Returned Material Authorization (RMA) number from TRIPP LITE or an authorized TRIPP LITE service center. Products must be returned to TRIPP LITE or an authorized TRIPP LITE service center with transportation charges prepaid and must be accompanied by a brief description of the problem encountered and proof of date and place of purchase. This warranty does not apply to equipment which has been damaged by accident, negligence or misapplication or has been altered or modified in any way.

EXCEPT AS PROVIDED HEREIN, TRIPP LITE MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Some states do not permit limitation or exclusion of implied warranties; therefore, the aforesaid limitation(s) or exclusion(s) may not apply to the purchaser.

EXCEPT AS PROVIDED ABOVE, IN NO EVENT WILL TRIPP LITE BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF THIS PRODUCT, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Specifically, TRIPP LITE is not liable for any costs, such as lost profits or revenue, loss of equipment, loss of use of equipment, loss of software, loss of data, costs of substitutes, claims by third parties, or otherwise.

PRODUCT REGISTRATION

Visit www.triplite.com/warranty today to register your new Tripp Lite product. You'll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!*

* No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.

WEEE Compliance Information for Tripp Lite Customers and Recyclers (European Union)

Under the Waste Electrical and Electronic Equipment (WEEE) Directive and implementing regulations, when customers buy new electrical and electronic equipment from Tripp Lite they are entitled to:

• Send old equipment for recycling on a one-for-one, like-for-like basis (this varies depending on the country)
• Send the new equipment back for recycling when this ultimately becomes waste

WARNING

Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the failure of the life support equipment or to significantly affect its safety or effectiveness is not recommended.

Tripp Lite has a policy of continuous improvement. Product specifications are subject to change without notice.
