USER MANUAL U442DOCK21B Tripp Lite

Owner’s Manual 1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/supportCopyright © 2022 Tripp Lite. All rights reserved. USB-C

Dual 4K Display Docking Station Dual DisplayPort and HDMI Ports, GbE, USB-A and 60W PD 2.0 Charging Model: U442-DOCK21-B USB Type-C and USB-C are registered trademarks of USB Implementers Forum WARRANTY REGISTRATION Register your product today and be automatically entered to win an ISOBAR surge protector in our monthly drawing!tripplite.com/warranty Español 13 • Français 242 Product Features

• Supports DisplayPort resolutions up to 5K (5120 x 2880) @ 60 Hz when two DP cables are connected to one display simultaneously, or 4K (4096 x 2160) @ 60 Hz when one DP cable is connected to a display

• Supports HDMI resolutions up to 4K (4096 x 2160) @ 60 Hz*

• Dedicated USB-A charging port provides up to 5V 1.5A of fast charging power to mobile devices and 2.4A to Apple devices

• USB-C PD 2.0 charging port provides up to 85W of power to the connected device

• Ethernet port supports true 10/100/1000 Mbps network speeds

• USB 3.2 Gen 1 Type-A ports support data transfer rates up to 5 Gbps and are ideal for connecting devices such as a keyboard, mouse, printer, ash drive or hard drive

• Depending on the display used, TVs connected to the HDMI ports will only support maximum resolutions of 3840 x 2160 @ 30 Hz3 Package Includes Optional Accessories System Requirements

• USB 3.2 Gen 2 C-to-C Cable with C-to-A Adapter – 1 m

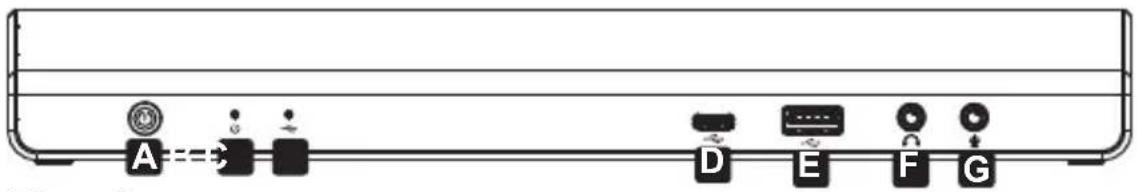

Power LED - Illuminates blue when powered

USB Connection LED - Illuminates green when USB is connected

Headphone/Speakers Jack

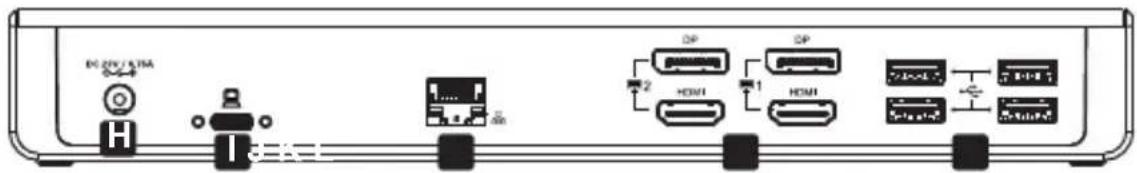

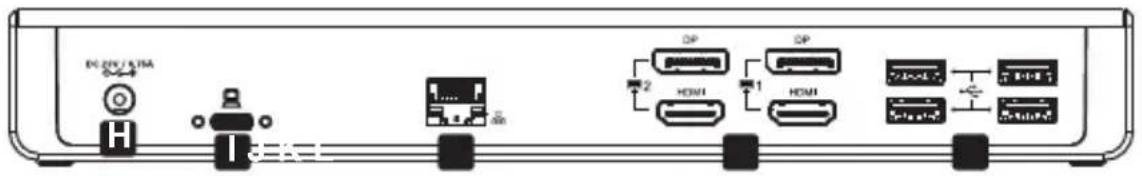

I J K L5 Installation Prior to Installation - for Windows operating systems only: DisplayLink drivers are required for both video and audio functions when using Windows OS. The drivers can be downloaded from www.displaylink.com/downloads. Once the drivers are successfully installed, restart the host computer. Notes:

• The U442-DOCK21-B is able to recognize USB peripherals, such as a mouse, keyboard or ash drive, without DisplayLink drivers installed on the host PC or laptop running Windows.

• Mac operating systems do not require the drivers. In the event a Mac OS driver is needed, the drivers can be downloaded from displaylink.com/downloads.6 Installation Installation

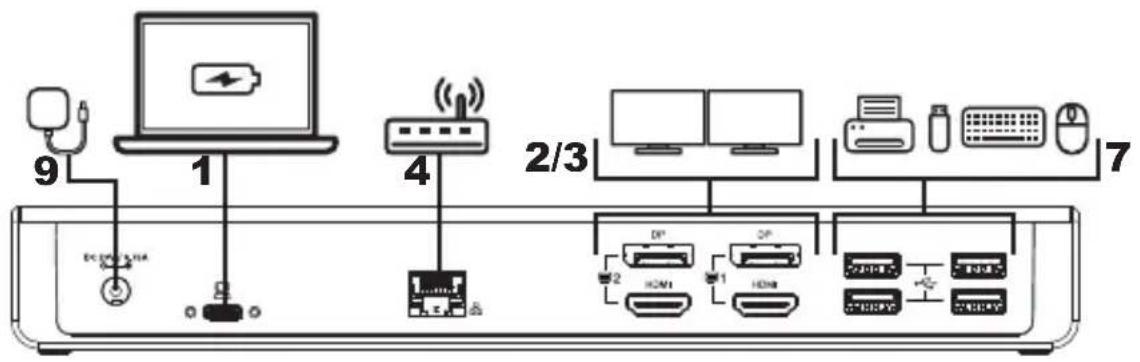

1. Connect the host computer or laptop to the U442-

DOCK21-B using the included USB-C to C cable. Use the USB-A to C adapter if necessary. Note: Your source device will only charge when using a USB-C to C cable.

Notes: Depending on the display used, TVs connected to the HDMI ports will only support maximum resolutions of 3840 x 2160 @ 30 Hz. 5K resolution is achieved by connecting the two DisplayPort output video ports to one display simultaneously. When the DisplayPort video ports are connected to their own displays, they will support resolutions up to 4096 x 2160 @ 60 Hz.

4. Connect to a wired Gigabit LAN using Tripp Lite’s N201-

Series Cat6 Cable (sold separately) if Wi-Fi signals are weak or unavailable.

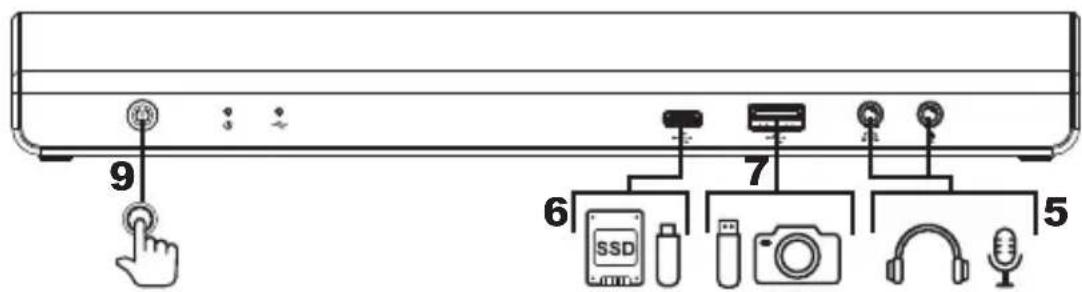

5. Connect headphones and a microphone to the available

Note: If no sound is output, the audio output source must be changed to USB audio.8 Installation

6. Connect a USB-C device to the USB-C port.

7. Connect up to ve USB Type-A devices, such as a

keyboard, mouse, ash drive or printer.

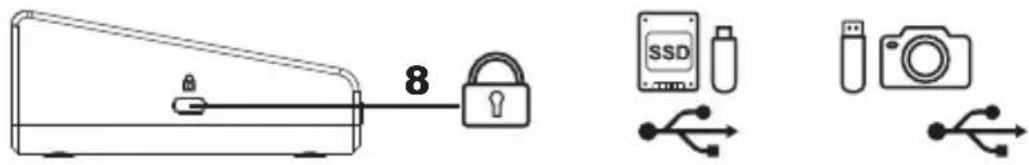

8. (Optional) Lock and secure your U442-DOCK21-B docking

station to your desk using the K-LOCK port located on the side of the unit.

9. Connect the included power supply to the docking station,

and power on the unit using the power button located to the left of the DC port.9 Specications Input USB-C Output (x2) HDMI (x2) DisplayPort RJ45 (x5) USB 3.2 Gen 1 Type-A USB-C (x2) 3.5 mm Video* DisplayPort (Single): 4096 x 2160 @ 60 Hz DisplayPort (Dual): 5120 x 2880 @ 60 Hz HDMI: 4096 x 2160 @ 60 Hz Audio (3.5 mm)

2.1 Channel Surround Sound

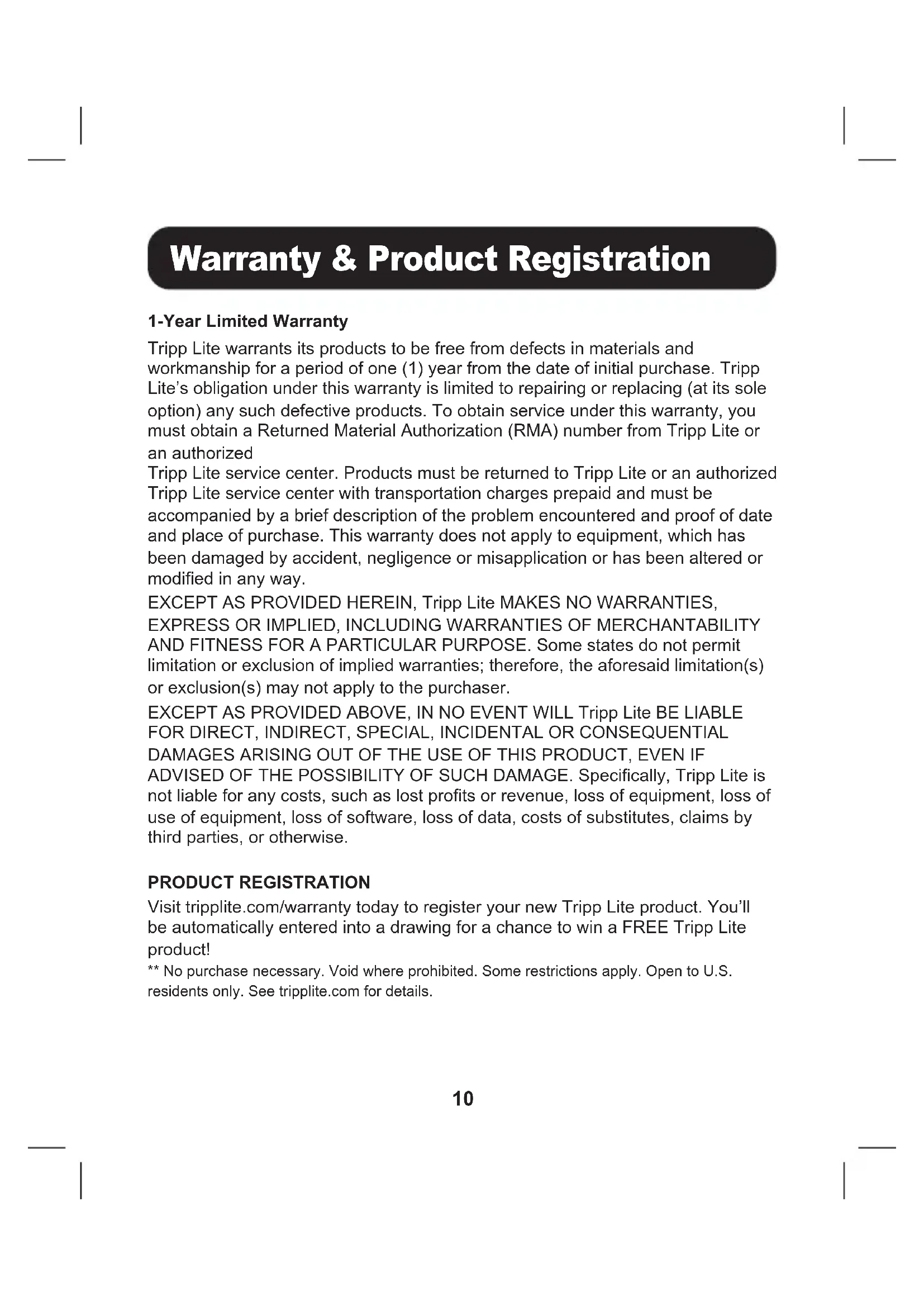

PD Charging Version PD 2.0 up to 85W (20/15/9/5V @ 4.25A) Operating Temperature 32°F to 104°F (0°C to 40°C) Storage Temperature -4°F to 158°F (-20°C to 70°C) *Connection options: DisplayPort and DisplayPort, HDMI and HDMI, DisplayPort and HDMI.10 Warranty & Product Registration 1-Year Limited Warranty Tripp Lite warrants its products to be free from defects in materials and workmanship for a period of one (1) year from the date of initial purchase. Tripp Lite’s obligation under this warranty is limited to repairing or replacing (at its sole option) any such defective products. To obtain service under this warranty, you must obtain a Returned Material Authorization (RMA) number from Tripp Lite or an authorized Tripp Lite service center. Products must be returned to Tripp Lite or an authorized Tripp Lite service center with transportation charges prepaid and must be accompanied by a brief description of the problem encountered and proof of date and place of purchase. This warranty does not apply to equipment, which has been damaged by accident, negligence or misapplication or has been altered or modied in any way. EXCEPT AS PROVIDED HEREIN, Tripp Lite MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Some states do not permit limitation or exclusion of implied warranties; therefore, the aforesaid limitation(s) or exclusion(s) may not apply to the purchaser. EXCEPT AS PROVIDED ABOVE, IN NO EVENT WILL Tripp Lite BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF THIS PRODUCT, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Specically, Tripp Lite is not liable for any costs, such as lost prots or revenue, loss of equipment, loss of use of equipment, loss of software, loss of data, costs of substitutes, claims by third parties, or otherwise. PRODUCT REGISTRATION Visit tripplite.com/warranty today to register your new Tripp Lite product. You’ll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product! ** No purchase necessary. Void where prohibited. Some restrictions apply. Open to U.S. residents only. See tripplite.com for details.11 Warranty & Product Registration FCC Notice, Class B This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o󰀨 and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit di󰀨erent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help. Any changes or modications to this equipment not expressly approved by Tripp Lite could void the user’s authority to operate this equipment. WEEE Compliance Information for Tripp Lite Customers and Recyclers (European Union) Under the Waste Electrical and Electronic Equipment (WEEE) Directive and implementing regulations, when customers buy new electrical and electronic equipment from Tripp Lite they are entitled to:

• Send old equipment for recycling on a one-for-one, like-for-like basis (this varies depending on the country)

• Send the new equipment back for recycling when this ultimately becomes waste12 1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support 22-03-401 93-3BE2_RevB Warranty & Product Registration Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the failure of the life support equipment or to signicantly a󰀨ect its safety or e󰀨ectiveness is not recommended. Tripp Lite has a policy of continuous improvement. Specications are subject to change without notice. Photos and illustrations may di󰀨er slightly from actual products.13 Manual del Propietario 1111 W. 35th Street, Chicago, IL 60609 EE UU • tripplite.com/supportCopyright © 2022 Tripp Lite. Todos los derechos reservados. Estación de Conexión USB C
