DDR1327MQ - TV wall mount Tripp Lite - Free user manual and instructions

Product Type	Desktop stand for four monitors
Brand	Tripp Lite
Model	DDR1327MQ
Number of Supported Screens	4
VESA Compatibility	75x75 mm and 100x100 mm
Maximum Load Capacity per Screen	8 kg (17.6 lb)
Installation	On desktop, stable fixation required
Materials	Robust steel (estimated)
Intended Use	Indoor only
Regular Maintenance	Check stability every 3 months
Safety	Do not exceed rated load; use appropriate tools; professional installation recommended
Warranty	5 years (limited)
Included Parts	Mounting screws, VESA brackets, base
Recommended Accessories	Screwdriver, spirit level
Repairability	Spare parts available via Tripp Lite
User Manual	Available for free download in PDF format

Frequently Asked Questions - DDR1327MQ Tripp Lite

What is the product type of the DDR1327MQ?

It is a desktop stand for four monitors, designed to organize and stabilize multiple screens on the same workspace.

What VESA formats are compatible with this stand?

The stand is compatible with VESA 75x75 mm and 100x100 mm standards, allowing installation of most standard-sized monitors.

What is the maximum weight supported per screen?

Each screen must not exceed 8 kg (17.6 lb). Exceeding this limit may cause instability and risk of injury.

How do I install the stand?

Installation requires carefully reading the manual. Attach the VESA brackets to the back of each monitor, then screw the base onto the desk. Use a spirit level to ensure balance. It is recommended to call a professional.

Can I use this stand outdoors?

No, the product is designed for indoor use only. Outdoor use may lead to failure and damage.

What warranty is offered?

Tripp Lite offers a limited 5-year warranty against defects in materials and workmanship, from the original purchase date.

How do I maintain the stand?

It is recommended to check the stability and condition of the stand every three months. Tighten screws if necessary and ensure there is no play.

Can I move the stand once installed?

Yes, but it is better to remove the monitors first to avoid damage. Unscrew the base from the desk and then move the assembly carefully.

What if a part is missing?

Contact Tripp Lite support via tripplite.com/support to get a replacement part. Keep the proof of purchase.

Does the stand allow screen orientation?

This model is designed for a fixed orientation. It does not allow tilting or rotating the screens. Monitors must be installed aligned.

USER MANUAL DDR1327MQ Tripp Lite

Register your product today and be automatically entered to win an ISOBAR® surge protector in our monthly drawing!

triplite.com/warranty

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

Copyright © 2020 Tripp Lite. All rights reserved.

Important Safety Instructions

CAUTION

• Read the entire instruction manual before you start assembly and installation. If you have questions about any of the instructions or warnings, contact Tripp Lite Support.
• Use with products heavier than the rated weights indicated may result in instability, causing possible injury.
• Mounts must be attached as specified in these instructions. Improper installation may result in damage or serious personal injury.
• Safety gear and proper tools must be used. This product should only be installed by professionals.
• Ensure the supporting surface will safely support the combined weight of the equipment and all attached hardware and components.
• Use the mounting screws provided and DO NOT OVERTIGHTEN the mounting screws.
• This product contains small items that could be a choking hazard if swallowed. Keep these items away from children.
• This product is intended for indoor use only. Using this product outdoors could lead to product failure and personal injury.
• Check that the bracket is secure and safe to use at regular intervals (at least every three months)

Warranty and Product Registration

5-Year Limited Warranty

Seller warrants this product, if used in accordance with all applicable instructions, to be free from original defects in material and workmanship for a period of 5 years from the date of initial purchase. If the product should prove defective in material or workmanship within that period, Seller will repair or replace the product, in its sole discretion.

THIS WARRANTY DOES NOT APPLY TO NORMAL WEAR OR TO DAMAGE RESULTING FROM ACCIDENT, MISUSE, ABUSE OR NEGLECT. SELLER MAKES NO EXPRESS WARRANTIES OTHER THAN THE WARRANTY EXPRESSLY SET FORTH HEREIN. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ALL IMPLIED WARRANTYES, INCLUDING ALL WARRANTYES OF MERCHANTABILITY OR FITNESS, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE; AND THIS WARRANTY EXPRESSLY EXCULES ALL INCIDENTAL AND CONSEQUENTIAL DAMAGES. (Some states do not allow limitations on how long an implied warranty lasts, and some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may have other rights which vary from jurisdiction to jurisdiction.)

WARNING: The individual user should take care to determine prior to use whether this device is suitable, adequate or safe for the use intended. Since individual applications are subject to great variation, the manufacturer makes no representation or warranty as to the suitability or fitness of these devices for any specific application.

PRODUCT REGISTRATION

Visit tripplitc.com/warranty today to register your new Tripp Lite product. You'll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!*

• No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.

Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice. Images may differ slightly from actual products.

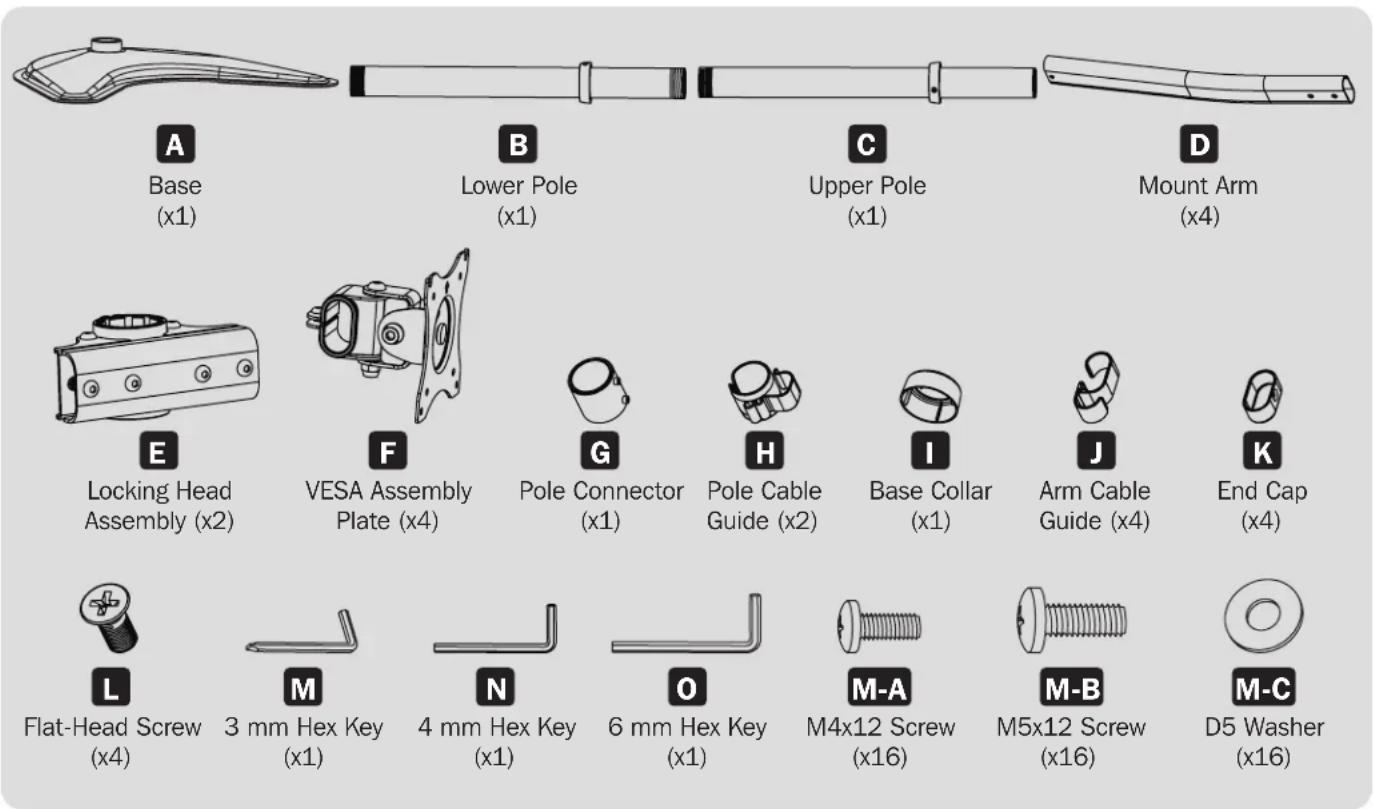

Parts List

IMPORTANT: Before beginning installation, be sure you have received all the parts listed below. If any parts are missing or faulty, contact Tripp Lite for replacements.

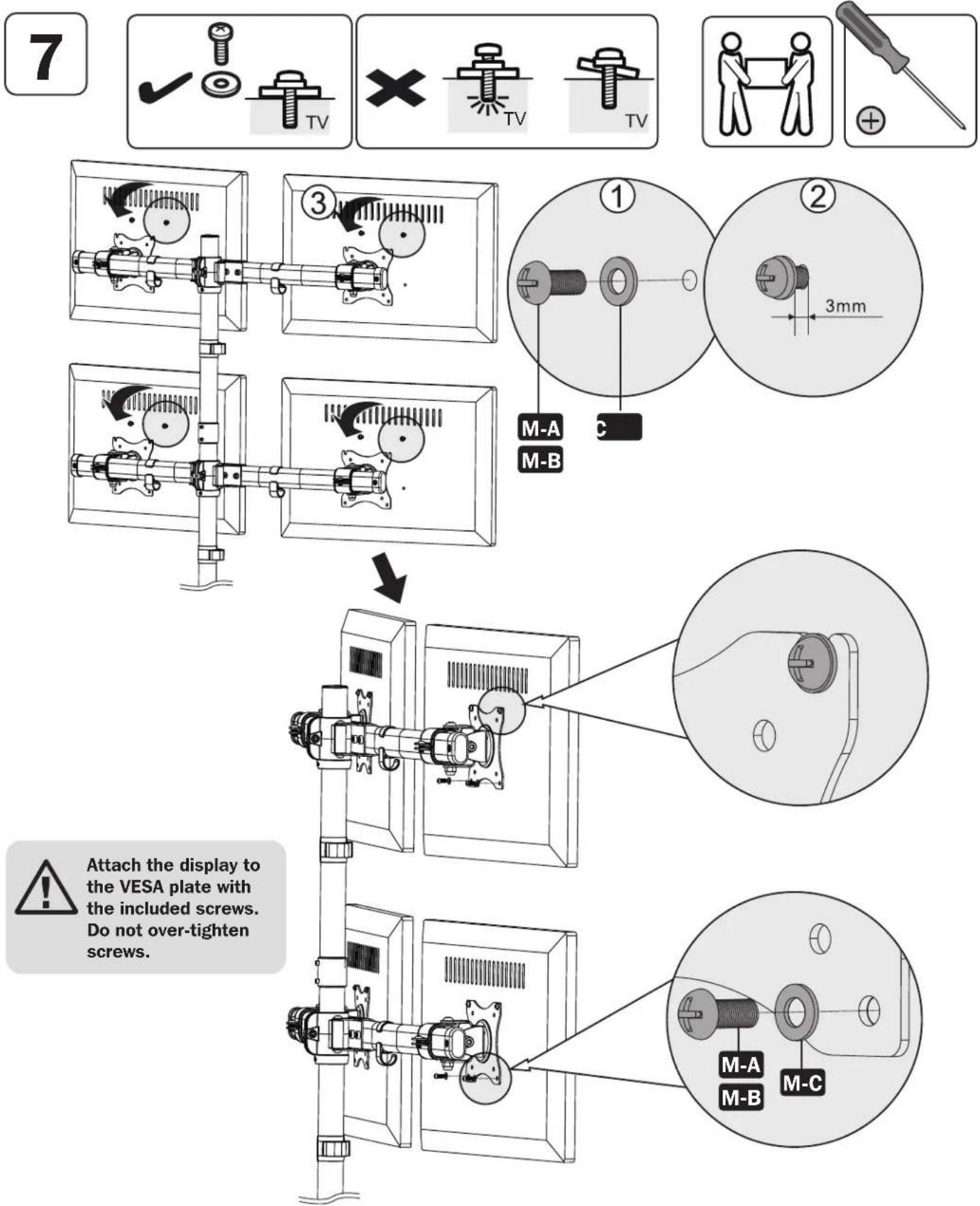

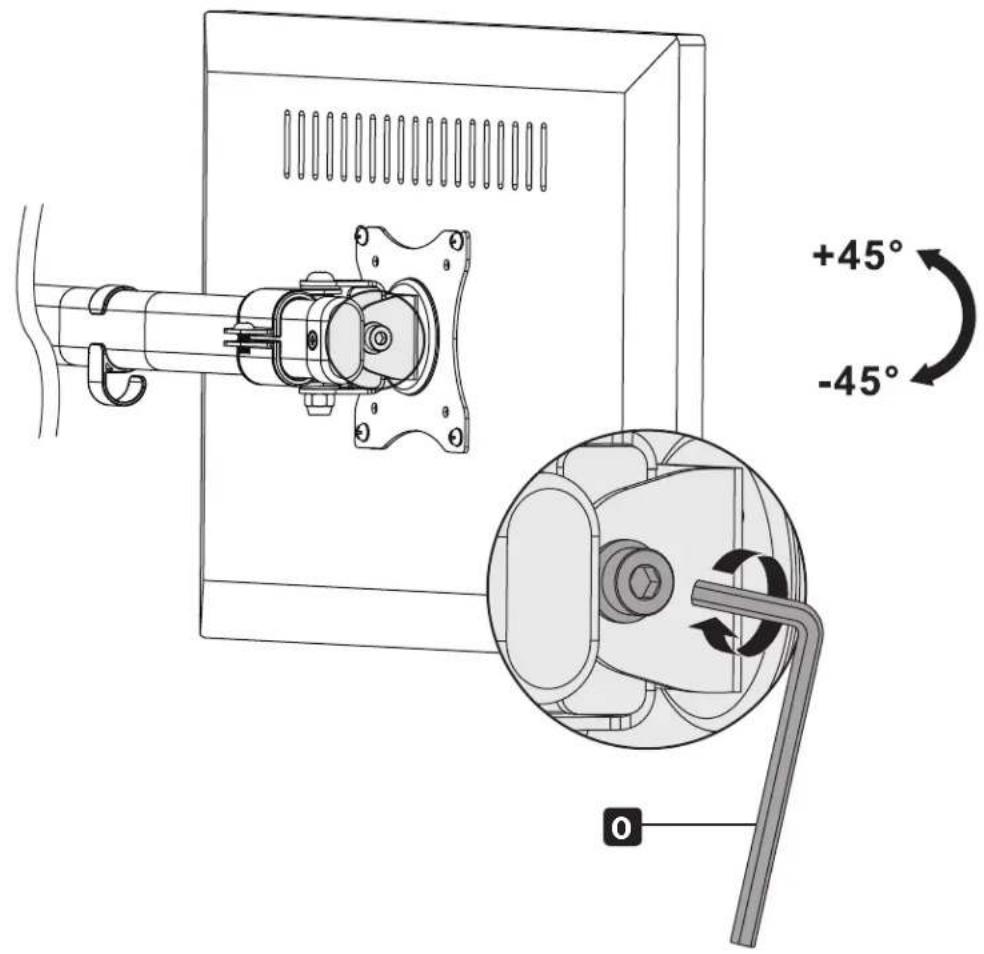

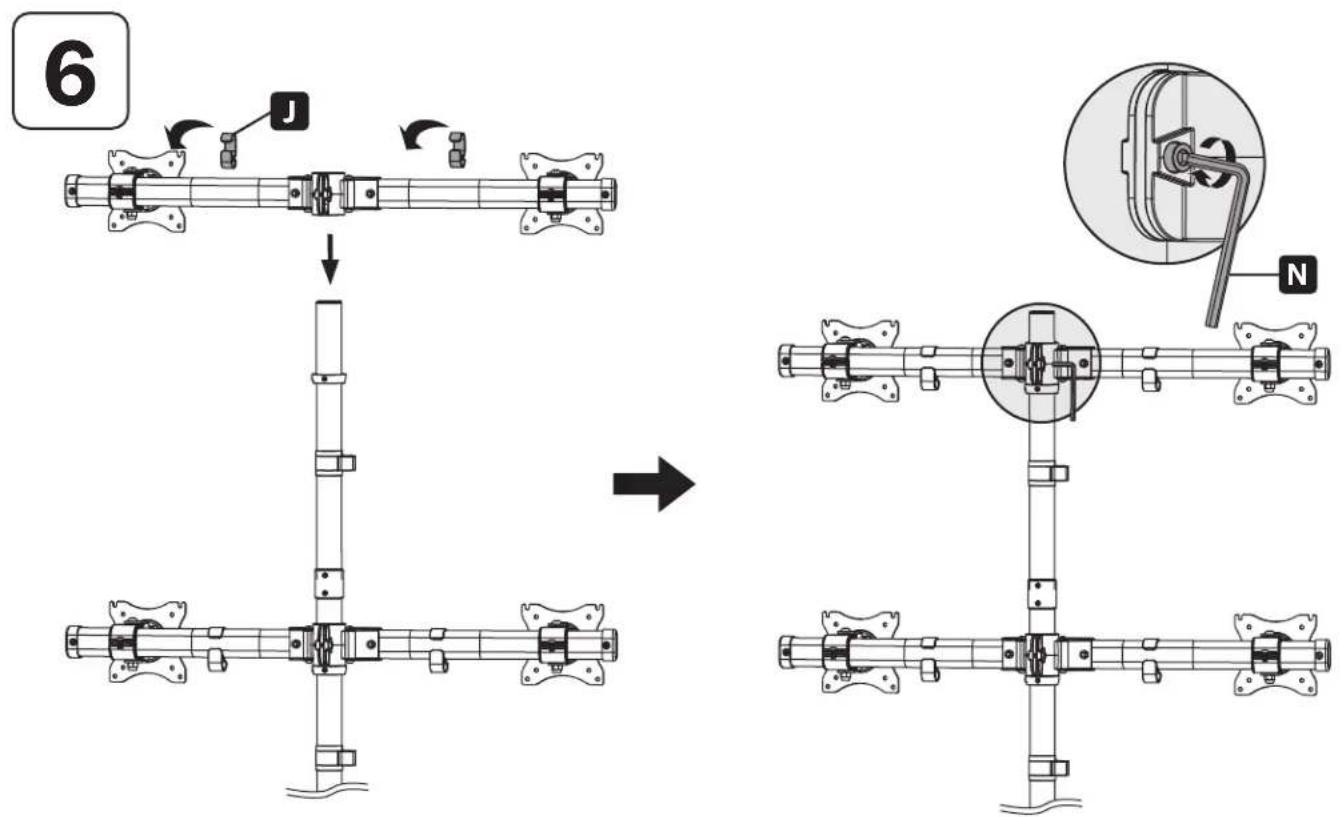

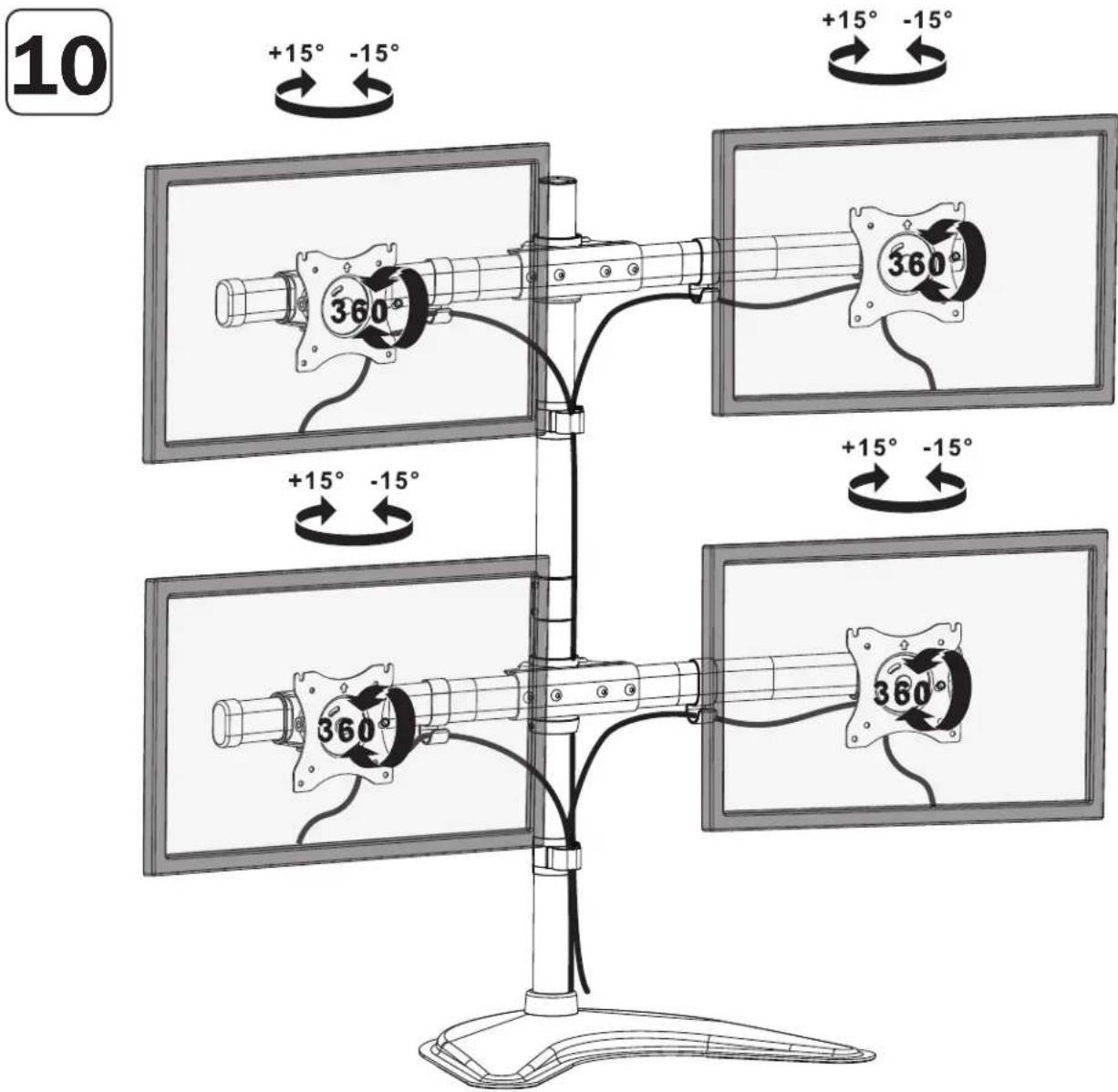

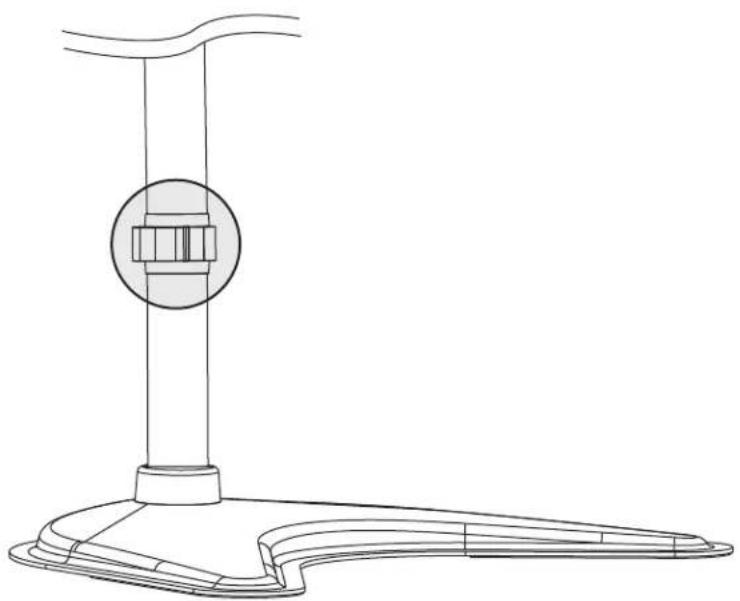

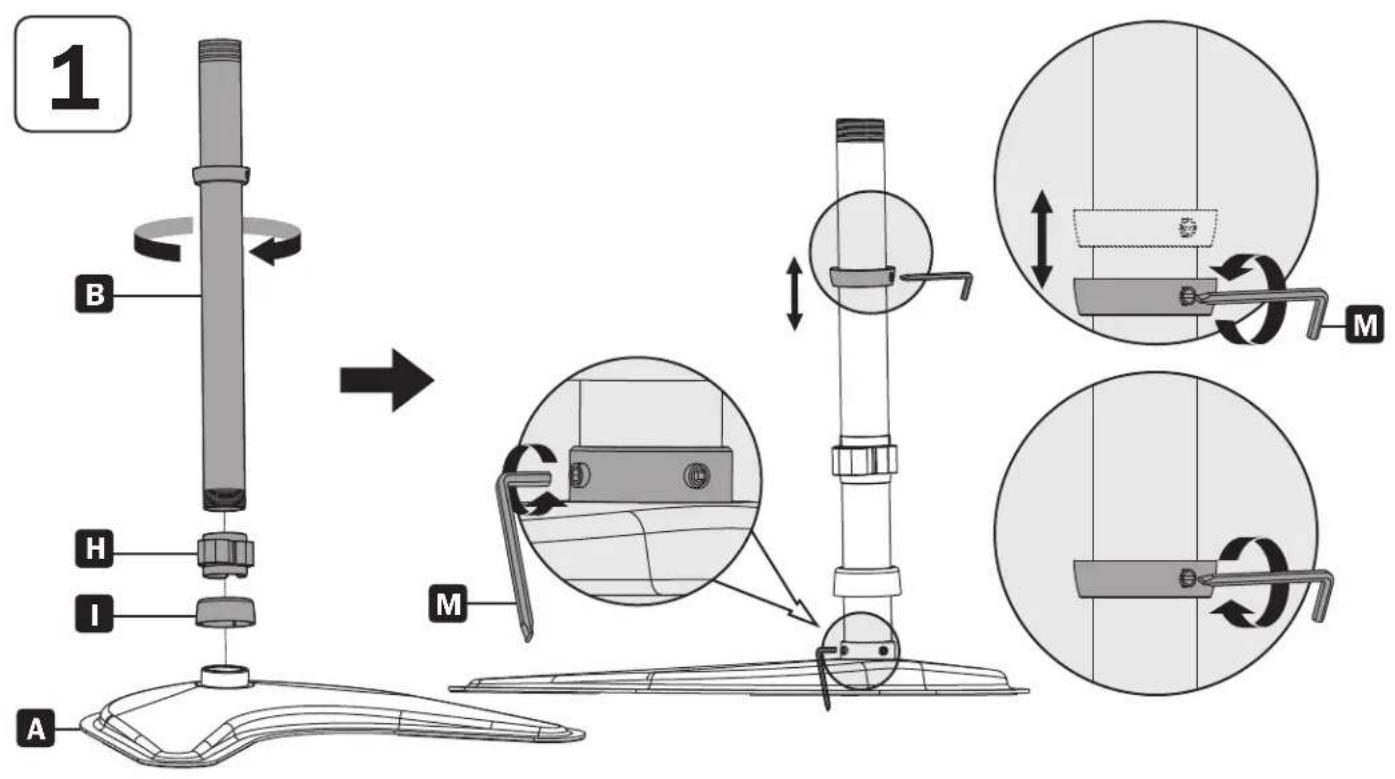

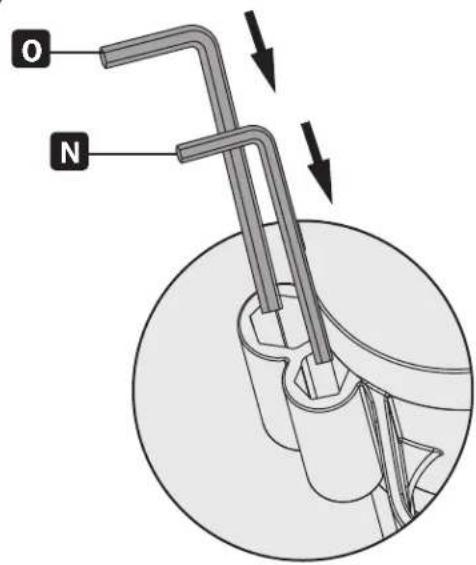

Assembly

Assembly

Assembly

Assembly

Assembly

Assembly

Assembly

Maintenance

• Check at regular intervals (at least every three months) to be sure the bracket remains secure and safe to use.
• Please visit tripplite.com/support if you have any questions.

Manufacturing Excellence.

1111 W. 35th Street, Chicago, IL 60609 USA · tripplite.com/support

20-06-C8693-3C07Rea

1111 W. 35th Street, Chicago, IL 60609, EE UU • tripplite.com/support

1111 W. 35th Street, Chicago, IL 60609, EE UU · triplite.com/support

20-06-08693-3087NewA

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

1111 W. 35th Street, Chicago, IL 60609 USA • triplite.com/support

20-06-08693-3087NewA

PykoB0dCTBO pOJIb3OBaTeIa

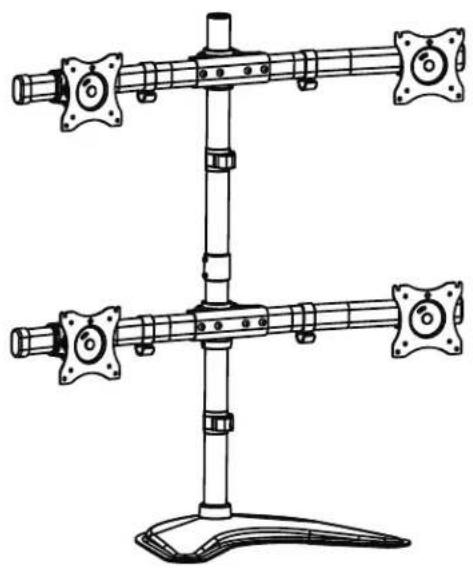

HactoIbHa nOdCTaBka Iy MoHTaJa qeTbIpex nnCnJIeeB

Mодenvb: DDR1327MQ

BHIMAHMEI HE IIPEBbIaIe MAKCMMAJIbHO IOnyCTMlb BEC.3TO MOKET IPNBECTI K CEPbE3HbIM TPABMAM NIN MMUYIECTBEHHOMY UcEP5Y!

75× 75 100× 100

English 1 • Espanol 11 • Français 21 • Deutsch 41

1111 W. 35th Street, Chicago, IL 60609 USA · triplite.com/support

OxpaHReTcA ABTOpCKMM npabOM 念 2020 Tripp Lite. Npepeuata 3anpeuaTcR.

Baxhblc yka3aHnno TeXnke 6e30nacHoCTn

BHIMAHHE!

IpeaHauanom c6opkn n yctahOBKn BnHMaTeNbHO n3yUHTe BCE pa3dJeBpyKOBoDCTBa.C BonpocamN OTHCnteBHO nIOb6x yKa3AHn n ppeynpeXeHN 06paaaiTecb Bcnyk6y noepKKN KOMnAHm Tripp Lite.
- IcnoIb3oBaHne daHHOr npncnoc6neHn C n3dennnn, Mcca KOTOpbIX npeBbIaEYkazAHhB INpeDen, MoKET pNBecT N NToTepe yCTOuHBOCTH C BO3MOXHBIM HaHeceHmEM TpaBMbl.
KpenneHnKePOHHTeHOBdoJHXHO npO3BOUITcB C BOOTBETCTBm C yKa3aHmMn, 3IOXeHHbIMn B HAcTOnIeM pyKOBoDCTBe. HenpaBnBHaayctAHOBka Moxet npNBecTN K npuHHeHIO MaTePmaJIbHOro Uyep6a mN cyueCTBeHHOro Bpea 3dOpobbIIOJeI.
Heo6xOIMMO mCnOJIb3OBaHHe 3aunTHbIX cpeCTB n HauNEXKaUHX INCHpyMeHTOB. UCTAHOBKa DaHHO rI3dEINr IOnJXHa IPOUN3BOIDITcR ToJIbKO CneuaJIHCTAMN.
- 86eintecB TOM, qTO ONOPHAA NOBEPXHOCTb C3aONCOM BblepKNT cyMMapHyIO HArpy3Ky, co3daBaEMyIO o6opyoBaHNEM I BcEMN BXOJaUMM B KOMNIIEKT DeTaNAMN OCHACTKN IN DpyTNMI KOMNOHEHTAMN.
- IcnoIb3yIte KpeJexHbIe BInTbI, NoCTaBnIeMbIe B KOMIIeKTe, H HE IEPETIINBAITEx.
JaHHOe H3dJIeNcoepKNT MeIKNHe DeTANI, KOToPbIE MOrY BblBaTb ydyBbe Bcnyae nporlaTbIBaHn. 3TN DeTANI CNeDyET XpaHITb B HeOCTyHOM dIeTeMeTE.
JaHHe 3eJnne npEHa3NaueHO nIg NcNtB3OBaHnra TOnbKbPbTbIX NmEeHnX. CnOJIb3OBaHne DaHHOro 3dJeHn Ha OTKpbITOM Bo3DyXe MoKeT npMBecn Kero BvIXOy N3 cTPOr INpUINHEHIO Bpea 3dOpOBbIO IIOeI.
- Perynapho (he pexe, Chep a3 B Tpr Mecaua) npoepeiHaedxHocb KpeinHea H 6e3oNachoctb erO nCnoB30BaHn

TapaHTnHbIe 06aTeIbCTBa

YcnoBna 5-NeTHeN orpaHueHHo rapaTHm

IpoaabeT aapahnpye TcYTCBHe N3HaHbHbIX DeepKTOB MaepHana NIN K3rTOBHeH B TeueHMe 5NET C MOMHTA NEPBOHaNbHO NOKyHN DAHNHO I3dE HPO INCNOB H EONIO B COOTBETCBH CO BCCMn pImCNHBMmIK HeMy yka3aHnMI. B CInyae npoARbcnHn KaHX-NIO DeepKTOB MaepHana NIN K3rTOBHeH B TeueHMe Yka3aHnHO NEPHO D PpOABec OcyuCEbTBACT PeMOHT NIN 3aEMHy DAHNHO M3dEHN NkCHIOHTeBnNo CBOeMy yCMOTpeHNO.

EIECTBNE HACTOUIIETAPAHTHNI H PACTIPOCTPAHETCR HA CINYAN ECTCEBTBEHHOTIO 3NHOCA INI NIOBPEKDEHN B PE3YbTATE ABAPIM, HEADNEJAIEFO ITOJIbOBAHNI, HAPUHEHMII PPABNI 3KCIPIYATAUIM INI XAIATHOCN. IPODABEU H IPEIOCTABLIAREHKAKXMBBOBPAKEXHBIX TAPAHNTI 3A WCKIOHEHEMIPRIMO 3NIOKEHNOB HACTORUIEM DOKYMEHE. 3A NCKIOUEHEMC NUYAEB, 3AIONEPHEHBI DEIETCYKOUM 3AKOHODATEBCTOBM, BCE IOJAP3YMEBAEMBE TAPAHNTM, BIKHOAH BCE TAPAHNTM PPMIOHOCTIN IINPPODAHXMI INCIOJIb3OBAHNI PO HAZHAUEHNO, OPAHVEHBI NO IPOJOJIWNTBHOCTN DEITCBNIA BILJEYA3AHNBIM TAPAHNTNBMHIM CPOKOM; KPOME TOI0, IV3 HACTORUIE TAPAHNTN RBHBM OB43OM NCKIOUAOICRT BCE IOBOUYHIE, CIUYAHBI E KOCBEHNBJ YbIKN. (B NEKOTOPbix 7tatax He DOnyckaTcER BBeEHeOE ORpAAuHNeH Nn HApOoiKHTeBcHbCTBn DeCTBnTex nHbIX NoqpaZMeBaembIX rapaHTn, A B HekOTOpbix - MckIOueHne Nn OrpAAuHHepe pMaMePAOCHN BOKCBENBv6bIKTN. B 3Tnx Taay BbUeWN3IOKeHBeBn OPAHueH Nm NKIOUeHMeMgTn H Bac He paocpOcpanrTaBC. HactouaarapaaTn peoOCTabReKKnepTbe npAa, a Habopdpynr npab Moket 6bItb pa3nHyBm B 3aBNCMOCTN OtpCNkUKNi).

BHMMAHME! Do hauana nclnoB30aHn daHHoro yctpoiCTBa noIb3oBATEnb doJIKeH y6eIMTBcB TOM, YTO OHO ABINETCR pRIODhBM COOTBETCTBYOUHm Hn 6EONANrAeroMORNPIMHEHMA. B CBA3C6OJIbHM pa3Hoo6pa3Hem KOHKpTeHBx pIMMeHENn IPOIN3BOIDNTB He daet KAKX-NIOO 3abepeHH NII rapaHTM OTHCHTBHO pRIOHOCTN DAHHBX N3dENN kAKO-RNO KOHKpTeHOrO pIMMeHENN INN XCOBTCTBnKAKHM-Imo KOHKpTbM Tpe60BaHnM

KOMnHII Tripp lte noctoHHIO COBepueHCTByET CBOIO npdykuiu. TeHXmHeCKHe XapakTePcHKn Moryr H3MeHARbC 6e3 ppeBaHTenbHorO yBeOMLeHH. BheHHI BUD peaNbHbIX N3DeHN MoKet HeckoiBko OTMaTbCt O npctdTabHeHHoro Ha HnIOCTpaHx.

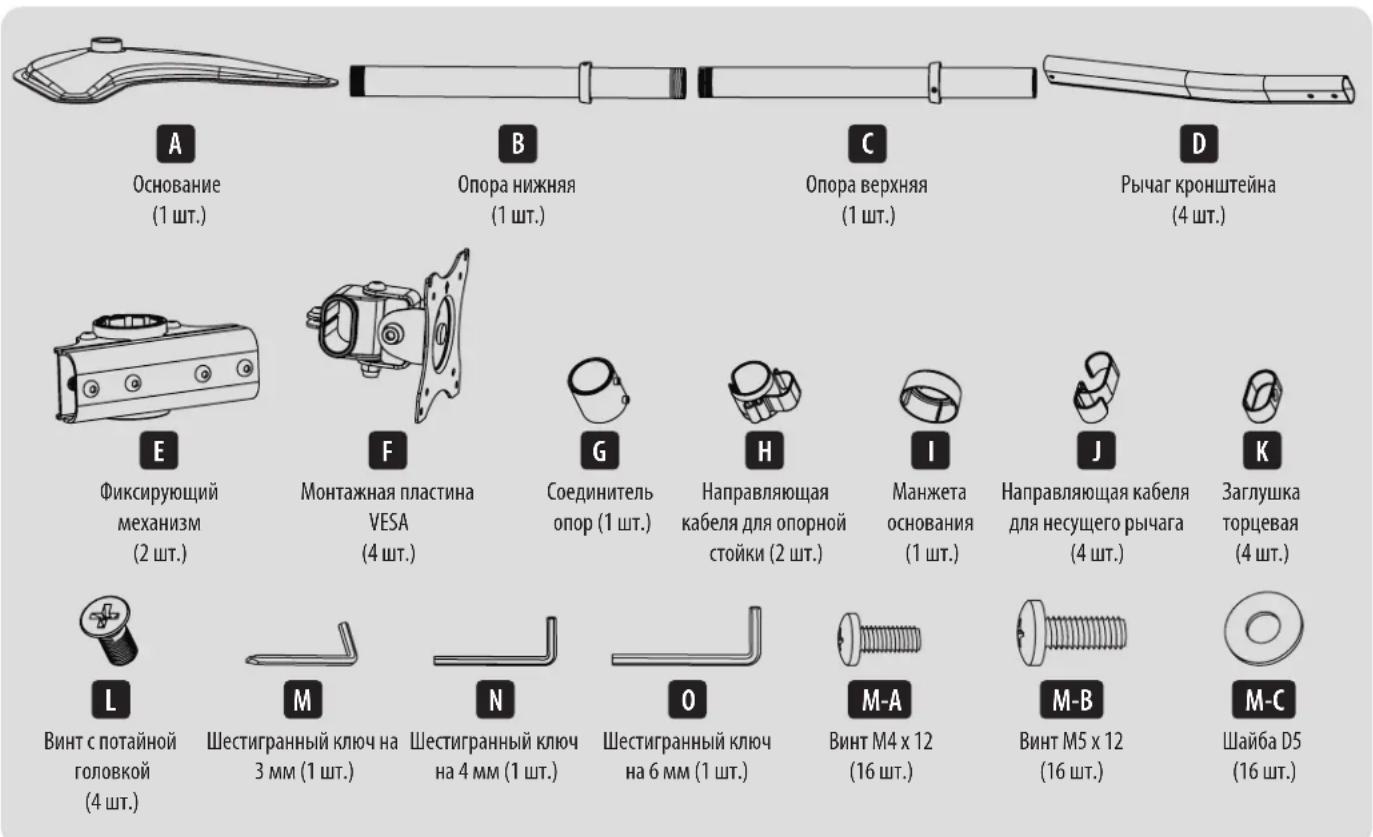

KoMnneKtaun

BHIMAHNE! NpeHnayanom yctahOBKu y6eNTecb TOM, YTO BaMn noyehbl Bce DeTaN cornaCHO npedCTabneHHOMy Hnke nepeHHo. B cnyae oTCYCTBnA nnnoBpeKdHnKaKnx-Ni6o DetaneN obpaTntcB b KomnauHIO Tripp Lite dny 3aMeHbl.

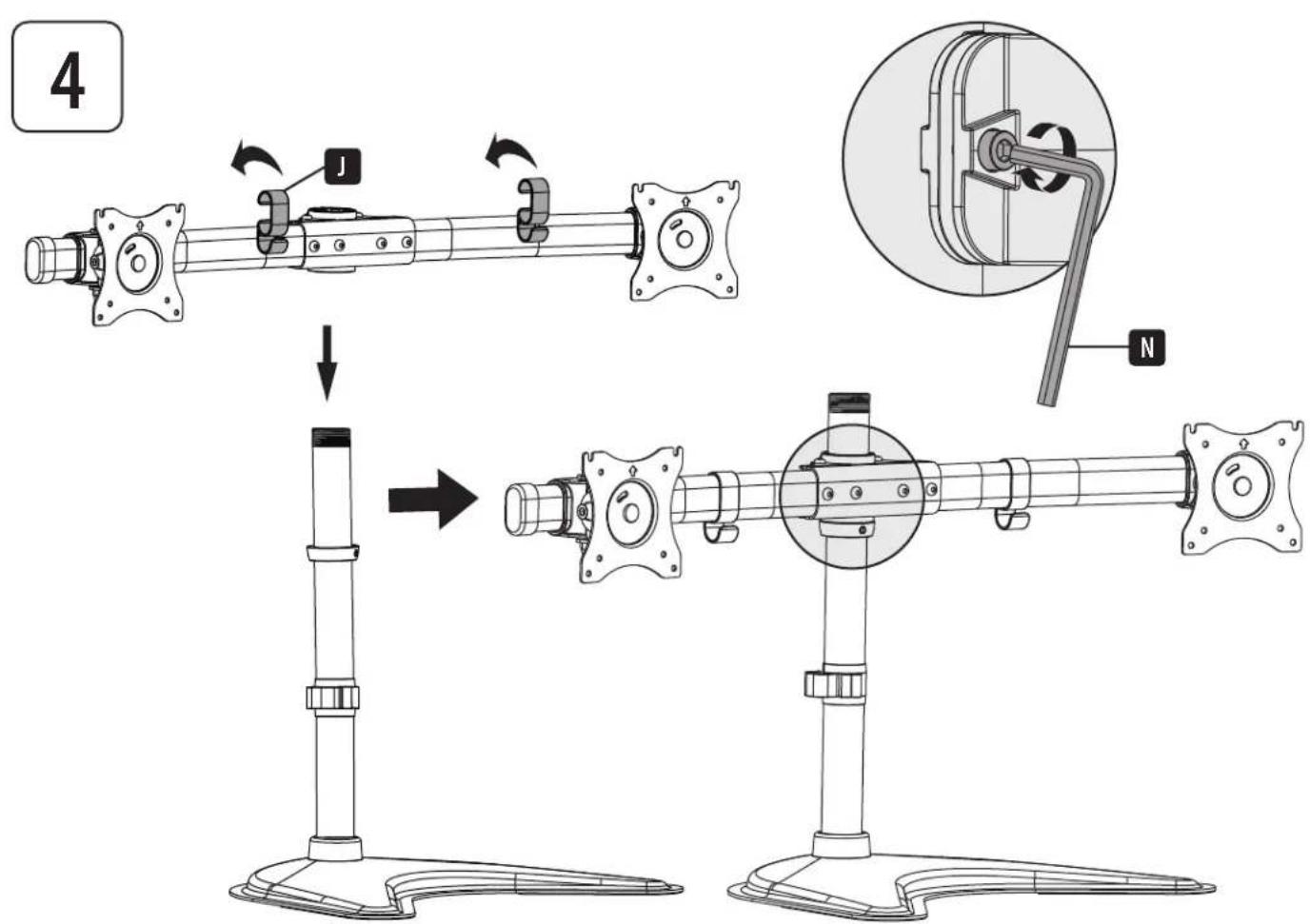

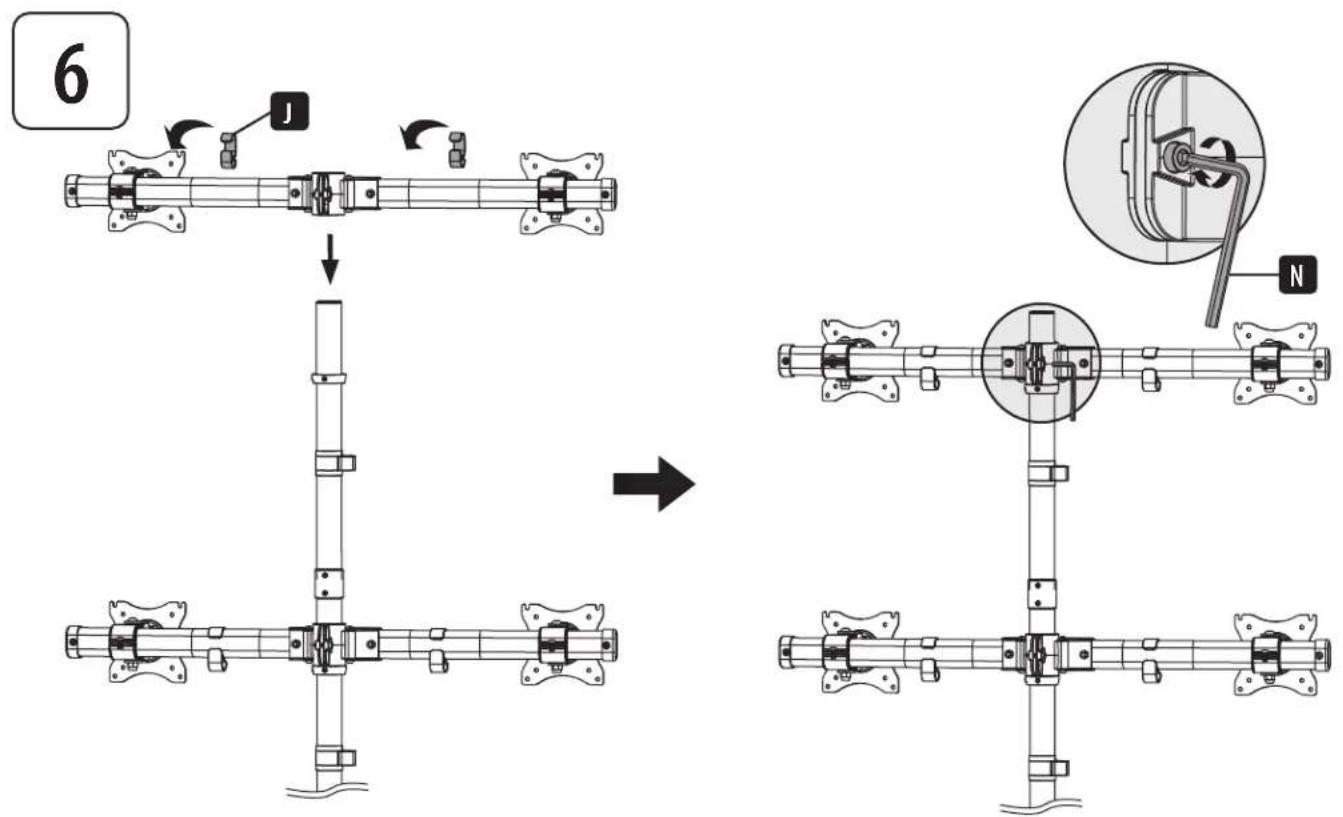

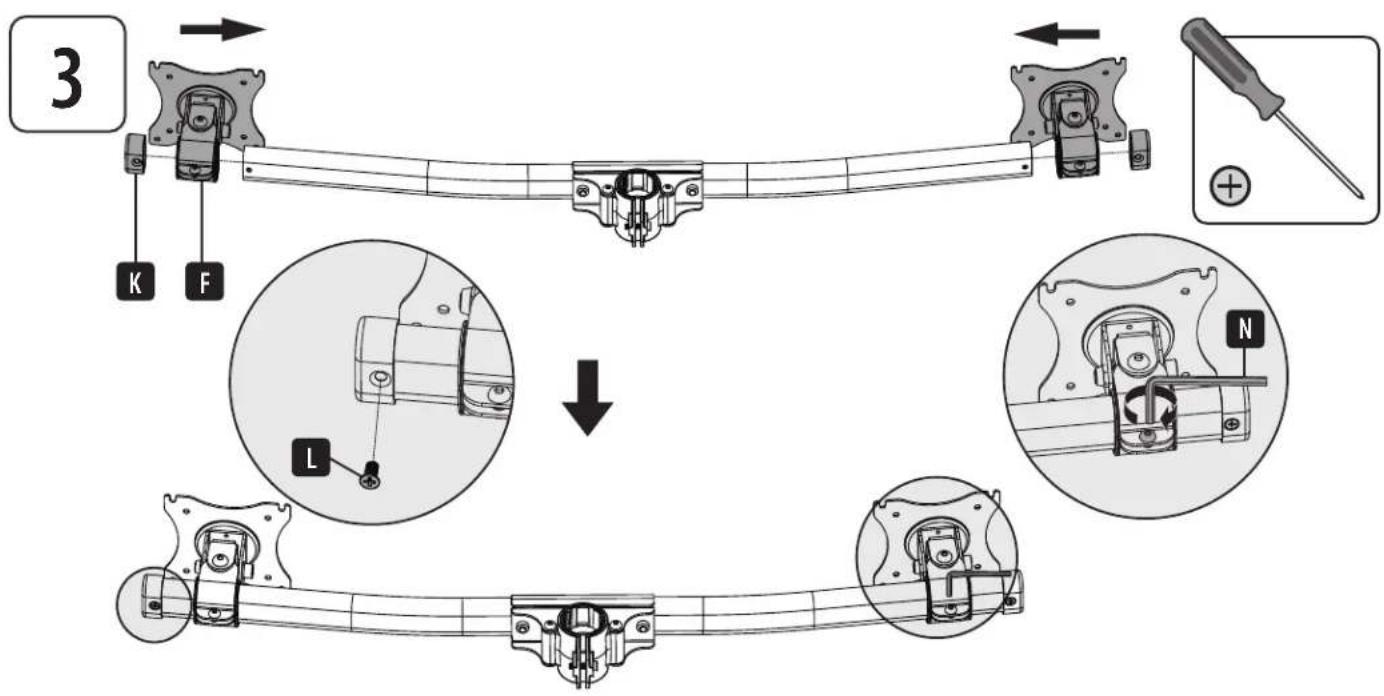

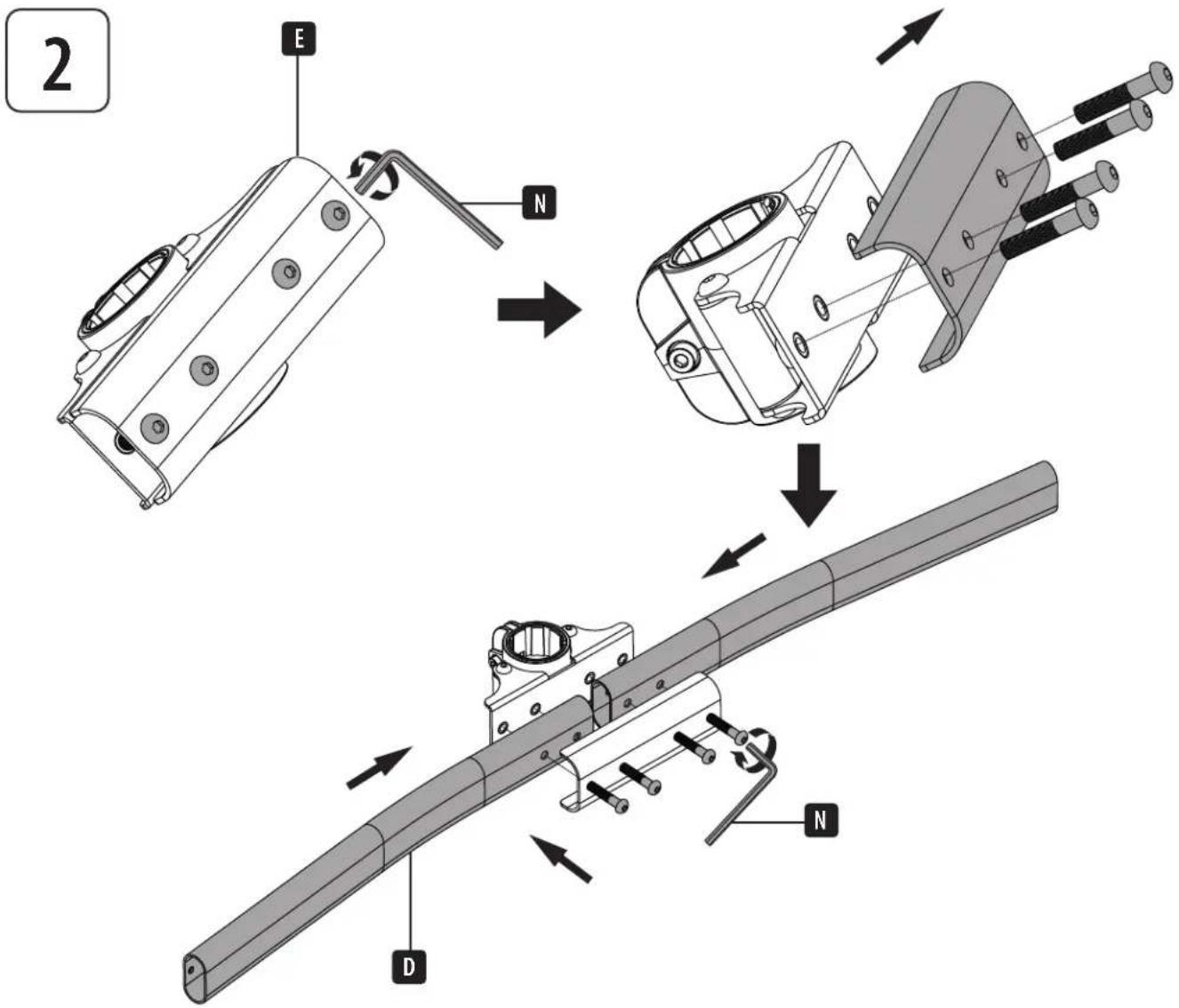

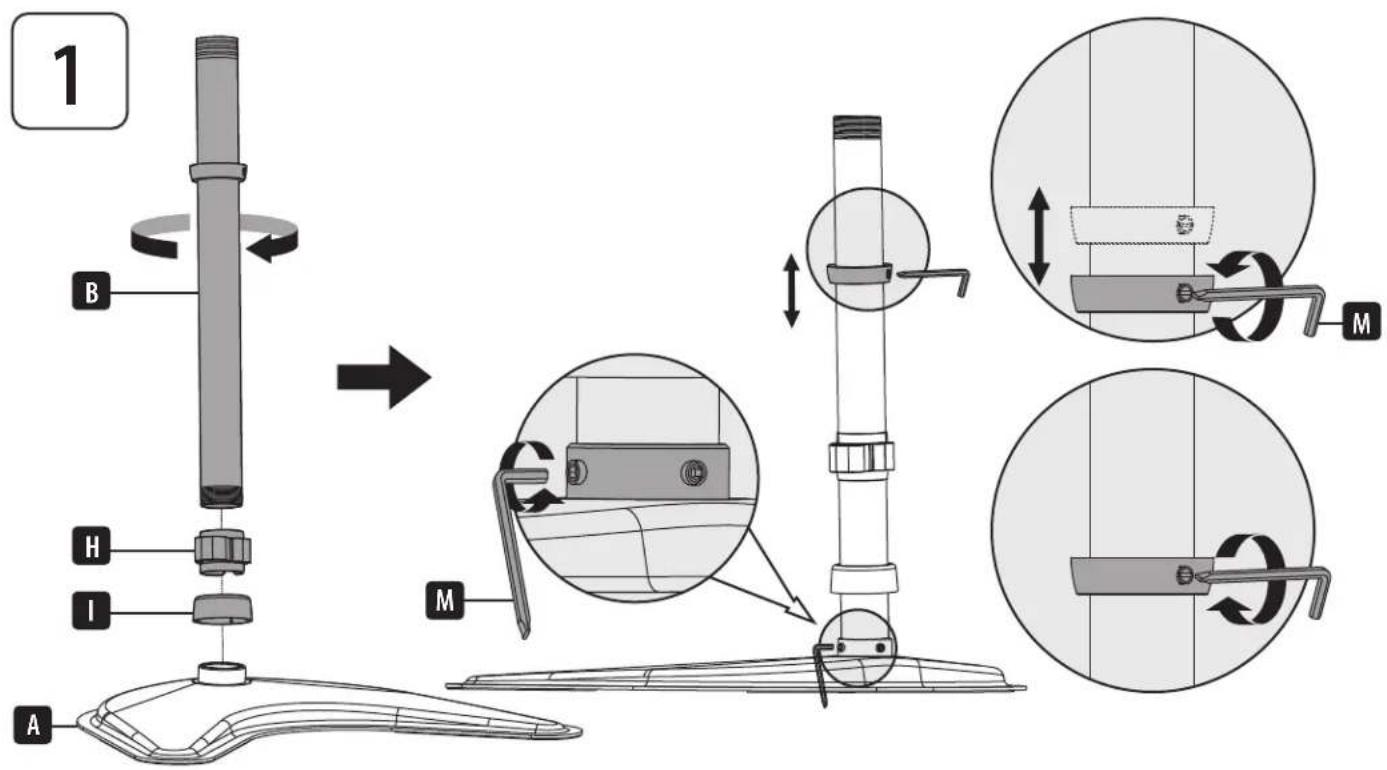

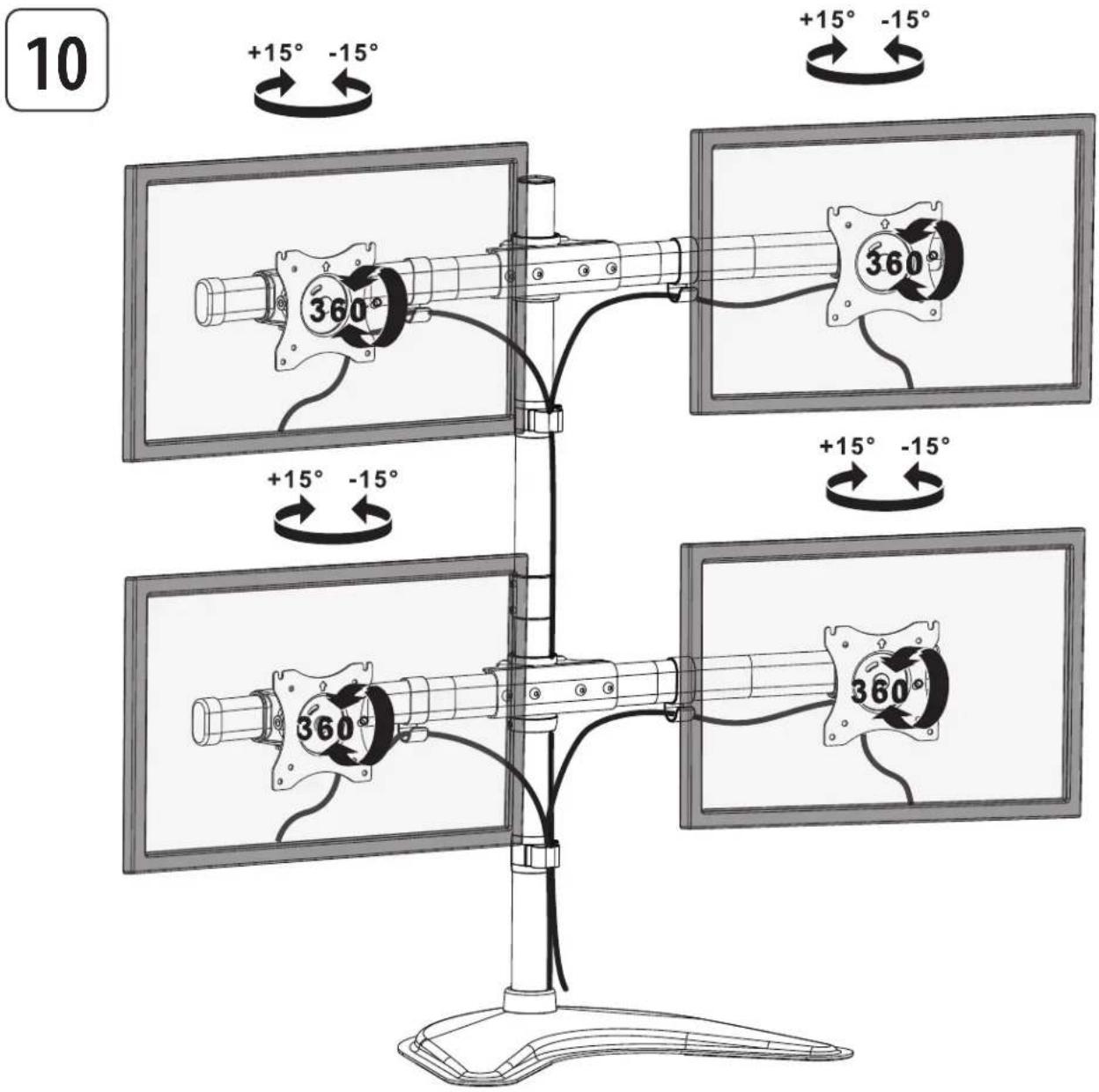

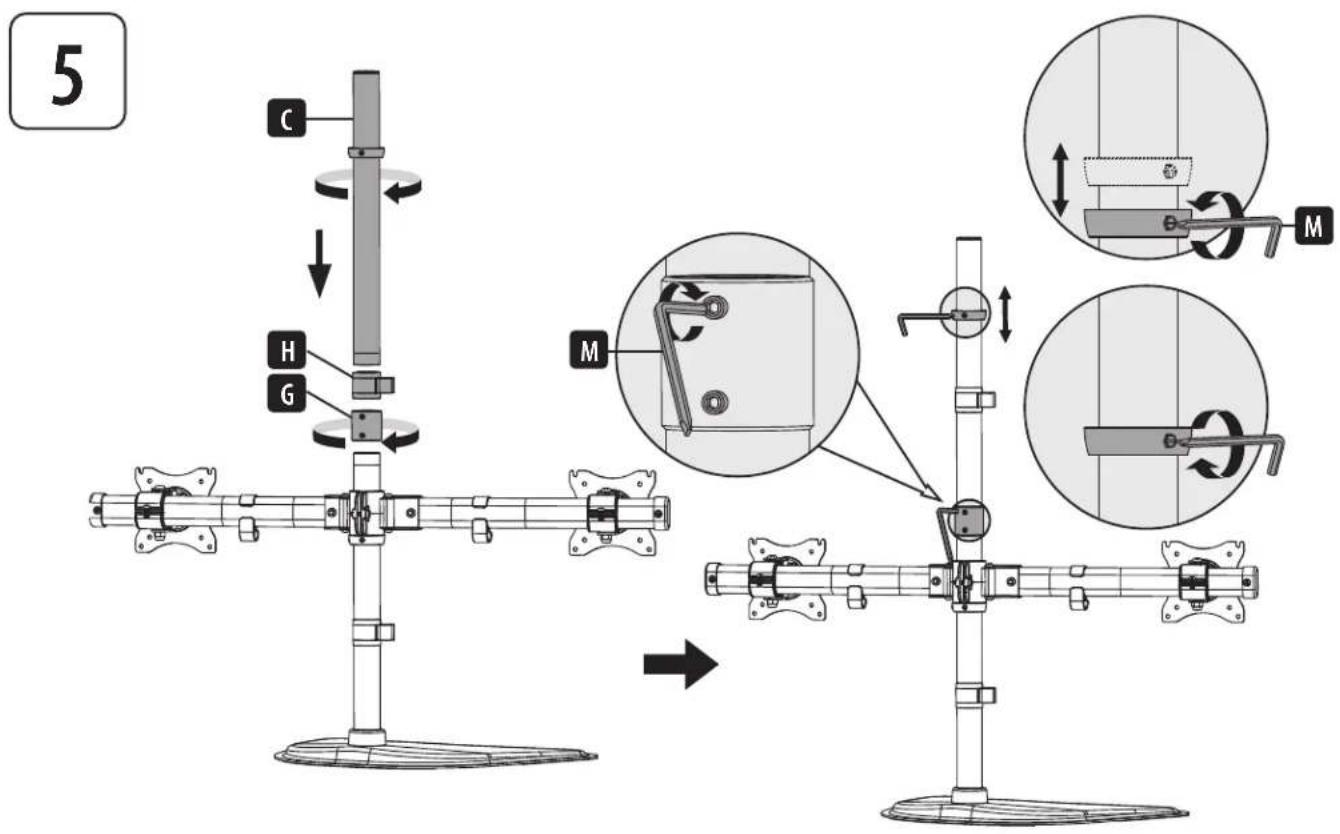

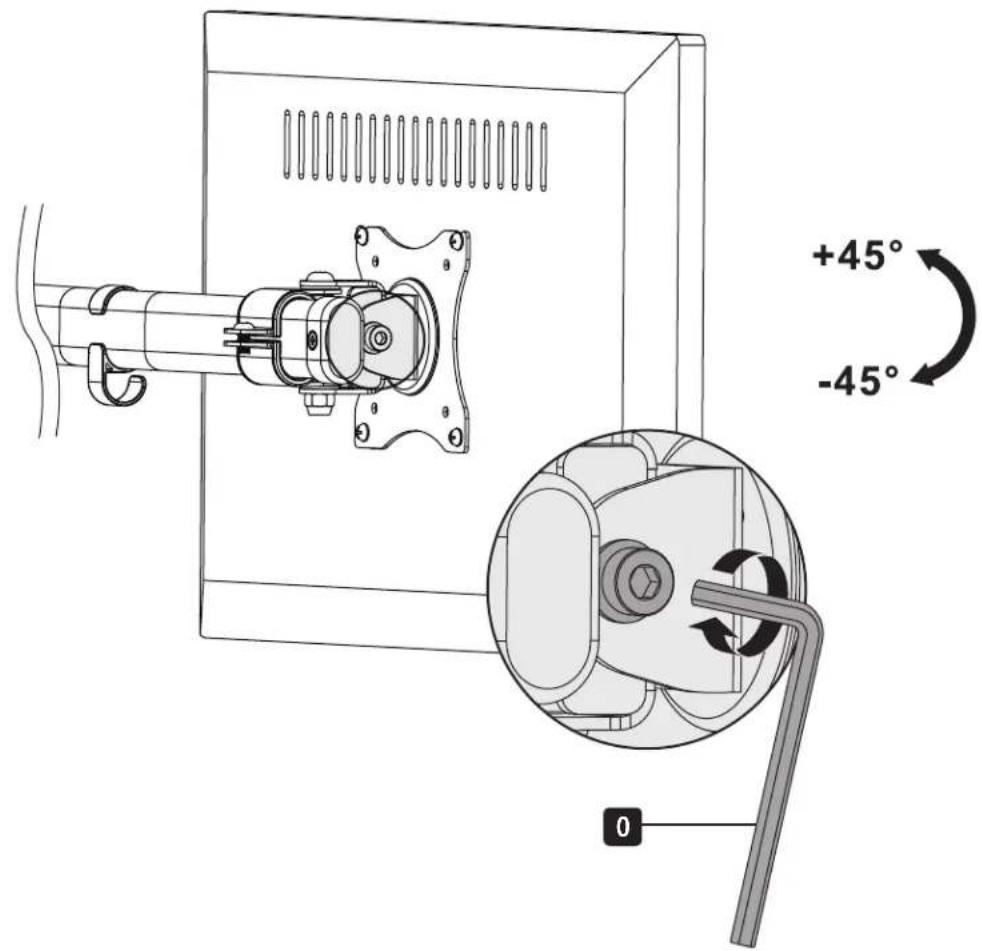

Popraok c60pkn
