U436SMF1GLC - Network adapter Tripp Lite - Free user manual and instructions

Product Type	USB-C to Fiber Optic Network Adapter
Model	U436SMF1GLC
Brand	Tripp Lite
Input Connector	USB-C (Male)
Output Connector	Integrated Single-mode SFP LC Transceiver
Bandwidth	1,000 Mbps (1 Gbps)
Maximum Distance	5 km (Single-mode)
Wavelength	1,310 nm
Fiber Type	Single-mode (SM)
USB Version	USB Type-C 3.1 Gen 1 (5 Gbps)
Power	USB bus-powered, no external power required
Operating Temperature	0 to 55 °C
Storage Temperature	0 to 60 °C
Relative Humidity	5 to 90% RH
Network Compatibility	Fiber Channel, IEEE 302.3z, ANSI
Warranty	3-year limited
Package Contents	Adapter, driver CD, quick start guide

Frequently Asked Questions - U436SMF1GLC Tripp Lite

What type of USB connector does the U436SMF1GLC use?

It uses a USB-C male connector to plug into a computer or tablet.

What is the maximum transmission distance?

The maximum distance is 5 kilometers in single-mode at 1310 nm.

Does the adapter require external power?

No, it is USB bus-powered, so no external power is needed.

What type of fiber optic is supported?

It supports single-mode (SM) fiber with a wavelength of 1310 nm.

How do I install the adapter?

First install the driver from the CD or Tripp Lite's website, then plug the adapter into a USB-C port. The blue LED indicates a successful Ethernet connection.

Can I use a different SFP transceiver with this model?

No, the U436SMF1GLC has an integrated SFP LC transceiver and does not allow replacement. The U336-1G-SFP and U436-1G-SFP models have an open SFP port for user-supplied transceivers.

What is the maximum bandwidth?

The maximum bandwidth is 1,000 Mbps (1 Gbps).

What is the product warranty?

Tripp Lite offers a 3-year limited warranty against defects in materials and workmanship.

Is the product compatible with Mac computers?

Yes, as long as the computer has a USB-C port and the appropriate driver is installed. Check Tripp Lite's website for compatible drivers.

How do I know if the connection is established?

A blue LED lights up when the Ethernet connection is successful and blinks during data transfer.

USER MANUAL U436SMF1GLC Tripp Lite

USB to Fiber Optic Transceiver Ethernet Adapters

Models: U336-1G-SFP (USB-A), U436-1G-SFP, U436-SMF-1G-LC (USB-C)

Español 5 • Français 9 • Русский 13 • Deutsch 17

WARRANTY REGISTRATION

Register your product today and be automatically entered to win an ISOBAR ^® surge protector in our monthly drawing!

tripplite.com/warranty

Manufacturing Excellence.

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

Copyright © 2020 Tripp Lite. All rights reserved.

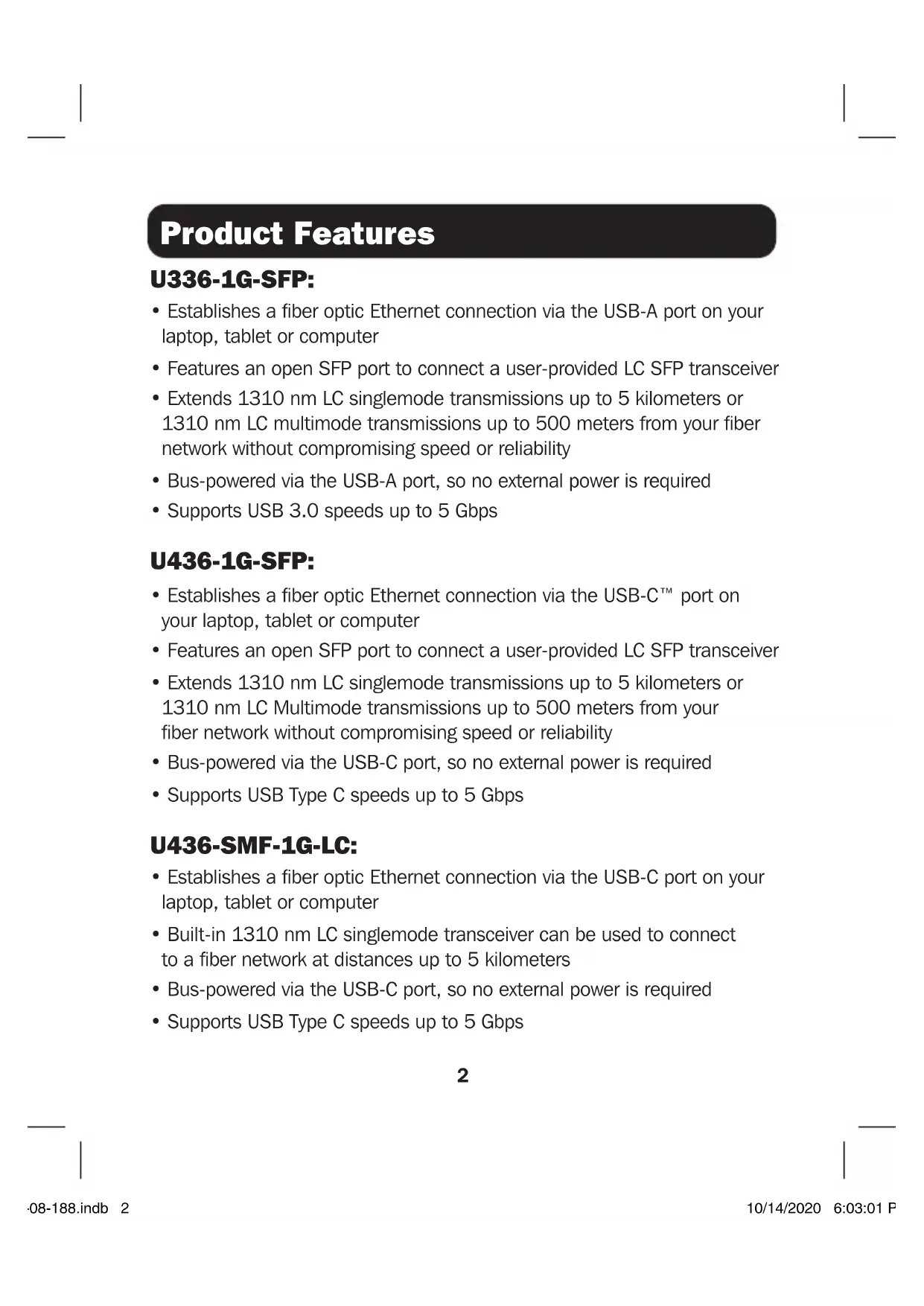

Product Features

U336-1G-SFP:

• Establishes a fiber optic Ethernet connection via the USB-A port on your laptop, tablet or computer
• Features an open SFP port to connect a user-provided LC SFP transceiver
• Extends 1310 nm LC singlemode transmissions up to 5 kilometers or 1310 nm LC multimode transmissions up to 500 meters from your fiber network without compromising speed or reliability
• Bus-powered via the USB-A port, so no external power is required
  • Supports USB 3.0 speeds up to 5 Gbps

U436-1G-SFP:

• Establishes a fiber optic Ethernet connection via the USB-C™ port on your laptop, tablet or computer
• Features an open SFP port to connect a user-provided LC SFP transceiver
• Extends 1310 nm LC singlemode transmissions up to 5 kilometers or 1310 nm LC Multimode transmissions up to 500 meters from your fiber network without compromising speed or reliability
• Bus-powered via the USB-C port, so no external power is required
  • Supports USB Type C speeds up to 5 Gbps

U436-SMF-1G-LC:

• Establishes a fiber optic Ethernet connection via the USB-C port on your laptop, tablet or computer
• Built-in 1310 nm LC singlemode transceiver can be used to connect to a fiber network at distances up to 5 kilometers
• Bus-powered via the USB-C port, so no external power is required
  • Supports USB Type C speeds up to 5 Gbps

Package Includes

• U336-1G-LC, U436-1G-LC or U436-SMF-1G-LC USB to Fiber Optic Ethernet Adapter
• Driver CD
• Quick Start Guide

System Requirements

- USB-A port (U336-1G-SFP) or USB-C port (U436-1G-SFP and U436-SMF-1G-LC)

Installation

Note: Before installation, verify your fiber equipment's wavelength (1310 nm), mode type (single or multi) and distance (in meters) matches that of the USB Fiber Transceiver Adapter specifications.

1. Install the applicable driver on your computer or laptop before connecting the USB fiber transceiver adapter. The driver can be installed using the included CD or by visiting the model's Technical Support page on tripplite.com to download.
2. Once the appropriate driver is successfully installed, connect a user-supplied LC transceiver that is connected to a fiber network to the open SFP port on the adapter. If using the U436-SMF-1G-LC, the transceiver is already built into the unit and a separate transceiver is not needed.
3. If using the U336-1G-SFP, insert the USB-A male connector to a USB-A port on your computer.

OR

If using the U436-1G-SFP or U436-SMF-1G-LC, insert the USB-C male connector to the USB-C port on your computer.

1. A blue LED will illuminate to indicate a successful Ethernet connection. The LED will blink when data is being transferred.

Specifications

	U336-1G-SFP U436	-1G-SFP U436-SMF	-1G-LC
Input Connector USB-A (Male) USB-C (Male) USB-C (Male)
Output Connector Open SFPTransceiver Port(Female)		Open SFPTransceiver Port(Female)	LC SFP SMTransceiver Module
Bandwidth 1000 Mbps 1000 Mbps 1000 Mbps
Max. Distance 5 km (Singlemode);550 m (Multimode)		5 km (Singlemode);550 m (Multimode)	5 km (Singlemode)
Wavelength 1310 nm 1310 nm 1310 nm
Fiber Type Open Open Singlemode (SM)
USB Version USB 3.0 (5 Gbps) USB Type		C (5 Gbps) USB Type	C (5 Gbps)
NetworkCompatibility	IEEE 302.3z andANSI Fiber Channel	IEEE 302.3z andANSI Fiber Channel	IEEE 302.3z andANSI Fiber Channel
OperatingTemperatureRange	32 to 131°F(0 to 55°C)	32 to 131°F(0 to 55°C)	32 to 131°F(0 to 55°C)
StorageTemperatureRange	32 to 140°F(0 to 60°C)	32 to 140°F(0 to 60°C)	32 to 140°F(0 to 60°C)
Relative Humidity	5% - 90% RH 5% - 90% RH 5% - 90% RH

3-Year Limited Warranty

TRIPP LITE warrants its products to be free from defects in materials and workmanship for a period of three (3) years from the date of initial purchase. TRIPP LITE's obligation under this warranty is limited to repairing or replacing (at its sole option) any such defective products. To obtain service under this warranty, you must obtain a Returned Material Authorization (RMA) number from TRIPP LITE or an authorized TRIPP LITE service center. Products must be returned to TRIPP LITE or an authorized TRIPP LITE service center with transportation charges prepaid and must be accompanied by a brief description of the problem encountered and proof of date and place of purchase. This warranty does not apply to equipment which has been damaged by accident, negligence or misapplication or has been altered or modified in any way.

EXCEPT AS PROVIDED HEREIN, TRIPP LITE MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Some states do not permit limitation or exclusion of implied warranties; therefore, the aforesaid limitation(s) or exclusion(s) may not apply to the purchaser.

EXCEPT AS PROVIDED ABOVE, IN NO EVENT WILL TRIPP LITE BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF THIS PRODUCT, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Specifically, TRIPP LITE is not liable for any costs, such as lost profits or revenue, loss of equipment, loss of use of equipment, loss of software, loss of data, costs of substitutes, claims by third parties, or otherwise.

Manufacturing Excellence.

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

20-08-188 93-3D07_RevA
