USER MANUAL U44406NHUC Tripp Lite

USB 3.2 Gen 1 USB-C to HDMI Adapter

Models:

U444-06N-HU-C

U444-06N-H3U-C

U444-06N-HGU-C

U444-06N-HGUB-C

USB Type-C® and USB-C®

are registered

trademarks of USB

Implementers Forum.

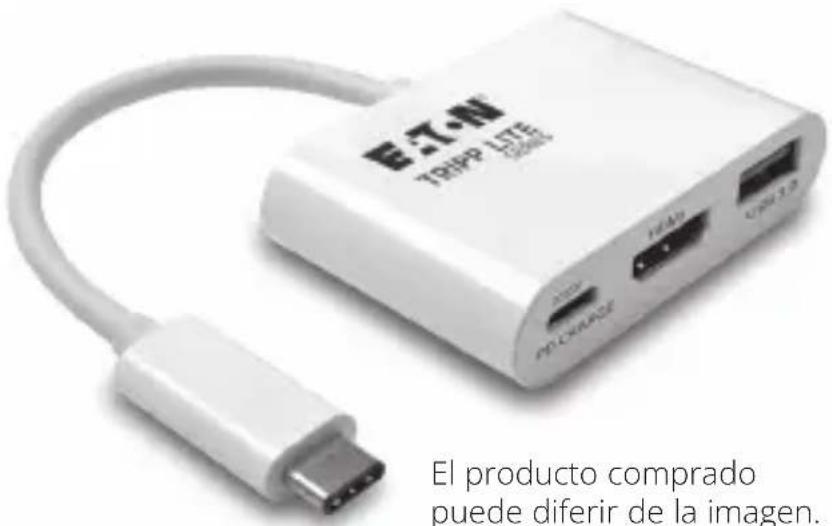

Purchased product may differ from image.

Espanol 9

Francais 17

Deutsch 25

Italiano 33

Package Includes

U444-06N-HU-C, U444-06N-H3U-C, U444-06N-HGU-C or U444-06N-HGUB-C
- Owner's Manual

Optional Accessories

P568-Series High-Speed HDMI Cables
U322-Series USB 3.2 A/B Device Cables
U326-Series USB 3.2 Micro-B Device Cables
- N201-Series Cat6 Gigabit Snagless Patch Cables
- U420-003 USB 3.2 Gen 1 USB-C Male/Male Cable - 3 ft.

Product Features

Note: This section lists features for all USB Type-C models referenced in this manual. See the USB Type-C Features chart to determine which features your model supports.

Supports USB DisplayPort Alternate Mode for connecting an HDMI monitor via a USB-C port
- HDMI video resolutions supported:

All models - 1920 × 1080 / 1080p (60 Hz)

U444-06N-H3U-C model only

3840 x 2160/4K x 2K (30 Hz)

• Ethernet port supports true 10/100/1000 Mbps network speeds

Product Features

• USB-A hub port supports data transfer rates up to 5 Gbps; backward compatible with previous USB generations
• USB-C charging port for charging your device
• USB-C port power input:

U444-06N-HU-C, U444-06N-HGU-C, U444-06N-HGUB-C models -

Up to 20V 3A (60W)

U444-06N-H3U-C model - Up to 20V 5A (100W)

• Plug and play; no software or drivers required

USB Type-C Features

Models	U444-06N-HU-C	U444-06N-HGU-C/U444-06N-HGUB-C	U444-06N-H3U-C
HDMI Port YYY
USB-A Hub Port YYY
Gigabit Ethernet Port NY N
USB-C Charging Port YYY

Note: The U444-06N-H3U-C features three USB-A hub ports.

Installation

Note: When the unit is connected to the USB-C port on your computer and to a network via Cat5e/6 cabling, a network connection will be automatically established. If no connection is made, you can manually establish one by going to your computer's network settings page. For example, on a Mac you would navigate to the Network section found in System Preferences, click the 'Assist Me' button to get to the Network Setup Assistant, then follow the prompts to establish a connection.

1. Connect the adapter's USB Type-C connector to the USB-C port on your laptop, tablet or other compatible device.
2. Connect the adapter's HDMI port to the monitor's HDMI port using an HDMI cable (such as P568-Series HDMI cables).
3. Charge your device by connecting its USB-C charger to the adapter's USB-C port.
4. Connect a USB device to the adapter's USB-A hub port.*
5. Connect the adapter's RJ45 port to a network using a UTP cable (such as N201-Series Cat6 cables).*

*See the USB Type-C Features chart for the features your product supports.

Specifications

Models	U444-06N-HU-C	U444-06N-HGU-C/U444-06N-HGUB-C	U444-06N-H3U-C
Input Connectors
USB	USB-C(Male)	USB-C(Male)	USB-C(Male)
Charging	USB-C(Female)	USB-C(Female)	USB-C(Female)
Output Connectors
HDMI	HDMI(Female)	HDMI(Female)	HDMI(Female)
USB	USB-A(Female)	USB-A(Female)	USB-A(Female) x 3
Ethernet N/A		RJ45(Female)	N/A
Environmental
Operating Temperature	32°F to 113°F (0°C to 45°C)
Operating Humidity	10% to 85% RH, Non-Condensing
Storage Temperature	14°F to 158°F (-10°C to 70°C)
Storage Humidity	5% to 90% RH, Non-Condensing
Power Requirements
USB-C Charging Port	Supports up to 20V 3A (60W) Input		Supports up to 20V 5A (100W) Input
USB 3.2 Port	Provides up to 5V 1A (5W) Output		Provides up to 5V 1.5A (7.5W) Output

Warranty

3-YEAR LIMITED WARRANTY

We warrant our products to be free from defects in materials and workmanship for a period of three (3) years from the date of initial purchase. Our obligation under this warranty is limited to repairing or replacing (at its sole option) any such defective products. Visit Tripplite.Eaton.com/support/product-returns before sending any equipment back for repair. This warranty does not apply to equipment which has been damaged by accident, negligence or misapplication or has been altered or modified in any way.

EXCEPT AS PROVIDED HEREIN, WE MAKE NO WARRANTYES, EXPRESS OR IMPLIED, INCLUDING WARRANTYES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Some states do not permit limitation or exclusion of implied warranties; therefore, the aforesaid limitation(s) or exclusion(s) may not apply to the purchaser.

EXCEPT AS PROVIDED ABOVE, IN NO EVENT WILL EATON BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF THIS PRODUCT, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Specifically, we are not liable for any costs, such as lost profits or revenue, loss of equipment, loss of use of equipment, loss of software, loss of data, costs of substitutes, claims by third parties, or otherwise.

FCC Notice, Class B

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment

Warranty

is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. The user must use shielded cables and connectors with this equipment. Any changes or modifications to this equipment not expressly approved by Eaton could void the user's authority to operate this equipment.

WEEE Compliance Information for Tripp Lite Customers and Recyclers (European Union)

Under the Waste Electrical and Electronic Equipment (WEEE) Directive and implementing regulations, when customers buy new electrical and electronic equipment from Eaton, they are entitled to:

• Send old equipment for recycling on a one-for-one, like-for-like basis (this varies depending on the country)
• Send the new equipment back for recycling when this ultimately becomes waste

Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the failure of the life support equipment or to significantly affect its safety or effectiveness is not recommended. Do not use this equipment in the presence of a flammable anesthetic mixture with air, oxygen or nitrous oxide.

Eaton has a policy of continuous improvement. Specifications are subject to change without notice.
