U336002GB - Network adapter Tripp Lite - Free user manual and instructions

Product Type	Dual Port Gigabit USB 3.0 Ethernet Adapter
Brand	Tripp Lite
Model	U336-002-GB
Connectivity	USB 3.0 to two Gigabit RJ45 Ethernet ports (10/100/1000 Mbps)
Network Compatibility	IEEE 802.3i, 802.3u, 802.3ab, 802.3az (Energy-Efficient Ethernet)
Advanced Features	Jumbo Frames (4K), VLAN tagging, Wake-on-LAN, IPv4/IPv6 checksum offload
Supported Operating Systems	Windows, macOS, Linux
Power Supply	Via USB 3.0 bus; Micro-USB port for external power in standby
Power Consumption	USB powered; typical power less than 2.5 W
Dimensions (approx.)	Approximately 6.5 cm x 2.5 cm x 1.5 cm
Weight (approx.)	Approximately 30 g
Operating Temperature	0°C to 40°C (standard estimate)
Storage Temperature	-20°C to 60°C (standard estimate)
Installation	Driver included on CD or downloadable; install before connecting USB
Warranty	3-year limited
Package Contents	Adapter, driver CD, user manual
Care and Cleaning	Wipe with a soft, dry cloth; no special maintenance required
Safety	Comply with electrical standards; do not expose to moisture
Spare Parts and Repairability	Not user serviceable; contact Tripp Lite for replacement

Frequently Asked Questions - U336002GB Tripp Lite

How to install the Tripp Lite U336002GB network adapter?

Before plugging in the adapter, insert the included CD or download the driver from the Tripp Lite website for your operating system. Run the installation, then plug the adapter into a USB 3.0 port. Reboot if necessary. In Device Manager (Windows), verify that the ASIX AX88179 adapter appears under Network adapters.

Does this adapter work with a USB 2.0 port?

Yes, the adapter is backward compatible with USB 2.0, but performance will be limited to USB 2.0 speed (480 Mbps instead of 5 Gbps). For optimal performance, use a USB 3.0 port.

Can I use both Ethernet ports simultaneously?

Yes, each port can be connected to an independent network. However, do not connect both ports to the same network, as this may cause network loops and performance issues. You can also use one port to connect your computer and the other to share the connection with another device.

How to activate the Wake-on-LAN function?

Make sure the adapter is powered via the Micro-USB port if the computer is off. In the operating system, enable Wake-on-LAN in the network adapter properties. Send a Magic Packet from another device on the network to wake the computer.

Is the adapter compatible with macOS and Linux?

Yes, the adapter supports Windows, macOS, and Linux. Download the appropriate drivers from the Tripp Lite website for your operating system. On macOS, the driver is usually built-in; on Linux, a specific driver may be needed.

What is the maximum Jumbo Frame size supported?

The adapter supports Jumbo Frames up to 4 KB. To enable this feature, configure the MTU in the advanced settings of the adapter on your operating system.

Can I connect the adapter to a USB hub?

It is recommended to plug the adapter directly into a USB port on your computer to avoid bandwidth issues. Using a USB hub can reduce performance and cause instability.

How to power the adapter when the computer is off?

Use the Micro-USB port on the adapter to connect to an external power source (5V USB charger). This maintains power for Wake-on-LAN functions even when the computer is powered off.

Does the adapter work with virtualization (VMware, VirtualBox)?

Yes, the adapter is generally recognized by hypervisors. You may need to pass the USB port to the virtual machine or use network sharing mode. Refer to your virtualization software documentation for details.

What to do if my computer does not recognize the adapter?

Check that the driver is properly installed. Try a different USB port. If the problem persists, download the latest driver from www.tripplite.com/support. Reboot the computer. If nothing works, contact Tripp Lite technical support.

USER MANUAL U336002GB Tripp Lite

Register your product for quicker service and ultimate peace of mind.

You could also win an ISOBAR6ULTRA surge protector— a \$100 value!

QR code image containing encoded data, no visible human-readable text

www.tripplite.com/warranty

TRIPP·LITE

Manufacturing Excellence.

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

Copyright © 2018 Tripp Lite. All rights reserved.

Product Features

This product should not be used to make multiple connections to the same network from a single device. Making a connection of this type will yield uncertain results and may lead to network issues due to looping.

• Add two Gigabit Ethernet ports via the USB 3.0 port on your computer or laptop.
  • Each port can be used to connect to a separate network.
• Can be used as a 2-port network switch; one port connects a computer to a network and a second port shares a network connection with another computer.
• Compliant with IEEE 802.3i (10BASE-T Ethernet), 802.3u (100BASE-TX Fast Ethernet) and 802.3ab (1000BASE-T GbE) standards.
• IEEE 802.3az (Energy Efficient Ethernet) compliant.
• Supports full-duplex with IEEE 802.3x flow control and half-duplex with back-pressure flow control.
• Supports IPv4 and IPv6 pack Checksum Offload Engine (COE) and TCP large segment offload (LSO) to reduce CPU loading.
• Suspend mode and remote wakeup is supported via link-change, Magic Packet, Microsoft Wakeup Frame and external wakeup pin.
  • Supports Jumbo Frames up to 4K.
  • Supports VLAN tagging.
  • Supports Wake-on-LAN.
• Features a Micro-USB port for connecting to a power source when your computer or laptop is powered off.

System Requirements

• An available USB 3.0 port. Unit is backward compatible with USB 2.0, but at USB 2.0 speeds.
• A compatible Windows ^ , Mac ^ or Linux computer.

Package Contents

• USB 3.0 Dual Gigabit Ethernet Adapter
- Owner's Manual
- Driver CD

Installation

Note: Do not connect the adapter to your computer until you have installed the product driver.

1. Insert the CD that came with the product into your computer's CD drive. If your computer does not have a CD drive, you can download the product driver at www.tripplite.com/support.

2. Locate the driver file that is applicable to your computer's operating system and run it.

3. Follow the installation prompts that appear.

4. When finished, plug the adapter's USB connector into an available USB port on your computer. Upon connecting the adapter to your computer, the device driver will finish installing.

5. You may be required to restart your computer to complete the installation.

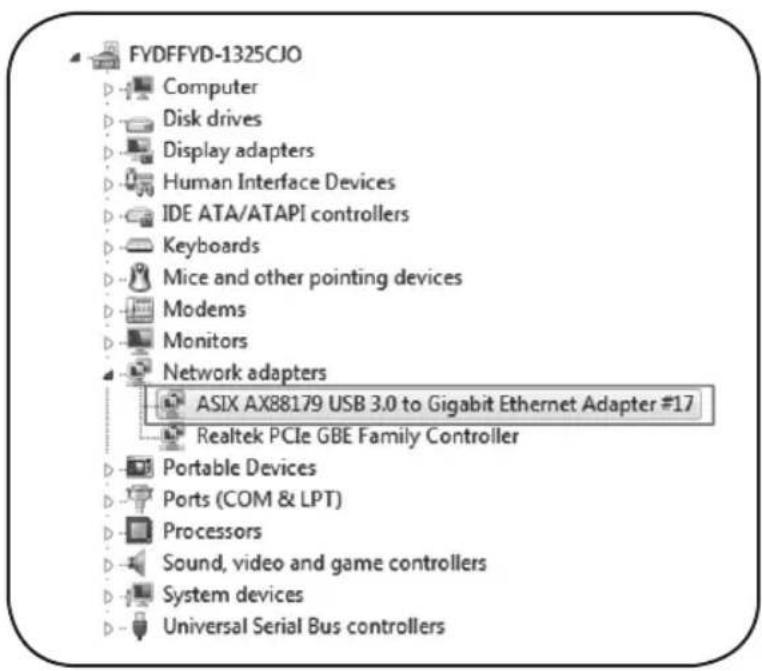

6. Verify that the installation was successful by navigating to your computer's Device Manager screen and expanding the Network Adapters option. You will see the ASIX AX88179 Gigabit Ethernet adapter among the adapters in the list.

FYDFFYD-1325CJO Computer Disk drives Display adapters Human Interface Devices IDE ATA/ATAPI controllers Keyboards Mice and other pointing devices Modems Monitors Network adapters ASIX AX88179 USB 3.0 to Gigabit Ethernet Adapter #17 Realtek PCIe GBE Family Controller Portable Devices Ports (COM & LPT) Processors Sound, video and game controllers System devices Universal Serial Bus controllers

1. Using Cat5e/6 cabling, you can connect each port to a separate network. You can also connect to a network with one port and share connectivity with another computer using the second port.

- Upon connecting to the network, the adapter should automatically be assigned an IP address. In certain situations, you may be required to manually assign an IP address. If this is the case, contact your system administrator for help in assigning an IP address.

Warranty and Product Registration

3-YEAR LIMITED WARRANTY

TRIPP LITE warrants its products to be free from defects in materials and workmanship for a period of three (3) years from the date of initial purchase. TRIPP LITE's obligation under this warranty is limited to repairing or replacing (at its sole option) any such defective products. To obtain service under this warranty, you must obtain a Returned Material Authorization (RMA) number from TRIPP LITE or an authorized TRIPP LITE service center. Products must be returned to TRIPP LITE or an authorized TRIPP LITE service center with transportation charges prepaid and must be accompanied by a brief description of the problem encountered and proof of date and place of purchase. This warranty does not apply to equipment, which has been damaged by accident, negligence or misapplication or has been altered or modified in any way.

EXCEPT AS PROVIDED HEREIN, TRIPP LITE MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

Some states do not permit limitation or exclusion of implied warranties; therefore, the aforesaid limitation(s) or exclusion(s) may not apply to the purchaser.

EXCEPT AS PROVIDED ABOVE, IN NO EVENT WILL TRIPP LITE BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF THIS PRODUCT, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Specifically, TRIPP LITE is not liable for any costs, such as lost profits or revenue, loss of equipment, loss of use of equipment, loss of software, loss of data, costs of substitutes, claims by third parties, or otherwise.

Product Registration

Visit www.triplite.com/warranty today to register your new Tripp Lite product. You'll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!*

* No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.

FCC Notice, Class B

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Any changes or modifications to this equipment not expressly approved by Tripp Lite could void the user's authority to operate this equipment.

Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the failure of the life support equipment or to significantly affect its safety or effectiveness is not recommended.

WEEE Compliance Information for Tripp Lite Customers and Recyclers (European Union)

Under the Waste Electrical and Electronic Equipment (WEEE) Directive and implementing regulations, when customers buy new electrical and electronic equipment from Tripp Lite they are entitled to:

• Send old equipment for recycling on a one-for-one, like-for-like basis (this varies depending on the country)
• Send the new equipment back for recycling when this ultimately becomes waste

Tripp Lite has a policy of continuous improvement. Product specifications are subject to change without notice.
