WorkWise WWSS1327CP - Desktop computer Tripp Lite - Free user manual and instructions

Product Type	Adjustable sit-stand work station
Brand	Tripp Lite
Model	WorkWise WWSS1327CP
Adjustment mechanism	Gas spring arm with lever control
Monitor support	VESA mounting, tilt -13° to +45°
Keyboard tray	Yes, with detachable wrist rest (right or left)
Cable management	Yes, detachable cover and cable clamp
Compatible desk thickness	20 to 80 mm
Warranty	5-year limited
Materials	Steel, plastic, EVA (cushion)
Color	Black (dominant)
Package contents	Gas spring arm, support mast, upright, work surface, keyboard shelf, clamps, cushions, plates, screws, tools, wrist rest, cable clamp, caps
Tension adjustment	Yes, via hex key to adapt to monitor weight
Maintenance	Clean with a soft, dry cloth
Safety	Use only on a suitable desk, check load capacity

Frequently Asked Questions - WorkWise WWSS1327CP Tripp Lite

How to assemble the WorkWise WWSS1327CP work station?

Follow the numbered steps in the manual: first mount the gas spring arm on the desk (thickness 20-80 mm), then attach the support mast and bearings to the work surface, mount the assembly on the arm, add the upright and keyboard shelf, finally install the VESA bracket and monitor. Use the provided hex keys to tighten the screws.

How to adjust the height of the station?

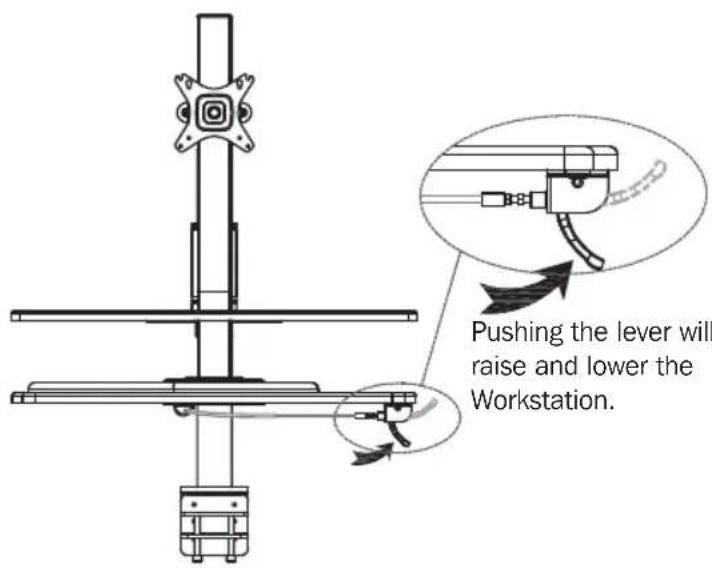

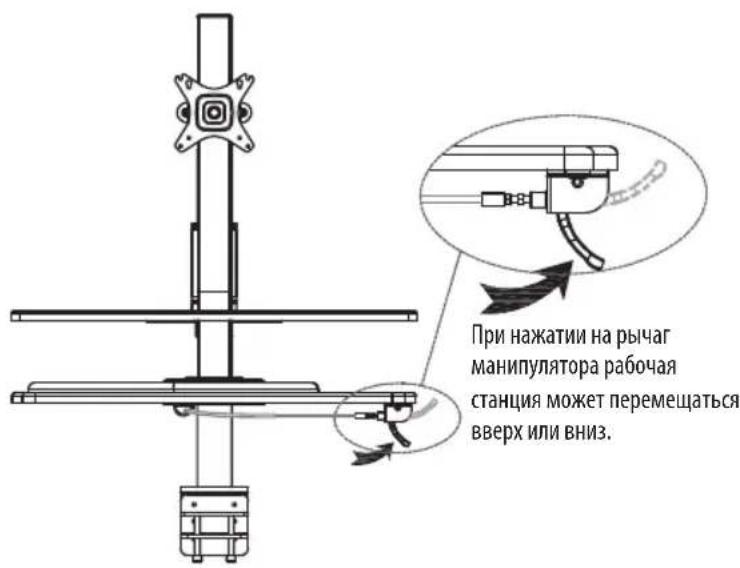

Push the lever located under the work surface to unlock the gas spring arm. Lift or lower the assembly to the desired height, then release the lever to lock. Ensure the monitor weight is suitable for the tension setting.

How to attach a monitor to the VESA bracket?

Use the provided screws (M4 x 12) to screw the mounting bracket to the back of the monitor according to VESA standards. Then attach the bracket to the central upright using M6 screws and washers. Adjust the vertical position of the bracket on the upright if necessary.

How to adjust the tension of the gas spring arm?

Use the large hex key provided to turn the adjustment screw on the arm. Increase tension (turn clockwise) for a heavier monitor, reduce tension (counterclockwise) for a lighter monitor. Test the movement after each adjustment.

How to install the keyboard tray?

Attach the keyboard shelf under the work surface using the provided M6 screws. You can choose the right or left side for the mouse pad arm. The wrist rest attaches to the opposite side of the shelf. If you do not use the wrist rest, insert the caps to fill the holes.

How to manage cables?

Remove the cable management cover on the upright. Route the monitor and keyboard cables inside the upright, then close the cover. Use the provided cable clamp to secure cables along the arm if necessary.

What is the warranty of the WorkWise WWSS1327CP?

Tripp Lite offers a 5-year limited warranty from the date of purchase. It covers defects in materials and workmanship. It does not cover normal wear, misuse, abuse, or negligence. To make a claim, contact Tripp Lite support.

What to do if parts are missing or damaged?

Check the component checklist in the manual. If parts are missing or defective, visit www.triplite.com/support for assistance. Keep the proof of purchase handy.

How to clean and maintain the work station?

Use a soft, dry cloth to dust surfaces. Avoid harsh chemicals or abrasives. Periodically check the tightness of screws and the proper functioning of the pneumatic mechanism. Do not force movements.

What desk thickness is needed to install this station?

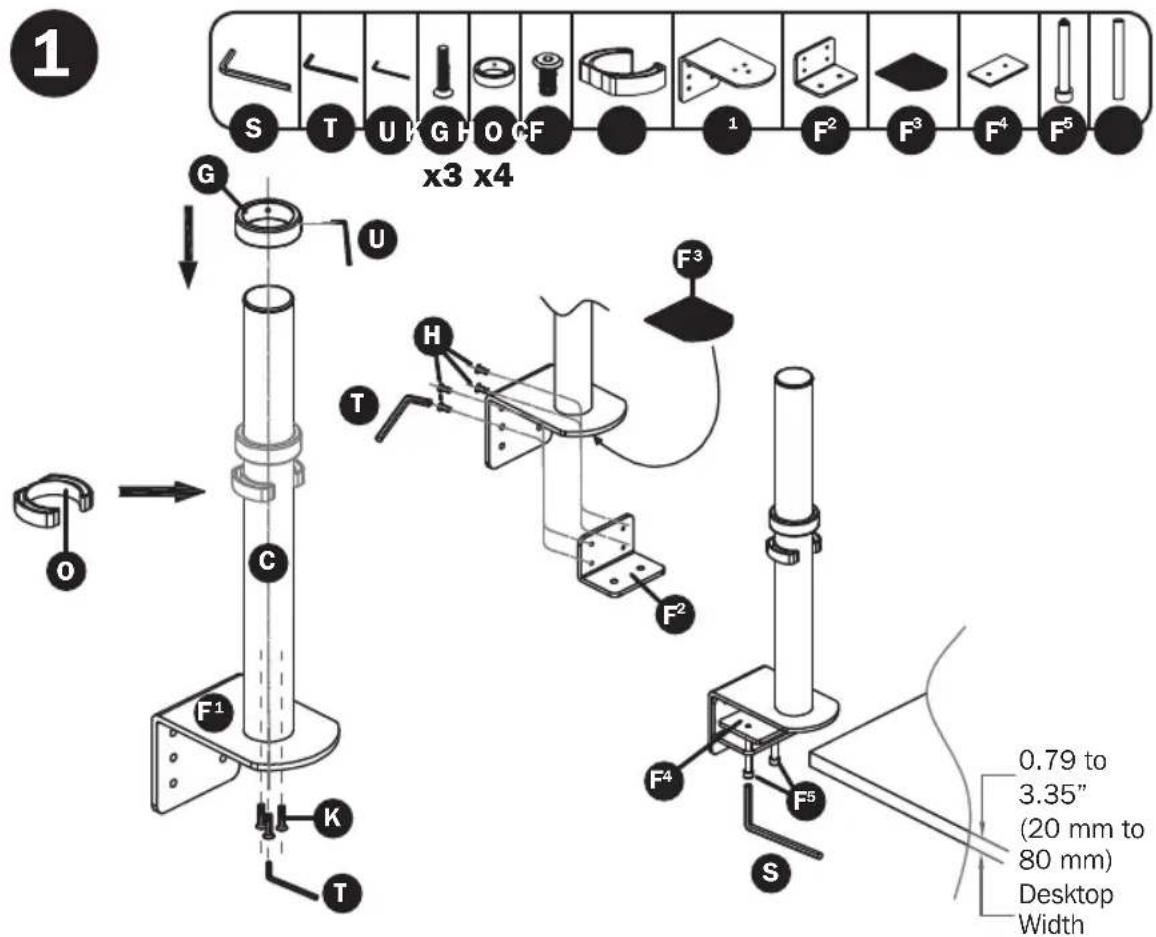

The gas spring arm is designed for desks with thickness between 20 and 80 mm (0.79 to 3.35 inches). The desk must be sturdy and able to support the weight of the assembly (station + monitor). For glass desks, check the load capacity.

USER MANUAL WorkWise WWSS1327CP Tripp Lite

Technical line drawing of a mechanical assembly with two platforms and a monitor, no text or symbols present

Espanol 9 • Français 17 • Русский 25 • Deutsch 33

CAUTION: DO NOT EXCEED MAXIMUM LISTED WEIGHT CAPACITY (29 lb. / 13 kg). SERIOUS INJURY OR PROPERTY DAMAGE MAY OCCUR!

PROTECT YOUR INVESTMENT!

Register your product for quicker service and ultimate peace of mind. You could also win an ISOBAR6ULTRA surge protector—a \$100 value! www.tripplite.com/warranty

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

Copyright © 2016 Tripp Lite. All rights reserved.

Component Checklist

IMPORTANT: Ensure all parts according to the component checklist have been received prior to installation. If any parts are missing or faulty, visit www.triplite.com/support for service.

Simple line drawing of a mechanical lever with a curved handle and pivot point (no text or symbols)

A

Pneumatic Arm with Paddle

B

Support Mast x1

●

Post x1

●

Keyboard Shelf x1

●

Work Surface x1

x1

F1

Clamp Top

x1

F2

Clamp Bottom

x1

F³

EVA Pad x1

F4

Pressure Plate

x1

F5

M8 x 70.5 x2

(1)

G H

Arm Swivel Washer

x1

●

M6 x 12 x12

●

M6 x 15 x6

J

M6 × 25

x2

KL

M6 x 30

x3

PQ

35×8.5×1

x2

●

M8×13×8

x2

●

17×8×1.5

x2

●

Post Cable Manager

x1

●

Cable Clip x1

●

M4 × 12

x4

R9

M13/M17 x 111 x 2.0T

x2

X

M6 x 95

x1

●

M4 x 55

x1

●

M3 x 55

x1

●

Support Brackets

x2

●

Mount Bracket

x1

●

Wrist Rest x1

●

Hole Plug

x4

Assembly

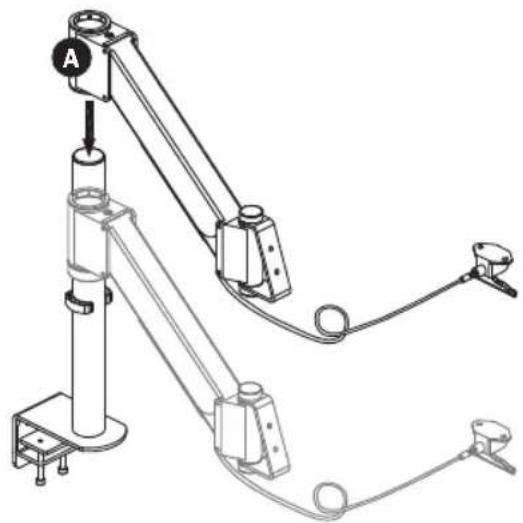

2 Attach the Pneumatic Arm and set in the down position.

Technical line drawing of a robotic arm with labeled joint (A), no text or symbols present

Assembly

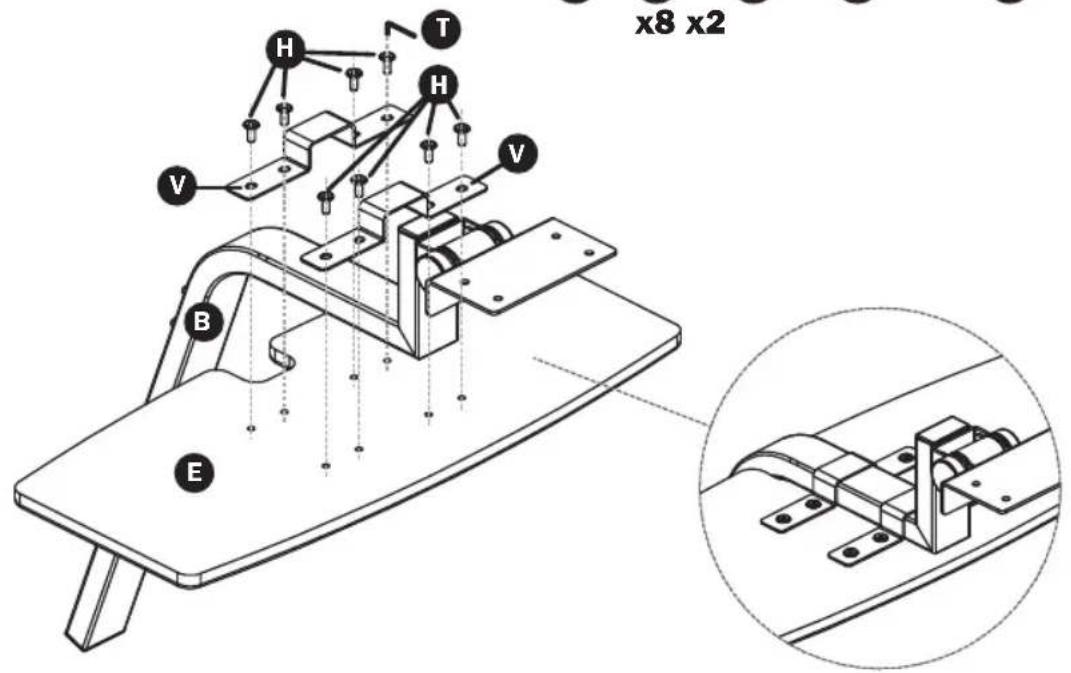

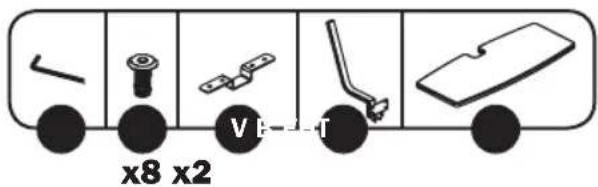

Attach the Support Mast and Support Brackets to the Work Surface.

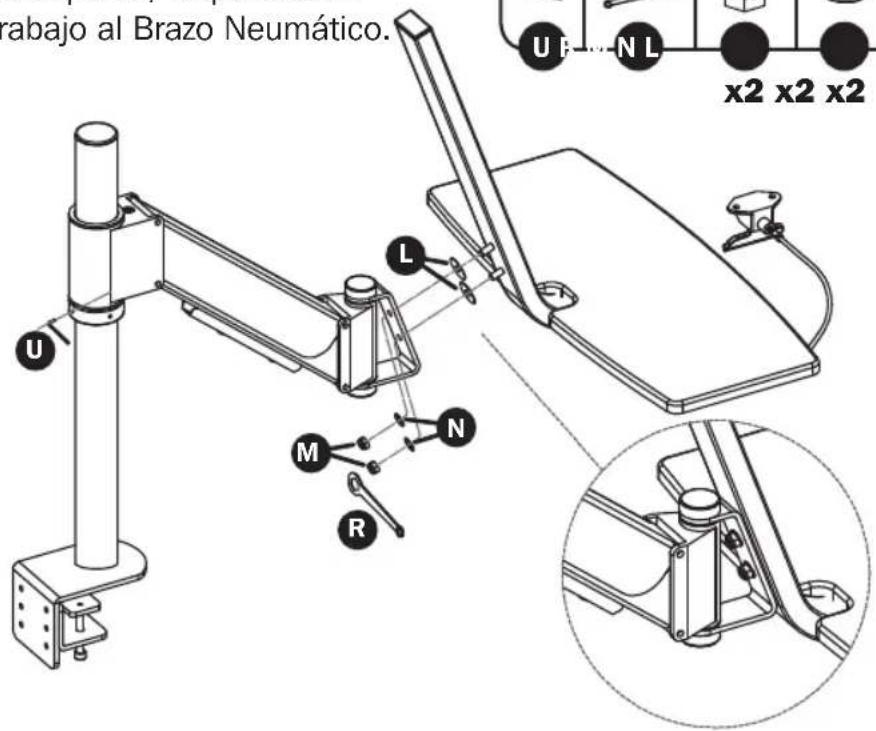

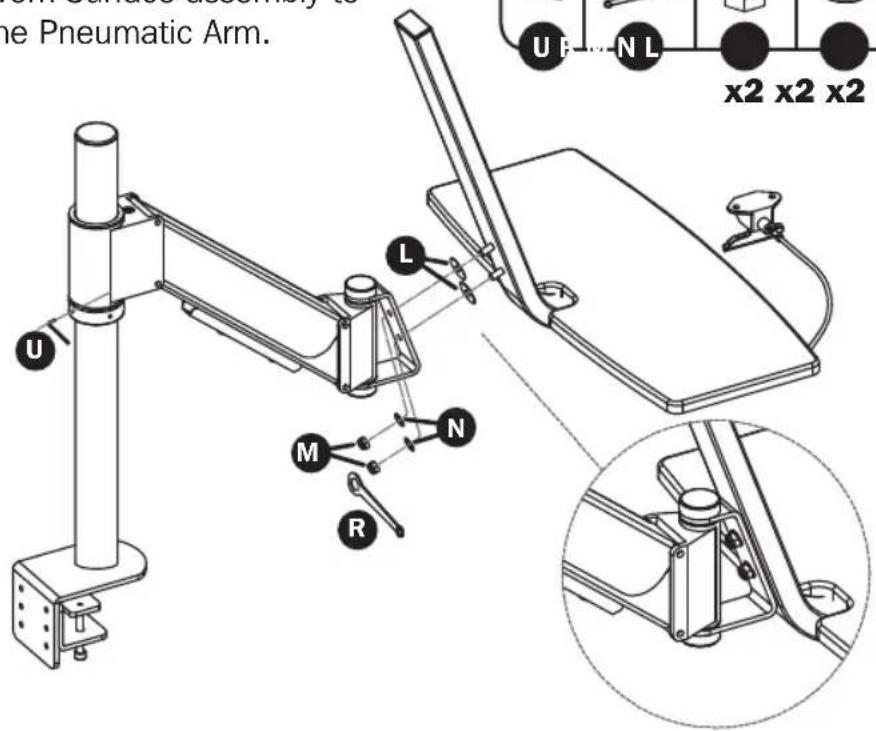

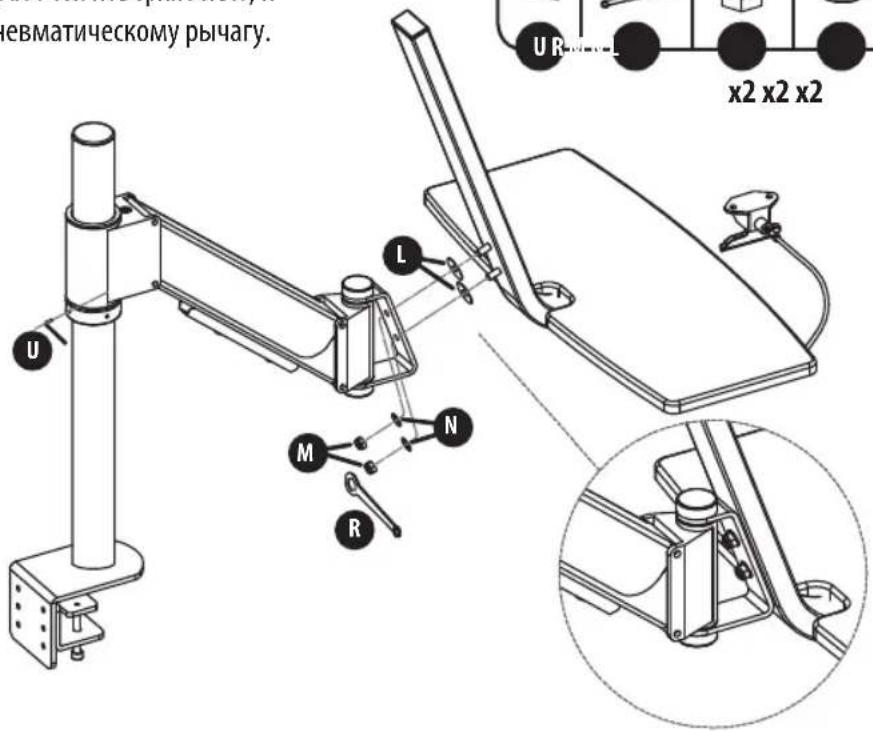

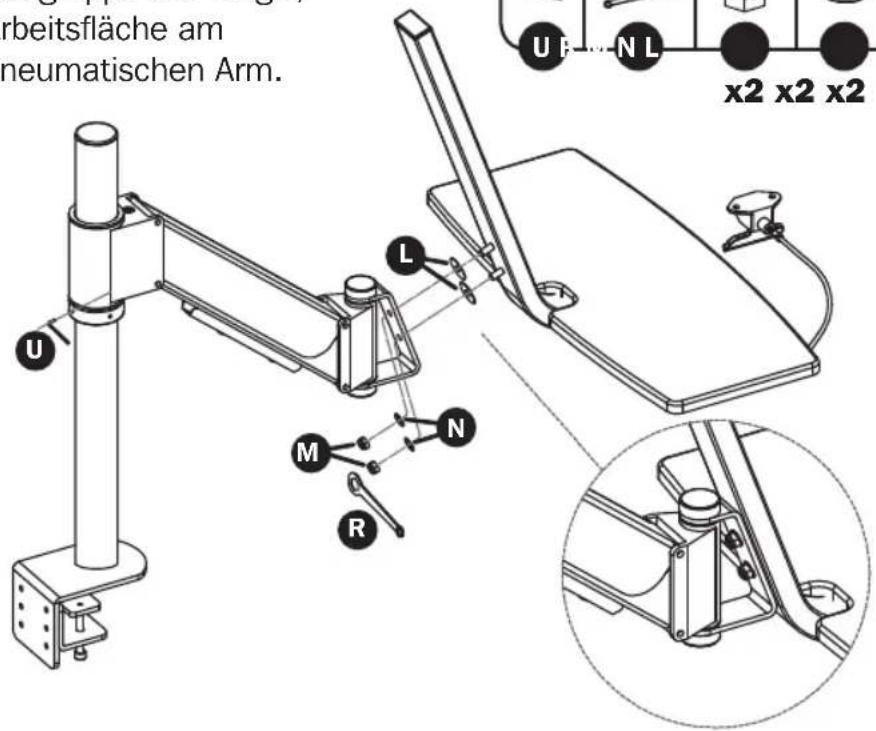

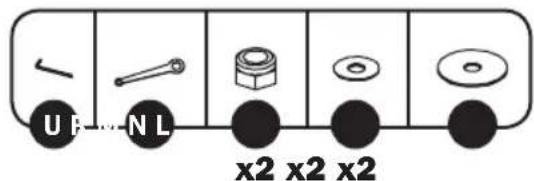

Attach the Support Mast/Work Surface assembly to the Pneumatic Arm.

Assembly

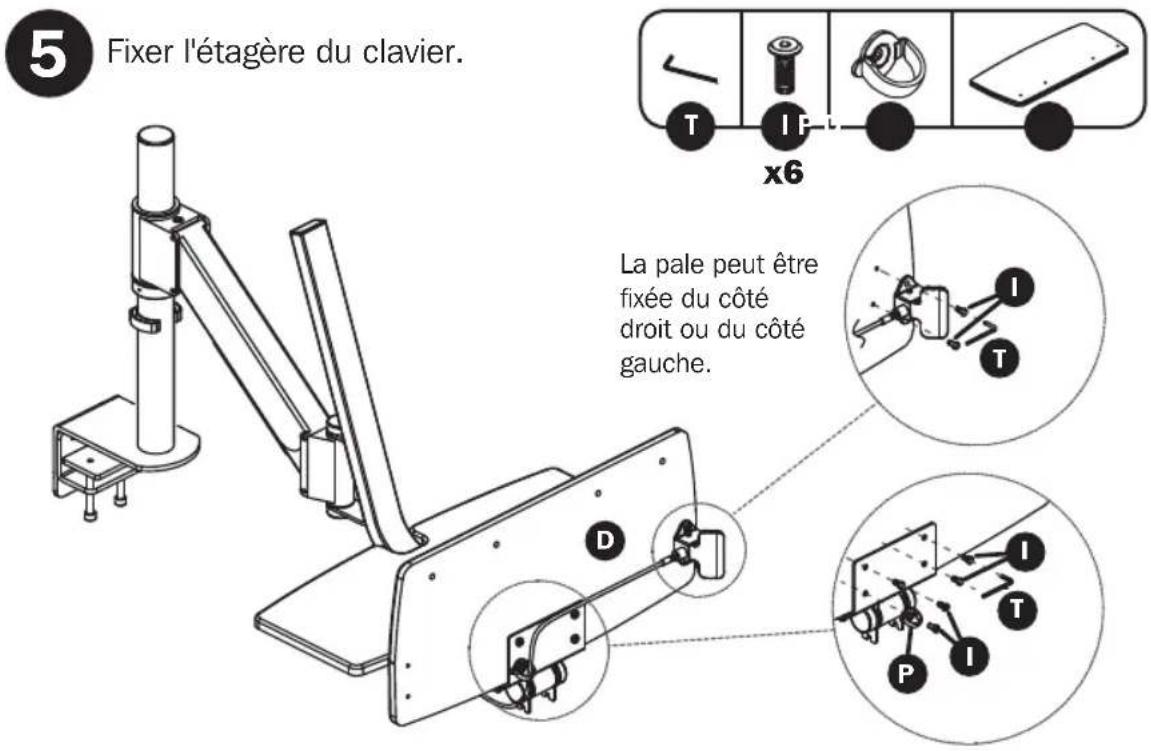

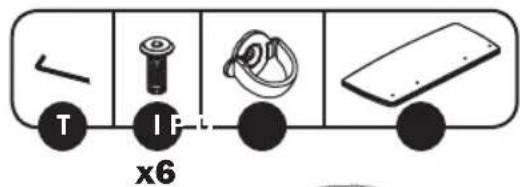

5 Attach the Keyboard Shelf.

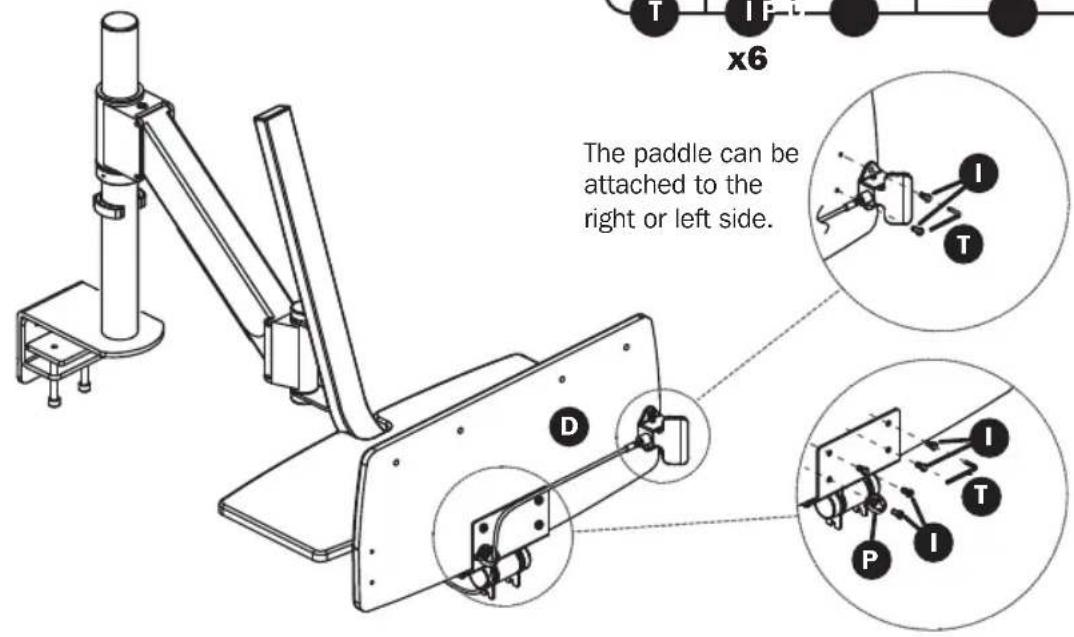

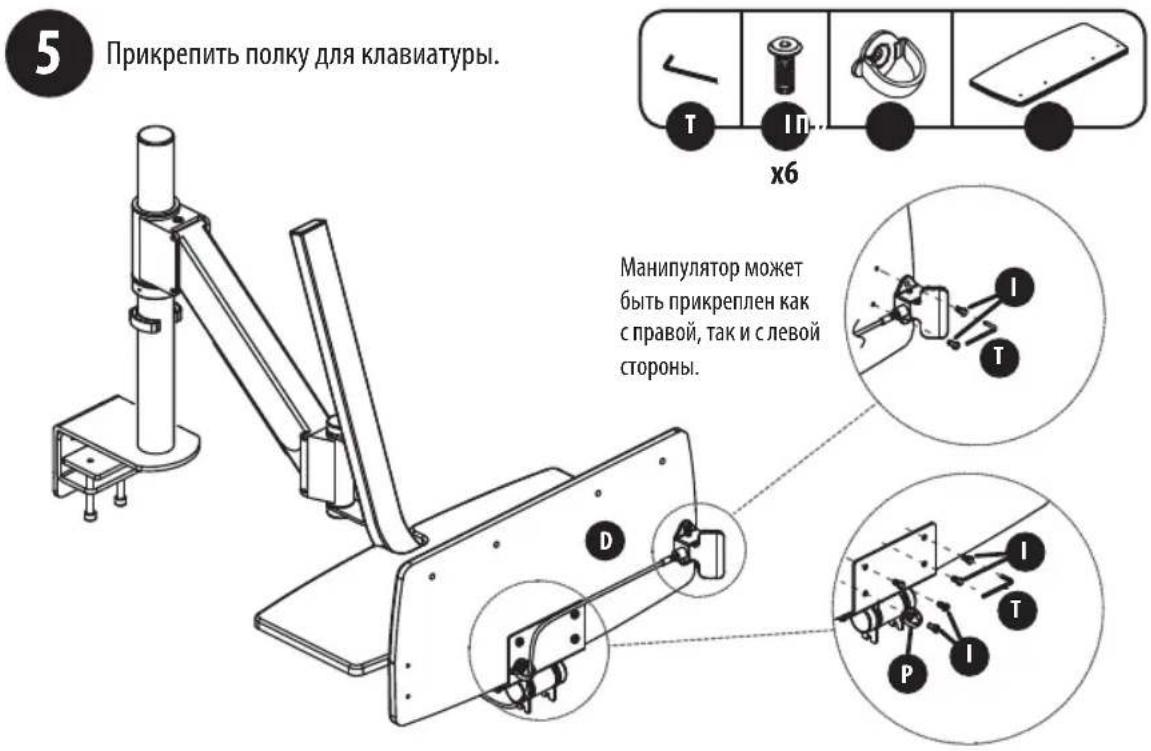

The paddle can be attached to the right or left side.

6

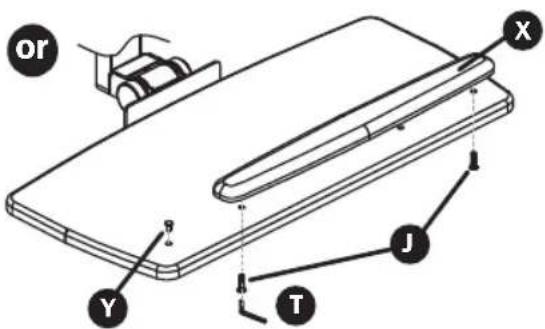

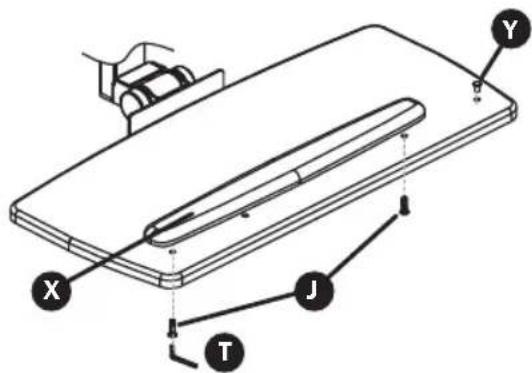

The keyboard Wrist Rest attaches to the left or right side of the Keyboard Shelf to allow for a mouse. If the Wrist Rest is not needed, insert the Plugs to fill the holes.

Assembly

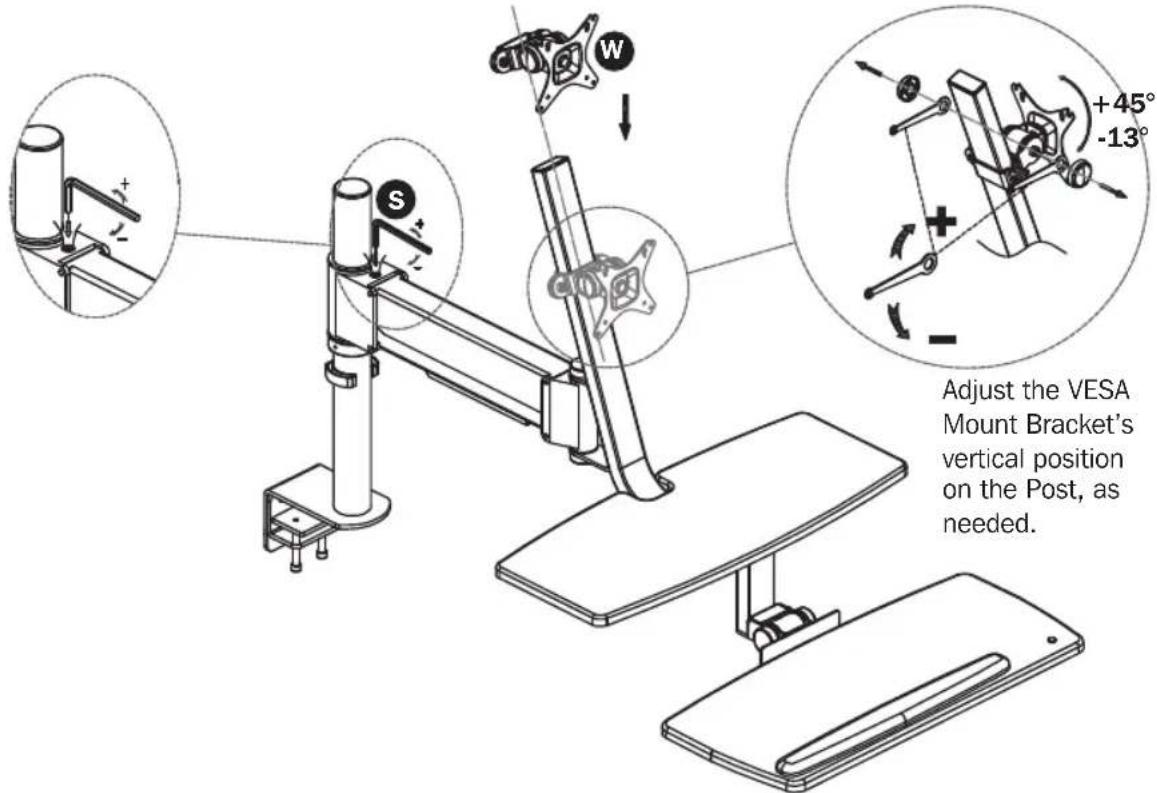

Use the large hex key to adjust the tension (add more tension for heavier items and less tension for lighter items).

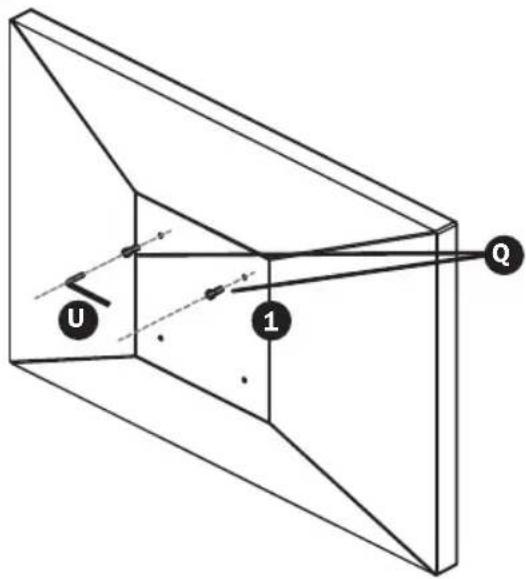

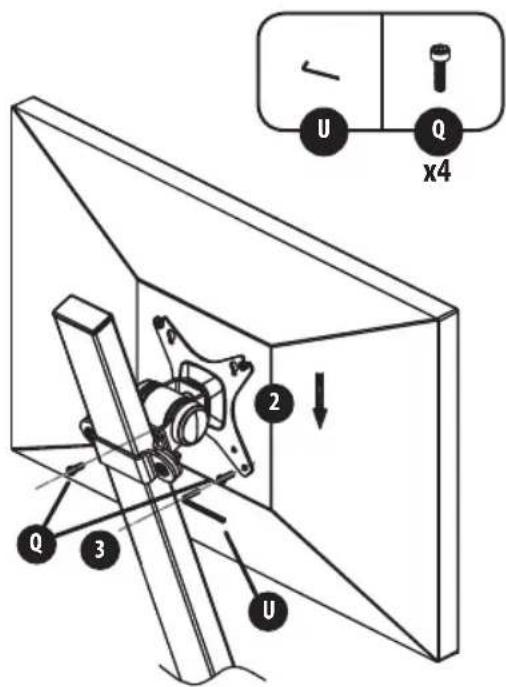

Attach the display to the VESA Mount Bracket.

Assembly

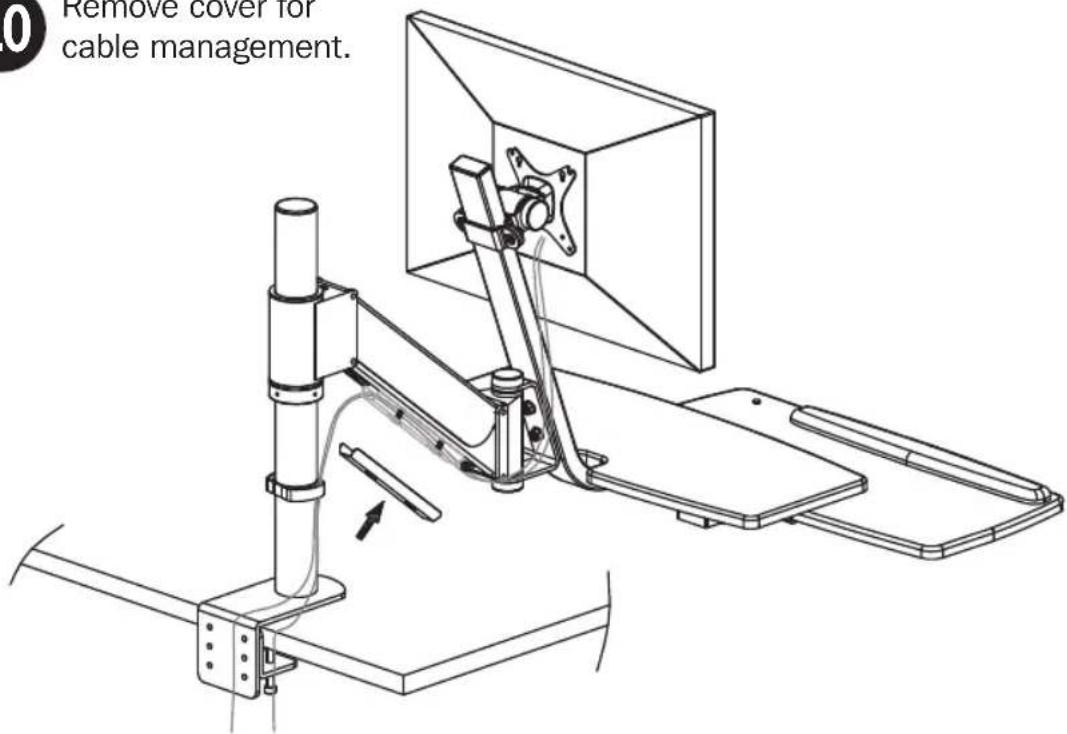

Remove cover for cable management.

Warranty and Product Registration

5-Year Limited Warranty

Seller warrants this product, if used in accordance with all applicable instructions, to be free from original defects in material and workmanship for a period of 5 years from the date of initial purchase. If the product should prove defective in material or workmanship within that period, Seller will repair or replace the product, in its sole discretion.

THIS WARRANTY DOES NOT APPLY TO NORMAL WEAR OR TO DAMAGE RESULTING FROM ACCIDENT, MISUSE, ABUSE OR NEGLECT. SELLER MAKES NO EXPRESS WARRANTIES OTHER THAN THE WARRANTY EXPRESSLY SET FORTH HEREIN. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ALL IMPLIED WARRANTIES, INCLUDING ALL WARRANTIES OF MERCHANTABILITY OR FITNESS, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE; AND THIS WARRANTY EXPRESSLY EXCLUDES ALL INCIDENTAL AND CONSEQUENTIAL DAMAGES. (Some states do not allow limitations on how long an implied warranty lasts, and some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may have other rights which vary from jurisdiction to jurisdiction).

WARNING: The individual user should take care to determine prior to use whether this device is suitable, adequate or safe for the use intended. Since individual applications are subject to great variation, the manufacturer makes no representation or warranty as to the suitability or fitness of these devices for any specific application.

PRODUCT REGISTRATION

Visit www.tripplite.com/warranty today to register your new Tripp Lite product. You'll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!*

* No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.

Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice.

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

Technical line drawing of a mechanical assembly with two platforms and a monitor, no text or symbols present

English 1 • Français 17 • Русский 25 • Deutsch 33
