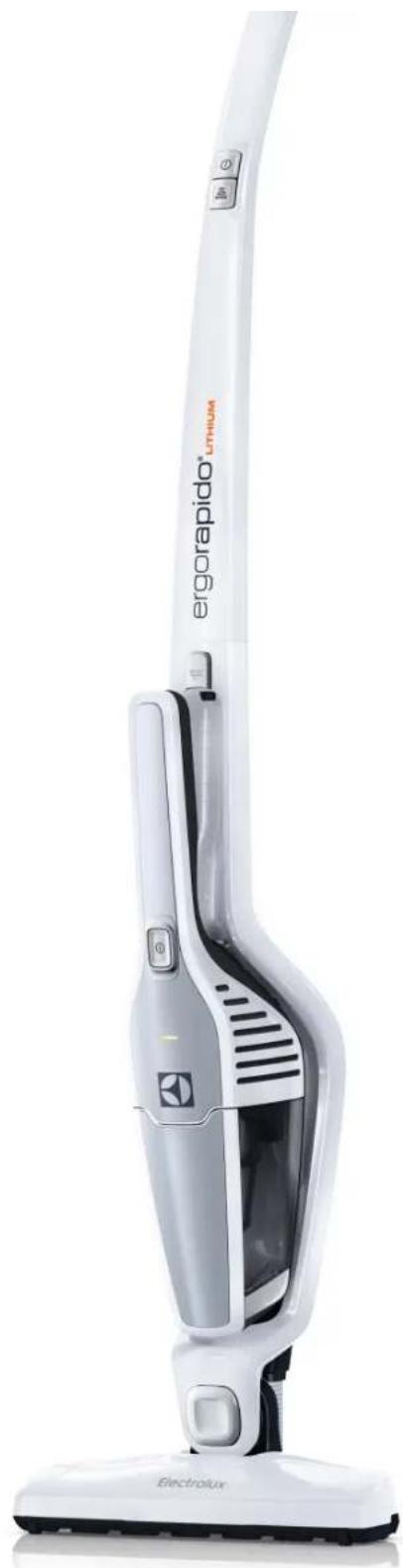

USER MANUAL Ergorapido Lithium Ion Plus EL2055B ELECTROLUX

EL2050 to EL2059 Series2 ENGLISH IMPORTANT SAFEGUARDS When using an electrical appliance, basic precautions should always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING THIS VACUUM CLEANER. WARNING To reduce the risk of fire, electric shock, or injury:

• Do not use outdoors or on wet surfaces.

• Do not operate the vacuum cleaner or charger if it has been damaged in any way. If cleaner is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center.

• To avoid excessive heat and damage to the unit or batteries, do not operate the vacuum cleaner while charging.

• Do not allow to be used as a toy. Close attention is necessary when used by or near children.

• Use only as described in this manual.

Use only the charger provided to recharge: SSA-135045US

• Do not pull or carry by the cord, use cord as a handle, close door on cord, or pull cord around sharp edges or corners. Keep cord away from heated surfaces.

• Do not use extension cords or outlets with inadequate current carrying capacity.

• Do not unplug by pulling on cord. To unplug, grasp the charger, not the cord.

• Do not handle charger, including charger plug, and charger terminals with wet hands.

• DO NOT MUTILATE OR INCINERATE BATTERIES AS THEY WILL EXPLODE AT HIGH TEMPERATURES.

• Leaks from battery cells can occur under extreme usage or temperature conditions. If the liquid gets on skin, wash quickly with water. If the liquid gets into the eyes, flush them immediately with clean water for a minimum of 10 minutes. Seek medical attention.

• While there is no shock hazard from electrical terminals located on the vacuum, a burn could result from metal objects being inserted into the terminal areas. Vacuum cleaner terminals should always be kept free of objects.

• This vacuum cleaner creates suction and has a revolving brushroll. Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.

• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.

• Do not use without a filter in place. When servicing the unit, never put fingers or other objects into the fan chamber in case the unit would accidentally be turned on.

• Use extra care when cleaning on stairs.

• Do not use to pick up flammable or combustible liquids such as gasoline, or use on areas where they may be present.

• Locate charger indoors in a cool, dry area, not exposed to weather to avoid electrical shock and/or cleaner damage.

• Keep your work area well lighted.

• Unplug electrical appliances before vacuuming them.

• Use only manufacturer’s recommended attachments.

• Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair and anything that may reduce airflow.

• Do not charge the vacuum cleaner outdoors.

• Do not incinerate the vacuum cleaner even if it is severely damaged. The batteries can explode in a fire.

SAVE THESE INSTRUCTIONS

FOR HOUSEHOLD USE ONLY

Consumer Information Electrolux declines all responsibility for all damages arising from any improper use of the appliance or in cases of tampering with the appliance. This product is designed with the environment in mind. All plastic parts are marked for recycling purposes. For details, see our web site: www.electrolux.com If you are interested in purchasing additional accessories for your Electrolux Ergorapido, please visit our website at www.electroluxappliances.com (USA), www.electrolux.ca (Canada) or call 1.800.896.9756. WARNING: This product contains chemicals known to the State of California to cause cancer, birth defects or reproductive harm. WASH

HANDS AFTER HANDLING

On/off button, power setting

8. Fine lter (inner lter)

9. Pre lter (outer lter)

Charging Light Indicator

Check all accessories against the “Components and Accessories” list CAUTION: Do not leave cleaner turned on and unattended. Store cleaner in a cool, dry area. Assembly

1. Remove screw from main body. Fit the handle carefully

inserting it into the lower main body. Make sure that the cable does not jam.

2. Secure the handle by tightening the locking screw

supplied. Use a screwdriver or a coin. Charging

When fully discharged, to regain full battery capacity, position the charging adapter away from heat sources, direct sunlight or wet places. Insert the adapter into the outlet and connect it to the Ergorapido. - Approximately 4 hours’ charging is required

4. The charging indicator light, will come on when the

machine begins to charge once it is correctly plugged in.

If light is lit: Machine is charging.

If light is blinking: Machine is fully charged and in standby mode, indicated with one blink per minute. Start/Stop

Start the Ergorapido by pushing the top button. The bottom button can be used to switch between High Speed (for maximum cleaning power) and Normal Speed (for longer use). Vacuuming floors and carpets

8. Avoid scratching hard wood oors areas by checking

that nozzle wheels and brushroll are clean. Using the Hand Vac 9 Remove the hand unit by pressing the release buttons. The crevice nozzle and small brush are stored together as one piece. Push on middle tab to separate.

10. Attach the crevice nozzle to facilitate cleaning of areas

dicult to reach, or attach the brush for dusting. Start/stop the hand unit by pushing the start button. ENGLISH

16-18.98 CAUTION: For service not described in this manual, take to Electrolux Authorized Service Center for repair. Ergorapido’s dust container must be emptied regularly and the dust container and the lters need to be cleaned to maintain a high suction power. Never wash dust containers or filters in a dishwasher. Emptying and cleaning

Emptying of the dust container. Remove the lters, empty the contents into a dust container. Return lter and click dust container back into place.

12. Quick cleaning of the fine filter. (Recommended every

cleaning). Release the dust container, pull/release spring 5-6 times to dislodge dust. Cleaning of dust container and filters. (Recommended every 5th cleaning). Release dust container, take out both filters by pressing release buttons.

Separate both lters. Dust container and lters can be shaken clean or rinsed in warm water (never in dishwasher). All parts must be dry before reassembled in reverse order. Cleaning the hose and wheels

Loosen the hose catch and pull the hose from the attachment. Remove any debris. Put the hose back, lock using the catch.

Remove objects that may have become jammed in the wheel shafts. Cleaning the brushroll

If the brushroll becomes blocked or jammed for any reason. The brushroll may need to be cleaned. First turn Ergorapido® o. Push the brushroll release button. The hatch cover will come slightly free and the brushroll can now be removed.

2. Remove any obstructing objects from the brushroll.

3. Allow 5 minutes for motor to cool before powering on.

1. Clean lters, brush roll, hose and put on charge.

Motor is overloaded, causing the vacuum to turn off

1. Clear obstruction from brushroll and turn unit on.

If Ergorapido turns itself off while in use or will not stay on

1. Unit may have run out of charge. Make sure you are charging

your unit for the correct amount of time, and that the outlet you are using is receiving power.

2. Unit may be too hot. Clean lters, brushroll, hose, and put on

3. Motor may be overloaded. Clear obstruction from brushroll and

3. Check if there are large carpet bers, heavy threads, or wires in

the brushroll - the self-cleaning brush feature will not be able to remove these obstructions. Gestion des pannes La brosse rotative cesse de tourner

obstrucción del cepillo giratorio y encienda la máquina. Removing batteries CAUTION: Only remove batteries if product is to be scrapped. Improper handling of the batteries may be hazardous. Batteries must be removed from the appliance before it is scrapped or recycled. Never dispose used batteries with household waste. Batteries should always be completely discharged before removal. Ergorapido must be disconnected from the power source when removing the batteries.

1. Undo the screws. Carefully lift the hood.

2. Cut the connecting cables, remove the batteries, put tape

over the visible metal areas. Place batteries in suitable packaging. To locate nearest recycling center please call

Your Electrolux cleaner is warranted to be free from all defects in material and workmanship in normal household use for a period of two years. The warranty is granted only to the original purchaser and members of his or her immediate household. The warranty is subject to the following provisions. This warranty does not cover parts of the cleaner that require replacement under normal use, such as disposable dust bags, fans, filters, drive belts, light bulbs, brushroll bristles, impellers and cleaning. Any damages or malfunctions caused by negligence, abuse, or use not in accordance with the Owner’s Guide are not covered by this warranty. Likewise, any defects or damages caused by unauthorized service or the use of other than Genuine Electrolux parts is not covered. Electrolux will, at its option, repair or replace a defective cleaner or cleaner part that is covered by this warranty. As a matter of warranty policy, Electrolux will not refund the consumer’s purchase price. To register your warranty, please visit www.electroluxappliances.com (USA), www.electrolux.ca (Canada). To obtain warranty service you must return the defective cleaner or cleaner parts along with proof of purchase to any Electrolux Authorized Warranty Station. For the location of the nearest Electrolux Authorized Warranty Station or for service information in the United States or Canada, please telephone toll free: 1-800-896-9756 You may also visit us online at www.electroluxappliances.com (USA) or www.electrolux.ca (Canada

FUTHER LIMITATIONS AND EXCLUSIONS ARE AS FOLLOWS: Any warranty that may be implied in connection with your purchase or use of the cleaner, including any warranty of Merchantability or any warranty for Fitness For A Particular Purpose is limited to the duration of this warranty. Some states do not allow limitations on how long an implied warranty lasts, so the above limitations may not apply to you. Your relief for the breach of this warranty is limited to the relief expressly provided above. In no event shall Electrolux be liable for any consequential or incidental damages you may incur in connection with your purchase or use of the cleaner. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights. You may also have other rights which vary by state. REGISTRATION To register your product, visit www.electroluxvacuums.com and click on the Product Registration link in on the top of the page. FRANÇAIS
