Product type	Laptop
Brand	Thomson
Model	NEOX13CO
Operating system	Windows 10
Power supply	Power adapter (grounded power outlet)
Wireless connectivity	Wi-Fi, Bluetooth
Ports	2x USB Type A, 1x USB Type C, mini HDMI, RJ45, headphone/microphone jack, micro-SD card reader
Webcam	Integrated front camera
Microphone	Integrated microphone
Speakers	Integrated stereo speakers
Touchpad	Multi-touch touchpad with multi-gesture functions (scrolling, zoom, two-finger right-click, etc.)
Keyboard	AZERTY keyboard with function keys (Fn) for volume control, brightness, Wi-Fi, etc.
Security	Kensington lock slot (K-lock) for anti-theft
Battery	Integrated rechargeable battery (replacement only by Thomson authorized technician)
Operating temperature	5°C to 35°C
Care instructions	Use a soft, dry cloth; do not use solvents, liquid detergents, or chemicals
Safety instructions	Avoid exposure to rain, moisture, direct sunlight, strong magnetic fields; do not use during a gas leak; do not place objects on the device
Spare parts and repairability	Use only Thomson original accessories; do not disassemble, modify, or repair yourself (warranty void); contact Thomson After-Sales Service

Frequently Asked Questions - NEOX13CO THOMSON

A black or colored dot appears on the screen, what should I do?

This phenomenon does not affect the performance of your device. If the problem persists, please consult the general warranty terms and conditions, then contact Thomson After-Sales Service.

The touchpad is not working, how to reactivate it?

Check that the touchpad is correctly enabled by using the key combination Fn + the dedicated key (icon representing a touchpad).

The battery charging light does not come on, what should I check?

Make sure the power adapter is properly connected to a functional power outlet and to the device’s power port. If the problem persists, contact Thomson After-Sales Service.

How to optimize battery life?

To optimize battery life, you can adjust the screen brightness, disable Wi-Fi and Bluetooth if not in use, and close unused applications.

I lost the power adapter, where can I find one?

Contact Thomson After-Sales Service to get a compatible replacement power adapter for your device.

The battery no longer works, what should I do?

Contact Thomson After-Sales Service for battery replacement. Do not attempt to replace it yourself, as this could pose a risk of explosion.

The device makes no sound, how to solve this problem?

Check that the sound has not been muted via the function key Fn + mute key or increase the volume with Fn + volume up key. Also ensure that no headphones are connected to the headphone jack.

At startup, the power light turns on but the operating system does not start, what should I do?

Force the device to shut down by holding the power button for 10 seconds. Disconnect all USB peripherals, connect the power adapter, then turn the device back on. If the problem persists, contact Thomson After-Sales Service.

The computer does not wake from sleep mode, how to reactivate it?

Use the power button to wake from sleep mode. Check that the battery level is sufficient by connecting the power adapter. Press the power button again.

Where to find drivers for my Thomson device?

The necessary drivers are located in the C:\WINDOWS\DRIVERS\. folder. We recommend backing up this folder to an external storage medium (external hard drive, USB key, CD-R) to keep a copy of the drivers.

USER MANUAL NEOX13CO THOMSON

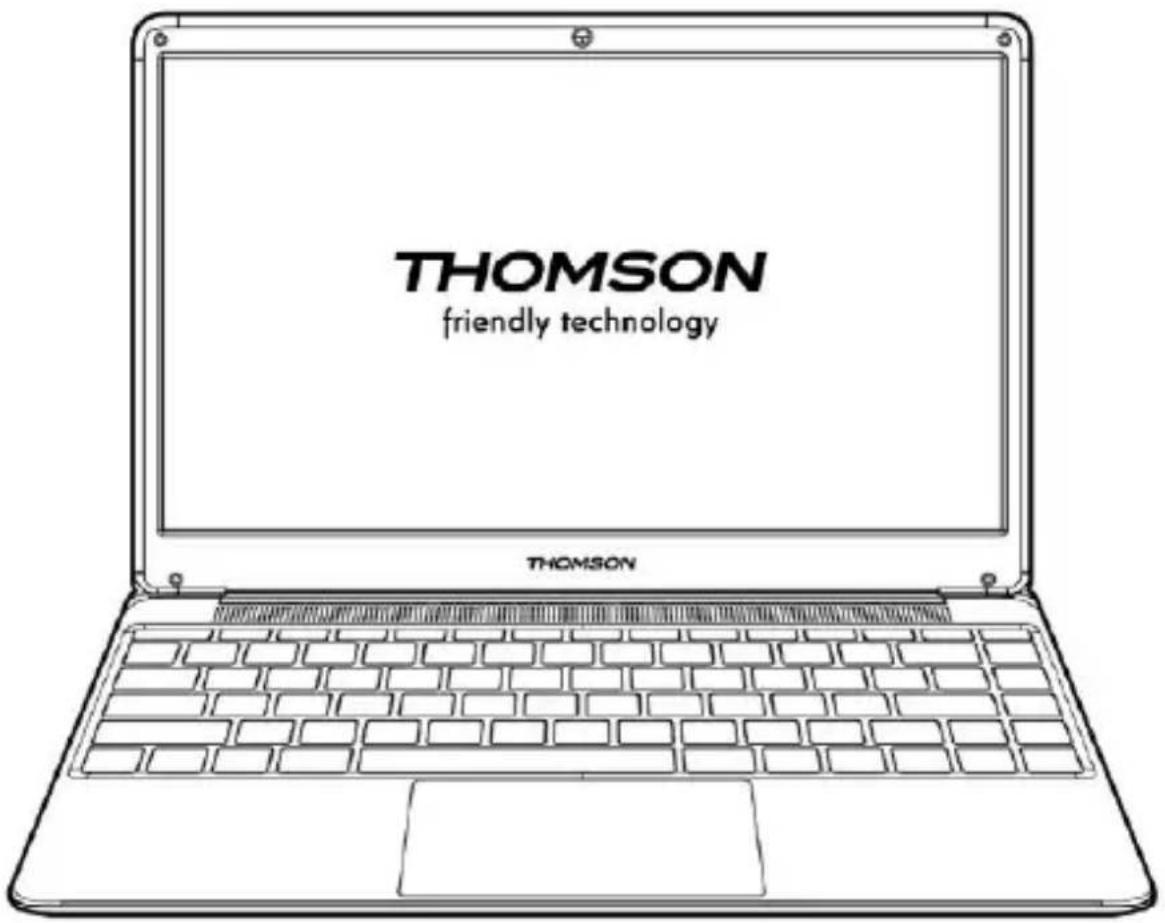

USER'S MANUAL / MANUAL DE USUARIO / MANUAL DO USUÁRIO

mythomson.com

Thank you for choosing a Thomson Computing device. To ensure that you are fully satisfied with your device, we invite you to read the information in this user manual.

NEOX - 13.3"

VERSION 1.0 - 0919

Legal Notice

Trademark

WARNING:

Slide and Move

Right-click

Scrolling

Zoom

Show desktop

Windows Update: [F40]

Window 10

M

Board resolution announcement

Notice a year of course

telence via email address

Zhang hensu system organization

Nisson's Client et application

Net asset value applicable for addition

1. International research database

A$500

Microsoft Community

Achester v's support plan:

Contact support

NEOX - 13.3"

VERSION 1.0 - 0919

Legal Notice

Commercial brand

THOMSON and the THOMSON logo are registered trademarks of Technicolor (S.A.) or its subsidiaries and are used under license by Group SFIT. Microsoft®, Windows®, Windows Server® and Windows Vista® are registered trademarks of Microsoft Corporation in the United States and/or other countries/regions. The software names in this User's Guide are the property of their respective companies in accordance with the corresponding license agreement. Any reference to this software is given for information only. All other product and brand names mentioned herein may be registered trademarks, trademarks or service marks of their respective owners. Any reference to these names is for information purposes only.

Copyrights

Copyright in this User Guide is held by Group SFIT (SAS). It is prohibited to copy, translate, modify or transmit this User Guide by any means or in any format whatsoever without the prior written consent of Group SFIT (SAS).

Disclaimer of liability

For a better user experience, Group SFIT (SAS) reserves the right to make changes to this manual. The information contained in this document is subject to change without notice. Users are responsible for any damage resulting from improper use of this User Guide. In addition, except for the explicit warranty given in the product maintenance manual or in our service commitment, Group SFIT (SAS) makes no warranty, express or implied, related to this User Guide (including on the formulations chosen).

Declaration of conformity

Group SFIT hereby declares that this product complies with the essential requirements and other applicable provisions of Directive 2015/53/EU. The declaration of conformity is available on the internet link:

www.mythomson.com

- Important safety instructions -

This unit should be used in an environment with an ambient temperature between 5°C (41°F) and 35°C (95°F).

Do not expose the unit to rain or moisture and keep it away from liquids. In case of splashing water or other liquid on the unit, immediately switch off the unit and wait until it is completely dry before turning it on again.

Do not expose the device directly to solar radiation.

Do not use strong solvents, liquid detergents or other chemicals on or near the surface of the unit to prevent corrosion or deterioration of the surface of the unit.

Do not expose the camera to a dusty environment.

Do not use the unit during a gas leak.

Do not expose the device to strong magnetic or electric fields. You can run the device through airport x-ray detectors. However, it is recommended not to pass your device through the magnetic detection portals or expose it to portable detectors.

Do not place any objects on the device.

Do not place the unit on an uneven or unstable surface.

Make sure to protect the unit from falls or any other impact that may damage it.

Do not leave the appliance on or loaded on your lap or any other part of your body to avoid any risk of heat-related injuries.

Switch off the unit before transporting it or covering it with a material that does not allow optimal air circulation.

Do not use damaged power cords, accessories or other devices with your device.

We recommend the exclusive use of the accessories (power supply, cables, etc.) supplied with the unit.

Use only original batteries. Replacing the battery with an incorrect battery can cause an explosion risk.

Do not disassemble, modify or repair the unit yourself, as this may void the warranty.

Please back up your important content regularly to avoid data loss.

Our company accepts no responsibility for the loss or removal of items contained in the device due to improper use of the hardware or software, lack of maintenance or any other accidental event.

This product has been designed to allow proper recycling of parts and components. The symbol representing a crossed-out wheeled bin indicates that the device should not be disposed of with municipal waste. Consult local regulations for disposal of electronic devices.

The symbol representing a crossed-out wheeled bin indicates that the battery should not be disposed of with municipal waste. Consult local regulations for battery disposal.

At full volume, prolonged listening to the portable audio device may damage the user's hearing.

- Presentation of the device -

Front view

Left view

Right view

Note: The presentation of the device and some features may vary by country, model or version.

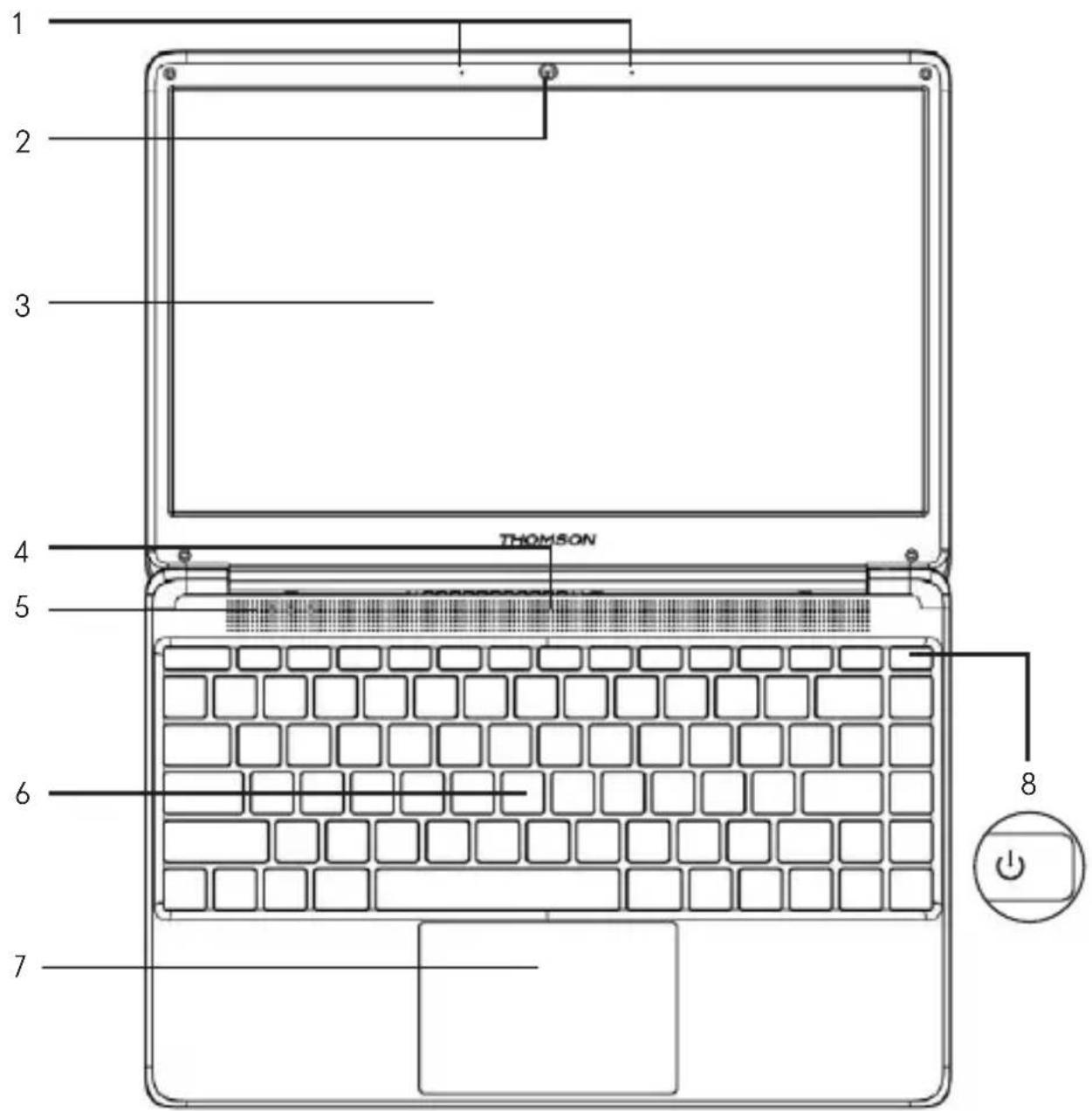

Front view

1. Microphone

The microphone allows you to use the voice commands on your device, make audio/video calls, or make audio recordings.

1. Front camera - Webcam

Use this camera for video calls or to take pictures.

1. Screen
2. Speakers
3. Power supply indicator
4. Keyboard
5. Touchpad

The touchpad allows you to enjoy the features of a mouse. It offers an intuitive interface thanks to its multi-gestures features.

1. Power button

A long press of this button allows you to turn your notebook on or off.

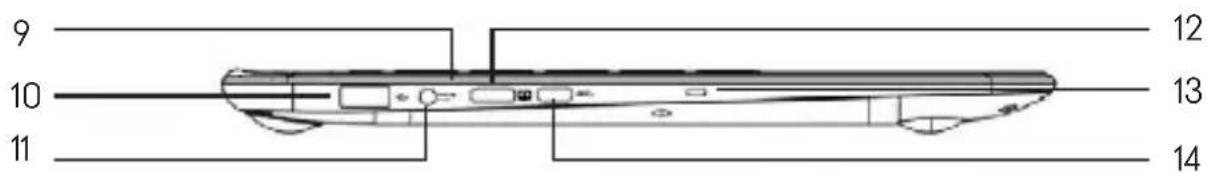

Left view

1. Charging indicator

This indicator lights up while the tablet is being charged.

1. USB port type A

This port is compatible with USB devices such as a keyboard, mouse, flash drive (USB sticks, memory card readers...), external hard disk, printer.

1. Mains power port

This port provides power when connected to an adapter.

1. Mini HDMI port (High-Definition Multimedia Interface)

This port allows you to connect your device to an HDMI-compatible device such as a TV, monitor or projector.

1. Kensington security slot

The Kensington security slot (also known as the Kensington lock, or K-lock) is part of an anti-theft system developed by Kensington Computer Products Group. It is a small rectangular shape hole reinforced around its circumference. It is intended to support a pluggable system associated with a padlock, then connected to a cable that must be fixed around a fixed object, or difficult to move.

1. USB Type-C port

This new-generation USB port has the particularity of being versatile, since it allows data, video and audio streams, and energy to be transmitted. The use of an adapter (not supplied) will be necessary to use some of the connector's features.

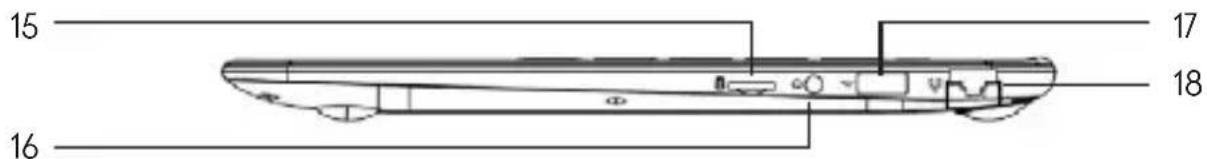

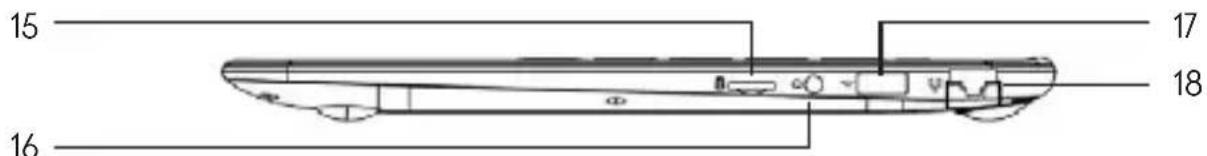

Right view

1. Micro-SD card reader

The micro-SD card reader allows you to read or write to micro-SDHC / micro-SDXC memory cards.

1. Headset/microphone socket

Use this port to connect external speakers or headphones to your tablet. You can also connect headphones with an external microphone.

1. USB port type A
2. RJ45 port

- Switching on -

Note: Charge your Thomson device before using it for the first time.

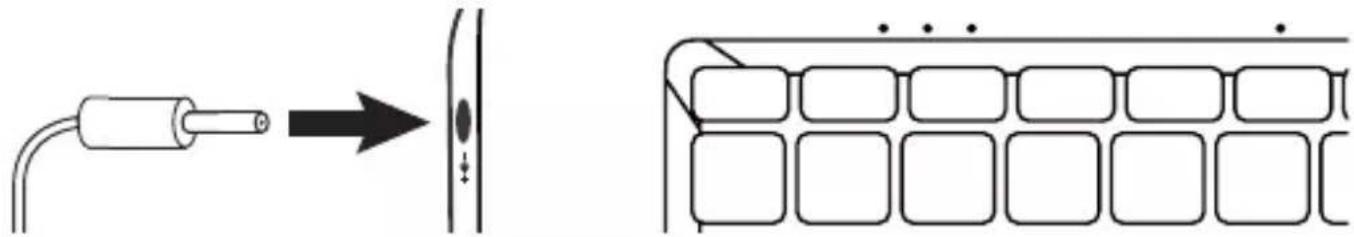

Charging the battery of your device

Connect the AC adapter to an earthed electrical outlet.

WARNING :

Read carefully the following instructions concerning the battery of your THOMSON device:

• Only a technician authorized by Thomson is authorized to remove and handle the battery.
• The battery in your Thomson device may present a fire or burn hazard if it is removed or disassembled.
• Comply with the information on the device's warning labels to avoid any risk of injury.
• There is a risk of explosion if the battery is replaced by an incorrect model.
• Do not dispose of the battery in a fire.
• Do not attempt to short-circuit the battery of the Thomson camera.
• Do not attempt to disassemble the battery or reassemble the battery.
• Stop using the battery if it leaks. • The battery and its components must be recycled or disposed of properly.
• Keep the battery and its components out of reach of children.

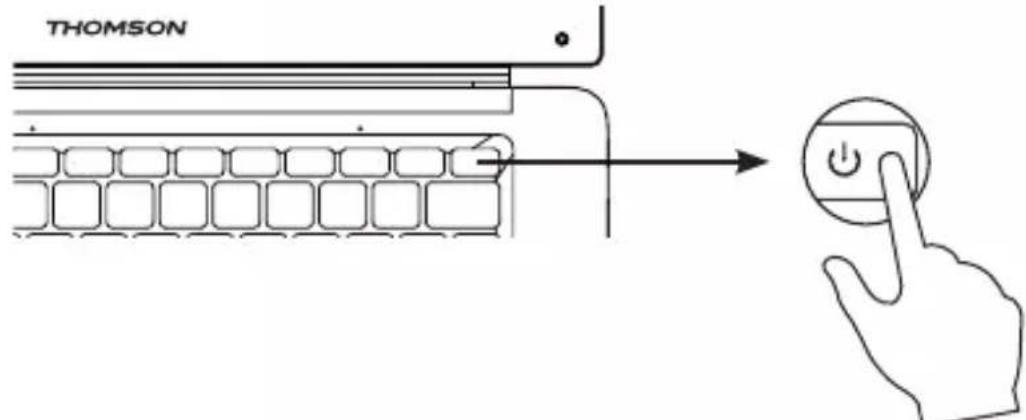

Turning your device on / off

Turn on your device by pressing and holding the power button for a long time.

To turn off your device, go to the Start menu and select Start/Stop > Stop.

First start of your device

During the first boot, the Windows® 10 operating system will guide you through the configuration steps.

Once these configuration steps are completed, the system completes the installation and applies your customized settings. Do not turn off the unit and ensure that there is sufficient battery power during this step.

The Windows® 10 home screen appears after installation and configuration is complete.

Note: If you want to restore the factory configuration or reinstall your operating system, we recommend using the Windows Reset function. For this reason,

1. Open the start menu and choose «Settings».
2. Select «Update and Security» then «Recovery» from the right menu.
3. Click on the «Start» button in the «Reset this PC» section.
4. Let us guide you.

- Using the touchpad -

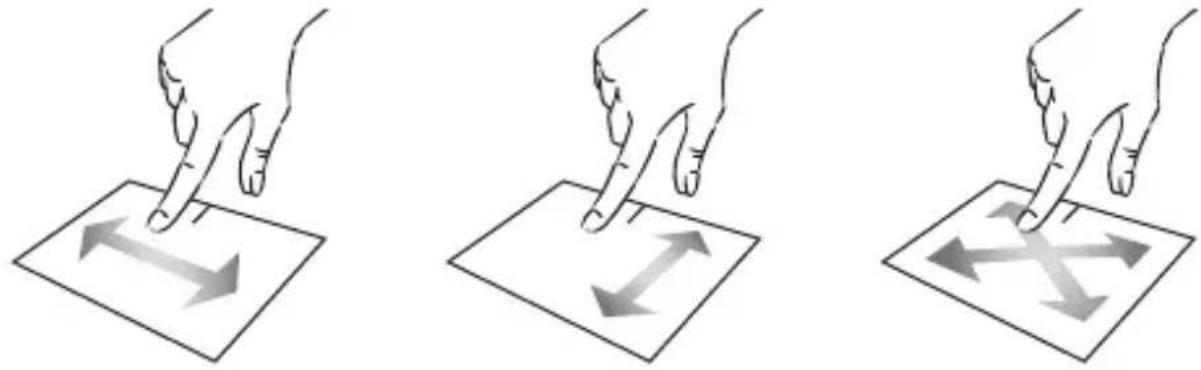

Move the pointer

Slide your finger on the touchpad to move the cursor.

Click / Double-click

Press briefly once to make a click. For example, to select an item on the desktop or in the file explorer or to open an application from the start menu.

Press briefly twice to make a double click. For example, on the desktop or in the file explorer, this function will allow you to open the selected item.

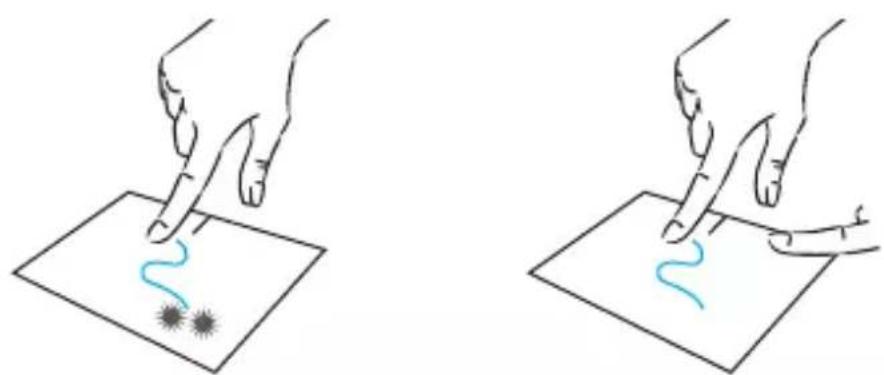

Drag and drop

Press the trackpad briefly twice to select the item and hold your finger on the trackpad by sliding it to the desired position and releasing. You can also select an element and hold down a left click while sliding another finger on the touchpad to drag and move an element.

Left click

Briefly press the touchpad once to make a left click.

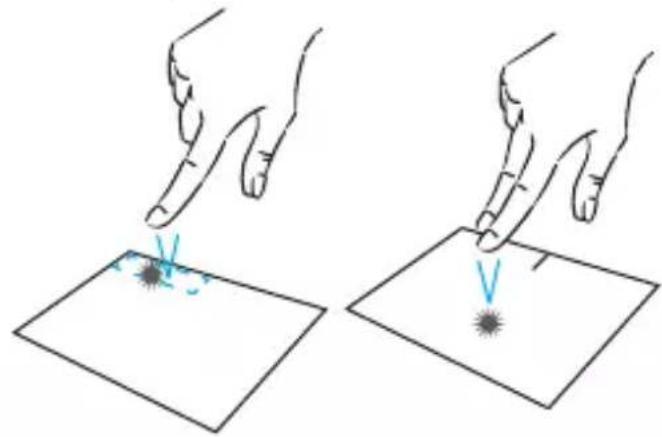

Right click

Press briefly once at the bottom right of the touchpad to make a right click or press briefly with two fingers on the touchpad.

Scrolling

Slide two fingers up or down to scroll vertically.

Slide two fingers left or right to scroll horizontally.

Zoom

Move two fingers closer to the touchpad area to zoom out (zoom -).

Move two fingers away from the touchpad area to zoom in (zoom +).

Show all applications running

Slide three fingers upwards to display all applications running.

View the desktop

Slide three fingers down to display the Windows® 10 desktop.

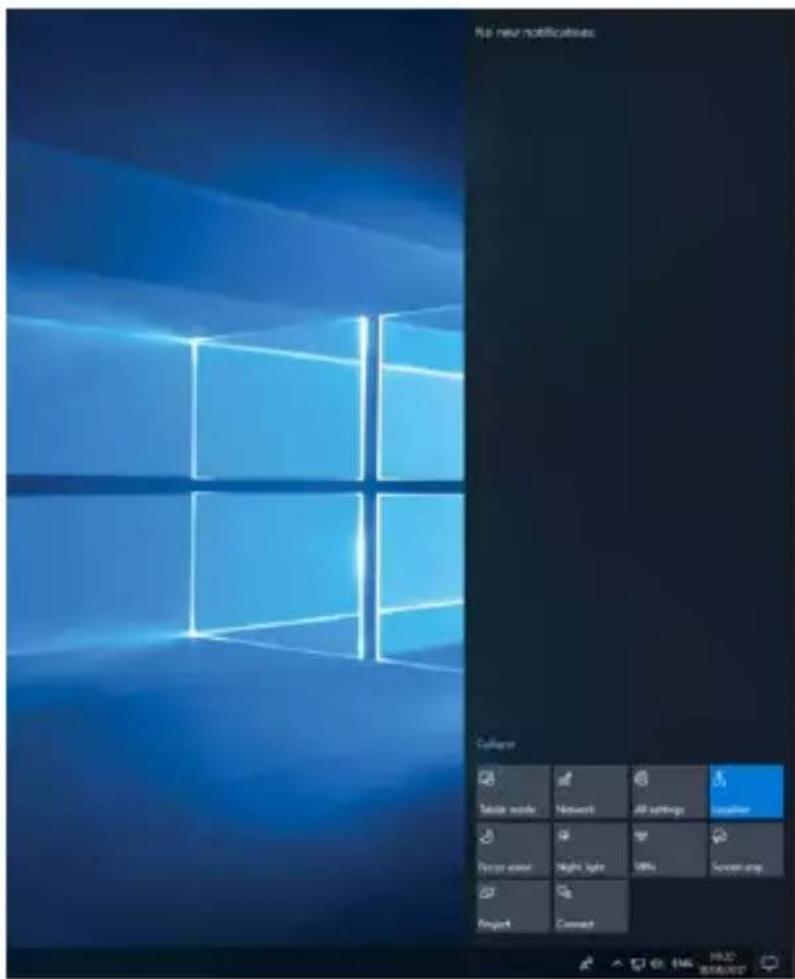

Open the action center

Briefly press with four fingers to open the Windows® 10 action center.

- Using the keyboard -

Function keys

The keypad on your device is equipped with function keys for performing actions or settings.

Note: The key icons displayed and the functions offered may vary depending on the model.

fn + A² Put the computer into standby mode

fn + 🏠 Opens the default web browser

fn + 📋 Enables or disables the touchpad

fn + 📄 Lower the volume level

fn + 📌 Increase the volume level

fn + ☒ Enable or disable sound

fn + ♪ Open the default media player

fn + ▶/II Media player playback or pause function

fn + ◀ Previous music or video

fn + ▶▶▶ Next music or video

fn + ★- Decrease the brightness of the screen

fn + ★+ Increase the brightness of the screen

fn + 📧 Open the default email software

fn + ☐☐ Enable the use of an external display

fn + ⚙ Open the settings menu

fn + Ⓧ Open the search pane

fn + ΔI"Δ" Enable / disable the wireless network

fn + 📄 Display applications running at runtime

fn + 📋 Opens the sharing pane

fn + ↑ Vertical scrolling upwards

fn + ↓ Vertical scrolling down

fn + ↘ Start function

fn + → Fine function

Pause Cancels the current program (example: a game)

PrtScr/ Saves a screenshot of your screen

Numlck/ Enables/disables the numeric keypad

ScrLk Enables/disables scrolling

Ins Enables/disables the Refresh mode

Shortcut keys

Using the shortcut keys makes it easier to navigate under Windows® 10.

Opens the Windows® 10 Start menu

+ A Opens the action center

+ D Displays the desktop

+ E Opens the file explorer

+ I Opens the Device Settings menu

+ L Locks the computer and displays the lock screen

+ M Reduces the size of active windows

+ S Opens the search window

+ P Opens the Project pane

- Windows® 10 Overview -

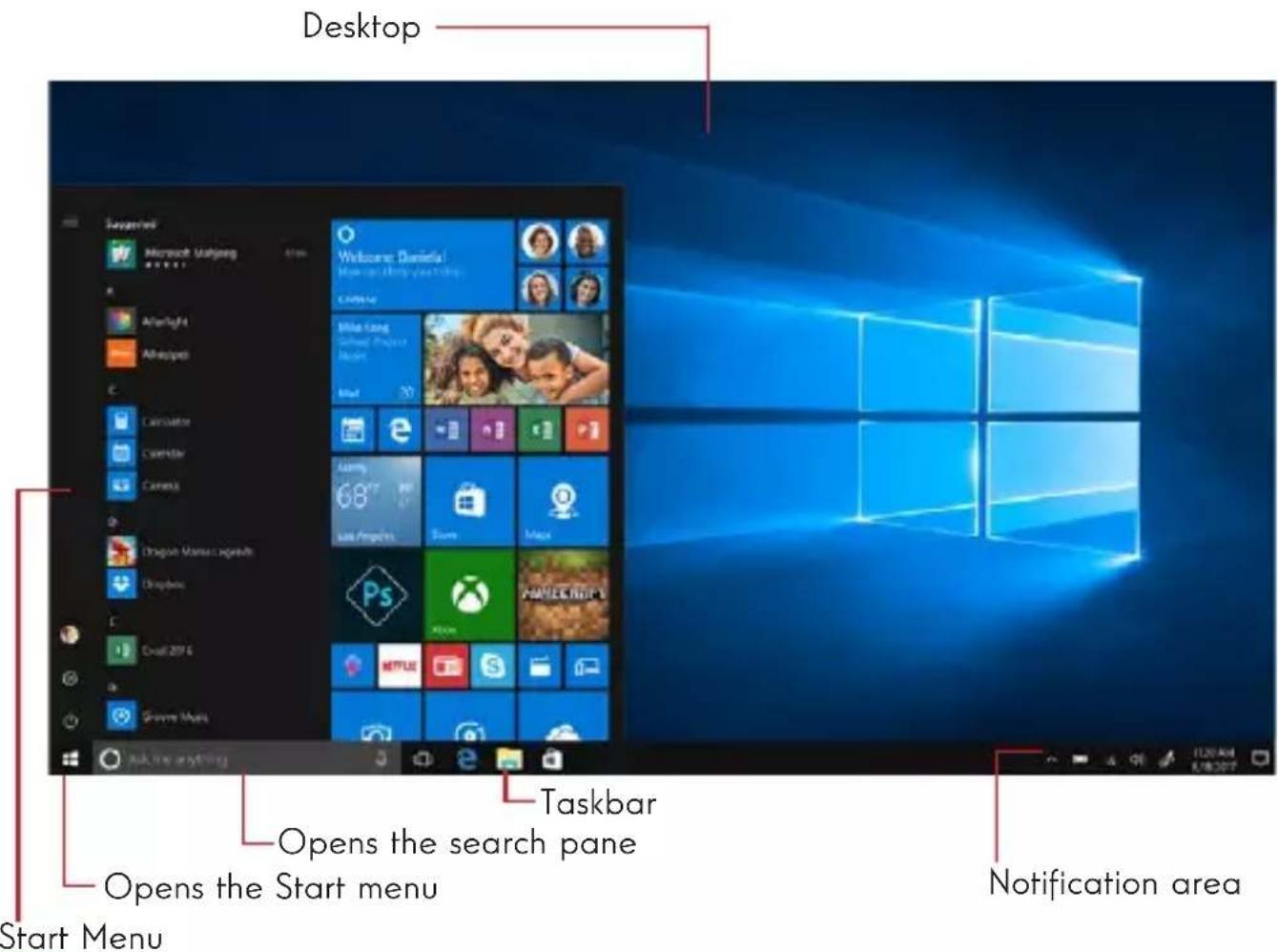

Presentation of the interface

Note: The interface may vary by country, model or version of Windows® 10

The Start menu is the entry point for your device. It allows you to access applications, folders and settings.

The taskbar displays the applications in use and allows you to switch between them.

The notification area displays important information about the use of your device.

The search pane allows you to easily search through your files, applications and other items on your device.

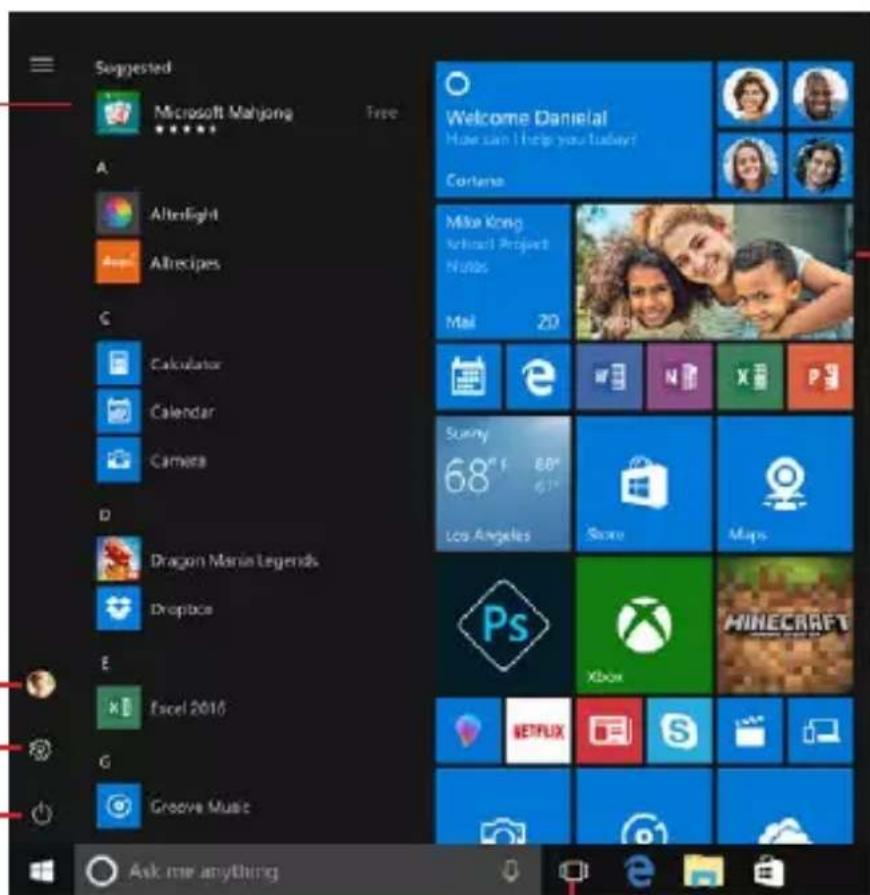

Presentation of the Start Menu

Note: The interface may vary by country, model or version of Windows® 10

The Start menu is the entry point for your device. It allows you to access applications, folders and settings.

Stop, Restart or Sleep your device. Allows you to open the parameters. Allows you to log out, lock the user session or change account settings.

The applications installed on your device are listed here.

Note: To open an application, move the mouse pointer over it and click to open it.

Displays applications running at runtime.

Displays your favorite applications as tiles for quick and easy access.

Note: To display an item as a tile, right-click on it and select the «Pin to Start Menu» option.

To remove a tile, right-click on it and select the option: «Detach from the start menu».

Presentation of the Action Centre.

Note: The interface may vary by country, model or version of Windows® 10.

The action center groups all notifications from your applications. The lower part provides the main shortcuts useful for setting up your device.

To open the action center, click on the icon in the notification area.

Connecting to a wireless Wi-Fi network.

Your device is equipped with a Wi-Fi module. Connecting to a Wi-Fi wireless network will allow you to access the Internet, check your e-mails, perform device updates or access a home or business network. To connect, follow these steps:

Click on the ■ or Ⓞ in the notification area. If Wi-Fi is not enabled, click on the Select your wireless network from the list. Click on «Connect». If your wireless network requires a security key, fill in the key before making the connection.

Pairing your device with a Bluetooth device

Your device is equipped with a Bluetooth module. This allows you to connect it to a Bluetooth device (mouse, portable speakers, etc.). To connect the two devices, follow these steps:

Go to the Start menu and select Settings. Click on the "Devices" section and select "Bluetooth and other devices". Select the option "Add Bluetooth or other device" and let the assistant guide you.

Activate Airplane mode

Airplane mode disables wireless Wi-Fi and Bluetooth connectivity. To activate Airplane mode:

Click on the icon in the notification area.

Click on the button

To disable Airplane mode:

Click on the icon in the notification area.

Click on the button

System restoration

WARNING:

Make a backup of your important data before running this option.

Windows® 10 offers several recovery options to restore the factory configuration:

• Keep my files: Reset your device while keeping your personal files.
• Delete All: Restores the factory configuration of your device. Make a backup of your important data before running this option.
• Retrograde to the previous version of Windows® 10: Use this option if you are having trouble with your device after the system update.
• Advanced boot: This option allows you to boot from an external device or access the device's firmware settings or change Windows boot settings or restore Windows from a disk image.

To perform a restoration operation, follow the following steps:

Go to the Start menu and select Settings. Click on the «Update and security» section and select «Recovery». Select the restoration option to be executed.

Windows 10

Discover more features on the Microsoft website:

https://support.microsoft.com/en-us/hub/4338813/windows-help?os=windows-10

Windows help

Windows Update: 140

Find out new Windows Update keeps your device up to date.

Keep your device up to date.

Initial your product

Windows 10

5.4

From your driver space in Windows 10

Free up some drive space to keep your PC up to date and running smoothly.

Storage settings: free up drive space.

Update: A. ac Forder

Internet, Kluzinager

Setzte der Germany

Оргони 25 Seriesку

Sikovinsliche Gesellschaft des Aportes

Gaming at Forest Realty

What's new in recent updates

Check out these measures to cover Windows 10 updates, including the May update.

Find out what's changed?

Windows certificate

Windline Updates: FAQ

Free up 65% space in Windows 10

Management: 10/09/2023

Re findestes, l'indute errors

No printer problems after updating or upgrading to Windows 10

Tranchised Black women positions:

Trendel endward pruchleren, populating Wierdomax 82

Free up space to look at the latest Woshman's best-on-cataly

Windown 10 ugelnik history

) Intel & upgrade

1. 发票日期

Get more support

Microsoft Community

Part questions, follow discussions, and share your knowledge in the Microsoft Community forum.

Ask the community

Assisted support options

I am about support plans to keep your Windows and Office software networking usually.

Purchase of support plans

Contact support

Hispel assistance with your Microsoft product? Will get you the help your need.

Get support.)

- FAQ -

A black or colored dot appears on the screen !

This does not affect the performance of your device. If the problem persists, please consult the general warranty conditions and then contact Thomson Customer Service.

The touchpad doesn't work!

Check that the touchpad is correctly activated using the function keys Fn

The battery charge indicator does not light up!

Make sure that the AC charger is properly connected to an AC outlet and the power port of the unit. If the problem persists, contact Thomson Customer Service.

How to optimize battery life?

To optimize the battery life, you can adjust the screen brightness, disable Wi-Fi and Bluetooth if you are not using it and close applications you are not using.

I lost the AC adapter!

Contact Thomson Customer Service.

The battery doesn't work anymore!

Contact Thomson Customer Service.

The device does not emit any sound!

Check that the sound has not been disabled by using the function key Fn + or by increasing the volume by using the function key Fn +. Make sure that no headphones are connected to your device.

When the device starts, the power indicator lights up but the operating system does not start!

Force the device to turn off by pressing the power button for 10 seconds and then disconnect all connected USB devices. Connect the device to a socket with the charger. Turn on the device.

If the problem persists, contact Thomson Customer Service.

The computer does not wake up from sleep mode!

Use the power button to exit the standby mode. Check that the battery level is sufficient by plugging the unit into an AC outlet using the charger. Press the power button again.

Where to find the drivers for your Thomson device?

The drivers necessary for the proper functioning of your device are present in the following folder:

C:\WINDOWS\DRIVERS\

We recommend that you backup the entire folder to an external storage medium (external hard disk, USB sticks, CD-R) in order to keep a copy of these drivers.

USER MANUAL

NEOX - 13.3"

VERSION 1.0 - 0919

Legal notice

Trademark

WARNING:

Drag and drop

Right click

Scrolling

Zoom

View desktop

- Keyboard usage -

Function keys

Source: (1) a.7000237894

Subtransactions of 100% acquisition

Microsoft Access Solutions

Just you? (unfilled)

Describe to give the candidates?

- Windows donor

Mistana Update, prigumbes fruocentes

Microsoft Community

NEOX - 13.3"

VERSÃO 1.0 - 0919

Aviso Legal

Marca comercial

AVISO :

Clique / Duplo-clique

Clique direito

Rolagem

Zoom

Move two fingers apart on the touchpad to zoom in (zoom +).

fn + ♪ Opens the default media player

fn + ☒ Opens the default email software

fn + ⚠ Opens the search panel

fn + Δ|"Δ" Enables / Disables the wireless network

fn + ◦ Opens the sharing panel

Trademark

WARNING:

Right-click

Scroll

Zoom

fn + ▶▶▶ Next music or video

fn + Δl"Δ" Enable / Disable wireless network

Displays applications running at runtime

Discover more features on the Microsoft website:

https://support.microsoft.com/it-it/hub/4338813/windows-help?os=windows-10

Windows Guide

Windows Update: Frequently Asked Questions

5.2 Qualified or Quantitative

Microsoft Server 2.0

Microsoft Community

NEOX - 13.3"

VSIE 1.0 - 0919

WARNING:

Drag and drop

Right-click

Scroll

Zoom

Show all running applications

Discover more features on the Microsoft website:

https://support.microsoft.com/nl-be/hub/4338813/windows-help?os=windows-10

Windows Help

Windows Update: returnable version

Oracle has Windows Update in apparent up-to-date thought.

Je approvati s.p. for date header?

Sahachov, y product.

Window 12

M

Voting result: agreed

Schaffnote vortmalen in Windows 10

Ussie uigijdavde uig. o invasen to omgen dit je pc up to data Bijk en toopel Bijk water

Acquisitions Inc (twisted)

2016/03/05: 12h-08-09 o:42 pia

Swedish en net and difficulty

New in recent updates

Foundation in Windows Update version

Pricetgeuernensta uptake of upgrade via Windows 38 oplicemen

Stef vroger, follow discussions and the related topics in the Microsoft Community Forum.

NEOX - 13.3"

VERSION 1.0 - 0919

Imprint

Trademark

- Presentation of the device -

Front view

Left view

Right view

1. Port Mini-HDMI (High - Definition Multimedia Interface)

1. Micro-SD card reader

WARNING:

Drag and drop

Left click

Right-click

Scroll

Zoom

Discover more features on the Microsoft website:

https://support.microsoft.com/de-de/hub/4338813/windows-help?os=windows-10

Windows Help

HONG KONG

Windows Update (AC)

Before and at least 100% of the

*Source: Greenfield Trust Co. (Director and the author

Currency or other Monetary Breathing

3 Installation and Upgrade 7. Refuero

Microsoft Community
