USER MANUAL TEO7A THOMSON

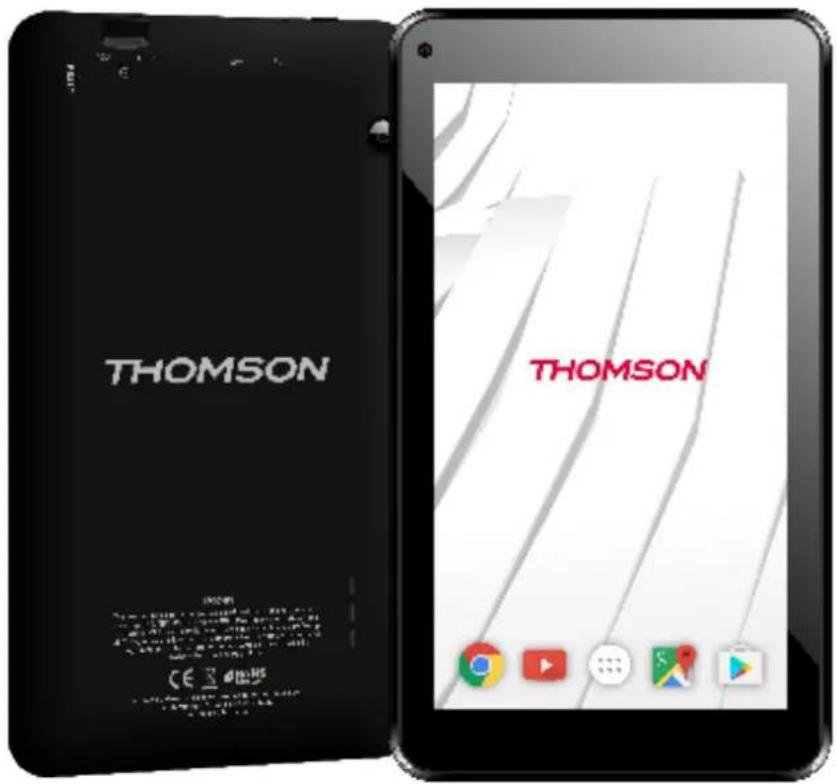

Table of contents Safety & Regulatory Statements 2 Safety Precautions 3 Box Contents 4 Features 5 Unit at a Glance 6 Getting Started 7 Network Access 9 Storage File Copy 10 Main Functions 11 System Settings 17 FAQ 18 Specications 20 Legal and Trademark Notices 202 Safety & Regulatory Statements The lightning ash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufcient magnitude to constitute a risk of electric shock. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important ope-ration and servicing instructions in the literature accompa-nying the appliance. For recycling or disposal information about this product, please contact your local authorities. L WARNING: To prevent re or shock hazard, do not expose this device to rain or moisture. Dangerous high voltage is present inside the enclosure. Do not open the cabinet.Protect your hearing: Hearing experts advise against the con-stant use of personal stereos played at high volume. Constant exposure to high volumes can lead to hearing loss. If you should experience ringing in the ears or hearing loss, discontinue use and seek medical advice.Note: If the product suddenly has no response or powers off, an electrostatic discharge may be the cause. In this circumstance, please follow the procedures below for recovery:Turn off the unit by pushing and holding the slide but- ton at the right (Power off Power off position) for 15 seconds. L Turn on the unit againt At full volume, prolonged listening to the portable audio device may damage the user’s hearing.3 Safety Precautions 1 Please protect the device away against moisture and dust. 2 Do not leave the device in a high-temperature environ- ment, especially a closed car in hot weather. 3 Do not drop or strike the device. 4 Do not shake the device violently, particularly the LCD screen, as this may cause the display to malfunction. 5 Please make sure to carefully adjust the earphone vo- lume; excessive volume may be harmful to your hea- ring. 6 Please charge the device when The power icon shows that the battery is nearly at The device turns itself off automatically and will not come back on. There is no response when operating the buttons. Attention: Please use only the charger provided by the manufacturer; other chargers may damage the device. 7 Do not disconnect the device from your PC when down- loading, uploading or formatting as this may cause pro- gramming errors in the device. 8 Do not disassemble the device yourself; only allow an expert to do so. 9 Do not use alcohol, thinner or benzene-based chemicals to clean the surface of the device. 10 Do not use the device in places where its use is prohi- bited, like aircraft. 11 Please make sure to always back up your device. The manufacturer is not responsible for lost les or data after damage to or repair of the device. 12 The manufacturer reserves all the rights to the techno- logy and design of the device and has no obligation to inform the user if new versions or designs have been developed. 13 The device is NOT waterproof; please keep it away from moisture at all times. 14 This device will take approximately 20 seconds to power up; please don't try to operate the device during this period.4 Box Contents

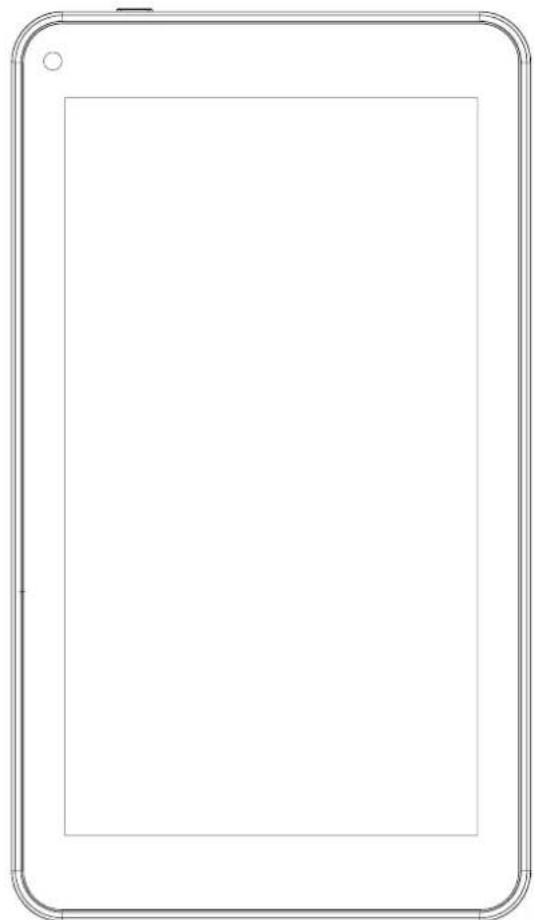

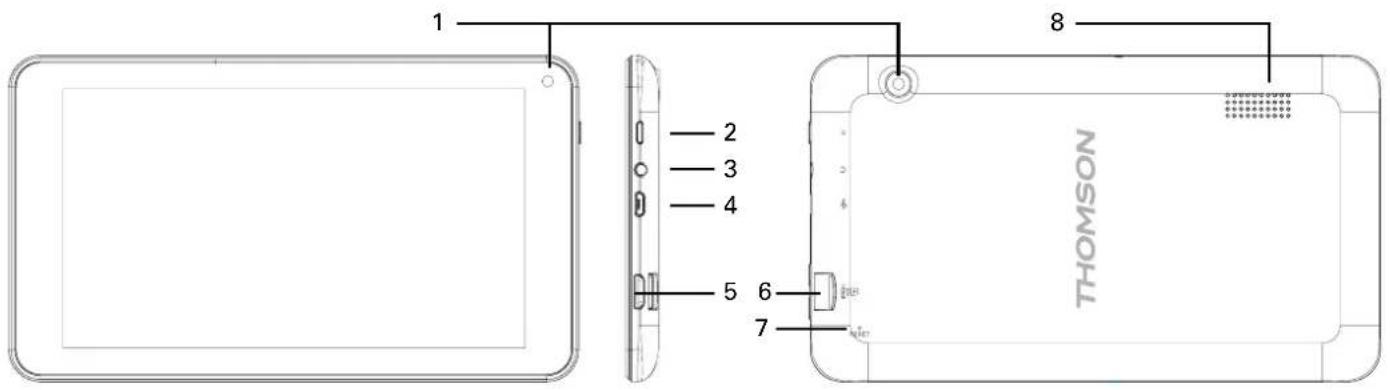

Features Browse the Web. Visit your favorite websites Check your e-mail Keep in touch with friends and family Watch YouTube™ videos Browse the world’s most popular videosharing community Read your favorite books Download thousands of books with the included E-book reader* Discover thousands of apps for Android™ Games, applications, and more with Google Play Connect to the Internet wirelessly High-speed Wi-Fi 802.11 b/g/n networking Enjoy your media library anywhere Portable powerhouse plays popular music, video,and photo formats microSD memory card reader Increase your storage capacity (up to 32 GB supported) Built-in camera Convenient front-facing and rear camera(0.3MP) Automatic orientation detection Read any way you want; the display adjusts automatically! Reading books in the ePub format requires the included E- book reader application. Streaming video quality will be affected by the source, and the quality and condition of your network connection.6 Unit at a Glance 1.Camera Use it to take pictures or capture videos.

Press to turn the unit on, or to turn the screen on or off. Press and hold to access the Power Off menu.

Audio output connection for headphones.

Connect to a USB device or a computer to transfer data (e.g. music, videos,photos, les). Connect to a USB device

Press VOL+ to increase the volume level. Press VOL- to decrease the volume level.

Load external Micro SD-cards here.

Press this button to force off the system when the device is halted.

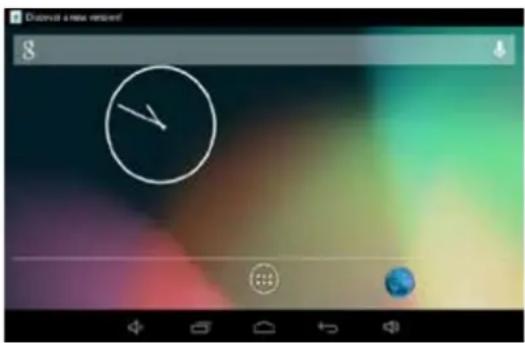

Getting Started Battery Charging The tablet is equipped with a built-in rechargeable Lithium battery. It is suggested to fully charge the battery before use. We strongly recommend to use the power adapter included in the packaging, using other adapter may damage the ta- blet and void the warranty. Turning the Tablet on or off To turn the tablet on: Press and hold the Power key until the LCD screen turns on. Wait until the Home screen appears; the tablet is now ready for use. To turn the tablet off:

1. Press and hold the Power key until the Device Options

2. Touch ok the screen to turn off the tablet.

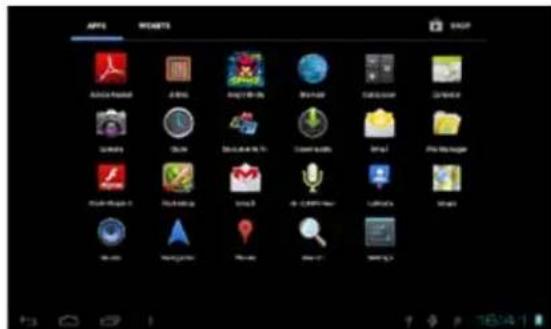

Turning the Screen On or off When the tablet is on, you can turn off the screen to conserve battery power. Simply press the Power key once to turn the screen off. Press the Power key again to turn the screen back on. L To conserve battery power, the screen can be set to turn off automatically when the tablet is not in use (between 15 seconds and 30 minutes). This Screen timeout option can be found in the Display menu.8 Unlocking the Screen When the screen turns off, you will have to unlock the screen when you turn it back on. To unlock the screen, drag the lock icon across the screen towards the unlock icon. About Applications To open an application, touch the application icon on the home screen or in the Launcher where you can tap the icon right up on the home screen to get in.. Launcher screen: L The screen shown above is for illustrative purposes only.9 About Applications Preinstalled Applications Some applications have been installed on your tablet for your convenience. Example: Browse the web. Perform simple mathematical operations. Take pictures or videos with the frontfacing camera. Check your e-mail. Play music. Access the Settings menu to adjust the tablet’s options.10 Connect to a Wi-Fi network The Notication bar displays icons that indicate your ta- blet’s Wi-Fi status. Notication that an open Wi-Fi network is in range. Connected to a Wi-Fi network (waves indicate connection strength). [no icon] There are no Wi-Fi networks in range, or the Wi-Fi radio is off.

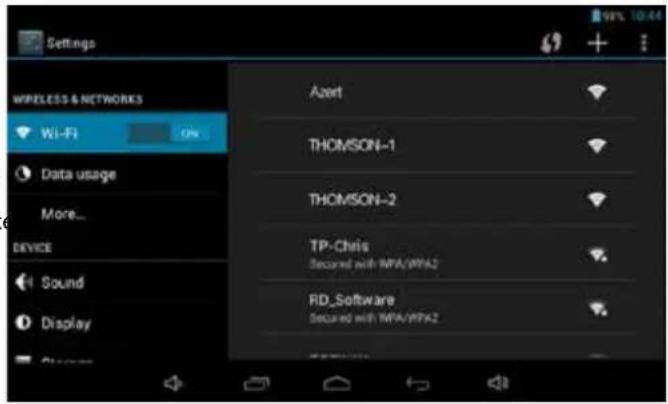

1. Turn on the Wi-Fi radio if it is not already on.

To turn on Wi-Fi: a.Go to the Home screen: Press the Home key. b.Open the Settings menu: tap the icon right up on the home screen to get into the launcher, then touch Settings icon. c.Open the Wireless & networks menu: Slide the icon to ON status. When Wi-Fi is on, the tablet will look for and display a list of available Wi-Fi networks. L If a network that you have connected to previously is found, the tablet will connect to it.If you don’t see your network in the list, you can force the tablet to re-scan. To scan for networks, tap the Menu key, and then touch Scan.11

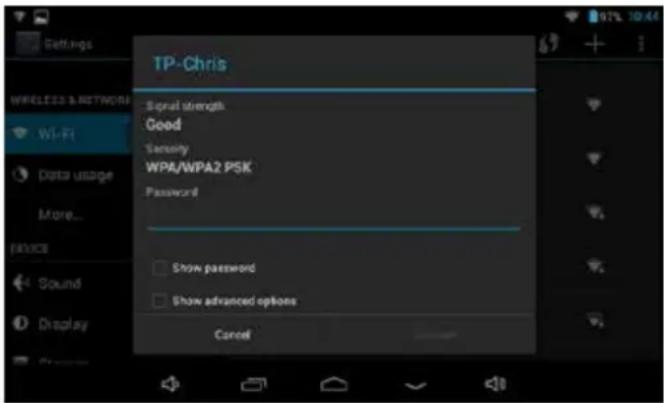

2. Select an available Wi-Fi network to connect to:

In the same Wi-Fi settings menu above,touch a network in the list. If the network is open,the tablet will prompt you to conrm connection to the network. Touch Connect to conrm. If the network is secured (as indicated by a Lock icon),the tablet will prompt you to enter a password or other cre- dentials.Touch the Wireless password box to show the on- screen keyboard and then use it to enter the password. Touch Connect to conrm. When you have successfully connected to a Wi-Fi network, the Notications bar at the the low of the screen will show a Wi-Fi signal indicator. L To learn about how to add a Wi-Fi network when it is not in range or when the router is set to obscure the network name (SSID); or to congure advanced Wi-Fi options, please refer to the manual.12 Optional Connections Connecting to a Computer Connect the tablet to a computer to transfer les.

1. With the Micro USB cable: Plug the small end of the

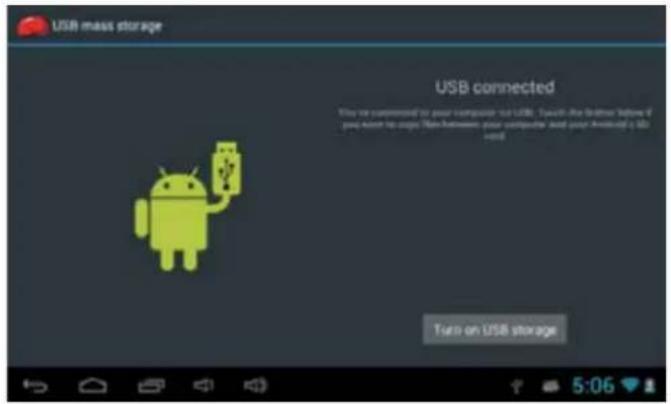

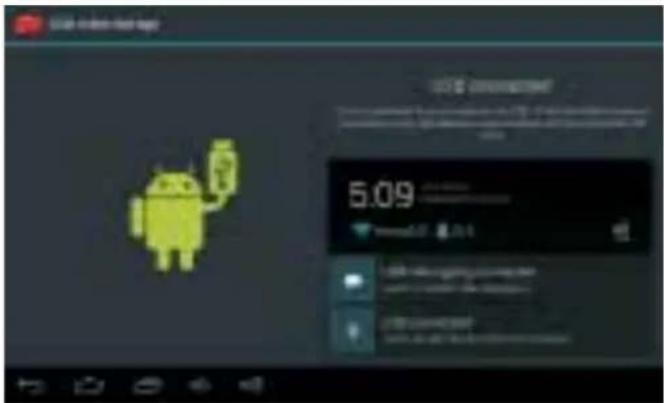

cable into the USB 2.0 high speed connector of the ta- blet. Plug the large end of the cable into an available USB 2.0 high speed port on the computer. 2.When your tablet is connected,slide up the USB icon right down on the screen and then touch icon USB connec- ted.13 Specications Processor Allwinner A33 Quad core 1.3Ghz

Storage 8 GB ash built-in; microSD card slot (max.32GB supported) Display 7” TN LCD(1024X600), Capacitive touch screen Wi-Fi Networking LAN 802.11 b/g Audio Output 3.5mm headphone PC Interface USB 2.0 high speed Additional Features Built-in microphone Front facing and rear camera (0.3MP), 1x1W speaker Operating System Android™ 4.4 Power Rechargeable Li-poly battery power 2500mAh USB adapter (DC 5V, 2A) L Music was tested with a 128 kbps MP3 le; video was tested with a 1920x1080 MPEG-4/AVC le; browsing was tested with the screen brightness set to default. Actual playback results may vary. Troubleshooting

1. Device can not connect to Wi-Fi

- Ensure the wireless network is working by testing it using ano- ther wireless device. - Ensure the device and the wireless router is within the range of the wireless network and to be connected too. Walls or other obstructions will reduce the possible distances between wire- less devices. - Ensure the security password is correct.

2. System has anomalies and doesn’t work correctly

- Installing some third-party applications may cause the system not operate correctly. Press power button for about 8 seconds to power off the device or press system reset to resolve this issue.

- When running many applications, or setting the screen on highest brightness, or when being charged, this device can get quite hot. This is normal and should not cause any inconvenience when in use.

4. Cannot set E-mail or registration application

- Make sure that the MID is connected to a Wi-Fi network and can connect to the Internet. - Your E-mail settings have been entered correctly for the account being accessed. - Make sure your system time and local time are correct.

- Press power button for about 8 seconds to power off the device. Then restart it and check if the record function works correctly.14

6. The stand-by time of the device is too short

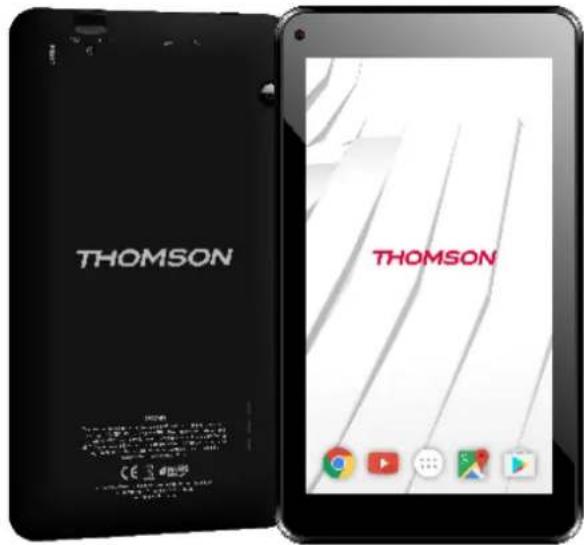

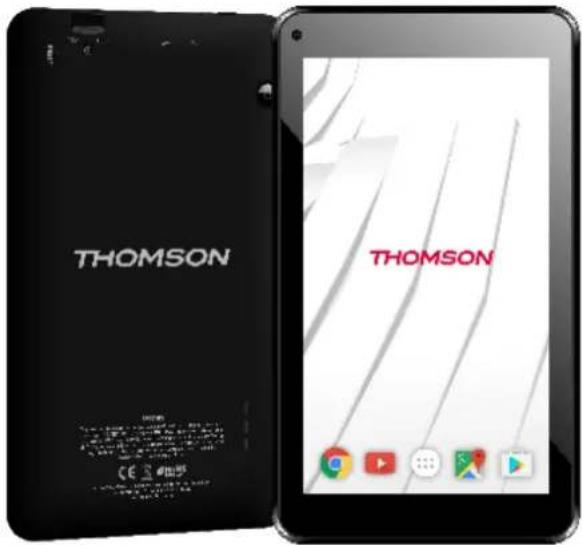

- The duration of the lithium battery varies with environmental temperature changes and the service conditions. If the environ- ment temperature is too low or too high, the duration of the battery will be affected. It is recommended to use this device at normal temperature. - Battery life is dependent on using status. High volume, WIFI, and the frequent use may cause the battery to be drained at a higher rate.TEO - TABLETTE 7'' AVEC ANDROID 4.4
