Product Type	Tablet
Brand	Thomson
Model	NEO 10
Screen Size	10.1 inches
Operating System	Windows 10
Processor	Not specified in manual, estimated as entry-level
RAM	Estimated 2 GB or 4 GB (not specified)
Storage	Estimated 32 GB or 64 GB (not specified)
Connectivity	Wi-Fi 802.11 b/g/n, Bluetooth 4.0
Ports	USB Type A (x2), Mini-HDMI, Headset/Microphone jack, Micro-SD card reader
Camera	Front camera (webcam)
Battery	Lithium-ion, rechargeable, capacity not specified
Power Supply	AC adapter (included), 5V/2A estimated
Keyboard	Detachable keyboard with touchpad (included)
Operating Temperature	5°C to 35°C (41°F to 95°F)
Weight	Estimated approx. 500 g (1.1 lbs) for tablet only
Dimensions	Not specified, typical 10.1" tablet dimensions
Cleaning Instructions	Do not use strong solvents or liquid detergents; wipe with dry cloth
Safety Warnings	Do not expose to rain, moisture, or direct sunlight; avoid falls; use only original accessories
Spare Parts & Reparability	Contact Thomson Customer Service; do not disassemble; use only original batteries
Certifications	CE, RE Directive 2015/53/EU
Warranty	Standard warranty, contact Thomson for details

Frequently Asked Questions - NEO 10 THOMSON

A black or colored dot appears on the screen. What should I do?

This does not affect performance. If the problem persists, consult the warranty conditions and contact Thomson Customer Service.

The touchpad is not working.

Check that the touchpad is enabled using the Fn key combination (e.g., Fn + F7 or similar).

The battery charge indicator does not light up.

Ensure the AC adapter is properly connected to the tablet and a power outlet. If the problem persists, contact Thomson Customer Service.

How can I optimize battery life?

Reduce screen brightness, disable Wi-Fi and Bluetooth when not in use, and close unused applications.

I lost the AC adapter. Where can I get a replacement?

Contact Thomson Customer Service to purchase an original replacement adapter.

The battery no longer works.

Contact Thomson Customer Service for battery replacement. Do not attempt to replace it yourself.

The device does not emit any sound.

Check that the volume is not muted (Fn + volume key) and that no headphones are connected. Ensure sound is enabled in Windows settings.

The device powers on but Windows does not start.

Force shutdown by holding the power button for 10 seconds, disconnect all USB devices, connect the charger, and turn on again. If it fails, contact Thomson.

How do I reset the device to factory settings?

Go to Start > Settings > Update & Security > Recovery, then choose 'Reset this PC'. You can keep your files or remove everything.

Where can I find drivers for the Thomson NEO 10?

Drivers are located in C:\WINDOWS\DRIVERS. It is recommended to back up this folder to external storage.

USER MANUAL NEO 10 THOMSON

MANUEL DE L'UTILISATEUR / USER'S MANUAL / MANUAL DE USUARIO / MANUAL DO USUÁRIO

Thank you for choosing a Thomson Computing device. To ensure that you are fully satisfied with your device, we invite you to read the information in this user manual.

NEO - 10.1"

VERSION 1.0 - 0919

Avis Juridique

Marque commerciale

AVERTISSEMENT :

Clic / Double-clic

Glissé et Déplacé

Clic gauche

Clic droit

Défilement

Zoom

Afficher le bureau

Motive is your of course

telerent of stockage

Proprietation of acquisition

7) In case of the following:

des as v6 pensables, pensables

Windows Updates : Forum on your position

Reinormatter less general memory of primary case

1. Installer of method's status

   future

Microsoft Community

Contacter le support

NEO - 10.1"

VERSION 1.0 - 0919

Legal Notice

Commercial brand

THOMSON and the THOMSON logo are registered trademarks of Technicolor (S.A.) or its subsidiaries and are used under license by Group SFIT. Microsoft®, Windows®, Windows Server® and Windows Vista® are registered trademarks of Microsoft Corporation in the United States and/or other countries/regions. The software names in this User's Guide are the property of their respective companies in accordance with the corresponding license agreement. Any reference to this software is given for information only. All other product and brand names mentioned herein may be registered trademarks, trademarks or service marks of their respective owners. Any reference to these names is for information purposes only.

Copyrights

Copyright in this User Guide is held by Group SFIT (SAS) It is prohibited to copy, translate, modify or transmit this User Guide by any means or in any format whatsoever without the prior written consent of Group SFIT (SAS).

Disclaimer of liability

For a better user experience, Group SFIT (SAS) reserves the right to make changes to this L Manual. The information contained in this document is subject to change without notice. Users are responsible for any damage resulting from improper use of this User Guide. In addition, except for the explicit warranty given in the product maintenance manual or in our service commitment, Group SFIT (SAS) makes no warranty, express or implied, related to this User Guide (including on the formulations chosen).

Declaration of conformity

Group SFIT hereby declares that this product complies with the essential requirements and other applicable provisions of Directive 2015/53/EU. The declaration of conformity of the available on the internet link:

www.mythomson.com

- Important safety instructions -

This unit should be used in an environment with an ambient temperature between 5° C ( 41° F) and 35° C ( 95° F).

Do not expose the unit to rain or moisture and keep it away from liquids. In case of splashing water or other liquid on the unit, immediately switch off the unit and wait until it is completely dry before turning it on again.

Do not expose the device directly to solar radiation

Do not use strong solvents, liquid detergents or other chemicals on or near the surface of the unit to prevent corrosion or deterioration of the surface of the unit.

Do not expose the camera to a dusty environment.

Do not use the unit during a gas leak.

Do not expose the device to strong magnetic or electric fields. You can run the device through airport x-ray detectors. However, it is recommended not to pass your device through the magnetic detection portals or expose it to portable detectors.

Do not place any objects on the device.

Do not place the unit on an uneven or unstable surface.

Make sure to protect the unit from falls or any other impact that may damage it.

Do not leave the appliance on or loaded on your lap or any other part of your body to avoid any risk of heat-related injuries.

Switch off the unit before transporting it or covering it with a material that does not allow optimal air circulation.

Do not use damaged power cords, accessories or other devices with your device.

We recommend the exclusive use of the accessories (power supply, cables, etc.) supplied with the unit.

Use only original batteries. Replacing the battery with an incorrect battery can cause an explosion risk.

Do not disassemble, modify or repair the unit yourself, as this may void the warranty.

Please back up your important content regularly to avoid data loss.

Our company accepts no responsibility for the loss or removal of items contained in the device due to improper use of the hardware or software, lack of maintenance or any other accidental event.

This product has been designed to allow proper recycling of parts and components. The symbol representing a crossed-out wheeled bin indicates that the device should not be disposed of with municipal waste. Consult local regulations for disposal of electronic devices.

The symbol representing a crossed-out wheeled bin indicates that the battery should not be disposed of with municipal waste. Consult local regulations for battery disposal.

At full volume, prolonged listening to the portable audio device may damage the user's hearing.

- Presentation of the device -

Front view

Left view

Right view

Note : The presentation of the device and some features may vary by country, model or version.

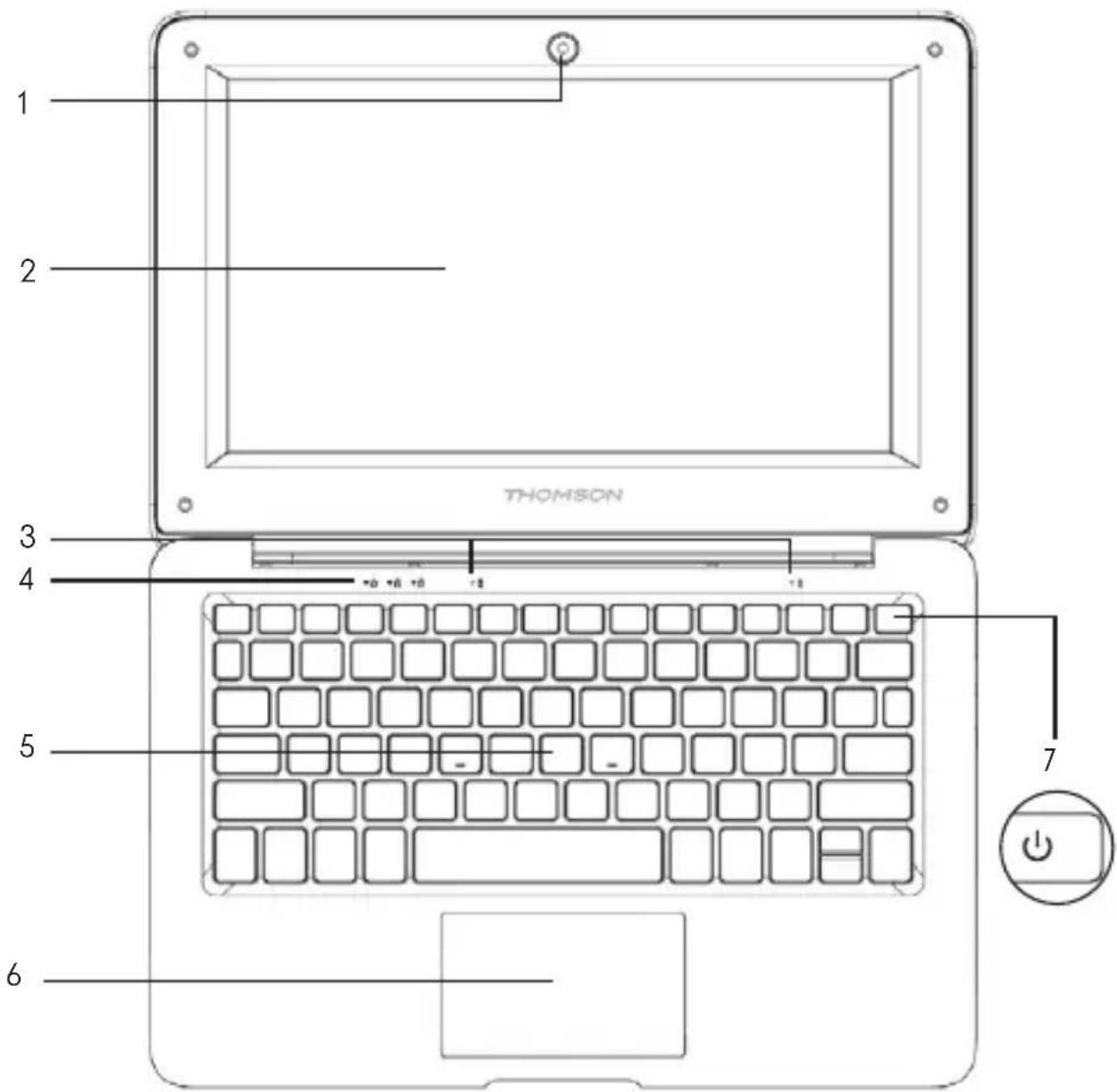

Front view

1. Front camera - Webcam

Use this camera for video calls or to take pictures.

1. Screen

2. Microphone

The microphone allows you to use the voice commands on your device, make audio/video calls, or make audio recordings.

1. Power supply indicator

2. Keyboard

3. Touchpad

The touchpad allows you to enjoy the features of a mouse. It offers an intuitive interface thanks to its multi-gestures features.

1. Power button

A long press of this button allows you to turn your notebook on or off.

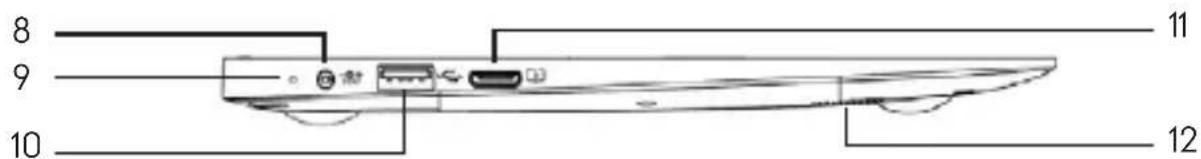

Left view

1. Mains power port

This port provides power when connected to an adapter.

1. Charging indicator

This indicator lights up while the tablet is being charged.

1. USB port type A

This port is compatible with USB devices such as a keyboard, mouse, flash drive (USB sticks, memory card readers...), external hard disk, printer.

1. Mini HDMI port (High - Definition Multimedia Interface)

This port allows you to connect your device to an HDMI-compatible device such as a TV, monitor or projector.

1. Speakers

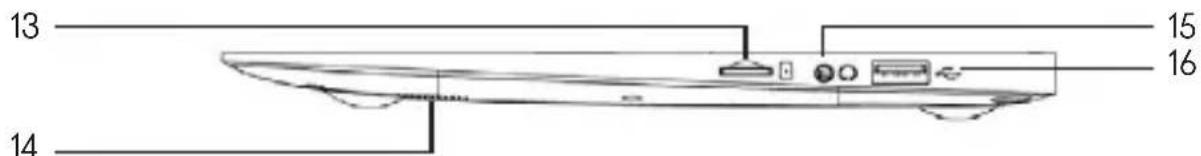

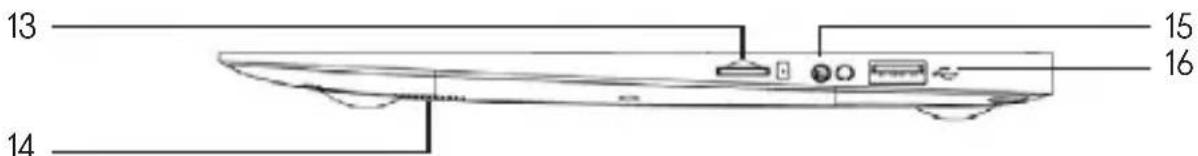

Right view

1. Micro-SD card reader

The micro-SD card reader allows you to read or write to micro-SDHC / micro-SDXC memory cards.

1. Speakers

2. Headset/microphone socket

Use this port to connect external speakers or headphones to your tablet. You can also connect headphones with an external microphone.

1. USB port type A

- Switching on -

Note: Charge your Thomson device before using it for the first time.

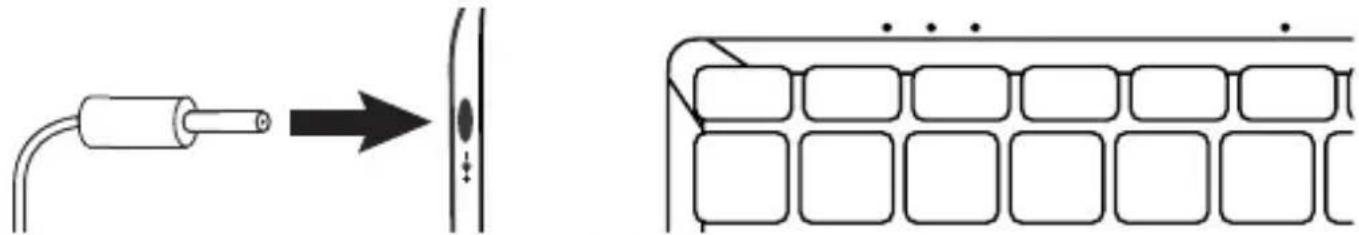

Charging the battery of your device

Connect the AC adapter to an earthed electrical outlet.

WARNING :

Read carefully the following instructions concerning the battery of your THOMSON device:

• Only a technician authorized by Thomson is authorized to remove and handle the battery.
• The battery in your Thomson device may present a fire or burn hazard if it is removed or disassembled.
• Comply with the information on the device's warning labels to avoid any risk of injury.
• There is a risk of explosion if the battery is replaced by an incorrect model.
• Do not dispose of the battery in a fire.
• Do not attempt to short-circuit the battery of the Thomson camera.
• Do not attempt to disassemble the battery or reassemble the battery.
• Stop using the battery if it leaks.
  • The battery and its components must be recycled or disposed of properly.
• Keep the battery and its components out of reach of children.

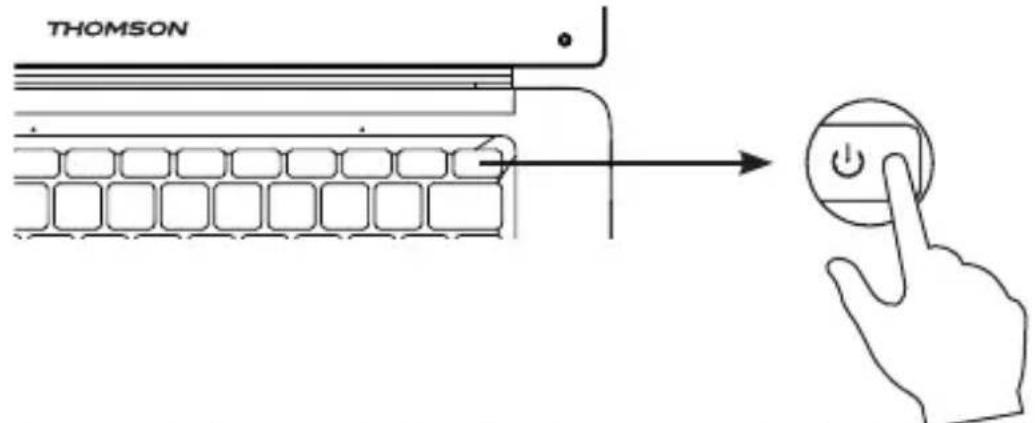

Turning your device on / off

Turn on your device by pressing and holding the power button for a long time.

To turn off your device, go to the Start menu and select Start/Stop > Stop.

First start of your device

During the first boot, the Windows ^® 10 operating system will guide you through the configuration steps.

Once these configuration steps are completed, the system completes the installation and applies your customized settings. Do not turn off the unit and ensure that there is sufficient battery power during this step.

The Windows ^® 10 home screen appears after installation and configuration is complete.

Note : If you want to restore the factory configuration or reinstall your operating system, we recommend using the Windows Reset function. For this reason,

1. Open the start menu and choose «Settings».
2. Select «Update and Update and Security» then «Recovery» from the Right menu.
3. Click on the «Start» button in the «Reset this PC» section.
4. Let us guide you.

- Using the touchpad -

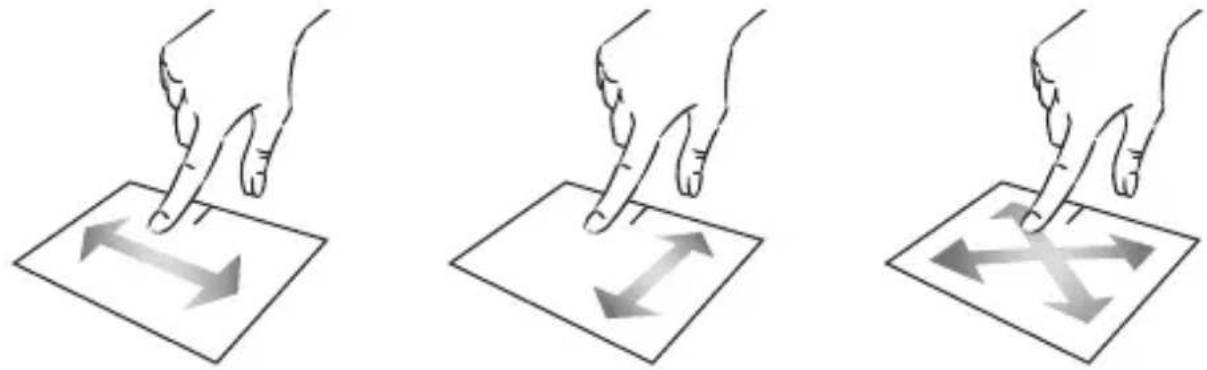

Move the pointer

Slide your finger on the touchpad to move the cursor.

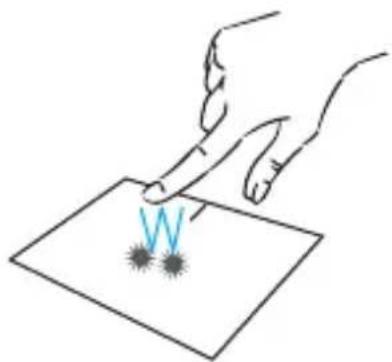

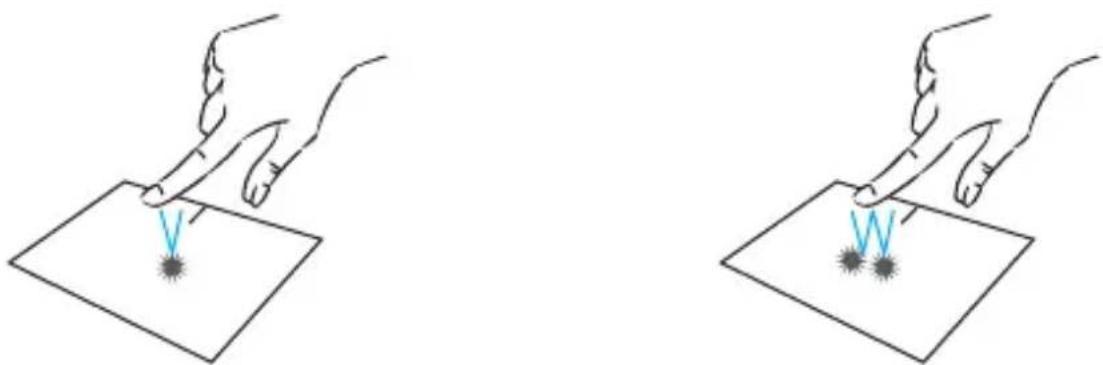

Click / Double-click

Press briefly once to make a click. For example, to select an item on the desktop or in the file explorer or to open an application from the start menu.

Press briefly twice to make a double click. For example, on the desktop or in the file explorer, this function will allow you to open the selected item.

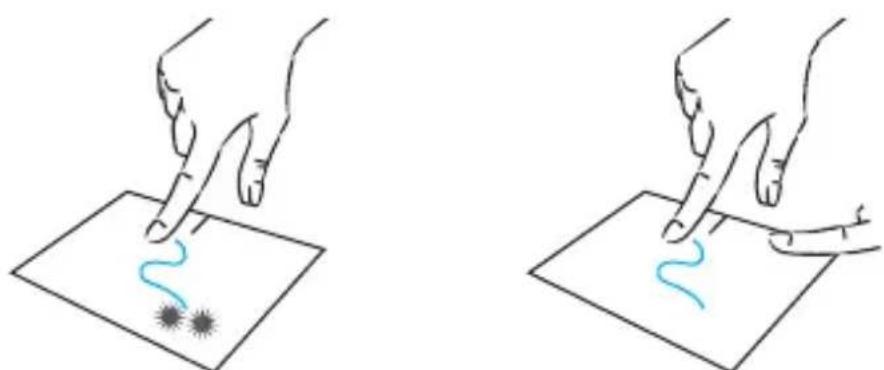

Drag and drop

Press the trackpad briefly twice to select the item and hold your finger on the trackpad by sliding it to the desired position and releasing. You can also select an element and hold down a left click while sliding another finger on the touchpad to drag and move an element.

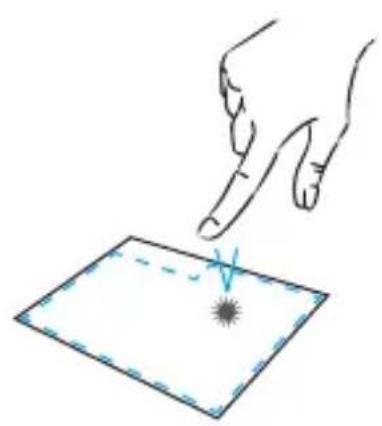

Left click

Briefly press the touchpad once to make a left click.

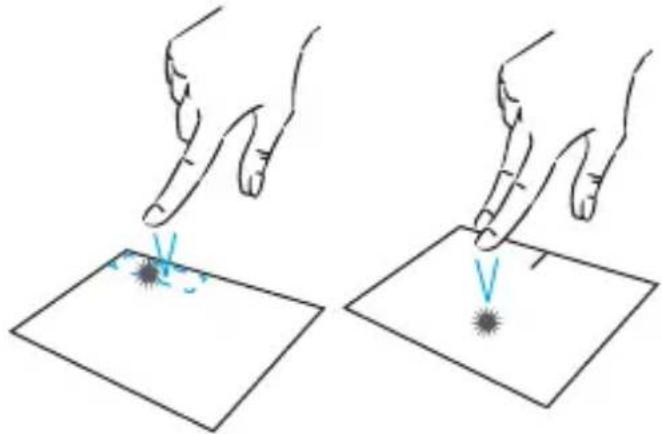

Right click

Press briefly once at the bottom right of the touchpad to make a right click or press briefly with two fingers on the touchpad.

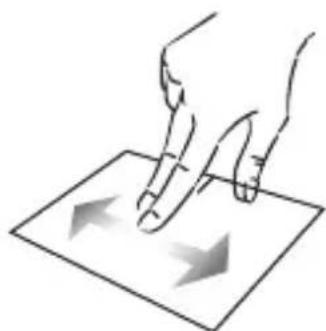

Scrolling

Slide two fingers up or down to scroll vertically.

Slide two fingers left or right to scroll horizontally.

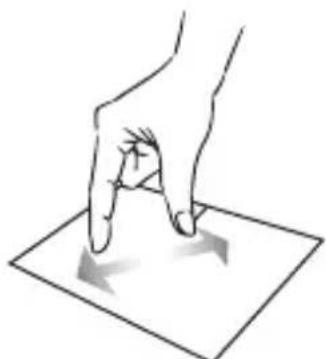

Zoom

Move two fingers closer to the touchpad area to zoom out (zoom -).

Move two fingers away from the touchpad area to zoom in (zoom +).

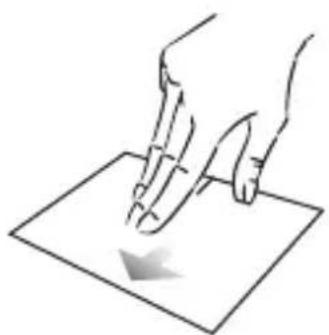

Show all applications running

Slide three fingers upwards to display all applications running.

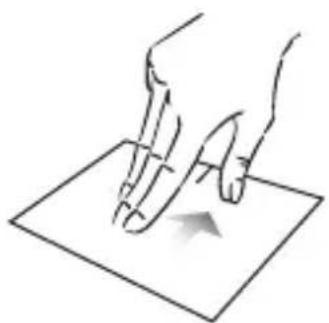

View the desktop

Slide three fingers down to display the Windows® 10 desktop.

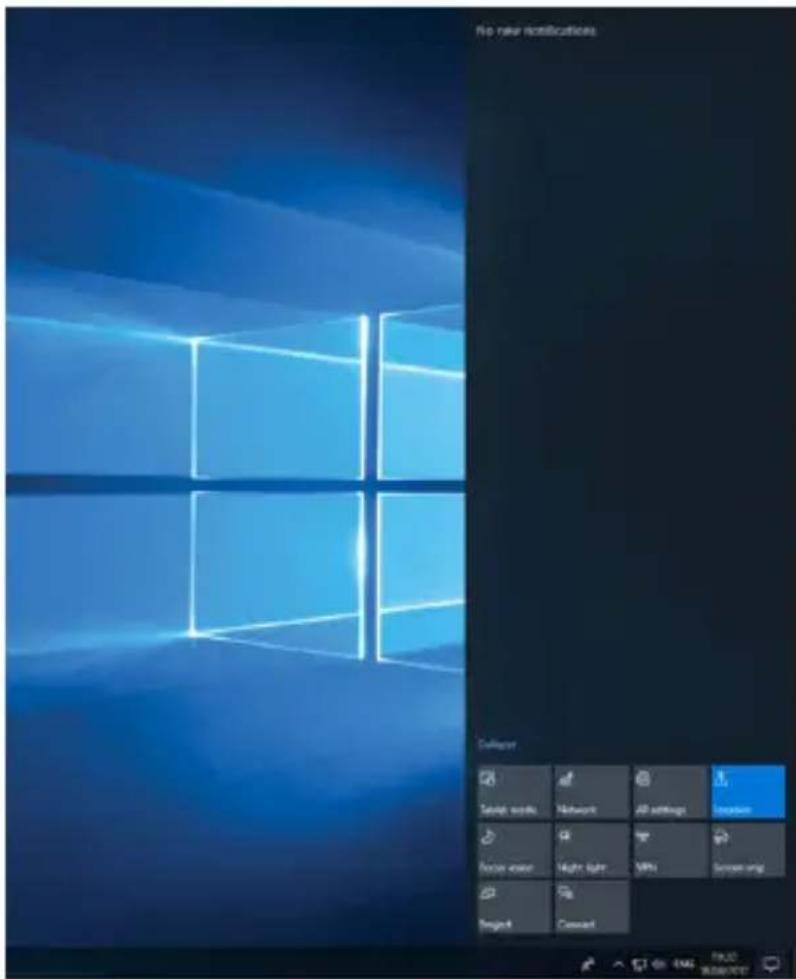

Open the action center

Briefly press with four fingers to open the Windows® 10 action center.

- Using the keyboard -

Function keys

The keypad on your device is equipped with function keys for performing actions or settings.

Note : The key icons displayed and the functions offered may vary depending on the model.

fn + 1/2 Put the computer into standby mode

fn + 🏠 Opens the default web browser

fn + 📋Enables or disables the touchpad

fn + 📄) Lower the volume level

fn + 📄 Increases the volume level

fn + ☒ Enables or disables sound

fn + ♪ Opens the default media player

fn +▶/II Media player playback or pause function

fn + | Previous music or video

fn + ▶▶▶ Next music or video

fn +★-Decreases the brightness of the screen

fn + ☆ + Increases the brightness of the screen

fn + 📧 Opens the default email software

fn +□□■Enables the use of an external display

fn + ⚙ Opens the settings menu

fn + Ⓧ Opens the search pane

fn + Δ|"Δ"Enables / Disables the wireless network

fn + 📄 Displays applications running at runtime

fn + 📋 Opens the sharing pane

fn + ↑ Vertical scrolling upwards

fn + Vertical scrolling down

fn + ↘ Start function

fn + ↘ Fine function

Pause Cancels the current program (example: a game)

PrtScr/ Saves a screenshot of your Impécr screen

Numlck/ Enables/disables the numeric VerrNum keypad

ScrLk Enables/disables scrolling

Ins Enables/disables the Refresh mode

Shortcut keys

Using the shortcut keys makes it easier to navigate under Windows ^® 10.

pens the Windows® 10 Start menu

+ A Opens the action center

+ D Displays the desktop

+ E Opens the file explorer

+ I Opens the Device Settings menu

+ L Locks the computer and displays the lock screen

+ M Reduces the size of active windows

+ S Opens the search window

+ P Opens the Project pane

- Windows® 10 Overview -

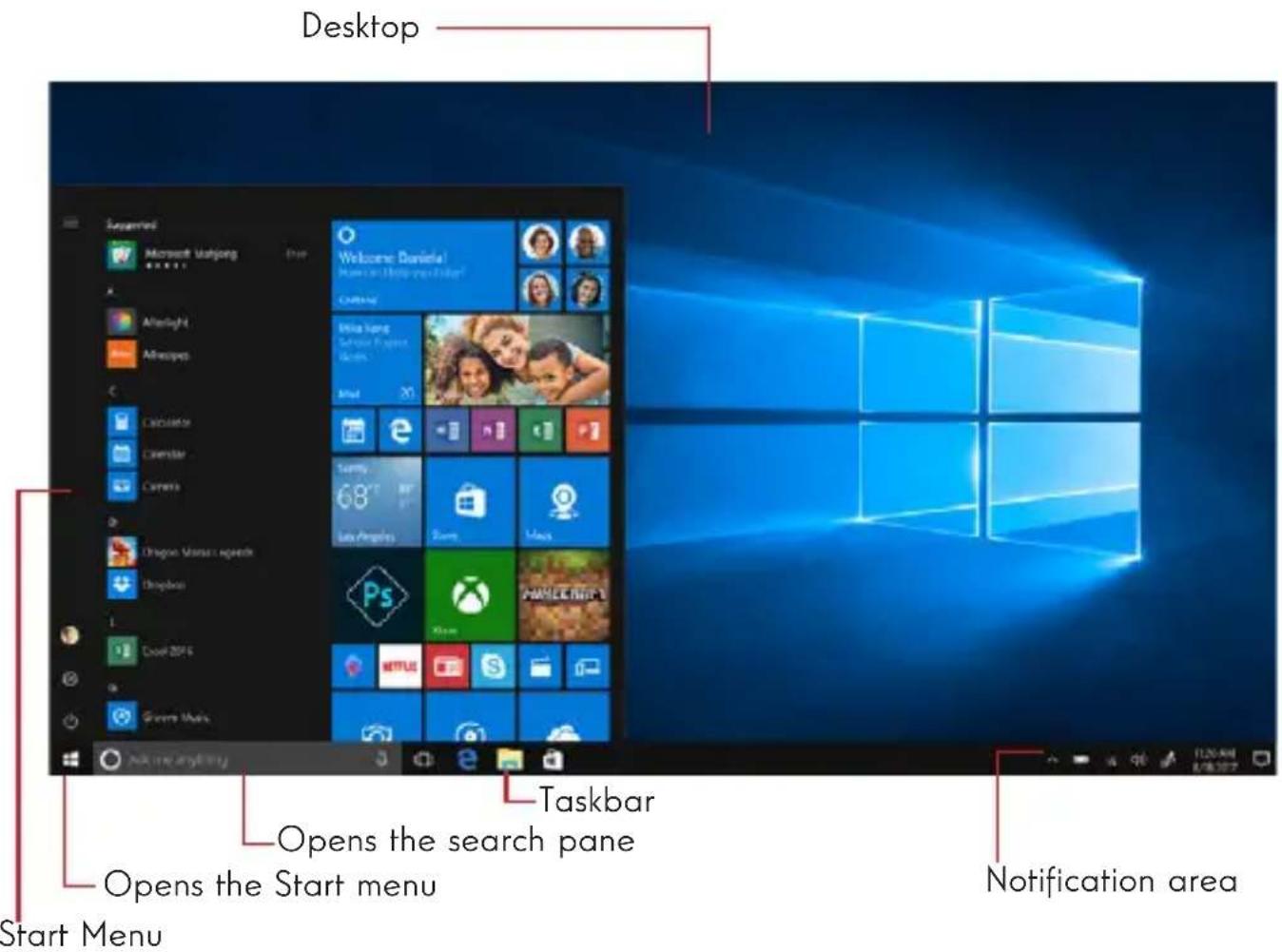

Presentation of the interface

Note : The interface may vary by country, model or version of Windows® 10

The Start menu is the entry point for your device. It allows you to access applications, folders and settings.

The taskbar displays the applications in use and allows you to switch between them.

The notification area displays important information about the use of your device.

The search pane allows you to easily search through your files, applications and other items on your device.

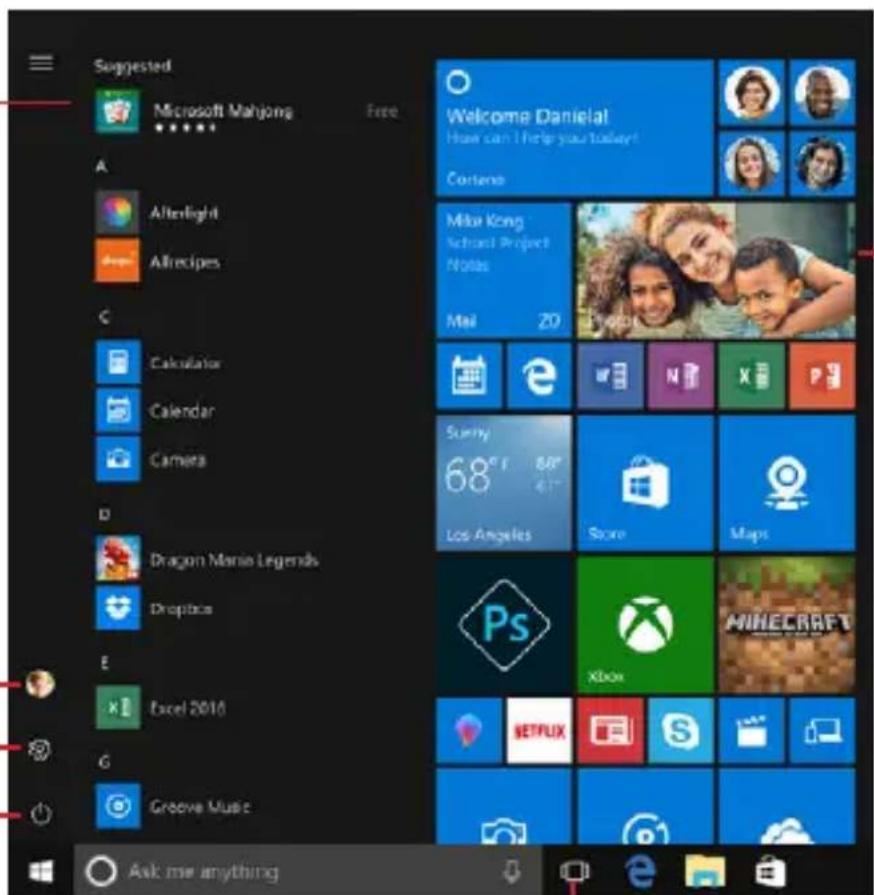

Presentation of the Start Menu

Note : The interface may vary by country, model or version of Windows® 10

The Start menu is the entry point for your device. It allows you to access applications, folders and settings.

Stop, Restart or Sleep your device
Allows you to open the parameters
Allows you to log out, lock the user session or change account settings

The applications installed on your device are listed here.

Note : To open an application, move the mouse pointer over it and click to open it.

Displays your favorite applications as tiles for quick and easy access.

Note : To display an item as a tile, right-click on it and select the «Pin to Start Menu» option.

To remove a tile, right-click on it and select the option: «Detach from the start menu».

Presentation of the Action Centre

Note : The interface may vary by country, model or version of Windows® 10

The action center groups all notifications from your applications. The lower part provides the main shortcuts useful for setting up your device.

To open the action center, click on the icon 📋 in the notification area.

Connecting to a wireless Wi-Fi network

Your device is equipped with a Wi-Fi module. Connecting to a Wi-Fi wireless network will allow you to access the Internet, check your e-mails, perform device updates or access a home or business network. To connect, follow these steps:

Click on the ☐ or ☑ in the notification area.
If Wi-Fi is not enabled, click on the
Select your wireless network from the list.
Click on «Connect». If your wireless network requires a security key, fill in the key before making the connection.

Pairing your device with a Bluetooth device

Your device is equipped with a Bluetooth module. This one allows you to connect it to a Bluetooth device (mouse, portable speakers...). To connect the two devices, follow these steps:

Go to the Start menu 📁nd select Settings.
Click on the «Devices» section and select «Bluetooth and other devices».
Select the option "Add Bluetooth or other device"
Let the assistant guide you.

Activate the Airplane mode

Airplane mode disables wireless Wi-Fi and Bluetooth connectivity. To activate the airplane mode :

Click on the icon ■ or Ⓤ in the notification area.

Click on the button

To disable the airplane mode :

Click on the icon ■ or Ⓤ in the notification area.

Click on the button

System restoration

WARNING:

Make a backup of your important data before running this option.

Windows® 10 offers several recovery options to restore the factory configuration :

• Keep my files: Reset your device by keeping your personal files.
• Delete All: Restores the factory configuration of your device. Make a backup of your important data before running this option.
• Retrograde to the previous version of Windows® 10: Use this option if you are having trouble with your device after the system update.
• Advanced boot: This option allows you to boot from an external device or access the device's firmware settings or change Windows boot settings or restore Windows from a disk image.

To perform a restoration operation, follow the following steps :

Go to the Start menu and select Settings.
Click on the «Update and security» section and select «Recovery».
Select the restoration option to be executed.

Windows10

Discover more features on the Microsoft website :

https://support.microsoft.com/en-us/hub/4338813/windows-help?os=windows-10

Windows help

网站查询内容

Windows Update: FAQ

Find out how Windows Update keeps your device up to date.

Keep your device up to date.

(1) 2017 year-end:

Windows 10

特此公告的附件

Ever up drive space in Windows 10

Finish up some drive space to keep your PC up-to-date and running smoothly.

See how to free up drive space

Upciator R. acfrustor

Inšeninkt Wojčenouga

Security Supervisory

Derivate in January

What's new in recent updates

Chuck out these com-brathens are inclined to meet Windows 70 updates, including for May updates.

Find out what's changed?

1. 用CDMA updates

Windstone Updates FAQ

Free up all the space in Windows 10

Manage updates in Windows 10

Ex windows update errors

File printer problems after updating or upgrading to wireless 10

Translbrond lalock no more prodlaterms.

Tremid et al. 2017, 2018, 30

from up space to install the latest Wndson TO best update

Windows 10 update history

initial & upgrade

) Actuate

Get more support

Microsoft Community

Past questions, Rollon discussions, and share your knowledge in the Microsoft Community Panama.

Ask the community?

Assisted support options

I am about support plans to keep your Windows and Office software running smoothly.

Расход с援助plan >

Contact support

Need assistance with your Microsoft product? We'll get you the help you need.

Get support >

- FAQ -

A black or colored dot appears on the screen !

This does not affect the performance of your device. If the problem persists, please consult the general warranty conditions and then contact Thomson Customer Service.

The touchpad doesn't work !

Check that the touchpad is correctly activated using the function keys Fn

The battery charge indicator does not light up !

Make sure that the AC charger is properly connected to an AC outlet and the power port of the unit. If the problem persists, contact Thomson Customer Service.

How to optimize battery life?

To optimize the battery life, you can adjust the screen brightness, disable Wi-Fi and Bluetooth if you are not using it and close applications you are not using.

I lost the AC adapter !

Contact Thomson Customer Service.

The battery doesn't work anymore !

Contact Thomson Customer Service.

The device does not emit any sound !

Check that the sound has not been disabled by using the function key Fn + or by increasing the volume by using the function key Fn + Make sure that no headphones are connected to your device.

When the device starts, the power indicator lights up but the operating system does not start!

Force the device to turn off by pressing the power button for 10 seconds and then disconnect all connected USB devices. Connect the device to a socket with the charger. Turn on the device.

If the problem persists, contact Thomson Customer Service.

The computer does not wake up from sleep mode !

Use the power button to exit the standby mode. Check that the battery level is sufficient by plugging the unit into an AC outlet using the charger. Press the power button again.

Where to find the drivers for your Thomson device ?

The drivers necessary for the proper functioning of your device are present in the following folder :

C:\WINDOWS\DRIVERS\

We recommend that you backup the entire folder to an external storage medium (external hard disk, USB sticks, CD-R) in order to keep a copy of these drivers.

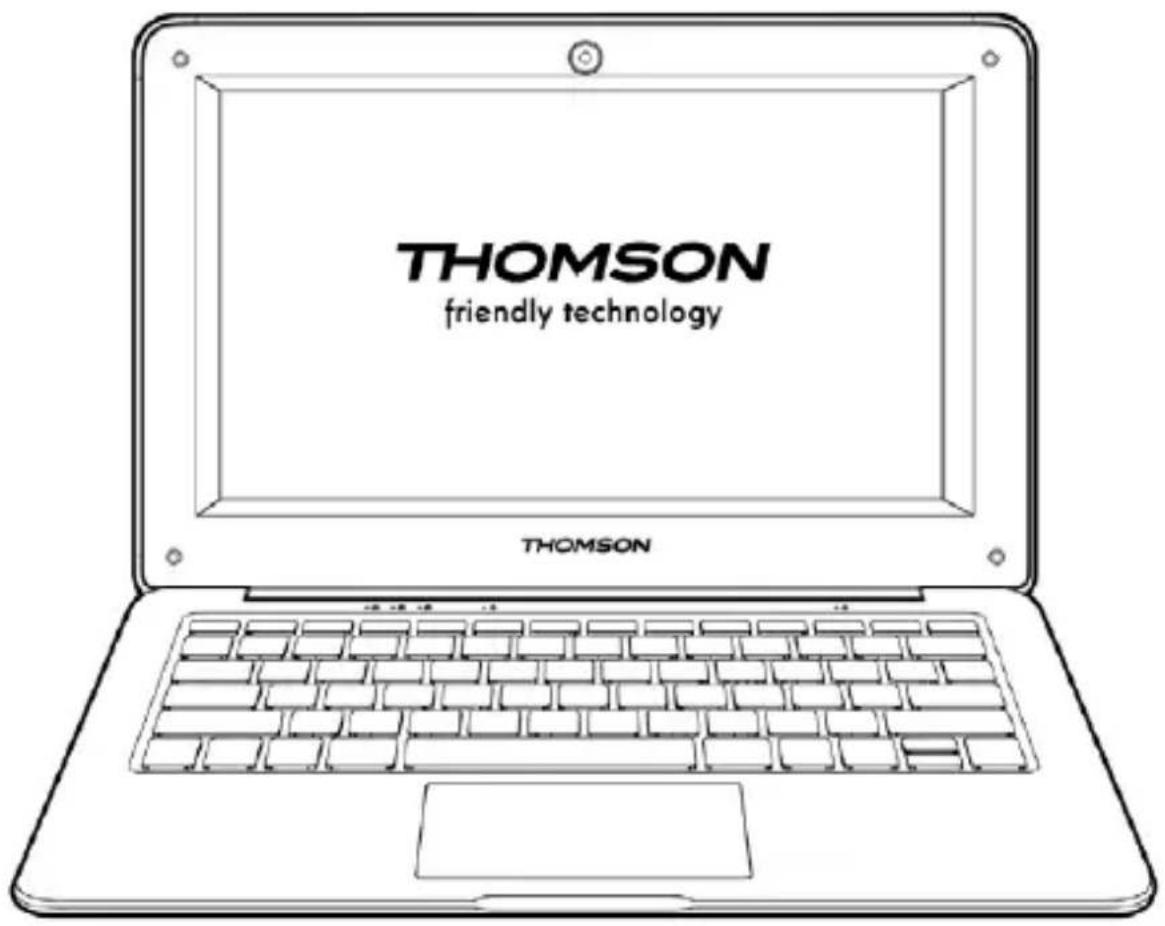

MANUAL DE USUARIO

NEO - 10.1"

VERSIÓN 1.0 - 0919

Aviso legal

Marca comercial

ADVERTENCIA :

Clic / Doble clic

Arrastrar y soltar

Clic izquierdo

Clic derecho

Desplazamiento

Zoom

Ver el escritorio

- Uso del teclado -

Teclas de función

Microsoft iPhone 2 application

a mayor y medicinal restaurant

Microsoft Community

Publica proguente, sigue debates y comparte tu consolivantes en los Furos de Microsoft Community.

NEO - 10.1"

VERSÃO 1.0 - 0919

Aviso Legal

Marca comercial

AVISO :

Clique / Duplo-clique

Arrastar e largar

Clique direito

Rolagem

Zoom

Afaste dois dedos da área do touchpad para aumentar o zoom (zoom +).

fn + ♪ Abre o media player padrão

fn + ☒ Abre o software de e-mail padrão

fn + ♂ Abre o painel de pesquisa

fn + Δ|⁰Δ⁰ Habilita / Desabilita a rede wireless

Balance results can be made from the end of the

Sogarcicola e jervascicola

Microsoft Community

NEO - 10.1"

VERSIONE 1.0 - 0919

Avviso legale

Marchio commerciale

ATTENZIONE :

Clic sinistro

Clic destro

Scorrimento

Zoom

fn + ▶▶▶ Prossima musica o video

Displays applications running at runtime

Discover more features on the Microsoft website :

https://support.microsoft.com/it-it/hub/4338813/windows-help?os=windows-10

Guida di Windows

(四) 7月10日 表示内容

Windows Update: dornacle frequenti

Institutional practice

Windows 10

-

(四) 限制性方法及

Based on the results of the performance

Diagnóstico or equivalent

Windows Update: domains frequent

Libervas spazio auffuriti in Windows 12

Microsoft Community

Oled also community >

NEO - 10.1"

VSIE 1.0 - 0919

WAARSCHUWING:

Slepen en neerzetten

Rechtermuisklik

Scrollen

Zoom

Toon alle lopende applicaties

Discover more features on the Microsoft website :

https://support.microsoft.com/nl-be/hub/4338813/windows-help?os=windows-10

Windows Help

益捷股份

Windows Update: restigusteliche vragen

Ondelki: Kies Winclovn. Update je apparaeters up to -to -state houdt.

le apprent up for date headers.)

lebuchem y product.

Wendys 10

-

本公告附后在《证券

Nanakadishu w. (anschied)

Sarrows on increased

Nieuw in recente updates

Dividends will be paid (except it.)

三、限制性因素

Windows Update: Volgustells

Schulents in when in Windows 10

Updates van boheren in mindwes 19

Sources in Windline Update oglosses

Microsoft Community

Ziel výzegu, volg. discusiiia en deel je kortela in de Microsoft Community Panama.

NEO - 10.1"

VERSION 1.0 - 0919

Impressum

Handelsmarke

- Presentation of the device -

Vorderansicht

Linke Ansicht

Rechte Ansicht

1. Port Mini-HDMI (High - Definition Multimedia Interface)

1. Micro-SD Kartenleser

WARNUNG :

Ziehen und Ablegen

Rechtsklick

Scrollen

Zoom

Discover more features on the Microsoft website :

https://support.microsoft.com/de-de/hub/4338813/windows-help?os=windows-10

Windows-Hilfe

(四) 适用

Windows Update: FAQ

1. Implementation and Upgrade

汉苏银行

Microsoft Community

(1) non Support plan not forward
