USER MANUAL EI24MO45IB ELECTROLUX

MICROWAVE ENERGY (a) Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. (b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. (c) Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the: (1) door (bent), (2) hinges and latches (broken or loosened), (3) door seals and sealing surfaces. (d) The oven should not be adjusted or repaired by anyone except properly qualified service personnel. Purchase date Electrolux model number Electrolux serial number (see picture for location) Please read and save this guide Thank you for choosing Electrolux, the new premium brand in home appliances. This Use & Care Guide is part of our commitment to customer satisfaction and product quality throughout the service life of your new appliance. We view your purchase as the beginning of a relationship. To ensure our ability to continue serving you, please use this page to record important product information. Keep a record for quick reference Questions? For toll-free telephone support in the U.S. and Canada: 1-877-4ELECTROLUX (1-877-435-3287) For online support and Internet production information visit http://www.electroluxusa.com ©2016 Electrolux Home Products, Inc. All rights reserved. Finding Information NOTE Registering your product with Electrolux enhances our ability to serve you. You can register online at www.electroluxusa.com or by dropping your Product Registration Card in the mail.E

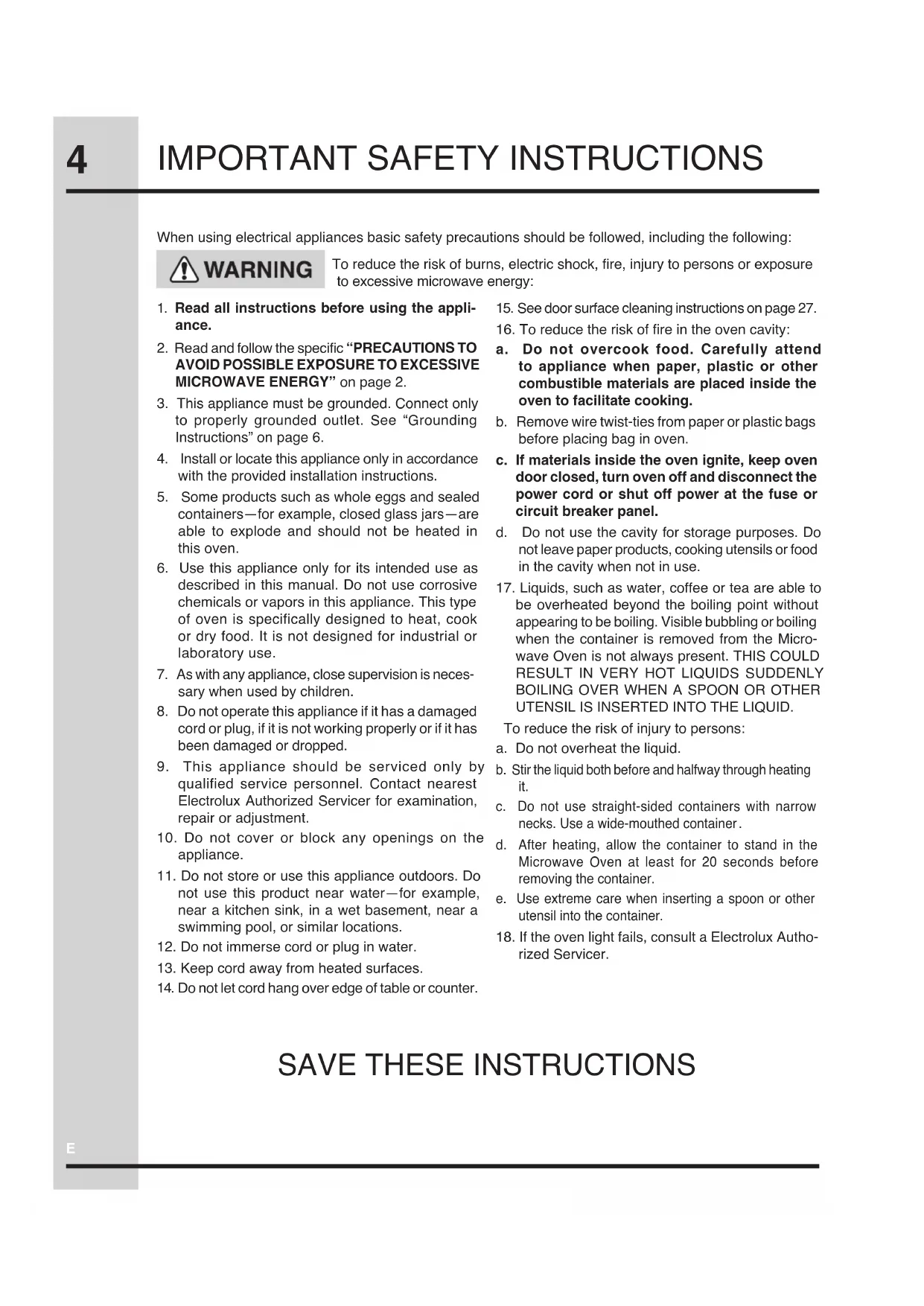

When using electrical appliances basic safety precautions should be followed, including the following: To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy:

SAVE THESE INSTRUCTIONS

1. Read all instructions before using the appli-

2. Read and follow the specific “PRECAUTIONS TO

3. This appliance must be grounded. Connect only

to properly grounded outlet. See “Grounding Instructions” on page 6.

4. Install or locate this appliance only in accordance

with the provided installation instructions.

5. Some products such as whole eggs and sealed

containers—for example, closed glass jars—are able to explode and should not be heated in this oven.

6. Use this appliance only for its intended use as

described in this manual. Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook or dry food. It is not designed for industrial or laboratory use.

7. As with any appliance, close supervision is neces-

sary when used by children.

8. Do not operate this appliance if it has a damaged

cord or plug, if it is not working properly or if it has been damaged or dropped.

9. This appliance should be serviced only by

qualified service personnel. Contact nearest Electrolux Authorized Servicer for examination, repair or adjustment.

10. Do not cover or block any openings on the

11. Do not store or use this appliance outdoors. Do

not use this product near water—for example, near a kitchen sink, in a wet basement, near a swimming pool, or similar locations.

12. Do not immerse cord or plug in water.

13. Keep cord away from heated surfaces.

16. To reduce the risk of fire in the oven cavity:

a. Do not overcook food. Carefully attend to appliance when paper, plastic or other combustible materials are placed inside the oven to facilitate cooking. b. Remove wire twist-ties from paper or plastic bags before placing bag in oven. c. If materials inside the oven ignite, keep oven door closed, turn oven off and disconnect the power cord or shut off power at the fuse or circuit breaker panel. d. Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils or food in the cavity when not in use.

17. Liquids, such as water, coffee or tea are able to

be overheated beyond the boiling point without appearing to be boiling. Visible bubbling or boiling when the container is removed from the Micro- wave Oven is not always present. THIS COULD

RESULT IN VERY HOT LIQUIDS SUDDENLY

BOILING OVER WHEN A SPOON OR OTHER UTENSIL IS INSERTED INTO THE LIQUID. To reduce the risk of injury to persons: a. Do not overheat the liquid. b. Stir the liquid both before and halfway through heating it. c. Do not use straight-sided containers with narrow necks. Use a wide-mouthed container

d. After heating, allow the container to stand in the Microwave Oven at least for 20 seconds before removing the container. e. Use extreme care when inserting a spoon or other utensil into the container.

IMPORTANT SAFETY INSTRUCTIONSE

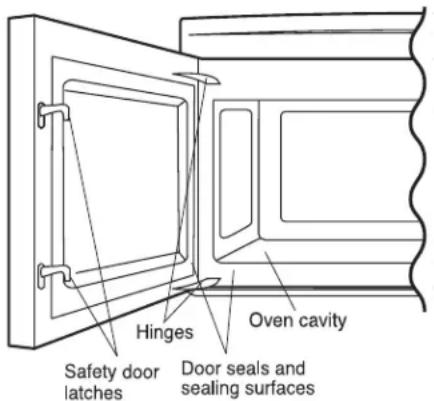

Unpacking and Examining Your Oven

1. Remove all packing materials from inside the oven cavity. DO

NOT REMOVE THE WAVEGUIDE COVER, which is located on the right cavity wall. Read enclosures and SAVE this Use and Care Guide.

2. Remove the feature sticker, if there is one, from the outside

of the door. Check the oven for any damage, such as misaligned or bent door, damaged door seals and sealing surfaces, broken or loose door hinges and latches and dents inside the cavity or on the door. If there is any damage, do not operate the oven and contact your dealer or ELECTROLUX AUTHORIZED SERVICER. Choosing a Location for Your Microwave Oven Your oven can be built into a cabinet or wall by itself or above any electric wall oven or warming drawer using built-in kit models EI27MO45T or EI30MO45T for microwave oven model EI24MO45I. Unpacking and Installation InstructionE

GROUNDING INSTRUCTIONS This appliance must be grounded. This oven is equipped with a cord having a grounding wire with a ground- ing plug. It must be plugged into a wall receptacle that is properly installed and grounded in accordance with the National Electrical Code and local codes and ordinances. In the event of an electrical short circuit, grounding reduces risk of electric shock by providing an escape wire for the electric current. Improper use of the grounding plug can result in a risk of electric shock. Electrical Requirements The electrical requirements are a 120 volt 60 Hz, AC only, 15 amp. or more protected electrical supply. It is recommended that a separate circuit serving only this appliance be provided. The oven is equipped with a 3-prong grounding plug. It must be plugged into a wall receptacle that is properly installed and grounded. Should you only have a 2-prong outlet, have a qualified electrician install a correct wall receptacle. A 3-prong adapter may be purchased and used temporarily if local codes allow. Follow package directions. A short power-supply cord is provided to reduce risk of becoming entangled in or tripping over a longer cord. DO NOT USE AN EXTENSION CORD. If the power supply cord is too short, have a qualified electrician or serviceperson install an outlet near the appliance. NOTES:

1. If you have any questions about the grounding or electrical instruc-

tions, consult a qualified electrician or serviceperson.

2. Neither Electrolux nor the dealer can accept any liability for damage

to the oven or personal injury resulting from failure to observe the correct electrical connection procedures. Radio or TV Interference Should there be any interference caused by the microwave oven to your radio or TV, check that the micro- wave oven is on a different electrical circuit, relocate the radio or TV as far away from the oven as feasible or check position and signal of receiving antenna.E

About your oven This Use and Care Guide is valuable: read it carefully and always save it for reference. A good microwave cookbook is a valuable asset. Check it for microwave cooking principles, tech- niques, hints and recipes. NEVER use the Microwave Oven without the turntable and support nor turn the turntable over so that a large dish could be placed in the oven. The turntable will turn both clockwise and counterclockwise. ALWAYS have food in the Microwave Oven when it is on to absorb the microwave energy. When using the Microwave Oven at power levels below 100%, you may hear the magnetron cycling on and off. It is normal for the exterior of the oven About microwave cooking

• Arrange food carefully. Place thickest areas towards outside of dish.

• Watch cooking time. Cook for the shortest amount of time indicated and add more as needed. Food severely overcooked can smoke or ignite.

• Cover foods while cooking. Check recipe or cook- book for suggestions: paper towels, wax paper, microwave plastic wrap or a lid. Covers prevent spattering and help foods to cook evenly.

• Shield with small flat pieces of aluminum foil any thin areas of meat or poultry to prevent overcooking before dense, thick areas are cooked thoroughly.

• Stir foods from outside to center of dish once or twice during cooking, if possible.

• Turn foods over once during microwaving to speed cooking of such foods as chicken and hamburg- ers. Large items like roasts must be turned over at least once.

• Rearrange foods such as meatballs halfway through cooking both from top to bottom and from the center of the dish to the outside.

• Add standing time. Remove food from oven and stir, if possible. Cover for standing time which allows the food to finish cooking without overcook- ing.

• Check for doneness. Look for signs indicating that cooking temperatures have been reached. Doneness signs include: - Food steams throughout, not just at edge. - Center bottom of dish is very hot to the touch. - Poultry thigh joints move easily. - Meat and poultry show no pinkness. - Fish is opaque and flakes easily with a fork. Information You Need To Know to be warm to the touch when cooking or reheating. Condensation is a normal part of microwave cook- ing. Room humidity and the moisture in food will influence the amount of moisture that condenses in the oven. Generally, covered foods will not cause as much condensation as uncovered ones. Ventilation openings must not be blocked. The Microwave Oven is for food preparation only. It should not be used to dry clothes or newspapers. Your Microwave Oven is rated 1100 watts by using the IEC Test Procedure. In using recipes or package directions, check food a minute or two before the minimum time and add time accordingly.E

Children below the age of 7 should use the microwave oven with a supervising person very near to them. Between the ages of 7 and 12, the supervising person should be in the same room. The child must be able to reach the oven comfortably; if not, he/she should stand on a sturdy stool. At no time should anyone be allowed to lean or swing on the oven door. About children and the microwave About safety

• Check foods to see that they are cooked to the United States Department of Agriculture’s recom- mended temperatures. Temp Food 160˚F For fresh pork, ground meat, bone- less white poultry, fish, seafood, egg dishes and frozen prepared food. 165˚F For leftover, ready-to-reheat refriger- ated, and deli and carry-out “fresh” food. 170˚F White meat of poultry. 180˚F Dark meat of poultry. To test for doneness, insert a meat thermometer in a thick or dense area away from fat or bone. NEVER leave the thermometer in the food during cooking, unless it is approved for microwave use.

• ALWAYS use potholders to prevent burns when handling utensils that are in contact with hot food. Enough heat from the food can transfer through utensils to cause skin burns.

• Avoid steam burns by directing steam away from the face and hands. Slowly lift the farthest edge of a dish’s covering and carefully open popcorn and oven cooking bags away from the face.

• Stay near the oven while it’s in use and check cooking progress frequently so that there is no chance of overcooking food.

• NEVER use the cavity for storing cookbooks or other items.

• Select, store and handle food carefully to preserve its high quality and minimize the spread of food- borne bacteria.

• Keep waveguide cover clean. Food residue can cause arcing and/or fires.

• Use care when removing items from the oven so that the utensil, your clothes or accessories do not touch the safety door latches.

• Keep aluminum foil used for shielding at least 1 inch away from walls, ceiling and door. Information You Need To Know Children should be taught all safety precautions: use potholders, remove coverings carefully, pay special attention to packages that crisp food because they may be extra hot. Don’t assume that because a child has mastered one cooking skill he/she can cook everything. Children need to learn that the microwave oven is not a toy. See page 24 for Child Lock feature.E

About food Food Do Don't Eggs, sausages, nuts, seeds, fruits & vegetables

• Puncture egg yolks before cooking to prevent “explosion”.

• Pierce skins of potatoes, apples, squash, hot dogs and sausages so that steam escapes.

• Cook eggs in shells.

• Dry nuts or seeds in shells. Popcorn

• Use specially bagged popcorn for microwave cooking.

• Listen while popping corn for the popping to slow to 1 or 2 seconds or use special popcorn pad.

• Pop popcorn in regular brown bags or glass bowls.

• Exceed maximum time on popcorn package. Baby food

• Transfer baby food to small dish and heat carefully, stirring often. Check temperature before serving.

• Put nipples on bottles after heating and shake thoroughly. “Wrist” test before feeding.

• Heat disposable bottles.

• Heat bottles with nipples on.

• Heat baby food in original jars. General

• Cut baked goods with filling after heat- ing to release steam and avoid burns.

• Stir liquids briskly before and after heating to avoid “eruption”.

• Use deep bowl, when cooking liquids or cereals, to prevent boilovers.

• Heat or cook in closed glass jars or air tight containers.

• Can in the microwave as harmful bacteria may not be destroyed.

About utensils and coverings reheating and absorbing fat while cooking bacon.

• Wax paper can be used for cooking and reheating.

• Plastic wrap that is specially marked for micro- wave use can be used for cooking and reheating. DO NOT allow plastic wrap to touch food. Vent so steam can escape.

• Lids that are microwave-safe are a good choice because heat is kept near the food to hasten cooking.

• Oven cooking bags are good for large meats or foods that need tenderizing. DO NOT use metal twist ties. Remember to slit bag so steam can escape. How to use aluminum foil in your Microwave Oven:

• Small flat pieces of aluminum foil placed smoothly on the food can be used to shield areas that are either defrosting or cooking too quickly.

• Foil should not come closer than one inch to any surface of the oven. Should you have questions about utensils or cover- ings, check a good microwave cookbook or follow recipe suggestions. Accessories There are many microwave accessories available for purchase. Evaluate carefully before you purchase so that they meet your needs. A microwave-safe ther- mometer will assist you in determining correct done- ness and assure you that foods have been cooked to safe temperatures. Electrolux is not responsible for any damage to the oven when accessories are used. It is not necessary to buy all new cookware. Many pieces already in your kitchen can be used suc- cessfully in your new Microwave Oven. Make sure the utensil does not touch the interior walls during cooking. Use these utensils for safe microwave cooking and reheating:

• glass ceramic (Pyroceram

), such as Corningware

• heat-resistant glass (Pyrex

• microwave-safe plastics

• microwave-safe pottery, stoneware and porcelain

• browning dish (Do not exceed recommended preheating time. Follow manufacturer's directions.) These items can be used for short time reheating of foods that have little fat or sugar in them:

• metal pans and bakeware

• dishes with metallic trim

• non-heat-resistant glass

• non-microwave-safe plastics (margarine tubs)

• recycled paper products

• metal twist-ties Should you wish to check if a dish is safe for microwaving, place the empty dish in the oven and microwave on HIGH for 30 seconds. A dish which becomes very hot should not be used. The following coverings are ideal:

• Paper towels are good for covering foods for Information You Need To KnowE

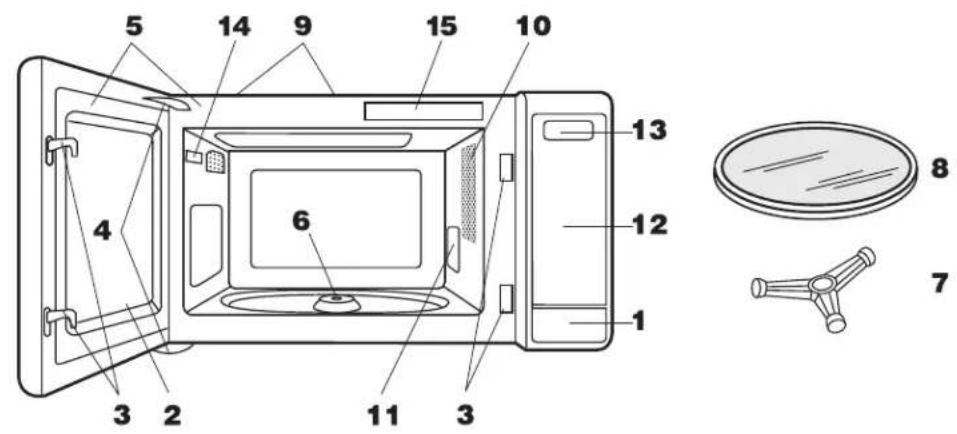

1 One touch door open button Push to open door. 2 Oven door with see-through window 3 Safety door latches The oven will not operate unless the door is securely closed. 4 Door hinges 5 Door seals and sealing surfaces 6 Turntable motor shaft 7 Removable turntable support Carefully place the turntable support in the center of the oven floor. Part Names 8 Removable turntable Place the turntable on the turntable support securely. The turntable will rotate clockwise or counterclockwise. Only remove for cleaning. 9 Ventilation openings (Rear) 10 Oven light It will light when oven is operating or door is open. 11 Waveguide cover: DO NOT REMOVE. 12 Control panel 13 Time display: 99 minutes, 99 seconds 14 Rating plate 15 Menu label INTERACTIVE Display The 7-digit Interactive Display spells out operating steps and shows cooking hints. When HELP is lighted in the display, press the user pref pad to read a specific hint which may assist you. Indicators Words in the display will light to indicate what function is in progress.E

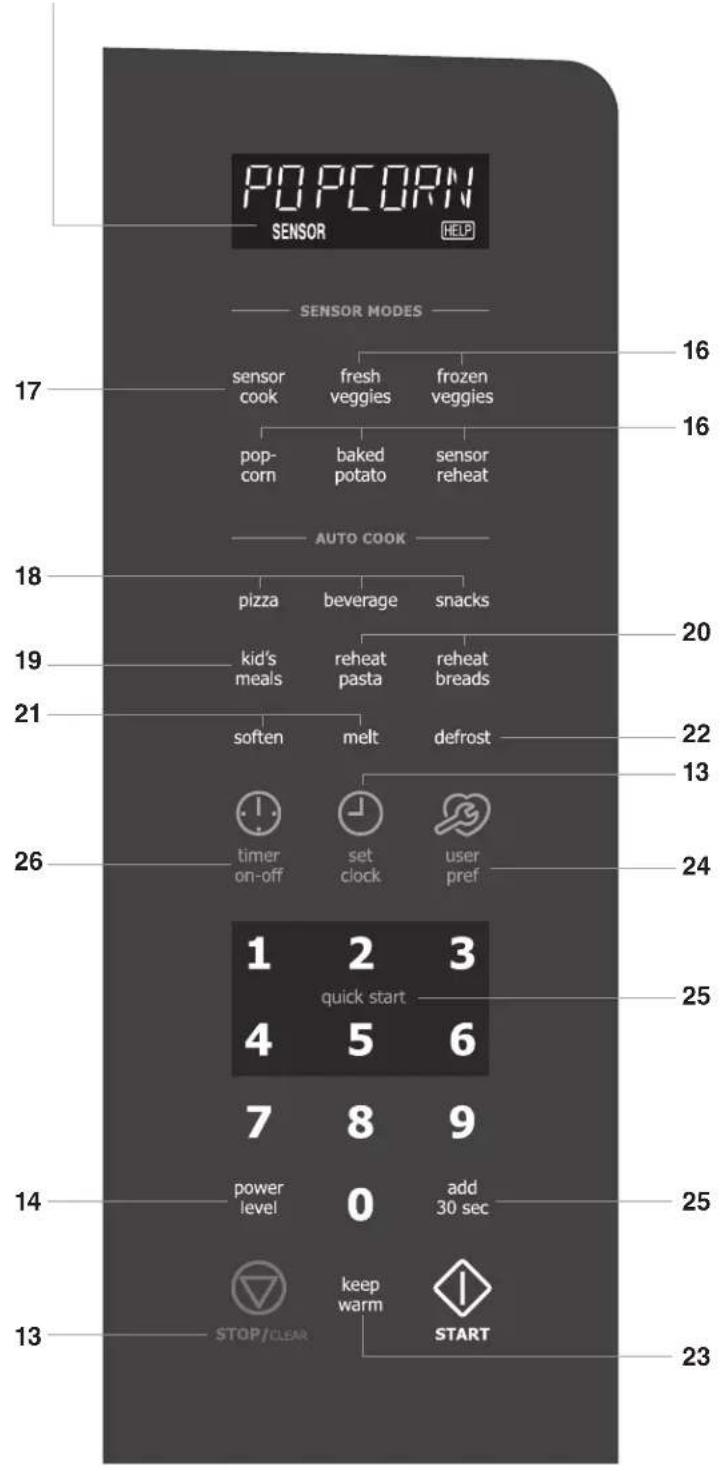

Number next to the control panel illustration indicates pages on which there are feature descriptions and usage information. Words in the lower portion of the display will light to indicate what function is in progress. Control panel

• Before operating your new Microwave Oven make sure you read and understand this Use and Care Guide completely.

• Before the Microwave Oven can be used, follow these procedures:

1. Plug in the oven. Close the door. The oven display

will show ENJOY YOUR OVEN PRESS CLEAR AND PRESS CLOCK.

2. Press the STOP/CLEAR pad. : will appear.

3. Set clock. See below.

• Suppose you want to enter the correct time of day 12:30 (A.M. or P.M.). Procedure Step Press

2. Enter the correct time of

day by pressing the numbers in sequence.

3. Press set clock again.

set clock This is a 12 hour clock. If you attempt to enter an incorrect clock time, ERROR will appear in the display. Press the STOP/CLEAR pad and re-enter the time.

• If the electrical power supply to your microwave oven should be interrupted, the display will intermittently show ENJOY YOUR OVEN PRESS CLEAR AND PRESS CLOCK after the power is reinstated. If this occurs during cooking, the program will be erased. The time of day will also be erased. Simply press STOP/CLEAR pad and reset the clock for the correct time of day. NOTE Your Microwave Oven can be programmed with the door open except for START and popcorn. Stop/Clear Press the STOP/CLEAR to:

1. Erase if you make a mistake during programming.

3. Stop the oven temporarily during cooking.

4. Return the time of day to the display.

5. Cancel a program during cooking, press twice.

• Suppose you want to defrost for 5 minutes at 30%. Procedure Step Press

1. Enter defrosting time.

eight times or hold down until the desired power level appears. power level x 8

3. Press START. START

When the defrost time is complete, a long tone will sound and END will appear in the display. Manual defrost If the food that you wish to defrost is not listed on the Defrost chart or is above or below the limits in the Amount column on the Defrost chart (see page 22), you need to defrost manually. You can defrost any frozen food, either raw or previ- ously cooked, by using Power Level for 30%. Follow the exact 3-step procedure found under To set power level. Estimate defrosting time and press power level pad eight times for 30% power. For either raw or previously cooked frozen food the rule of thumb is approximately 4 minutes per pound. For example, defrost 4 minutes for 1 pound of frozen spaghetti sauce. Always stop the oven periodically to remove or separate the portions that are defrosted. If food is not defrosted at the end of the estimated defrosting time, program the oven in 1 minute increments on power level 30% until totally defrosted. When using plastic containers from the freezer, defrost only long enough to remove from the plastic in order to place in a microwave-safe dish. Manual Operation Time cooking Your Microwave Oven can be programmed for 99 minutes 99 seconds (99.99). Always enter the sec- onds after the minutes, even if they are both zeros.

• Suppose you want to cook for 5 minutes at 100%. Procedure Step Press

1. Enter cooking time.

To set power level There are eleven preset power levels. Using lower power levels increases the cooking time which is recommended for foods such as cheese, milk and long slow cooking of meats. Consult cook- book or recipes for specific recommendations. Press power level pad number of times for desired power Approx. Percentage of power Common words for power levels power level x 1 100% High power level x 2 90% power level x 3 80% power level x 4 70% Medium High power level x 5 60% power level x 6 50% Medium power level x 7 40% power level x 8 30% Med Low/ Defrost power level x 9 20% power level x 10 10% Low power level x 11 0%E

Sensor Modes The sensor is a semi-conductor device that detects the vapor (moisture and humidity) emitted from the food as it heats. The sensor adjusts the cooking times and power level for various foods and quantities. Using Sensor Modes:

1. After oven is plugged in, wait 2 minutes before

2. Be sure the exterior of the cooking container

and the interior of the oven are dry. Wipe off any moisture with a dry cloth or paper towel.

3. The oven works with foods at normal storage

temperature. For example, popcorn would be at room temperature.

4. Any Sensor Modes selection can be programmed

with More or less time adjustment. See page 25.

5. More or less food than the quantity listed in the

chart should be cooked following the guidelines in any microwave cookbook.

6. During the first part of any sensor cooking or reheat-

ing, food name will appear on the display. Do not open the oven door or press STOP/CLEAR during this part of the cycle. The measurement of vapor will be interrupted. If this occurs, an error message will appear. To continue cooking, press the STOP/CLEAR pad and cook manually. When the sensor detects the vapor emitted from the food, remainder of cooking time will appear. Door may be opened when remaining cooking time appears on the display. At this time, you may stir or season food, as desired.

7. If the sensor does not detect vapor properly when

popping popcorn, the oven will turn off, and the correct time of day will be displayed. If the sensor does not detect vapor properly when cooking other foods, ERROR will be displayed. Follow the instructions.

8. Check food for temperature after cooking. If addi-

tional time is needed, continue to cook manually.

9. Each food has a cooking hint. Press user pref pad

when the HELP indicator is lighted in the display. Covering Foods: Some foods cook better when covered. Use the cover recommended in the food charts.

microwave cooking. Cover dish loosely; allow approximately

/2 inch to remain uncovered to allow steam to escape. Plastic wrap should not touch food.

3. Wax paper: Cover dish completely; fold excess

wrap under dish to secure. If dish is wider than paper, overlap two pieces at least one inch to cover. Be careful when removing any covering to allow steam to escape away from you. Quick Sensor You can cook or reheat many foods by pressing a Quick Sensor pad (fresh veggies, frozen veggies, popcorn, baked potato and sensor reheat) and START. You don't need to calculate cooking time or power level.

• Suppose you want to cook 2 baked potatoes. Procedure Step Press Press baked potato pad. baked potato NOTES

1. Quick Sensor can be programmed with More

or less time adjustment. See page 25.

2. The final result will vary according to the food

condition (e.g. initial temperature, shape, quality). Check food for temperature after heating. If additional time is needed, continue to heat manually.E

Sensor Modes Quick Sensor chart Food Amount Procedure Fresh Veggies: Soft Broccoli Brussels sprouts Cabbage Cauliflower (flowerets) Cauliflower (whole) Spinach Zucchini Baked apples Hard Carrots, sliced Corn on cob Green beans Winter squash - diced - halves

Wash and place in casserole. Add no water if vegetables have just been washed. Cover with lid for tender vegetables. Use plastic wrap for tender-crisp vegetables. Press fresh veggies pad once. After cooking, stir, if possible. Let stand, covered, for 2 to 5 minutes. Place in casserole. Add 1-4 tbsp. water. Cover with lid for tender vegetables. Use plastic wrap cover for tender-crisp vegetables. Press fresh veggies pad twice. After cooking, stir, if possible. Let stand, covered, for 2 to 5 minutes. Frozen Veggies 0.25 - 1.25 lb Add no water. Cover with lid or plastic wrap. After cooking, stir and let stand, covered, for 3 minutes. Popcorn 1 package

Use only popcorn packaged for the microwave. Try several brands to decide which you like. Do not try to pop unpopped kernels. Baked Potato 1 - 8 med. Pierce with fork in several places. Place on paper towel on turntable. After cooking, remove from oven and let stand wrapped in foil for 5 to 10 minutes. Sensor Reheat 4 - 36 oz Place in dish or casserole slightly larger than amount to be reheated. Flatten, if possible. Cover with lid, plastic wrap or wax paper. Use covers such as plastic wrap or lids with larger quantities of more dense foods such as stews. After reheating, stir well, if possible. Re-cover and allow to stand 2 to 3 minutes. Foods should be very hot. If not, continue to heat with variable power and time.E

Sensor Cook You can cook many foods by pressing the sensor cook pad and the food number. You don’t need to calculate cooking time or power level.

• Suppose you want to cook ground meat. Procedure Step Press

1. Press sensor cook

pad, number 1 for ground meat. sensor cook

1. Sensor Cook can be programmed with More

or less time adjustment. See page 25.

2. The final result will vary according to the food

condition (e.g. initial temperature, shape, quality). Check food for temperature after heating. If additional time is needed, continue to heat manually.

3. Stay near the oven while it’s in use and check

cooking progress frequently so that there is no chance of overcooking food. Sensor Cook chart Food Amount Procedure

1. Ground Meat 0.25 - 2.0 lb Use this setting to cook ground beef or turkey as patties or in a

casserole to be added to other ingredients. Place patties on a microwave-safe rack and cover with wax paper. Place ground meat in a casserole and cover with wax paper or plastic wrap. When oven stops, turn patties over or stir meat in casserole to break up large pieces. Re-cover and press START. After cooking, let stand, covered, for 2 to 3 minutes.

2. Rice 0.5 - 2.0 cups

Place rice into a deep casserole dish and add double quantity of water. Cover with lid or plastic wrap. After cooking, stir, cover and let stand 3 to 5 minutes or until all liquid has been absorbed. Rice Water Size of casserole dish .5 cup 1 cup 1.5 quart 1 cup 2 cups 2 quart

3. Fish/Seafood 0.25 - 2.0 lb Arrange in ring around shallow glass dish (roll fillet with edges

underneath). Cover with plastic wrap. After cooking, let stand, covered, 3 minutes.

4. Frozen Entrees 6 - 17 oz Use this pad for frozen, convenience foods. It will give satisfactory

results for most brands. You may wish to try several and choose your favorite. Remove package from outer wrapping and follow package directions for covering. After cooking, let stand, covered for 1 to 3 minutes.

0.5 - 2.0 lb Cover with vented plastic wrap. When oven stops, turn over. Shield

with small, flat pieces of aluminum foil any areas that are cooking too rapidly. Re-cover and press START. After cooking, let stand, covered 3 to 5 minutes. Chicken should be 160˚F. Sensor ModesE

Your oven has convenient pads to assist with meal preparation. The Auto Cook settings will automatical- ly compute the correct cooking time and microwave power level for foods shown in the following charts.

• Suppose you want to heat 1 cup of water. Procedure Step Press Press beverage pad 2 times. beverage x 2 Auto Cook chart Food Amount Procedure Pizza 1 - 6 slices (6 - 8 oz) Use this setting to reheat refrigerated leftover pizza, 1 slice is approxi- mately 1/8th of a 12-inch pizza or 1/12th of a 16-inch pizza. If possible, place on paper towel on a microwave-safe rack. Press pizza pad to select number of slices. Beverage 0.5 - 2.0 cups This setting is good for restoring a cool beverage to a better drinking temperature. Stir liquid briskly before and after heating to avoid "eruption". Press beverage pad once for a 0.5 cup increase per press. Snacks

Pizza 1 (6 - 8 oz) Use for frozen microwave pizza. Remove from package and unwrap. Follow package directions for use of package and/or silver crisping disc. Press snacks pad and the number 1. Press START.

3 - 4 oz Use for frozen French fries, cheese sticks, appetizers etc. Remove from

outer package. Follow package directions for how to wrap or cover. Be careful when removing from the oven as snack may be very hot. Press snacks pad and the number 2. Press START.

5 - 6 oz Use for frozen French fries, cheese sticks, appetizers etc. Remove from

outer package. Follow package directions for how to wrap or cover. Be careful when removing from the oven as snack may be very hot. Press snacks pad and the number 3. Press START. NOTES

1. All Auto Cook settings can be programmed

with More or less time adjustment. Press the power level pad once or twice before press- ing START pad. See page 25.

2. Each food has a cooking hint. Press user pref

pad when the HELP indicator is lighted in the display.

3. Should you attempt to enter more or less than

the allowed amount, an error message will appear in the display. More or less than the quantity listed in the chart should be cooked following the guide- lines in any microwave cookbook.

4. The final cooking result will vary according

to the food condition (e.g. initial temperature, shape, quality). Check food for temperature after cooking. If additional time is needed, continue to cook manually. Auto CookE

Food Amount Procedure Kid's Meals

Place frozen chicken nuggets on a flat plate allowing space between each, cover foods with paper towel. Press kid's meal pad and the number

1. Enter weight and press START. After cooking, open door, rearrange,

close door and press START. Let stand, covered, for 1 to 3 minutes.

2. Hot Dogs 1 - 6 Place hot dog in bun. Wrap each with paper towel or napkin. Press

kid's meal and the number 2. Press number 2 to select quantity and press START.

6 - 8 oz Use this pad for frozen, convenience foods. It will give satisfactory results

for most brands. You may wish to try several and choose your favorite. Remove package from outer wrapping and follow package directions for covering. Press kid's meal and the number 3. Press START. After cooking, let stand, covered for 1 to 3 minutes. Auto Cook chart (cont.) Auto CookE

Reheat Pasta / Reheat Breads Reheat Pasta / Reheat Breads chart Food Amount Procedure Reheat Pasta 1 - 6 cups Use this pad to reheat refrigerated canned or homemade pasta with sauce. For room temperature pastas, use Less option. Pasta without sauce double the quantity per setting. For example, measure 2 cups of cooked noodles and program for 1 cup. Cover with lid or plastic wrap. Press reheat pasta to select number of cups. After cooking, let stand, covered, 2 to 3 minutes. Reheat Breads

1 - 10 Use this pad to warm rolls, muffins, biscuits, bagels etc. Large items

should be considered as 2 or 3 regular size. Arrange on plate; cover with paper towel. For refrigerated rolls or muffins, it may be necessary to double the entered amount to ensure the proper serving temperature. For example, enter quantity of 2 for 1 refrigerated muffin. Touch number 1 pad to increase quantity and press START.

1 - 10 Use this pad to warm frozen rolls, muffins, biscuits, bagels, etc. Large

items should be considered as 2 or 3 regular size. Arrange on plate, cover with paper towel. Touch number 2 pad to increase quantity and press START. The reheat settings automatically computes the cor- rect warming and heating time and microwave power level for foods shown in the chart below.

• Suppose you want to heat 2 fresh rolls or muffins. Procedure Step Press

1. Press reheat breads.

reheat breads settings. (Ex: touch number 1 for fresh rolls or muffins)

number pad to increase quantity.

1. To reheat different foods or foods above

or below the quantity allowed, use manual operation.

2. Reheat settings can be programmed with

More or less time adjustment. See page 25. Auto CookE

Quick Settings (soften and melt) automatically compute the correct heating time and microwave power level for softening and melting foods shown in the chart.

• Suppose you want to melt 1 square of chocolate. Procedure Step Press

1. Press melt pad once. melt

2. Select desired food by

number pad to select quantity. Ex: Press number 2 two more times for 1 square.

Quick settings chart Food Amount Procedure Soften

1/2 gallon DO NOT COVER. After pressing soften, press number 1 two times for 1 pint. After pressing soften, press number 1 three times for 1/2 gallon.

2. Cream Cheese 3 oz

8 oz After pressing soften, press number 2 two times for 3 oz. After pressing soften, press number 2 three times for 8 oz. Melt

1/2 cup Use a Pyrex measuring cup. Cover with plastic wrap. After pressing melt, press number 1 two times for 2 tbsp. After pressing melt, press number 1 three times for 1/2 cup.

2. Chocolate 1 cup chips

1 square After pressing melt, press number 2 two times for 1 cup chips. After pressing melt, press number 2 three times for 1 square. NOTES

1. To soften or melt other food or foods except

the quantity listed in the Quick settings Chart, use manual operation.

2. Quick Settings can be programmed with More

Defrost Defrost chart Food Amount Procedure

1. Ground Meat 0.5 - 3.0 lb Remove any thawed pieces after each stage. Let stand, covered, for

0.5 - 4.0 lb After each stage, rearrange and if there are warm or thawed portions,

shield with small flat pieces of aluminum foil. Remove any meat or fish that is almost defrosted. Let stand, covered, for 10 to 20 minutes.

3. Chicken Pieces 0.5 - 3.0 lb After each stage, rearrange pieces or remove portions should they

become warm or thawed. Let stand, covered, for 10 to 20 minutes.

Start defrosting with fat side down. After each stage, turn roast over and shield the warm portions with aluminum foil. Let stand, covered, for 30 to 60 minutes.

5. Casserole 2 - 6 cups After audible signal, stir if possible. At end, stir well and let stand,

covered, for 5 to 10 minutes.

After audible signal, stir if possible. At end, stir well and let stand, covered, for 5 to 10 minutes. Defrost automatically defrosts all the foods found in the Defrost chart below.

• Suppose you want to defrost a 2.0 pound steak. Procedure Step Press

1. Press defrost pad and

2. Enter weight by pressing

the number pads 2 and 0. Ex: 2.0 lb steak.

oven will stop so the food can be checked. START

4. After the 1st stage, open

the door. Turn steak over and shield any warm portions. Close the door. Press START pad. START

5. After the 2nd stage, open

the door. Shield any warm portions. Close the door. Press START pad. START After defrost cycle ends, let stand, covered. NOTES

To defrost other food or foods above or below the weights allowed on the Defrost chart, use time and 30% power. See Manual defrost on page 14.

2. Defrost can be programmed with More or less

time adjustment. Press the power level pad once or twice before pressing START pad.

3. Press user pref pad when the HELP indicator

is lighted in the display for a helpful hint.

4. If you attempt to enter more or less than the

amount as indicated in the chart below, an error message will appear in the display.

5. Check foods when oven signals. After final

stage, small sections may still be icy. Let stand to continue thawing. Do not defrost until all ice crystals are thawed.

6. Shielding prevents cooking from occurring

before the center of the food is defrosted. Use small smooth strips of aluminum foil to cover edges and thinner sections of the food. Other Special FeaturesE

Keep warm allows you to keep food warm for 30 minutes. Direct use

• Suppose you want to keep a cup of soup warm for 30 minutes.ProcedureStep Press1. Press keep warm pad. keep warm

2. Enter the desired time.

3. Press START pad. START

The oven will start. The display will show 30.00 and count down. KEEP WARM will be displayed during the countdown.You can program Keep warm with manual cooking to keep food warm continuously after cooking. With manual cooking

• Suppose you want to cook a cup of soup for 2 minutes at 70% and keep the soup warm for 15 minutes.ProcedureStep Press1. Enter cooking time.

3. Press keep warm pad.

4. Enter the desired time by pressing the number pads 1, 5, 0 and 0 for 15 minutes.

The operation will start. When the cooking time is complete, a long tone will sound and Keep warm will start. KEEP WARM will appear in the display every 10 seconds and count down for 15 minutes. NOTE Keep warm cannot be programmed with Other Special Features. Keep warm Other Special FeaturesE

User pref User pref provides 4 features that make using your oven easy because specific instructions are provided in the interactive display.

The Child Lock prevents unwanted oven operation such as by small children. The oven can be set so that the control panel is deactivated or locked. To set, press user pref, the number 1 and then press the START pad. Should a pad be touched, CHILD LOCK ON will appear in the display. To cancel, press user pref and STOP/CLEAR pad.

2. AUDIBLE SIGNAL ELIMINATION

If you wish to have the oven operate with no audible signals, press user pref, the number 2 and STOP/CLEAR.To cancel and restore the audible signal, press user pref, the number 2 and START.

If you wish to program your oven to begin cooking automatically at a designated time of day, follow this procedure:• Suppose you want to start cooking a stew for 20 minutes on 50% at 4:30. Before setting, check to make sure the clock is showing the correct time of day.ProcedureStep Press1. Press user pref pad. user pref

3. Enter the start time.

set clockProcedureStep Press5. Enter cooking time.

NOTES 1. Auto Start can be used for manual cooking if clock is set.2. If the oven door is opened after program-ming Auto Start, it is necessary to press the START pad for Auto Start time to appear in the readout so that the oven will automatically begin programmed cooking at the chosen Auto Start time.3. Be sure to choose foods that can be left in the oven safely until the Auto Start time. Acorn or butternut squash are often a good choice.

4. LANGUAGE SELECTION

The oven comes set for English and U.S. Customary Unit-pounds. To change, press user pref and the number 4. Continue to press the number 4 until your choice is selected from the table below. Then, press START pad.Number Language Standard of weightOnce English LB Twice English KG 3 times Spanish LB 4 times Spanish KG 5 times French LB 6 times French KG Convenient FeaturesE

More or less time adjustment Should you discover that you like any of the Sensor Modes, Auto Cook, Quick Settings or Defrost slightly more done, press the power level pad once after pressing your choice of pads or before pressing START pad. The display will show MORE. Should you discover that you like any of the Sen- sor Modes, Auto Cooks, Quick Settings or Defrost slightly less done, press the power level pad twice after pressing your choice of pads or before pressing START pad. The display will show LESS. Quick Start quick start is a short-cut method to set time for 1-6 minutes at power level 10.

• Suppose you want to heat a cup of soup for two minutes. Procedure Step Press Press number 2 pad.

The oven will start immediately and will signal then turn off automatically when finished. Add 30 Seconds add 30 seconds provides a convenient way to extend cooking time by 30 seconds while the oven timer is counting down. It will add 30 seconds to the time shown each time the pad is pressed. This pad may also be used as a quick start for 30 seconds of cooking. No need to press START, the oven will start immediately. Help Each setting has a cooking hint. If you wish to check, press user pref whenever HELP is lighted in the Interactive Display for these and other manual operation hints. Multiple sequence cooking Your oven can be programmed for up to 4 automatic cooking sequences, switching from one power level setting to another automatically. Sometimes cooking directions tell you to start on one power level and then change to a different power level. Your oven can do this automatically.

• Suppose you want to cook roast beef for 5 minutes at 100% and then continue to cook for 30 minutes at 50%. Procedure Step Press

1. Enter cooking time.

once for 100% power. power level x 1

3. Enter second cooking

6 times for 50% power. power level x 6

5. Press START pad. START

NOTE If 100% is selected as the final sequence, it is not necessary to press the power level pad. Convenient FeaturesE

• Suppose you want to time a 3-minute long dis- tance phone call. Procedure Step Press

1. Press timer on-off.

3. Press timer on-off. The

timer will count down. To cancel the timer, press the STOP/CLEAR pad once. timer on-off NOTE timer on-off operates as a kitchen timer and cannot be used when the oven is operating. Demonstration mode To demonstrate, press set clock, the number 0 and then press the START pad and hold for three sec- onds. DEMO ON will appear in the display. Cooking operations and specific special features can now be demonstrated with no power in the oven. For example, press add 30 seconds pad and the display will show .30 and count down quickly to END. To cancel, press set clock, the number 0 and STOP/ CLEAR pads. If easier, unplug the oven from the electrical outlet and replug. Convenient FeaturesE

Exterior Clean the outside with mild soap and water; rinse and dry with a soft cloth. Do not use any type of household or abrasive cleaner. Door Wipe the window on both sides with a damp cloth to remove any spills or spatters. Metal parts will be easier to maintain if wiped frequently with a damp cloth. Avoid the use of spray and other harsh cleaners as they may stain, streak or dull the door surface. Stainless Steel Trim-Kit Cleaners which are marked specifically for use with stainless steel may be used for stainless steel trim-kit. Follow package directions exactly. Avoid the use of any harsh cleaners or one not marked for stainless steel use as they may stain, streak or dull surface. Touch Control Panel Wipe the panel with a cloth dampened slightly with water only. Dry with a soft cloth. Do not scrub or use any sort of chemical cleaners. Close door and press STOP/CLEAR. Interior Cleaning is easy because little heat is generated to the interior surfaces; therefore, there is no baking and setting of spills or spattering. To clean the interior surfaces, wipe with a soft cloth and warm water. DO NOT USE ABRASIVE OR HARSH CLEANERS OR SCOURING PADS. For heavier soil, use baking soda or a mild soap; rinse thoroughly with hot water. The rack can be cleaned with hot soapy water, rinsed and dried. Waveguide Cover The waveguide cover is made from mica so requires special care. Keep the waveguide cover clean to assure good oven performance. Carefully wipe with a damp cloth any food spatters from the surface of the cover immediately after they occur. Built-up splashes may overheat and cause smoke or possibly catch fire. Do not remove the waveguide cover. Odor Removal Occasionally, a cooking odor may remain in the oven. To remove, combine 1 cup water, grated peel and juice of 1 lemon and several whole cloves in a 2-cup glass measuring cup. Boil for several minutes using 100% power. Allow to set in oven until cool. Wipe interior with a soft cloth. Turntable/Turntable Support The turntable and turntable support can be removed for easy cleaning. Wash them in mild, sudsy water; for stubborn stains use a mild cleanser and non abrasive scouring sponge. They are also dishwasher-proof. Use upper rack of dishwasher. The turntable motor shaft is not sealed, so excess water or spills should be wiped up immediately. Disconnect the power cord before cleaning or leave the door open to inactivate the oven during cleaning. Cleaning And CareE

Please check the following before calling for service: Place one cup of water in a glass measuring cup in the oven and close the door securely. Operate the oven for one minute at HIGH 100%. A Does the oven light come on? YES ____ NO ____ B Does the cooling fan work? (Put your hand over the rear ventilating openings.) YES ____ NO ____ C Is the water in the oven warm? YES ____ NO ____ If “NO” is the answer to any of the above ques- tions, please check electrical outlet, fuse and/ or circuit breaker. If they are functioning prop- erly, CONTACT YOUR NEAREST ELECTROLUX AUTHORIZED SERVICER. A microwave oven should never be serviced by a “do-it-yourself” repair person. NOTE If time appearing in the display is counting down very rapidly, check Demonstration Mode on page 26 and cancel. Service Call CheckE

EI24MO45I AC Line Voltage: UL & CSA Rating, Single phase 120V, 60Hz, AC only AC Power Required: UL & CSA Rating, 1500 watts, 13.0 amps. Output Power:* 1100 watts Frequency: 2450 MHz Outside Dimensions: 24

• The International Electrotechnical Commission’s standardized method for measuring output wattage. This test method is widely recognized. ** Internal capacity is calculated by measuring maximum width, depth and height. Actual capacity for holding food is less

In compliance with standards set by: FCC - Federal Communications Commission Authorized. DHHS - Complies with Department of Health and Human Services (DHHS) rule, CFR, Title 21, Chapter I, Subchapter J. - This symbol on the nameplate means the product is listed by Underwriters Laboratories, Inc. for use in USA or Canada. SpecificationsE

Warranty Information Major Appliance Warranty Information Your appliance is covered by a one year limited warranty. For one year from your original date of purchase, Electrolux will repair or replace any parts of this appliance that prove to be defective in materials or workmanship when such appliance is installed, used, and maintained in accordance with the provided instructions. In addition, the magnetron tube of your appliance is covered by a two through five year limited warranty. During the 2nd through 5th years from your original date of purchase, Electrolux will provide a replacement magnetron tube for your appliance which has proven to be defective in materials or workmanship when your appliance is installed, used, and maintained in accordance with the provided instructions.Exclusions This warranty does not cover the following:1. Products with original serial numbers that have been removed, altered or cannot be readily determined.2. Product that has been transferred from its original owner to another party or removed outside the USA or Canada.3. Rust on the interior or exterior of the unit.4. Products purchased “as-is” are not covered by this warranty.5. Food loss due to any refrigerator or freezer failures.6. Products used in a commercial setting. 7. Service calls which do not involve malfunction or defects in materials or workmanship, or for appliances not in ordinary household use or used other than in accordance with the provided instructions.8. Service calls to correct the installation of your appliance or to instruct you how to use your appliance. 9. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves, etc., which are not a part of the appliance when it is shipped from the factory. 10. Service calls to repair or replace appliance light bulbs, air filters, water filters, other consumables, or knobs, handles, or other cosmetic parts. 11. Labor or in-home service costs during the additional limited warranty periods beyond the first year from your original date of purchase.12. Pickup and delivery costs; your appliance is designed to be repaired in the home. 13. Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip charges, or mileage expense for service calls to remote areas, including the state of Alaska. 14. Damages to the finish of appliance or home incurred during transportation or installation, including but not limited to floors, cabinets, walls, etc. 15. Damages caused by: services performed by unauthorized service companies; use of parts other than genuine Electrolux parts or parts obtained from persons other than authorized service companies; or external causes such as abuse, misuse, inadequate power supply, accidents, fires, or acts of God.DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIESCUSTOMER’S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE REPAIR OR REPLACEMENT AS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW, BUT NOT LESS THAN ONE YEAR. ELECTROLUX SHALL NOT BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN LIMITED WARRANTY OR ANY IMPLIED WARRANTY. SOME STATES AND PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES, SO THESE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. THIS WRITTEN WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE.If You Need Service Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty period should service be required. If service is performed, it is in your best interest to obtain and keep all receipts. Service under this warranty must be obtained by contacting Electrolux at the addresses or phone numbers below. This warranty only applies in the USA, Puerto Rico and Canada. In the USA and Puerto Rico, your appliance is warranted by Electrolux Major Appliances North America, a division of Electrolux Home Products, Inc. In Canada, your appliance is warranted by Electrolux Canada Corp. Electrolux authorizes no person to change or add to any obligations under this warranty. Obligations for service and parts under this warranty must be performed by Electrolux or an authorized service company. Product features or specifications as described or illustrated are subject to change without notice. USA 1-877-435-3287 Electrolux Home Products, Inc., 10200 David Taylor Drive Charlotte, NC 28262 Canada 1-800-265-8352 Electrolux Canada Corp. 5855 Terry Fox Way Mississauga, Ontario, Canada L5V 3E4

reheat breads. reheat breads

timer on-off. timer on-off

set clock. set clock

reheat breads. reheat breads

timer on-off. timer on-off
