WK 3458 - Kettle SEVERIN - Free user manual and instructions

USER MANUAL WK 3458 SEVERIN

GB Instructions for use

FR Mode d'emploi

Tea and water kettle 15

Bouilloire eau-thé 25

Thee en waterkoker 36

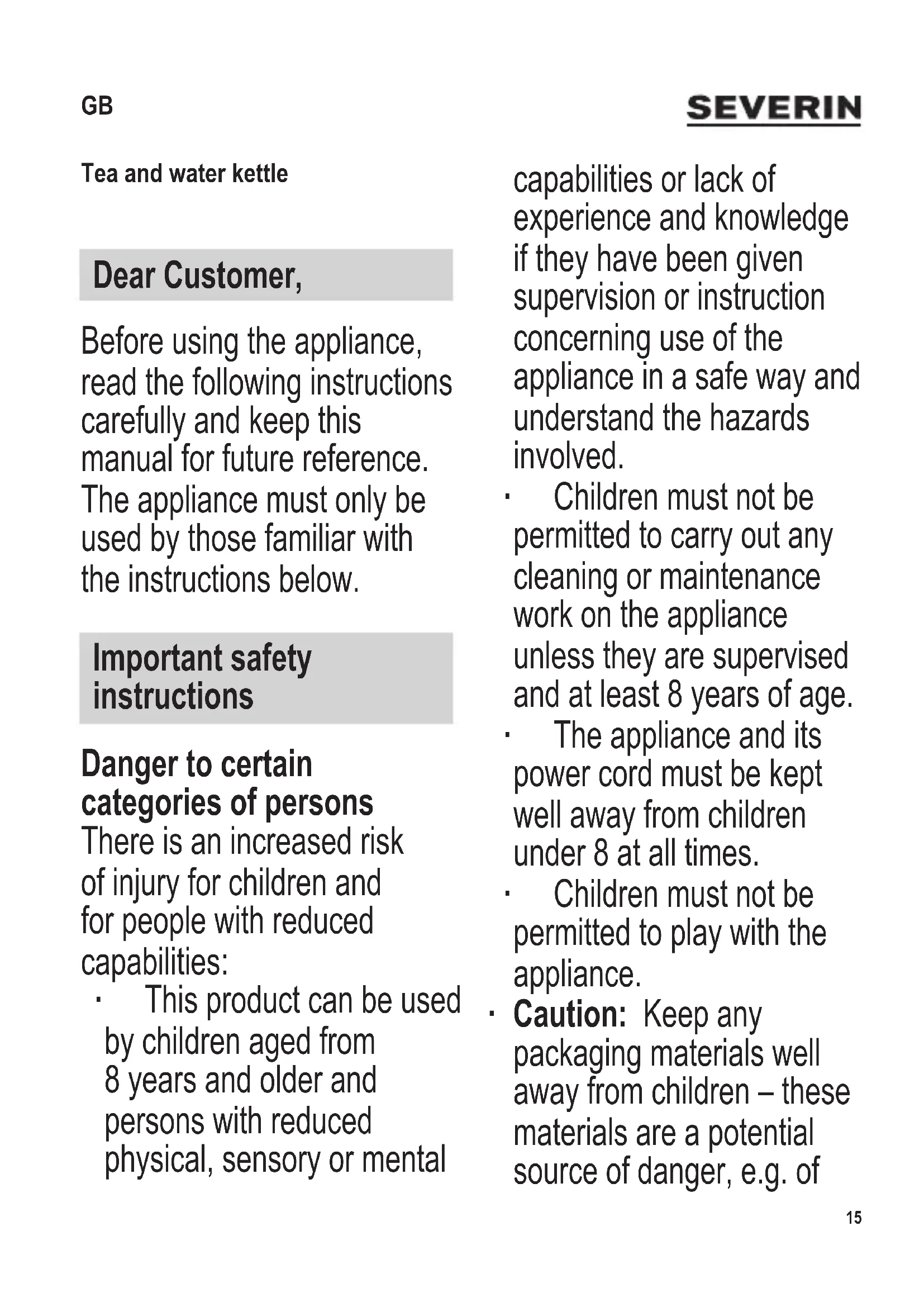

Tea and water kettle

Dear Customer,

Before using the appliance, read the following instructions carefully and keep this manual for future reference. The appliance must only be used by those familiar with the instructions below.

Important safety instructions

Danger to certain categories of persons

There is an increased risk of injury for children and for people with reduced capabilities:

- This product can be used by children aged from 8 years and older and persons with reduced physical, sensory or mental

capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

- Children must not be permitted to carry out any cleaning or maintenance work on the appliance unless they are supervised and at least 8 years of age.

- The appliance and its power cord must be kept well away from children under 8 at all times.

- Children must not be permitted to play with the appliance.

- Caution: Keep any packaging materials well away from children – these materials are a potential source of danger, e.g. of

suffocation.

Risk of electric shock

The device is powered by electricity, and so there is always a risk of electric shock. The following precautions are therefore to be taken:

- Every time the appliance is used, the main body including the power cord as well as any attachment fitted should be checked thoroughly for any defects. Should the appliance, for instance, have been dropped onto a hard surface, or if excessive force has been used to pull the power cord, it must no longer be used: even invisible damage may have adverse effects on the operational safety of the appliance.

- The appliance should only be connected to a socket installed in accordance with the regulations. Make sure that the supply voltage corresponds with the voltage marked on the rating label.

- Always remove the plug from the wall socket

- after use, - in case of any malfunction, - before cleaning the appliance.

- When removing the plug from the wall socket, never pull on the power cord; always grip the plug itself.

- Do not touch the plug with wet hands.

- Warning! The electrical connections in the base must be protected at all times against possible contact with water.

• Do not clean the water container and the base with liquids and do not immerse them; do not clean under running water.
• The kettle may only be operated with the base provided with the appliance.
• Never remove the water container from the base (or replace it) while the appliance is switched on.

Danger of burns and scalding

• The exterior surfaces become hot during use and will remain so for some time afterwards.
• Only operate the kettle under supervision and with pure water. It is essential to observe the minimum (0.2 l) and maximum (0.5 l) markings for the filling

quantity. Overfilling may cause boiling water to splash out.

• Also beware of the danger of scalding from hot steam being emitted. Therefore, do not touch any parts of the appliance except the handle during use.
• During the boiling process and when pouring out hot water, the lid must be kept closed at all times.
• Descale the appliance regularly. With heavily calcified appliances, there is a risk of water splashing out of the spout.

Lack of hygiene

Lack of hygiene may result in germs forming inside the appliance:

- Clean the appliance thoroughly before using it for the first time.

• Before cleaning the appliance, ensure it is disconnected from the power supply and has cooled down completely.
• The appliance must be descaled at regular intervals. Clean the water container as necessary with a damp cloth.
  • Detailed information on cleaning the appliance can be found in the section Cleaning and care.

Danger of damage to the unit

Incorrect handling of the appliance can cause damage

which is impervious to contact with the rubber feet.

- Do not operate the appliance below a hanging cupboard or similar object; there is a risk that escaping steam may be trapped underneath

- Do not let the power cord hang free.

- Do not kink or pinch the power cord. Keep both the cord and the appliance itself well away from heat sources (eg hot-plates, gas flames).

Intended use

• Always let the appliance The appliance must only cool down first before be used for heating clean, re-filling with fresh water. fresh water and for making
• Always place the unit ohot beverages. a dry, level, non-slip and • Warning! Any other use not heat-resistant surface, stated in the instructions

(misuse) is considered as not intended and can cause severe personal injury or damage to the appliance.

- This appliance is intended for domestic or similar applications, such as

• in staff kitchens in shops, offices and other similar working environments,
• in agricultural working environments,
• by customers in hotels, motels etc. and similar accommodation,
• in bed-and breakfast type environments.

- Do not leave the appliance unattended while connected.

In case of a defective appliance

A defective appliance can cause material damage and injury:

- Check the appliance for damage before every use. Do not operate if the appliance shows any sign of damage.

- In the event that you detect damage, please contact our customer service department by phone or email (see appendix).

- Repairs to this appliance or its power cord must only be carried out by our customer service.

Overview and parts included

1. Lid
2. Lid opener
3. Handle with control panel
4. Water container
5. Power cord with plug
6. Base
7. Lime filter

Control panel

1. On/Off button
2. Indicator light Heating-up
3. Temperature button
4. Indicator light Keeping-warm
5. Selector button Keeping-warm7
   Heating-up

13. Display

Thermal safety cut-out

The pre-set thermal safety cut-out protects the heating element from overheating should the appliance be erroneously switched on without any water, or if the heating plate is calcified. If the safety cut-out has been activated, the appliance cannot be switched on again. In such a case, the appliance must be allowed to cool down, or must be descaled, before it is switched on again.

Temperature selection

The appropriate temperature for the particular type of tea can be selected using the Temperature button on the control panel.

Water temperatures for making tea

We recommend the following temperatures:

Green tea : 70-80 °C

White tea : 80 °C

Oolong tea : 90 °C

Black tea : 100 °C

Herbal tea : 100 °C

Note: Please also refer to the tea manufacturer's instructions.

• The current water temperature in the container ( ≥ 20 ^ ) is shown on the display.
• Pressing the Temperature button repeatedly increases the temperature selection in 5-degree steps.
• If a temperature is selected during heating that is below the temperature

in the water container, the appliance cannot be started and a signal tone will sound.

- Temperatures below 40 °C cannot be selected.

Automatic switch-off

Unless the keep-warm function has been selected, the kettle will switch off automatically around 15 minutes after the last operation.

In the keep-warm mode, it switches off after 30 minutes.

Before using for the first time

• Unpack the appliance completely and remove all packaging materials.
• For hygienic reasons, throw away the first boiled filling of the new kettle.

Operation

Heating water

• Remove the water container from the base, press the lid opener and open the lid.
• Fill the water container with the desired amount of water. It is essential to observe the Minimum (0.2 l) and Maximum (0.5 l) markings for the filling quantity.
• Close the lid.
• Place the container back on its base.
• Insert the plug into a suitable wall socket.
• A beep signal is heard and the display shows C, followed by the current water temperature inside the container. The indicator light Heating-up 📋 starts

flashing. The appliance is now in Stand-by mode.

- Use the Temperature button 🔒 to set the desired temperature, and then confirm by pressing the On/Off button ⏻. The indicator light 🎨comes on. The display shows the selected temperature, followed by the current temperature.

• The appliance heats the water and switches off as soon as the selected temperature is reached. A signal tone will sound and the control light will go out.
• The boiling process may be interrupted by pressing the On/Off button ☐The appliance is now in Stand-by mode.
• To pour hot water, remove the container from its base.
• To prevent hot steam from being emitted, ensure that the lid remains closed while pouring out the water.
• Remove the plug from the wall outlet after use.
• Do not leave any residual water in the container.

Quick-Boil function

When placing the water container onto the base and pressing the button, the water is heated to 100 °C without the need to set a temperature.

Keep-warm function

• The kettle comes with a keep-warm function.
• To activate the keep warm function, first press the button until the keep warm indicator light flashes.

- Use the Temperature button ⚙ to select a temperature between 40 and 90 °.

• Press to confirm.
• The control light will light up.
• The appliance heats the water and switches off as soon as the selected temperature is reached. A signal tone will sound and the control light will go out.
• The water is kept warm for about 30 minutes.
• This function is automatically cancelled once the water container is removed from the base.

Heating and keeping warm

If the button is pressed while the water is being heated, the water is kept warm at the set temperature (max. 90°C) after heating.

Power cord wind-up storage

The wind-up power cord storage under the base allows the length of the power cord to be limited during use and to be stored.

Descaling

• Depending on the water quality in your area, lime deposits may build up on the heating element. It is advisable to remove any such deposits at regular intervals.
• Any warranty claim will be null and void if the appliance malfunctions because of insufficient descaling.

• A mixture of 300 ml water and 20 ml vinegar essence is suitable for descaling:

• Pour the descaler in.

• Switch the appliance on and let the solution reach boiling point.
• Leave it to take effect for a short period.

• To clean the container after descaling, rinse thoroughly with clean water.

• During descaling, ensure sufficient ventilation and do not inhale any vinegar vapours.

• Do not pour descalers down enamel-coated sinks.

Cleaning and care

• Before cleaning the appliance, ensure it is disconnected from the power supply and has cooled down completely.
• To avoid the risk of electric shock, do not clean the water container and the base with liquids and do not immerse them. Do not clean under running water.
• For cleaning, a slightly damp, lint-free cloth may be used.
• Do not use abrasives or harsh cleaning solutions, and do not use hard brushes for cleaning.

Lime filter

• If there is heavy build-up, the lime filter can be removed from the spout and cleaned with a soft brush.
• Put the lime filter back in place after cleaning. To do this, first hook the lime filter into the upper edge from the inside and then press the lower part of the filter in.

Disposal

Devices marked with this symbol must be disposed of separately from your household waste, as they contain valuable materials

which can be recycled. Proper disposal protects the environment and human health. Your local authority or retailer can provide information on the matter.

Guarantee

This product is guaranteed against defects in materials and workmanship for a period of two years from the date of purchase. Under this guarantee the manufacturer undertakes to repair or replace any parts found to be defective, providing the product is returned to one of our authorised service centres. This guarantee is only valid if the appliance has been used in accordance with the instructions, and provided that it has not been modified, repaired or interfered with by any unauthorised person, or damaged through misuse.

This guarantee naturally does not cover wear and tear, nor breakables such as glass and ceramic items, bulbs etc. This guarantee does not affect your statutory rights, nor any legal rights you may have as a consumer under applicable national legislation governing the purchase of goods. If the product fails to operate and needs to be returned, pack it carefully, enclosing your name and address and the reason for return. If within the guarantee period, please also provide the guarantee card and proof of purchase.

Trouble shooting

Problem Cause Remedy
Functions cannot be activated.	Appliance is not plugged in.	Connect appliance to mains.
	Socket is defective. Check the socket with a different appliance.
	Appliance is not placed on base correctly.	Position it properly.
	Safety cut-out is activated.	Appliance needs to cool down or be descaled.
Water doesn’t heat up, and beep signals are heard.	The water container temperature is higher than that selected.	Select a higher temperature.
Heating-up takes longer than expected.	Build-up of scale deposits.	Descale the appliance (see Descaling).
Increased noise during heating.	Build-up of scale deposits.	Descale the appliance (see Descaling).
Display shows continuous error code E....	Electrical fault in the appliance.	Contact our Customer Service.

Should you be unable to solve the problem using the table, please contact our Customer Service. The contact data can be found in the appendix to this manual.

Technical specifications
Device category, Art. no. Glass water kettle3458
Voltage 220-240 V~, 50-60 Hz
Output 900 - 1100 W
Dimensions (W x H x D) 17.5 x 19.5 x 10.5 cm
Weight 1.0 kg
Special markings
[C3xK]	Do not dispose of in domestic garbage
	This product complies with all binding CE labelling directives.
UNLOCK Lid insert release
LOCK Lid insert lock
